Calling the electrical gods

[marshal]

Anyone happen to know which wire in the tail lamp pigtails is the reverse light lead? It's apparently changed from the 4th generation, because there is no such thing as a red with yellow tracer on this *****.



[Saker]

Anyone happen to know which wire in the tail lamp pigtails is the reverse light lead? It's apparently changed from the 4th generation, because there is no such thing as a red with yellow tracer on this *****.

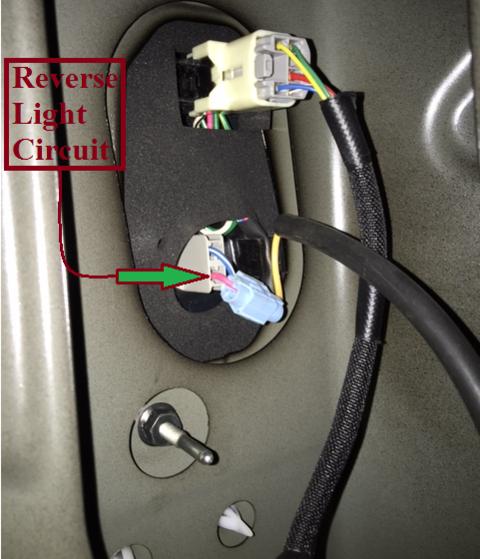

Try this....
might help, might not!



[marshal]

Thanks but it doesn't, I don't know what that's from but it's entirely different. 5th generation incandescent only uses 1 plug

If I had a multimeter and my wife wasn't planning my murder this would be a lot easier.



[tristero]

Thanks but it doesn't, I don't know what that's from but it's entirely different. 5th generation incandescent only uses 1 plug

If I had a multimeter and my wife wasn't planning my murder this would be a lot easier.

If she's successful I'm calling dibs on your bumper.



[Okki]

Green = tail light
Red = reverse light

At least on my 2010 limited.

Okki



[barryhiram]

Green = tail light
Red = reverse light

At least on my 2010 limited.

Okki

:iagree: same for 2012



[Saker]

Thanks but it doesn't, I don't know what that's from but it's entirely different. 5th generation incandescent only uses 1 plug

If I had a multimeter and my wife wasn't planning my murder this would be a lot easier.

Well damn Will, I tried...

It's from 2014 SR5 with LED stop/tails, incandescent BU light and incandescent turn signals....

Best I could do brotha!



[1engineer]

Well damn Will, I tried...

It's from 2014 SR5 with LED stop/tails, incandescent BU light and incandescent turn signals....

Best I could do brotha!

When Will replaced his headlights to 2014+ it made it hard to remember he had the original 5th gen with no LED tail lights lol.



[rigtec]

Hi [MENTION=104049]marshal[/MENTION],

The schematic diagram (2011 4Runner) shows RED as the Reverse lamps and BLK & White lead to the GND SW!

Cheers



[rigtec]

NOTE: The 2014 4Runners are exactly the same!



[marshal]

Thanks party people!
