cbielat's 2011 SR5 Build Thread

[cbielat]

COUPON CODE: CBIELAT
RECEIVE 5% OFF BLACK OAK LED LIGHT ORDER
USE COUPON CODE CBIELAT AT TIME OF CHECKOUT

BlackOakLED Lights - LED Light Bars, Mounts & Accessories – BLACK OAK LED

Instagram: cbielat


I'm computer illiterate so I copy and pasted my Excel sheet. Doesn't exactly match up well but you get the idea.

4Runner Build Revamp Spread Sheet

Other Manufacturer Name/Size/Dimensions Part Number Price Website Status Notes

FRONT SUSPENSION

Shocks Radflo 2.0" shock body/600# spring $853.00 Overland Warehouse (no longer) Removed Sold

Upper Control Arms SPC Light Racing $528.00 Overland Warehouse (no longer) Removed

CURRENT SET UP

Long Travel

Total Chaos 2" Long Travel Suspension Kit Race Series $3,500.00 offroadwarehouse.com Installed

Axle Shafts Total Chaos 2" $603.98 offroadwarehouse.com Removed

Total Chaos 2" Spare $306.00 Total Chaos Installed

Removal Pipe 16" X 1 1/4 CV Shaft Removal Tool $7.00 Home Depot Installed

Axles RCV Performance Long Travel Spec $3,000.00 rcvperformance.com Installed

Shocks

King 2.5" w/ Remove Reservoir $1,600.00 Installed

Upper Control Arms Total Chaos Included In Long Travel Kit

Lower Control Arms Total Chaos Included In Long Travel Kit

Spindle Gussets Total Chaos Weld On Spindle Gussets $60.00 chaosfab.com Installed

Cam Gussets Total Chaos Weld On Cam Tab Gussets $89.00 offroadwarehouse.com Installed

REAR SUSPENSION

First Set Up Radflo 2.0" bodies $456.00 Overland Warehouse (no Longer) Removed

Eibach 2" Lift Springs $220.00 Overland Warehouse (no longer) Removed

Daystar Rear Coil Spring Spacer $20.00 T4R.Org Member Removed

CURRENT SET UP

Long Travel

Shocks Radflo 2.5" bodies -28" extended $630.00 Off Road Parts & Accessories | Metal Tech 4x4 Installed

Springs Metal Tech Dual Rate 3" Lift Springs - Heavy $230.00 Off Road Parts & Accessories | Metal Tech 4x4 Installed

Bump Stops Metal Tech Extended $69.95 Off Road Parts & Accessories | Metal Tech 4x4 Installed

Upper Links Metal Tech $250.00 Off Road Parts & Accessories | Metal Tech 4x4 Installed

Lower Links Metal Tech Offset $325.00 Off Road Parts & Accessories | Metal Tech 4x4 Installed

Brake Lines Metal Tech Extended $60.00 Off Road Parts & Accessories | Metal Tech 4x4 Installed

Sway Bar Custom Double Disconnect $125.00 T4R.Org Forum Member Installed

Track Bar Rokmen Adjustable Track Bar $400.00 rokmenoffroad.com Installed

TIRES Good Year 285/70/17 Duratrac $1,400.00 Sears Store Installed Set 1

Good Year 285/70/17 Duratrac $1,400.00 Good Year Store Installed Set 2

Mickey Thompson 315/70/17 - 34.6" (35") Baja MTZ P3 $1,250.00 ATD Tire Distributors Installed Sponsorship Pricing

37/12.50/17 Used $60.00 Facebook Market Place Installed

Maxxis 37/12.50/17 Razr $1,300.00 www.simpletire.com Installed

WHEELS FN Wheels Countersteer Type X - 17" $900.00 http://www.fnwheels.com Installed Matte Black

Toyota Toyota Second Spare Wheel $100.00 Toyota Installed

Battle Born Wheels Bootlegger 17/9.5/17 Beadlocks $1,500.00 www.battlebornwheels.com Installed

FN Wheels Countersteer Type X - 17" Second Set $400.00 fnwheels.com Installed Gunmetal Grey - Sponsorship Pricing

BRAKES EBC Ultra Slotted Rotors $360.00 buybrakes.com Installed

EBC Green Stuff Pads $360.00 buybrakes.com Installed

Power Stop Brake Kit Second Kit $380.00 rockauto.com Installed

LOCKERS ARB Air Locker (T4R Group Buy) RD193 (Rear Only) $1,021.16 T4R.Org (Group Buy) ECGS Installed

Air Locker Front $1,040.86 eastcoastgearsupply.com

AIR ARB Onboard Compressor CKMA12 $275.24 T4R.Org (Group Buy) ECGS Installed

Viair Portable Compressor 450P $299.00 amazon.com Installed

LOCKER AIR LINES Rocky Road Front Locker 7' Stainless steel http://www.rocky-road.com/toyota-arb.html

Rocky Road Rear Locker 13' http://www.rocky-road.com/toyota-arb.html

GEARS Rear Diff Nitro four.fiftysix $299.99 T4R.Org (Group Buy) ECGS Installed

Front Front Diff Nitro four.fiftysix $285.00 T4R.Org (Group Buy) ECGS Installed

Front Diff (Driver Side) ECGS CV Input Spacer 8" Clamshell $45.00 eastcoastgearsupply.com Installed

ECGS Spacer Tool $60 eastcoastgearsupply.com

Rear Diff ECGS Master Rebuild Kit 8.2" $290.00 eastcoastgearsupply.com Installed

Front Diff ECGS Master Rebuild Kit 8" Clamshell $300 eastcoastgearsupply.com Instaled

SKIDS RCI Front Engine $220.00 http://www.rcimetalworks.com Installed

RCI Transmission $165.00 http://www.rcimetalworks.com Installed

RCI Transfer Case $220.00 http://www.rcimetalworks.com Installed

RCI 2nd Transfer Case Skid $270.00 www.rcimetaworks.com Instaed Set 2

RCI Gas Tank Skid - Aluminum $350.00 www.rcimetalworks.com Installed

Custom UHMW Sheet $201.56 www.piedmontplastics.com Instaled 1/2" thick

UHMW parts $100.00 Fastenal Instaled Bolts/bits

Toyota-Trail Edition Gas Tank No Charge Installed

Rear lower link

Rear Shocks FJTOYMAN Rear Shocks $150.00 Installed

RCI Rear Differential $250.00 rcimetalworks.com Removed Sold

Front Lower Control Arm

SLIDERS OPOR/Metal Tech $650.00 metaltech4x4.com Removed

Custom Built Myself Sliders $200.00 Grant Steele Installed $100 Steele cost / $100 Grinding/Cutting discs

BUMPER Front CBI Steel $1,700 cbioffroadfab.com Installed

Rear CBI Steel $1,400.00 http://cbioffroadfab.com Installed

CB RADIO Cobra 75 WS XT $100 amazon.com Installed

Antenna Fire Stick 3' Whip $25 amazon.com Installed

Mount Diamond K400 $40.00 amazon.com Installed

Handheld Baofeng Handheld $30.00 amazon.com Installed

FENDERS Front Fenders $88.00 http://www.partstrain.com

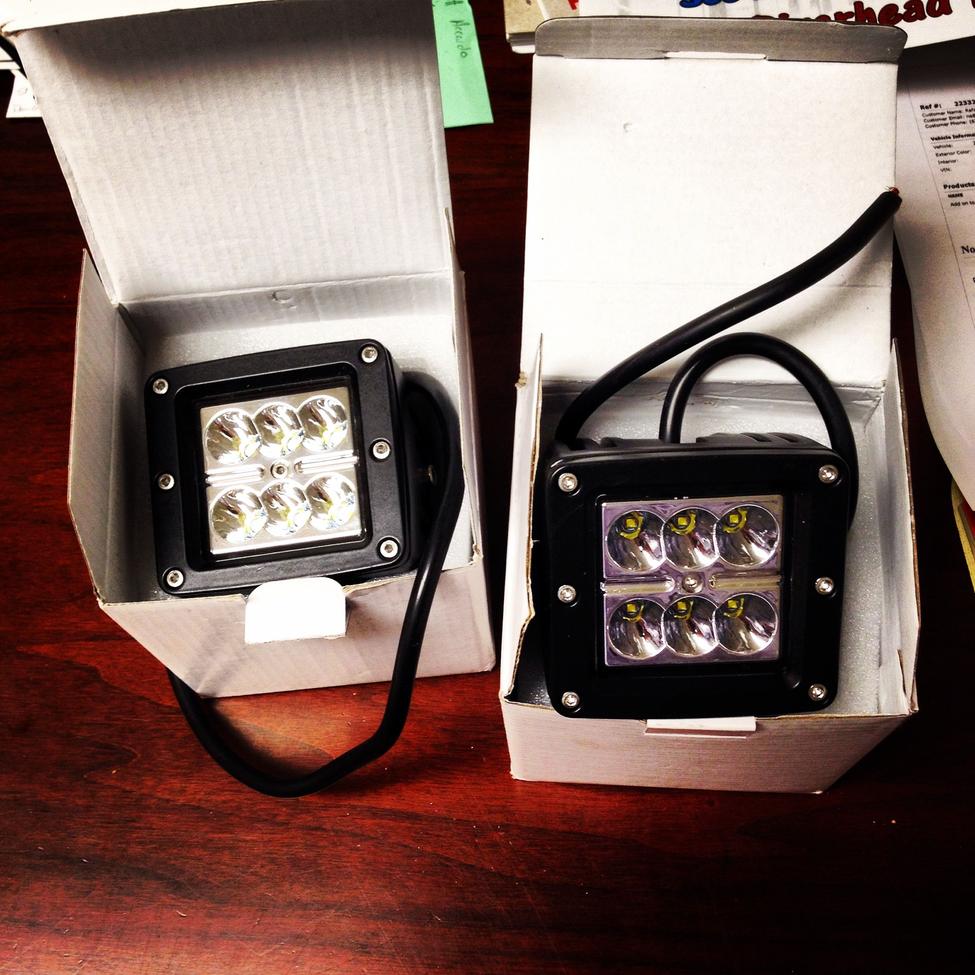

LIGHTING Rear Bumper Extreme LED Solutions 2x2 Pod LED (2) Installed

Front Bumper Black Oak LED 2x2 Pod 10W Cree (2) $159.94 blackoakled.com Installed

Black Oak LED 2x2 Amber Pod Covers (2) $17.94 blackoakled.com Installed

Ditch Light Brackets CBI Ditch Light Brackets $55.00 cbioffroadfab.com Installed

Black Oak LED 2x2 Pod 10W Cree (2) $156.00 blackoakled.com Installed Sponsorship Pricing

Black Oak LED 2x2 Amber Pod Covers (2)

WINCH Superwinch Talon 12.5 SR $900 Superwinch.com

Superwinch Solenoid Relocation Kit $100 Superwinch.com

RECOVERY

Winch Shacke Mount Winch Line Factor 55 Flatlink E $145.00 Southeast Overland

Tire Deflation ARB 505 EZ Deflator $42.00 amazon.com Installed

Snatch Strap Warn Recovery Strap $90.00 amazon.com Installed

Tire Repair Kit ARB $42.00 amazon.com Installed

D Ring Shackles N/A $20.00 Installed Stolen

Hitch Insert N/A $25.00 Installed

MISCELLANEOUS

Paint Protection 3M Front Bumper/Head Lights/Grill $350 http://www.invisiblemask.com Installed

Breather Custom Rear Diff Breather Mod $20.00 Installed

Antenna Custom Stock Antenna Block Off $5.00 Installed

Plastidip Custom Plastidip Chrome Accents $30.00 Installed

Paint Custom Spray Paint Sliders/Skids $40.00 Installed

Powertank Powertank Powertank (Air) $550.00 Installed Won in Raffle @FJ Northeasters Run

Fire Extinguisher $40.00 Installed

Roof Basket Rola Roof Basket $171.00 Amazon.com

Hi-Lift Jack Hi-Lift Jack $112.00 Amazon.com

Compressor Mount Mount Compressor Mount $86.00 Leroy from FJNE(Bandiworld)

Ladder Gobi Ladder $120.00 Private Seller

Soft Shackles Soft Shackles Southeast Overland $60.00 Installed

LCA Cam Bolts/Sleeves Toyota Cam Bolts/Sleeves $127.00 Toyota Installed

Tie Rod Ends

Outer Tie Rod Ends Toyota $93.00 Cost +10% Installed Set Three

Inner Tie Rods Toyota Installed Set Two

CV Axles Toyota CV Axles for TC Replacement Shafts Qty. 2 $640.00 Installed

Transfer Case Toyota Transfer Case Switch $56.00 Installed

Wheel Bearings & Hubs Toyota Wheel Bearings & Hubs $700.00 Toyota Installed Set One

Wheel Bearings & Hubs $220.00 rockauto.com Installed Set Three

Steering Rack Toyota $720.00 Cost +10% Installed Set Two

Bushings Lower Control Arms Total Chaos Total Chaos LC Bushings $115.54 chaosfab.com Installed Set Three

Uniballs Lower Control Arms Total Chaos Total Chaos LC Uniballs $180.00 chaosfab.com Installed Set Two

Body Lift Leroy Horwedel Bandiworld 1" Body Lift $75.00 Private Seller Installed

Skid Front Engine Skid Front Skid Bolt Spacers $2.50 homedepot.com Installed Set Two

Rod Ends Metal Tech LT End Links Currie Enterprises Johnny Joints $232.81 currieenterprise.com Installed Set Two (4)

Bushings Metal Tech LT End Links Metal Tech Bushings $39.00 metaltech4x4.com Installed Set Two

Bushings Steering Rack Bushings Whiteline Poly Bushings $53.00 energysuspension.com Installed

Bushings Rear Shock Pin Mount Radflo Rear Shock Pin Mount Bushings $43.00 radflo.com Installed First Replacement Set

Tail Light Driver Side Rear Tail Light Toyota Driver Side Rear Tail Light $137.00 Toyota Installed On Second Replacement

Storage Box Custom Myself Rear Storage Box $250.00 Home Depot Installed

LABOR

Gears/Locker ECGS/ARB $1,600.00 T Jays Transmission Installed

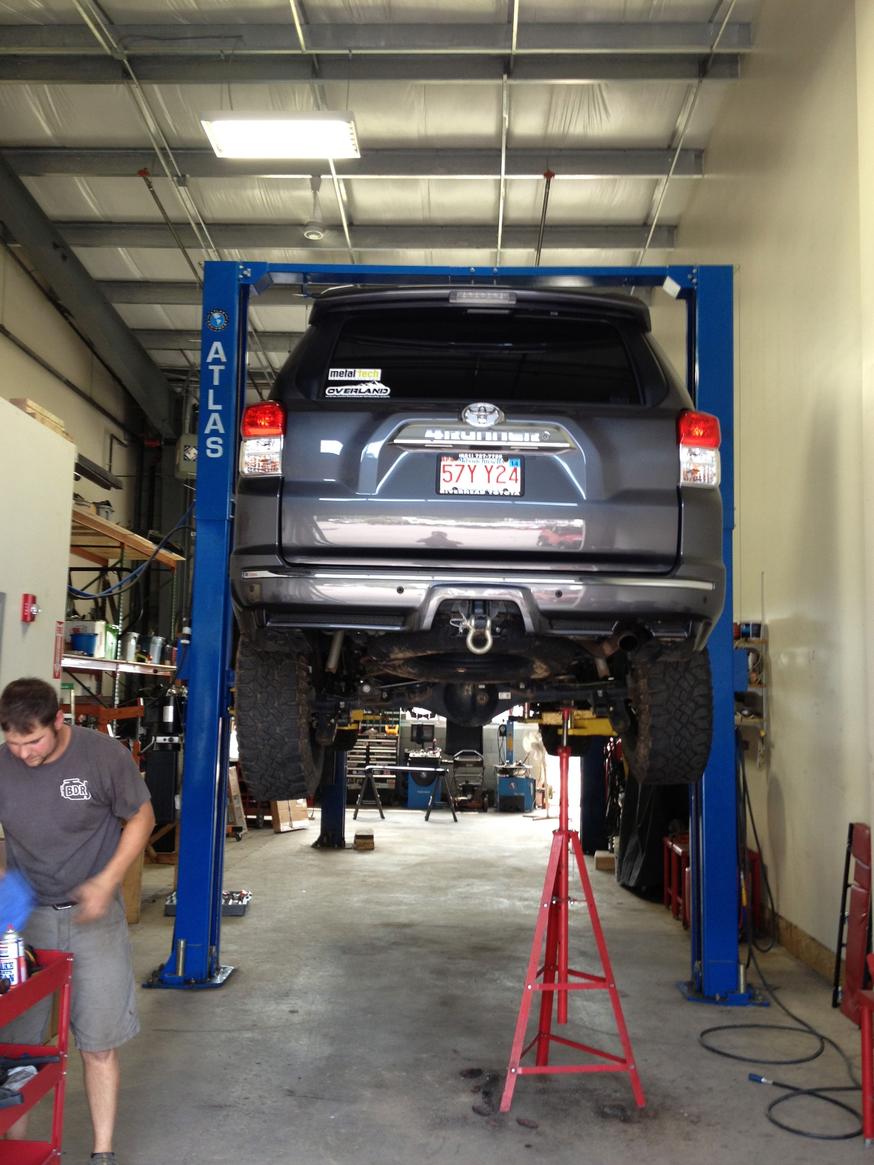

Long Travel Kit Total Chaos $1,520.00 RMS Off Road Installed

Cam Gussets Total Chaos $395.00 Eastern Welding Installed

Blown Needle Bearing Front Diff ECGS Bushing Replacement Front Diff $60.00 BDR Automotive Installed Set Two- Tjays Transmission never installed the part to begin with.

Steering Rack Replaced Steering Rack $1,200.00 BDR Automotive Installed



[850lifeguard]

That Sir is an impressive list. Can't wait to see some photos. Sub'd



[cbielat]

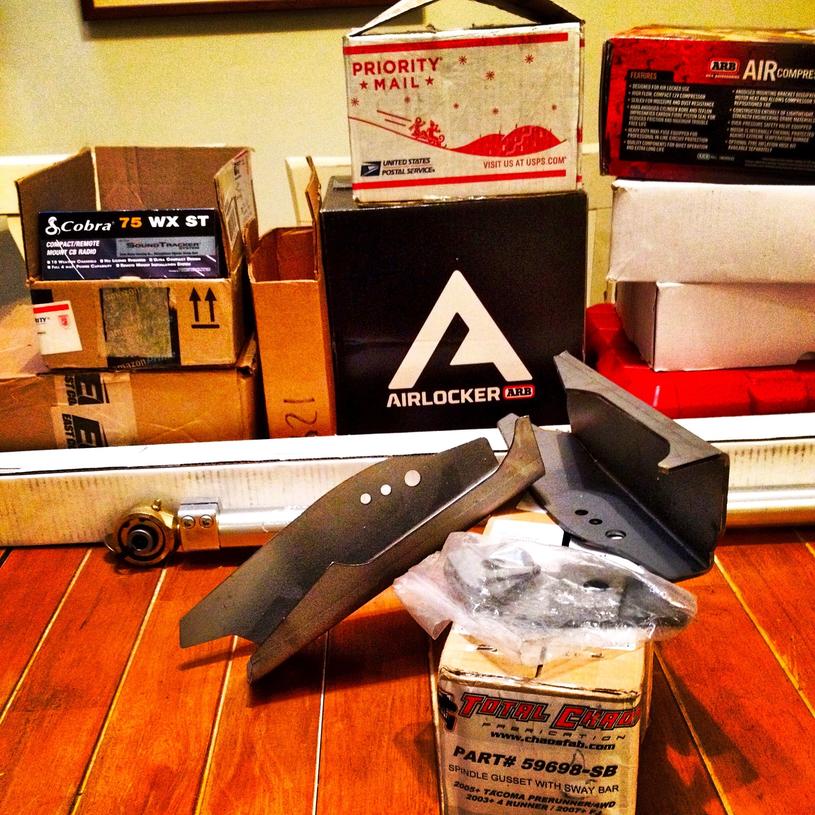

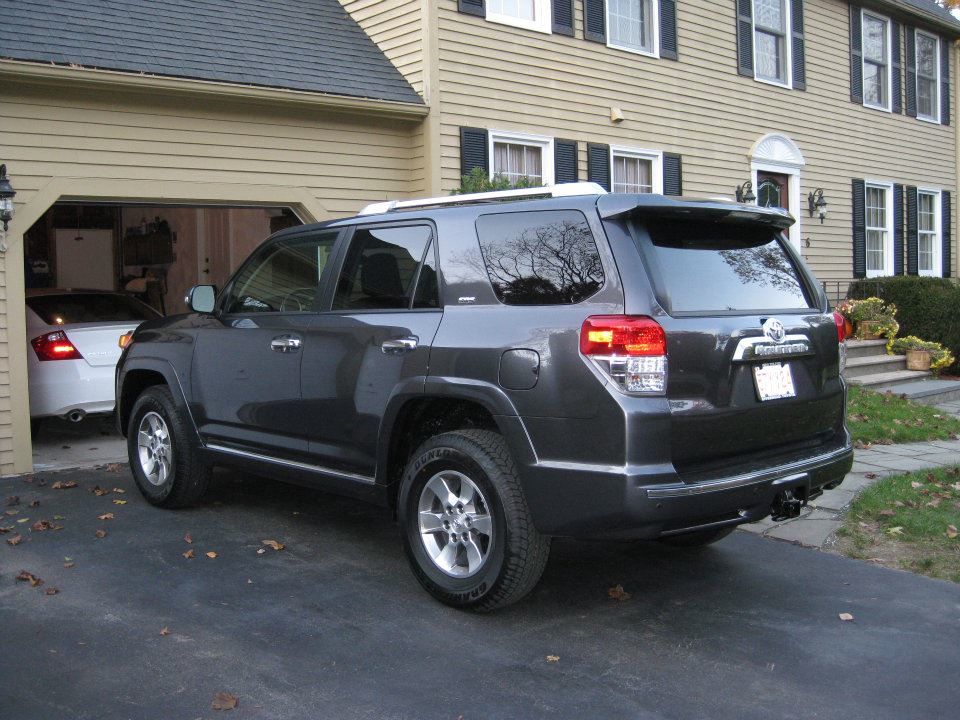

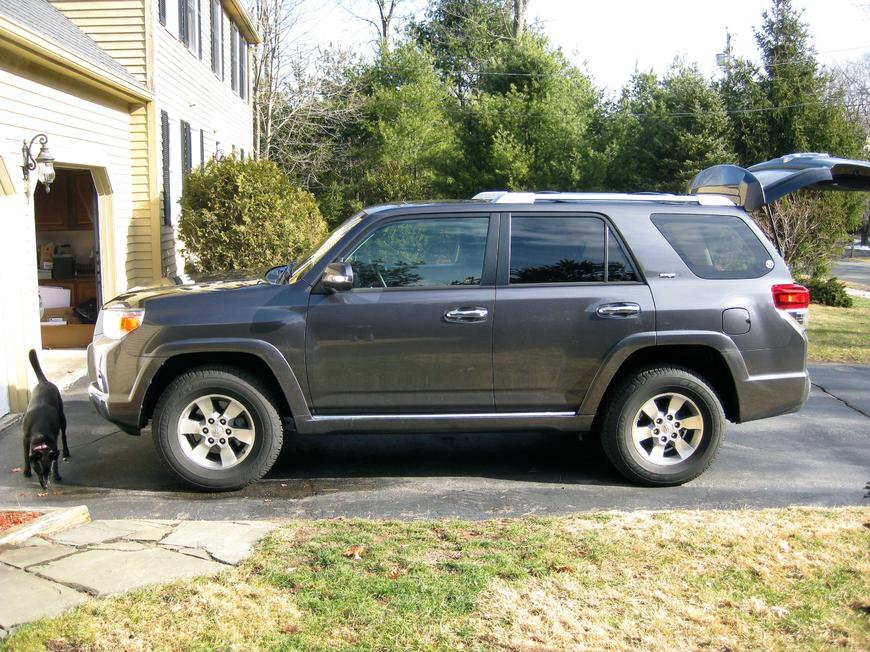

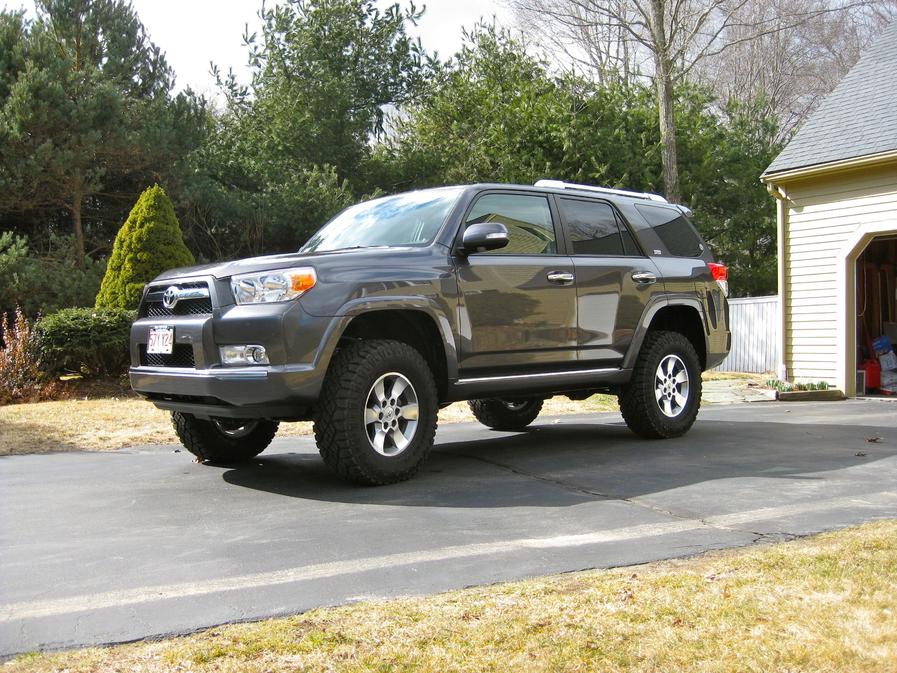

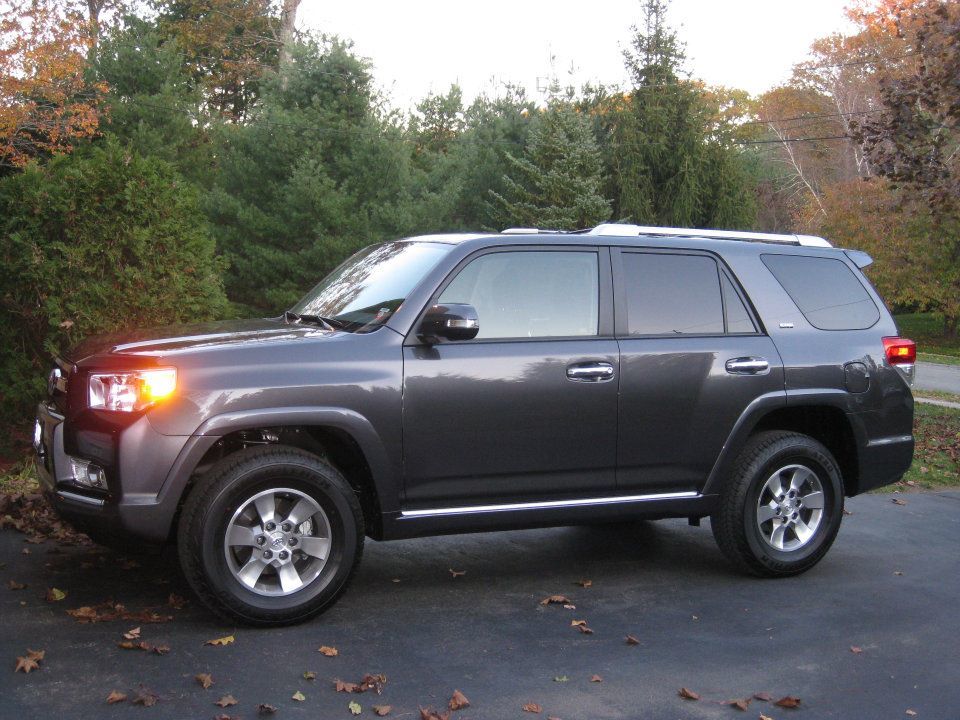

Stock Photos

Bought the truck brand new at the end of November 2011. Started the bolt on build almost immediately and has been a work in progress ever since.



[cbielat]

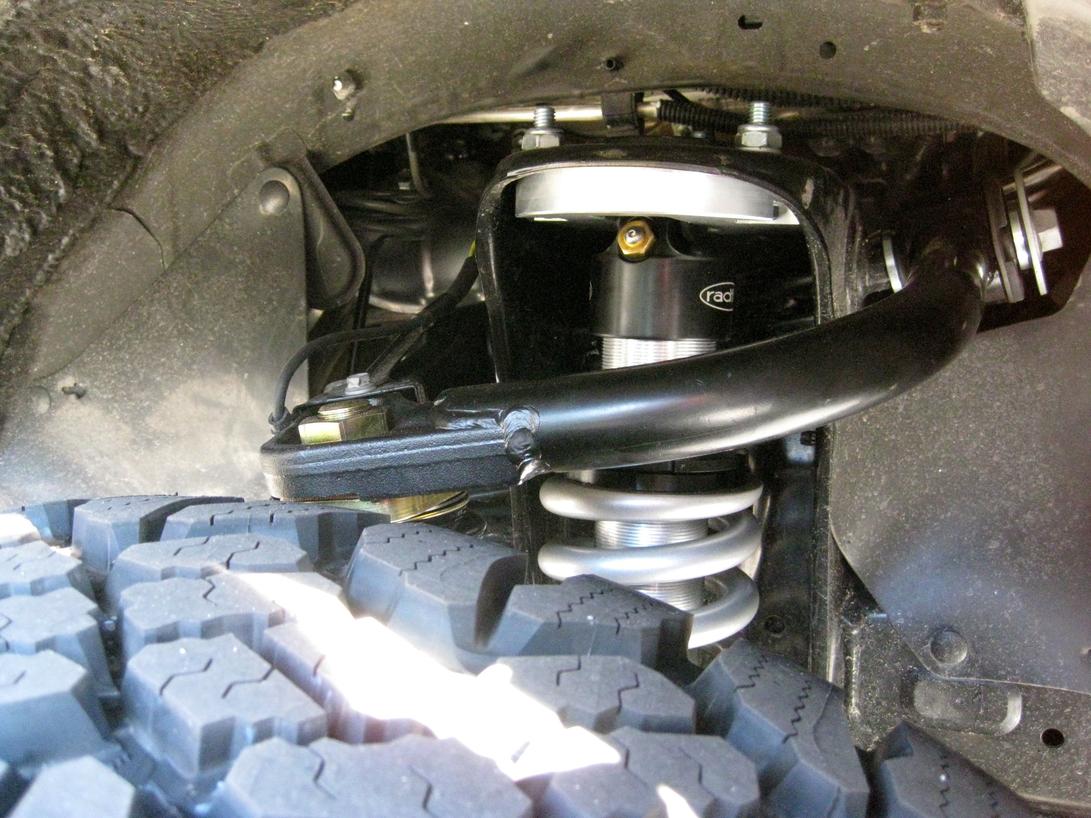

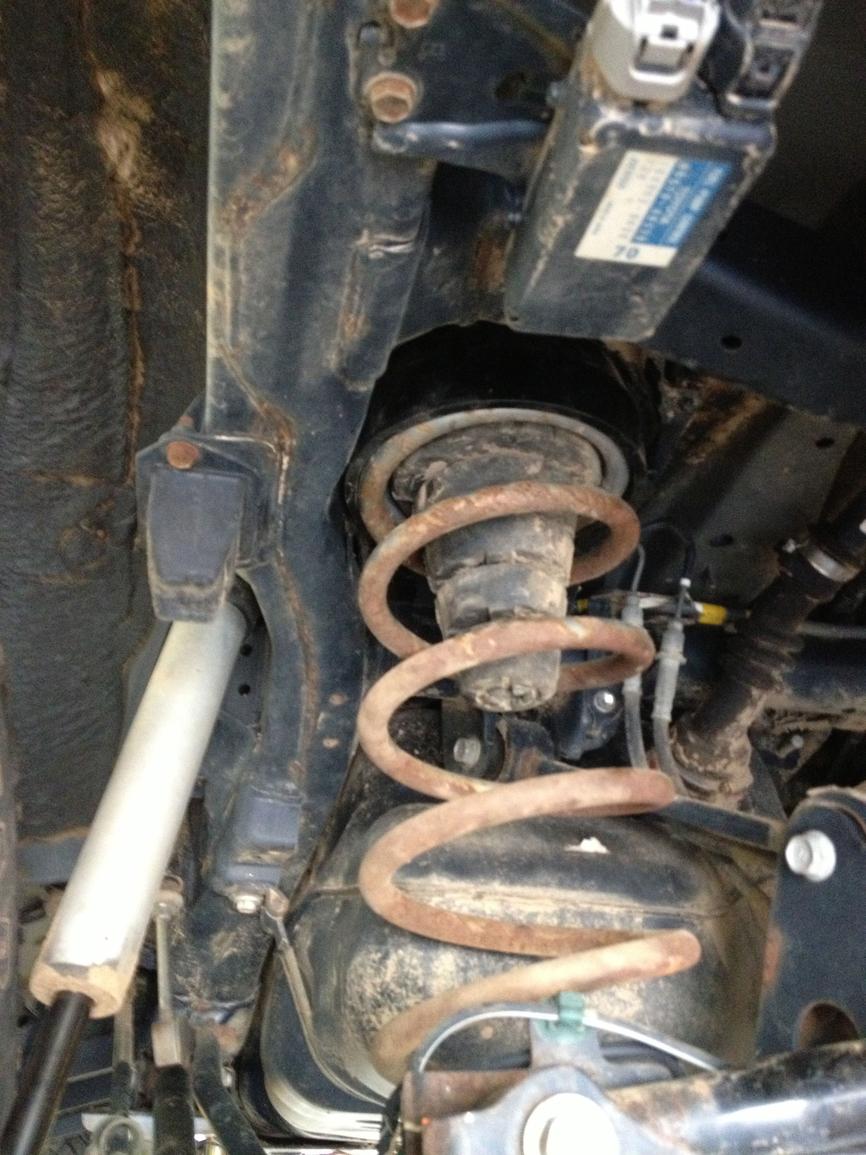

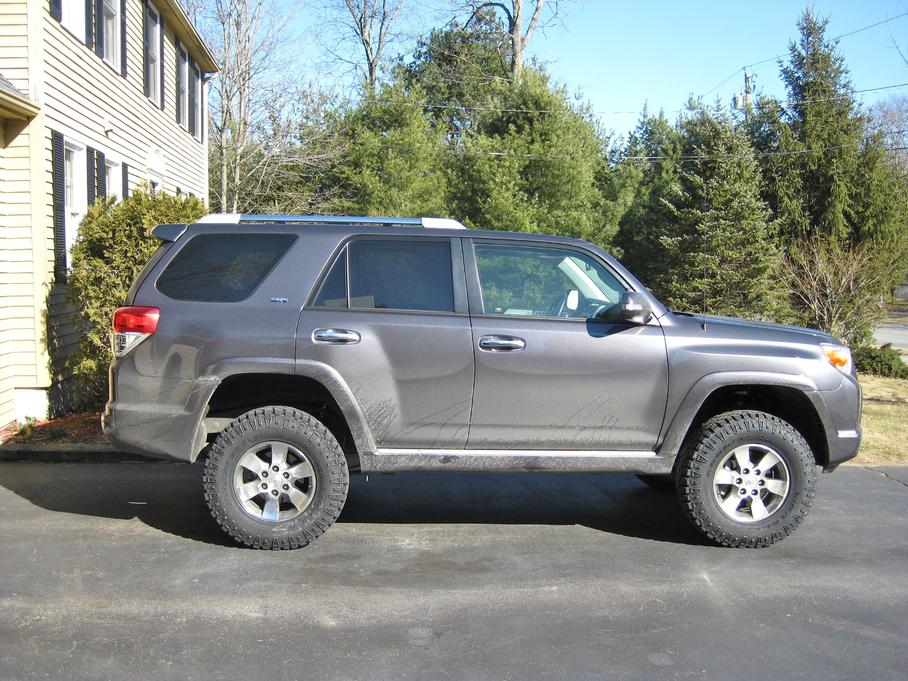

Shortly after, I purchased my Radflo 2.0 kit front and rear with SPC's Light Racing UCAs and 2" rear lift springs through Overland Warehouse, 285/70/17 Goodyear Duratracs and 17" Konig Countersteer wheels from FN Wheels.



[cbielat]

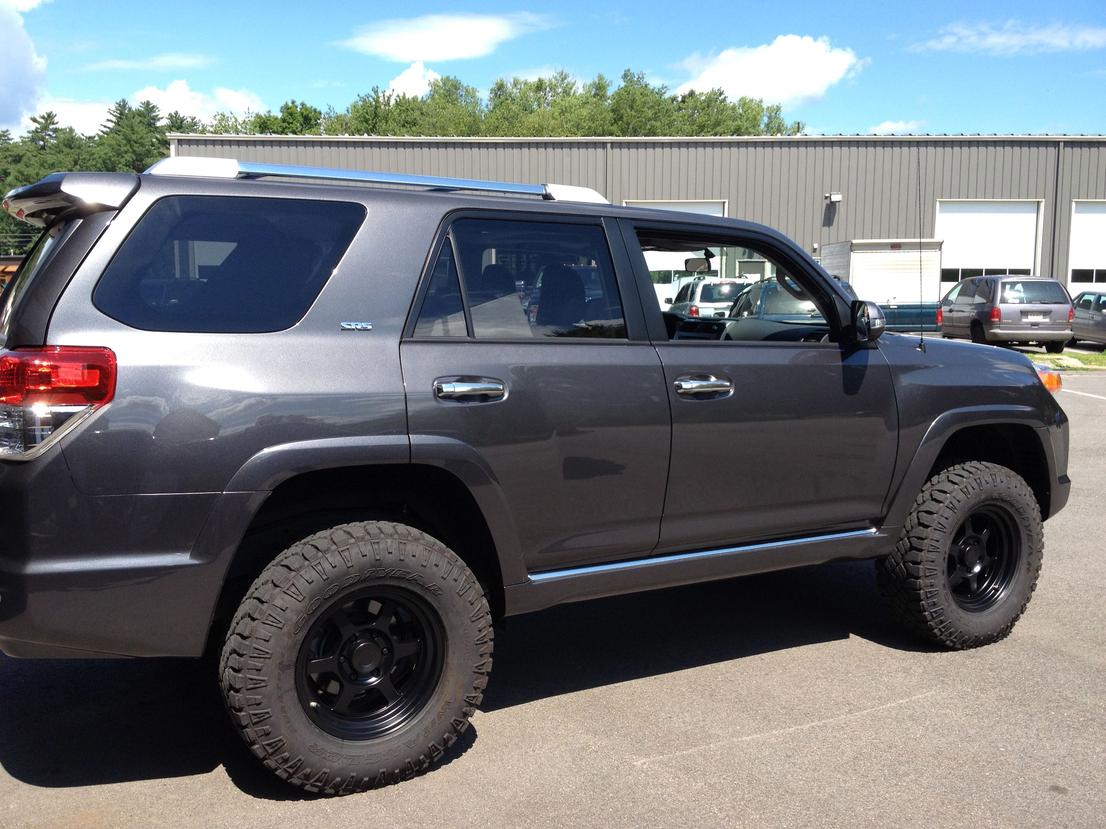

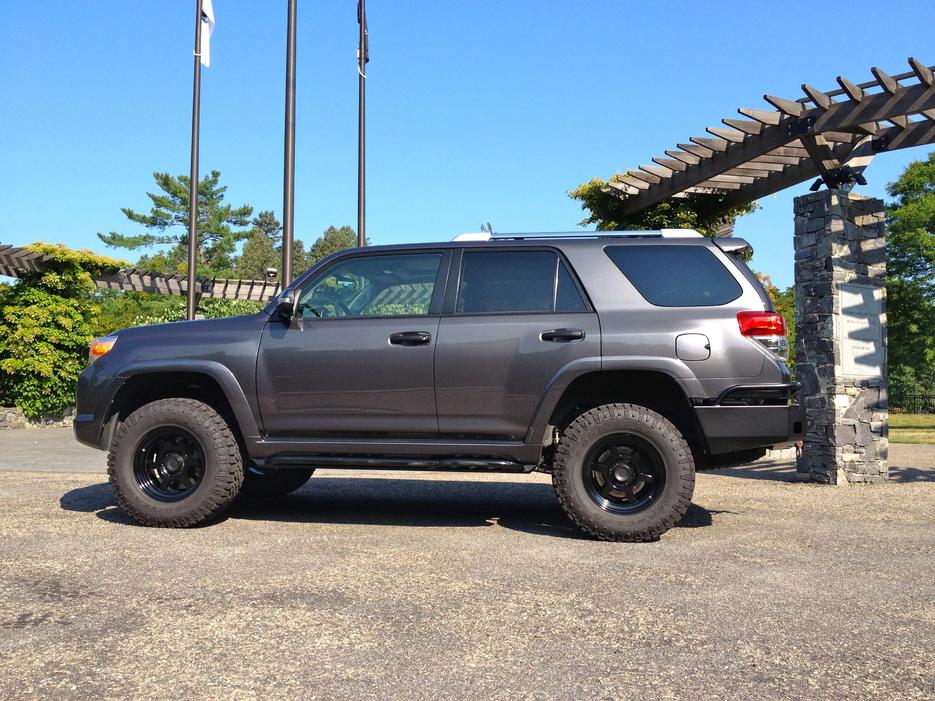

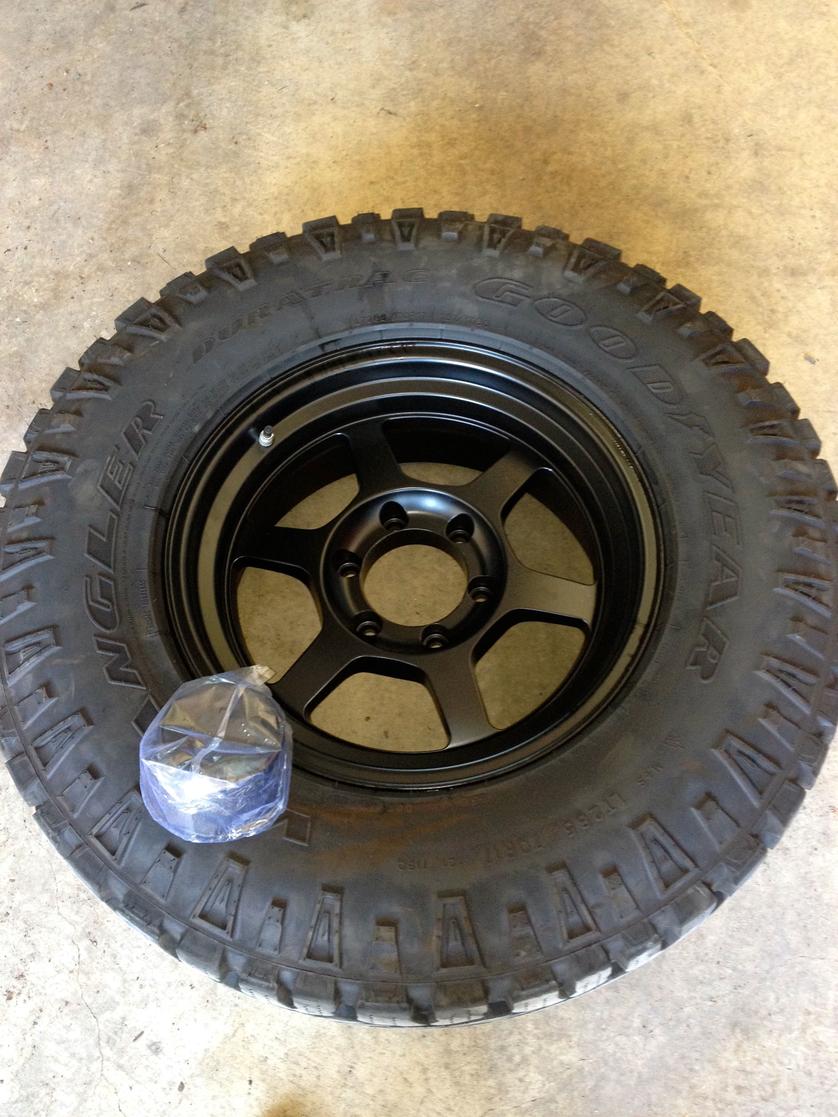

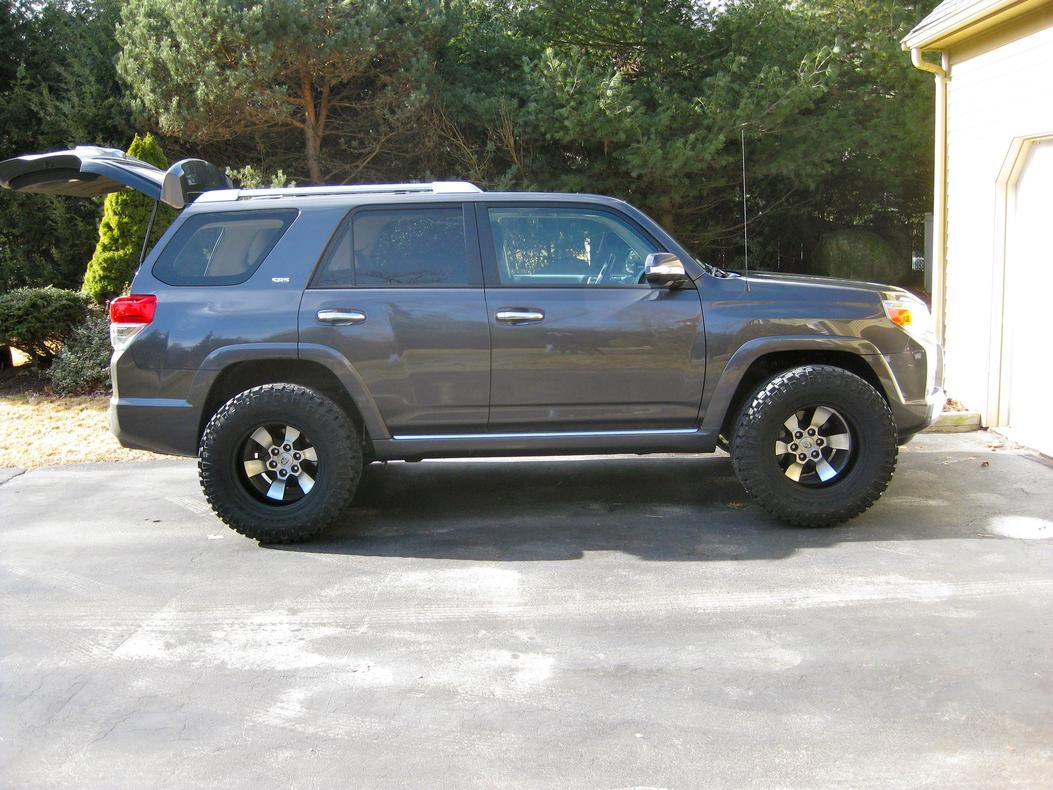

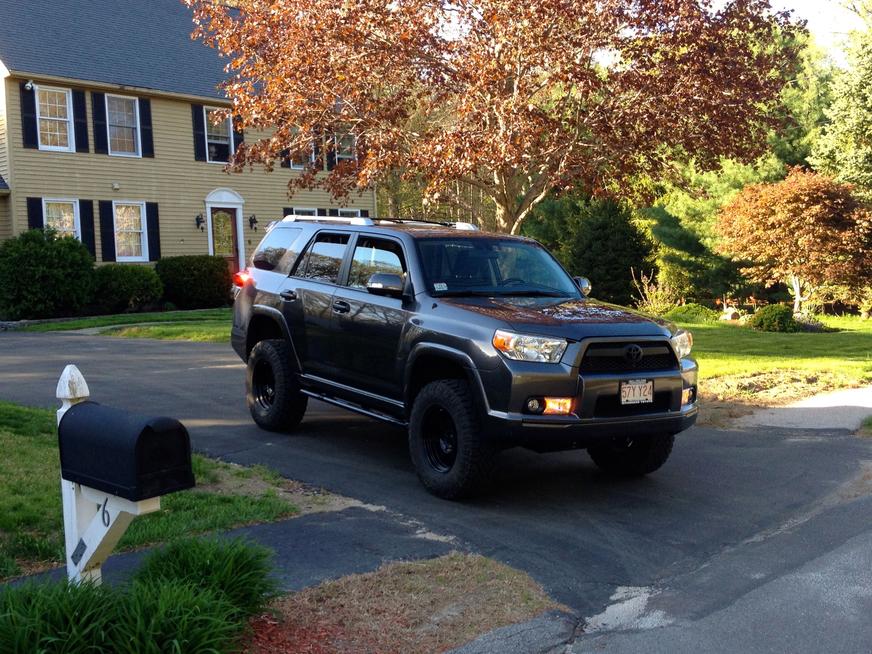

Wheels/Tires/Suspension - First set up.



[cbielat]

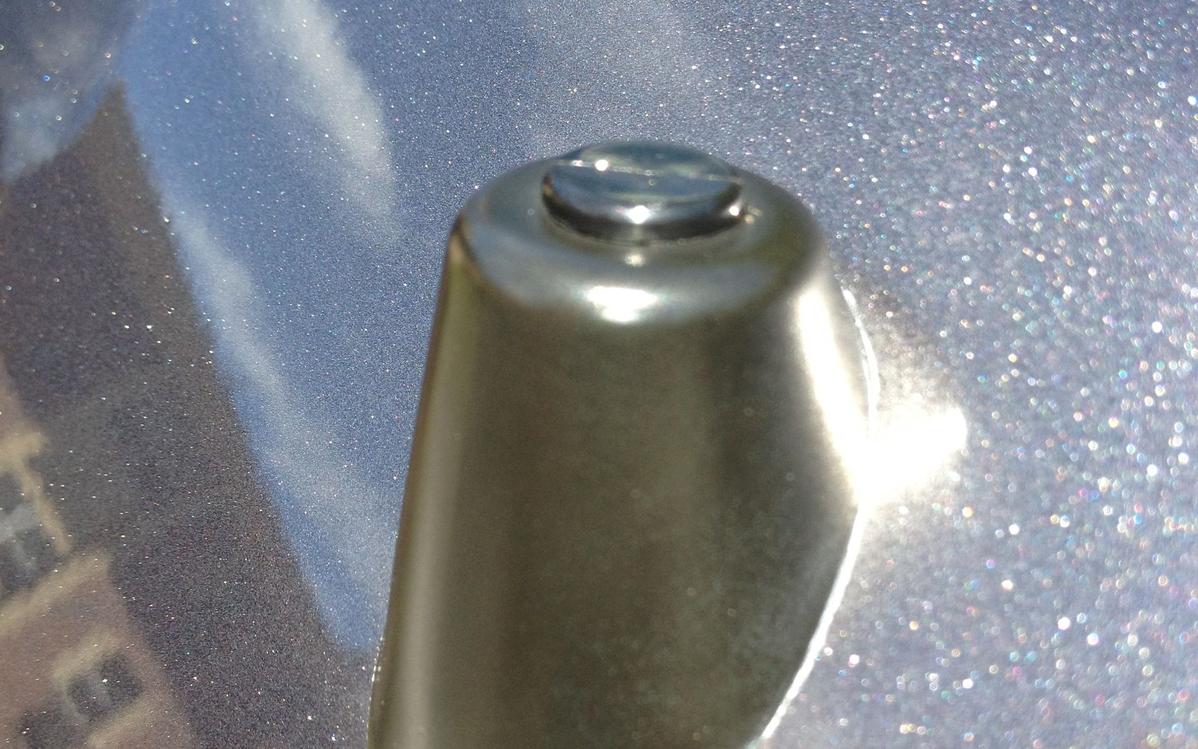

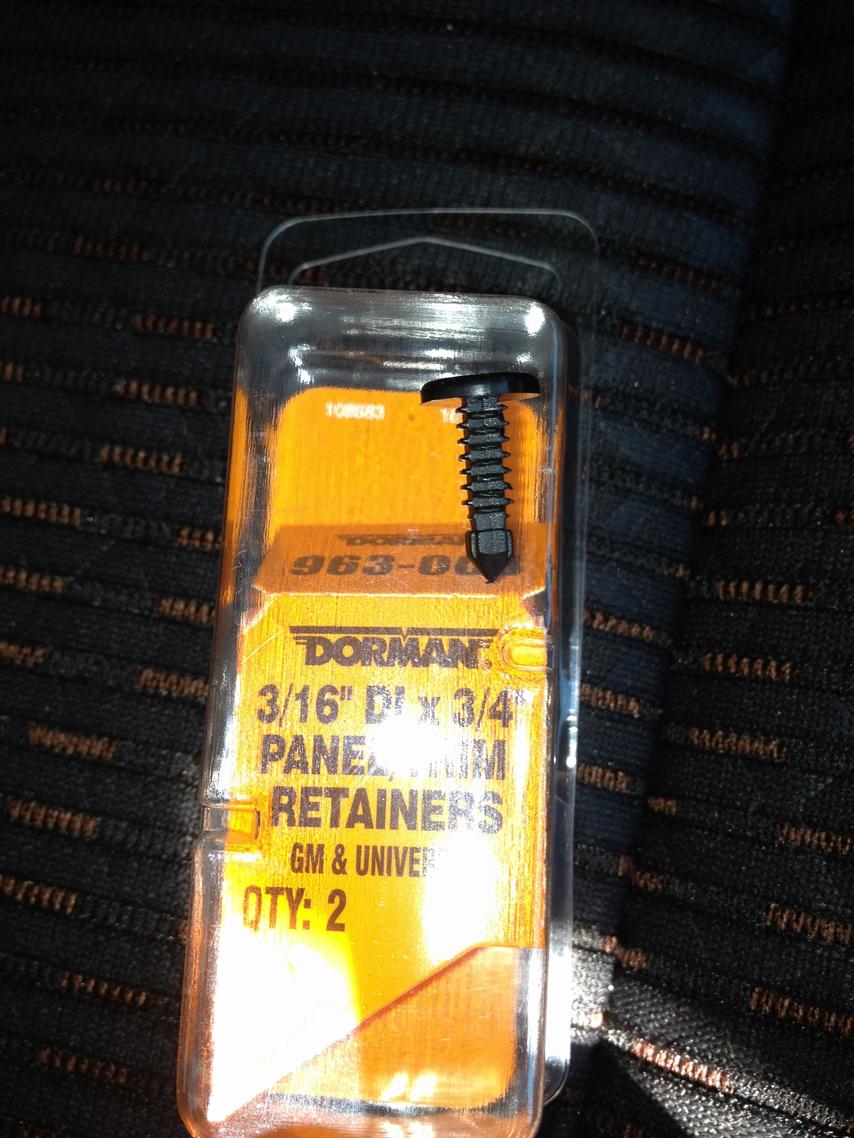

Didn't like the stock antenna so I looked for something to delete it. This is what I came up with and stuck it in the base hole.



[cbielat]

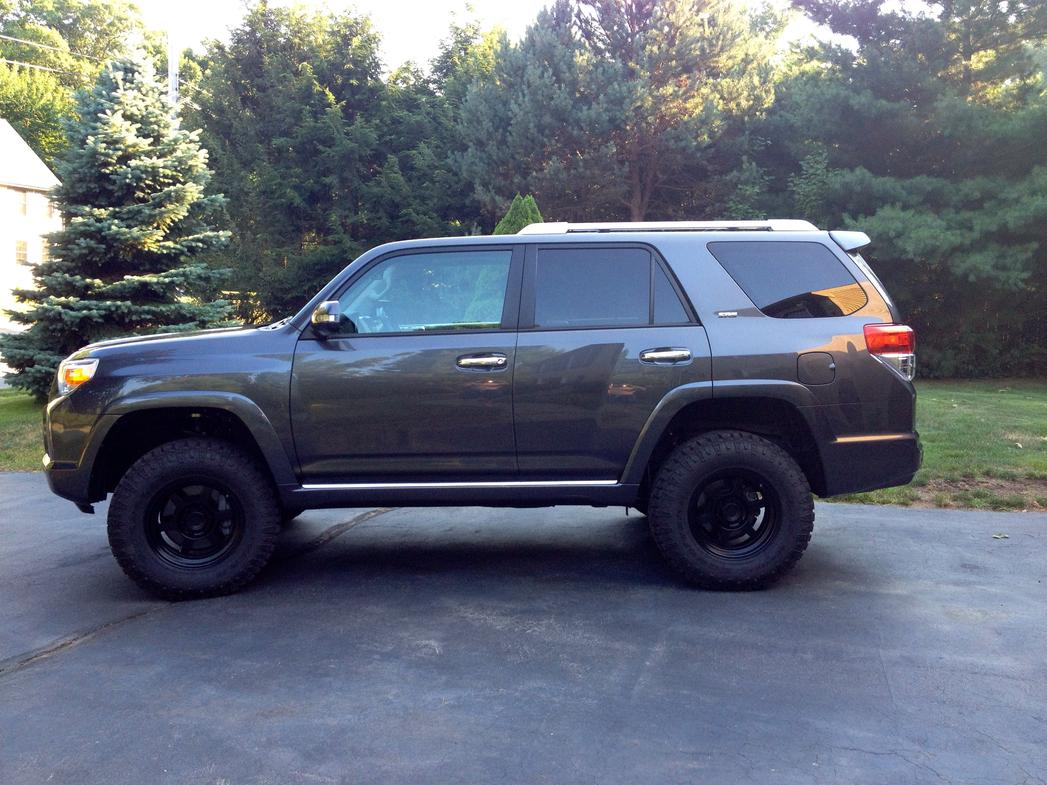

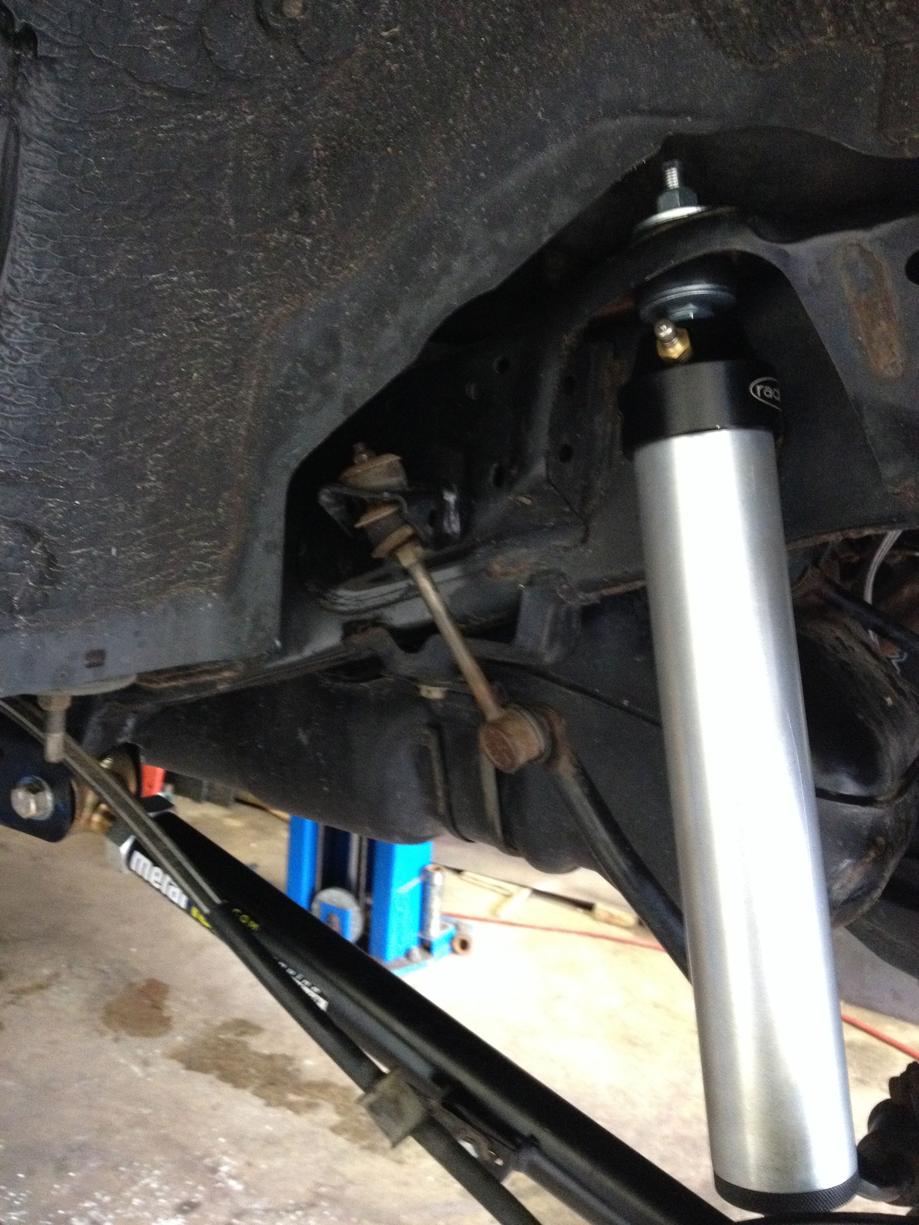

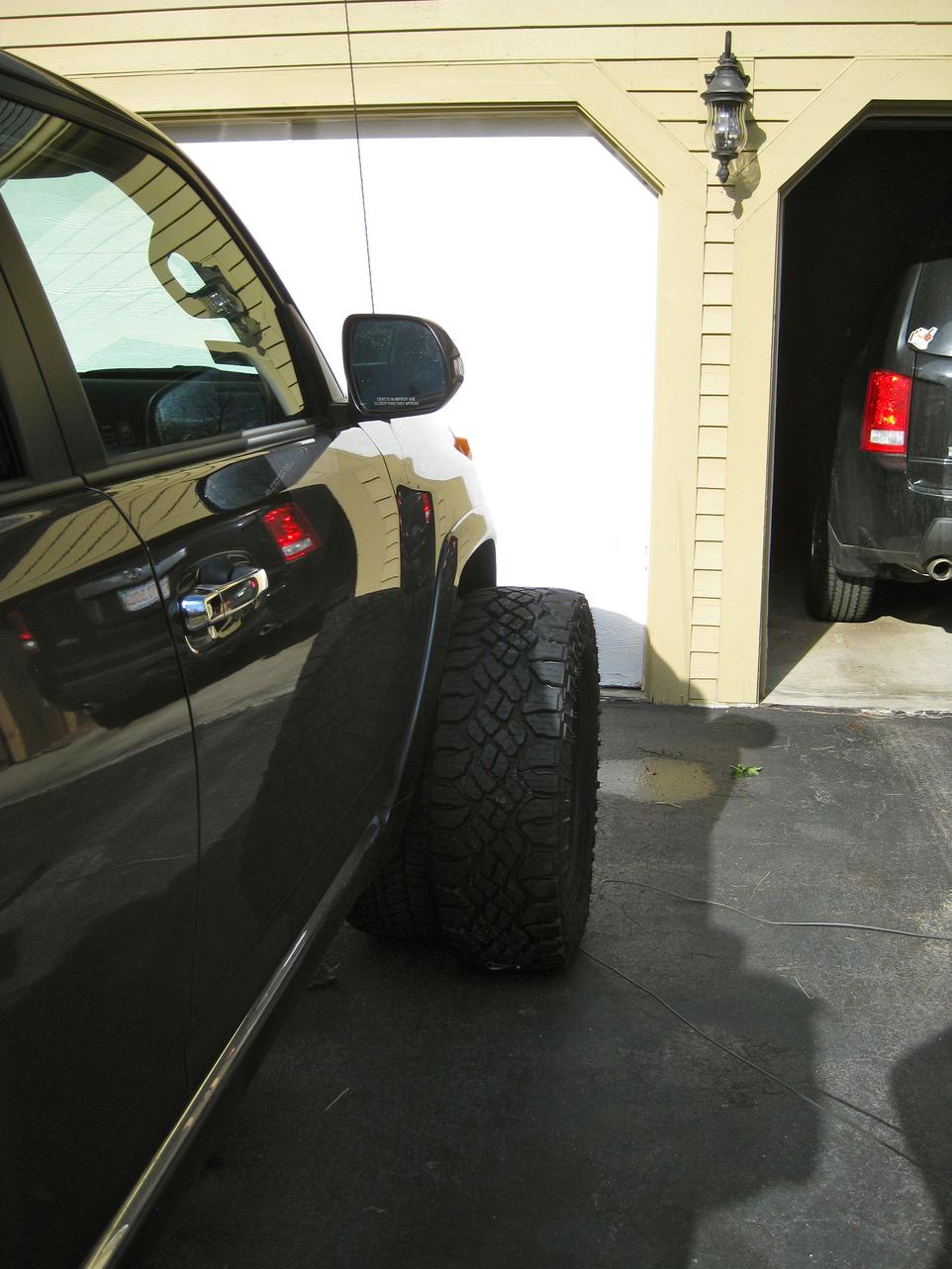

Of course I had the notorious driver side lean and corrected it with a spacer in the rear.



[cbielat]

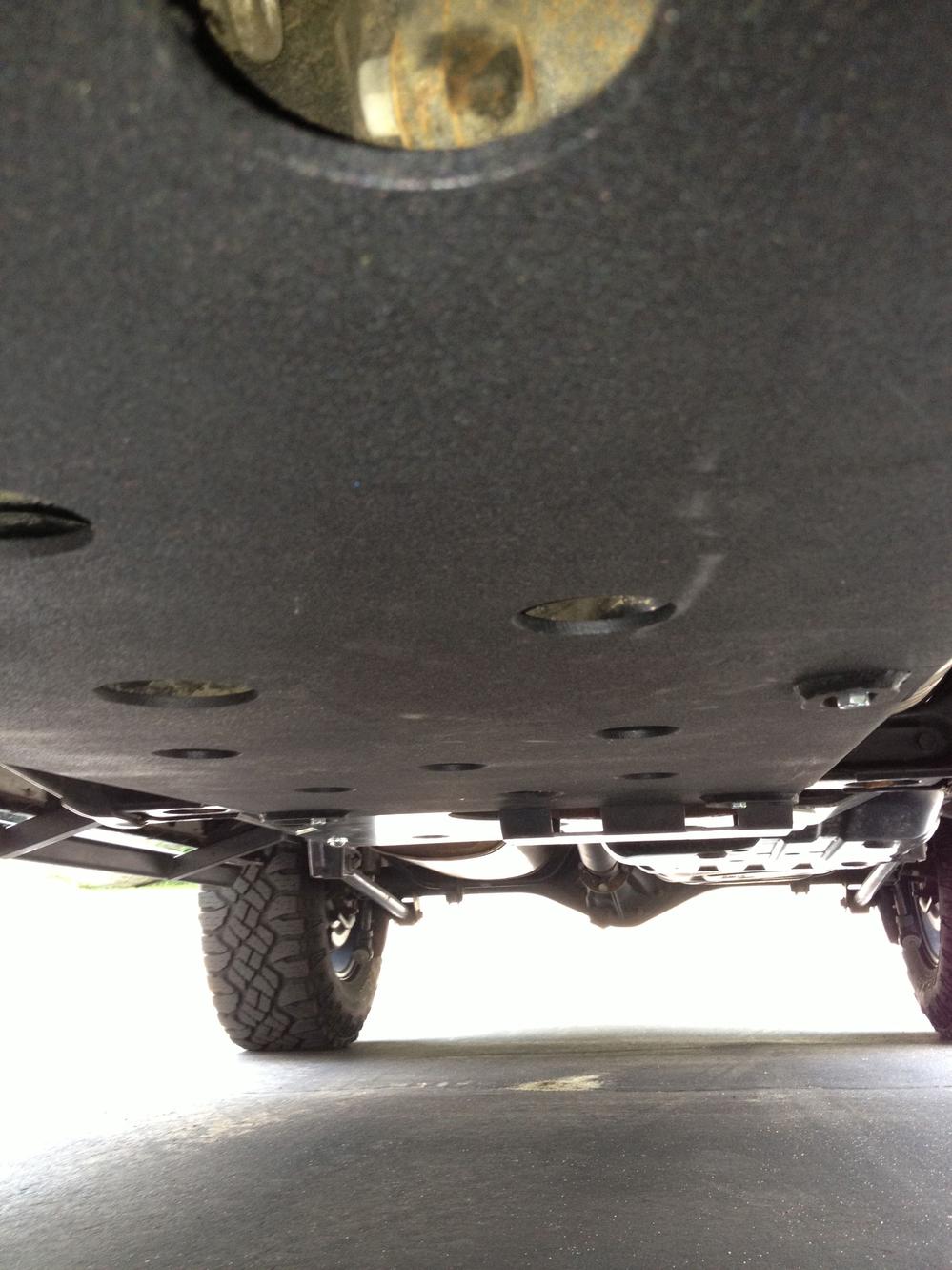

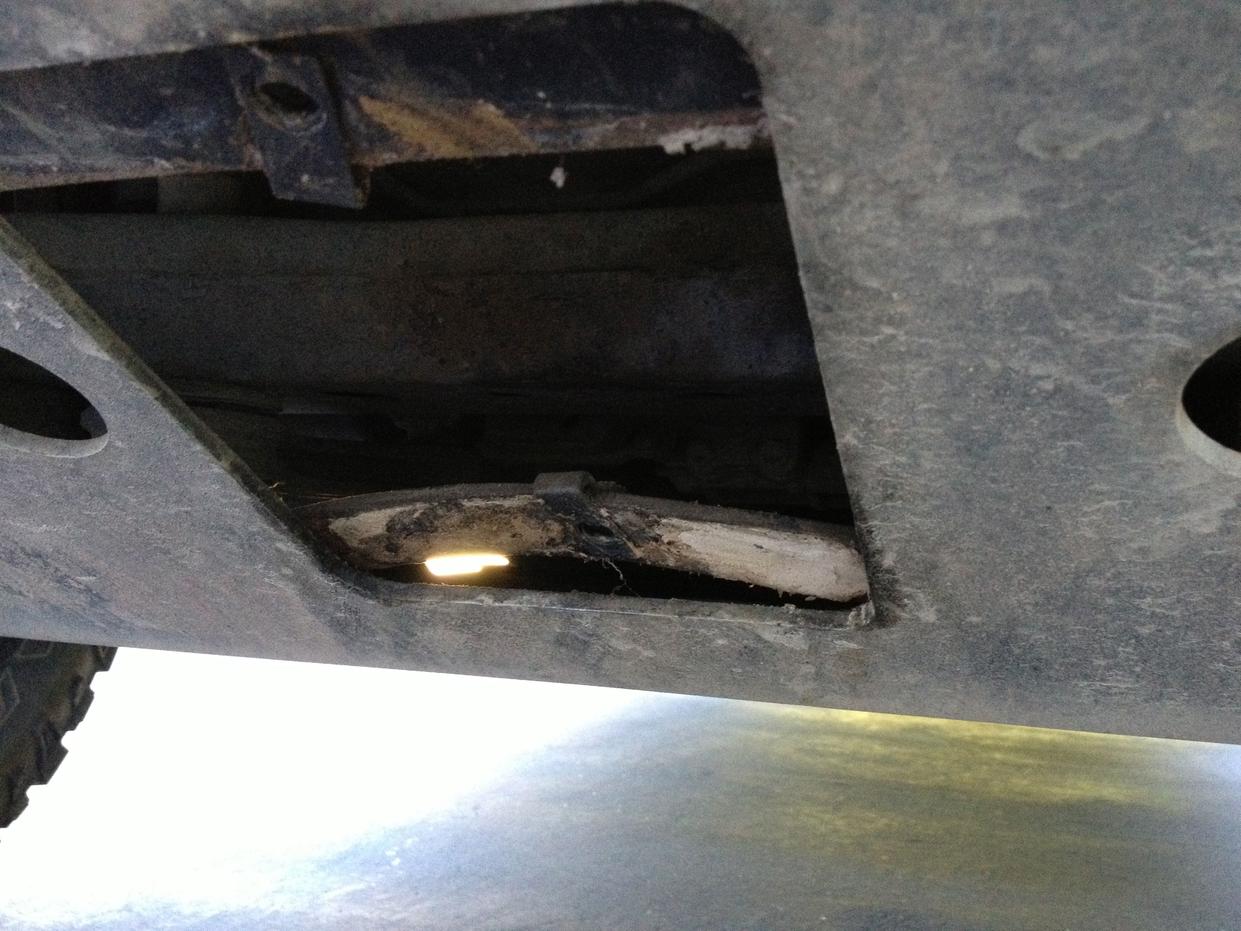

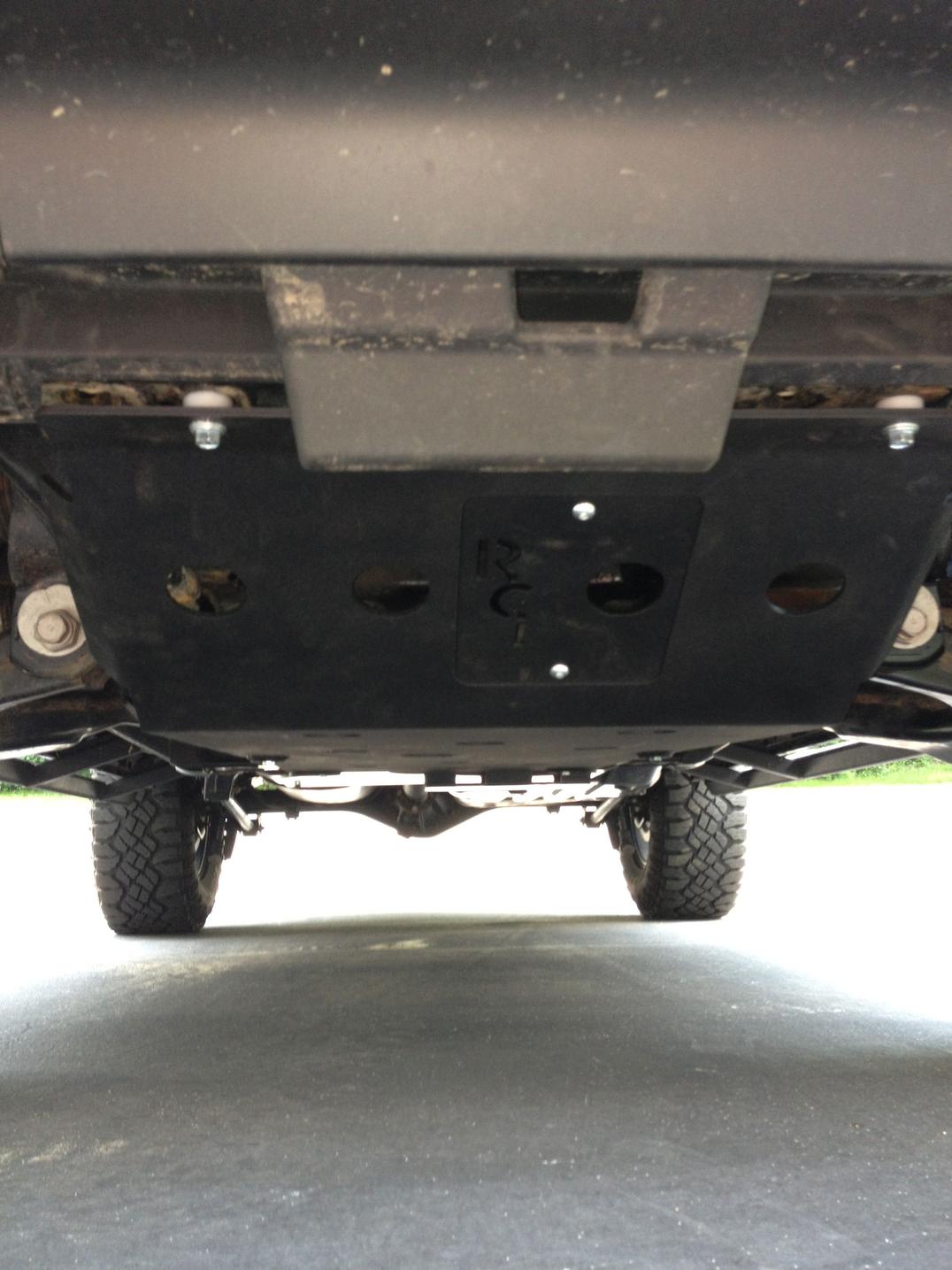

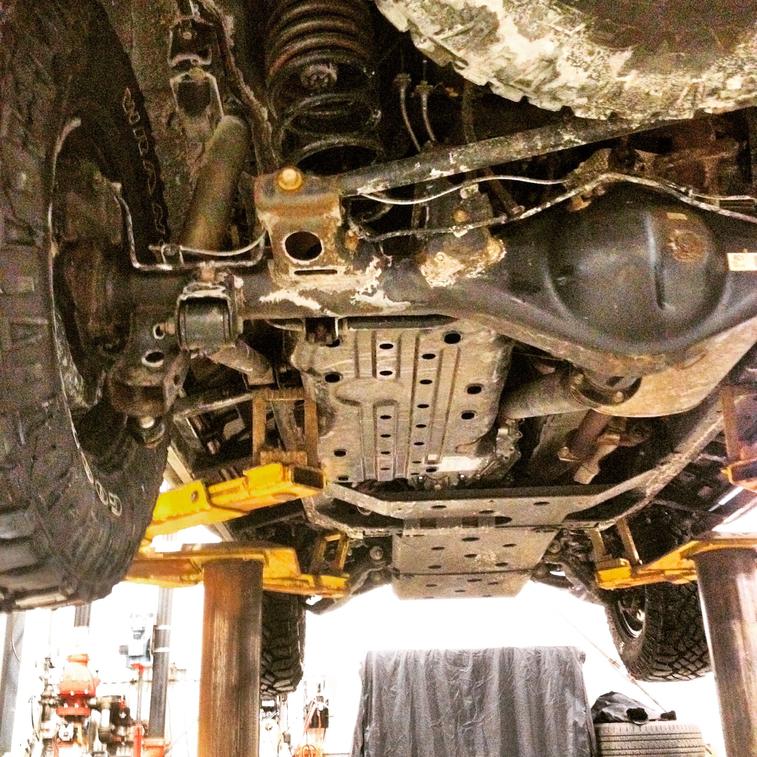

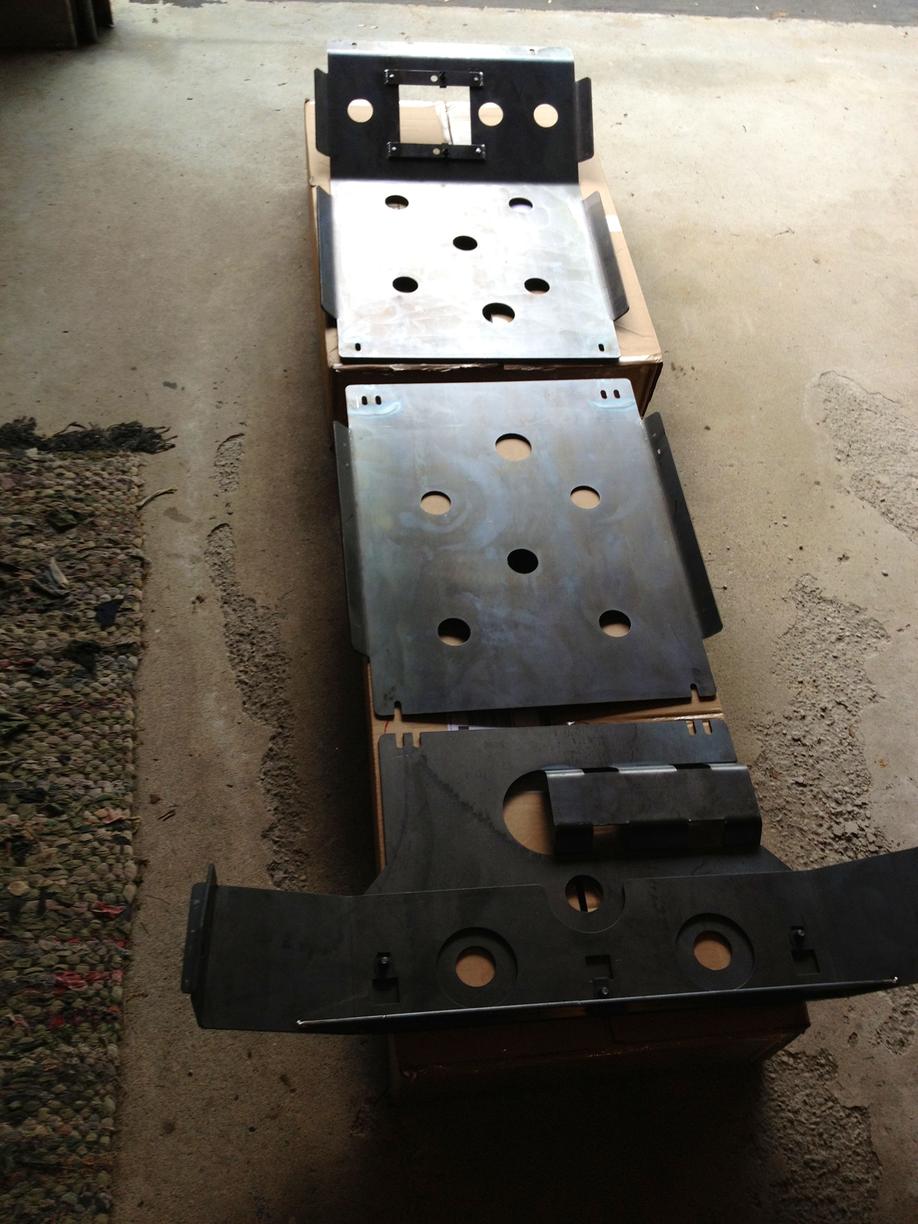

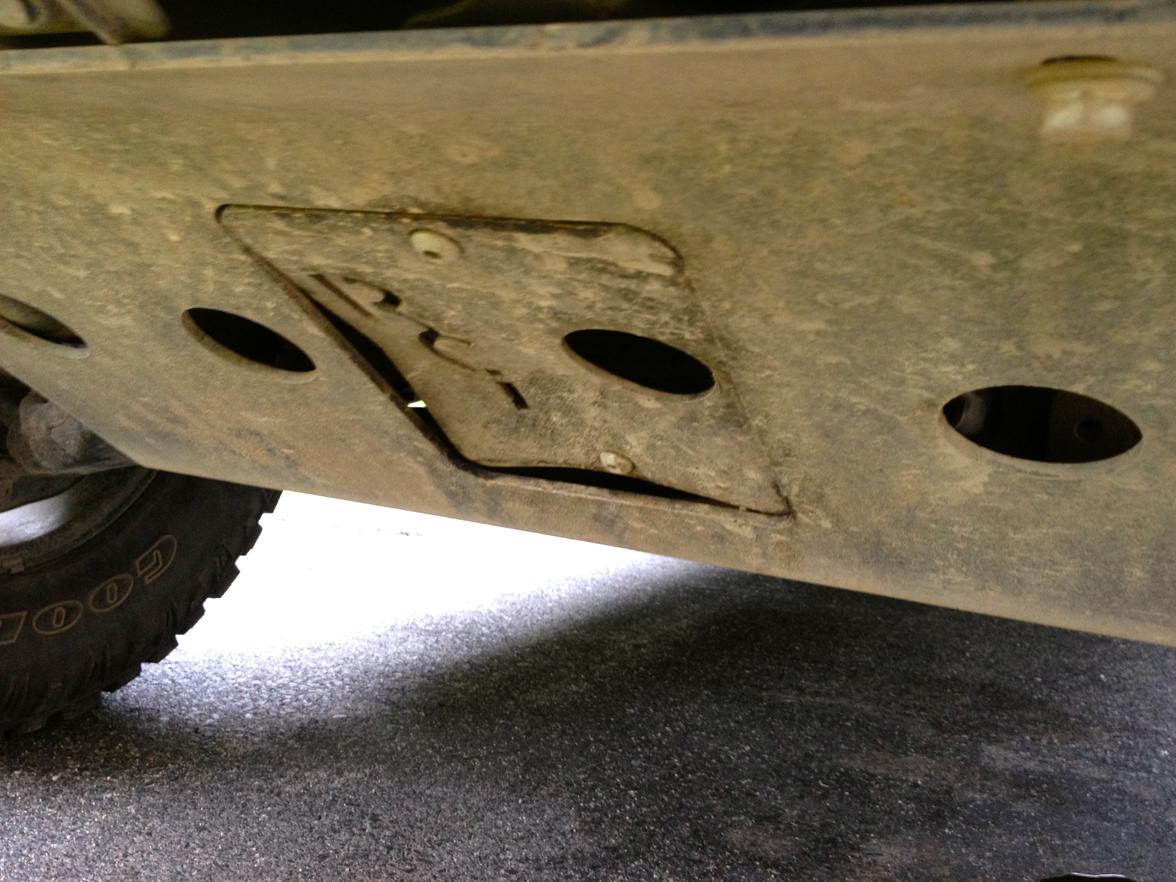

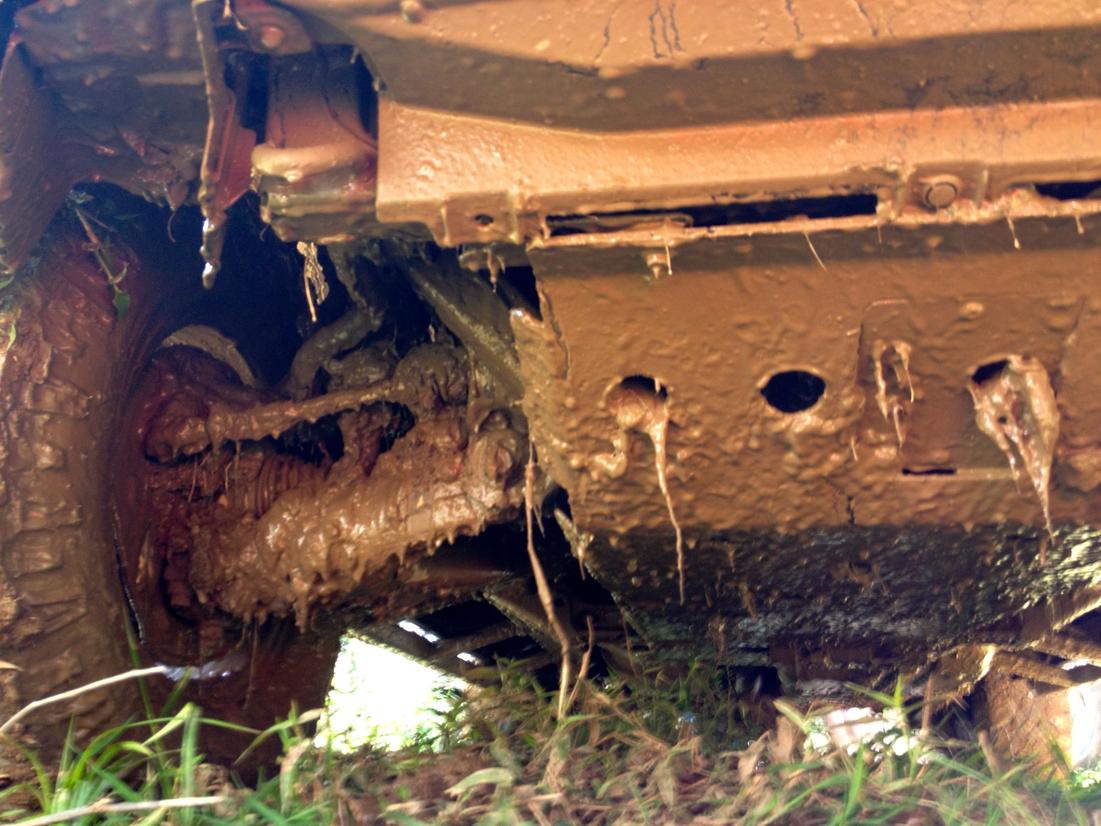

After my first wheeling trip, it was evident that I needed protection. I bought skids from RCI(front engine, transmission and transfer case). I had also acquired an OEM full gas tank skid from a TE to hold me over for a bit. Sliders came from Metal Tech and are the OPOR brand.



[cbielat]

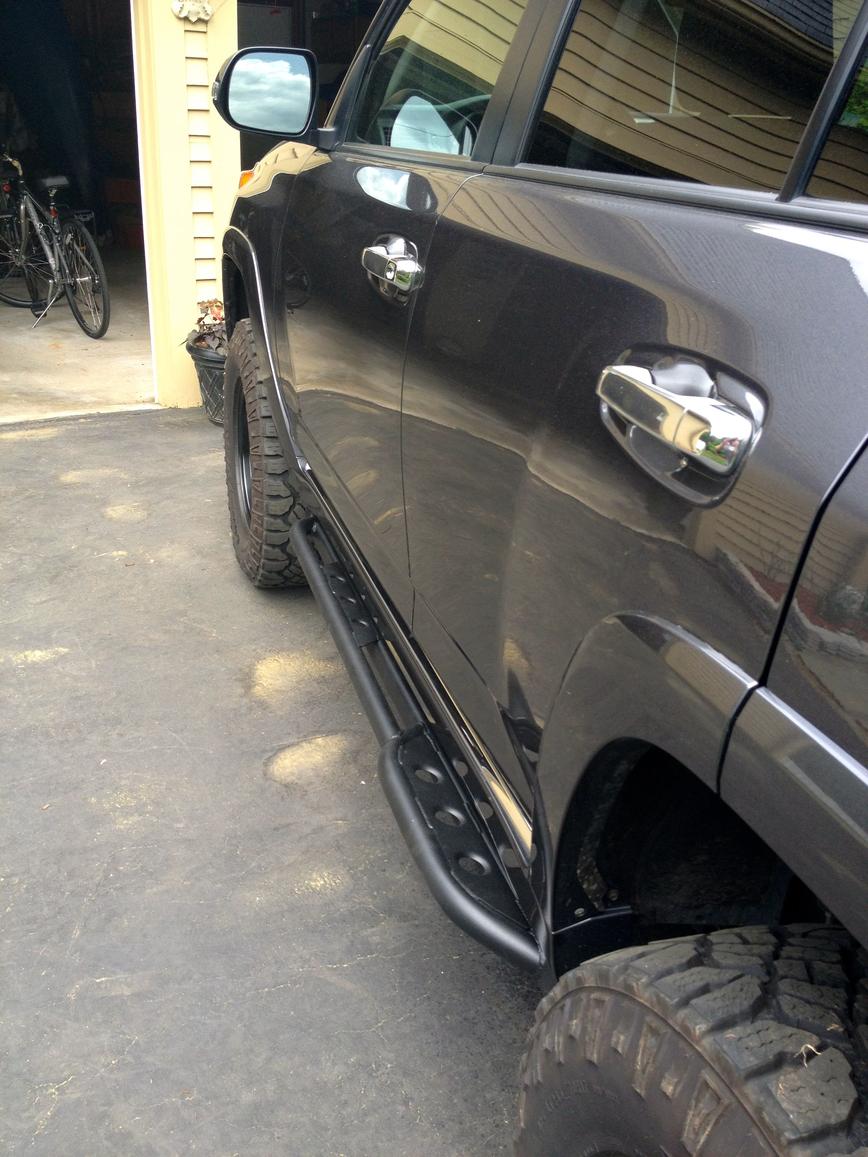

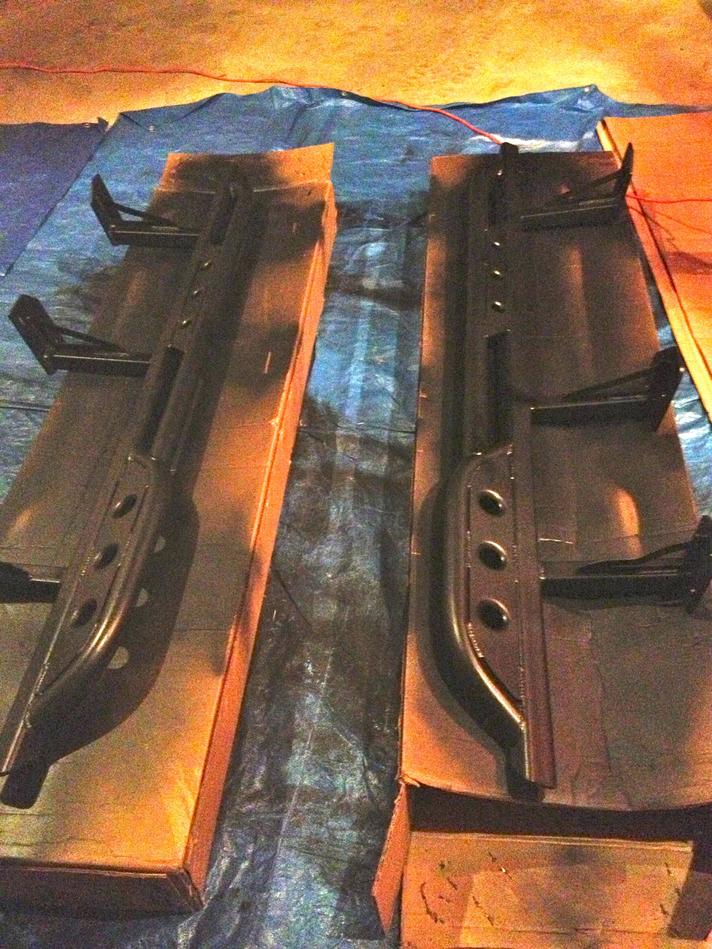

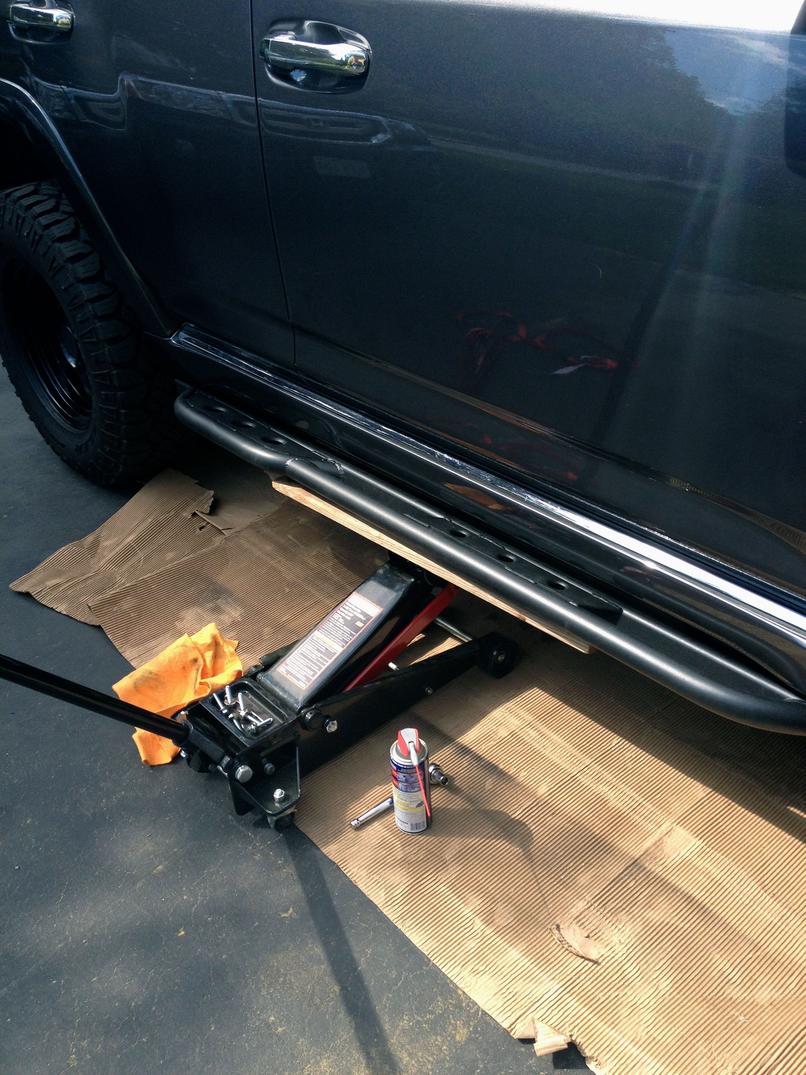

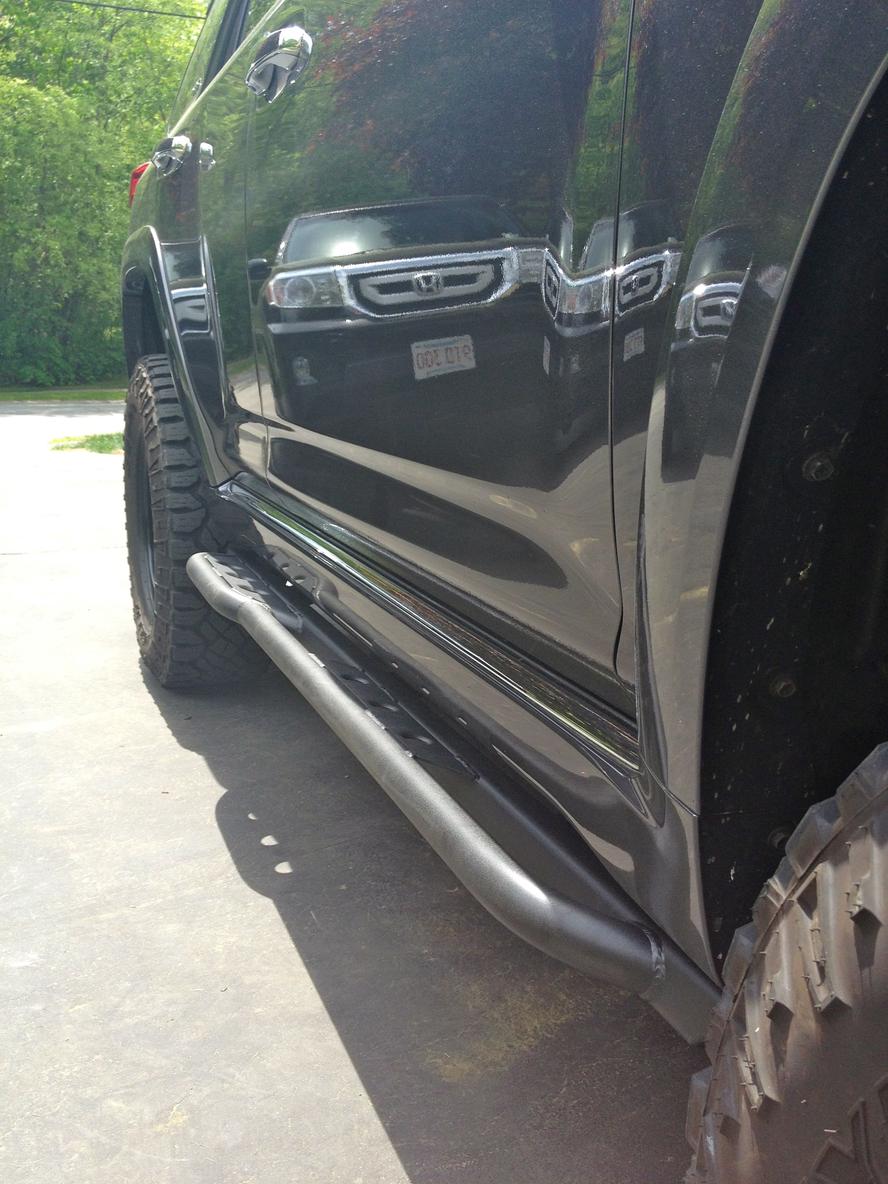

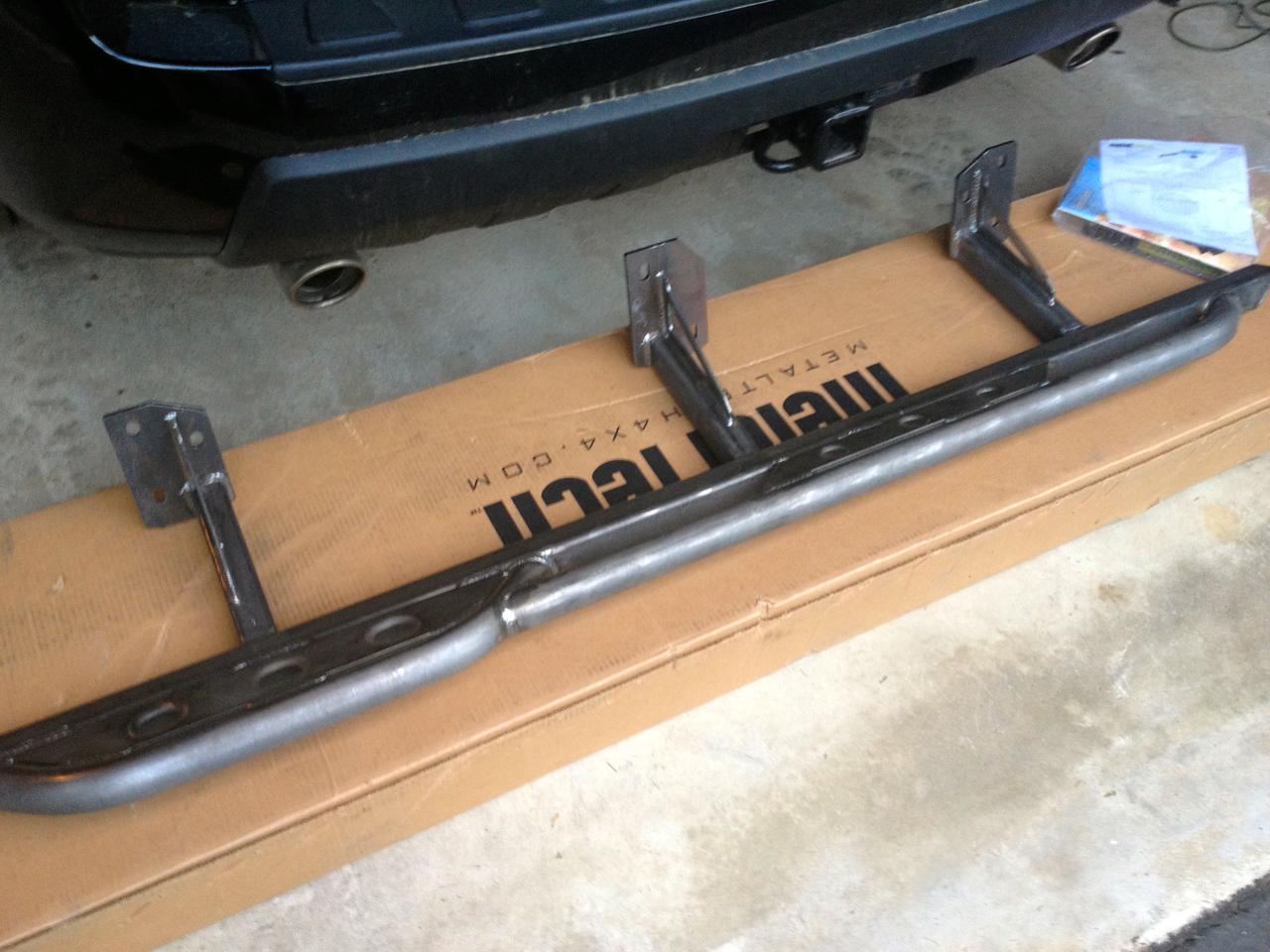

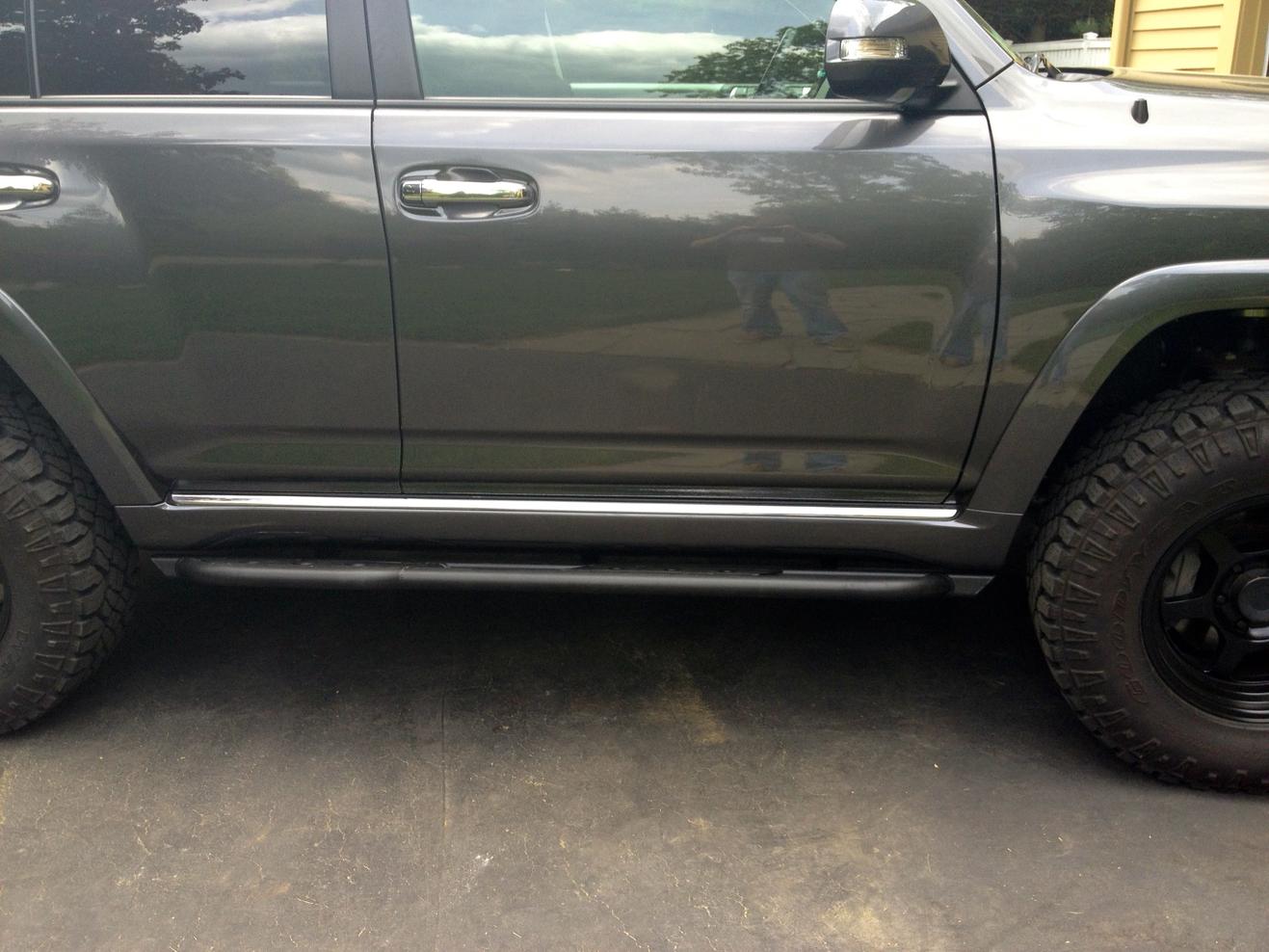

Sliders



[cbielat]

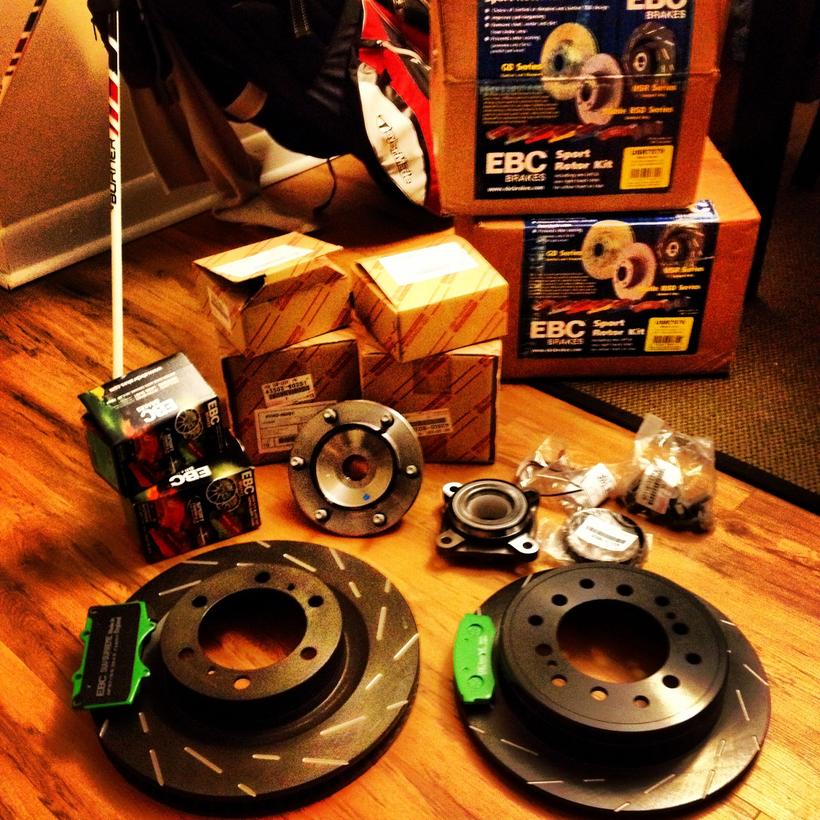

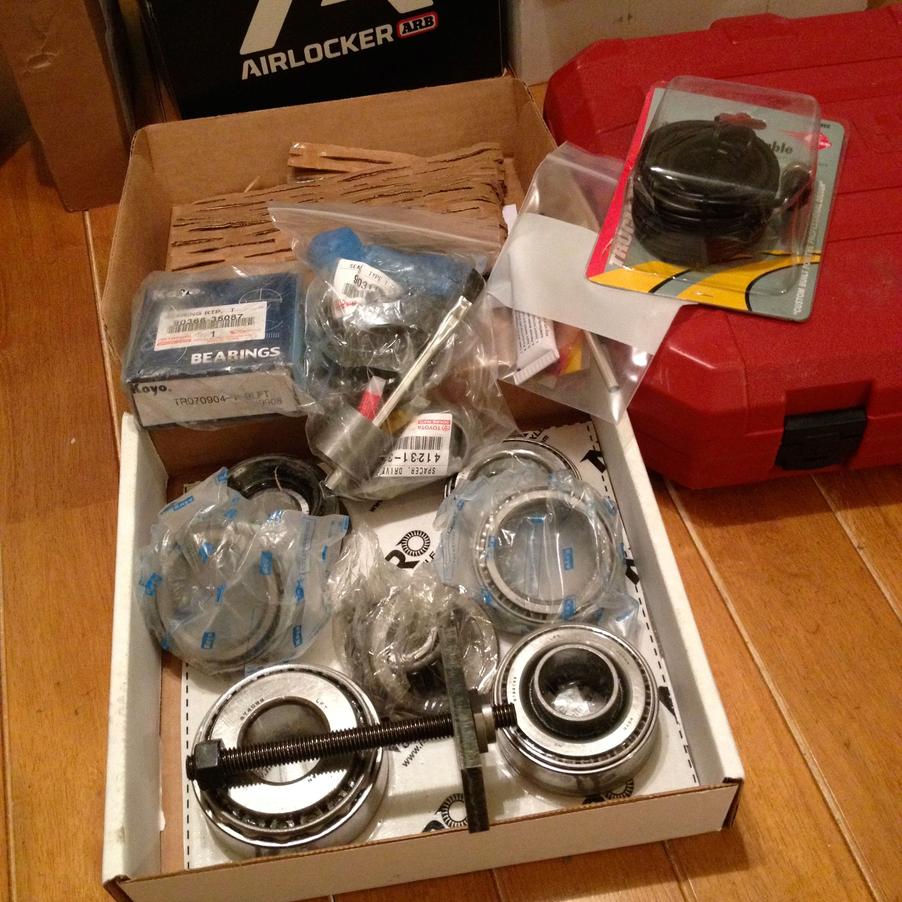

Later on down the road, it was time for new brakes. I went with the EBC Ultra Slotted Rotors with EBC Green Stuff pads. Also decided to change my hubs and all as I thought they were worn. Turns out that wasn't the case and learned what it was after much more research. I will touch on that in a later post.



[cbielat]

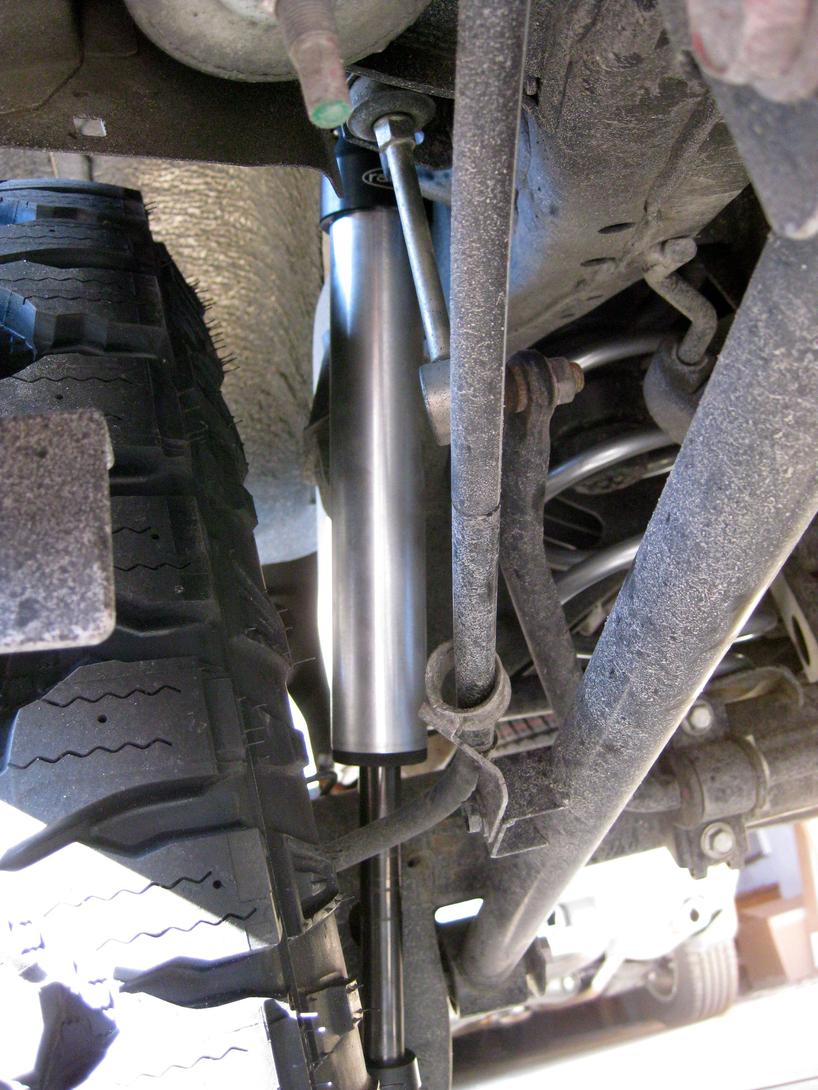

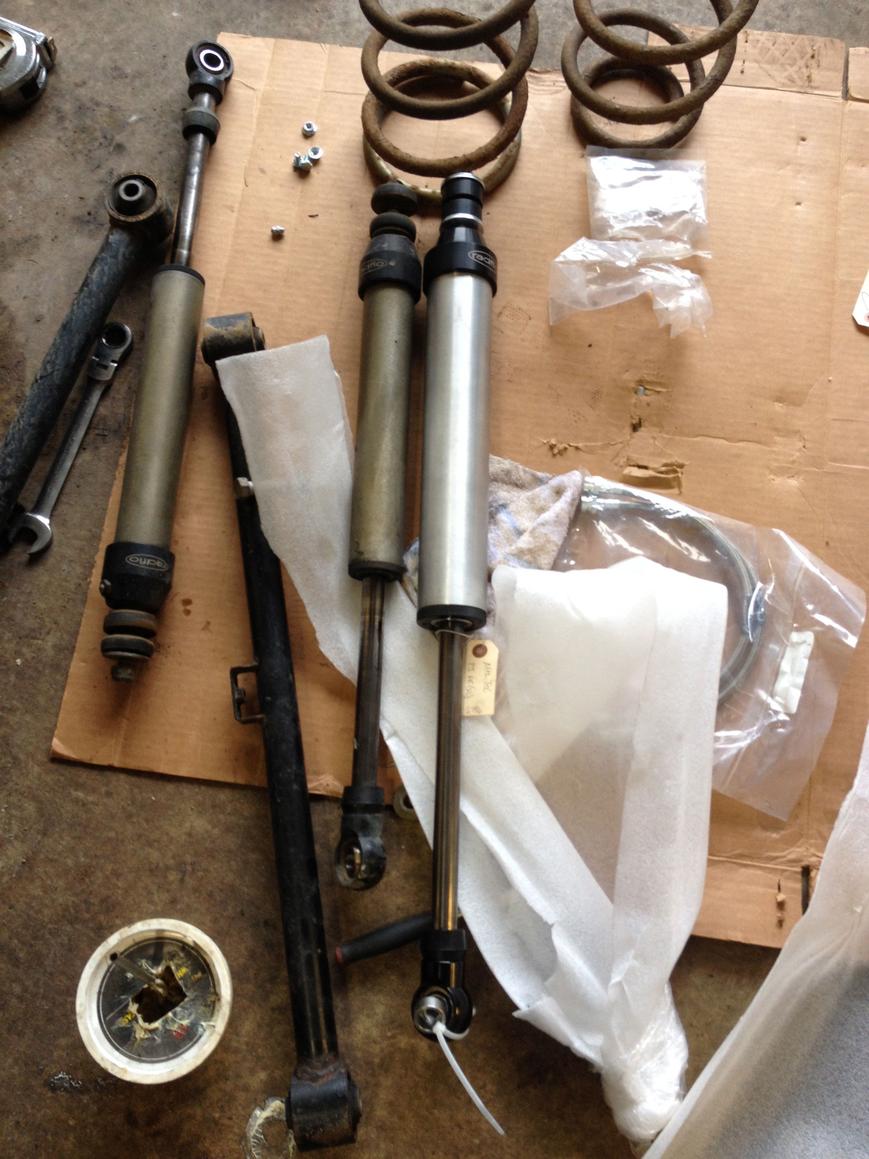

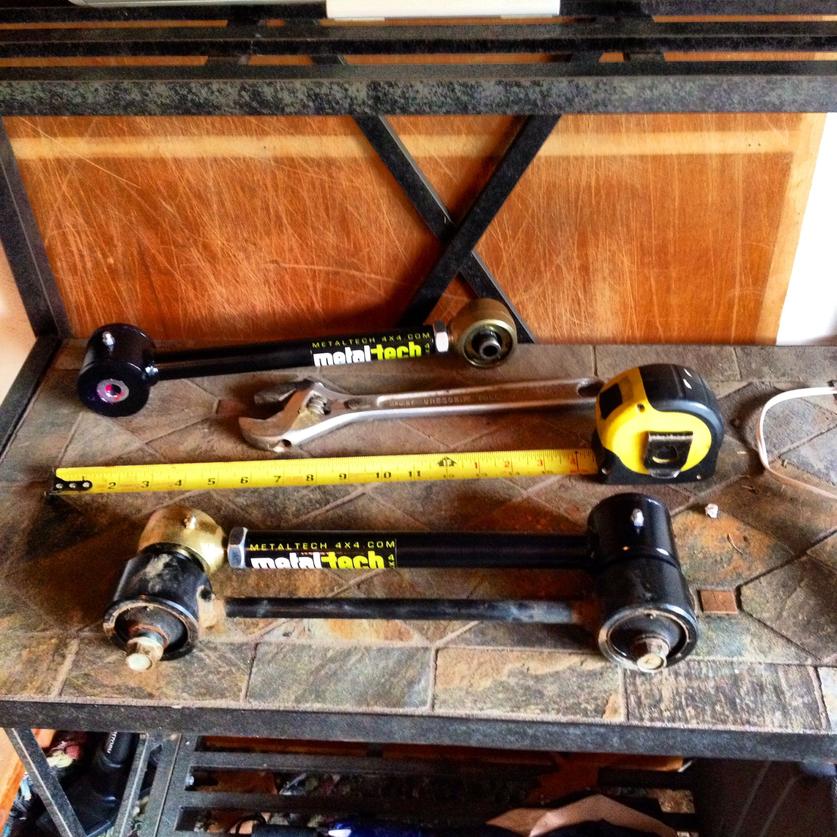

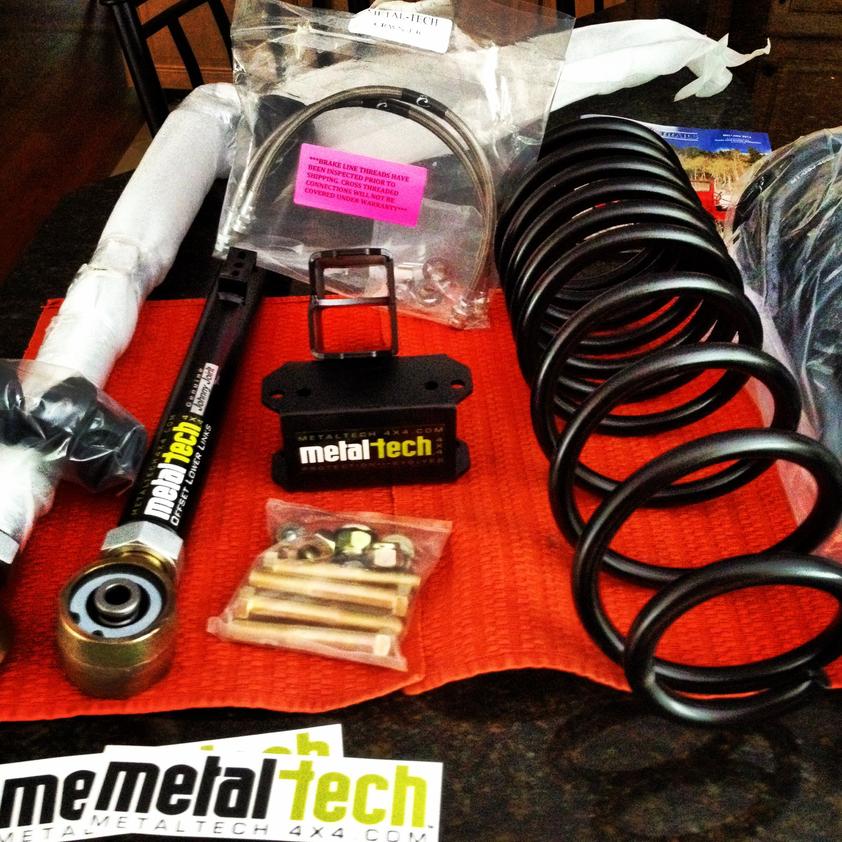

After a couple years of driving trails, I've been learning more and more and decided where I wanted to be. I chose to go with Metal Tech's long travel rear set up utilizing Radflo 2.5" shocks. This kit consists of Radflo 2.5" long travel spec shocks, Metal Tech dual rate springs in the heavy version, Metal Tech off set lower links, Metal Tech upper links, Metal Tech extended bump stop brackets and extended stainless steel brake lines. I also bought double disconnect rear sway bar end links(have been more of a pain in the ass than anything).



[cbielat]

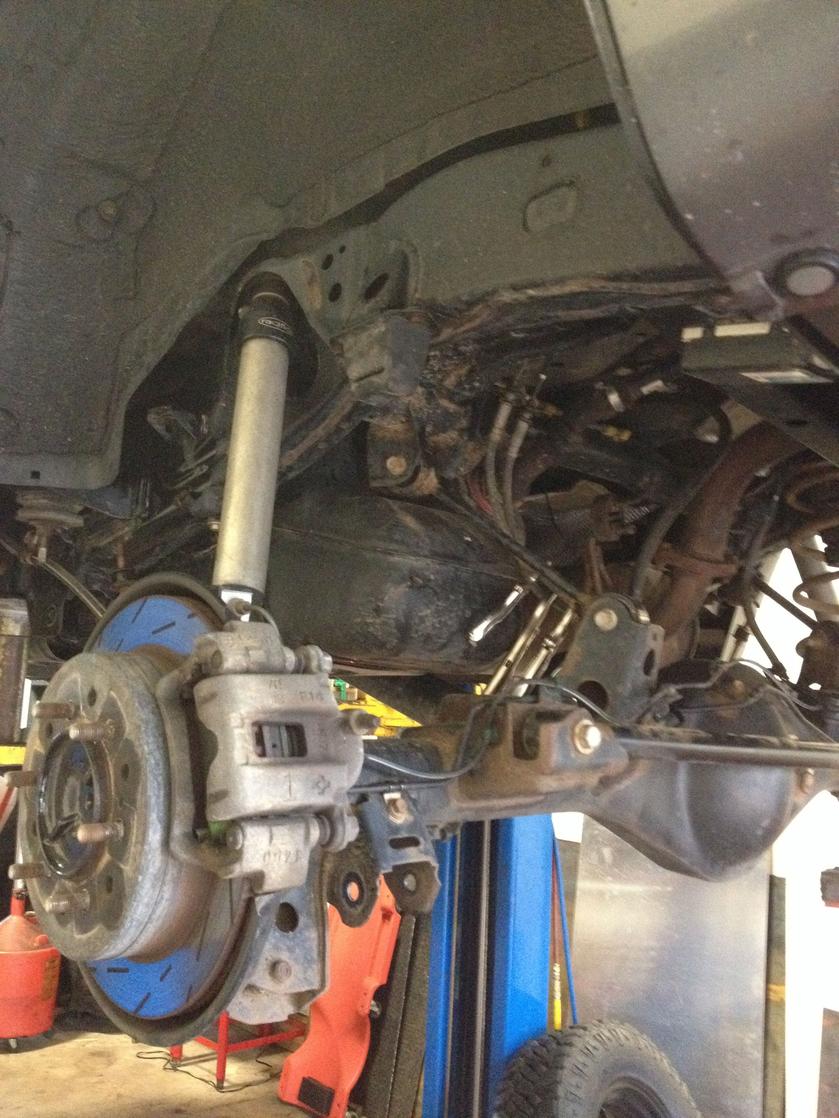

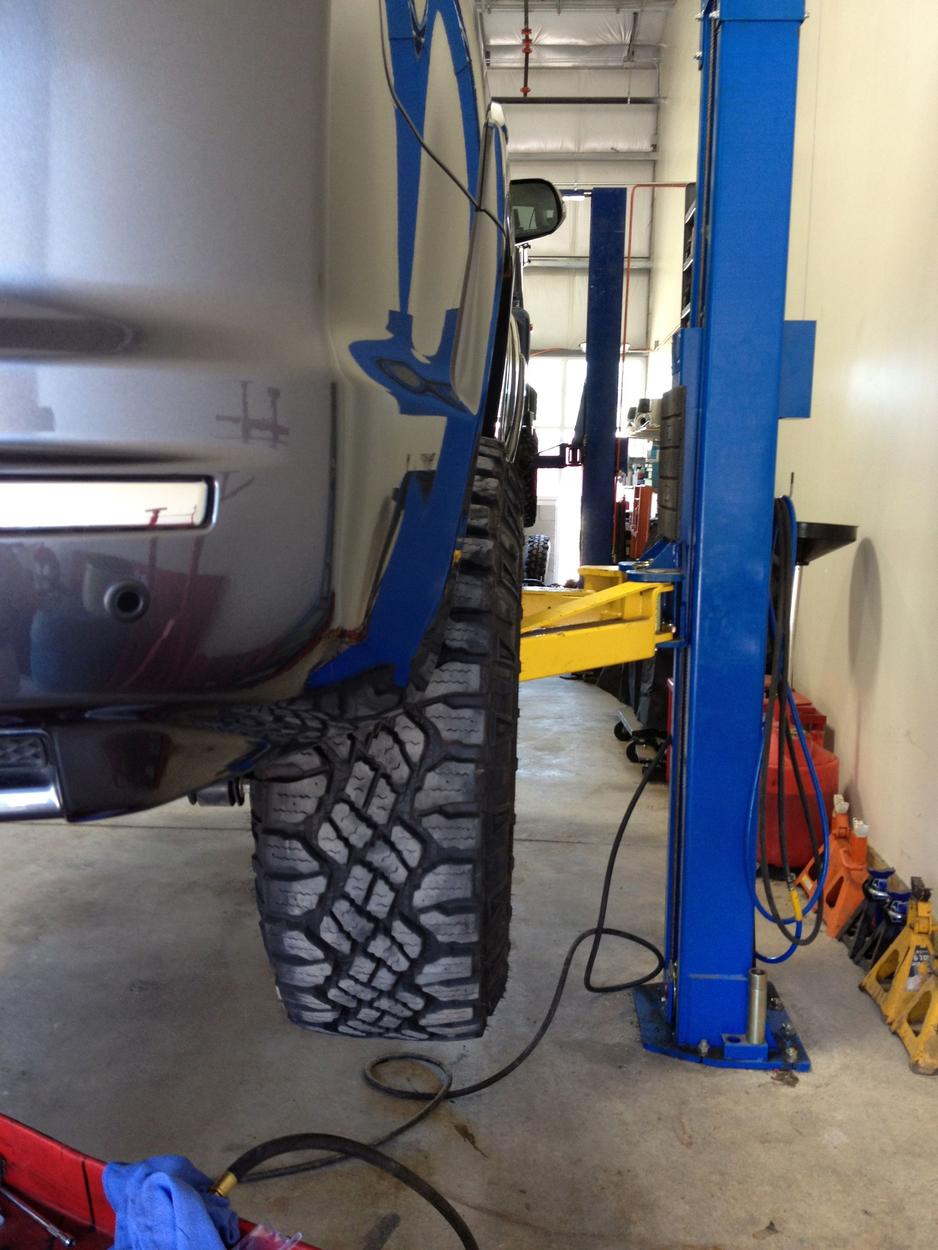

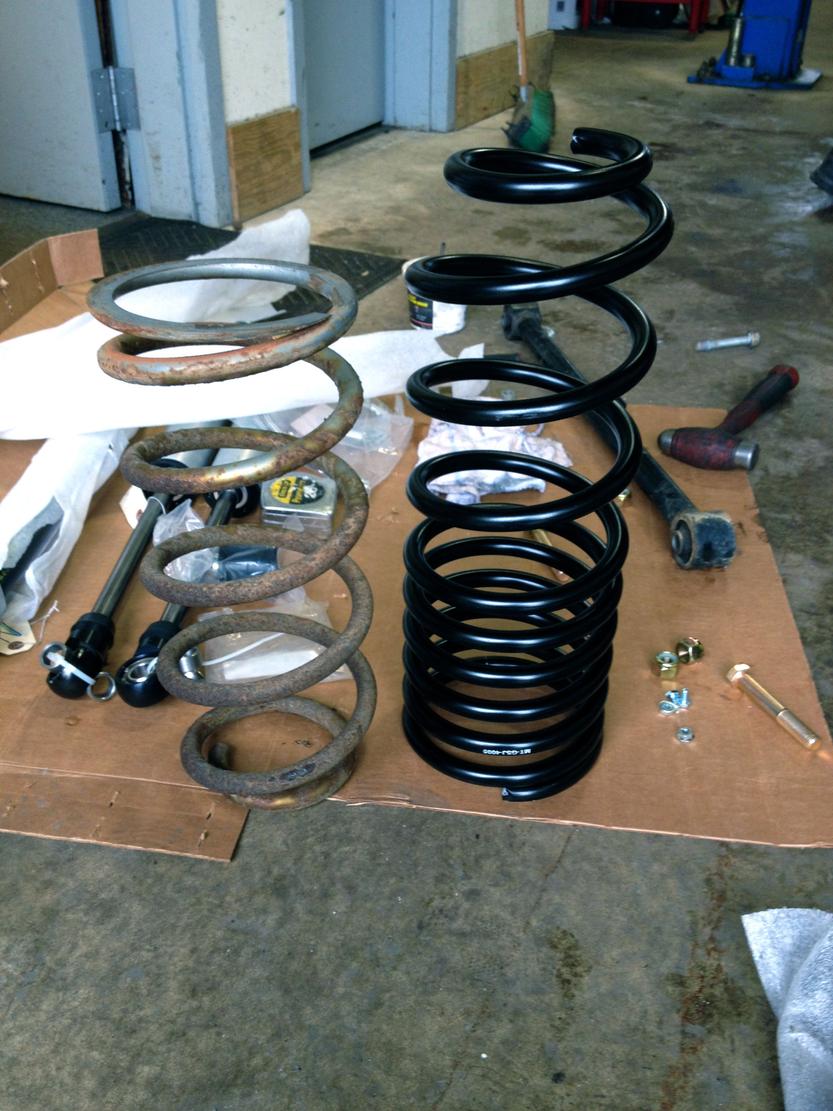

Rear Long Travel Continued



[cbielat]

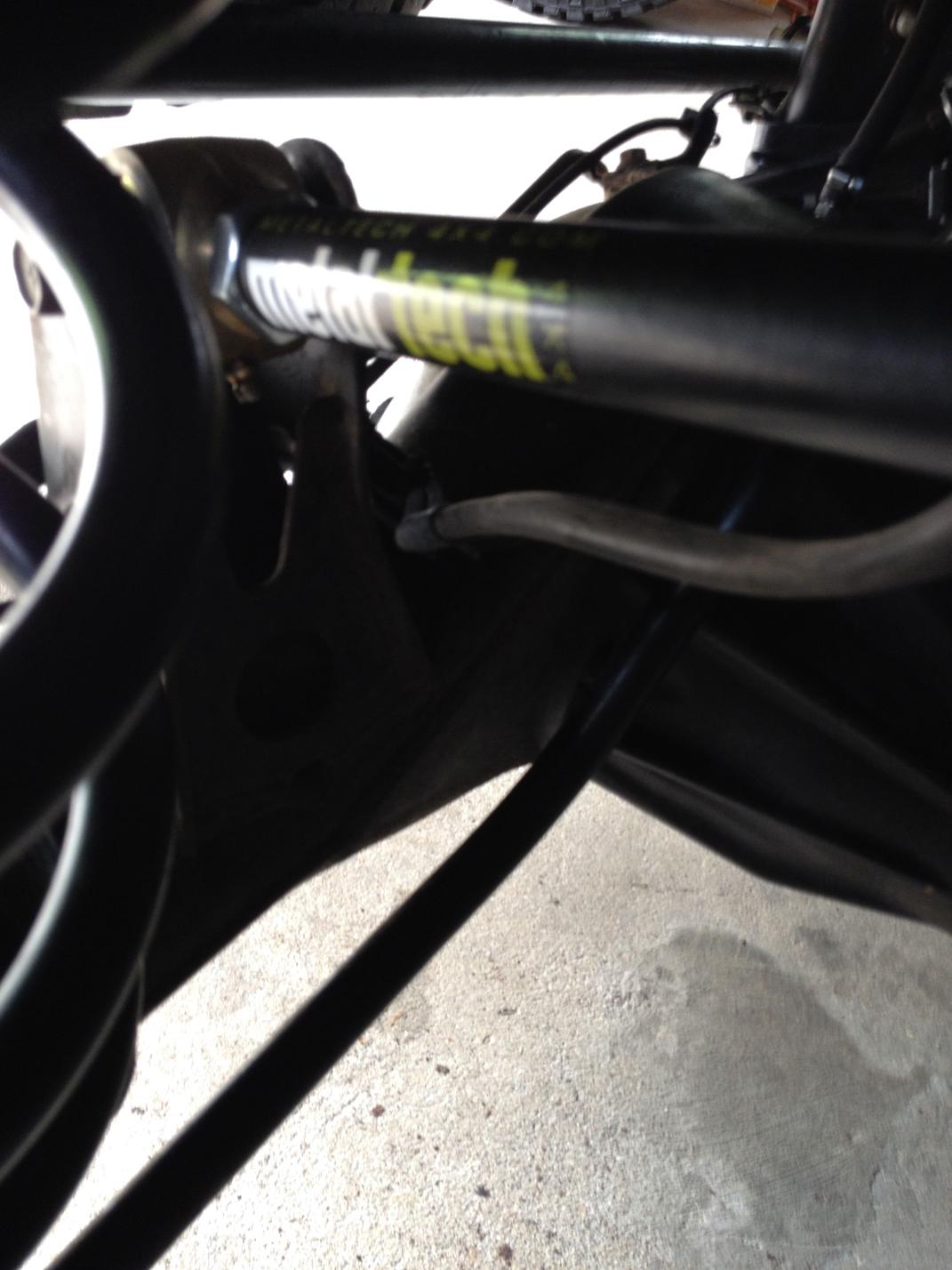

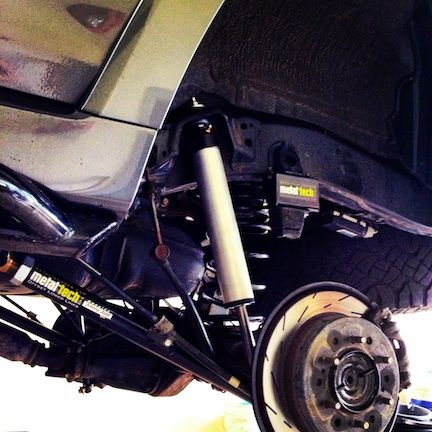

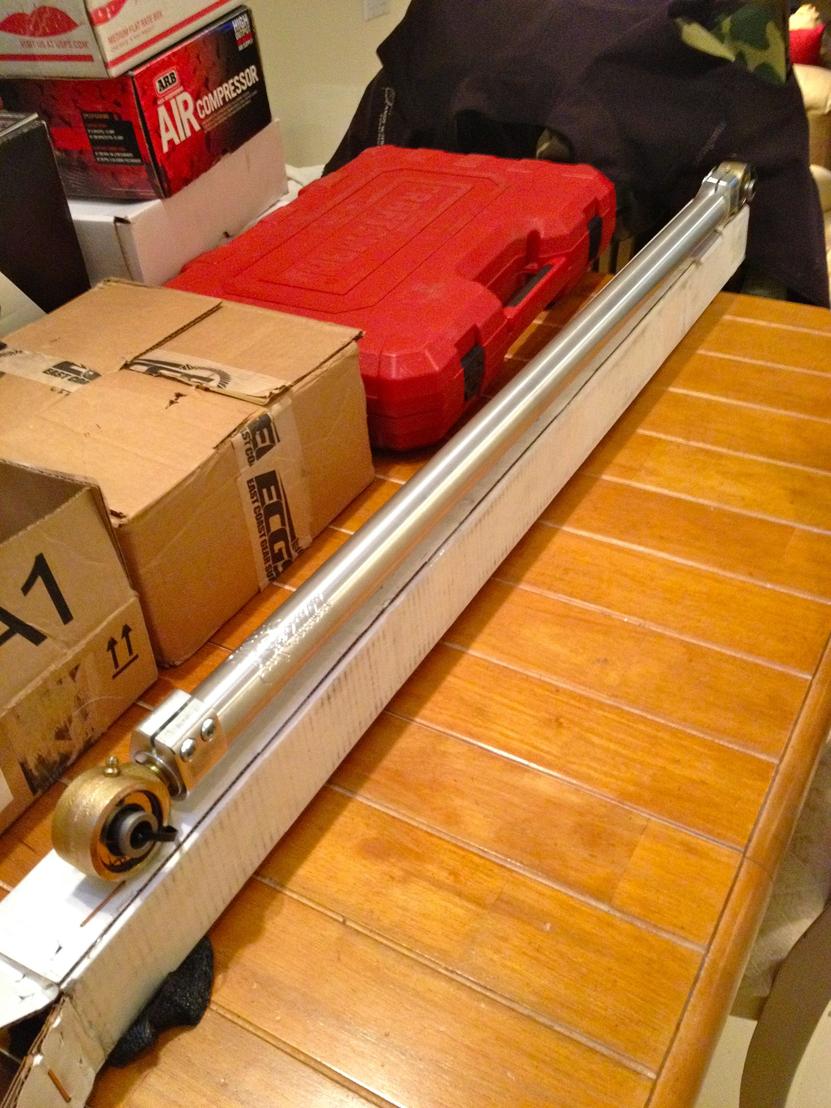

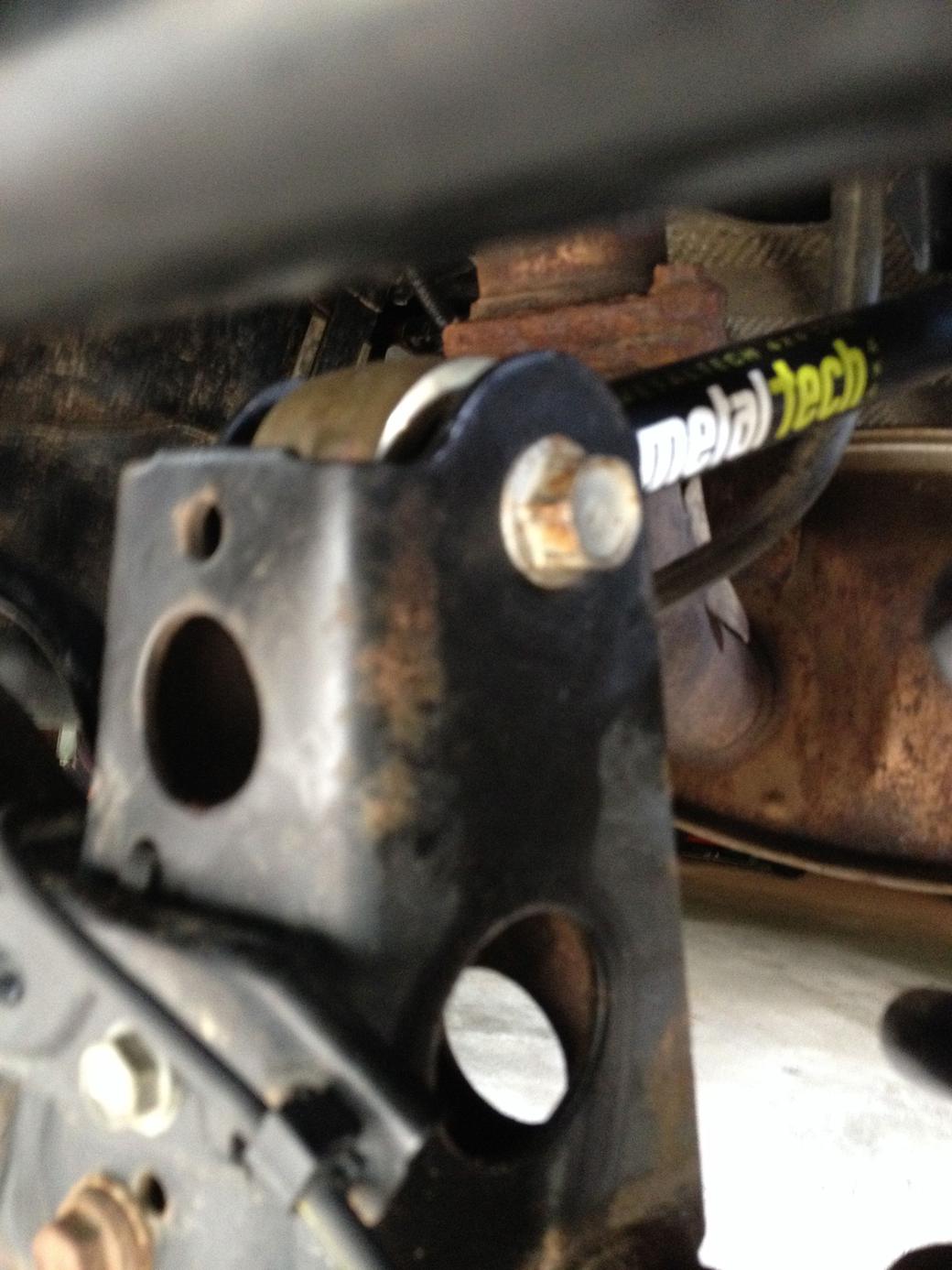

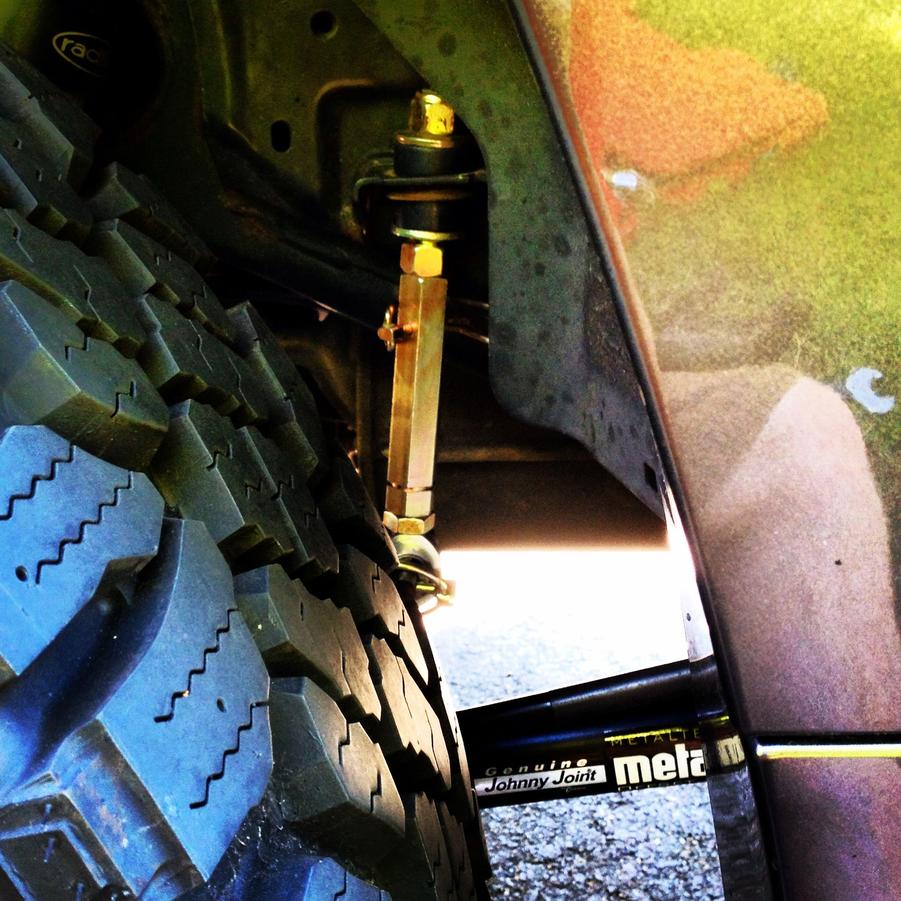

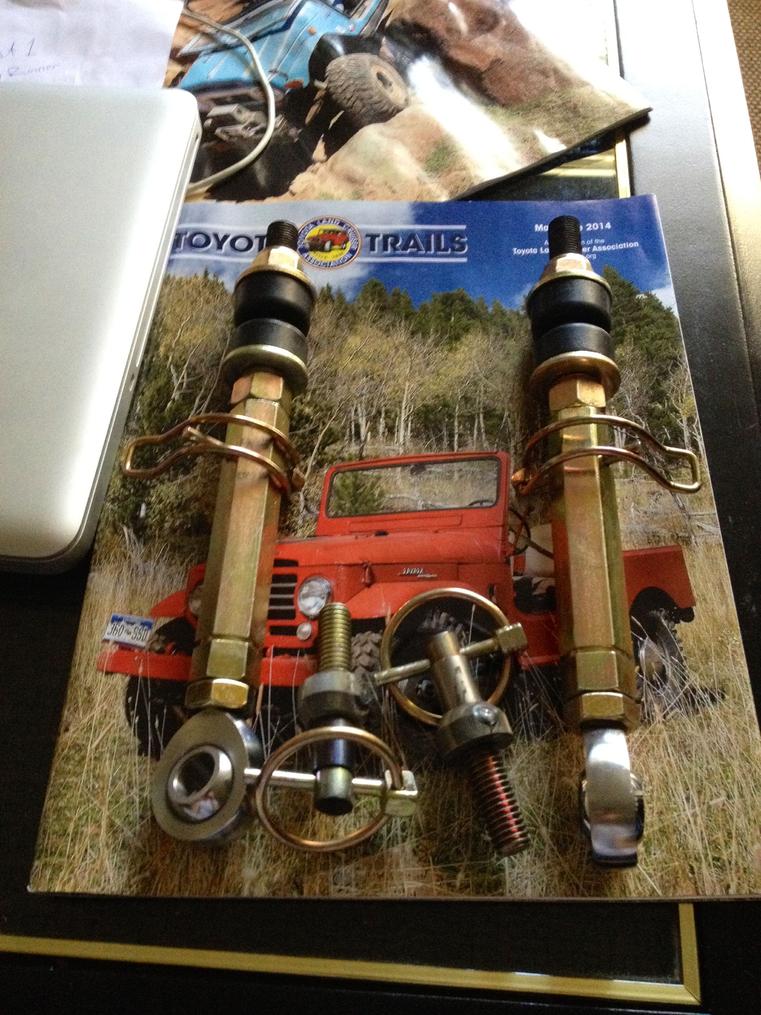

Sway bar end links



[cbielat]

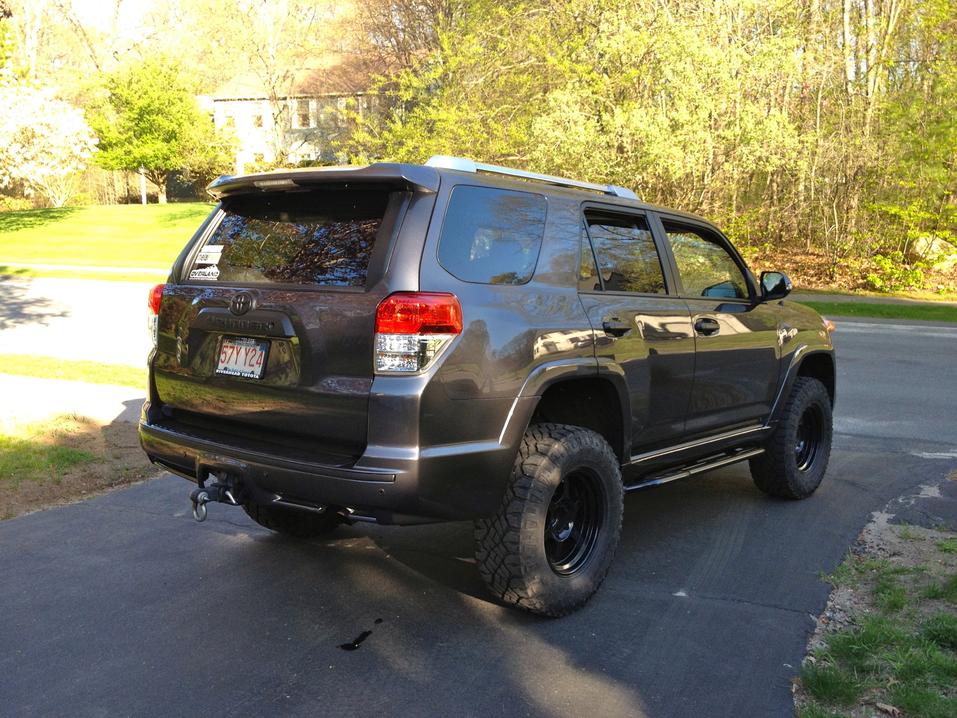

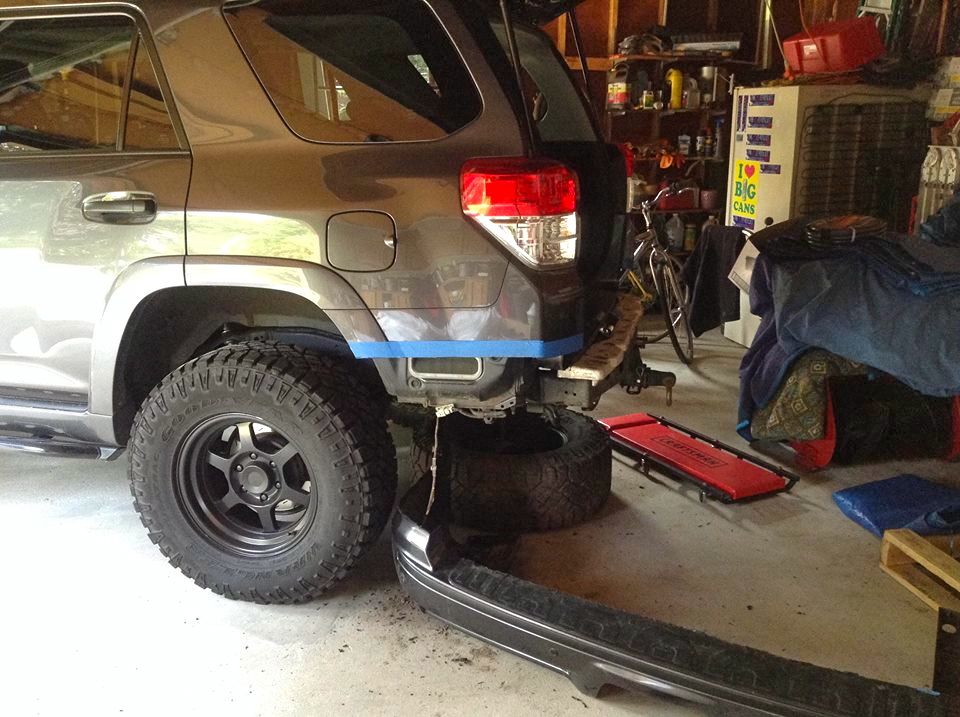

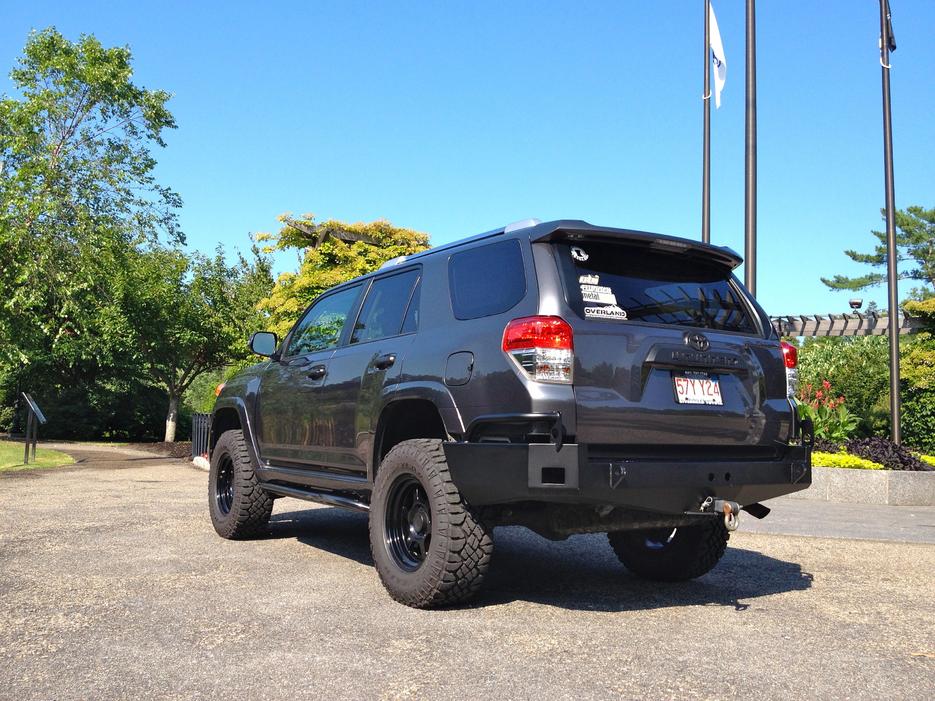

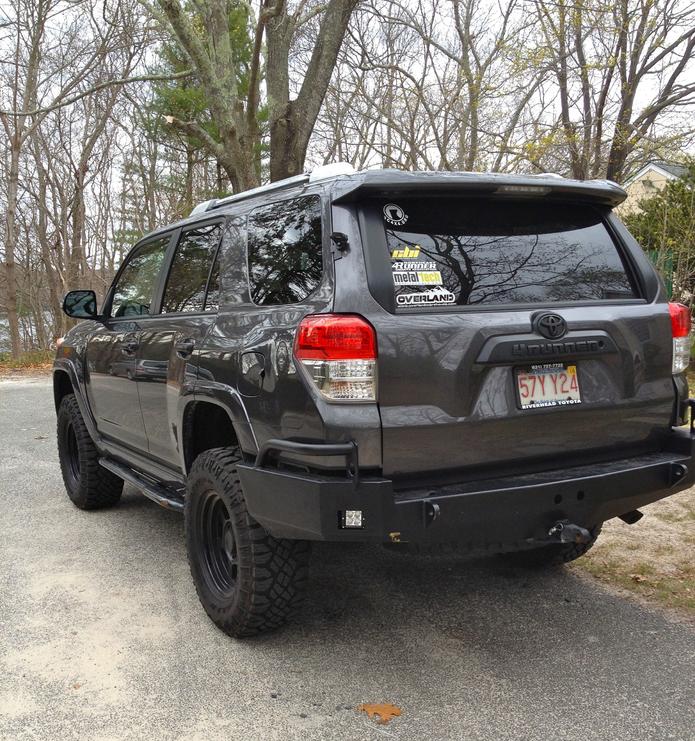

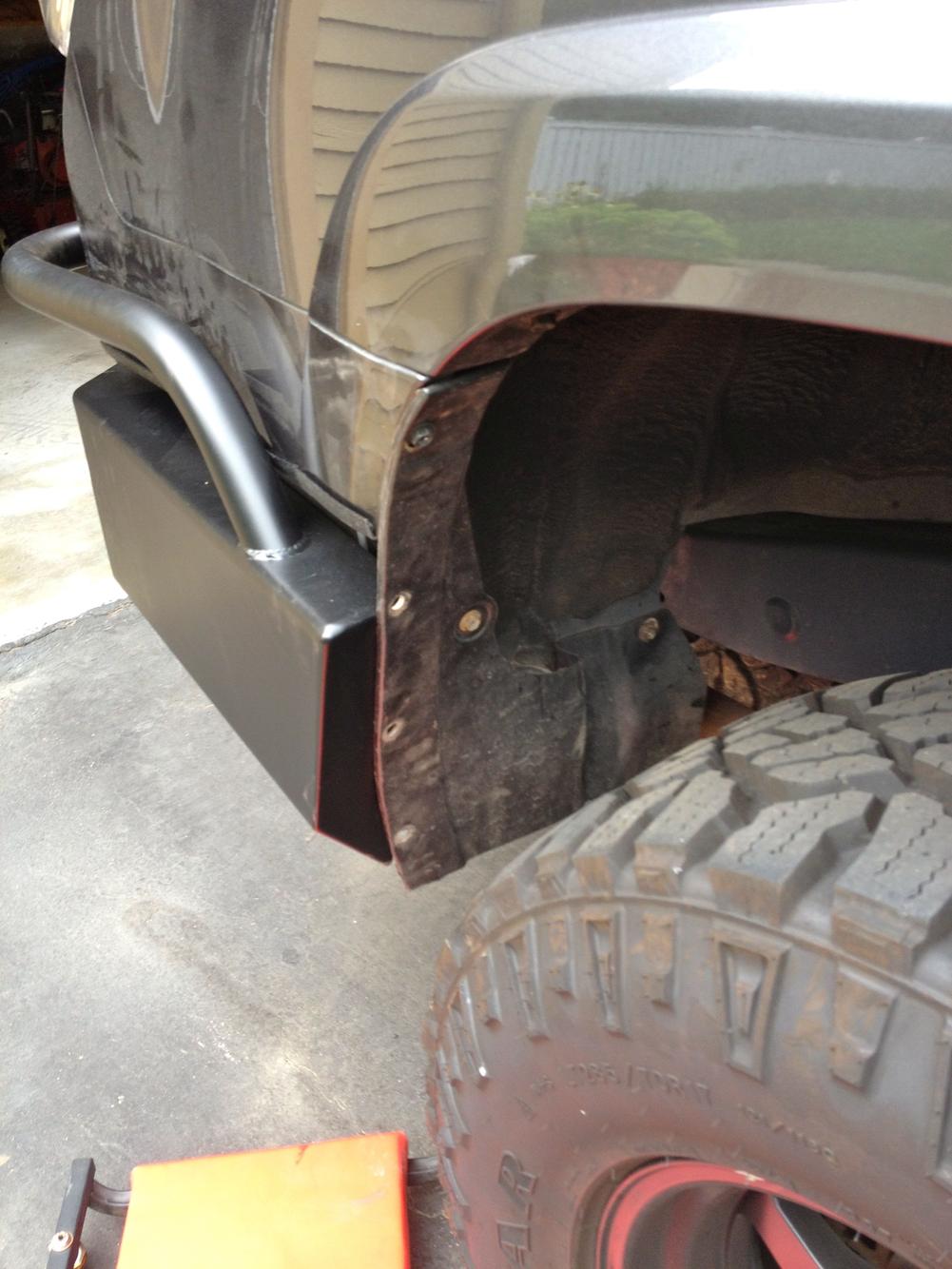

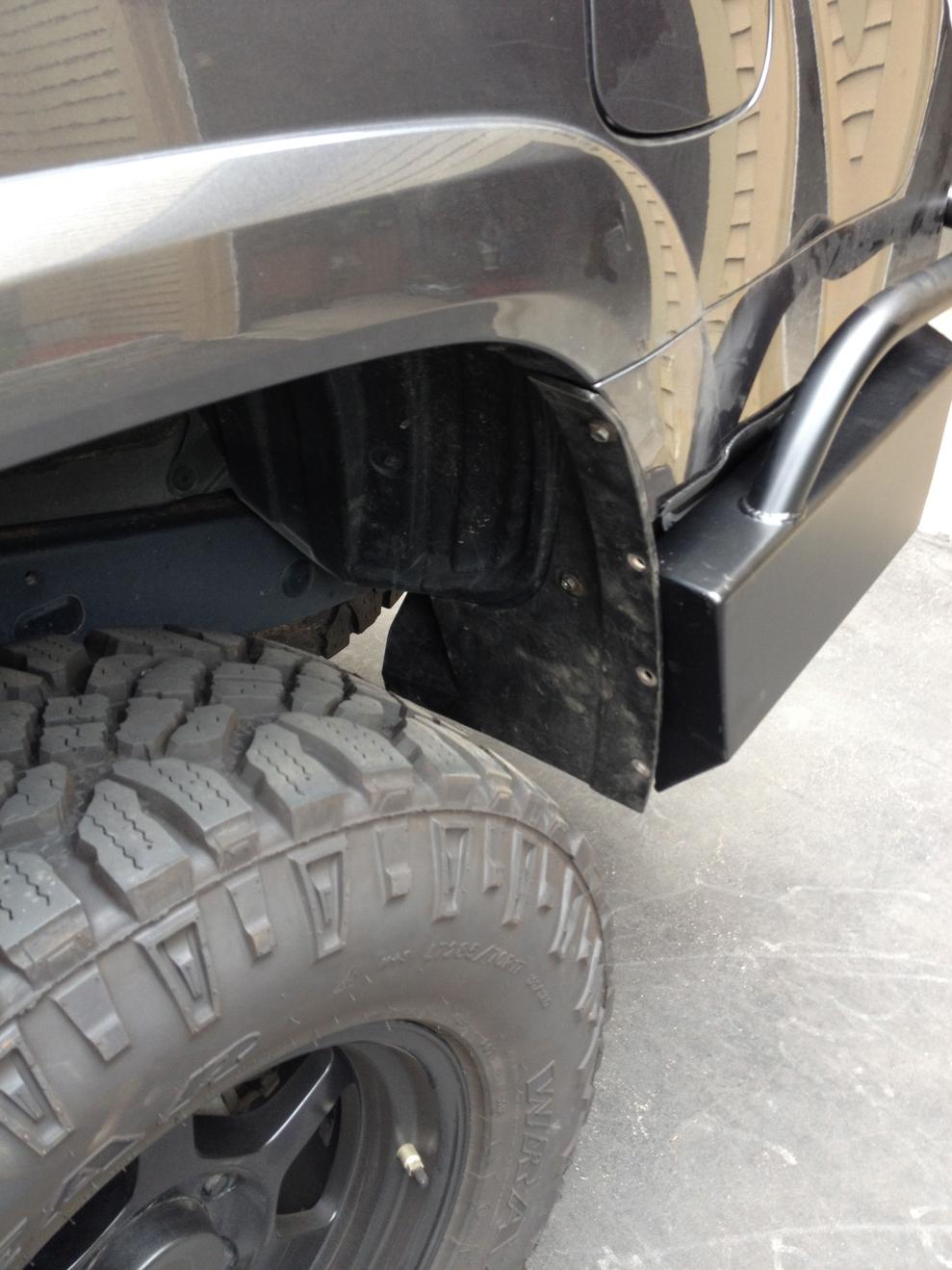

After some trips and banging up my stock rear bumper cover, I decided to go with CBI's rear bumper. Opted not to go with the swing out at the time but now I'm sometimes wishing I had.



[cbielat]

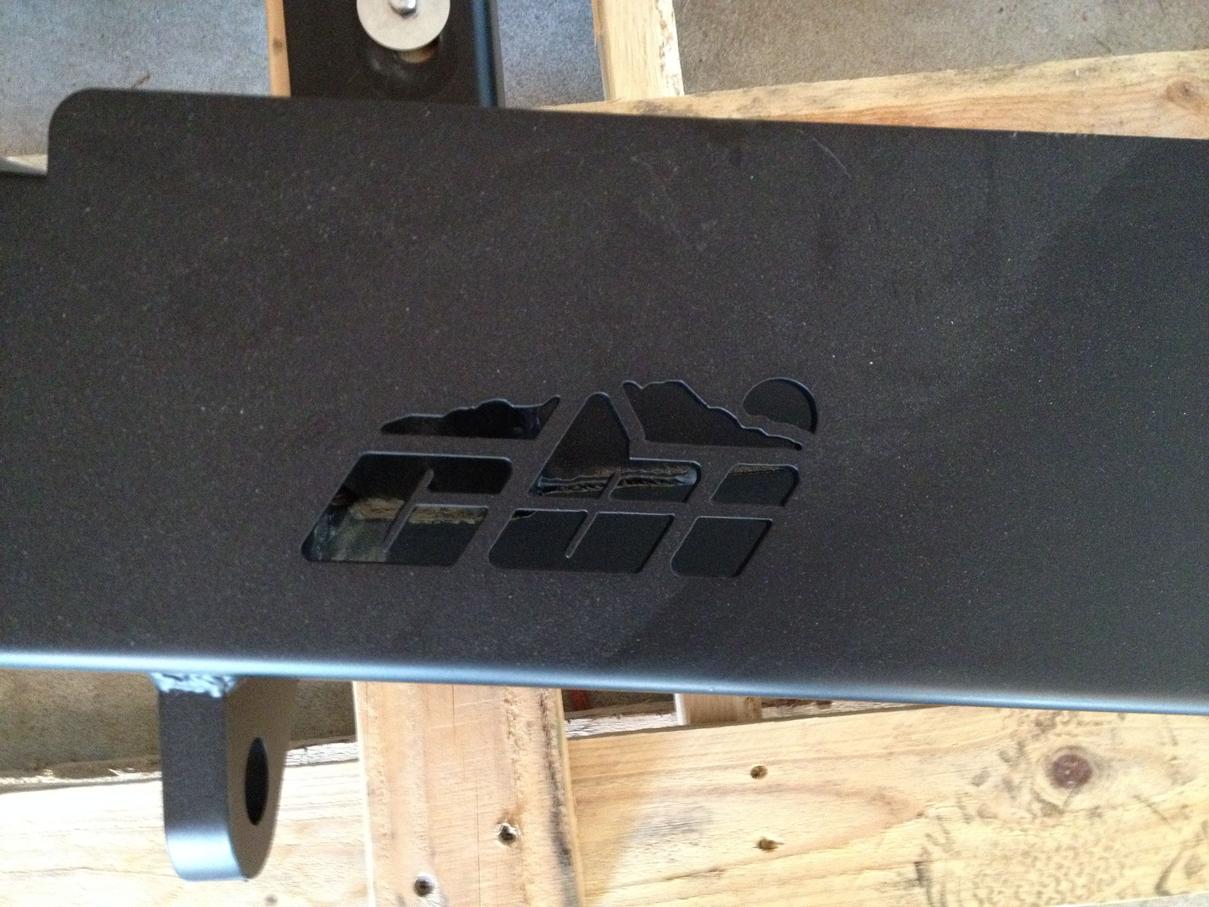

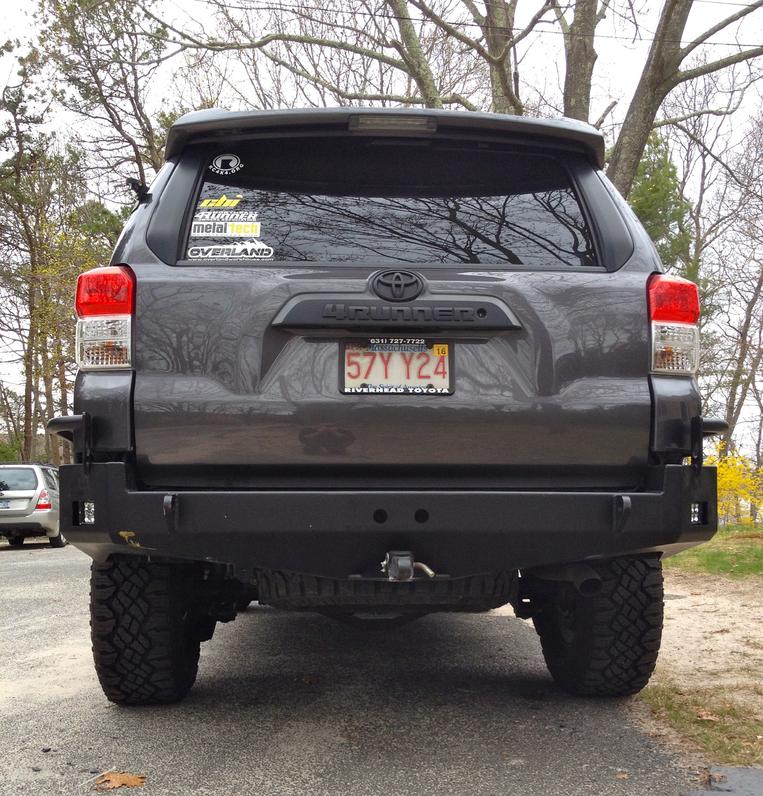

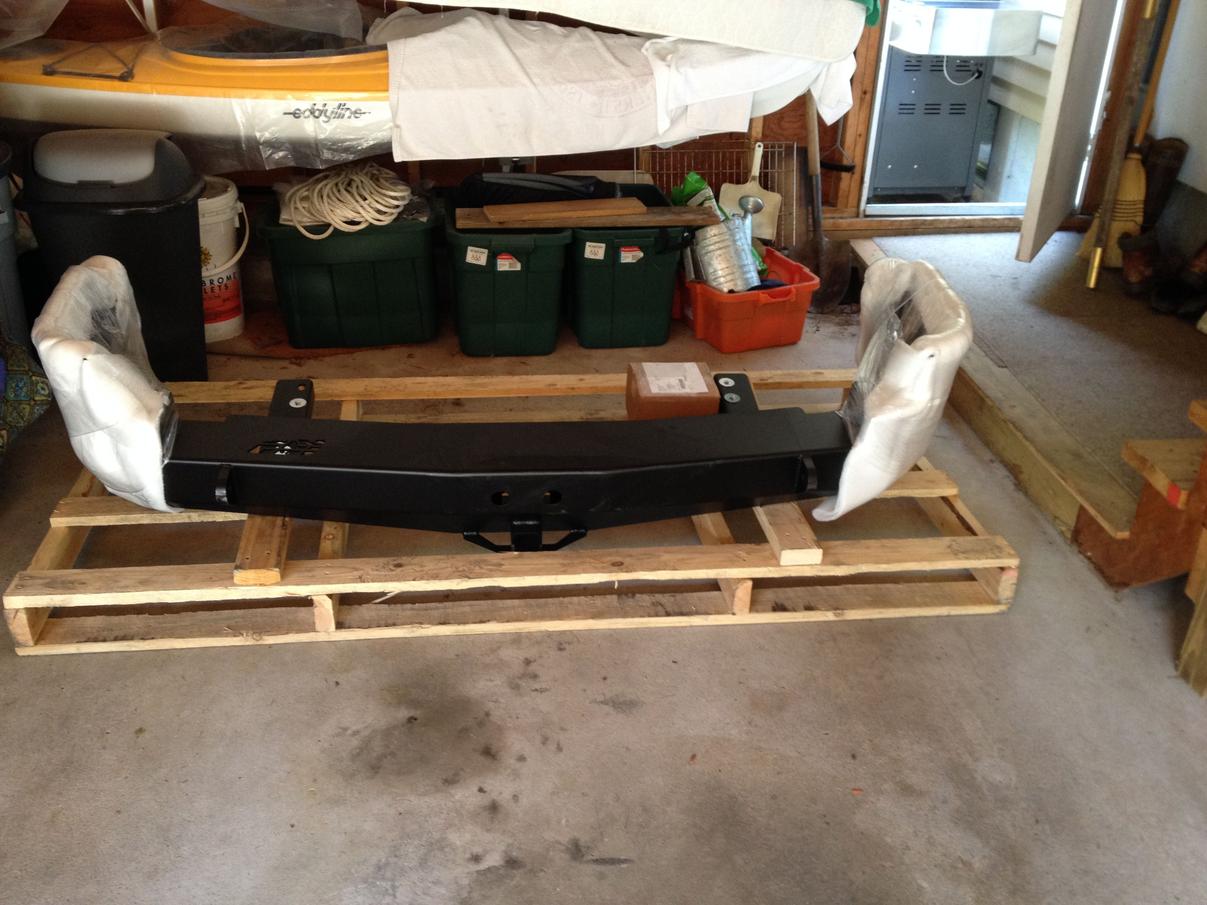

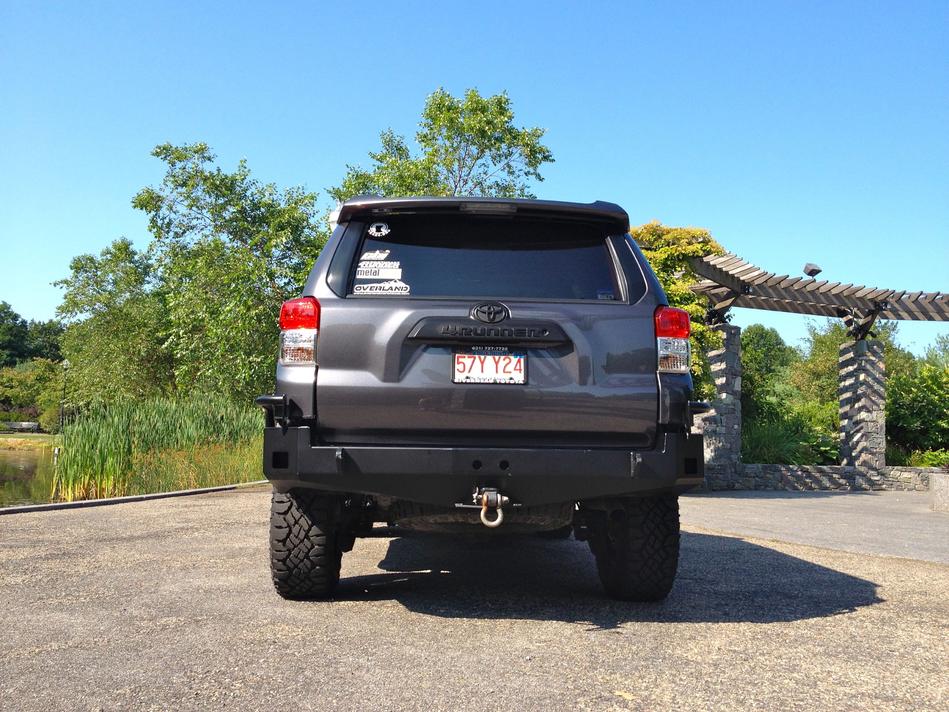

Bumper pictures



[cbielat]

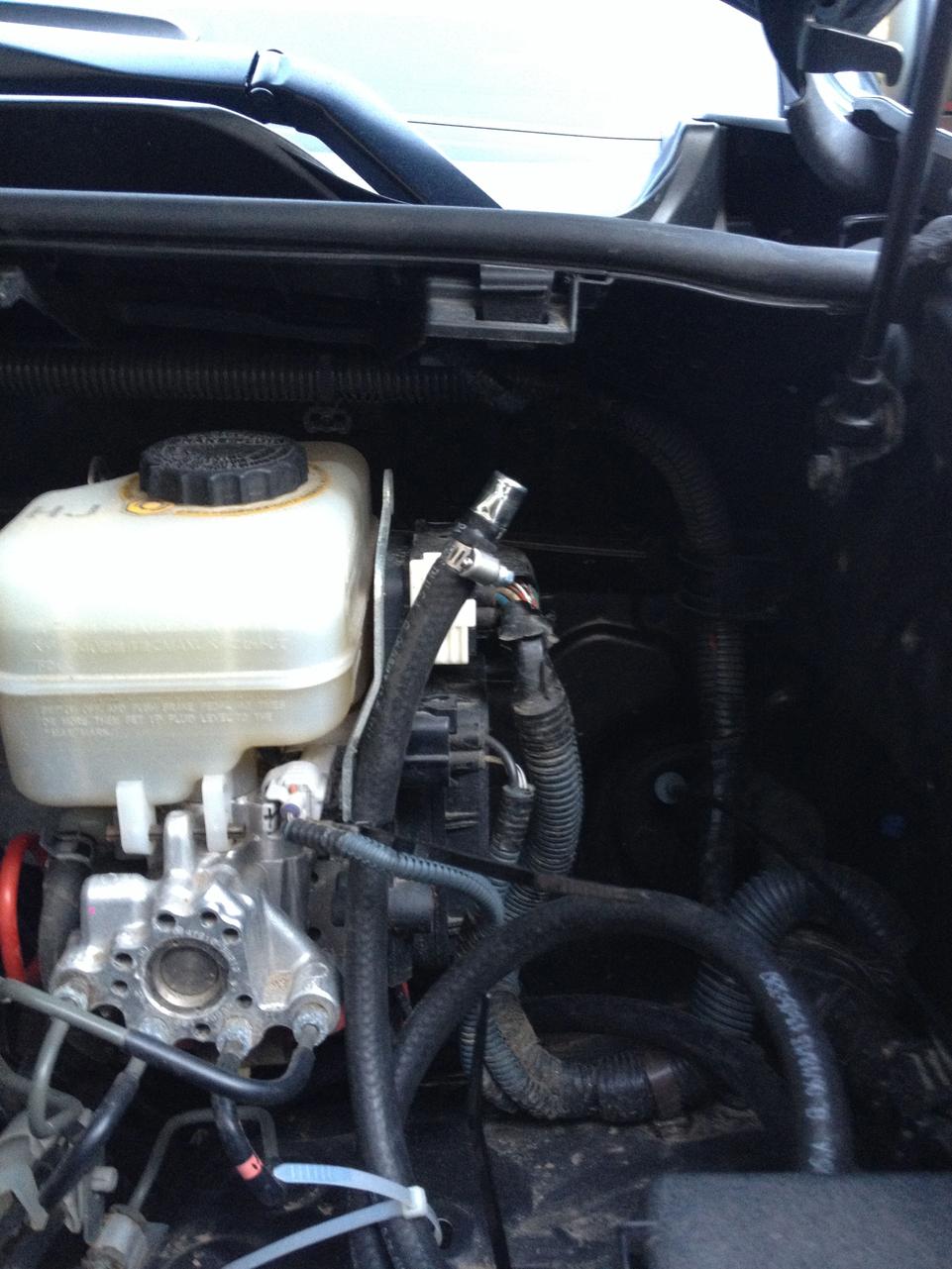

Somewhere in the mix I had done the rear diff breather mod and ran it up into the engine bay. Probably going to change the location to the gas filler door area. Also Plastidipped the chrome trim and am really wanting to get rid of the roof rack for an aftermarket. I just hate chrome.



[Hellamatic]

Looks good! Are you happy with the EBC pads and rotors? I just installed my ARB front bumper/winch and my CBI rear should be here in a few weeks, so I've shortlisted a brake upgrade to deal with the extra weight.



[cbielat]

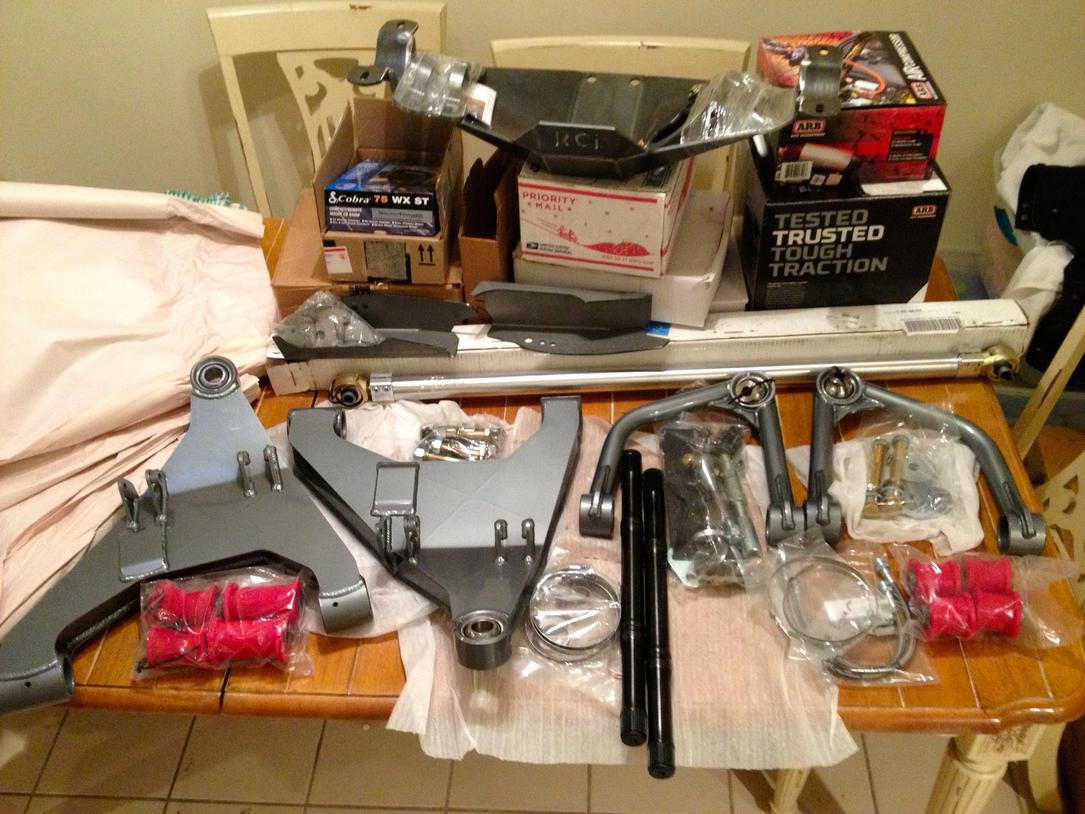

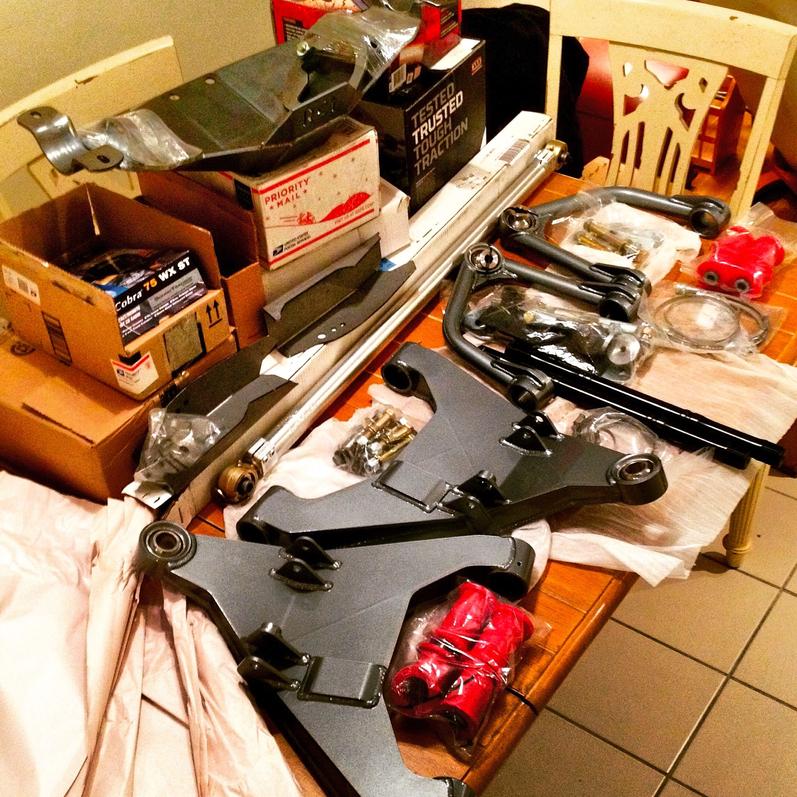

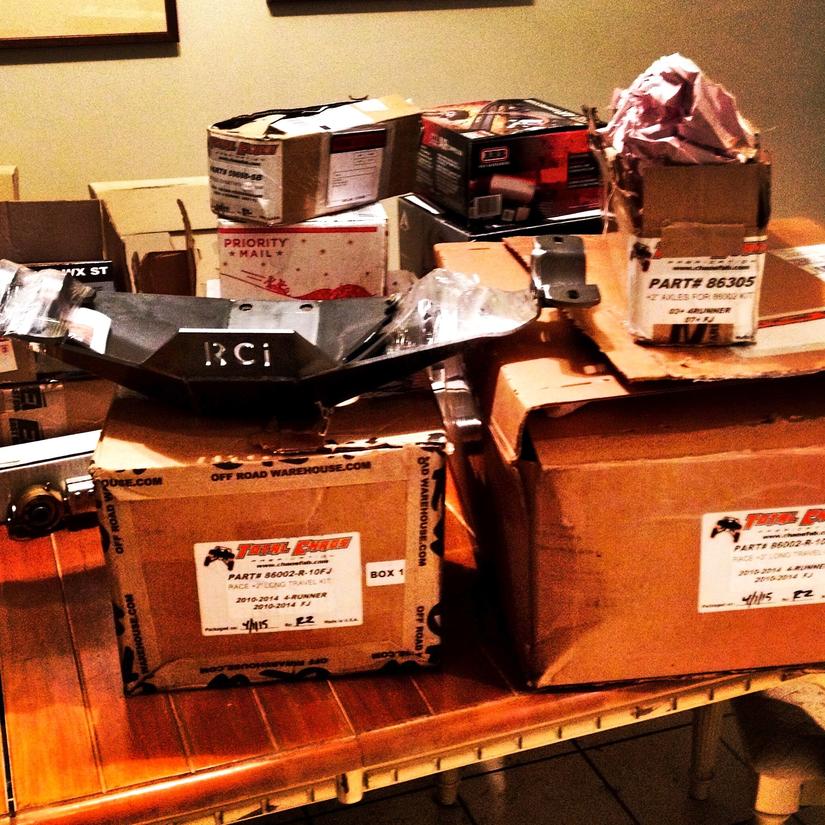

Over the fall/winter of 2014/15 I started to compile some other parts. These sat for a while. Included is a Rokmen adjustable rear track bar, Cobra CB radio and other parts to go with it, LED cube lights for my rear bumper, Nitro 4.56 gears, Nitro master front and rear diff rebuild kits, ECGS needle bearing bushing and ARB air locker. Gears, needle bearing bushing and rear locker are now installed but have yet to wire up the compressor as I run as fast as I can in the opposite direction when I see any types of wires. So if there's anyone out there, please help me lol. Back to the earlier post about buying new hubs and bearings; This needle bearing bushing helps dramatically. It tightens up the gap of the inner cv on the driver side. So if you're hearing a humming/constant groan, it may most likely be that small gap. Toyota does not hone down the casting in there and causes that noise while driving.



[cbielat]

Now for the fun stuff. I have been wanting to upgrade my front suspension for quite some time. I wanted to go with a 2.5" shock body and different UCAs. After over 3 years with the Light Racing ones, I've just gotten fed up with them. I've replaced the bushings 3 times. They are alright for street driving but I didn't feel they held up well with wheeling. One thing led to another and this is the out come. Total Chaos Race Version Long Travel full kit. Also purchased 3 Total Chaos axle shafts so I can build one to have as a spare. Also purchased Total Chaos' weld on spindle gussets. Along with this, I ordered an RCI rear diff skid.



[cbielat]

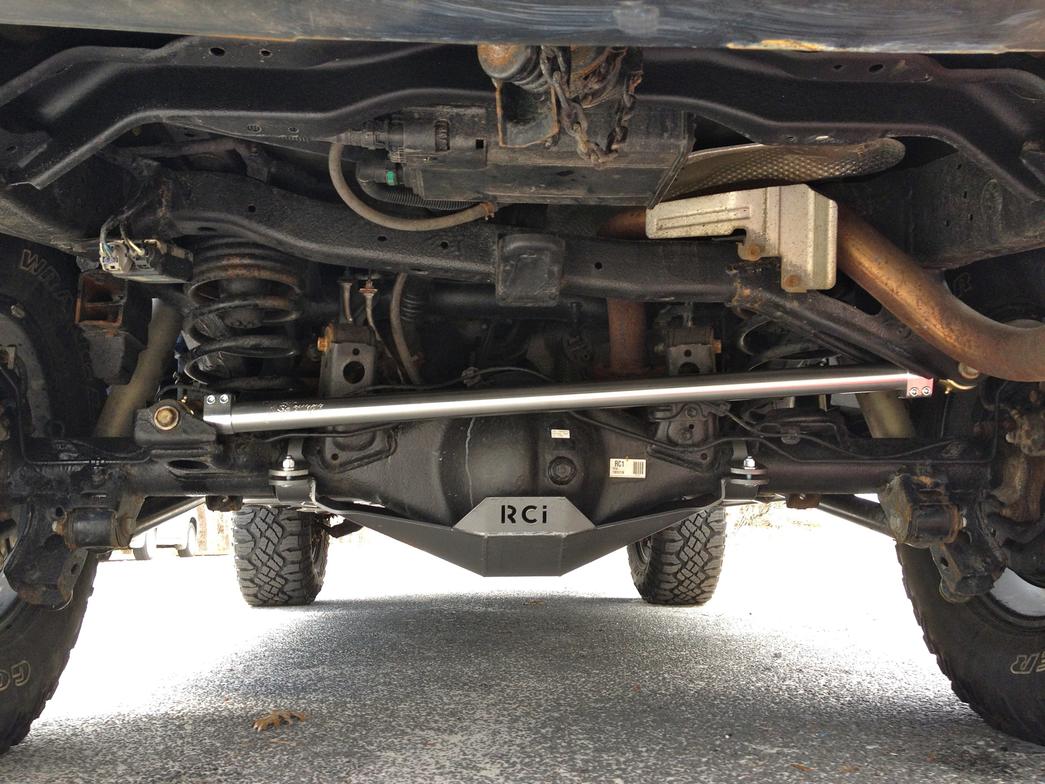

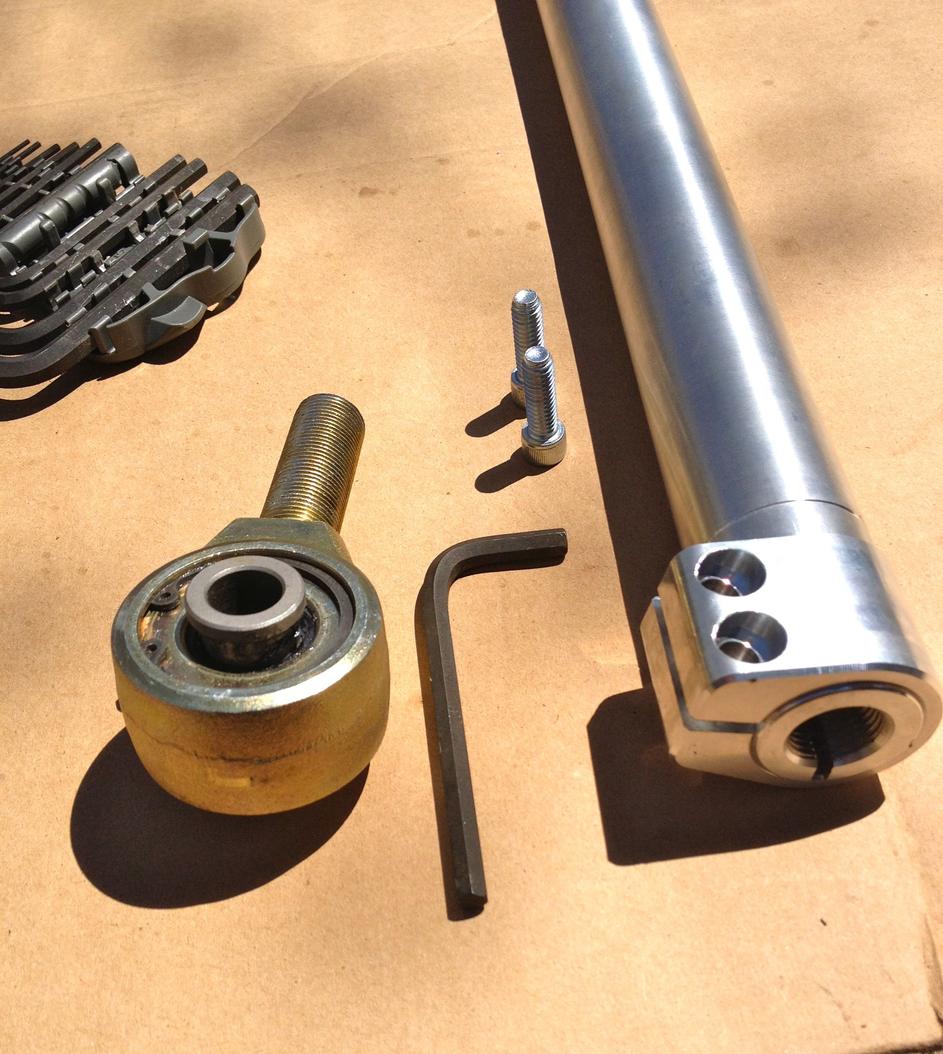

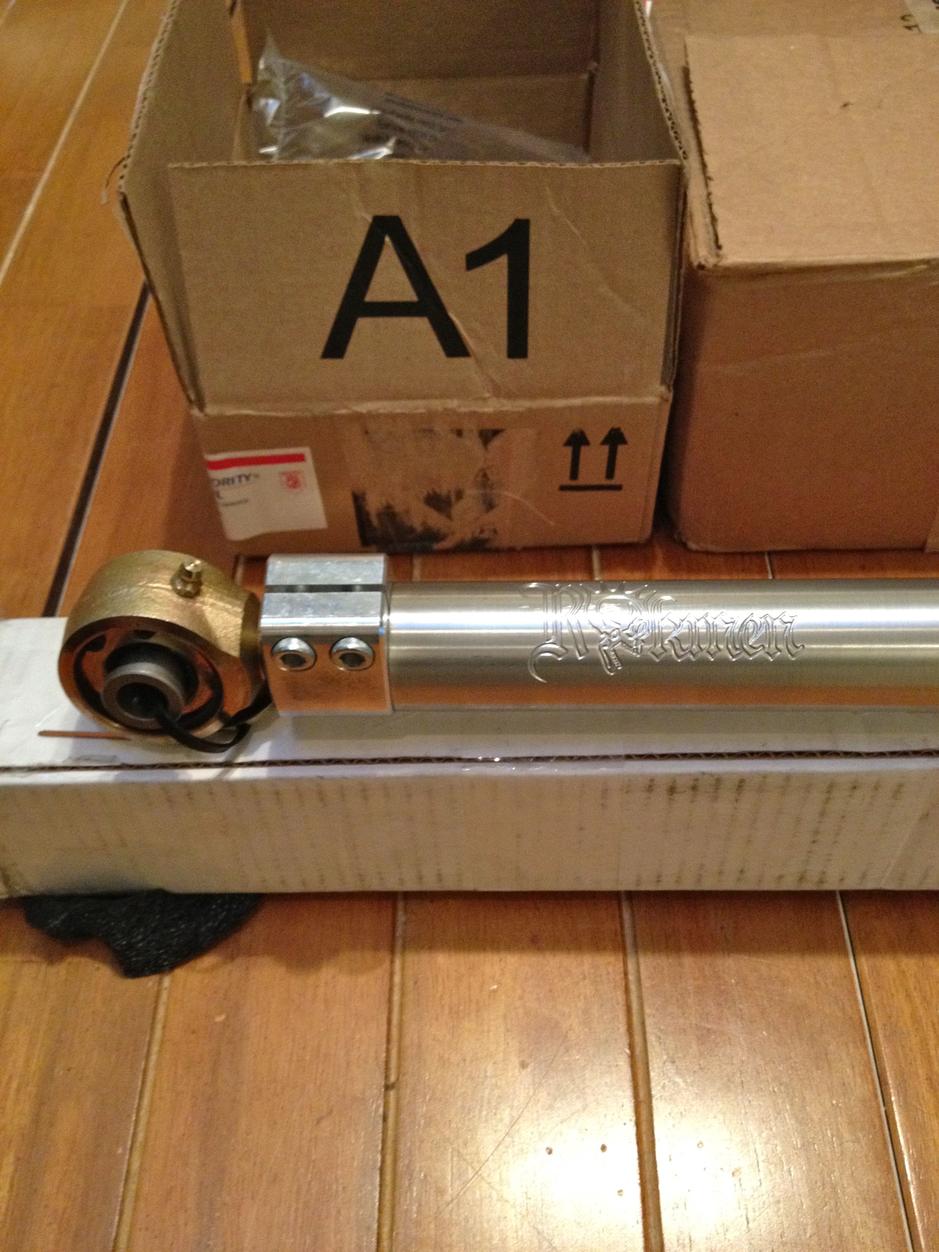

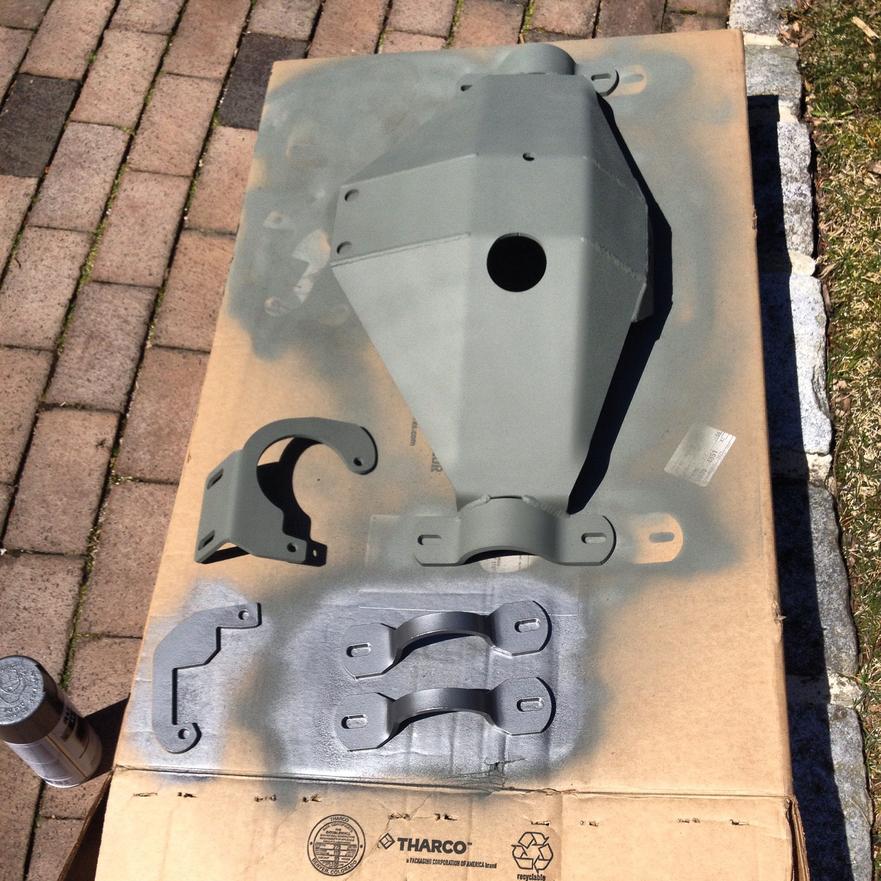

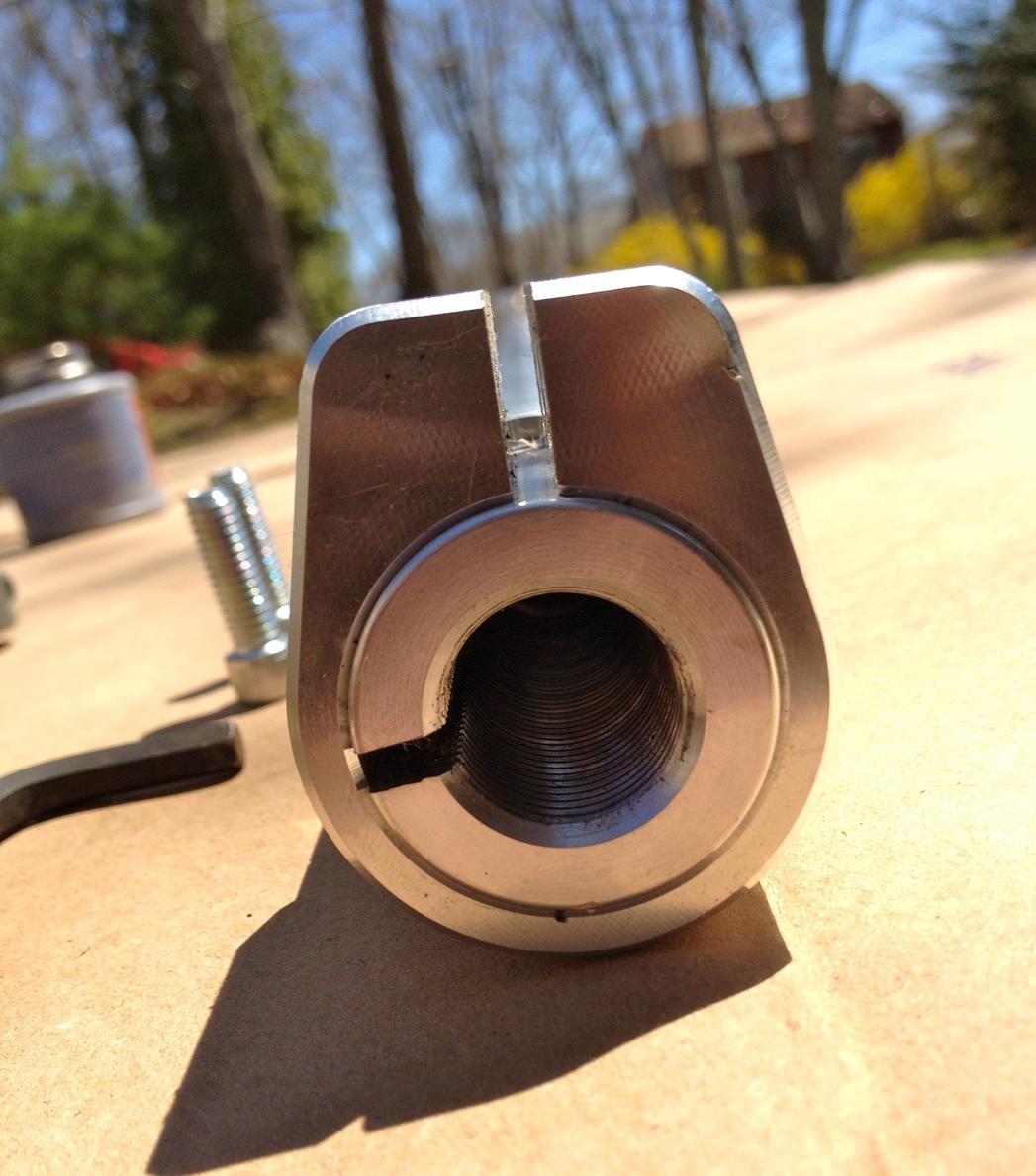

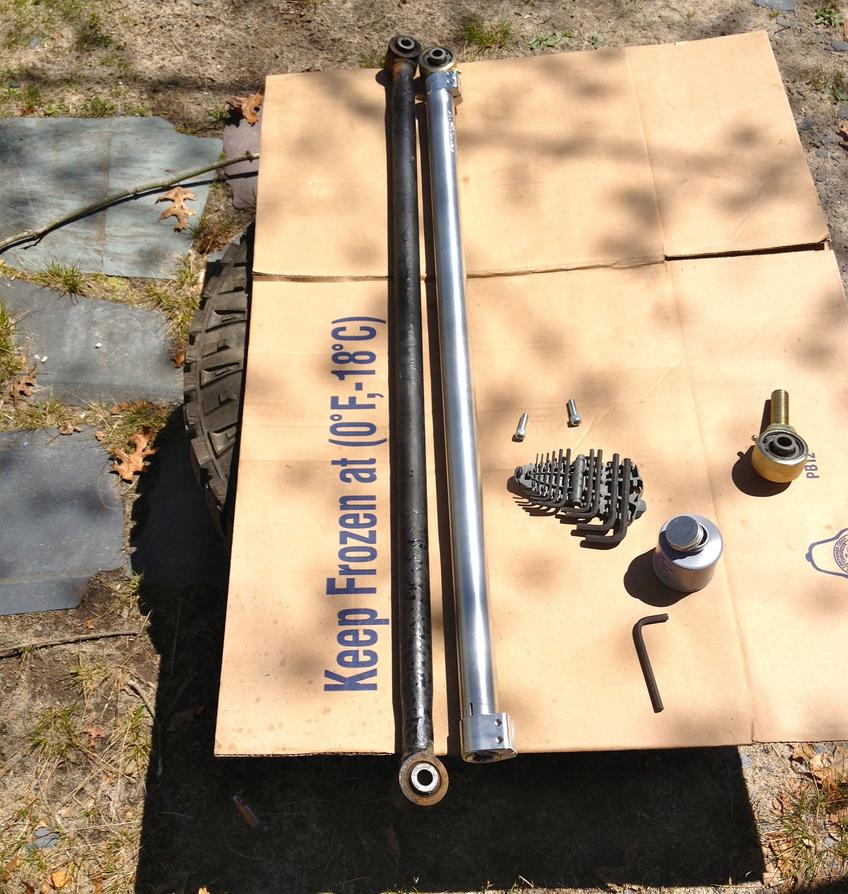

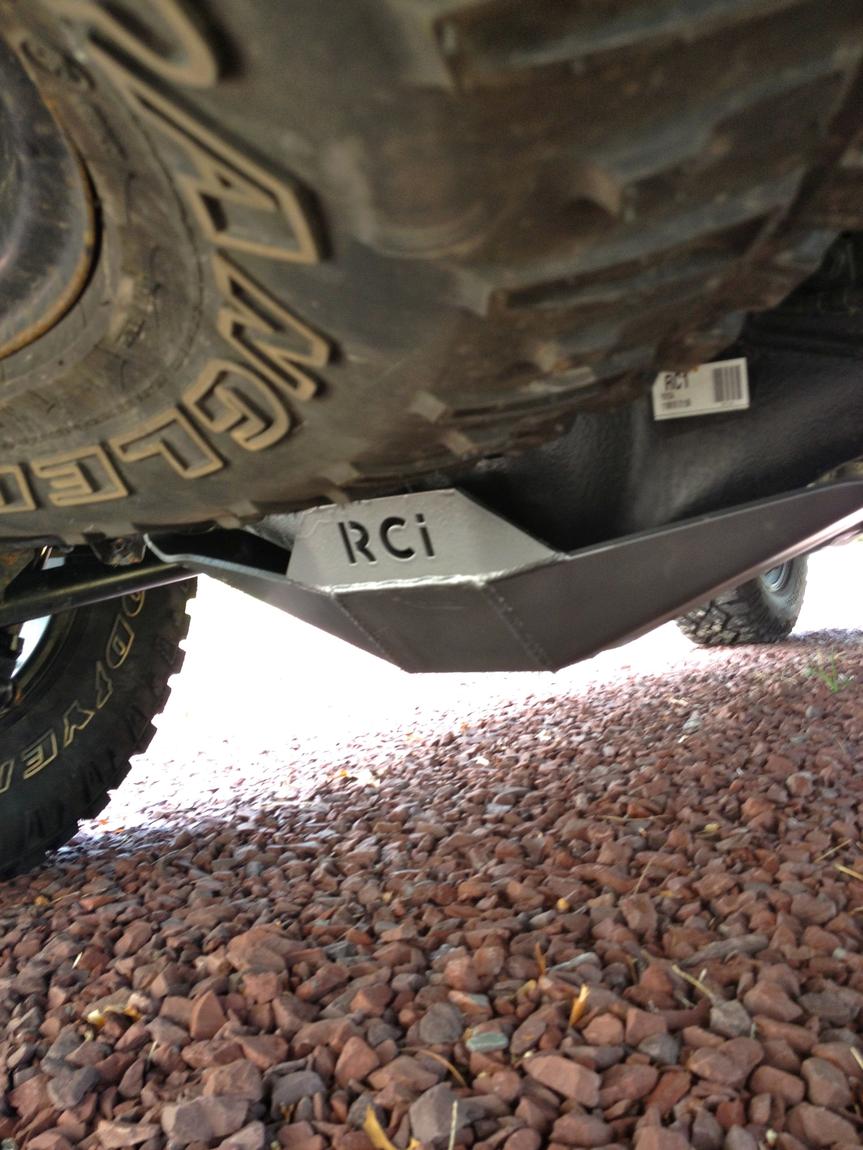

Installed the RCI rear diff skid, Rokmen fully adjustable rear track bar and mounted the rear Extreme LED Solutions lights for my rear bumper.
