Connectors behind switch panel

Neil_R

New member
Was working on my fog lamp wiring when I noticed these. Anyone know what they go to/control? They're just below the driver's side vent.


Register to hide this ad
Bump. Anyone know what these go to? Alternate switch locations? Maybe one of them is for the e-locker option?

Looks like maybe the Clutch Interlock Switch, if you had a manual in it.
And the other one is for power mirror switch.

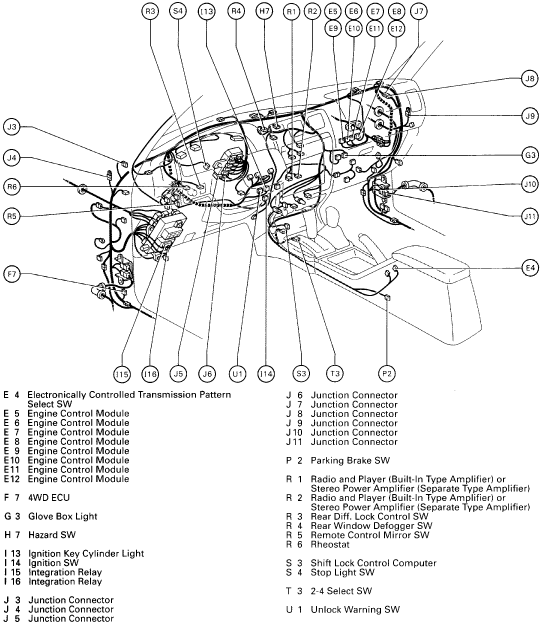

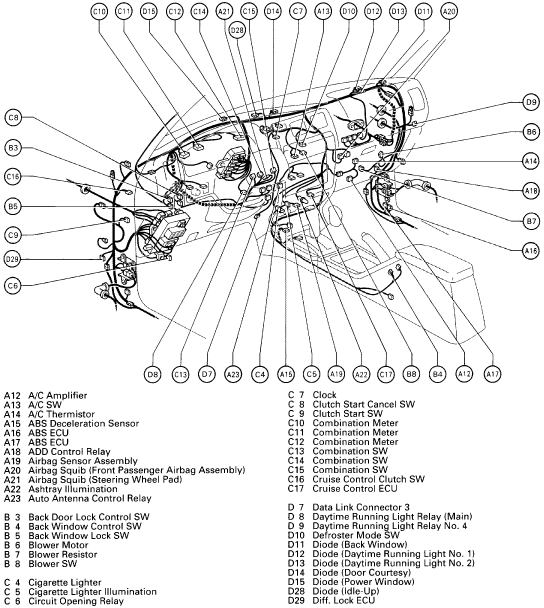

Check these connector locations out.
Sorry in advance if they are too big!


Attachments

  • wire connect1.gif
    wire connect1.gif
    50.8 KB · Views: 1,094
  • wire connect2.gif
    wire connect2.gif
    45.5 KB · Views: 1,708
Seems kind of odd considering I have an auto trans. I guess they used the same harness for both vehicles.
By mirror switch does it mean something to do with the rearview mirror? Perhaps the Limited wouldve had some sort of power rearview. I have power side mirrors of course.

Yours don't look like the clutch start cancel switch. There were no other connectors behind mine.

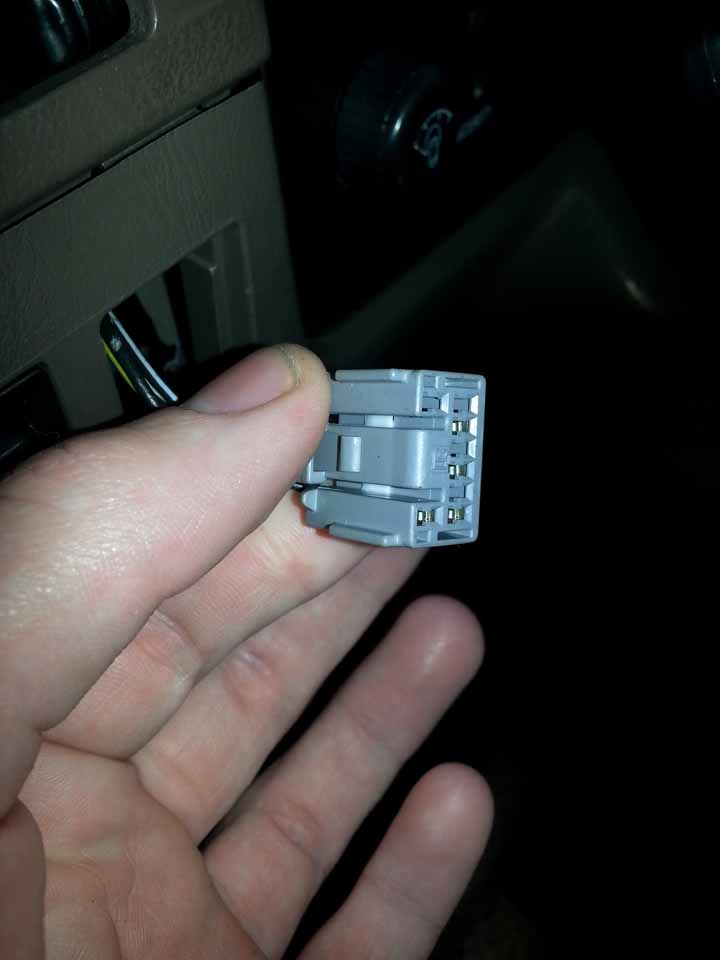

2015-02-13 15.55.34-r.jpeg

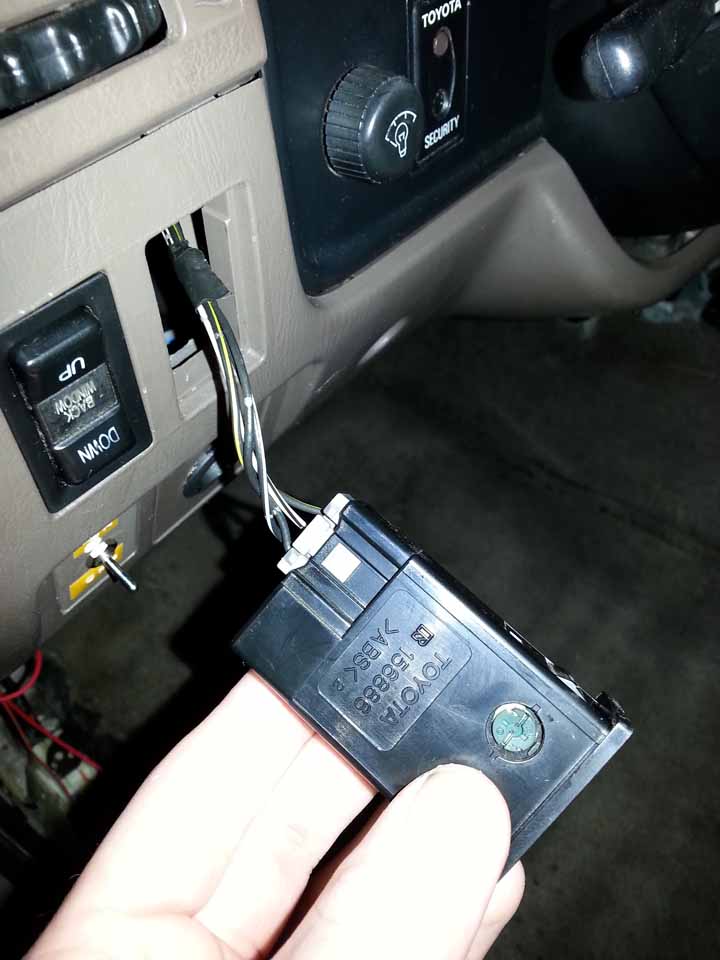

2015-02-13 15.57.08-r.jpeg
