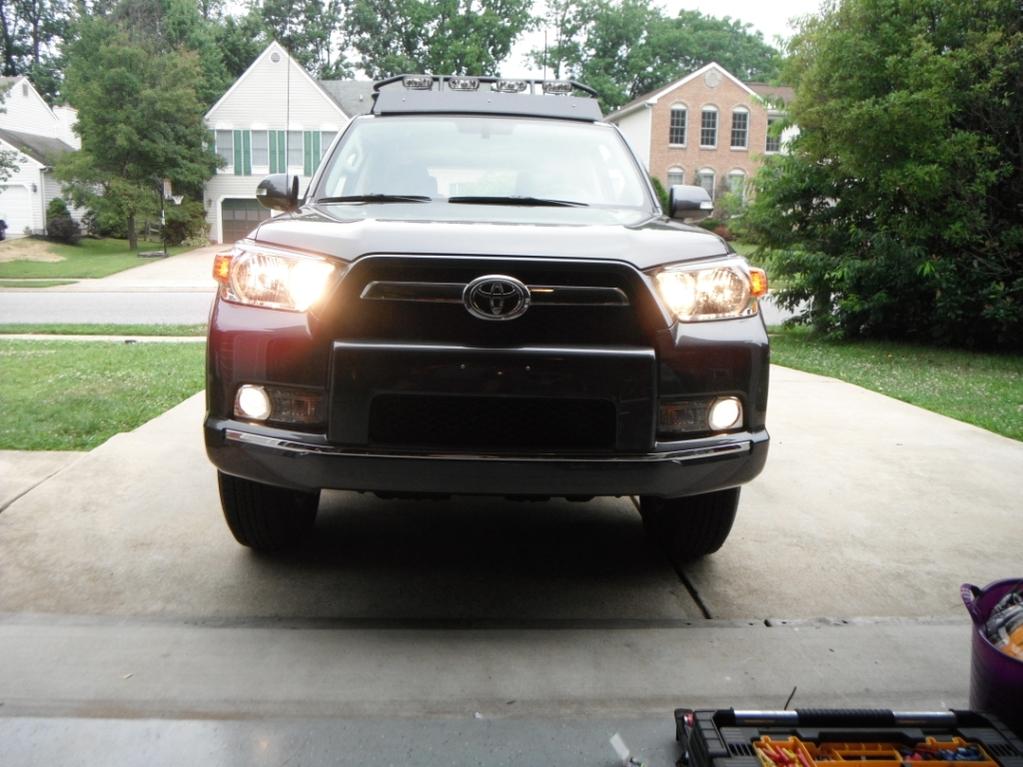

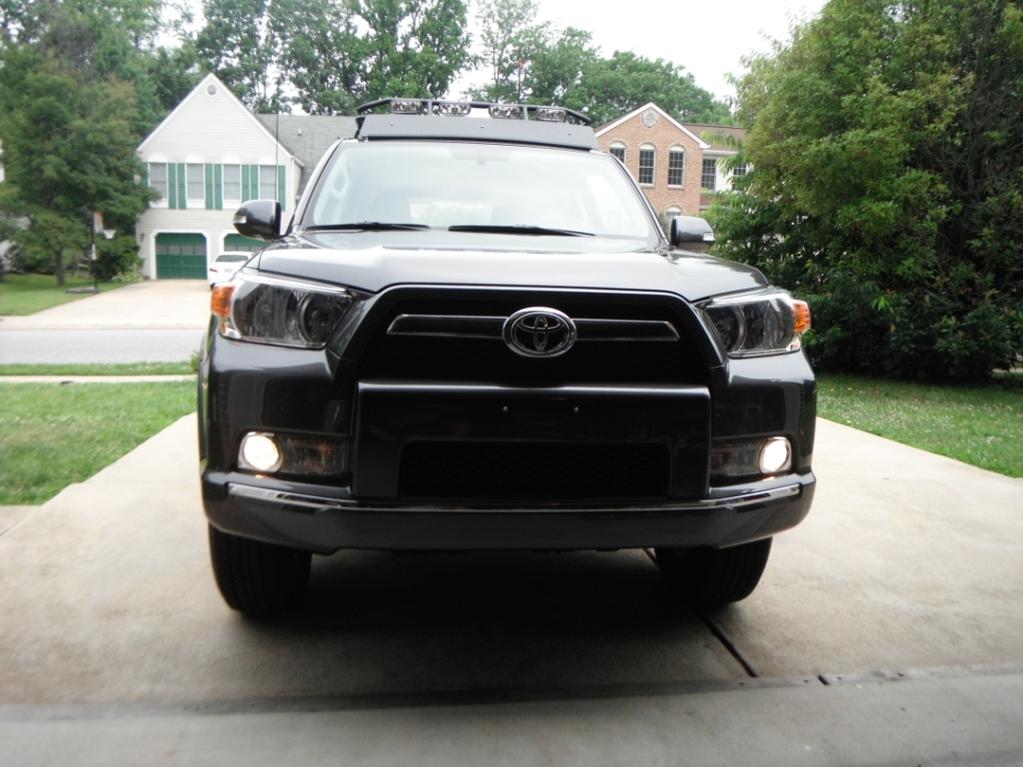

I figured out how to control the factory foglights, at any time- using the original factory switch. Now you can have "FOGS ON" whenever you want...
Here's the link
Here's the link
Finally! Independent Fog-Light MOD = done.
- Thread starter Antman
- Start date
Register to hide this ad
azn-sensation
New member
Yay! You're our savior!
Antman
Elite Member
That's pretty funny! Thanks, though!
Goverment13
New member
does this work on the 2014?
Antman
Elite Member
I dunno- why don't you give it a try? I'll walk you through it if the wiring is different, just send me a PM.
philsey
New member
Will my tires rub if I do this?
blizz86
New member
So mean.. but does this work if i dont use the search function instructions found in the stickies?
BTW: Awesome antman!
mace.
New member
Yes and they will chafe leading to an unsightly rash that will spread to the fenders and eventually the entire vehicle. Maybe some Gold Bond will alleviate the embarrassment.
I have all the electrical wiring diagrams for 2010 (front lights and fog lights), but for 2014+, I've only got the front lights and do not have the fog lights.
Anyone got them?
It would be good to see them and figure it all out electrical/wiring-wise, before hacking in.
I kind of assumed that it will be very similar to 2010, if not identical.
The factory fog switch goes to the ECU (FFOG input signal), and the ECU drives the (FFGO output signal), but this signal based on the other lighting states (headhlight, low beam, high beam etc..).
As Antman did it, the key is to intercept FFOG input signal from the switch to the ECU and then drive the fog-lights directly. One potential thing is likely to work if we can find and intercept the FFGO output signal from the ECU, we can even use the stock relay.
Anyone got them?
It would be good to see them and figure it all out electrical/wiring-wise, before hacking in.
I kind of assumed that it will be very similar to 2010, if not identical.
The factory fog switch goes to the ECU (FFOG input signal), and the ECU drives the (FFGO output signal), but this signal based on the other lighting states (headhlight, low beam, high beam etc..).
As Antman did it, the key is to intercept FFOG input signal from the switch to the ECU and then drive the fog-lights directly. One potential thing is likely to work if we can find and intercept the FFGO output signal from the ECU, we can even use the stock relay.
kevinpt
Senior Member
i think it would be cool to do the same with the drl mode. i think it would look cool to have the high beams on drl with the lows and fogs on
For 2014+, DRL is probably the one close to impossible to do since it is voltage regulation from either the ECU or the super pricy solid-state relay. It regulate the voltage to the high-beam/DRL 9005 bulb between 6V and 12V (I havent verified this claim personally yet).
BTW, I am looking for some multi-states switches for our trucks. I want ones that fit into the stock push buttons slots, but have functions like our dome light...... off-state1(door) -state2 (on).
BTW, I am looking for some multi-states switches for our trucks. I want ones that fit into the stock push buttons slots, but have functions like our dome light...... off-state1(door) -state2 (on).
op2:Hate to bring up a dead tread.
Dose the wire connector from the fog light switch from the stock Have to be plugged back in behind the steering wheel?
I am planning to run all new wires and use the stock switch (on a relay) to run the fogs by themselves. I want to bypass The pricey OEM relay. I was going to unplugged the stock fog light switch wires and use 3M piggy back connectors to hook up the new wires. I have a 2015. that's why I am asking the question.
Dose the wire connector from the fog light switch from the stock Have to be plugged back in behind the steering wheel?
I am planning to run all new wires and use the stock switch (on a relay) to run the fogs by themselves. I want to bypass The pricey OEM relay. I was going to unplugged the stock fog light switch wires and use 3M piggy back connectors to hook up the new wires. I have a 2015. that's why I am asking the question.
Last edited:
Antman
Elite Member
No you don't have to plug it back in- should work just fine.
I bought one of these.
H11 880 Relay Wiring Harness Conversion Kit for Fog Light LED Bulb AD39 | eBay
I will piggy back into those stock wires from the fog light switch and hook up the wires from the that harness..
H11 880 Relay Wiring Harness Conversion Kit for Fog Light LED Bulb AD39 | eBay
I will piggy back into those stock wires from the fog light switch and hook up the wires from the that harness..
its done,
Pain the ass kinda.. I used a new wiring that I bought off ebay.
Ran power off the batter for the lights. For the on/off part of the relay. I jumped off the side marker light (not blinker). I then ran the negative power side wire into the truck and unhook the small fog light switch connector. I disconnected the wires and 3m piggy backed one side for that wire and ran the other side to ground. So you can turn them off/on with the stock switch and when you shut the power off they go out. You do have to run the lights to make the fogs work.
the lights are H8's 35w Yellow lights.
Pain the ass kinda.. I used a new wiring that I bought off ebay.
Ran power off the batter for the lights. For the on/off part of the relay. I jumped off the side marker light (not blinker). I then ran the negative power side wire into the truck and unhook the small fog light switch connector. I disconnected the wires and 3m piggy backed one side for that wire and ran the other side to ground. So you can turn them off/on with the stock switch and when you shut the power off they go out. You do have to run the lights to make the fogs work.
the lights are H8's 35w Yellow lights.
