Hella 500 floating front bumper mounts...(install pics)

[momo.75]

First let me say these are not "official" instructions by any means. There has not been any testing so I have no idea how they will work for extreme off-road use, but I personally think they would do fine.

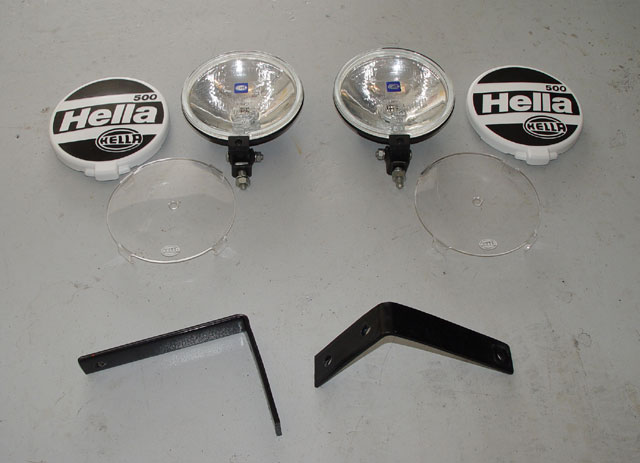

The lights I chose to use for this project are the Hella 500 driving lights. I like these since they are realtively slim and won't stick way out from the front bumper. i will probably end up switching to the Hella Black Magic lights, but wanted to see if this would even work first. In this first pic, you will see the lights, the stock Hella 500 covers, the clear stone guards (purchased separately) and the brackets. The brackets are made from my trusty 1.5" x 1/4" steel strips, you can get at Home Depot. All I did was take them to a freind's house and bend them to a 90 degree angle.



[momo.75]

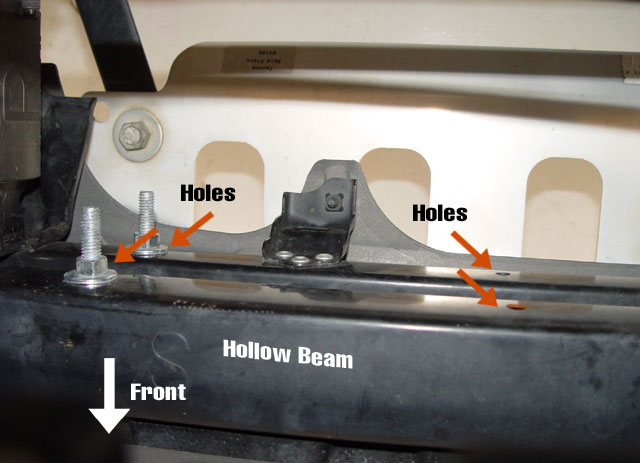

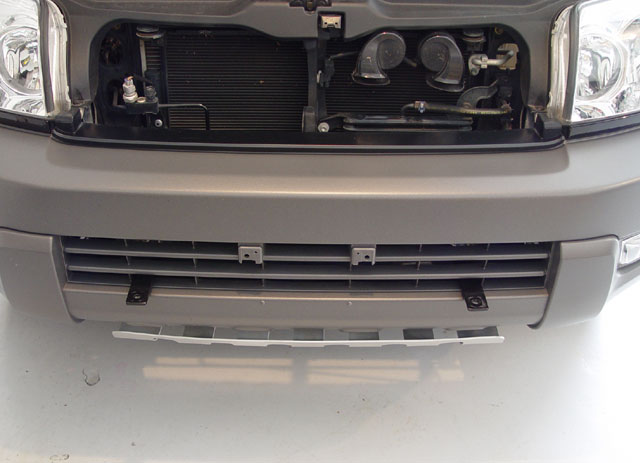

Now, where to mount these. This pic was taken where I had opened the hood and looked right down behind the front bumper. You will see there is a beam that runs from side-to-side behind the bumper. In this beam, you will see 4 sets of holes. In the pic I already have two bolts sticking out of the holes furthest to the left.

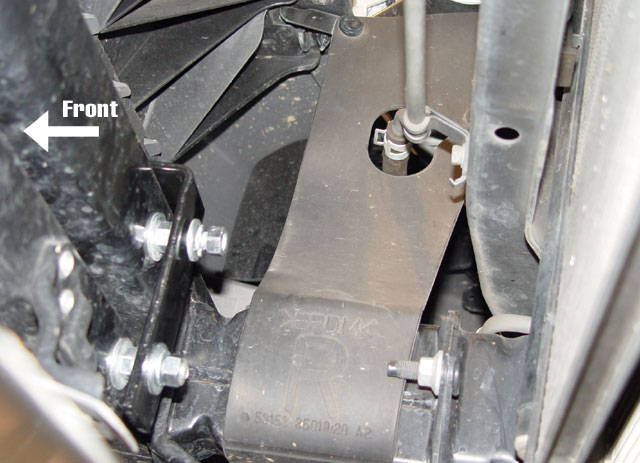

First I picked the holes I was going to use and used my Dremmel tool to ream them out a little, to accept a larger bolt. In order to get the bolts inside this beam and sticking out, I ran a piece of wire through the hole and out the end of the beam. Here I took one of the bolts, with a washer on it and wrapped the wire around the threaded end. I wrapped the wire in the grooves of the threads then put a little strip of tape around that with some hanging off the end to make a cone shape, so ti wouldn't cathc anything. (MAKE SURE YOU PUT THE WASHER ON BEFORE YOU PULL IT THROUGH!!!!) When you start pulling it through you will feel it hang up some, but if you jiggle it around it will work it's way over the bumps. Just do this for each of the two hole on each side. Once I pulled them throught, I put on a washer then a nut on the outside, which you see in the pic.

I mainly did this so they wouldn't back into the beam and also because I want to be able to put on and take off the lights, depending on our road trips.



[momo.75]

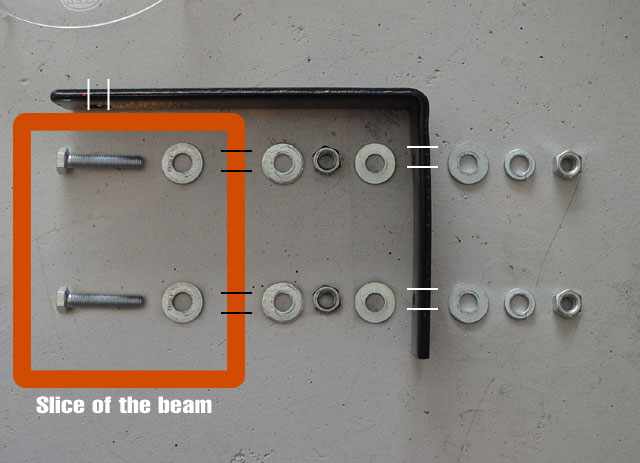

Here is a side view of the beam (in orange), the bracket and the order of the bolt, washers, lock-washer and nut.

You will see the two bolts in the beam with washers on them, then the washer and nut just outside the beam. When I put the brackets on, I first put a washer on, then the bracket, then another washer, lock-washer and finally the nut.



[momo.75]

This is what it will look like with the bracket, washers and nuts. They are not tightened down so you could distinguish the parts.



[momo.75]

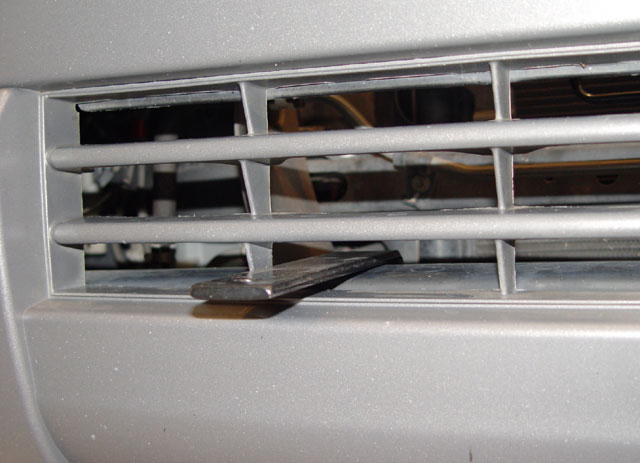

This is a close-up of how the bracket will stick out of the front bumper.



[momo.75]

The shows both brackets mounted.



[momo.75]

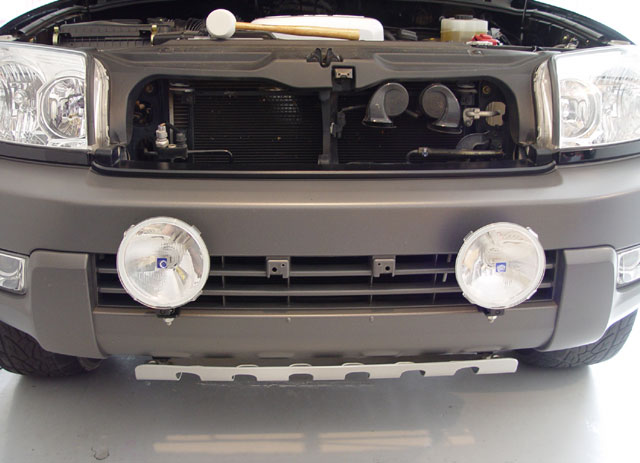

lights mounted up. Since there are two more sets of holes inside these, you could actually mount up another pair of lights to have four across te front, but i will let one of you guys try that.



[momo.75]

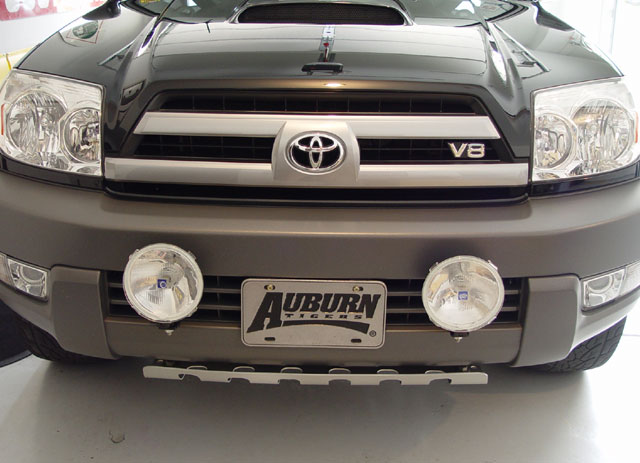

Finally, one to support the boys. War Eagle!

Last thoughts. If you do not want to keep the stock covers on them, I would strongly suggest you getting a set of clear stone guards before you even put them on. I had mine on for just a coupel of days and took a rock one the edge of one of the lights, but it didn't mess it up too bad, just a small peck.

I still have yet to wire them up. A freind if mine is going to help me do it where I can easily put them on and take them off, without shorting out the system. I want to be able to do that for long roadtrips, since I mainly drive at night on back roads.

Hope this helps those that have asked me about them. Thanks.
