Icon Rebuilds
- Thread starter Tusken
- Start date
Register to hide this ad
troutbum98
New member
I'm interested in this too...just getting ready to install a stage 2 kit on my 2018 off road.
nb rob
New member
rebuild depends entirely on your shock. There is no definite interval.
things that will require a rebuild; dirt and grit getting inside, bending a shaft, pitting a shaft.
pitted shafts will accelerate wear on the wiper seal, and allow grit inside. Once the grit is inside, the seals will wear quickly.
Symptoms of worn seals include leaking, and oil moving beyond the internal floating piston.
If you lose enough oil, there will be a vacuum and the shock will be sticky somewhere within the stroke. If you lose nitrogen pressure, it will be mushy. Both scenarios will likely make a clunk.
more likely though, you will have noisy spherical bearings requiring replacement before you need to replace seals.
if you are handy, have a good bench vise and are organised, there is not much to rebuilding a shock, and it is fun and rewarding.
required tools include a nitrogen bottle and regulator,
a lossless charging manifold
pin spanner (I think these are required for icon?)
good snap ring pliers
soft jaws - if you are replacing a shaft or rod end.
things that will require a rebuild; dirt and grit getting inside, bending a shaft, pitting a shaft.
pitted shafts will accelerate wear on the wiper seal, and allow grit inside. Once the grit is inside, the seals will wear quickly.
Symptoms of worn seals include leaking, and oil moving beyond the internal floating piston.
If you lose enough oil, there will be a vacuum and the shock will be sticky somewhere within the stroke. If you lose nitrogen pressure, it will be mushy. Both scenarios will likely make a clunk.
more likely though, you will have noisy spherical bearings requiring replacement before you need to replace seals.
if you are handy, have a good bench vise and are organised, there is not much to rebuilding a shock, and it is fun and rewarding.
required tools include a nitrogen bottle and regulator,
a lossless charging manifold
pin spanner (I think these are required for icon?)
good snap ring pliers
soft jaws - if you are replacing a shaft or rod end.
nb rob
New member

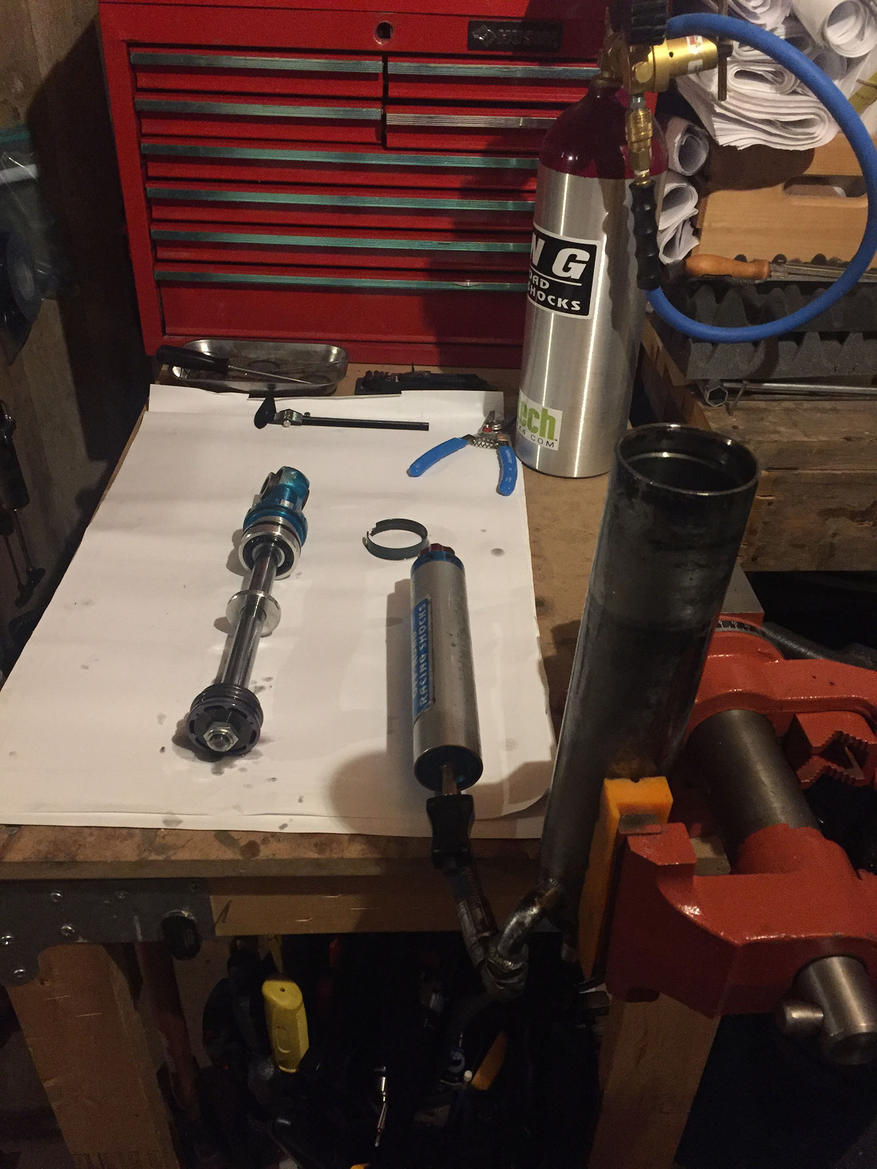

These shocks were getting new shafts and I did the seals at the same time.
The wear band does not require replacement at this time.

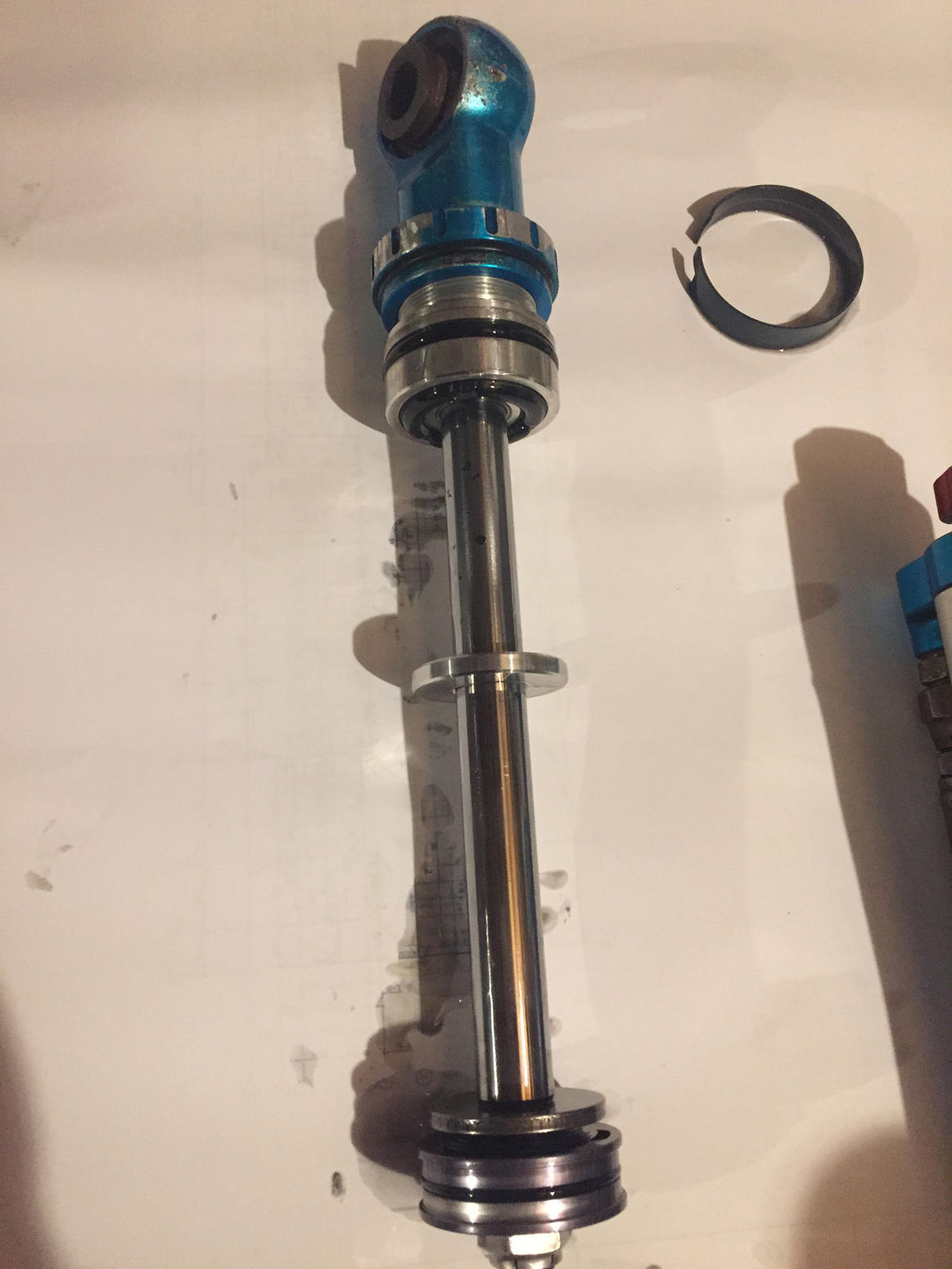

In the photo of the shock assembly, the small 1/4" spacer in the middle of the assembly is the only difference between a regular shock and an extended travel shock. I removed these during the reassembly.
I know these aren't Icon, but they are very similar.
The wear band does not require replacement at this time.
In the photo of the shock assembly, the small 1/4" spacer in the middle of the assembly is the only difference between a regular shock and an extended travel shock. I removed these during the reassembly.
I know these aren't Icon, but they are very similar.
Attachments
EddieV4runnin
New member
What’s Icon’s recommended service interval??
DesertCanyons
New member
Icon shock rebuild
I think Antman has a good tutorial on how to do this. Do a search for shock rebuild.
The ICON website talks about rebuild intervals. Give them a call and ask them. They have a few video tutorials on YouTube also.
I think Antman has a good tutorial on how to do this. Do a search for shock rebuild.
The ICON website talks about rebuild intervals. Give them a call and ask them. They have a few video tutorials on YouTube also.
Jeremy556
New member
http://www.toyota-4runner.org/5th-gen-t4rs/182755-icon-shock-rebuild.html
I just fixed the images (damn you, dropbox)
I just fixed the images (damn you, dropbox)
nb rob
New member
That's a nice writeup ^^^ I haven't seen that before. Thanks for updating the photos
