xlaxx
New member
I performed Part 1 of this mod today and all is well thus far. I have a question about Part 2 though,...
I really don't want to purchase a big bag of the 3m squeeze connectors (qty. 100). Will the Tap-in Squeeze Connectors From Radio Shack work? They are part # 6403052. Blue in color. Pack of 10 for $2.79. Is this an adequate part swap instead of the 3m connector?
Also, on JA's mod, there are similar colored wires at pin 7 and pin 17 (red w/ green stripe). Is there a certain way to tell the position on the white connector to differentiate between the two pin wires?
Thanks for the help.
XLAXX
I really don't want to purchase a big bag of the 3m squeeze connectors (qty. 100). Will the Tap-in Squeeze Connectors From Radio Shack work? They are part # 6403052. Blue in color. Pack of 10 for $2.79. Is this an adequate part swap instead of the 3m connector?
Also, on JA's mod, there are similar colored wires at pin 7 and pin 17 (red w/ green stripe). Is there a certain way to tell the position on the white connector to differentiate between the two pin wires?
Thanks for the help.
XLAXX
xlaxx
New member
ZandT4R
New member
I had part 1 and part 2 of this mod done. When I installed HID fogs I set part 1 back to factory as I like when I unlock the car it kicks the fogs on to warm up the HID's (I know that's not the intended purpose of the lights coming on, but it works). With part 1 of the mod done it only fired up the lows when I unlocked the car, fogs would come on upon vehicle ignition. Now my HID fog's are warmed to full output when I start driving and stay on when I high beam, I just can't have only fogs on, which is fine. Great, simple mods either way.
xlaxx
New member
Finished up this mod yesterday. Works perfectly. Only difficult part of it was stripping the electrical tape away from the wiring harness to get to the wires.
Wire Tap-In Squeeze Connectors (10-Pack) - RadioShack.com
The connectors (above) work just fine for this mod but you will need to cut the 'plug' / 'blockage' out of it with an Exact-o knife to make it a 'double-run' application. Mod took less than 10 minutes, if even that, to complete. Thanks for the help JA!
xlaxx
Wire Tap-In Squeeze Connectors (10-Pack) - RadioShack.com
The connectors (above) work just fine for this mod but you will need to cut the 'plug' / 'blockage' out of it with an Exact-o knife to make it a 'double-run' application. Mod took less than 10 minutes, if even that, to complete. Thanks for the help JA!
xlaxx
sigepbiker
Member
By getting the signal from the parking light, does that mean if all the lights, headlights and parking lights, are off but the fog light switch is in the on position, then the fog lights are still off?
I like that change. Could you explain what you did differently than J.A.'s write up? Thanks in advance. Pics always help.
J.A.
Senior Member
Like Doozi confirmed, following the way the write up instructs functions exactly how Allegro is describing so I am not sure what he thinks is working differently.
But if you get the power from the parking light circuit, then the fogs will be off even if the fog switch is on when the parking lights are off...but will come on if the parking lights or headlights are on (and fog switched on).
sigepbiker
Member
Where do I jump the Fog light relay to in order to connect to the parking lights power?
Bahnstoermer
New member
This is a technical discussion and you've given your 0.02 commentary more than once. Ease back off broseph!
Great mod JA, had to figure the wiring myself on my Montero, can't wait to do it the easy way on the 4runner (following someone elses instructions!).
LTX4RUNNER
New member
Just so you guys know, if you install the HID kit from KBcarstuff your HID's will stay on even when you activate the high beams. If you do this fog light mod, it will then let you have your lows, highs, and fogs all at the same time. Not sure why anyone would need that, but it's possible.:banana:
97BlackAckCL
Elite Member
Interesting, I had a guy flipping me off on Sunday and yelling out his window because he thought I was following with my high beams on. All I had was my headlights and fogs on. I even blinked my brights so he could see that I didn't have my highs on. This would have REALLY pissed him off
Doozi
New member
Sounds like you may need to aim your headlights a bit lower. I lowered mine so that the cut-off is right at most trunk lids when at a reasonable following distance and no one seems to be bothered. There is also plenty of light on a dark, deserted road. I used the factory aiming specs that I found somewhere on this forum as a starting point and even made two "templates" out of two lengths of 2x4 lumber.
If it was just that one guy, he may have just been having a bad day regardless of your headlights! ;-)
dadigab
New member
He's mad cause he doesn't have auto tinting rear-view mirror!
cleger
New member
Just a little confusion.
Okay, with this Mod, when your headlights are in auto and your fog light switch is on, and I leave my headlights in auto and turn the vehicle off will the fogs stay on the like 30 seconds the rest of my headlights do?
This is what I want.
Fog light switch to work independent of the headlights, but also stay on like they are in auto...
What I am thinking..
I need to bring +12 and -12 to the coil from a source on the 4Runnner that comes on with the ignition switch and off 30 second after the ignition is off. Right? but the neg side I actually need to send before the fog light switch so I can still turn them off..
Okay, with this Mod, when your headlights are in auto and your fog light switch is on, and I leave my headlights in auto and turn the vehicle off will the fogs stay on the like 30 seconds the rest of my headlights do?
This is what I want.
Fog light switch to work independent of the headlights, but also stay on like they are in auto...
What I am thinking..
I need to bring +12 and -12 to the coil from a source on the 4Runnner that comes on with the ignition switch and off 30 second after the ignition is off. Right? but the neg side I actually need to send before the fog light switch so I can still turn them off..
sigepbiker
Member
Even with the all the switches in the on position, the fog lights will still turn off when the ignition's off because of where the Relay Pin 2 is connected, according to J.A.'s instructions.

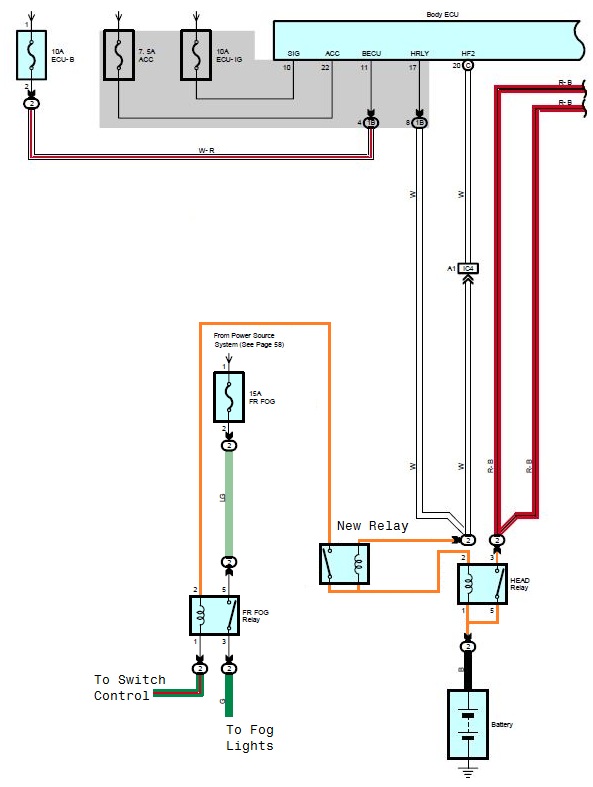

Drew a nice picture of what I think you need to do: What if you put in another relay whose solenoid's is in series with the Headlight relay's solenoid? All the orange lines are new wires, notice the headlight relay now needs to be connected via jumper wires so the new relay can be connected.
Attachments
NeutronJon
New member
I don't understand why you think the new relay is necessary. The coil side of the factory relay is already normally powered off the switched side of the headlight relay. The body ECU will turn off the headlight relay 30 seconds after the ignition is turned off, the drivers door has been opened and shut, and all other doors are also shut.
I would be cautious adding additional load like another coil to the HRLY signal from the ECU. Normally transistor based output stages are limited to 200-300 mA of current, which is enough for only one relay coil. If the ECU doesn't have internal overload protection, you could damage the ECU. Typically, this would result in the output stage transistor getting shorted, which would make it so that the Body ECU would not longer be able to control the headlight relay. In a worst case scenario, it would render your headlights inoperable.
If you feel that the additional relay is needed, it would be better to tap the Red-Black wire coming from pin 3 of the headlight relay as the 12V supply to the aux relay.
cleger
New member
I ended up bending pin 2 of the fog relay and soldering a diode (cathode up anode down) on the bottom to go in the orig pin hole and then crimping a diode (cathode towards the relay anode away) and the other end wire going to the hot 12v side of the heated seat 25 amp fuse. I also spliced the grounds together under the steering cover like in JA's write up.
With this my results are:
When the ignition is on my fogs work according to the switch. They also work with the high beams. Also whenever the auto lights are on after the ignition is off the fogs stay on with the headlights just like the normally would and go off after the 30sec or 2 presses of the lock on the remote.
With the ignition on- fogs on
On with parking lights.
On with headlights.
And high beams.
And proving the fogs do go off
And ignition still on with fogs and all lights off.
Thanks
With this my results are:
When the ignition is on my fogs work according to the switch. They also work with the high beams. Also whenever the auto lights are on after the ignition is off the fogs stay on with the headlights just like the normally would and go off after the 30sec or 2 presses of the lock on the remote.
With the ignition on- fogs on
On with parking lights.
On with headlights.
And high beams.
And proving the fogs do go off
And ignition still on with fogs and all lights off.
Thanks
sigepbiker
Member
The Fog relay's factory connection of pin 2 is the headlight relay pin 3 after the HighBeam fuse. Are you suggesting connecting pin 2 of the fog light relay between the headlight relay and the HighBeam fuse?
I do know that both my drawing and this new connection suggestion do not have a fuse protecting the fog light circuit, so one needs to be added.
