Looking for a part number ~ Tie downs.

[adio3x]

Anyone know what the part number for the little tie down rings in the trunk are? The ones in the corner (ones in front of the jack door, the other straight across). I haven't even checked home depot yet, but the whole assembly of the rings is exactly what I need. Thanks.

~Andrew



[GrantK]

Not sure which ones you're looking for, but check here in the first group and the bottom of the page for possible candidates for what you want to do.



[adio3x]

Is that whats marked 9 & 10? I can't really tell by the picture lol.

This is what I need x4.



[Intruder]

In Grant's link I think that in the first set of diagrams number 11 is the entire assembly, while 12 is just the tie-down ring.



[GrantK]

9 & 10 in the 1st group are the ones for the front tie downs for truck with a slide out tray and definitely not the ones in your picture. Group 11 in the first set looks like the inset tie down in your pic. (I'll get a pic of mine and post it). Other than that I can't say which ones are correct. I looked in the parts manual and the drawings are about the same as in the link so it's not much help.

You might have to go to a dealer, buy something else ($2.00 door panel clips?) and act like you're going to get those, say you can't afford them right now and ask for the part numbers so you'll have them when you come back.



[adio3x]

I think that'll work, I just need the ring, the holder, and the screw that goes in. Thanks guys.



[GrantK]

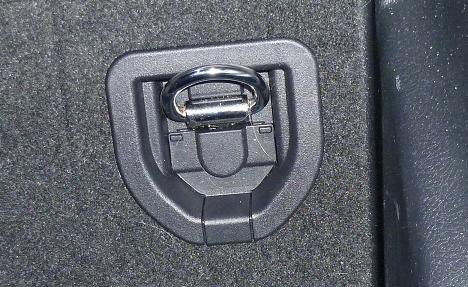

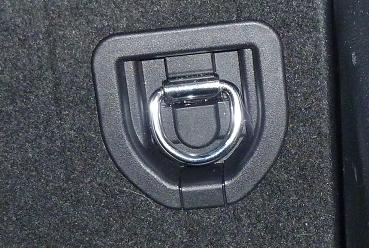

Here's the pics of the front ones (part group 11) in my truck. Remember that they are mounted level with the back seat when folded flat. I plan on adding a few extra when I pull an Antman on my cargo area.



[adio3x]

Here's the pics of the front ones (part group 11) in my truck. Remember that they are mounted level with the back seat when folded flat. I plan on adding a few extra when I pull an Antman on my cargo area.

When you pop those plastic tabs off, does the holder sit flush/flat with the plastic?

So basically this is what I need it for. Rather than paying $50 for something I already have from ARB, I just need the ring and the holder, if you look at the bottom.

Its not a great picture, but thats really all I need. I'm sure I can find something at home depot, im just brainstorming lol.



[GrantK]

When you pop those plastic tabs off, does the holder sit flush/flat with the plastic?

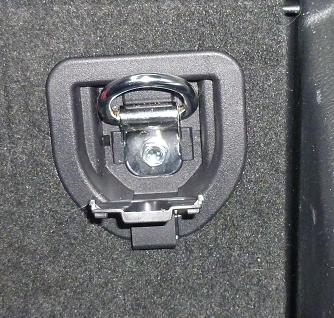

If I understand what you mean, yes. I popped it out to get a couple more pics that might answer your question better. Fortunately, I've been going in and out of the garage working on wiring the new amps so I'm right in that area and it only took a couple of minutes.



[Titanpat57]

This is the stuff I used from McMasterCarr...


McMaster-Carr

It was the "Quick Adjust " located at the bottom of the that page

http://www.mcmaster.com/#tie-down-anchors/=kwtmb9

From some reason it won't let me link directly to it...but if you need pix I'll take some in the morning



[adio3x]

Thank you sir, thats exactly what I need. So basically I'll just need 4 of those rings (with the metal holder), lay them flat on my drawer, drill a hole, insert screw and I'll be good to go.

ARB makes a kit, but I already have the ARB tie down kit for my old ARB fridge slide. The only difference is that bottom ring/holder, which they don't sell separately. But this should work too!



[Titanpat57]

Thank you sir, thats exactly what I need. So basically I'll just need 4 of those rings (with the metal holder), lay them flat on my drawer, drill a hole, insert screw and I'll be good to go.

ARB makes a kit, but I already have the ARB tie down kit for my old ARB fridge slide. The only difference is that bottom ring/holder, which they don't sell separately. But this should work too!

I'll get you a pic in the A.M....and that's exactly what I use them for...although I mounted them on the corners of the drawer unit.



[frosty_1]

The name of the track and rings in the McMaster link is commonly referred to as L-track or Airline track. Mac's Customer Tie Downs and US Cargo Control is where I get mine from...much cheaper than McMaster and more options.
