NE X-REAS sliders ready to roll - hi lift pics!

[Guest]

hey all-

well, finally got a break in my schedule to work on a few things with my runner, and most importantly bolt the final slider design onto my runner and jack the sucker up. well, it takes all of about 20 minutes to mount these suckers and can be done by one person no prob. here is the overall product description:

30 degree cant, two designs available -

"NE superslider" - xreas compatible, bolt on, both inner and outer rails tubular.

"NE rockstar" - same as above, inner rail SQUARE, outer rail tubular.

we can do a 15 degree cant, so if that is wanted just state that in your email and we will adjust accordingly. in respect to the forum this is all the info we will provide here, though we most diefinitely will answer any questions you may have publicly within this thread. email us about price and things relative to that...you all know our goal is to bring a kick ass slider to everyone that is VERY affordable...well, that goal has been accomplished!

Also, all mounting pics are available upon request via email to: [email protected]

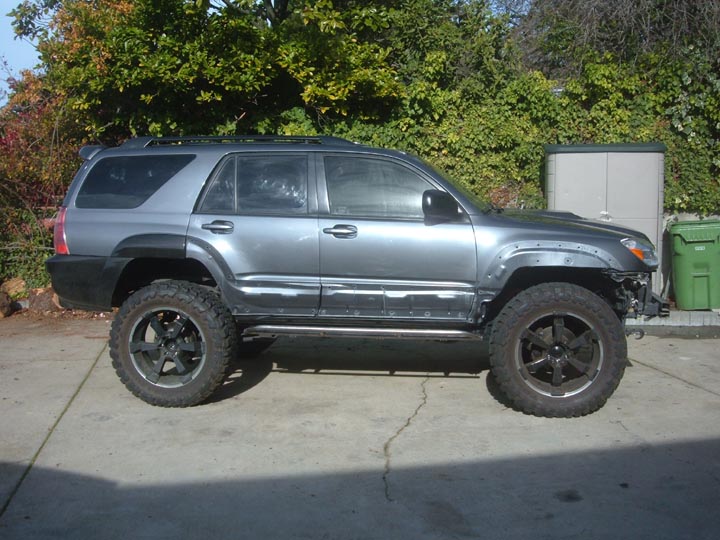

Ok, here come the pics.



[Guest]

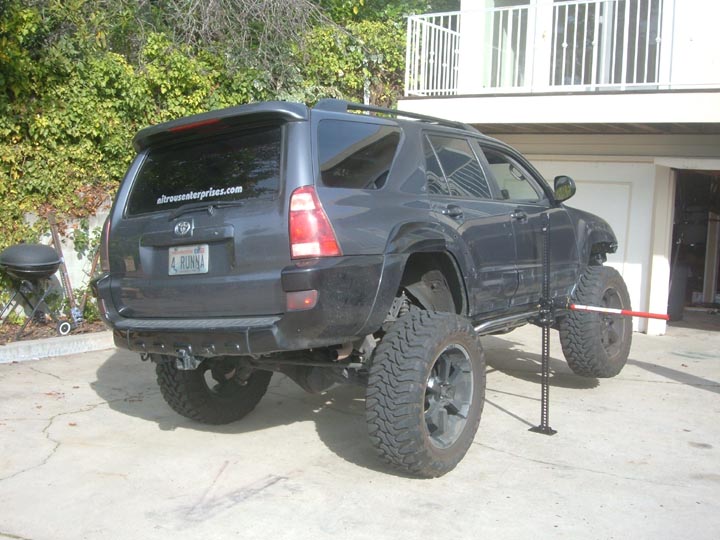

pic 2



[Guest]

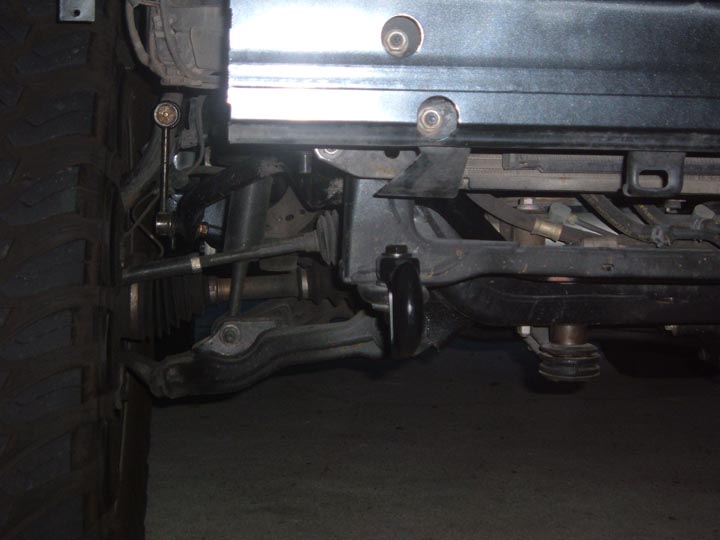

pic 3



[Guest]

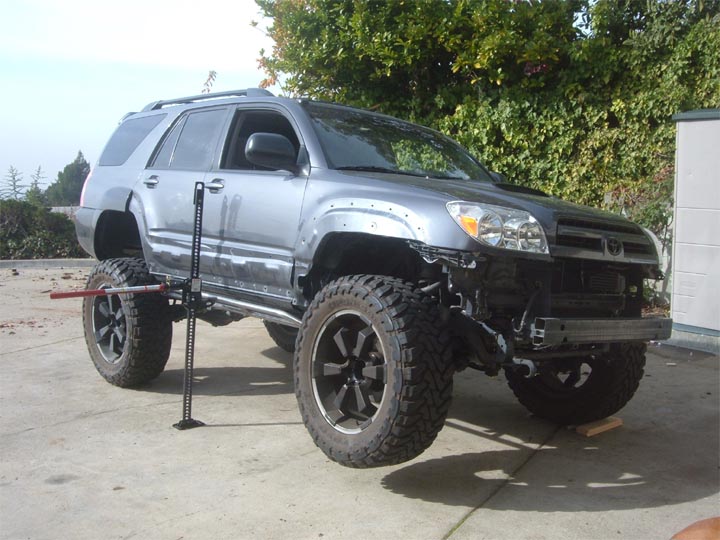

pic 4



[Guest]

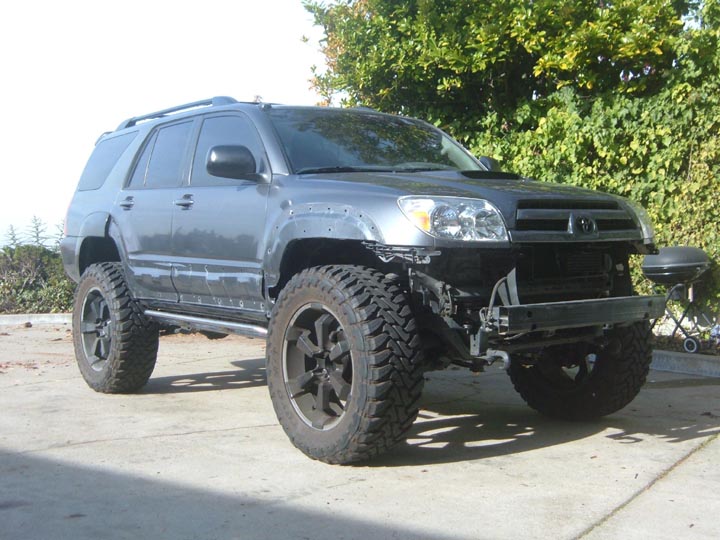

well, that should wrap it up with the sliders. this last one shows my cv angles with 5" of lift and a 1" diff drop...back to about 3-4 degrees and drives a lot better. we have these diff drop kits available now and they will be up on the website soon...just shoot us an email for now if interested. slowly but surely the runner is being put back together and being made trail ready with completely new suspension and armor. i guess that does it, a lot of new info is being added to our website as i type this and the product line just continues to expand like crazy, we have two more products that will be on my runner within the week with pics to follow...thanks for viewing, enjoy!

AK



[Guest]

just follow this link, if any of the moderators deem this link unnecessary, please just delete it...we are all in this together and just wanna have a damn good time together. thanks.

http://www.toyota-4runner.org/showthread.php?s=&postid=64859#post64859

AK



[psychoklr]

Those look sweet man.. how much $$



[Guest]

Those look sweet man.. how much $$

lol, i figured that would be the first thing to come up

shoot us an email to [email protected] for pricing as well as more pics that show the bolt on brackets and how they interact with the xreas system.

i will say this though regarding the price - MUCH more affordable that you would guess!

AK



[4RunnerLaker]

im sorry im a noob to offroad equipment, so do sliders serve a dual purpose for as a running board and a place to use your jack like in your linked pics?



[sharp4runr]

So the only difference in the SuperSlider and the Rockstar is that the inner rail is square? Forgive my newbish question, but what is the benefit/drawback? Is there a price difference (no need to disclose the price itself here, I'll shoot you an email).

Will this include all the necessary hardware (bolts, nuts etc)?

Will the 15* cant just hug the body closer?

Thanks, looks good so far.



[4runna_sport]

That looks really bad ass, once you get it all back together. Hey what size wheels and tires are you running. I dont think ive ever seen wheels like that. What are they. They look F-N sweet with that tire combo. ONce again looks good



[Guest]

thanks for the kind words all. i'll do my best to answer your questions here real quick before heading in to the NE inbox.

yes, the only difference between the Superslider and Rockstar is the square inner rail. jumping from the tube inner to the square inner provides a larger area for "sliding" and more protection...and in all honesty are being offered as a second slider design as it appeared there was quite a demand for them when we first showcased the Superslider with the all tubular rails. both designs get the job done and then some, we are just doing our best to meet customer demands. exact pricing is being worked out, but i can say the Rockstar will cost slightly more than the Superslider.

these sliders WILL come with all necessary nuts and bolts. we are putting together a real nice write up with detailed pics for all of our customers as well as new inquires that will be emailed to everyone within our NE system.

as far as the 15 degree cant...the outer rail of this slider rests about .75-1" lower in relation to the door when opened in comparison to the 30 degree cant. what this means is that the point in which the 15 degree cant is welded onto the bolt on bracket will be about .75-1" higher than the 30 degree. again the 15 vs 30 is also offered due to customer demand...but are more than capable.

give us a little time on the NE slider writeup and you all will be very happy folks...i just had to get a few spy pics up for everyone, lol.

4runna- nice name my friend...i think my license plate agrees with you nicely. the wheels are 22x9.5" helo hawks that have been powdercoated black and the tires are 37x13.5R22 toyo open country m/t's. they measure closer to 38" and have been a challenge to find room for though after adding a recent 1.25" BL they are much happier. with a little more hacking, bumpstop changes, and possibly more suspension lift(yeah, i know...lol) they will be clearing nicely soon here. i miss the mud and rocks and havent been offroad in a couple months due to all the buildup, so...she will be dirty again soon!

ok, enough outta me. hope this suffices for now, keep em coming to the inbox for the details...thanks again.

AK



[Guest]

thanks for the help there TD...you said it!

we will be updating and adding info to the slider link at the top of this thread, which can be found in the accessory section of the forum. keep your eyes directed that a way for continually updated info...thanks again all.

AK



[sharp4runr]

Kewl thanks for answering my questions, I'm sure I'll have more for you later. It looks awesome so far, can't wait till you get it painted and ready to go.



[Luxury]

Looks incredible. I'm headed to NE to see more now. The black cladding looks kinda cool. Is that how you are keeping it? Sorry if I didn't read close enough and that answer has already been said.



[Northof49]

Fourunnabilly, your Runner looks soooo baddass

Awesome looking product as well!



[Guest]

thanks again all...

also, we have been receiving a ton of emails in the [email protected] inbox. one thing that would make our lives a lot easier is if when you email you could just include your forum username so we can make the connection with everyone!

cant wait to set ya'll up with some killer sliders

AK

quick addition - we are most definitely looking for a head count on interested parties, as about 3-5 sets will be made a week upon payment...so, that being said, just shoot off an email if interested! thx



[Guest]

hey all-

just wanted to put one thing up real quick that i forgot to add in the emails to everyone we sent today. if you can just keep the close up pics outta the public eye for a little while so we can hold on to our design that took a ton of time to perfect that would be greatly appreciated! thanks again, keep the emails coming.

AK



[Guest]

ok everyone, the slider design has been finalized and is a 30 degree cant with square inner rails. all the specifics have been worked out with our fabber and for now we will be selling the one and only NE Rockstar model at a VERY good price. just shoot us an email and we are ready to fill ya in!

AK



[Bluto]

Looks great!


Will the diff drop reduce potential CV problems on a lifted 4th gen? I plan to go 3/2.5.

Is there any way to add a little traction to the top of the sliders? It would be nice when washing my truck or accessing the roof rack.

I think I see a lift/drop/slider package in my future. Got to make the tax man happy first.



Brian
