New guy with led question

C

capt.chris

New member
I have been lurking on this forum since I picked up a 2000 sr5 3.4 4x4 with 137000 a month ago.

Not really modding anything yet other than rough country 3 inch lift which I jumped the gun on and now having second thoughts and would like to replace with OME.

I am currently in maintenance mode as I have changed all fluids, timing belt, inner tie rods and full tune up. Now I am ready to tackle the little things in the interior which include center dash lighting.

My hvac lights are out and would like to replace them. I used the search feature and also read the buyers's guide but still not exactly sure which led lights to buy and from who.

Any help is greatly appreciated.

Register to hide this ad
Superbrightleds.com I believe is the recommended place to purchase. As far as what to get, keep searching or standby for a reply as I don't know.

thanks gentleman, looks like 74's it is.
Then again the more I read the more I get different choices. My head hurts, just going to leave the burnt ones in. I will by a flash light.

Last edited:

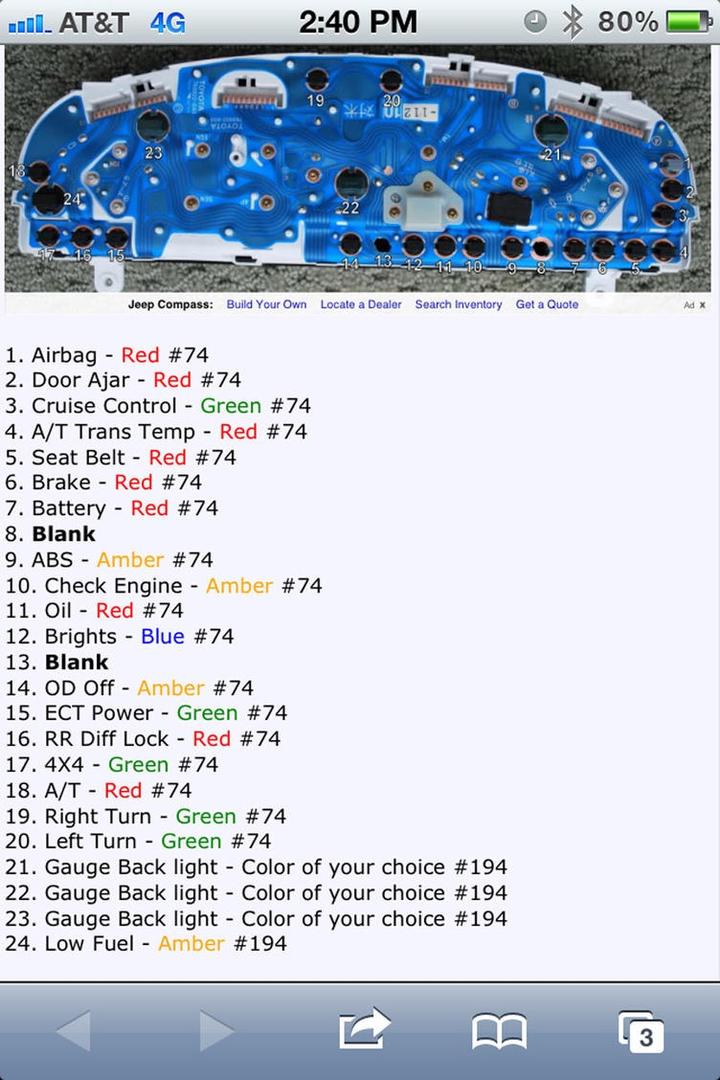

Here's a list of bulbs for the dash...I thought I had the center dash saved also...but can't seem to find it now. If I run across it...I'll post it for you. Good luck!

Picture courtesy of Cytronus...





Attachments

  • image.jpg
    112 KB · Views: 499
capt.chris said:
thanks gentleman, looks like 74's it is.
Then again the more I read the more I get different choices. My head hurts, just going to leave the burnt ones in. I will by a flash light.
Click to expand...

This should help you. It breaks down the bulbs by year. I really wish I would have had this when I was buying and returning bulbs for a week.


RussToy said:
Here's a list of bulbs for the dash...I thought I had the center dash saved also...but can't seem to find it now. If I run across it...I'll post it for you. Good luck!
Click to expand...

What year is that? They are different for the mid gen upgrades right?

MStudt said:
This should help you. It breaks down the bulbs by year. I really wish I would have had this when I was buying and returning bulbs for a week.

Click to expand...

If I could just see this pic it would be one of the best LED bulb replacement thread compilations I've seen. :second:

Edit*** What tha hell? Pic wouldn't come in when I refreshed the page a few times but it's working now. :first:

Last edited:
shootmymime said:
here you go!
http://www.toyota-4runner.org/3rd-g...-climate-control-dash-bulbs-2000-limited.html

edit: it looks like the chart (host of the chart has exceeded his bandwidth for this month. keep checking back, when it does come back im going to save it in my own photo bucket library so its there and never goes away like it is now)
Click to expand...

cj80cruiser said:
What year is that? They are different for the mid gen upgrades right?



If I could just see this pic it would be one of the best LED bulb replacement thread compilations I've seen. :second:

Edit*** What tha hell? Pic wouldn't come in when I refreshed the page a few times but it's working now. :first:
Click to expand...

Along with shootmymime's thread, here's my LED install as well.

I've been searching for a while for LED stuff on 3rd gens and none of these pictures have been seen by my eyes. You guys rock! Thanks for everything.

RussToy said:
I have a 2000 and it does NOT match mine...so if I'm not mistaken this is for 96-98. Sorry I don't know for sure.

I hope this helps...
Click to expand...

[MENTION=72272]RussToy[/MENTION] Do you know exactly what you used for your 2000? I also have a 2000 and have been hesitant to pull the trigger on this mod due to it being unclear. It would be great if you shared your info. Thanks!

Roguestatus1688 said:
[MENTION=72272]RussToy[/MENTION] Do you know exactly what you used for your 2000? I also have a 2000 and have been hesitant to pull the trigger on this mod due to it being unclear. It would be great if you shared your info. Thanks!
Click to expand...

Sir, I wish I could help you...but I'm in the same boat as you are...lol!! I've been collecting up information on this mod, but have been a little on the scared side to pull the trigger myself!!

If you look at CJ80's cheat sheet..it show how many of what lights it takes. And although mine is I believe for 96-98...it's basically the same, just in different places on the dash.

I'm sure you were hoping for more...sorry! But, I hope this helps a little. I'm going to do this one weekend this winter...I'm felling pretty confident these are correct.

Roguestatus1688 said:
[MENTION=72272]RussToy[/MENTION] Do you know exactly what you used for your 2000? I also have a 2000 and have been hesitant to pull the trigger on this mod due to it being unclear. It would be great if you shared your info. Thanks!
Click to expand...

Refer to the picture I posted and you'll be fine. You can even go to the link I posted for my build and get the links to the exact bulbs (at least for the #24 bulbs).

Last edited:
I just purchased my 99 Limited last weekend and a couple of the interior bulbs were burned out. After sorting through, and cross referencing a few threads I finally gathered enough info to do a full dash LED-swap. I ordered the following from SuperBrightLEDs:

3x 24WHP (Tach,Speedo,and Misc. Gauges)
2x 74WHP (Shifter Light and Cig. Adaptor)
1x 74RHP (Ignition Ring)
4x NEO3-WHP (2x for ECT/Rear Window Control and 2x for knobs on Limited-trim Climate Control)
2x NEO4WHP (Limited-trim Climate Control LCD)

This will give you cool white LEDs for everything, except for the ignition ring which in my case is red.

This forum is incredible - I've already referenced it to swap the interior bulbs, change spark plugs, fog lights and the PCV valve. Good luck with the swap - it makes the interior look a decade younger.

Last edited:
I also have a 2000 and have been hesitant to pull the trigger on this mod due to it being unclear.
Click to expand...

So I'll be that guy ... did you do a search?

It isn't unclear at all and if fact there are some really awesome threads on how to do this mod.


Here is how to search ---> http://www.toyota-4runner.org/off-t...far-more-accurately-than-standard-method.html

Here is the tutorial & information guide page ---> http://www.toyota-4runner.org/3rd-gen-t4rs/69744-3rd-gen-faq-tutorials-documentation-reference.html


Good luck with the modding!

cjheyliger said:
I just purchased my 99 Limited last weekend and a couple of the interior bulbs were burned out. After sorting through, and cross referencing a few threads I finally gathered enough info to do a full dash LED-swap. I ordered the following from SuperBrightLEDs:

3x 24WHP (Tach,Speedo,and Misc. Gauges)
2x 74WHP (Shifter Light and Cig. Adaptor)
1x 74RHP (Ignition Ring)
4x NEO3-WHP (2x for ECT/Rear Window Control and 2x for knobs on Limited-trim Climate Control)
2x NEO4WHP (Limited-trim Climate Control LCD)

This will give you cool white LEDs for everything, except for the ignition ring which in my case is red.
Click to expand...

how did it turn out?

got pics?
