nosamk said:
2 issues:

#1: the instructions directed me to reuse the hardware for the attachment at the front of the skid. With the added thickness of the skid, and the thickness of the filler plate the original hardware was not long enough.

#2 and more significant: the intermediate aluminum brace beam has a slot that is supposed to open to the front of the car. That way you can reach up thru the oil filter access port and torque the nut onto the smooth carriage bolt that passes thru the center of the skid and secures there. My brace was bent incorrectly and the slot open to the rear. There was no way to tighten the nut as you could not reach it from that position.


I contacted Josh @ RCI and explained the problem to him. He offered to send two new bolts -which I dont need now because I already stopped working and had to go find some. Unfortunately he offered no solution to the brace issue only saying maybe there was a mix-up. Which doesnt really help me at all.
Click to expand...

Are you talking about this peice? http://www.toyota-4runner.org/5th-gen-t4rs/139036-5th-gen-skid-plates-5.html#post1511663

Could it be possible that you are just mounting the piece the wrong way? Have you tried turning it 180 degrees?

nosamk said:
Thats the piece.

It only fits in one way. You cant 'flip' it
Click to expand...

Oh, that sucks...I'm sure it's just a big mis-communication maybe if you emailed him with pictures of what's wrong he would be able to help you resolve the problem. It doesn't make sense for him to leave you high and dry over this tiny part, when I've read nothing but good about the guy :)

Heard back from Josh at RCI. He is making it right by me.

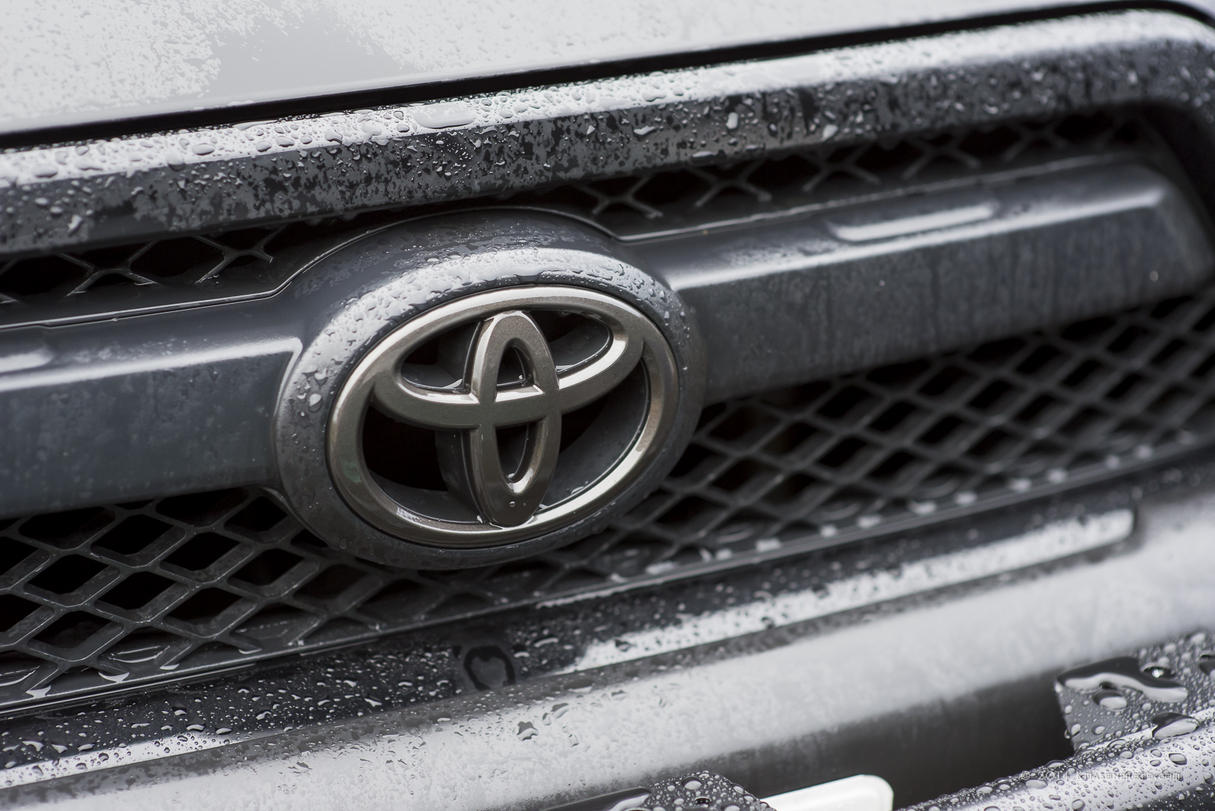

removed, sanded, primered, and put about 4 coats of paint and three coats of clear on my front Toyota emblem à la [MENTION=106306]TEQ.FZJ[/MENTION]

I need to get a rear and do the same. I like how it turned out and was glad to get rid of some chrome. Used rust-oleum universal advanced metallic 'carbon mist'


Attachments

  • KM3_2030.jpg
    135.4 KB · Views: 535
KVA said:
Interesting...I don't have that middle brace with mine. Assumed it was an aluminum skid thing...
Click to expand...

Sorry for the thread jack OP, but I think I finally cracked the code on this, lol. So it looks like that brace only comes on the KDSS front skid plates, which explains why you don't have it and OP does. It was bothering me not knowing, even though I don't own RCI skids :tape:
[MENTION=102063]nosamk[/MENTION] glad to hear they are making it right! Great color choice on the emblem paint, almost looks like those "black chrome" emblems.

eddie-
ah thats odd. I was wondering myself. I know RCI changed design I was thinking maybe it was a part of that. nice to know. I wonder if it supports some part of the KDSS system or something?

eddiebx said:
Sorry for the thread jack OP, but I think I finally cracked the code on this, lol. So it looks like that brace only comes on the KDSS front skid plates, which explains why you don't have it and OP does. It was bothering me not knowing, even though I don't own RCI skids :tape:

[MENTION=102063]nosamk[/MENTION] glad to hear they are making it right! Great color choice on the emblem paint, almost looks like those "black chrome" emblems.
Click to expand...

I knew there were differences in KDSS vs. non-KDSS (you can't order without identifying what you've got) didn't know what you meant by the original description of the issue since fitment with these is either right on or not at all...it's a skid plate - not much to accommodate for except the differences of KDSS - I just didn't know it included a brace as I've never seen the underside outside of my own skids - -which don't have this brace and don't need it. Anyone know if Budbuilt or SW uses something similar?

I am actually not sure what it is for, but I'm pretty sure it has nothing to do with supporting any KDSS parts. I mean...I ran w/o a front skid for a bit and nothing fell off? jk jk jk. I don't think there's anything to support because nothing on the stock skid supports any part of the KDSS either.

The closest thing I can think of this mimicing is...on the stock skid, there is an extended metal support structure right above the jack point that sits between the skid and the frame cross member directly above it (to keep the thin OEM skid from collapsing when jacking up at the jack point).

On the KDSS version of the RCI skid, the flat section has to extend forward much longer to clear the piston, so maybe RCI felt like due to that extra length it would need some kind of support to keep it from bowing in under stress?

If you compare a KDSS skid plate and a non-KDSS skid plate you will immediately see what I mean. On the KDSS skid plate the oil filter door is completely on the bottom and flat. On the non-KDSS plate, it is half on the flat part, half on the angled part. Hope that makes sense :)

KVA said:
I knew there were differences in KDSS vs. non-KDSS (you can't order without identifying what you've got) didn't know what you meant by the original description of the issue since fitment with these is either right on or not at all...it's a skid plate - not much to accommodate for except the differences of KDSS - I just didn't know it included a brace as I've never seen the underside outside of my own skids - -which don't have this brace and don't need it. Anyone know if Budbuilt or SW uses something similar?
Click to expand...

Yeah I was surprised to see that one had it and the other didn't, I only deduced this because I looked at some pictures other members posted, cuz I'm curious like that, lol.

No idea about the shrockworks skids, but my BB one has something similar...it's this piece of square tubing welded on around that general spot.

eddiebx said:
Yeah I was surprised to see that one had it and the other didn't, I only deduced this because I looked at some pictures other members posted, cuz I'm curious like that, lol.

No idea about the shrockworks skids, but my BB one has something similar...it's this piece of square tubing welded on around that general spot.
Click to expand...

Interesting - is it removable? What happens when you remove KDSS like many others when converting to full trail status? Gotta buy another front skid?

KVA said:
Interesting - is it removable? What happens when you remove KDSS like many others when converting to full trail status? Gotta buy another front skid?
Click to expand...

Not removable on the BB skid unless you grind off the welds, lol. I don't think it matters if you remove KDSS because the support is going to the frame and not the KDSS junk. Besides, I don't believe the front skids are interchangeable between a KDSS and a non-KDSS because the frames are slightly different (front cross member of the frame is slightly lower on the KDSS).

This is what I mean (KDSS skid on a non-KDSS frame): http://www.toyota-4runner.org/5th-gen-t4rs/114189-shrockworks-skids-installation.html#post1054761

First pic: Orcas Island

Second: Washington Park - Anacortes

Third: selfy looking out across the Rosario Strait - Washington Park


Attachments

  • KM3_1760.jpg
    136.2 KB · Views: 721
  • KM3_2079-Edit.jpg
    137.7 KB · Views: 740
  • KM3_2098sep.jpg
    134.2 KB · Views: 758
Yesterday after the Rigid lights were installed

<a href="https://www.flickr.com/photos/nosamk/13407071295/" title="KM3_2273 by [nosamk] KMason photography, on Flickr"><img src="https://farm8.staticflickr.com/7412/13407071295_dfe586fcec_b.jpg" width="684" height="1024" alt="KM3_2273"></a>

Fed Ex finally came....now I'm ready for summer!

These are beautiful wheels - and super lightweight. Didnt get one on a scale as its pouring rain outside but they feel like almost nothing

FN BFD's
18x9
0 offset

<a href="https://www.flickr.com/photos/nosamk/13415341033" title="DSCF7345 by Keith, on Flickr"><img src="https://farm4.staticflickr.com/3786/13415341033_4b0a9fa195_b.jpg" width="1024" height="768" alt="DSCF7345"></a>

loaded up and ready to go get tires!

<a href="https://www.flickr.com/photos/nosamk/13415591134" title="DSCF7351 by Keith, on Flickr"><img src="https://farm3.staticflickr.com/2859/13415591134_0e21948512_b.jpg" width="1024" height="768" alt="DSCF7351"></a>

FN Wheels BFD mounted with Toyo Open Country AT II xtreme 285/65R18s

I'm super excited about both!!

<a href="https://www.flickr.com/photos/nosamk/13431181475" title="KM3_2294 by Keith, on Flickr"><img src="https://farm8.staticflickr.com/7117/13431181475_ef3e3bbb6a_b.jpg" width="1024" height="684" alt="KM3_2294"></a>

<a href="https://www.flickr.com/photos/nosamk/13431300843" title="KM3_2289 by Keith, on Flickr"><img src="https://farm3.staticflickr.com/2865/13431300843_93eb6daa64_b.jpg" width="1024" height="684" alt="KM3_2289"></a>

<a href="https://www.flickr.com/photos/nosamk/13431182065" title="KM3_2288 by Keith, on Flickr"><img src="https://farm8.staticflickr.com/7398/13431182065_4dabaec9c1_b.jpg" width="1024" height="684" alt="KM3_2288"></a>

Your truck is looking nice. Can't wait to see it with your new skids. Them tires look great, too. I think that will be my next tire. Does that tire have the 65K or 50K warranty?

Also, I checked out your flicker ( I think it was flicker) some amazing photos you've got there. Love the Tree of Life one.

Jim82 said:
Your truck is looking nice. Can't wait to see it with your new skids. Them tires look great, too. I think that will be my next tire. Does that tire have the 65K or 50K warranty?

Also, I checked out your flicker ( I think it was flicker) some amazing photos you've got there. Love the Tree of Life one.
Click to expand...

Thanks Jim!
The "P" sizes of these have 65k warranty
The "LT" and xtreme have 50k

Drove about 50 miles since I got them - so far so good. No noticeable noise, the feel is much better than the Duratracs that were on it originally, and they dont constantly pick up and throw rocks like my Blizzaks

Possibly Flickr but I have an account on all the photog sites just about.
Thanks for checking out my work!!

Flickr: [nosamk] KMason photography's Photostream
KMason Photography
www.google.com/+KeithMorgan
nosamk.tumblr.com
500px.com/nosamk

they all mostly have the same stuff.....
