Replacing rear hatch, different wiring?

[thewaydown]

Long story short: I got hit on the freeway on the rear end, and the hatch needs to be replaced.

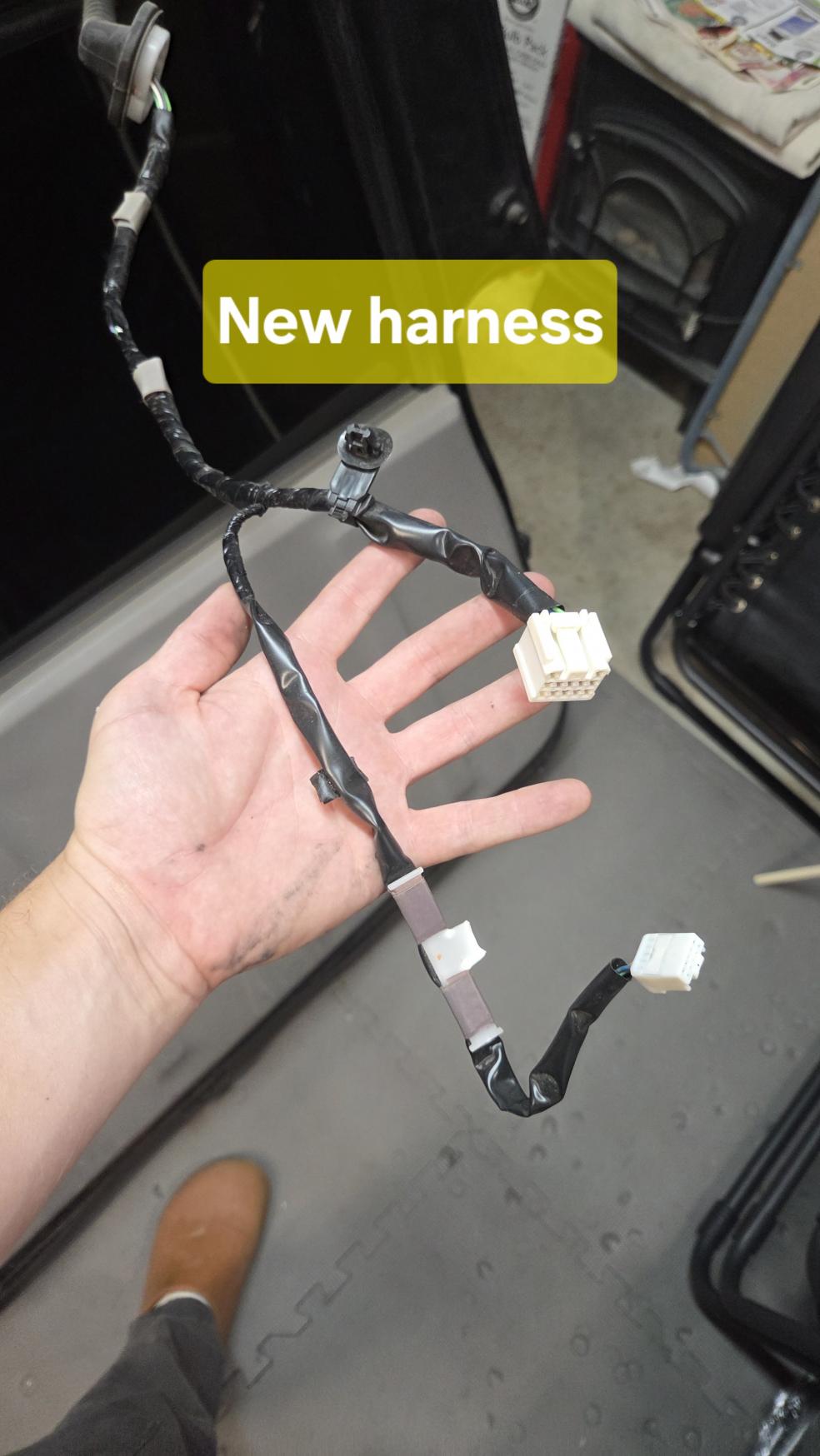

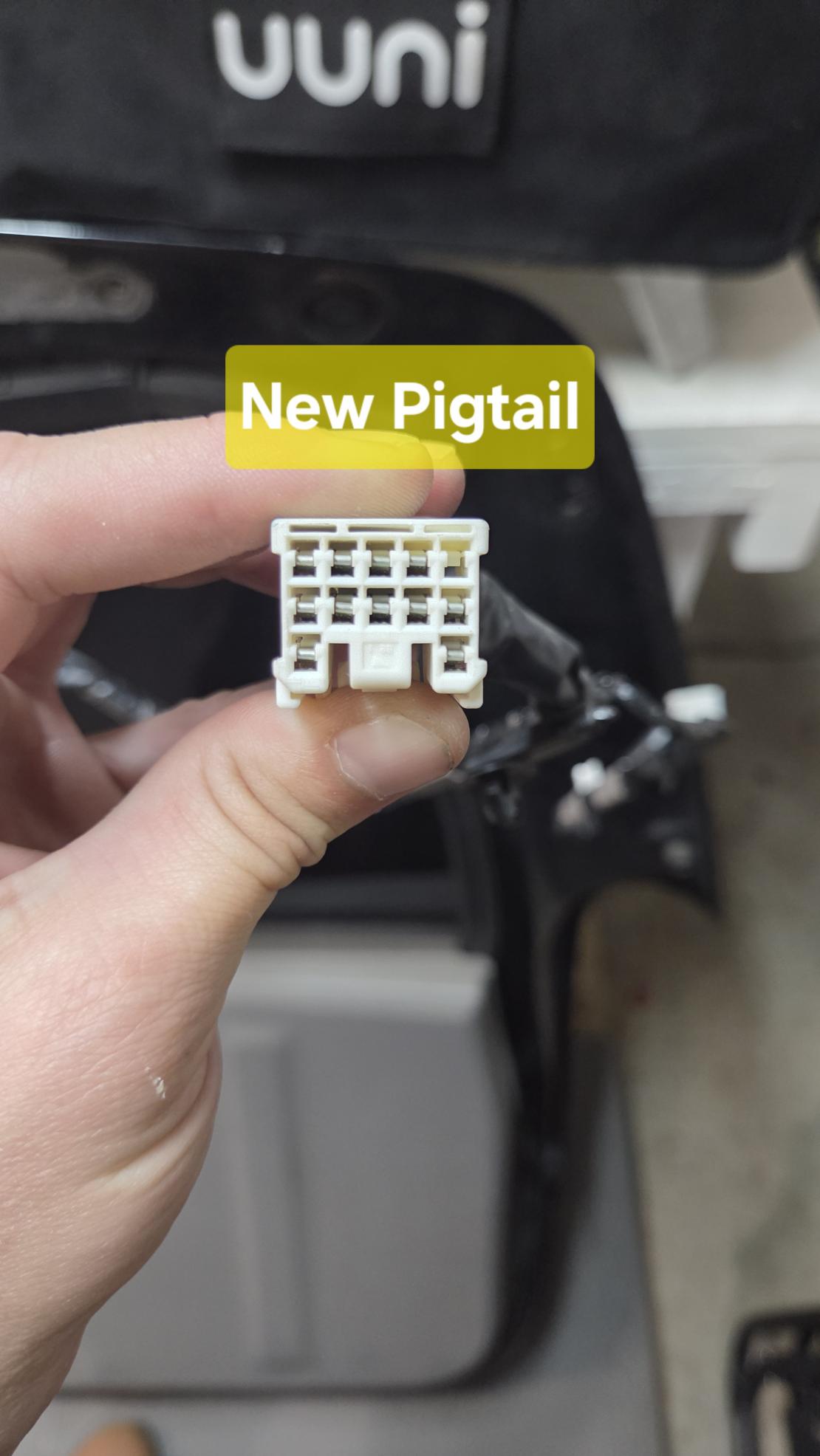

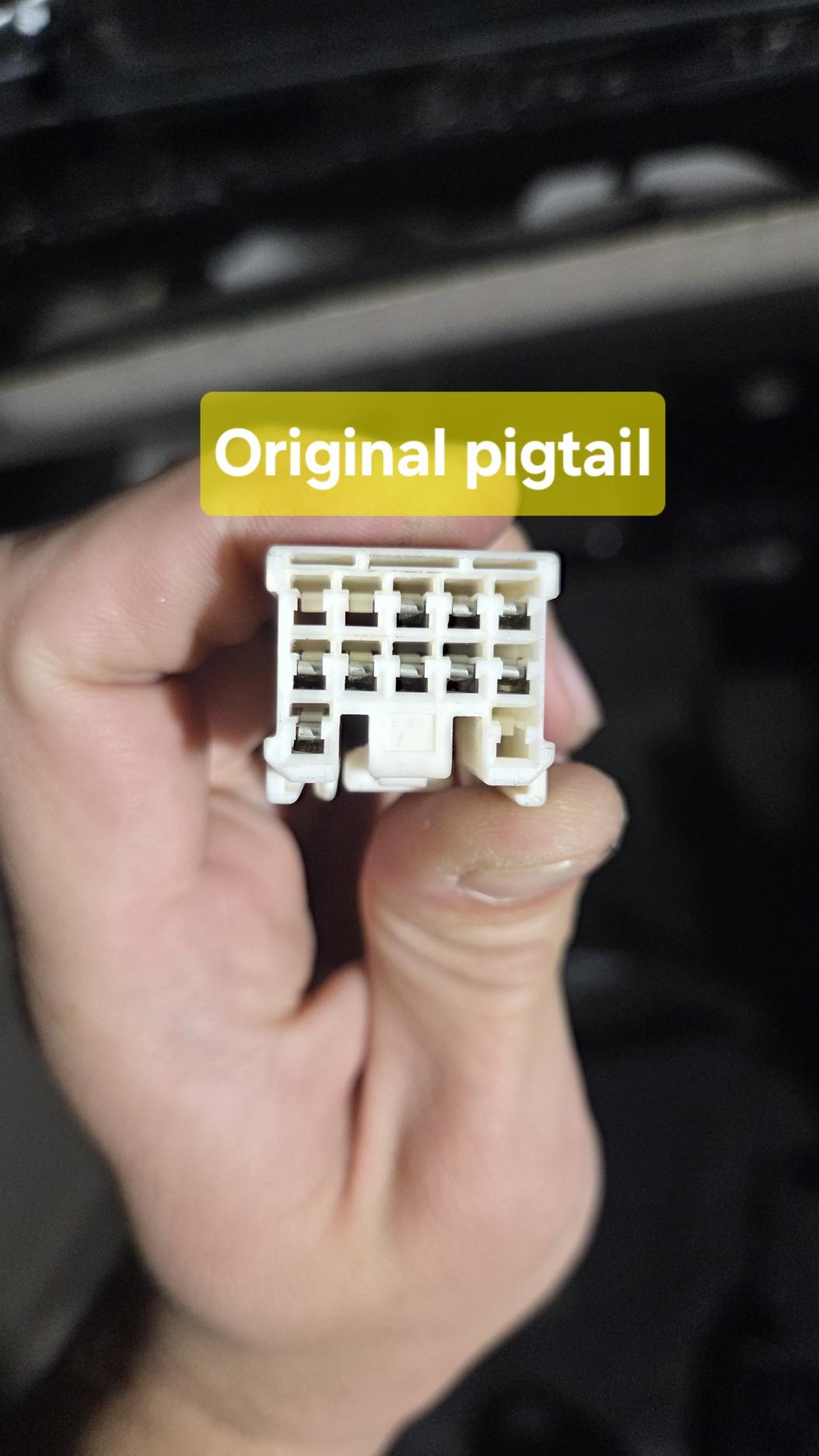

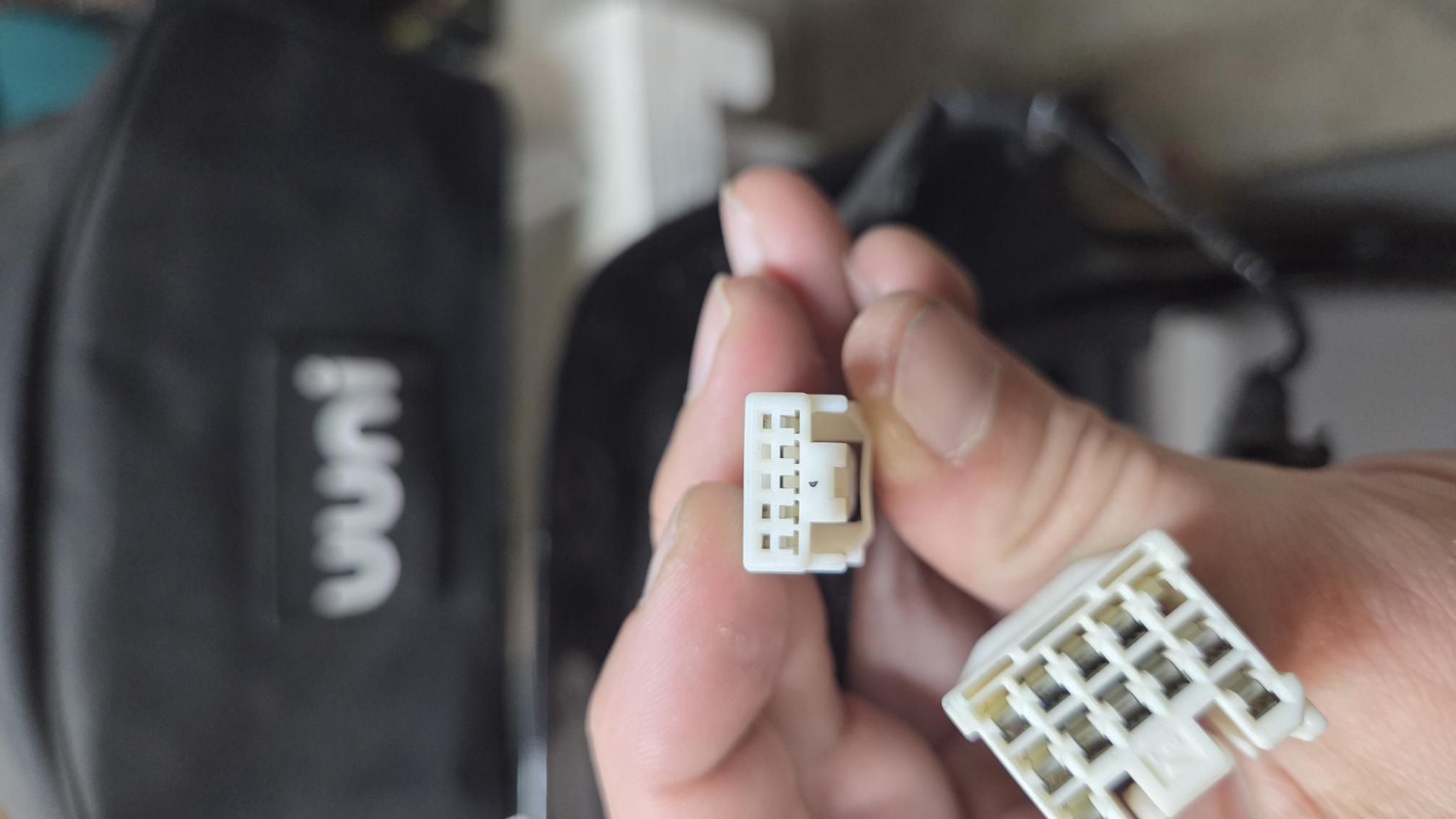

I purchased a used 4th gen rear hatch that was in decent condition on ebay. I noticed that the original wiring in the vehicle only has a single 12-pin pigtail, I believe 9 pins are being used. However, on the new hatch, there are 2 pigtails coming off of it, one spliced onto the other. The larger one is the same 12-pin male clip, but more pins are being used, I believe 11 in total. The smaller pigtail that runs off the larger wire is a 5-pin, with only 2 or 3 pins actually active. Ill upload pictures.

What's the recommended approach? Would there be an issue leaving the smaller pigtail disconnected? Would there be an issue with the newer male 12 pin connecting to the existing 12 pin that considering the difference in active pins?



[88Center]

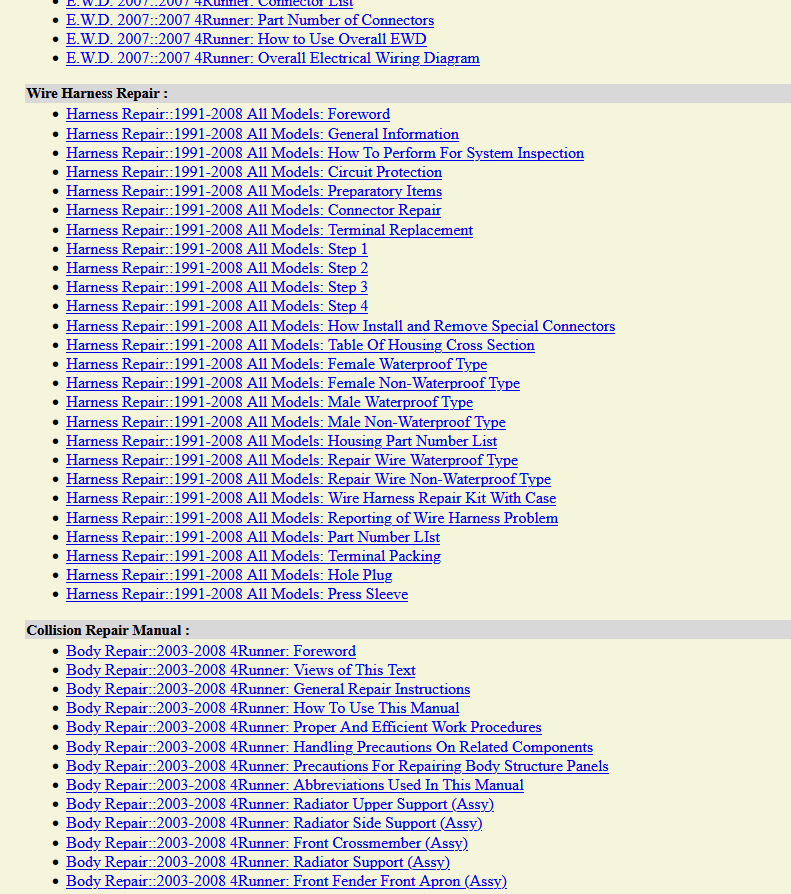

I don't know if it will help but the entire wiring manual is uploaded here, on the most recent post, as part of the entire Repair Manual for 4th gen (v6 and v8).

4th Gen: More Manuals



[88Center]

I pulled a few PDFs from the manual.

• Wiring Diagram Rear Window Defogger and Mirror Heater - em03m52
• Wiring Diagram Rear Wiper and Washer - em03m24
• Terminal and Connector Repair - Step1
• Terminal and Connector Repair - Step2
• Terminal and Connector Repair - Step3
• Terminal and Connector Repair - Step4



[thewaydown]

I pulled a few PDFs from the manual.

• Wiring Diagram Rear Window Defogger and Mirror Heater - em03m52
• Wiring Diagram Rear Wiper and Washer - em03m24
• Terminal and Connector Repair - Step1
• Terminal and Connector Repair - Step2
• Terminal and Connector Repair - Step3
• Terminal and Connector Repair - Step4

This is extremely helpful, thank you.

Will update as soon as I am able to look this over and get a better picture of what's going on.



[SocalSam]

Re-use original wire harness and hatch module.



[88Center]

Pulled a few more PDFs for you.

• Female Waterproof Type Connectors
• Female Non-Waterproof Type Connectors
• Male Waterproof Type Connectors
• Male Non-Waterproof Type Connectors



[88Center]

Here are all the female non-waterproof 5-pin connectors for comparison.

Kind of looks like: 90980-11909

If you google "90980-11909 toyota" and check google images, more easy to compare with the one you have.

Tacoma forum shows that 5 pin connector (90980-11909) from Toyota being used for USB ports. If your connector is the same, maybe the previous guy added some USB ports in the back hatch area?

USB Fast Charge Wiring Help | Tacoma World



[riceandpho]

maybe your new used one have reverse camera? that could explain extra pin/wiring.



[Ralph Blake]

Did you get it connected and did it work right?



[randyreider1]

Any update?

I'm in the same boat. trying to figure out why I have extra connections after replacing my rusted out hatch.
