Reverse Light Mod – SR5 Factory bumper & Rigid SR-Q

Ryan1975 said:
I'm coming back to this thread because I think I'm ready to do this mod as well. Though I think I'll approach it differently...slightly.

You used the SR-Q (Not going back to confirm) Where as I would like to use the SRM2 - which is a "flood" light (92211).

Additionally, in and around town my reverse lights are adequate so the only time I'd need these is if I'm up in the mountains / off road. So I'm thinking switch to turn them on whereas you're using the diffused model model and could use them tied to the brake lights all the time.

Last difference and I'll have to measure here - I've got a Trail and that useless plastic piece is on the back - that will push my install location further apart I think and not exactly point in the straight back. (unless I ditch that useless plastic?)

Hmmm...
Click to expand...

You could check out [MENTION=47340]Titanpat57[/MENTION] install on his old trail. It's in the stickies.
http://www.toyota-4runner.org/5th-gen-t4rs/128670-te-rigid-install-rear-bumper.html

Ryan1975 said:
I'm coming back to this thread because I think I'm ready to do this mod as well. Though I think I'll approach it differently...slightly.

You used the SR-Q (Not going back to confirm) Where as I would like to use the SRM2 - which is a "flood" light (92211).

Additionally, in and around town my reverse lights are adequate so the only time I'd need these is if I'm up in the mountains / off road. So I'm thinking switch to turn them on whereas you're using the diffused model model and could use them tied to the brake lights all the time.

Last difference and I'll have to measure here - I've got a Trail and that useless plastic piece is on the back - that will push my install location further apart I think and not exactly point in the straight back. (unless I ditch that useless plastic?)

Hmmm...
Click to expand...

Diffused SR-Q's are what were used. Diffused lens disperses light in almost 360 degrees which is good to illuminate items that are above say window level. Whereas fog lens will disperse light wider, lower, and illuminate ground objects a little brighter. Either way you can't go wrong!

Just to clarify, lights are wired into trailer reverse light circuit and turn on whenever vehicle is shifted into reverse. AOB switch is connected to a 12v battery feed then to relay, depressing switch (truck on/off) energizes reverse light circuit turning on factory lights as well as SR-Q's. I find it very helpful hooking up my trailer or when loading 4 wheelers at night.

Good luck with your install!

barryhiram said:
Diffused SR-Q's are what were used. Diffused lens disperses light in almost 360 degrees which is good to illuminate items that are above say window level. Whereas fog lens will disperse light wider, lower, and illuminate ground objects a little brighter. Either way you can't go wrong!

Just to clarify, lights are wired into trailer reverse light circuit and turn on whenever vehicle is shifted into reverse. AOB switch is connected to a 12v battery feed then to relay, depressing switch (truck on/off) energizes reverse light circuit turning on factory lights as well as SR-Q's. I find it very helpful hooking up my trailer or when loading 4 wheelers at night.

Good luck with your install!
Click to expand...
So how exactly did you connect to the reverse lights and your switch? I saw where you tied into the trailer part, but i'm unsure what approach to take in order to connect it to my switches up front.

gu4runner said:
so how exactly did you connect to the reverse lights and your switch? I saw where you tied into the trailer part, but i'm unsure what approach to take in order to connect it to my switches up front.
Click to expand...

Hope this helps................

Relay terminals;

#30 - Fused 12v battery (+) feed (all time power). Also connect AOB Green wire with 3 amp fuse to this feed.
#85 - Ground (-)
#86 - Connect Red wire from AOB switch (will send 12v to relay when switch is depressed/turned on) energizing relay.

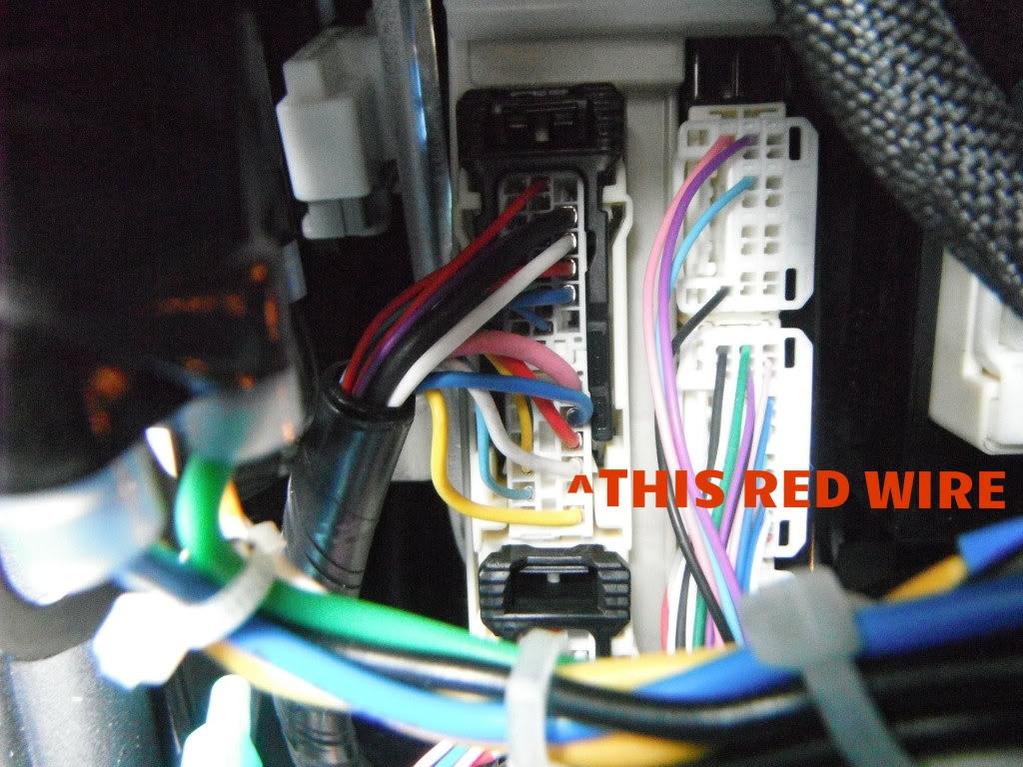

#87 - Output to reverse light circuit. Run wire from terminal to factory reverse light wire (red) at ECM as pictured below. ECM is located behind lower driver side knee bolster.
reverse wire.jpg

Didn't have a picture of connection, but [MENTION=65614]Antman[/MENTION] had a good one in his build thread.

As always, test wires for proper operation prior to making any connection!


Attachments

  • reverse wire.jpg
    reverse wire.jpg
    118.1 KB · Views: 635
Okay, that does help a lot actually. The problem i run into is that i am trying to figure out how to wire this into my aux fuse block. I have a Bussmann with the 5 relays and 10 fuses.

This is how the box is wired:
Bussmann.jpg~original


I planned to terminate the Rigid wiring harness with a connector that i have so the power and ground can be plug and play off a pre-built accessory cable on the Bussmann.

From there, it connects to my OTRATTW switches via this cable:
Wire%20Harness.jpg~original


Diagram for the switches:
72616d5f7765623630302e6a7067.jpg~original


And finally, how the back of the switches look:
Switches.jpg~original


Is there anyway to do that, or would i have to splice into the wire on the Bussmann that connects to the 87 terminal relay?
Buss.jpg~original


Sorry if the pictures are a bit much, it helps me understand what i'm trying to say and communicate it better.

Okay, so let me see if i got this. If i run a jumper between the Factory Reverse Light wire (red) and the wire on my accessory cable that is going into terminal #87 on the relay, then i should be good? My Rigids will turn on when i go into reverse and when i toggle my switch on? Sorry, electrical noob in training.

How about this?

Aux%20Reverse%20Lights%20Wiring%20Diagram.png~original


Instead of using two switches, I would just use two SPST switches. The other thing that I've seen is people using a diode on the jumper from the OEM reverse lights and the relay.

GU4runner said:
How about this?

Aux%20Reverse%20Lights%20Wiring%20Diagram.png~original


Instead of using two switches, I would just use two SPST switches. The other thing that I've seen is people using a diode on the jumper from the OEM reverse lights and the relay.
Click to expand...

Dude, please disregard my previous post, I misunderstood your question and gave you bad advice. I don't know what the hell I was thinking.........oh wait, I wasn't, I'm truly sorry......my bad :doh: :bash: :rockthrow:

You certainly can use schematic posted, but the easiest way IMHO would be to tie Rigid lights into trailer harness, then run wire from Bussman connector terminal #87 to factory reverse light circuit.

barryhiram said:
Dude, please disregard my previous post, I misunderstood your question and gave you bad advice. I don't know what the hell I was thinking.........oh wait, I wasn't, I'm truly sorry......my bad :doh: :bash: :rockthrow:

You certainly can use schematic posted, but the easiest way IMHO would be to tie Rigid lights into trailer harness, then run wire from Bussman connector terminal #87 to factory reverse light circuit.
Click to expand...
No worries. I appreciate the fact that you are even putting up with my questions and are trying to help me. So with the rigids into the trailer, I won't have issues like you mentioned with switching on the qux lights and having the reverse lights come on too?

Sent from my SM-T700 using Tapatalk

GU4runner said:
No worries. I appreciate the fact that you are even putting up with my questions and are trying to help me. So with the rigids into the trailer, I won't have issues like you mentioned with switching on the qux lights and having the reverse lights come on too?
Click to expand...

Thanks man.

Rigid's draw only 3.3 amps, you'll be fine.

barryhiram said:
Got any specs?
Click to expand...

Here's what I found as they aren't listed on Rigid site.............................



Ignite | Backup Light Kit
.
Optics: Diffused

LED Color: White
.
Finish Color: Black
.
Mount Type: Surface

Shipping Dimensions: 10 × 6 × 4 in

Price:
$129.99

Features:
•Available in Black Only
•Rigid’s Smallest Forward Projecting Light
•Small Package, Big Output
•Low Minimum Voltage: 6-28 VDC
•IP68 Compliant
•Available only in Diffused
•Rigid Quality & Performance
•Smallest Flush Mount Light that Rigid Offers
•Easy Install


Specifications:

•Watts: 12
•LED's: 1
•Raw Lumens: 1000
•Lux @ 10m: 9
•Beam Distance: 59.5 m
•Peak Beam Intensity: 884.5 cd

Back Up Lights

Barry,
Great job and photos. Looks real clean.
I would like to do the same mod. I just can't take a jig saw to my rear bumper yet. Your a brave man.
