Trail Edition owners help needed.

zonzin

zonzin

Member
Trying to find OEM front mudflaps for a TE has been a real pain. Searching online and going to my local Toyota dealer have been fruitless. They have part # for SR5 and Limited but not TE.

If anyone out there has a '15 or '16 TE with factory mudflaps on it would it be possible for you to get the part number off of them? It would be very much appreciated.





.

Register to hide this ad
zonzin said:
Trying to find OEM front mudflaps for a TE has been a real pain. Searching online and going to my local Toyota dealer have been fruitless. They have part # for SR5 and Limited but not TE.

If anyone out there has a '15 or '16 TE with factory mudflaps on it would it be possible for you to get the part number off of them? It would be very much appreciated.

.
Click to expand...


I think this may be them (edit: these are the fronts if that's what you're looking for - look at the third link though, that should have all of the mud guards):

MUD GUARD - TOYOTA (76626-35250)
Part Notes: Trail edition, trd pro. Sr5, without appearance package.
Mud Guard | Genuine Toyota | 76626-35250 : Toyota Online Parts | toyotaonlineparts.com | Toyota Parts Online

MUD GUARD - TOYOTA (76625-35250)

Manufacturer: Toyota
Part Notes: Trail edition, trd pro. Sr5, without appearance package.
Mud Guard | Genuine Toyota | 76625-35250 : Toyota Online Parts | toyotaonlineparts.com | Toyota Parts Online


Here is the whole search - I went to TOP, selected the vehicle, and searched for "mud"
Toyota Online Parts | toyotaonlineparts.com | Toyota Parts Online

Last edited:
zonzin said:
Trying to find OEM front mudflaps for a TE has been a real pain. Searching online and going to my local Toyota dealer have been fruitless. They have part # for SR5 and Limited but not TE.

If anyone out there has a '15 or '16 TE with factory mudflaps on it would it be possible for you to get the part number off of them? It would be very much appreciated.





.
Click to expand...

Mudguards - Black | Genuine Toyota | PT769-89110 : Toyota Parts & Accessories | toyotaparts.suntoyota.com

eh?

zonzin said:
Trying to find OEM front mudflaps for a TE has been a real pain. Searching online and going to my local Toyota dealer have been fruitless. They have part # for SR5 and Limited but not TE.

If anyone out there has a '15 or '16 TE with factory mudflaps on it would it be possible for you to get the part number off of them? It would be very much appreciated.
.
Click to expand...

I'll check mine that are sitting in a box in my closet when I get home for a part #. But My guess is one of the above links is right...probably...maybe.

zonzin said:
It wasn't the same. I ordered a set for SR5 and they did not fit. The fender skirting dimensions apparently are different. Also, Toyota dealer told me they were not the same.


.
Click to expand...

2010-2013 TE and SR5 were different. 2014-UP SR5 and TE is same fender, rocker panel, etc. Look at the links posted above.

jayhat said:
I think this may be them (edit: these are the fronts if that's what you're looking for - look at the third link though, that should have all of the mud guards):

MUD GUARD - TOYOTA (76626-35250)
Part Notes: Trail edition, trd pro. Sr5, without appearance package.
Mud Guard | Genuine Toyota | 76626-35250 : Toyota Online Parts | toyotaonlineparts.com | Toyota Parts Online

MUD GUARD - TOYOTA (76625-35250)

Manufacturer: Toyota
Part Notes: Trail edition, trd pro. Sr5, without appearance package.
Mud Guard | Genuine Toyota | 76625-35250 : Toyota Online Parts | toyotaonlineparts.com | Toyota Parts Online


Here is the whole search - I went to TOP, selected the vehicle, and searched for "mud"
Toyota Online Parts | toyotaonlineparts.com | Toyota Parts Online
Click to expand...

Interesting,, the description on these says, "without appearance package". What is the "appearance package". Maybe that is the issue, mine may have the package.

zonzin said:
Interesting,, the description on these says, "without appearance package". What is the "appearance package". Maybe that is the issue, mine may have the package.
Click to expand...

Color keys stuff. Maybe some older ones had some mudflap molding that was paint matched. Every 14+ SR5 and Trail I have seen had the same side skirts and flaps. It was the 10-13 SR5s that had different body lines, side skirts, etc.

zonzin said:
Well went ahead and ordered a set off Amazon. If they don't fit it is at least easy returns. It's for the whole set so as a bonus I get a spare pair for the rear.

https://www.amazon.com/Genuine-Toyota-Accessories-PT769-89110-Mudguard/dp/B0064NSJVE


.
Click to expand...

Edit: I may be wrong. Maybe they use the same part numbers. I see they two they list on the amazon page are for the rears anyway, not the front.

Don't think those are the correct ones for a 14+ Trail. I see a lot of people saying they fit a 2010-2013 SR5 style, which is different. I would order the exact part numbers I posted on the TOP site.

Last edited:
jayhat said:
Edit: I may be wrong. Maybe they use the same part numbers. I see they two they list on the amazon page are for the rears anyway, not the front.

Don't think those are the correct ones for a 14+ Trail. I see a lot of people saying they fit a 2010-2013 SR5 style, which is different. I would order the exact part numbers I posted on the TOP site.
Click to expand...

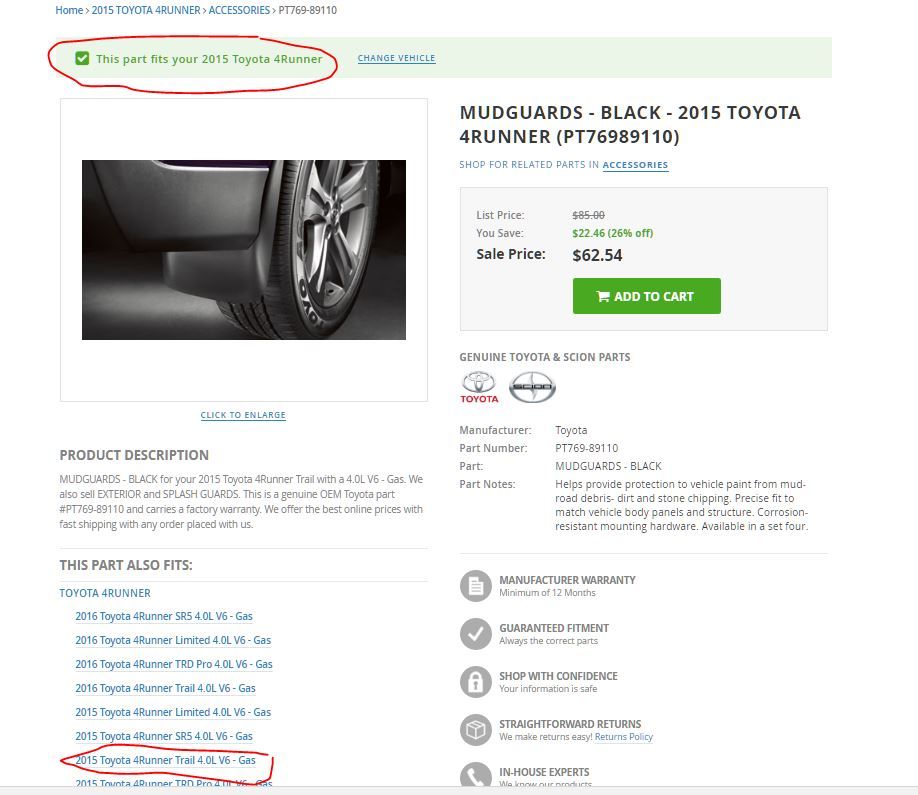

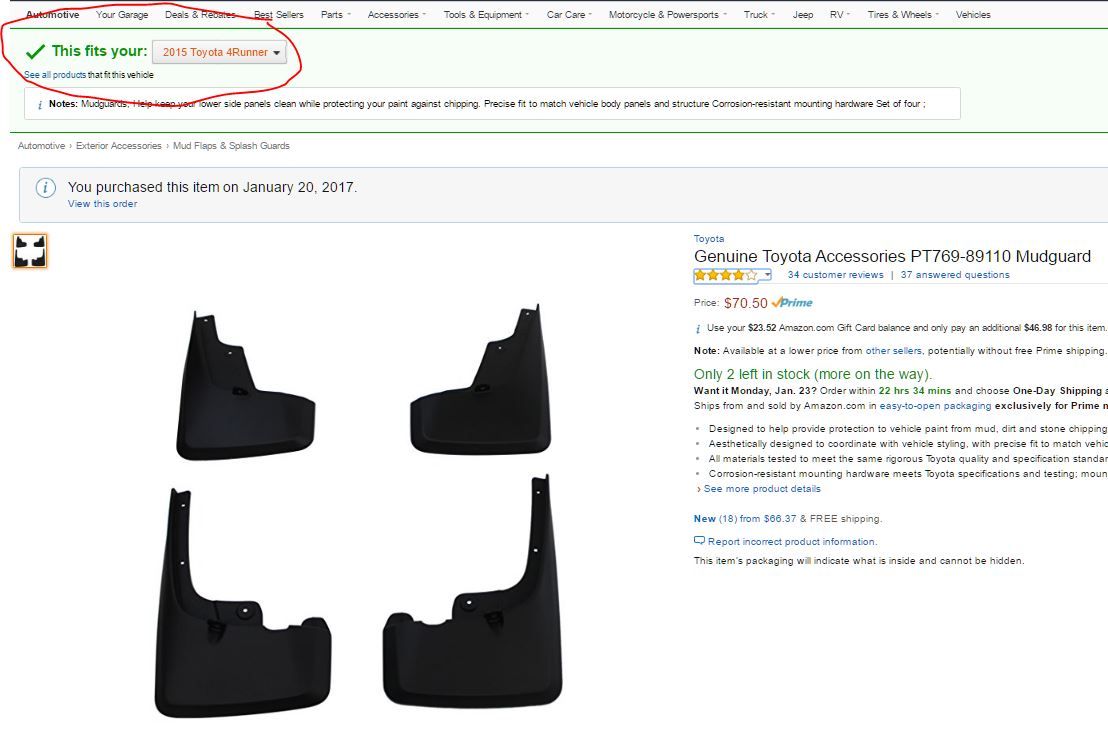

I went with the link TRUSTYAXE provided for the complete set. Amazon did not have individual parts. On both Amazon and Toyota Online Parts it appears they should fit. Will return if not and try again.





mud2_zpsbzulfya1.jpg~original


mud_zps3gkenrqq.jpg~original

Cool $70 is a good price for the whole set.

I would take the Amazon "This fits you vehicle" with a grain of salt. ;): I have seen OEM parts I know fit and it says does not and I have also seen OEM parts I know will not fit and they say it does.

jrandom said:
Cool $70 is a good price for the whole set.

I would take the Amazon "This fits you vehicle" with a grain of salt. ;): I have seen OEM parts I know fit and it says does not and I have also seen OEM parts I know will not fit and they say it does.
Click to expand...

I only did because of their return policy. Worth the gamble at this point.


.

zonzin said:
I only did because of their return policy. Worth the gamble at this point.
Click to expand...

You misunderstand, Amazon is a great place to pick up parts. :)

All I am saying is simply know exactly (ie having the correct part number) what your buying from them and you'll be fine. Just don't solely rely on their little compatibility tool to tell you what works. ;):

jrandom said:
You misunderstand, Amazon is a great place to pick up parts. :)

All I am saying is simply know exactly (ie having the correct part number) what your buying from them and you'll be fine. Just don't solely rely on their little compatibility tool to tell you what works. ;):
Click to expand...

You are absolutly correct.


.

If it don't work out, I have mine in a box in the garage I can send you. They were removed at 480 miles, so practically new.

L-Force said:
If it don't work out, I have mine in a box in the garage I can send you. They were removed at 480 miles, so practically new.
Click to expand...

Awesome!! We will see what shipping is from HI to ID.

Of course large flat rate box should be the same.





.

Last edited:
