TRD Pro Skid on '15 4Runner TE w/ KDSS

[MattyTC]

No lift in mine.....Yet.



[BigCountryT4R]

Be awesome if you can scan that in and attach it to a post for those to download it as a template!

I almost forgot,

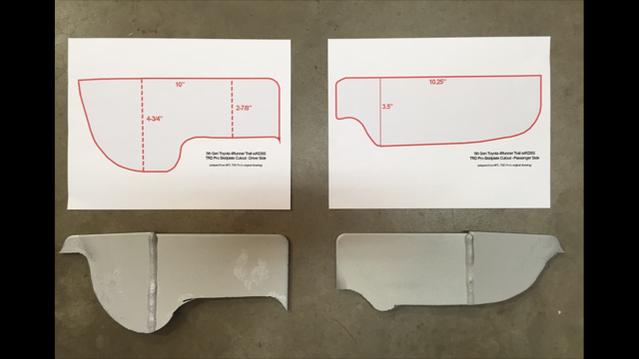

I made a quick template with my scraps, it will give you a idea of the cutting shape.

Driver side

Passenger side



[BigCountryT4R]

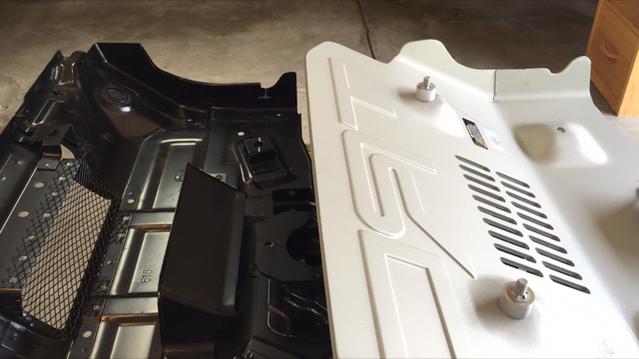

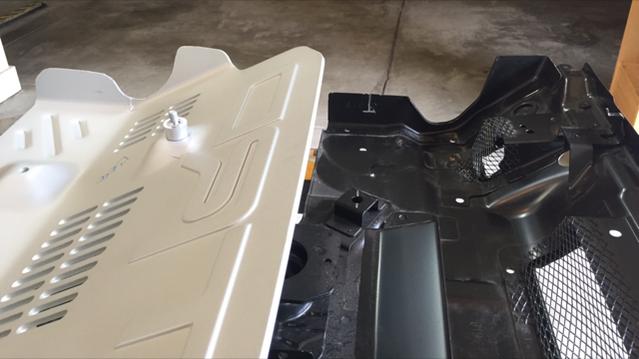

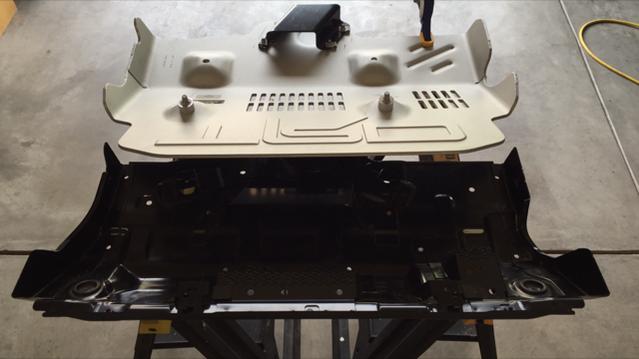

Verdict: Idiot at parts dept... while I was there, snapped a pic to my KDSS TE vs a non-KDSS SR5 for comparison to those who wish to avoid my scenario. Dealer issuing me a refund on the TRD Pro skid.

Still got to drive home a sweet new '15 T4R TE :banana:

What size are the tires on it?



[Redbull1435]

I modified the TRD Skid on my Trail with KDSS

Hey man did you paint or vynel the black parts of your bumper? Looking to do the same on my stock bumper.



[white_trail]

Im running a toytec boss lift with skid plate on my 16 trail with kdss.



[borfoo3]

What size are the tires on it?

265/70/r17 load range C; on stock t4r suspension



[BigCountryT4R]

265/70/r17 load range C; on stock t4r suspension

Looks great man! Thanks for the info. Saving it for when I get one, hoping I can get the dealer to swap the stock tires out for these.



[b407driver]

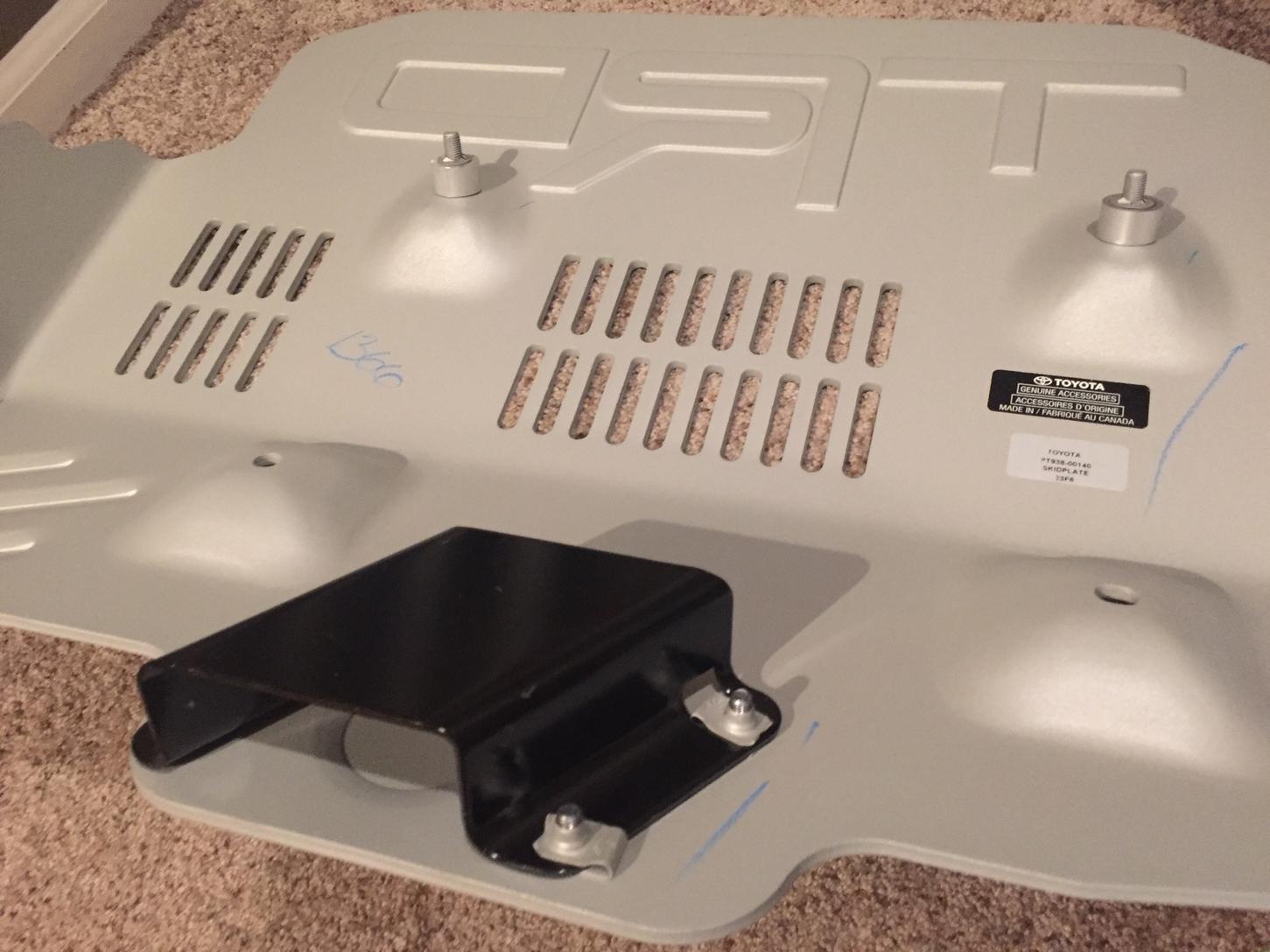

So what is this bracket on the skid plate?



[borfoo3]

So what is this bracket on the skid plate?

Dunno really.. I just left it on there and it went in fine



[sandcrawler]

So what is this bracket on the skid plate?

support brace



[WannnaBeTRD]

Used the template offered here on my new 2016 TEP and worked perfectly - took less than two hours. I decided to paint over where I cut the aluminum to prevent any discoloration. Holding up perfectly so far.

Thanks for the detailed instructions!



[nguyenn]

Its paint sir

Hey man did you paint or vynel the black parts of your bumper? Looking to do the same on my stock bumper.



[b407driver]

Be awesome if you can scan that in and attach it to a post for those to download it as a template!

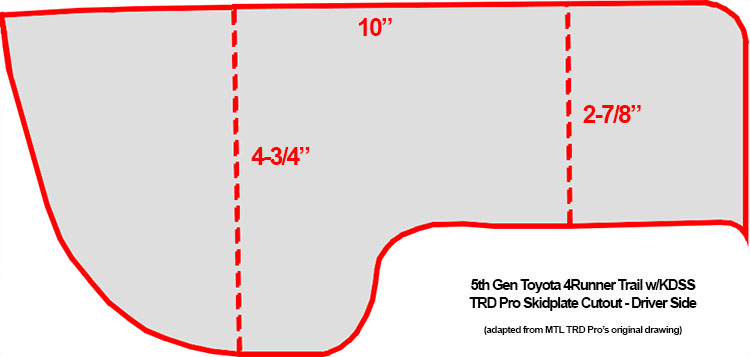

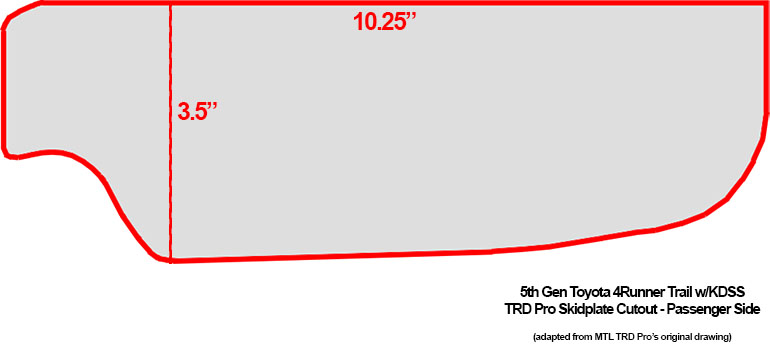

Getting ready to cut mine, so wanted to get it as close as possible the [MENTION=139345]MtlTRDPro[/MENTION] original template. In Photoshop I squared the pieces of paper for perspective, then set the long edges of the cut to the correct lengths; after doing so, the short edge measured out precisely as indicated on the original. Then went over the cutline in red, and here you have it:



[b407driver]

Quick JPEG previews (don't use these, obviously):



[divejoe]

Thanks all! Was able to do this w/o major issues. how come the instructions stated that the bracing must not be removed?



[b407driver]

Thanks all! Was able to do this w/o major issues. how come the instructions stated that the bracing must not be removed?

Because it was designed for non-KDSS vehicles, and the mounting points are different for the stock skidplates on each.



[sandcrawler]

Thanks all! Was able to do this w/o major issues. how come the instructions stated that the bracing must not be removed?

Because it was designed for non-KDSS vehicles, and the mounting points are different for the stock skidplates on each.

no, the mounting points are exactly the same. you're not supposed to remove the bracing because it is integral to the skid, squaring/supporting it against the frame crossmember.



[Saker]

Getting ready to cut mine, so wanted to get it as close as possible the [MENTION=139345]MtlTRDPro[/MENTION] original template. In Photoshop I squared the pieces of paper for perspective, then set the long edges of the cut to the correct lengths; after doing so, the short edge measured out precisely as indicated on the original. Then went over the cutline in red, and here you have it:

Nice job on making the pdf drawing to scale. Makes it easy for someone to print, transfer and cut.



[b407driver]

Nice job on making the pdf drawing to scale. Makes it easy for someone to print, transfer and cut.

No worries, I took the time, might as well make it available.

Cut mine a few days ago, used MtlTRD's basic template, but adapted it a bit based upon tracing out the stock KDSS skidplate. Wish I had the vehicle in my garage to confirm some things (finally being delivered TOMORROW morning!!!), but I trusted the basic template and many pics posted to the various threads, and I'm sure it will bolt up fine.

Cleaned the cuts up with wire wheel on a Dremel, and finished it off with some Rustoleum Textured Metallic (sprayed into cup), and done deal. I'll post a pic of the installed product on my TRD Trail tomorrow.



[b407driver]

no, the mounting points are exactly the same. you're not supposed to remove the bracing because it is integral to the skid, squaring/supporting it against the frame crossmember.

Then why do the aftermarket KDSS skidplates require removal of the radiator brackets? From what I've read here in several threads, no TRD skid plates (or after-market skids, for that matter) have been installed onto a KDSS vehicle without said removal. Feel free to enlighten me, as I won't be able to look myself until tomorrow morning.

Anyone who has actually done this to their KDSS Trail please feel free to chime in.

Now that I think about it, if you are referring to the black bracket that I asked a prior question about, based upon reading the install instructions I don't think [MENTION=94314]divejoe[/MENTION]'s question was about that bracket, but about the radiator support bracing. I could be wrong.

That being said, after taking a good look at that black bracket compared to the OEM plate's analogous part, it appears that it is designed to channel air back toward something from the skidplate vent channels (in addition to providing the spacing between the frame). I could tell you what that 'something' is tomorrow.

Cheers,

Jeff
