Spark Plugs Wires and Coil Information for the 5VZ-FE

Is this information worth having in a single post?

  • Yes

    Votes: 4 100.0%

  • No

    Votes: 0 0.0%
  • Total voters
    4
  • Poll closed .
brillo_76

brillo_76

Elite Member


Make sure your Alternator, Battery Terminals
Are Clean That your engine grounds are clean and not oxidize.
Voltage is correct and battery is good

If anyone has the 4 cylinder information we can add it to this post so that its contains both the 5VZ-FE and 3RZ-FE.

Source: The forum and the FSM

Only a Few types of spark plug wires are recommended

1.) NGK TE-66
2.) Denso 671-6182
3.) Sumitomos P/N: Sumitomo 5z-16 x-e Toyota P/N: 19037-62010
4.) Mag Core Wire sets

[Sumitomos Wire Info]
Amazon link for the Sumitomo wires
Amazon.com: Genuine Toyota 19037-62010 Spark Plug Cord Set: Automotive


[Info on Mag Core Wire]
Mag core wires are less than 1K ohm per foot.
They are steel core wires instead of carbon core and you can get them in 7mm or 8mm cables.
I’ve never had issues with the 7mm wire sets.

{They measure 1.5k ohm, 1.6k ohm and 1.8k ohm. CarQuest set Part Number 35-6050 WIR}


Wire numbers with NGK resistance values of new wires
1 goes to Cylinder 4 shortest wire 7.61K ohms {NGK}
3 goes to Cylinder 6 Longest wire 9.76K ohms {NGK}
5 goes to Cylinder 2 middle length wire 8.07K ohms{NGK}

You notice that all wires are 10K ohms or less

The maximum resistance of any spark plug wire is less than or equal to 25K Ohms.[FSM IG-2]

Actually only 1 coil is recommended for these are the same

Coil part number (OEM MFG of the coils and cheaper)
Denso 673-1201

Toyota Part number
90919-02212

Coil-on Plug Boot
{Recommend when changing the plug wires}
Denso 671-6248 Coil-on Plug Boot


For the spark plugs information:
How to: Installing 3rd gen spark plugs - Toyota 4Runner Forum - Largest 4Runner Forum


WATCH OUT FOR AMAZON FAKE NGK PLUGS!!​


Added information provided by Users: 19963.4lsr5, TheDurk

Once all the information is complete. I will condense it all and make closed :-)
Thank you for all who contribute to this Thread


Attachments

  • 5VZ_FE_Spark plugs_Cylinder.jpg
    5VZ_FE_Spark plugs_Cylinder.jpg
    61.3 KB · Views: 38,666
  • ignition_Coil_Test_5VZ_FE.jpg
    84.8 KB · Views: 19,315
Last edited:
Register to hide this ad
19963.4lsr5 said:
I’ve been using Mag Core wire sets for years. They get more voltage to the plugs.


Sent from my iPhone using Tapatalk
Click to expand...
Folks can use as they wish. What's the resistance Mag core wires? As long as they are under 25k ohms they meet the specs. Lots of A/M wires dont last long and like everything else there are exceptions to A/M parts.

I am sure there are wires with lower resistance then NGK or denso However as long as they are not arching when they are damp or the insulation breaking down they should work.

Recommendations are exactly that as people have had excellent success with the Denso and NGK wire sets.



Sent from my SM-J337V using Tapatalk

brillo_76 said:
Folks can use as they wish. What's the resistance Mag core wires? As long as they are under 25k ohms they meet the specs. Lots of A/M wires dont last long and like everything else there are exceptions to A/M parts.

I am sure there are wires with lower resistance then NGK or denso However as long as they are not arching when they are damp or the insulation breaking down they should work.

Recommendations are exactly that as people have had excellent success with the Denso and NGK wire sets.



Sent from my SM-J337V using Tapatalk
Click to expand...

Why not the OEM factory Sumitomos? We original owners have a lot of experience on those...

P/N: Sumitomo 5z-16 x-e

Toyota P/N: 19037-62010

https://www.amazon.com/Genuine-Toyota-19037-62010-Spark-Plug/dp/B00G52H7YE

Also carried by many dealers last I heard.

Although the above listing does not explicitly state Sumitomo, several reviews refer to the year printed on the wire insulation--which only the Sumis have.

Last edited:
TheDurk said:
Why not the OEM factory Sumitomos? We original owners have a lot of experience on those...
Click to expand...
Are they even available anymore? I know the Sumitomos were the originals. What's there resistance?


If we had several different types with their new resistance values. Then the users can decide themselves which is best for them.

I can add a table of wires resistance for the 3 wires.

I dont have the denso resistance listed as I dont have a new set to measure. :)

I dug around and found out this information wasn't readily available on the forum. This is why I created the thread.

I wanted to know the threshold of resistance on the coils and the wires. Which is listed now and by doing a forum search I found those 2 listed as the most used.

As for mine, none of my 5 had the original wires on them. They are mostly unknown type. However, most them have their original coils in them. :)



Sent from my SM-J337V using Tapatalk

So I take it that neither of you have the resistance values of these 3 wires new ?

As these numbers would be important to have so we can compare the wires and have it all on the man post redone :)

Sent from my SM-J337V using Tapatalk

brillo_76 said:
Are they even available anymore? I know the Sumitomos were the originals. What's there resistance?


If we had several different types with their new resistance values. Then the users can decide themselves which is best for them.

I can add a table of wires resistance for the 3 wires.

I dont have the denso resistance listed as I dont have a new set to measure. :)

I dug around and found out this information wasn't readily available on the forum. This is why I created the thread.

I wanted to know the threshold of resistance on the coils and the wires. Which is listed now and by doing a forum search I found those 2 listed as the most used.

As for mine, none of my 5 had the original wires on them. They are mostly unknown type. However, most them have their original coils in them. :)



Sent from my SM-J337V using Tapatalk
Click to expand...

If you search, you will find recent posts of members who got them from dealers. I know, because I said they were not available (which they were not, for a while) and got spanked. I also edited in an Amazon link that I am sure are the Sumis. Mine gave me a solid 100k until I swapped for PM.

Sorry I don't have the resistances.

TheDurk said:
If you search, you will find recent posts of members who got them from dealers. I know, because I said they were not available (which they were not, for a while) and got spanked. I also edited in an Amazon link that I am sure are the Sumis. Mine gave me a solid 100k until I swapped for PM.

Sorry I don't have the resistances.
Click to expand...
Ah. I thought they were gone so they did started making them again. Very interesting as I swore they were gone no longer available. That's actually good news. :)

Sent from my SM-J337V using Tapatalk

brillo_76 said:
Ah. I thought they were gone so they did started making them again. Very interesting as I swore they were gone no longer available. That's actually good news. :)

Sent from my SM-J337V using Tapatalk
Click to expand...

You might also include these. Lots of good coils get chucked when all they needed were new boots. I recommend doing these when you do wires.

Denso 671-6248 Coil-on Plug Boot



https://smile.amazon.com/gp/product/B0013TI3RO/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1

IIRC, there is no Toyota p/n listed.

Last edited:
TheDurk said:
You might also include these. Lots of good coils get chucked when all they needed were new boots. I recommend doing these when you do wires.

Denso 671-6248 Coil-on Plug Boot



https://smile.amazon.com/gp/product/B0013TI3RO/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1

IIRC, there is no Toyota p/n listed.
Click to expand...
Yes I will add these into the post. I am hoping we get those resistance of these other plug wires. As that would be good to have too.

Sent from my SM-J337V using Tapatalk

Mag core wires are less than 1K ohm per foot. They are steel core wires instead of carbon core and you can get them in 7mm or 8mm cables. I’ve never had issues with the 7mm wire sets.

I used Bosch Premium until autozone stopped selling them. They had a life time warranty. I punted at autoxone when they stopped selling the bosch and figured I’d try their house brand mag core set. It comes with all the clip and mounting hardware. Fit and finish was awesome. But, time will tell.

I’ll never go back to carbon core wires. Ever....


Sent from my iPhone using Tapatalk

I don't suppose anyone has the information that is missing for the 4 cylinders and the coil information and resistance values missing :-)

19963.4lsr5 said:
Mag core wires are less than 1K ohm per foot. They are steel core wires instead of carbon core and you can get them in 7mm or 8mm cables. I’ve never had issues with the 7mm wire sets.

I used Bosch Premium until autozone stopped selling them. They had a life time warranty. I punted at autoxone when they stopped selling the bosch and figured I’d try their house brand mag core set. It comes with all the clip and mounting hardware. Fit and finish was awesome. But, time will tell.

I’ll never go back to carbon core wires. Ever....


Sent from my iPhone using Tapatalk
Click to expand...

Mag core wires will be my next set. How much did you pay for them?

gamefreakgc said:
Mag core wires will be my next set. How much did you pay for them?
Click to expand...



The autozone mag set was around 50. But there are other brands. I got those under warranty when the 10 year old bosch set started arching at a spark plug boot.

I have the bosch preimum set on the 86 CJ7 with a complete MSD setup. And they are doing just fine at 60k volts to the plugs.


Sent from my iPhone using Tapatalk

Last edited:
Here is what I’ve been using..

Edit I will not be using them anymore. They say MAG core and have the MAG core picture but their resistance is really high for a mag core wire set. They read 4.8k ohm, 5.7k ohm, and 7.1k ohm.


.



Sent from my iPhone using Tapatalk

Last edited:
brillo_76 said:
What's the resistance of those 3 wires?

Sent from my SM-J337V using Tapatalk
Click to expand...

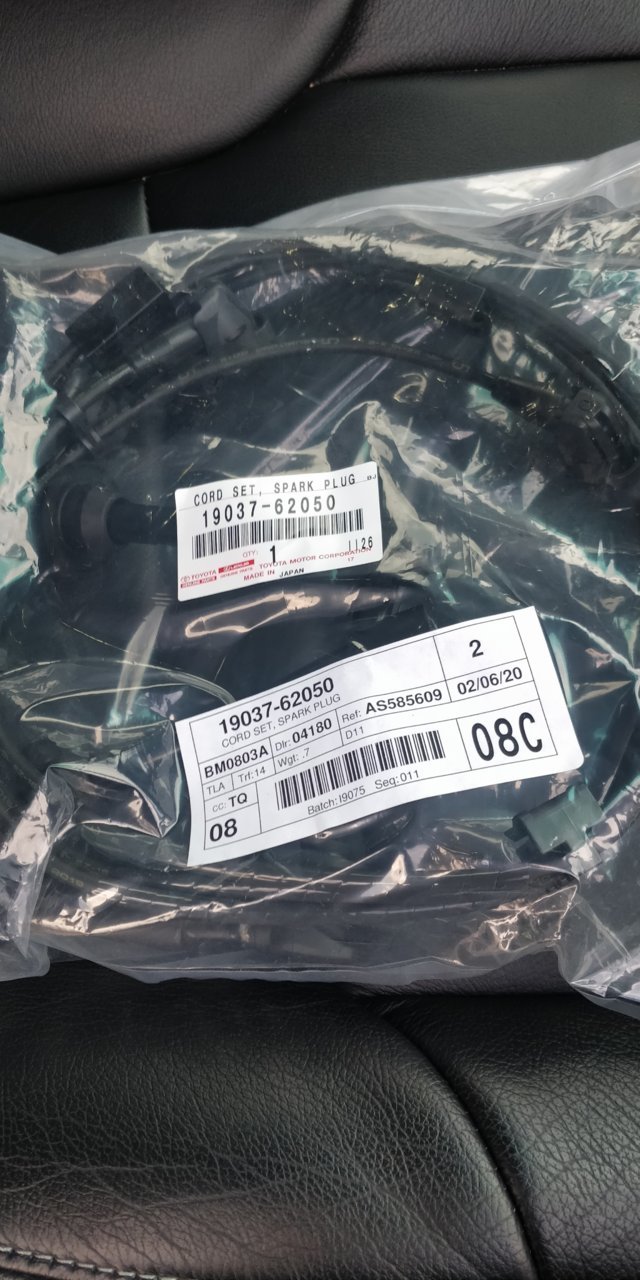

They say Sumitomo 5Z-16 X-E , I gave the parts guy the part number in the first post. He said this was the new part and they had them sitting in the back in stock.

gamefreakgc said:
Mag core wires will be my next set. How much did you pay for them?
Click to expand...



My Duralast Gold set I posted earlier has very high resistance for mag core. My spare CarQuest set I measured the resistance and they are true mag core.

They measure 1.5k ohm, 1.6k ohm and 1.8k ohm. I’m taking the Duralast set off and putting on the CarQuest set tomorrow. It is obvious now that not all Mag Core wire sets are created equal. Part Number 35-6050 WIR


Sent from my iPhone using Tapatalk

JRambo said:
They say Sumitomo 5Z-16 X-E , I gave the parts guy the part number in the first post. He said this was the new part and they had them sitting in the back in stock.
Click to expand...
Yes I understand that. I after a meter resistance of the actual wires in kilo ohms what they measure in new. :)

Sent from my SM-J337V using Tapatalk
