2020 JBL. 15 speaker's?

[ForRun]

Picked up a 20 last week and sounds good but I want to upgrade. Trying to figure out where they put 15 speakers?
2-dash
4-doors
2- rear hatch
1 sub.
That's nine, where's the other 6?



[johnbt]

Here's an old list from somewhere that I saved. At one point I owned a 2006 Avalon and then a 2010 Highlander and I could never find all of the JBL speakers.

2 x 3.5" coaxials Dash
2 x 6"x9" woofer only driver and passenger door
2 x 6.5" coaxials back passenger doors
2 x 6.5" coaxials back gate
1 x 10" woofer back cargo

I think they count each coaxial speaker as 2 speakers.

4
2
4
4
1

= 15



[ForRun]

2 x 3.5" coaxials Dash
2 x 6"x9" woofer only driver and passenger door
2 x 6.5" coaxials back passenger doors
2 x 6.5" coaxials back gate
1 x 10" woofer back cargo

I think they count each coaxial speaker as 2 speakers.

4
2
4
4
1

= 15

Lol, marketing 101. They lie but they are not.



[mteolus]

Isn't there a couple of tweeters near the dash on each side? That would be two more.

It would be nice if they would just make them all sound good. I guess quantity is a good sales tool. Seems sad you have to buy aftermarket speakers and an amp to make it sound good.



[ForRun]

Isn't there a couple of tweeters near the dash on each side? That would be two more.

It would be nice if they would just make them all sound good. I guess quantity is a good sales tool. Seems sad you have to buy aftermarket speakers and an amp to make it sound good.

the 20 JBL sounds better than the premium sound in my 19 runner by far.....but, I've been spoiled with sound. My last build the door speakers were 1k each.
Think that's bad, they make 20k speakers for the wealthy. Until you hear a quality system you'll never know what you have been missing



[RusPro17]

Yes my 2020 JBL system does sound better than my 17 Pro system. I think it sounds good without spending a ton of money for aftermarket system. Done that so many time. This is fine for me. Not changing it out.



[johnbt]

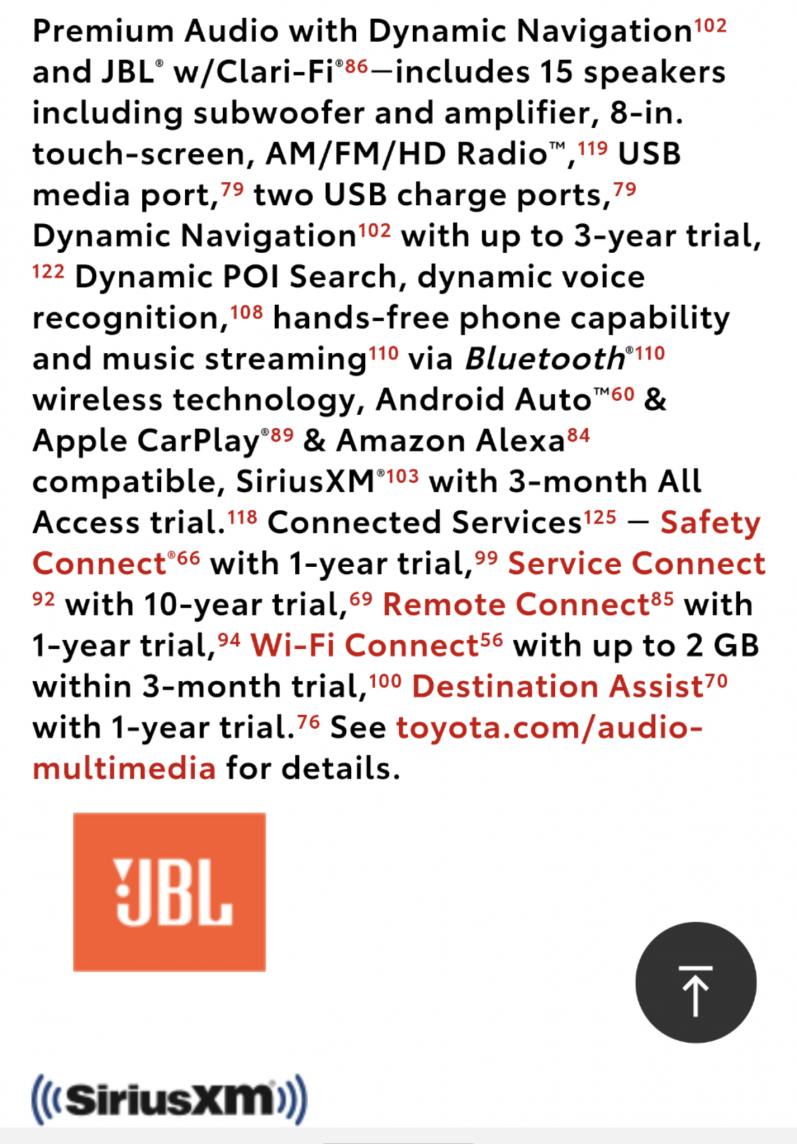

They say 15, but only list 9.
________________________


JBL + Toyota Scroll down and click on 4Runner...

2 × 80/16 mm midrange/tweeters. Compact coaxials expand the soundstage for front-seat passengers, reproducing vocals and instruments in the most common frequencies.

2 × 152 x 229 mm woofers. Passengers in every seat enjoy world-class sound delivered by high-output woofers integrated with midrange speakers. The audio experience is solidified with rich, deep bass.

4 × 160/19 mm coaxial midwoofers/tweeters. Mounted coaxially in the rear, these high-performance speakers enhance the sonic image for rear passengers.

1 × 200 mm subwoofer. Within its own enclosure, this subwoofer delivers deep, clear, low-frequency effects and optimises response for the entire system.

10-channel 550-Watt DSP amplifier. An intelligent amplifier that delivers specific information to each speaker based on location, reflections and signal arrival time. Audio is optimised, regardless of musical source.



[Bryann563]

I just got a limited 2020 nightshade. What do you use for treble mid and bass on your equalizer? I can’t figure out the best set up for this.


Sent from my iPhone using Tapatalk



[tm965]

I just got a limited 2020 nightshade. What do you use for treble mid and bass on your equalizer? I can’t figure out the best set up for this.


Sent from my iPhone using Tapatalk

depends on the input, but typically leave it flat or +1 base, +1 treble, mid 0. pushing further in any direction is unnecessary imo. first system i've had where adjustments didnt seem to help really



[Bryann563]

I feel as if there could be better depth from the dash speakers. Any suggestions on what to put there?


Sent from my iPhone using Tapatalk



[Whippersnapper02]

I feel as if there could be better depth from the dash speakers. Any suggestions on what to put there?


Sent from my iPhone using Tapatalk

DIY 3.5" JL Audio dash speaker upgrade - Wow!! (detailed how-to)



[Deetz]

So is it confirmed? Is the JBL stereo in the new 2020 model, different from the older 2019 and prior......



[RusPro17]

I’m not sure if is different. All I know it sounds whey better than my entune did in my 17 Pro. No intentions in ripping this out for a aftermarket system. Been thru that enough. The JBL system is fine for me.



[ForRun]

I’m not sure if is different. All I know it sounds whey better than my entune did in my 17 Pro. No intentions in ripping this out for a aftermarket system. Been thru that enough. The JBL system is fine for me.

After having mine a month now I also plan on leaving stock. It sounds leap years above the 4runner premium sound I had in the 19. It's not high end but sounds good enough.



[GupsT4R]

After having mine a month now I also plan on leaving stock. It sounds leap years above the 4runner premium sound I had in the 19. It's not high end but sounds good enough.

19 premium sound is not the jbl tho?

like Deetz wondering is the 2020 JBL is different than the 19 JBL ??



[AMLOR]

19 premium sound is not the jbl tho?

like Deetz wondering is the 2020 JBL is different than the 19 JBL ??

I believe the JBL system was only in the TRD PRO for 2019. my speaker package is the same as 2020. It is not the same as the premuim sound package previously available.
AMLOR



[Mudballz]

If you want to sell your old speakers lmk I’m interested :girl:
Mike



[adrummingdude]

They say 15, but only list 9.
________________________


JBL + Toyota Scroll down and click on 4Runner...

2 × 80/16 mm midrange/tweeters. Compact coaxials expand the soundstage for front-seat passengers, reproducing vocals and instruments in the most common frequencies.

2 × 152 x 229 mm woofers. Passengers in every seat enjoy world-class sound delivered by high-output woofers integrated with midrange speakers. The audio experience is solidified with rich, deep bass.

4 × 160/19 mm coaxial midwoofers/tweeters. Mounted coaxially in the rear, these high-performance speakers enhance the sonic image for rear passengers.

1 × 200 mm subwoofer. Within its own enclosure, this subwoofer delivers deep, clear, low-frequency effects and optimises response for the entire system.

10-channel 550-Watt DSP amplifier. An intelligent amplifier that delivers specific information to each speaker based on location, reflections and signal arrival time. Audio is optimised, regardless of musical source.

As others have stated, they likely count each coax as 2 speakers. It's kind of like "10-channel 550-Watt DSP amplifier." What that really means is 550 watts divided by 10 channels, measured at 1khz at some unruly distortion (like 10%). Per speaker, you'll be lucky to get 10 clean watts.



[ForRun]

19 premium sound is not the jbl tho?

like Deetz wondering is the 2020 JBL is different than the 19 JBL ??

I had a 19 that was just Premium sound, no JBL. the 20 pro had the 15 speaker JBL, I read it was new for 2020?? not sure though. had a road block and the Pro went away and now im back in a 20 orp with the crappy premium sound:doh:



[GupsT4R]

I had a 19 that was just Premium sound, no JBL. the 20 pro had the 15 speaker JBL, I read it was new for 2020?? not sure though. had a road block and the Pro went away and now im back in a 20 orp with the crappy premium sound:doh:

Road blocks suck but congrats on the ORP
