'99 A.D.D relay location??

[charlesc76]

So I phoned the local Toyota dealership to find out where this relay is located and they had no clue what I was talking about

Anyways, can somebody please tell me where the hell this relay is located? Pictures would be nice as well

Much appreciated,
Charles



[broncosi]

are you sure you didn't call domino's by accident?

If your not already a member over at yotatech i would become one(lots of useful info over there) and revive this thread unless someone else chimes in here: Yotatech Link

ps i know the link in their thread is dead but his first post might tip you off to what you need to know.



[charlesc76]

Problem Solved

So took it to a friend of mines shop who is building my rx7 race car and he has access to the ALLDATA service information and according to the diagrams the ADD relay is on the passenger side, to the right of the glovebox and roughly inline with the glovebox lever to open it. Hopefully this gives you somewhat of a mental picture as to where we were looking for this #@$%ing relay.

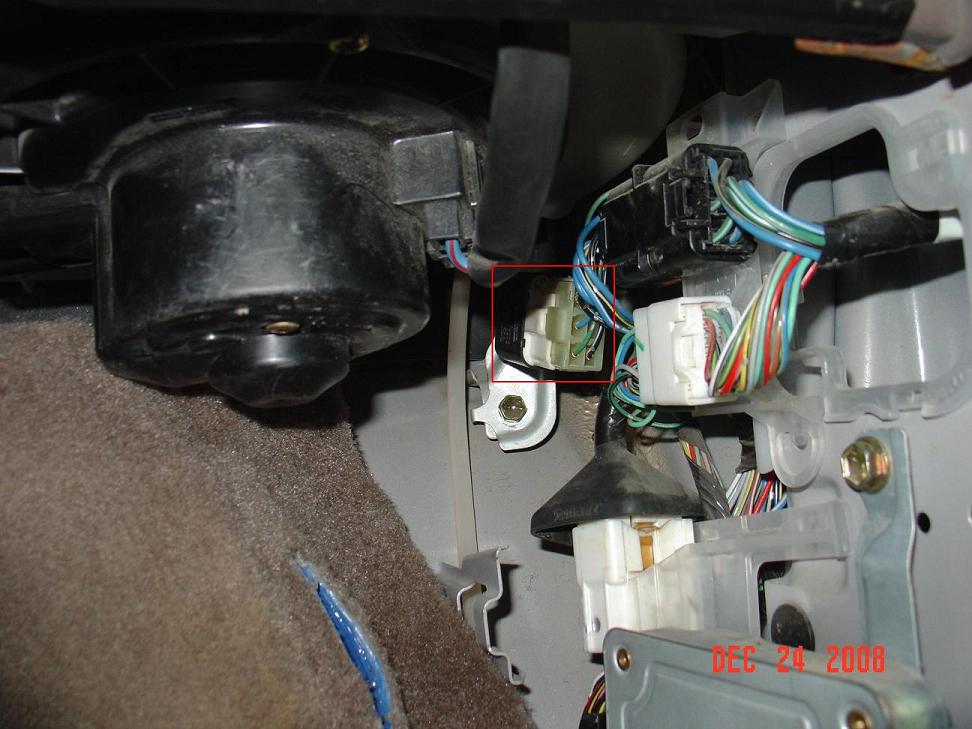

Well, it's NOT there. If you take a look at the attached picture you'll see the ADD relay is circled/boxed in red and is located behind the passenger side kick panel. In fact if you look closely its actually mounted on the firewall.

The way it was actually found was by looking at the electrical diagrams and looking for the 6 wire colour comibinations coming out of anything that looked like a relay

So, after all that it wasn't the ADD relay What was causing the problem is the wire connection between the ball switch on the transfer case and the ADD relay. The people we had bought the car from 4 months ago had replaced the clutch and I guess when they dropped the tranny they tore a wire out of each end of the plug connector that you disconnect in order to drop the transfercase/tranny. Cut the switch switch completely and spliced in a straight thru connection. This was done this way primarily due to very limited space up under the car where the plug connector/broken wire was located.

Anyways, enough spewing -- hopefully this will help someone else out down the road.

Charles



[99yota4]

Reviving an old thread...

The photo in the previous post is NOT the A.D.D. Relay. That is the Transmission Relay as stated on the relay itself. Does anyone know where the A.D.D. relay actually is? I have read numerous articles that point to the relay being behind the instrument panel on the passenger side of the steering column. Anyone have a picture of this or more info? Thanks



[TheDurk]

Reviving an old thread...

The photo in the previous post is NOT the A.D.D. Relay. That is the Transmission Relay as stated on the relay itself. Does anyone know where the A.D.D. relay actually is? I have read numerous articles that point to the relay being behind the instrument panel on the passenger side of the steering column. Anyone have a picture of this or more info? Thanks

I just came across this while doing some research. The above post is wrong. The OP has it right. The wire colors match perfectly the colors for the ADD relay in 1999 for a 4wd manual trans.

Just in case someone comes here and gets confused.
