Install Pioneer 8100NEX in 2006 Limited with JBL

[rooneyy]

Hey all,

I am late to the game in updating my Headunit but my friend is selling me his Pioneer 8100NEX.

May I ask for some assistance? I did my fair share of searching through old threads and couldn't find answers some of the answers.

I am replacing a factory Navigation with JBL system in a 2006 Limited with steering wheel controls. I would also like to have functionality of the factory rear camera and add in a front bumper camera as well. I am installing the 8100NEX for CarPlay (for Wife) and Android Auto.


I am trying to source the parts I need and was wondering if you all could help?

This is what I gathered so far:

• Head Unit Bracket (LINK)
• PAC SWI-PS for Steering wheel controls
• Pioneer Harness (Can't find the part)
• Rear Backup Camera Harness (Can't find the part)
• Want to add Front Camera: Axxera AHV900

Thank you all for any insight!

Edit: Once I can gather all the info to get this done, I will make a tutorial for others.
Edit2: With the help from gfxcruncher and JONBOY345 I have updated what I need.

New Info:

• Maestro RR (Part # ADS-MRR) - For Steering Wheel controls plus other info.
• Radio replacement T-harness (Part #HRN-RR-TO1) - To be able to use new radio in old vehicle.
• HRN-RR-TO1 connects to Rear Backup Camera directly no need for a separate harness.



[gfxcruncher]

Hey [MENTION=90578]rooneyy[/MENTION]

I'm sure other will chime in with less expensive options to source the parts...
I installed a AVH-W4500NEX, I got everything from Crutchfield. When I punched in the vehicle info and the head unit, the install kit had all the harnesses and such. Looks like you only need a few things and could just get the harness from them? I'll hunt forever for some stuff, audio just isn't my game.

idk about CarPlay in your particular unit, but I've found it to be the most used upgrade i've done, it's awesome (never had it before this)



[JONBOY345]

You should look into the iDatalink Maestro RR. Little more expensive, but easier to install.

I don't have personal experience with it, but it seems like a winner from what I've read from others experiences.

iDatalink - Maestro - Maestro RR


If you select your model, steering wheel info, and model of headunit on that webpage, it'll tell you everyhing you need, give you an installation guide, and tools/accessories.



[rooneyy]

Hey [MENTION=90578]rooneyy[/MENTION]

I'm sure other will chime in with less expensive options to source the parts...
I installed a AVH-W4500NEX, I got everything from Crutchfield. When I punched in the vehicle info and the head unit, the install kit had all the harnesses and such. Looks like you only need a few things and could just get the harness from them? I'll hunt forever for some stuff, audio just isn't my game.

idk about CarPlay in your particular unit, but I've found it to be the most used upgrade i've done, it's awesome (never had it before this)

Thank you, I did search their site but I didn't find much in the way of harnesses. Perhaps the 8100NEX is the older generation that they don't readily sell parts for still?

You should look into the iDatalink Maestro RR. Little more expensive, but easier to install.

I don't have personal experience with it, but it seems like a winner from what I've read from others experiences.

iDatalink - Maestro - Maestro RR


If you select your model, steering wheel info, and model of headunit on that webpage, it'll tell you everyhing you need, give you an installation guide, and tools/accessories.

That's great to know, I did hear about this item but didn't really look into until you brought it to my attention. Their site is pretty comprehensive but I can't seem to find the exact 8100NEX model. I'll keep poking around.

I appreciate the info! [MENTION=102822]JONBOY345[/MENTION]



[JONBOY345]

Thank you, I did search their site but I didn't find much in the way of harnesses. Perhaps the 8100NEX is the older generation that they don't readily sell parts for still?



That's great to know, I did hear about this item but didn't really look into until you brought it to my attention. Their site is pretty comprehensive but I can't seem to find the exact 8100NEX model. I'll keep poking around.

I appreciate the info! [MENTION=102822]JONBOY345[/MENTION]

As far as I know, there's only one 8100NEX, and that's the AVIC-8100NEX.

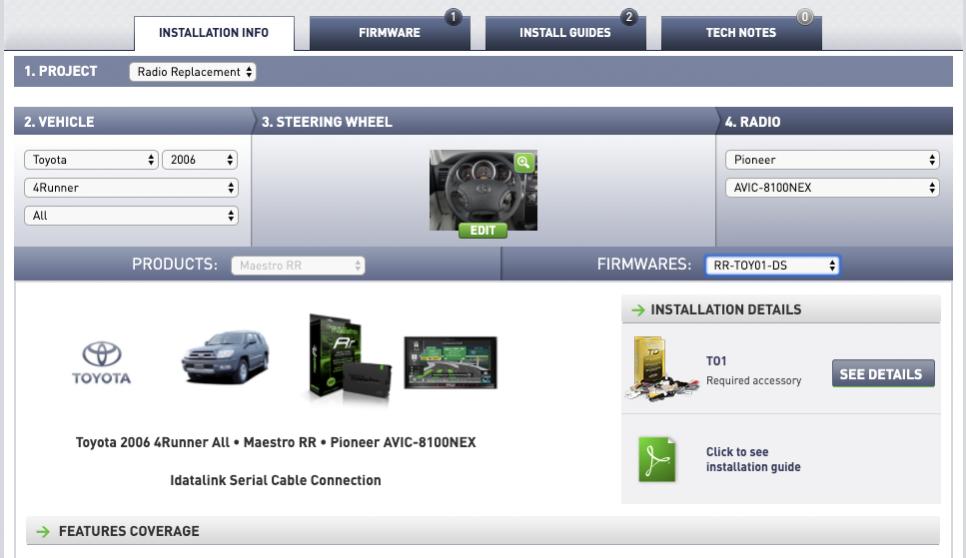

I was able to find it and it gave me all the information I needed. I've attached a screenshot showing this.



[gfxcruncher]

+1 on the iDatalink Maestro, I did that too, nice to have vehicle info on the screen.

IRC, I had to spice the maestro harness to the supplied crutchfield harness (so I didn't have to hack up the vehicle harness) but you could probably splice the maestro harness directly to the vehicle...



[rooneyy]

As far as I know, there's only one 8100NEX, and that's the AVIC-8100NEX.

I was able to find it and it gave me all the information I needed. I've attached a screenshot showing this.

Wow thank you so much for that. I am blind!:Cry: I'll have a look.



[evan1242]

Maestro works great. Just used it in my 07



[rooneyy]

Maestro works great. Just used it in my 07

Awesome I appreciate the confirmation. Definitely going to go that route!



[rooneyy]

[MENTION=395749]evan1242[/MENTION] [MENTION=174597]gfxcruncher[/MENTION] [MENTION=102822]JONBOY345[/MENTION] I recieved all the parts but can't figure out how to wire it. Any chance you guys can provide me with ay insight?

Thank you guys!



[JONBOY345]

[MENTION=395749]evan1242[/MENTION] [MENTION=174597]gfxcruncher[/MENTION] [MENTION=102822]JONBOY345[/MENTION] I recieved all the parts but can't figure out how to wire it. Any chance you guys can provide me with ay insight?

Thank you guys!

See the wiring diagram here:

ADS-RR(SR)-TOY01-DS-IG-EN_20191114.pdf - Google Drive

Open in your pdf application of choice, open bookmarks, and find your model.



[rooneyy]

See the wiring diagram here:

ADS-RR(SR)-TOY01-DS-IG-EN_20191114.pdf - Google Drive

Open in your pdf application of choice, open bookmarks, and find your model.

I definitely have that diagram but to be it's a tad confusing even though I'm pretty sure that's as straight forward as it can be.



[rooneyy]

This is where I am running into an issue. I have all the connectors from the car's harness to the T01 harness accept for one connection. Any thoughts? Thank you!



[gfxcruncher]

This is where I am running into an issue. I have all the connectors from the car's harness to the T01 harness accept for one connection. Any thoughts? Thank you!

Have you tried firing it up without that connector connected?

It's been a while since I installed mine, but IIRC I had an extra connector (or two) floating around lol. I assumed it was a harness connector for steering wheel controls, the JBL sub or whatever (I have an SR5 without those options)



[rooneyy]

Have you tried firing it up without that connector connected?

It's been a while since I installed mine, but IIRC I had an extra connector (or two) floating around lol. I assumed it was a harness connector for steering wheel controls, the JBL sub or whatever (I have an SR5 without those options)

I have and I felt like I waited an appropriate amount of time for the HU to boot up but then again I might have been to anxious. Perhaps I'll connect it again and see what happens if I wait a minute or so longer.

I have double checked my crimping and connections to the T01 harness and everything is solid.

I might also note that I bought this from a friend that had it in his 5th gen, is there some flashing I need to do to the Pioneer HU to accommodate it to my 4th gen?

Thank you for your help!



[gfxcruncher]

I have and I felt like I waited an appropriate amount of time for the HU to boot up but then again I might have been to anxious. Perhaps I'll connect it again and see what happens if I wait a minute or so longer.

I have double checked my crimping and connections to the T01 harness and everything is solid.

I might also note that I bought this from a friend that had it in his 5th gen, is there some flashing I need to do to the Pioneer HU to accommodate it to my 4th gen?

Thank you for your help!

Sounds like something is up, shouldn't have to wait that long for it to boot up.

Take a look here for a HU firmware update:
https://www.pioneerelectronics.com/PUSA/Support/Downloads

Check for an update on the Maestro unit too.

FWIW, even though I bought the stuff new, there were updates for both the HU and the Maestro...

Good luck!



[rooneyy]

I appreciate it, I'll see if I can give it a try tonight! Also I think I bought the wrong kit to fill in the empty slots on the sides.



[JONBOY345]

Dumb question, maybe, but have you confirmed it has good power and ground?



[rooneyy]

Dumb question, maybe, but have you confirmed it has good power and ground?

No question is a dumb question! Where would the ground be? I'd like to check.



[JONBOY345]

No question is a dumb question! Where would the ground be? I'd like to check.

It'd be the black wire coming out of the back of the H/U. It can either be run back to the chassis ground via the wiring harness or you can find a grounding location near the H/U behind the dash.
