Instrument Cluster PCB - Pic? 2006 SR5

[ghs215]

Does anyone have a pic of the circuit board of the Instrument Cluster where the LEDs are visible for a 2006 SR5 4x4? I want to do the LED swap and would like to see what I got to replace before I open it up.

Thx!

PS...Doing searches and looking through the 80+ pages of the LED swap post...still haven't found one of the 2006 SR5. Did see a post where someone mentioned all 3 models are different. Lots of pics are not labeled...



[tbones1369]

I know it's on here somewhere. Do a search. I was gonna do it but was to nervous about if I messed up. Good luck. Hope your hand is steady. Haha



[SilverRiver]

Here you go. Good luck!

http://www.toyota-4runner.org/4th-g...ter-hvac-switches-window-*steering-wheel.html



[ghs215]

Here you go. Good luck!

http://www.toyota-4runner.org/4th-g...ter-hvac-switches-window-*steering-wheel.html

Still trying to find a 2006 SR5 pic...the on on that page is a 2008:usa2:



[Cisco Kid]

Someone can correct me if I am wrong, but the 2006 to 2009 SR5/Sport cluster should be the same across those 4 model years. The Limited cluster is definitely different and requires a lot more leds.



[Blu42]

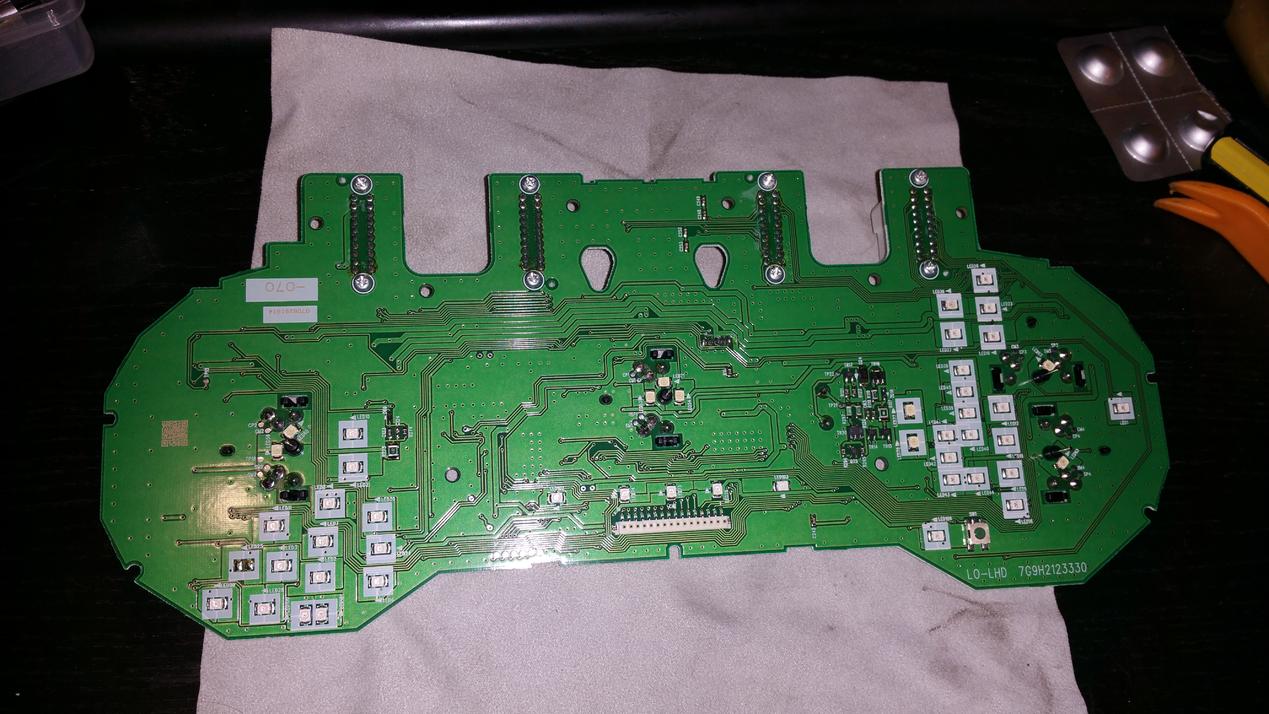

For what its worth this is a 2007 SR5 4WD cluster. I believe they are the same besides the limited cluster which has more leds in a different layout. I have RSCA leds but I do not have side airbags so there may be slight differnces.

darkie3495 labels each led here



[ghs215]

Thank you!:yo:
