Odd HVAC light question...

[rscecil007]

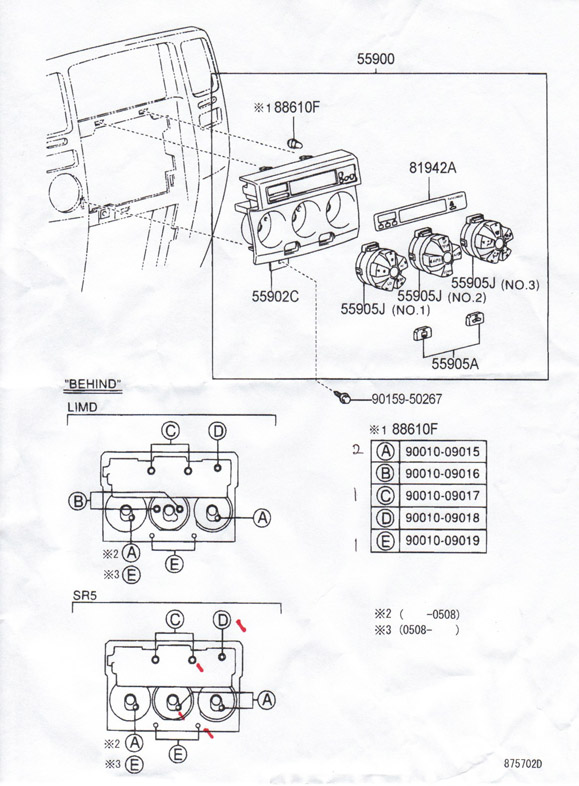

So I did plenty of research on this, and am not quite clear what's going on with my light cluster. My center knob lighting was totally dead, so I just replaced the two "B" bulbs from the diagram today, and that solved that issue.

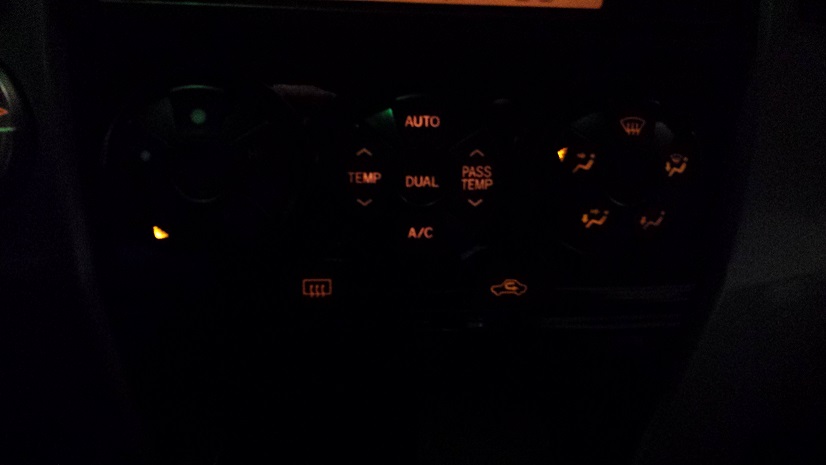

But you can see from my pic, the fan knob still has half the lights out. The outer indicator arrows light up just fine, but the inner fan speed indicator (hi/low/off/etc) don't.

Can anyone tell me what bulb from the diagram I need to replace in order to fix this?

Thanks!



[DisguisedRope]

So I did plenty of research on this, and am not quite clear what's going on with my light cluster. My center knob lighting was totally dead, so I just replaced the two "B" bulbs from the diagram today, and that solved that issue.

But you can see from my pic, the fan knob still has half the lights out. The outer indicator arrows light up just fine, but the inner fan speed indicator (hi/low/off/etc) don't.

Can anyone tell me what bulb from the diagram I need to replace in order to fix this?

Thanks!

You need to replace bulb "A". The bulbs are for the backlighting of the knobs. there are individual LEDs that light up the little arrows on the sides.



[MONTYMTB]

So I did plenty of research on this, and am not quite clear what's going on with my light cluster. My center knob lighting was totally dead, so I just replaced the two "B" bulbs from the diagram today, and that solved that issue.

But you can see from my pic, the fan knob still has half the lights out. The outer indicator arrows light up just fine, but the inner fan speed indicator (hi/low/off/etc) don't.

Can anyone tell me what bulb from the diagram I need to replace in order to fix this?

Thanks!

Center Console Lights



[rscecil007]

Thanks guys, appreciate it. Bulb A will get ordered here shortly.

I've looked at that link a time or two, but completely missed the verbiage about which lights do which functions.



[Frontline]

I have the same issue and am only week into ownership of the 4Runner so forgive me on this question. Is there a good source for these bulbs on line or do I have to order them from the dealership?



[rscecil007]

I ordered my first 2 bulbs I replaced from here:

Toyota Parts - TRD Performance Parts | ElmoreToyota.com

They were a bit over half the price my dealer was asking, and shipping was only $4 give or take. So I got them shipped to my door for about the same price or a bit cheaper than I could have gotten them from the closest dealer.
