Greetings all, I decided to finally do a build thread on the Runner. This forum has been very inspirational and is chock full of great and innovative ideas.

Purchased in late 2010 with around 150K on the odometer in San Diego from a family who had their third child on the way and needed more room. Completely bone stock except for an aftermarket stereo because the stock one crapped out. That would not last long!

General Vehicle Info:
2000 Toyota 4Runner Limited 4x4
3.4L V6
Auto Trans
E-locker
Desert Dune Metallic (by far my favorite paint color, really hides dirt well)

Here is the list of what I have done so far:

Front Suspension:

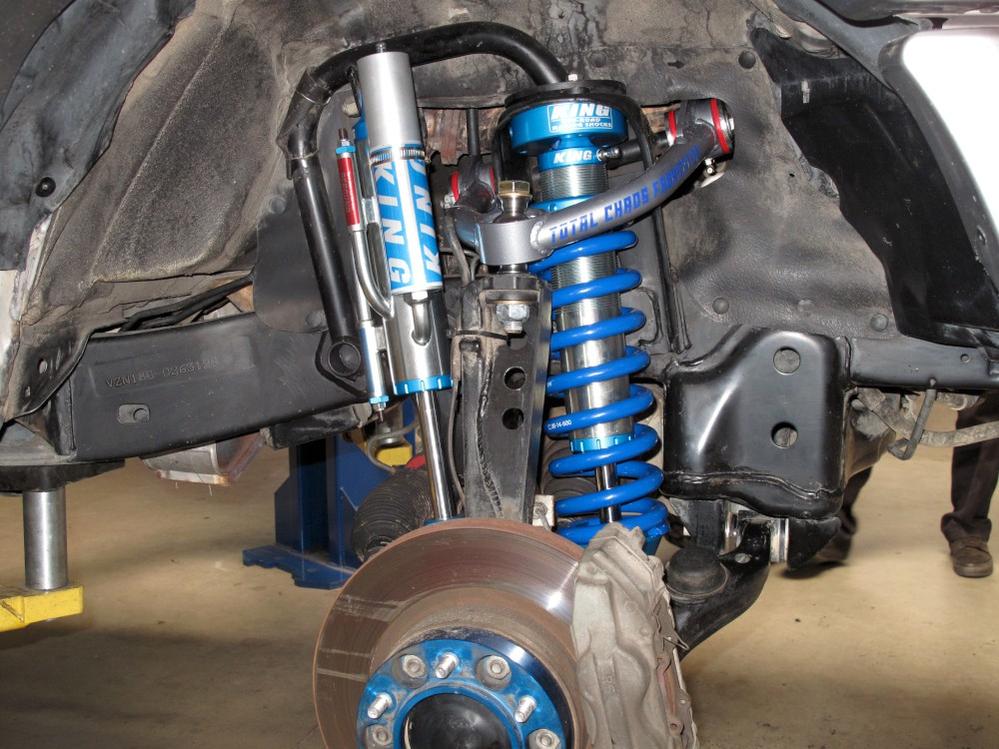

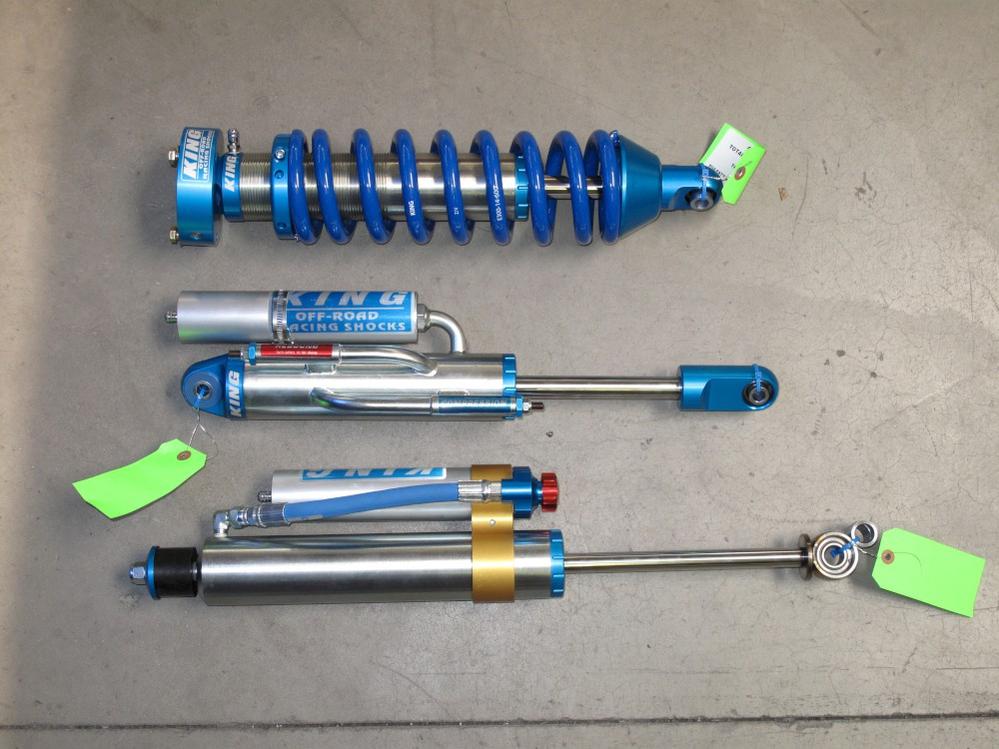

Total Chaos Uniball Upper Control Arms
King 2.5" Coilover Shocks
Total Chaos Secondary Shock Hoop
King 2.5" External Bypass Secondary Shocks
Total Chaos Weld-on Spindle Gussets
Superpro Polyurethane LCA Bushings
Total Chaos Poly Rack Bushings
Modified Tundra Inner CV Joints on 4runner-length, Tundra-splined 4340 axleshafts with hi-angle inner boots

Rear Suspension:
Total Chaos Adjustable Rear Link Kit
King 2.5" Remote Reservoir Shocks with Compression Adjuster Knobs
Toytec Superflex Rear Coils
King 2.0" Airbumps in Custom Mounts
Swaybar endlinks from the front, about an inch longer than the stock rear ones.

Rims/Tires/Brakes:

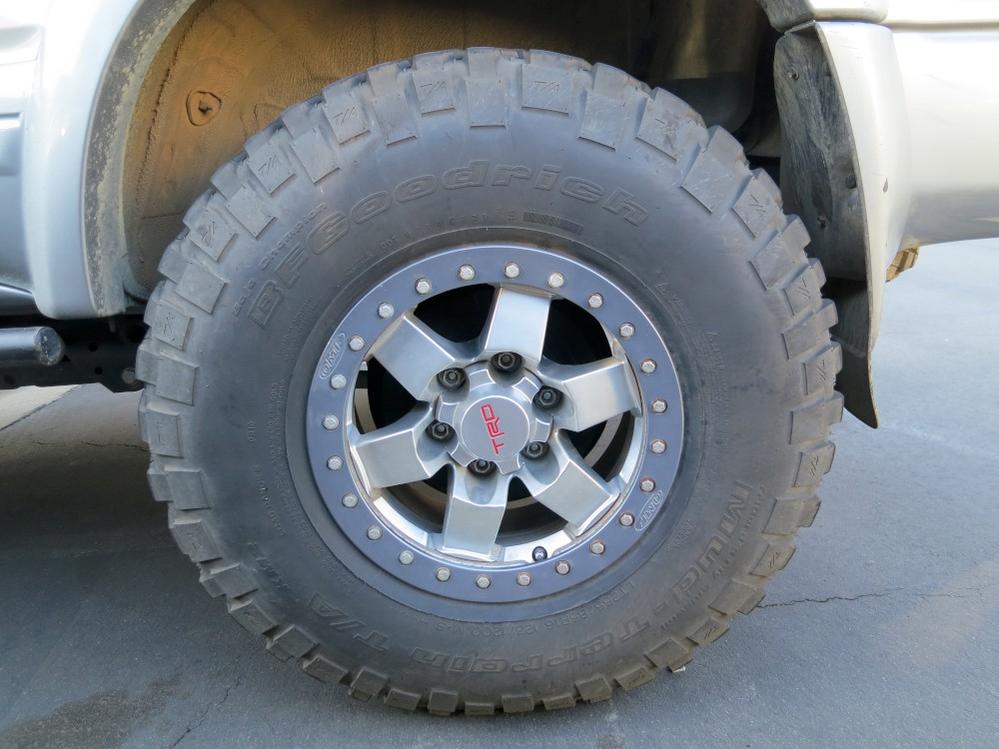

255/85R16 BFG KM2 Tires
TRD FJ Wheels w/ OMF Beadlocks
Spidertrax 1.25" Hubcentric Wheelspacers Front/Rear
Tundra 231mm Front Brake Upgrade

Exterior Mods:
Total Chaos Front Bumperette/Lightbar/Skidplate
Baja Designs Onyx Lightbar
Baja Designs Squadron Amber LED's
TJM Awning
TJM Bouilia RTT
Fabbed Roofrack Bars to mount Awning and RTT to
Stubbs Sliders

Interior Mods:
Pioneer Double DIN DVD Player
Icom V-8000
Garmin GPS
ARB Fridge

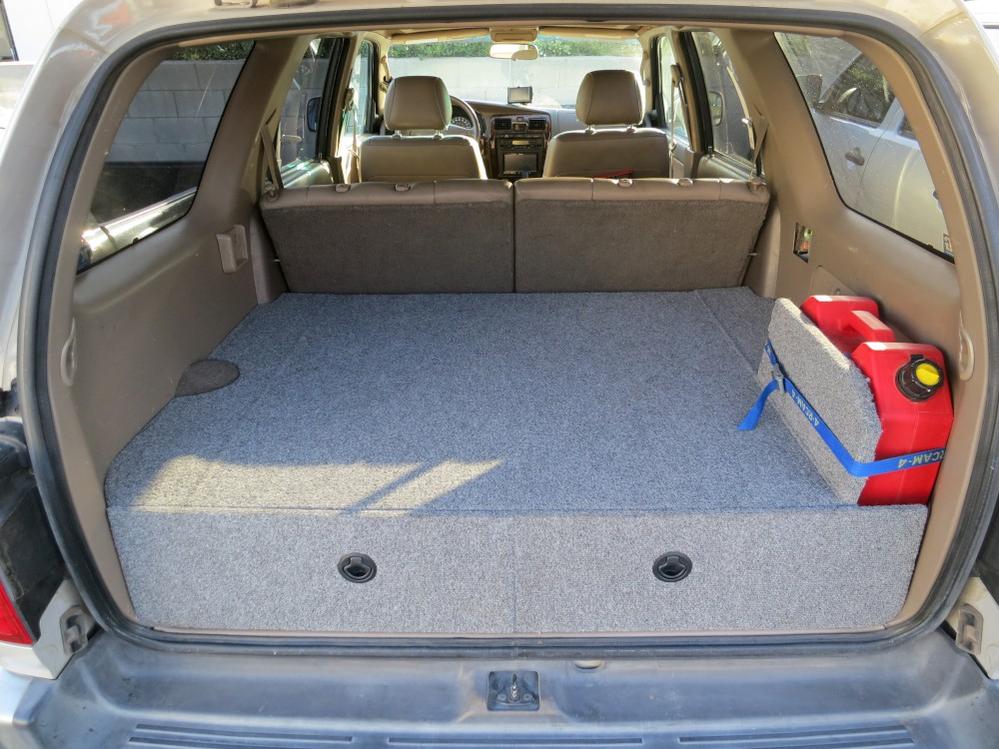

Rear 2-Drawer Storage System/Sleeping Platform
Weathertech Floor Liners
LED Interior Lighting
Diehard Platinum Battery

Future Mods:
Toytec Superflex Rear Coils (done, 7/14/14)
Dual Diehard Platinum Battery Setup
Pelfreybilt Rear Bumper/Spare Tire Swingout



[jgue467]

Wow! Very Nice, like the storage idea too. Well thought out and executed. You need no luck! :banana:



[downpour11]

Sleeper suspension! Very cool. Any pics of how you mounted your rear air bumps?



[busmup808]

All your missing is armor! Love the suspension setup! Got some dollas under each corner.



[Patio Burrito]

Downpour11,

You can kind of see it in this pic, they really helped out when I am loaded down, plus having the Compression Adjuster on the Kings lets me compensate for additional load.

http://www.toyota-4runner.org/attachment.php?attachmentid=120033&stc=1&d=1400688751



[shootmymime]

WOW! You are the king of kings! I've just got coil overs up front.. Are you running he Tacoma replacements or the tundras?



[Patio Burrito]

Shootmymime,

They are the Tacoma/4Runner extended travel front coilovers.



[PhdNPrerunners]

Wow you have an amazing suspension setup on your 4runner. That is the exact setup I want to have on mine in future when I can afford it lol.



[004wd]

Beautiful truck! Where I can I get that bumper?? Things clean!



[BasinRunner]

Wow man good job. Very sneaky with 2k+ in king shocks under it hahaha. What are the specs in the rear kings?



[Brian757]

Subscribed. I can already tell this will be a T4ROTM soon enough...



[4eigner]

Not sure how much wheeling & flexing you do but I've read of some who are lifted having issues with the rear sway bar contacting the elocker during flex even with the front end links installed. See any evidence pointing either way with your setup?



[Dezert4Runner]

I don't think I've ever seen someone run bypasses with mid travel. That thing is set up nicely. I'd also like to know more about the mini bumper and see some more pics of it along with mounting points. I take it that the skid plate is tied into the front crossmember? What are your travel numbers front & back? Do you run limit straps?



[Patio Burrito]

Wow man good job. Very sneaky with 2k+ in king shocks under it hahaha. What are the specs in the rear kings?

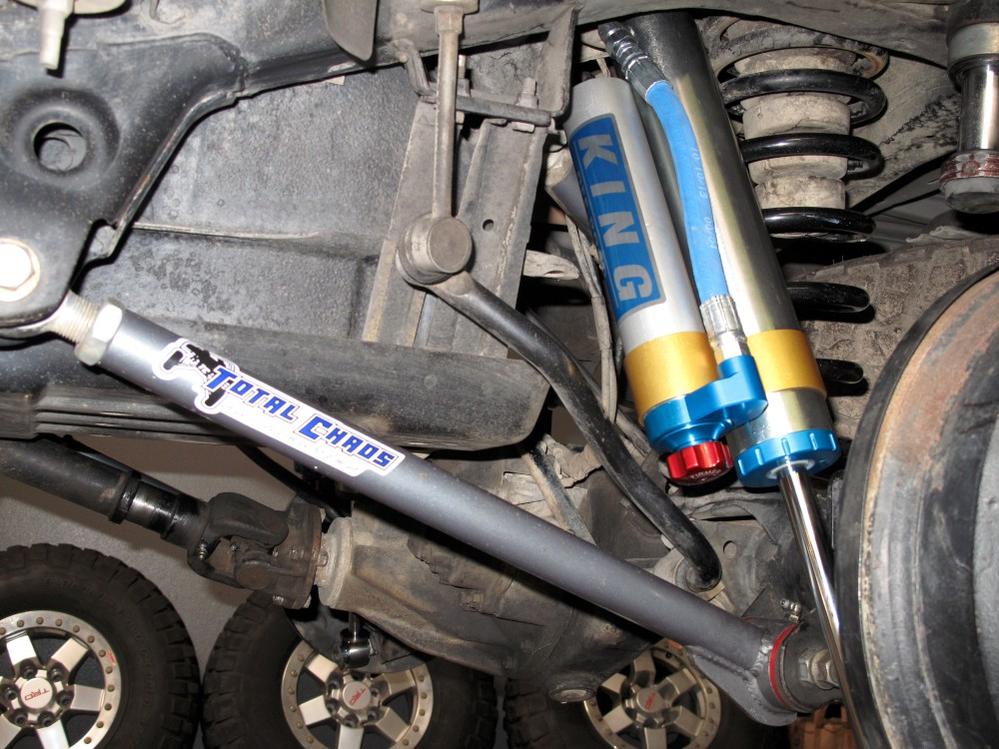

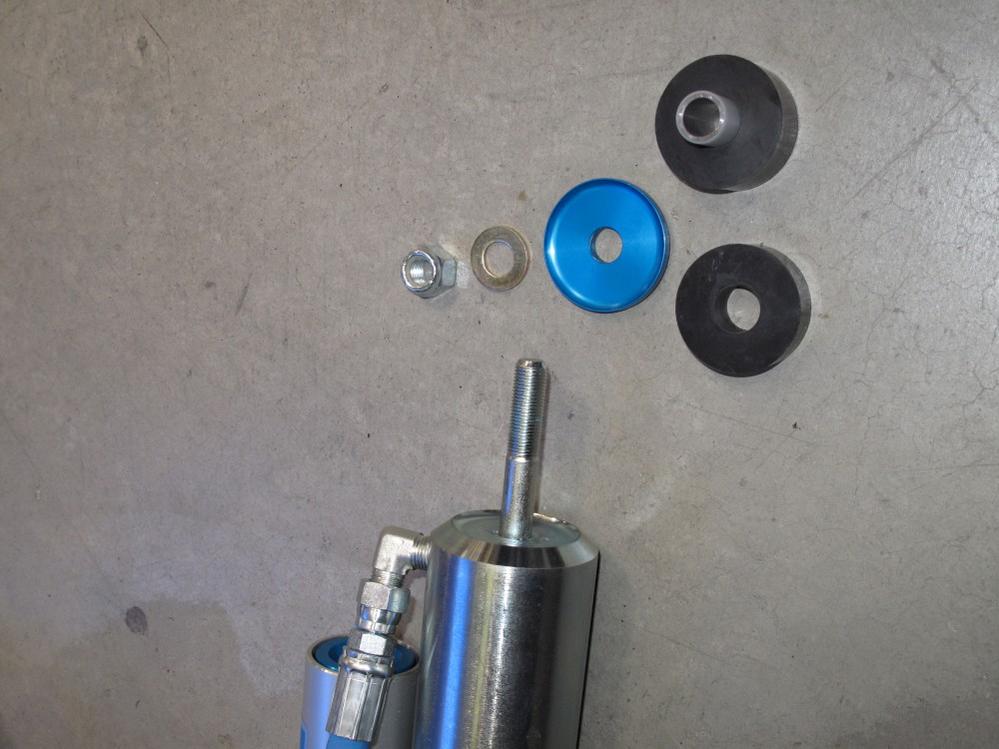

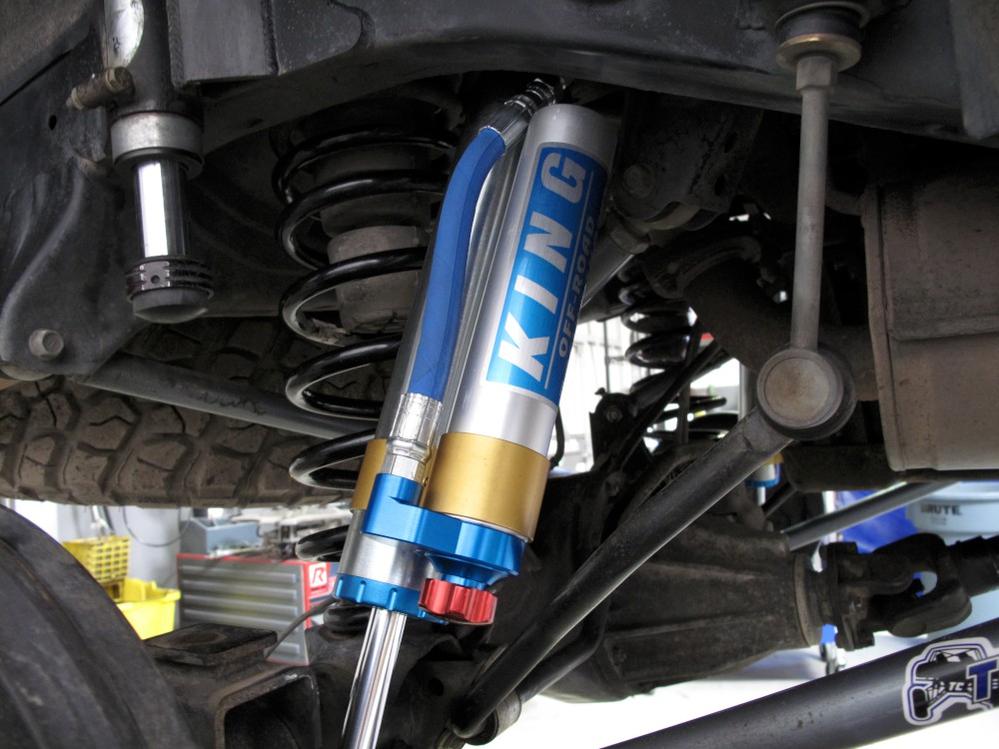

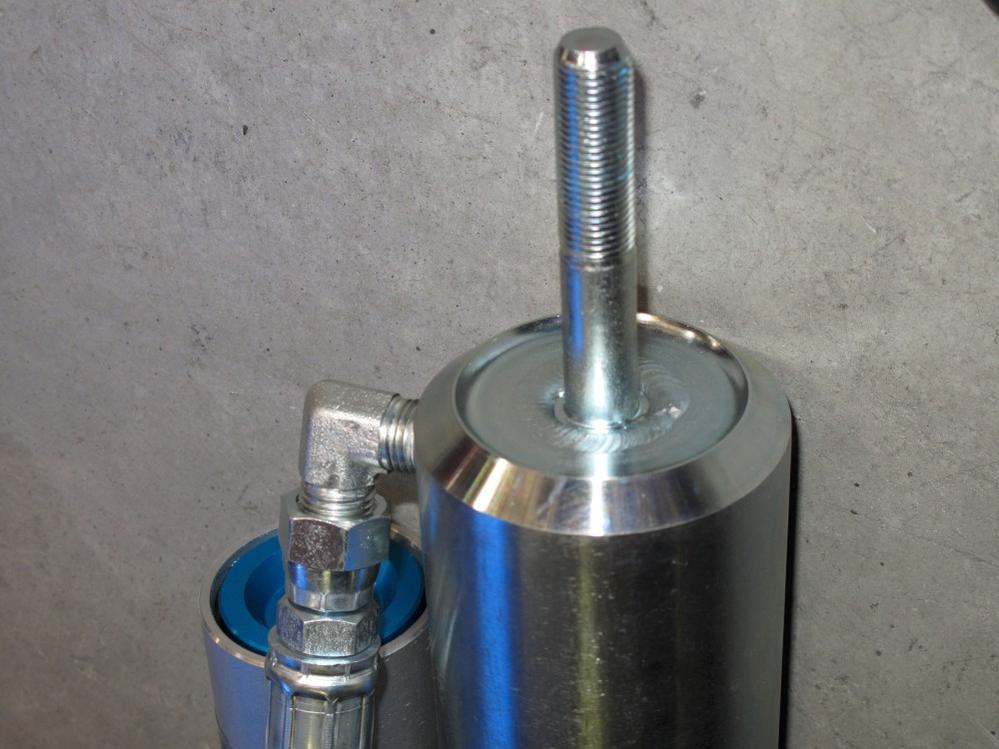

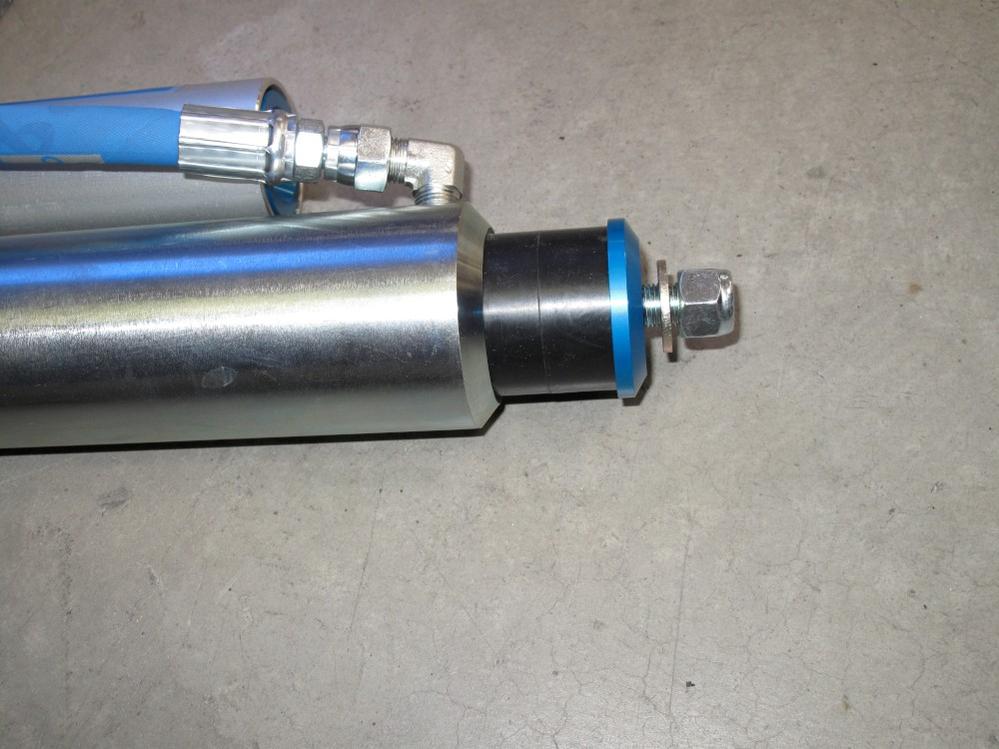

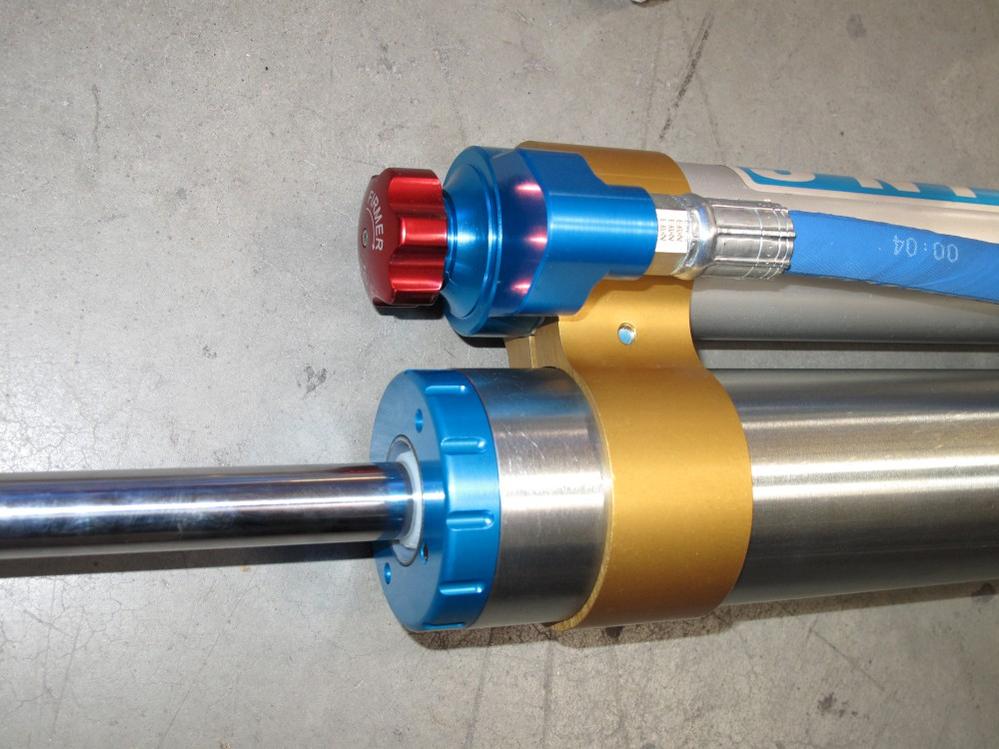

Here are some close up pics of the rear Kings, they will soon have a part# and be available from King. Talk to Brian Groves there, super knowledgeable and easy to deal with plus they are willing to do custom stuff that most other shock companies don't want to deal with. One of the (many) cool things about them was the attention to detail that went into the upper mounting. Most companies just have a stud with a couple of bushings, a washer, and a nut. These have all of that, plus a plastic coated innersleeve that fits nicely into the mounting hole on the chassis and a machined billet aluminum dished-plate that goes between the washer and the bushing.



[DizzyDoyle]

Amazing, simply amazing! I can't wait to see where this one goes. Keep up the awesome work.



[Patio Burrito]

Not sure how much wheeling & flexing you do but I've read of some who are lifted having issues with the rear sway bar contacting the elocker during flex even with the front end links installed. See any evidence pointing either way with your setup?

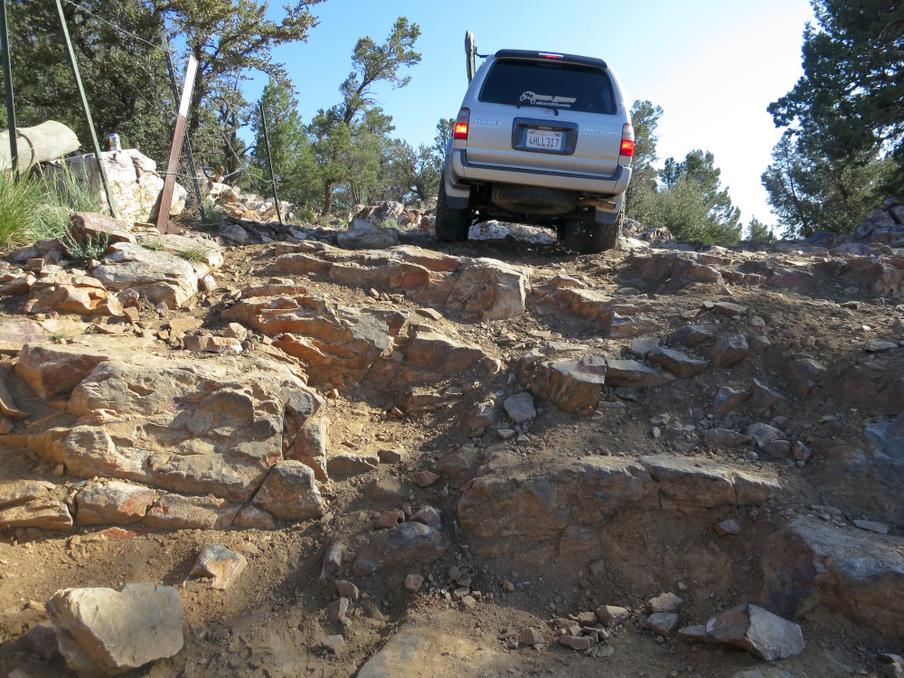

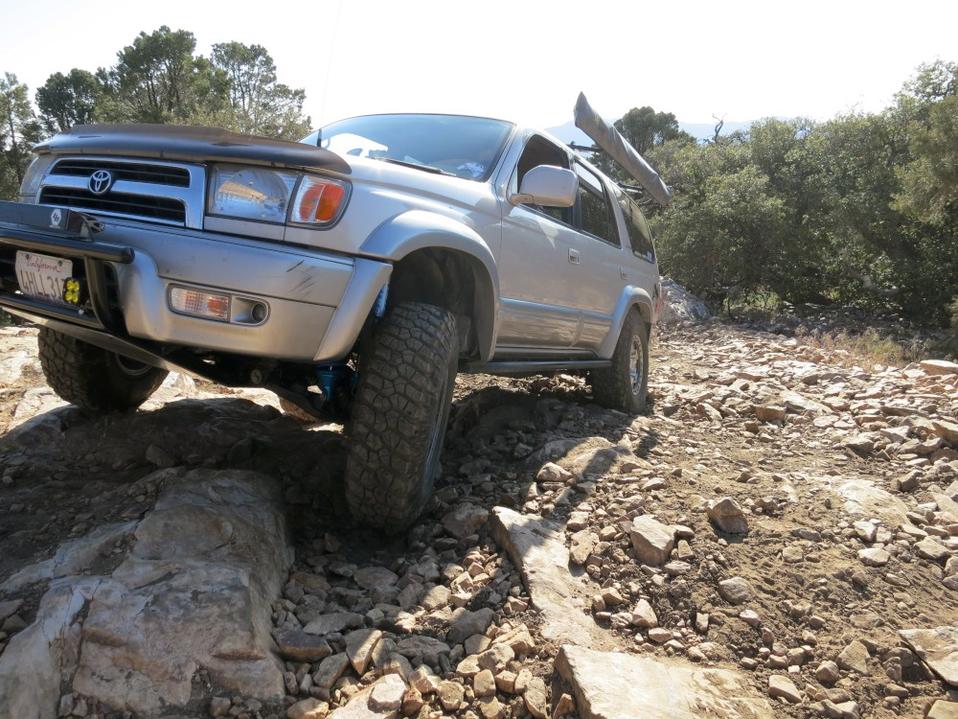

Ran Gold Mtn Trail up in Big Bear this weekend and kept an eye out for that issue. It never even came close (swaybar to E-locker servo) even when flexed out.
Had to go early on Sunday AM, every other time there were 30+ Jeeps tamponing the trails.



[Patio Burrito]

I don't think I've ever seen someone run bypasses with mid travel. That thing is set up nicely. I'd also like to know more about the mini bumper and see some more pics of it along with mounting points. I take it that the skid plate is tied into the front crossmember? What are your travel numbers front & back? Do you run limit straps?

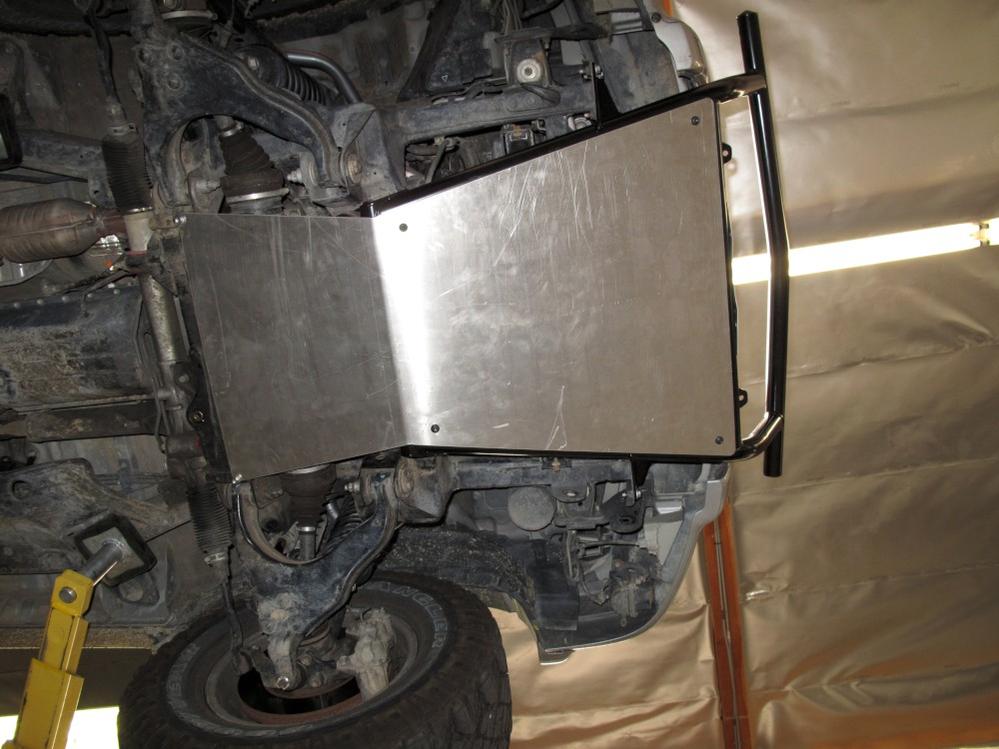

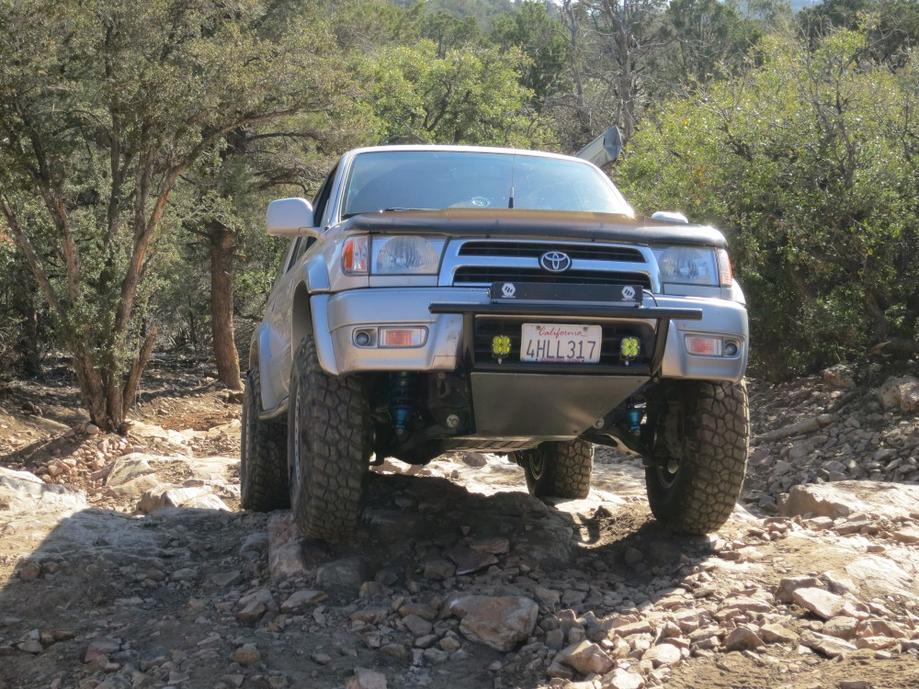

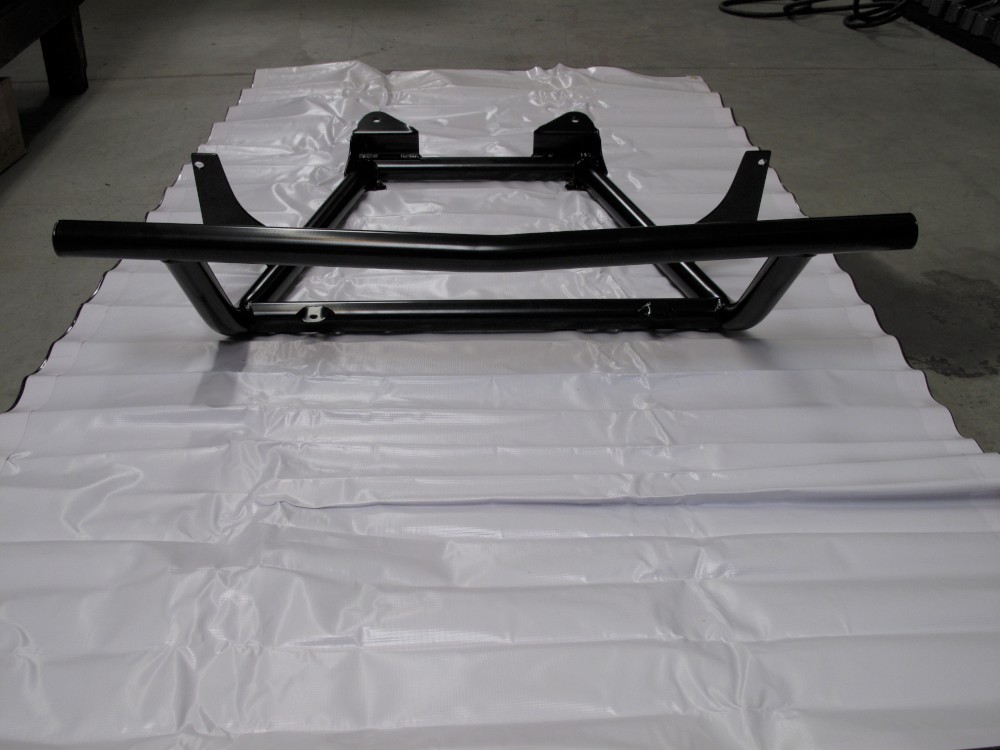

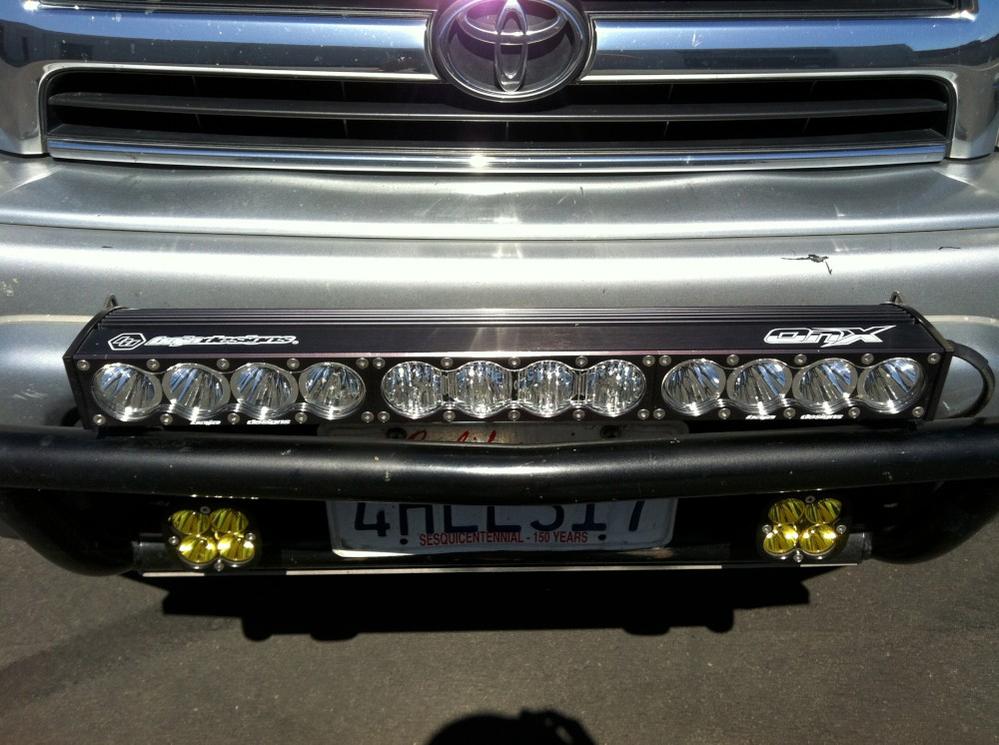

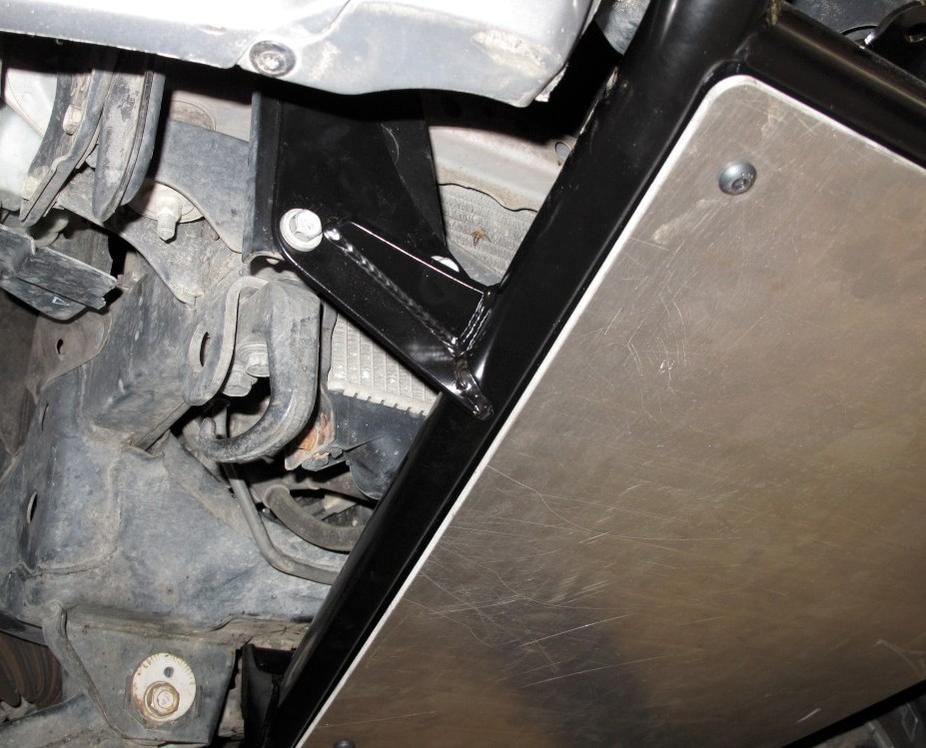

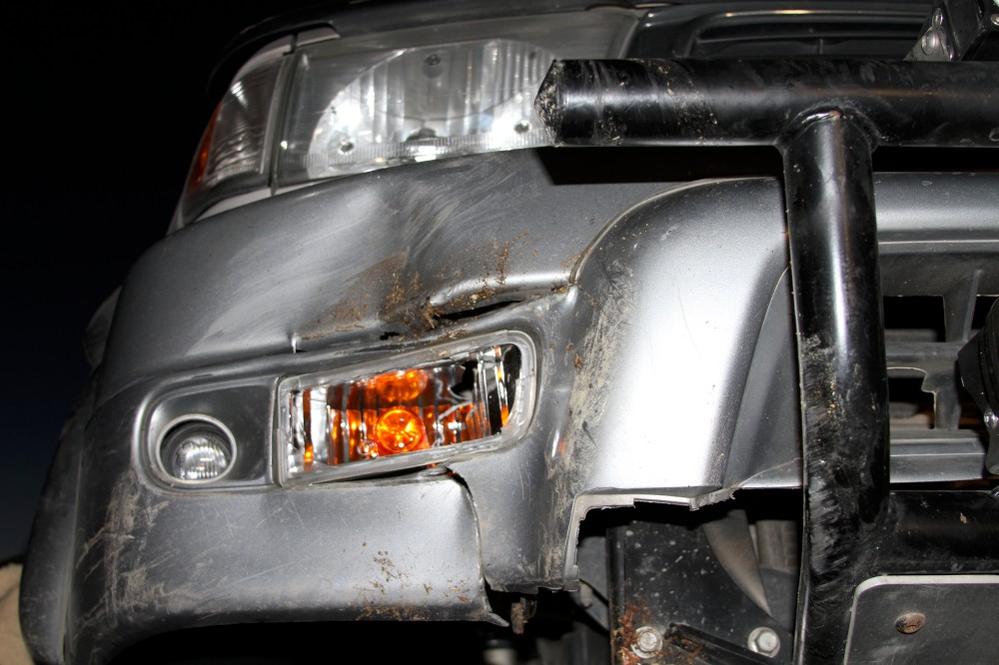

Front bumperette/skidplate is mostly 1.75" 4130 and has saved my bacon during an unfriendly encounter with a big Yucca Tree. It has a 3/16" AL skid that goes all the way to the back of the lower arm mount. Mounted to the bar are two Baja Designs Squadrons with amber lenses for cutting through the dust and a Baja Designs Onyx 20" LED bar. I will never drive faster than these things can throw light!



[PhdNPrerunners]

Wow that mini skid plate bumper is awesome. TC should produce more of them.



[JWaldz]

Good looking buildup you got going here. Look forward to future mods!



[Xtian]

Patio,

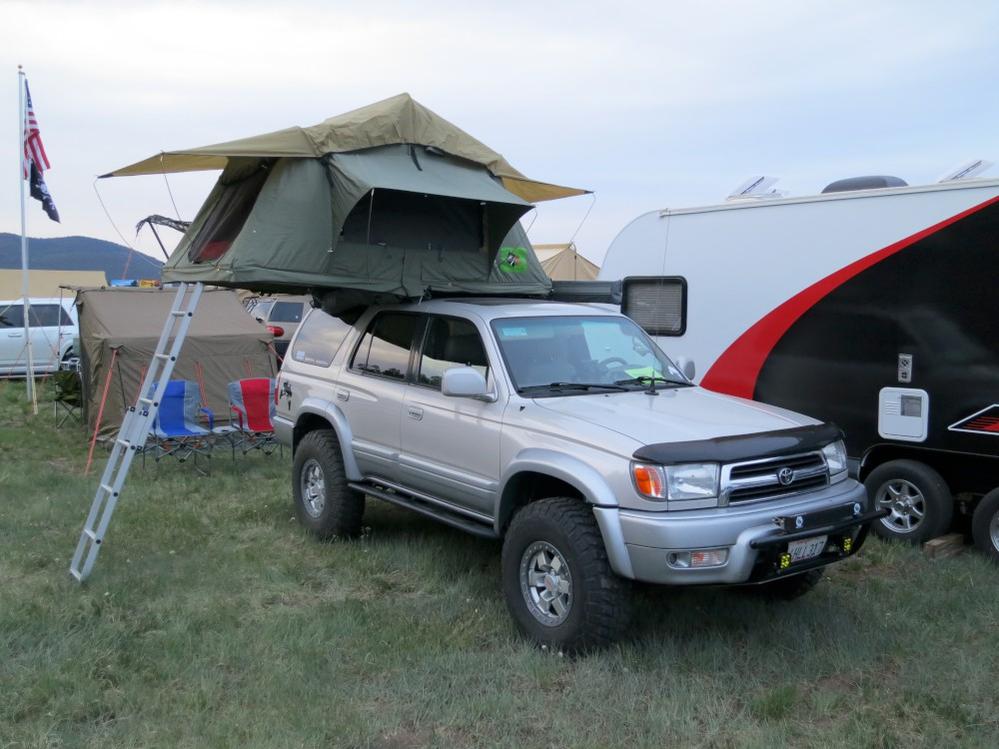

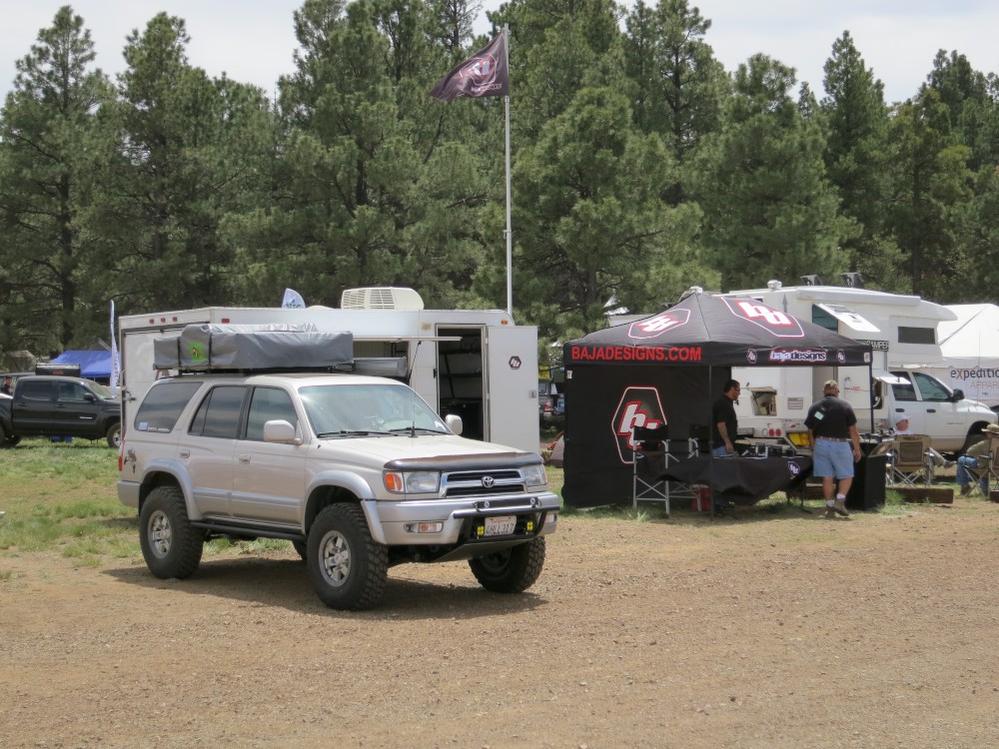

I saw your rig at overland expo, super nice!
