Urban assault's '99 4runner build
- Thread starter URBAN ASSAULT
- Start date
URBAN ASSAULT
New member
Thanks!
I used these:
Size Medium Powder-Coated Semi-Gloss Black Hi-Flowâ„¢ | Hood Louvers | RunCool | Hood Vents For Your Vehicle -Hood Louvers | RunCool | Hood Vents For Your Vehicle -
They seem kinda pricey now. I don't remember paying $179 :/ but I did this mod back in '05 or '06. I might of, and mentally blocked it out for my own sanity. But I love em. Finish is still perfect, no fade etc.
At the time I debated about these or 1 rectangular shaped vent mounted front and center ala fj's & hummer.
I bet I measured 50x and mocked them up with tape before making the cuts. I left the hood supports/frame in tact and drilled a few pin holes in the hood frame under the vents so water wouldn't collect. No issues. Never regretted this mod.
fightman80
New member
Nicely built rig man! I really like how you tied in the signal lights below the headlights!
I quit going to YT a long time ago too.... too many internet tough guys over there! lol!
I quit going to YT a long time ago too.... too many internet tough guys over there! lol!
ADH8796
New member
Thanks for the link. May be something I consider a little later down the line.
T4Rex.
New member
I really like those lights under ur headlights how did you do that, and what did you use???
URBAN ASSAULT
New member
Thanks! I reconfigured everything. The turn signals are now in my corner light location. Used a yellow superbright LED in place of the stock bulb. So the Hella lights below the headlight are wired from what used to be the corner lights. The first position on the light switch is just Hellas, next is headlights and hellas.
Agreed. I am really enjoying T4R.org.
Thanks! I used these:
My Hella Lights :: LEDayline DRL
I removed the little trim piece from under the headlight, dremel'd out the dimensions of the lens (but they are almost a perfect fit) and installed the lights from behind.
I used some little 'L' brackets from Home Depot and mounted to the underside of the headlight housing. Something like these:1-1/2 in. Zinc Plated Corner Braces (4-Pack)-15304 at The Home Depot
I think I used 1-1/4" brackets. Cant remember. I have an ol coffee can full of bits like that. They did the trick.
Ah man! I try to forget. I am regeared with 4:88's. It is not too bad. On highway, depending on driving style 15-17mpg consistently via scan gauge. I've seen 18 but I was drafting a truck and going the speedlimit. When these wear out, I will look at the duratracs again, but also the km2's.
Ah man! I try to forget. I am regeared with 4:88's. It is not too bad. On highway, depending on driving style 15-17mpg consistently via scan gauge. I've seen 18 but I was drafting a truck and going the speedlimit. When these wear out, I will look at the duratracs again, but also the km2's.[/QUOTE]
lol yeah these fit the bill for the type of driving my truck will see. i couldn't justify mtr's. i wouldn't use them for what they're meant for.
lol yeah these fit the bill for the type of driving my truck will see. i couldn't justify mtr's. i wouldn't use them for what they're meant for.
URBAN ASSAULT
New member
Cat Skids; Catalytic Converter skid plates
You do not have to read the forum too long until you read about a lost cat:
No. Not that lost cat. A lost or stolen catalytic converter. The Budbuilt skids offer a little coverage but the cats are still largely exposed.
California model with 2 converters.
I stopped by the metal supplier and went thru the drop bin until I found a nice piece of 3/16" sheet steel. I would have to make the skid in 2 pieces since my metal brake can only handle 20" at a time.

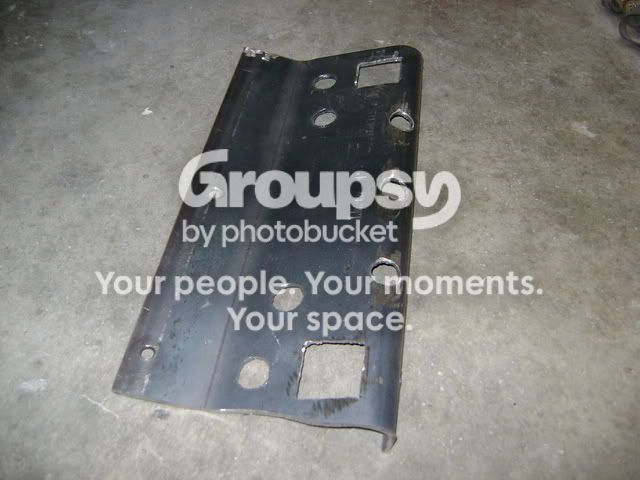

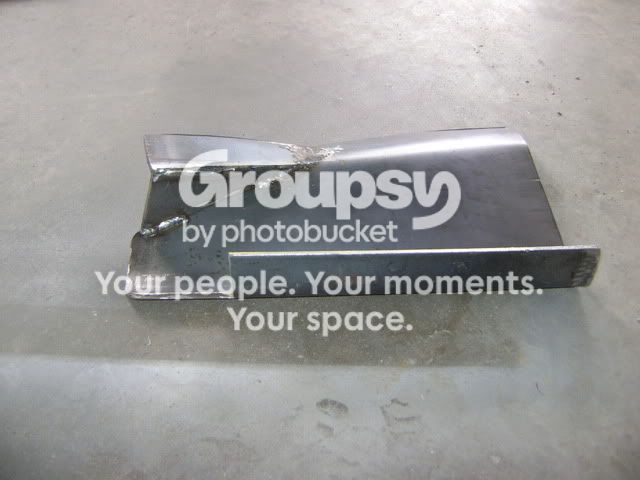

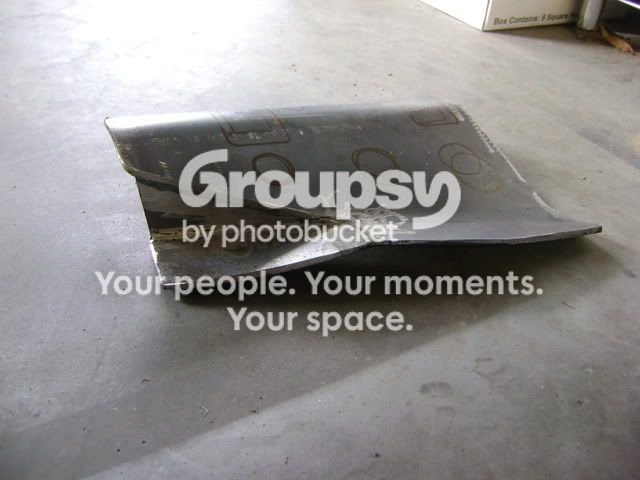

1st piece starting to take shape:
The outboard side will use pre-existing threaded holes on the underside of the frame rail. There are lots of M8 threaded holes under there. I can't remember if those were for the running boards or something else.
The inboard side mounts to the Budbuilt Skid. The Budbuilt has a 1.5" lip and I just mirrored that. I welded some nuts on the inside of the Budbuilt so that I can simply bolt them on thru the ports.

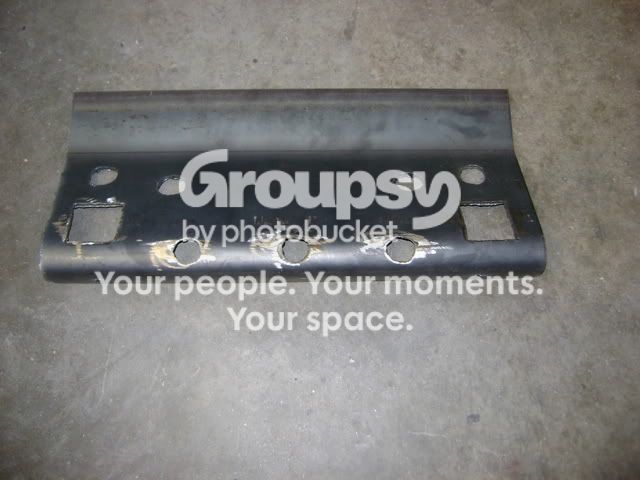

Lots of holes for drainage, and heat dissipation and 2 ports for bolt access.

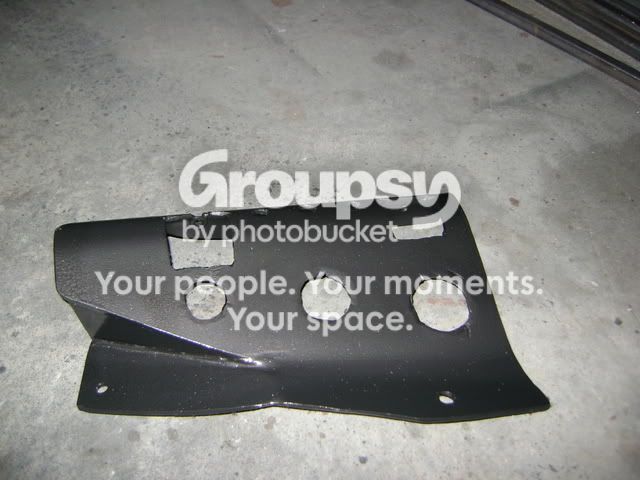

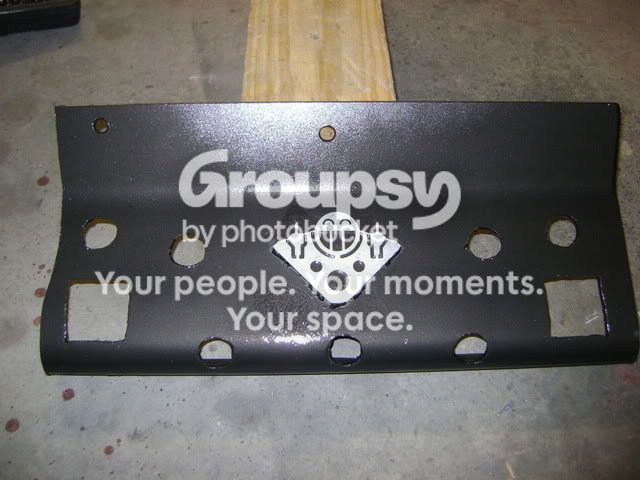

Painted up with Rustoleum black like the rest of the skids.
But the Crown Jewel and the Cherry on Top is:
:flipoff:

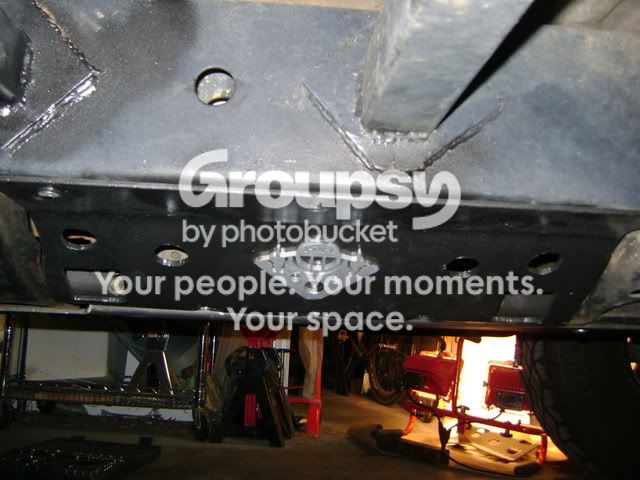

Just in case a thief were to size up my cats.

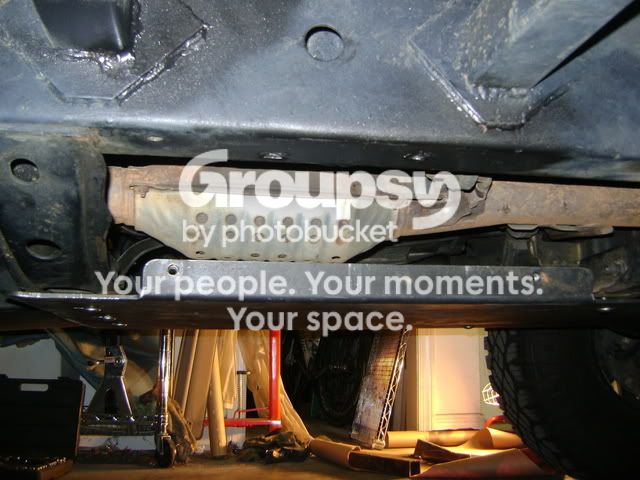

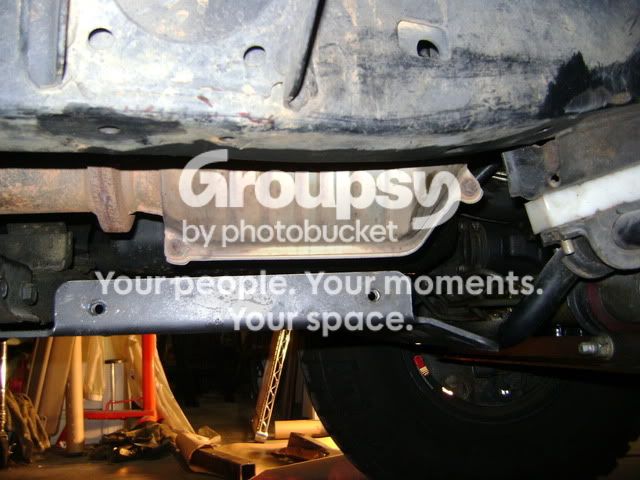

Bolted up:

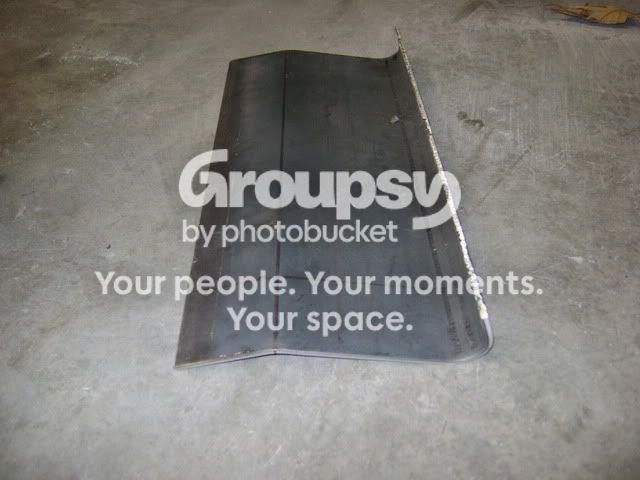

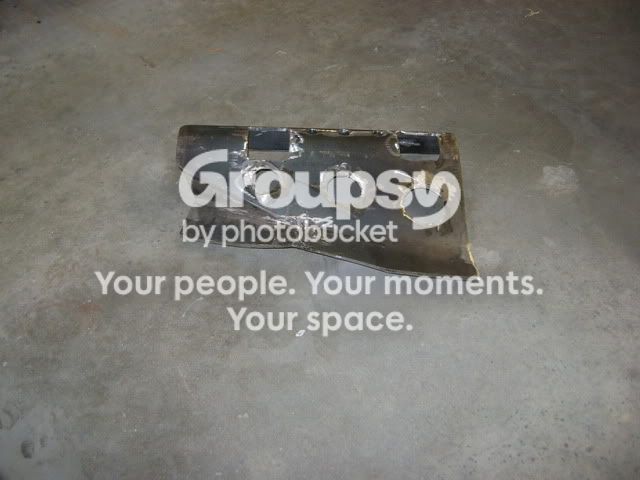

The 2nd piece was a PITA! The frame rails angle in and up so the skid had to conform. There are already threaded holes in the frame here also which made it nice.
Lots more holes for drainage, heat, and ports for bolts. In addition to the holes, there is still plenty of air space around the cats so heat shouldn't be an issue but I am going to keep an eye on it.
Painted up black. I tried to dimple die the holes but the 3/16" laughed at my harbor freight dies. Unsuccessful. Oh well.
Bolted up.

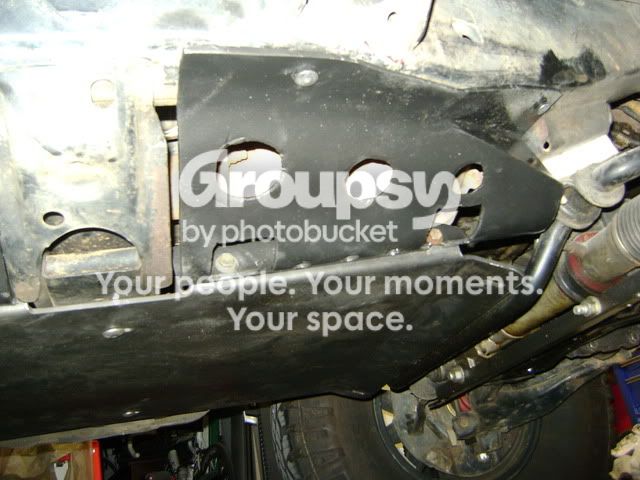

And the 2 together:
This ties into my full modualar skid idea, offers some more protection, and some theft deterrance. I'm fully aware that a really motivated thief could still get them by cutting further up or down. Though, likely he would move on to an easier target, or be forced to make a bit more noise. If nothing else, at least I got a chance to flip him off before he steals my cats.
Thanks for checkin' in.
You do not have to read the forum too long until you read about a lost cat:
No. Not that lost cat. A lost or stolen catalytic converter. The Budbuilt skids offer a little coverage but the cats are still largely exposed.
California model with 2 converters.
I stopped by the metal supplier and went thru the drop bin until I found a nice piece of 3/16" sheet steel. I would have to make the skid in 2 pieces since my metal brake can only handle 20" at a time.
1st piece starting to take shape:
The outboard side will use pre-existing threaded holes on the underside of the frame rail. There are lots of M8 threaded holes under there. I can't remember if those were for the running boards or something else.
The inboard side mounts to the Budbuilt Skid. The Budbuilt has a 1.5" lip and I just mirrored that. I welded some nuts on the inside of the Budbuilt so that I can simply bolt them on thru the ports.
Lots of holes for drainage, and heat dissipation and 2 ports for bolt access.
Painted up with Rustoleum black like the rest of the skids.
But the Crown Jewel and the Cherry on Top is:
:flipoff:
Just in case a thief were to size up my cats.
Bolted up:
The 2nd piece was a PITA! The frame rails angle in and up so the skid had to conform. There are already threaded holes in the frame here also which made it nice.
Lots more holes for drainage, heat, and ports for bolts. In addition to the holes, there is still plenty of air space around the cats so heat shouldn't be an issue but I am going to keep an eye on it.
Painted up black. I tried to dimple die the holes but the 3/16" laughed at my harbor freight dies. Unsuccessful. Oh well.
Bolted up.
And the 2 together:
This ties into my full modualar skid idea, offers some more protection, and some theft deterrance. I'm fully aware that a really motivated thief could still get them by cutting further up or down. Though, likely he would move on to an easier target, or be forced to make a bit more noise. If nothing else, at least I got a chance to flip him off before he steals my cats.
Thanks for checkin' in.
URBAN ASSAULT
New member
Thanks! They seemed to take forever though. I'm sure the pros (Lilskipsoffroad [MENTION=52371]Gerdo[/MENTION], Bud, or Savage) could've done a better job in a fraction of the time.
Thanks again!
URBAN ASSAULT
New member
LR UCA's
I finally got around to installing my Light Racing Upper Control Arms. This was a B**** of a project. I read all the posts from other installs so I was ready for a fight. My upper ball joints were also ready for a fight. About a year ago I noticed a tear in the boot of my upper ball joint. I'm not sure how long it had been there. Probably happened during the lift install or from too much droop on the trail. I could still see grease in there and there was no excess play so I put it off until now.

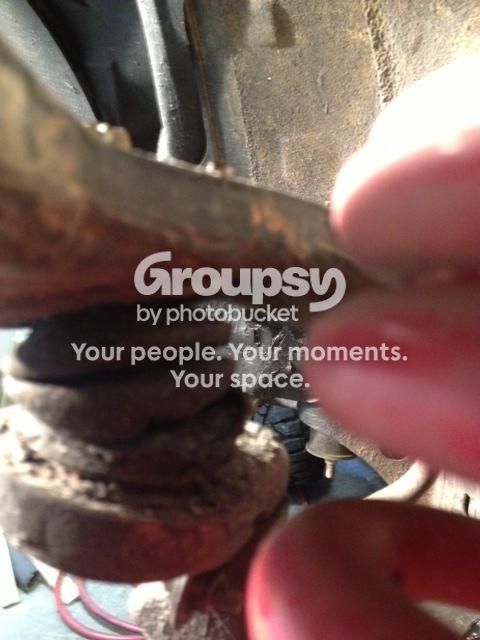

Torn UBJ boot:
There are lots of threads on the UBJ removal so I won't repeat.
This write up was helpful:R&R Upper and Lower Ball Joints - TTORA Forum
The early steps are easy and go quickly. It's like when your playing pool and you make a couple shots in a row and you start struttin' around like you're gonna shark the whole bar, then you miss everything else. All goes well until you must press the UBJ from the steering spindle.
There is an SPC video on youtube showing the process on a Tacoma, though the UBJ's are different than our 3rd Gens. It shows a guy leisurely turning wrenches and removing bolts. This was not my experience. This was the aftermath after getting 1 UBJ seperated from the steering spindle

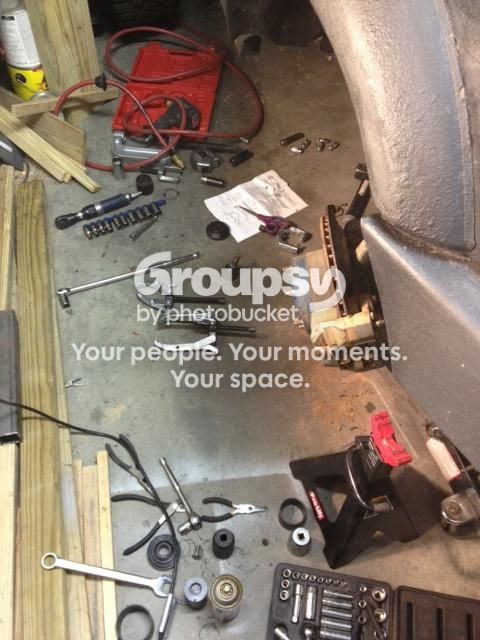

The combination that finally worked was the 3 Jaw puller with a homemade spacer of 1.75 tubing, and the top and bottom receiver pieces from the c-clamp ball joint press. Add a breaker bar, some yelling, a few cuss words and "Pow!" the ubj breaks free and slowly presses out of the spindle.

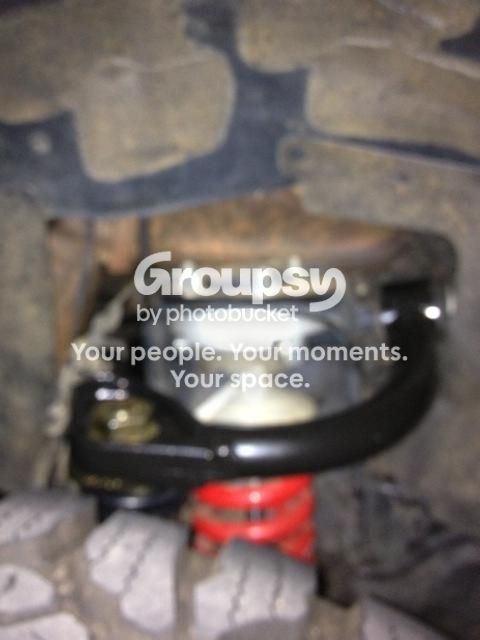

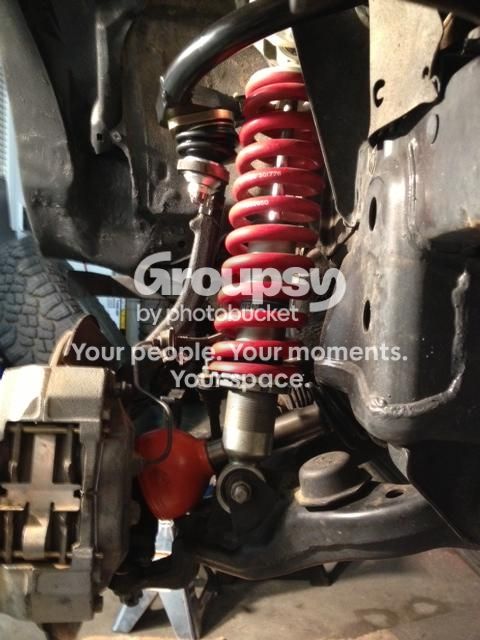

Fortunately the install of the new UCA's and ball joint is much much easier. Here is the finished product:

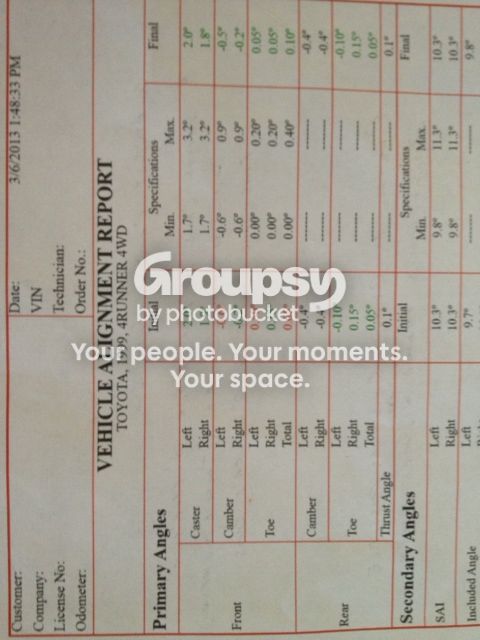

I got an alignment yesterday and I am happy with the results. The amount of information out there regarding the adjustment of Caster and Camber is dizzying. The front end feels much better. I assume much of this is likely due to the new bushings in the UCA and the return of caster. I noticed it immediately. I need to find a better alignment place though. Someone who has experience with non-factory, aftermarket parts, and specs. Basically, most places are trying to get you to factory specs. They put your truck on the rack, type in 99 4Runner and start trying. There is very little factory spec left on my truck. The guy basically wouldn't touch the UCA's and dialed everything in with the LCA's.
Sorry. I couldn't get my crappy cell phone pic to rotate.
I know there is tons of adjustability yet to be had and likely another degree of positive caster. I'm gonna roll with this for now, and it feels really good, but will likely knock it out of alignment with a few wheelin trips and then find a better shop. I spoke to SPC after the fact, and they basically said adjusting more caster at the UCA is fine, but will push the wheel back in the wheel well. I have no room for that. So, they said, set UCA caster to +2 degrees (where it is). Max out the caster at the LCA's and then dial in camber using the adjustment nut on top of the UCA's. This will move the wheel slightly forward rather than back. I literally couldn't sleep last night processing my crash course in alignment 101. Basically, I need to find a shop that will allow me to customize my alignment. The 'big-box' shops likely will not, as I found out.
Really happy with the UCA's! I'm adding limit straps tonight (already installed lower shock bolt, just need to weld in bracket and bolt in strap/clevis). Will use strap install from [MENTION=44220]BigFishAllDay[/MENTION] and [MENTION=67615]Dirtco[/MENTION] as a guide. Going offroad 2x in the next week and will update.
Thanks for checkin' in!
Oh, and yes, those are the 'super pimp' RCV CVJ axles. I installed those while I had everything torn out. That will be a separate write-up if I decide to keep them. So far the entire process has been a disaster. I'm not one to start ranting or throwing around negative reviews, but everything has been a challenge to say the least. I may be the first person to have ordered them (and at that price point I understand why). They have been very accomodating and said satisfaction guranteed, but we are not there yet. Will test them this week. Thanks!
I finally got around to installing my Light Racing Upper Control Arms. This was a B**** of a project. I read all the posts from other installs so I was ready for a fight. My upper ball joints were also ready for a fight. About a year ago I noticed a tear in the boot of my upper ball joint. I'm not sure how long it had been there. Probably happened during the lift install or from too much droop on the trail. I could still see grease in there and there was no excess play so I put it off until now.
Torn UBJ boot:
There are lots of threads on the UBJ removal so I won't repeat.
This write up was helpful:R&R Upper and Lower Ball Joints - TTORA Forum
The early steps are easy and go quickly. It's like when your playing pool and you make a couple shots in a row and you start struttin' around like you're gonna shark the whole bar, then you miss everything else. All goes well until you must press the UBJ from the steering spindle.
There is an SPC video on youtube showing the process on a Tacoma, though the UBJ's are different than our 3rd Gens. It shows a guy leisurely turning wrenches and removing bolts. This was not my experience. This was the aftermath after getting 1 UBJ seperated from the steering spindle
The combination that finally worked was the 3 Jaw puller with a homemade spacer of 1.75 tubing, and the top and bottom receiver pieces from the c-clamp ball joint press. Add a breaker bar, some yelling, a few cuss words and "Pow!" the ubj breaks free and slowly presses out of the spindle.
Fortunately the install of the new UCA's and ball joint is much much easier. Here is the finished product:
I got an alignment yesterday and I am happy with the results. The amount of information out there regarding the adjustment of Caster and Camber is dizzying. The front end feels much better. I assume much of this is likely due to the new bushings in the UCA and the return of caster. I noticed it immediately. I need to find a better alignment place though. Someone who has experience with non-factory, aftermarket parts, and specs. Basically, most places are trying to get you to factory specs. They put your truck on the rack, type in 99 4Runner and start trying. There is very little factory spec left on my truck. The guy basically wouldn't touch the UCA's and dialed everything in with the LCA's.
Sorry. I couldn't get my crappy cell phone pic to rotate.
I know there is tons of adjustability yet to be had and likely another degree of positive caster. I'm gonna roll with this for now, and it feels really good, but will likely knock it out of alignment with a few wheelin trips and then find a better shop. I spoke to SPC after the fact, and they basically said adjusting more caster at the UCA is fine, but will push the wheel back in the wheel well. I have no room for that. So, they said, set UCA caster to +2 degrees (where it is). Max out the caster at the LCA's and then dial in camber using the adjustment nut on top of the UCA's. This will move the wheel slightly forward rather than back. I literally couldn't sleep last night processing my crash course in alignment 101. Basically, I need to find a shop that will allow me to customize my alignment. The 'big-box' shops likely will not, as I found out.
Really happy with the UCA's! I'm adding limit straps tonight (already installed lower shock bolt, just need to weld in bracket and bolt in strap/clevis). Will use strap install from [MENTION=44220]BigFishAllDay[/MENTION] and [MENTION=67615]Dirtco[/MENTION] as a guide. Going offroad 2x in the next week and will update.
Thanks for checkin' in!
Oh, and yes, those are the 'super pimp' RCV CVJ axles. I installed those while I had everything torn out. That will be a separate write-up if I decide to keep them. So far the entire process has been a disaster. I'm not one to start ranting or throwing around negative reviews, but everything has been a challenge to say the least. I may be the first person to have ordered them (and at that price point I understand why). They have been very accomodating and said satisfaction guranteed, but we are not there yet. Will test them this week. Thanks!
Stockwell45
New member
This. Thread. Is. Awesome.
I wish I could see the look on some lowlife's face when they try to steal your cat, and see the 2 middle fingers looking down at them...
I wish I could see the look on some lowlife's face when they try to steal your cat, and see the 2 middle fingers looking down at them...
Have you driven it on the highway with those caster numbers yet? That is where mine is and it is a bit scary. The steering is twitchy and unpredictable I need to go back and get it set a little higher but have two wheeing trips planned and don’t want to get it fixed before that because it will just get messed up again.
sn0wrunner
New member
Looking good!
Just curious, where did you purchase the LR UCA's from? And when? Looks like they have the old style bushings. They are notorious for going out after 8-10K miles. SPC came out with a new style bushing for those and have been selling them for over a year now. Just a heads up.
Just curious, where did you purchase the LR UCA's from? And when? Looks like they have the old style bushings. They are notorious for going out after 8-10K miles. SPC came out with a new style bushing for those and have been selling them for over a year now. Just a heads up.
madbomber08
New member
It's awesome to see people that are the original owners of the 4runners on here. It even more awesome to see people like you, who, 290k later have it not only running like a top, but looking like this as well. A true testament to how much you love the the vehicle!
Are the engine and transmission original as well?
Are the engine and transmission original as well?
BigFishAllDay
New member
"LOSS CAT".... :rofl:
Thanks for posting the pictures of the rear tire carrier work. It helped me with some ideas for mine. Those cat protection plates are pretty nice.. they do look like a total PITA to make though. I'm thinking of welding up a test pipe for my rig and running a URD O2 simulator at the back. Then I can just drop the stock pipe & cats out, run with no cats until it's time for emissions, then put the stock pipe back in for a day or two to get tested.
I appreciate the mention on the limit straps. I think they're a really good idea, especially when you start adding a bunch of extra droop to the front end. I'm dreading the UBJ job. If the first one gives me hell, the second one is going to a shop w/the whole spindle to get pressed out.
So true.
PS. Those alignment specs are not too bad. I read what gs300tt posted, and I would have to disagree. I'm running with less caster than that on the front of my '01, and and it doesn't feel bad at all.
Thanks for posting the pictures of the rear tire carrier work. It helped me with some ideas for mine. Those cat protection plates are pretty nice.. they do look like a total PITA to make though. I'm thinking of welding up a test pipe for my rig and running a URD O2 simulator at the back. Then I can just drop the stock pipe & cats out, run with no cats until it's time for emissions, then put the stock pipe back in for a day or two to get tested.
I appreciate the mention on the limit straps. I think they're a really good idea, especially when you start adding a bunch of extra droop to the front end. I'm dreading the UBJ job. If the first one gives me hell, the second one is going to a shop w/the whole spindle to get pressed out.
So true.
PS. Those alignment specs are not too bad. I read what gs300tt posted, and I would have to disagree. I'm running with less caster than that on the front of my '01, and and it doesn't feel bad at all.
URBAN ASSAULT
New member
Ha! Thanks!!! When I got the alignment I saw the tech do a double take as it was going up on the lift. A few of them were taking cell phone pics of it.
It rides like a dream on the highway now. At 70mph it is smooth, straight and steering is effortless. Best it's felt in years. If I hadn't read too much on the internet I'd be happy as a lark right now. But, I was hoping for closer to 3 degrees positive caster and just knowing that it's available makes me want it. With the lift and tires, these arms are a huge improvement.
Maybe get a new alignment, and maybe even at a different shop. I've had a few questionable alignments and some really bad tire balancing jobs in the past.
Dangit! You're right. Good eye and thanks for the heads up. I got them from Toytec, but last May. I had a mystery noise coming from the right front. Found a torn UBJ boot and assumed it was the culprit and it gave me an excuse to get new UCA's. However, replaced poly sway bar bushings with OEM rubber and noise went away. So these have been sitting on my shelf while I worked up the courage and built up my biceps for the install.
I called SPC after reading your post and inquired. They are a great company do deal with by the way. I've had them on the phone 2x in the past week and they've been awesome. The new bushings are headed my way. They offered to send me new arms, and I would return mine. But I'm okay with swapping the bushings when these start to chirp. So probably in about a year I will freshen them up. Pulling the LR UCA is easy and everything is a simple bolt in/out modular replacement, including the ball joint.
Thanks again. I had no idea.
Thank you! I really appreciate it.
Yes. Original engine and transmission. Someday the inevitable will happen and will likely need a replacement, but they have been great. In fact, I was loosely planning on driving it back out West (I grew up in CA) this summer, wheelin' the piss out of it, then driving it home. Didn't even hesitate to start to plan the trip. However, accidentally got the wife pregnant again and due date is in July. Don't drink wine in Sonoma, Co, CA
Seems to be the culprit. So maybe I'll reschedule the trip for next year. KOH, Rubi, or Moab are likely destinations. I figured it out one time that me, my 4Runner, and my late dog (RIP) have been in 23 different states. Pretty cool.No Cats! I like that idea even better.
Your build is so helpful for me and all the rest of the 3rd gen crowd. Everytime I get an idea, I just go to your pg 1 with the "table of contents" and see if you have already done it. I used your pics for reference on the limit strap brackets. It is depressing how little droop we have left. 2in! Woohoo. :corkgun: (not a real emoji, but it would fit here).
Alignment feels great. I just can't seem to walk away and leave that degree of remaining +caster on the table.
Thanks again!
sn0wrunner
New member
Glad I could help! They did the same for me. SPC is great to work with. Like you said swapping them won't be bad, you already got the adapter pressed into the spindle. That was the biggest pain for me.
URBAN ASSAULT
New member
Strapped!

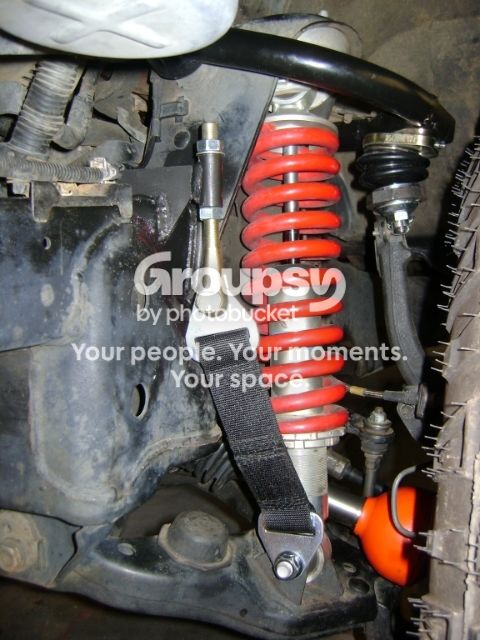

Limit Straps:
