4x Innovations Rear Bumper with Swing out PICS?
- Thread starter cbr900boy
- Start date
traxman25
New member
Twan,
Thanks for the tag.
There's several photos on our website of the bumper and here on the forum. Be sure to click on the "Click here for more photos" button to see all of the photos. I'm not sure why there aren't more photos here, they've been a good item for us, several of them using the T4R coupon code on the website. We just got another batch in from laser and will be bending them soon.
We do need to get updated photos of the new revision that fits a lot nicer.
There are lots of photos of the tire carriers on other trucks. Check the photos for the Tacoma rear bumpers, we do the options all basically the same. If you want something custom, including custom back spacing for the tire, different height or left to right location of the tire, tilted tire mounting plate, Rotopax mount or any other requests give us a call, we can easily accommodate many requests.
Thanks for the tag.
There's several photos on our website of the bumper and here on the forum. Be sure to click on the "Click here for more photos" button to see all of the photos. I'm not sure why there aren't more photos here, they've been a good item for us, several of them using the T4R coupon code on the website. We just got another batch in from laser and will be bending them soon.
We do need to get updated photos of the new revision that fits a lot nicer.
There are lots of photos of the tire carriers on other trucks. Check the photos for the Tacoma rear bumpers, we do the options all basically the same. If you want something custom, including custom back spacing for the tire, different height or left to right location of the tire, tilted tire mounting plate, Rotopax mount or any other requests give us a call, we can easily accommodate many requests.
I have this bumper without the tire carrier if anyone wants any more pictures. I have the light bucket option and I had it powder coated black. It's a sweet bumper for sure. I weighed it at 140 lbs so it's a lot heavier than a tube rear bumper but who cares. Plate bumpers front and rear are where its at!
I've slammed this bumper into the ground hard and it doesn't even flinch. I'd highly recommend it.
It's nice for the piece of mind on the road too. If any car wants to rear end me and see what a 140lb steel bumper looks like in their radiator, be my guest!
I've slammed this bumper into the ground hard and it doesn't even flinch. I'd highly recommend it.
It's nice for the piece of mind on the road too. If any car wants to rear end me and see what a 140lb steel bumper looks like in their radiator, be my guest!
Last edited:
Coopsdaddy
New member
No photos when I hit click more photos.
Were are the jack cut outs?
Is the high lift mounted below tire along length of bumper?
Can you center the tire?
Were are the jack cut outs?
Is the high lift mounted below tire along length of bumper?
Can you center the tire?
x2.
A good way to mount the tire so it's adjustable is to have it on a plate welded to a piece of square tube that slides into another square tube that is part of the swingout assembly. Make a slot in the inner tube and a bolt hole in the outer so that it can move but bolt tightly once adjusted.
MTD
New member
You should probably quote him (if you don't quote him he doesn't get a notification) or just call. He is busy and doesn't get to the forum much.
traxman25
New member

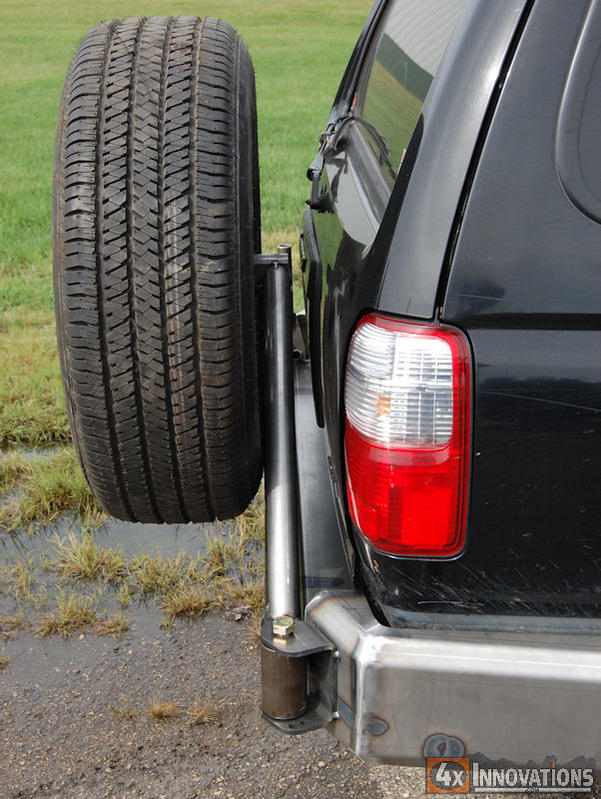

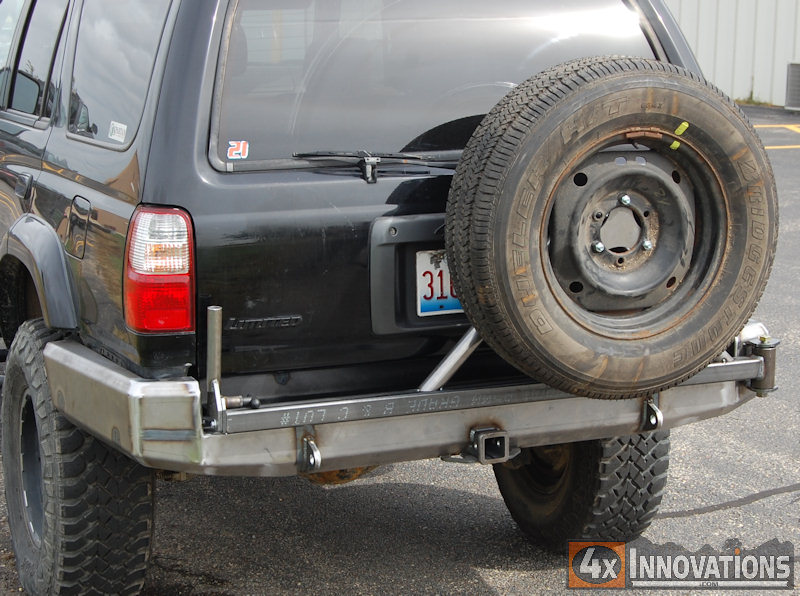

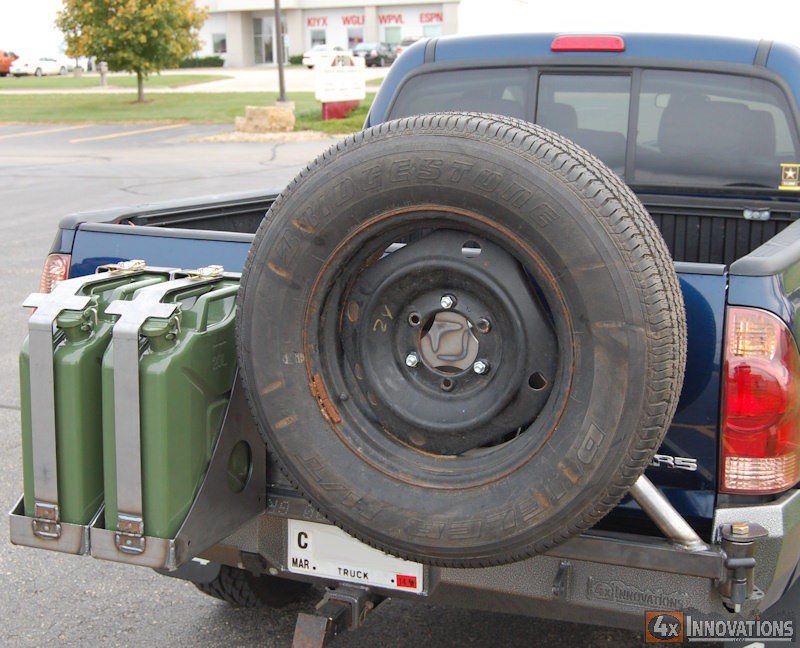

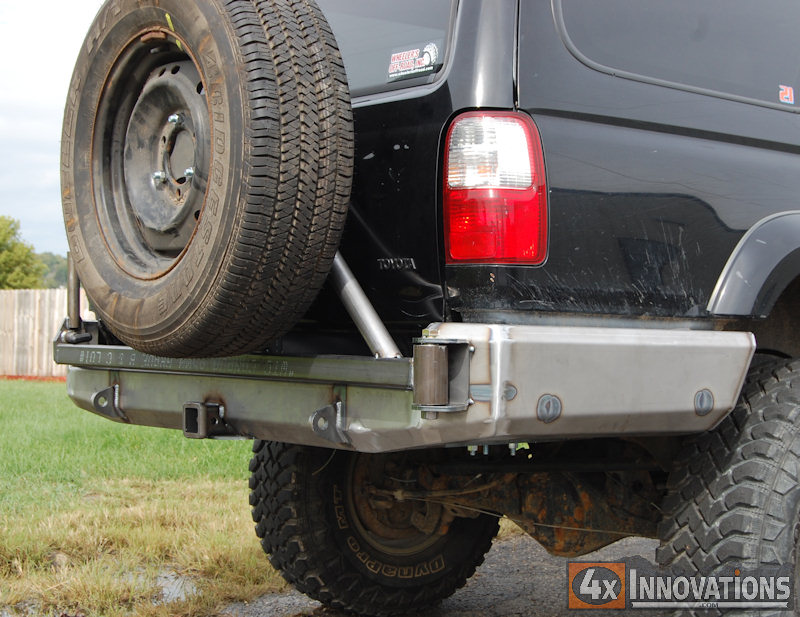

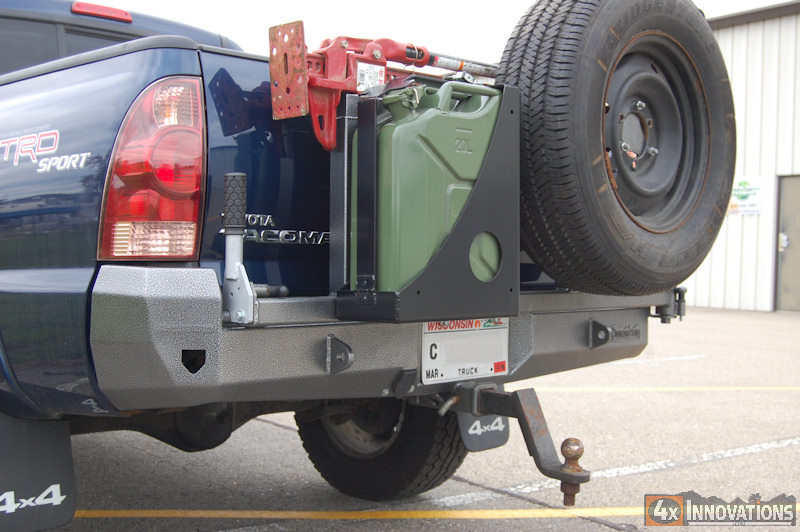

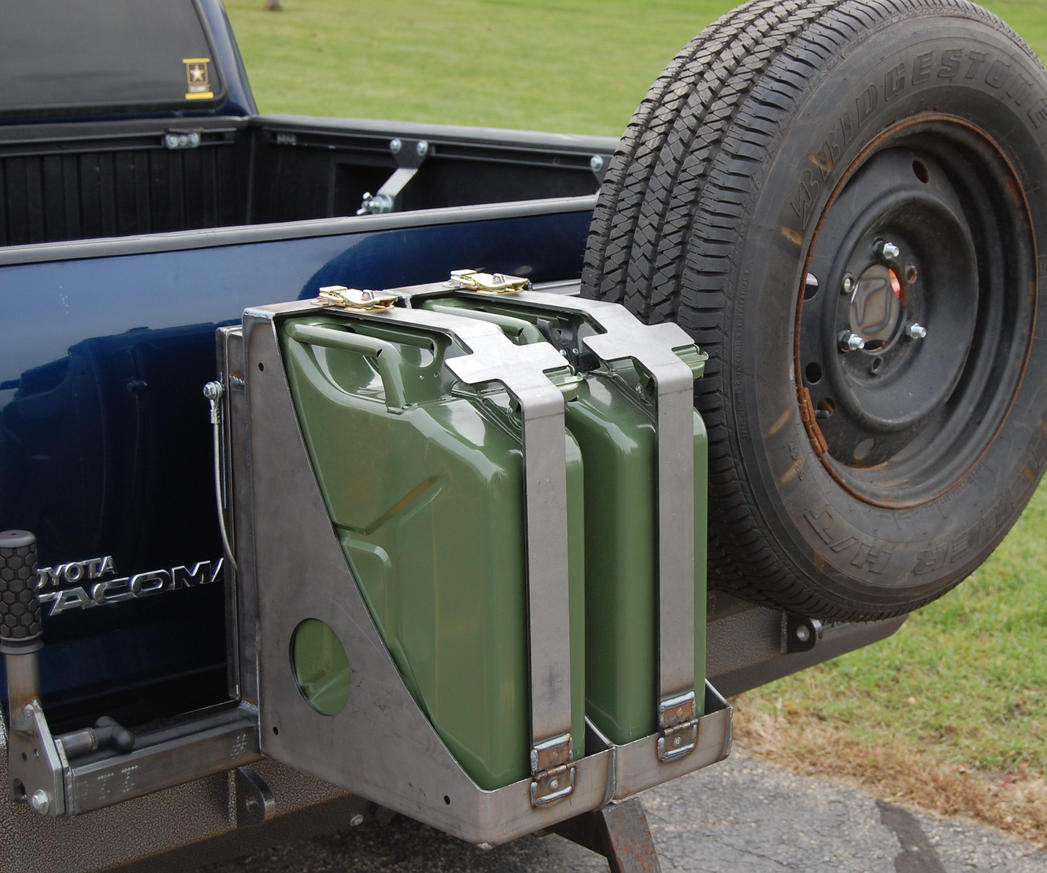

Interesting, are you on a mobile device? I uploaded some photos here for you.
I subscribed to the thread, I'll get the notice when a post is made.
The tire carriers have no problem mounting a 36in tire and we can build them for larger tires also. We decided to not make the back spacing adjustable because of because of weaknesses with that design. We took into consideration what a normal back spacing including tire was to set the standard depth used. I have yet to have any issues reported about that.
Attachments
Brutalguyracing
New member
Where us the 4th Gen love
traxman25
New member
Thank you for your order!!
Yes we provide the license plate mounting plate with new license plate lights on the tire carriers. It depends what options are ordered on the tire carrier as to where that plate is mounted.
cbr900boy
New member

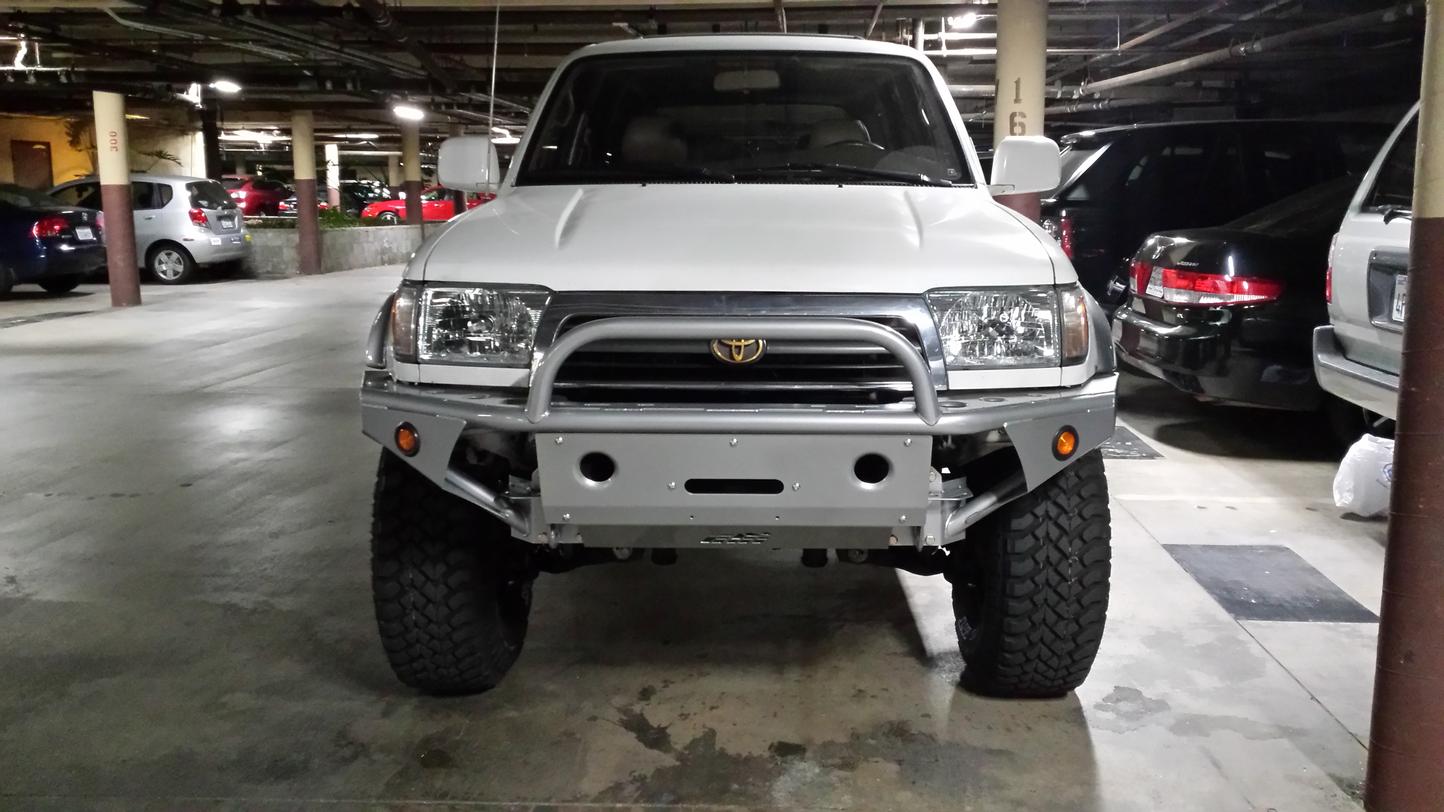

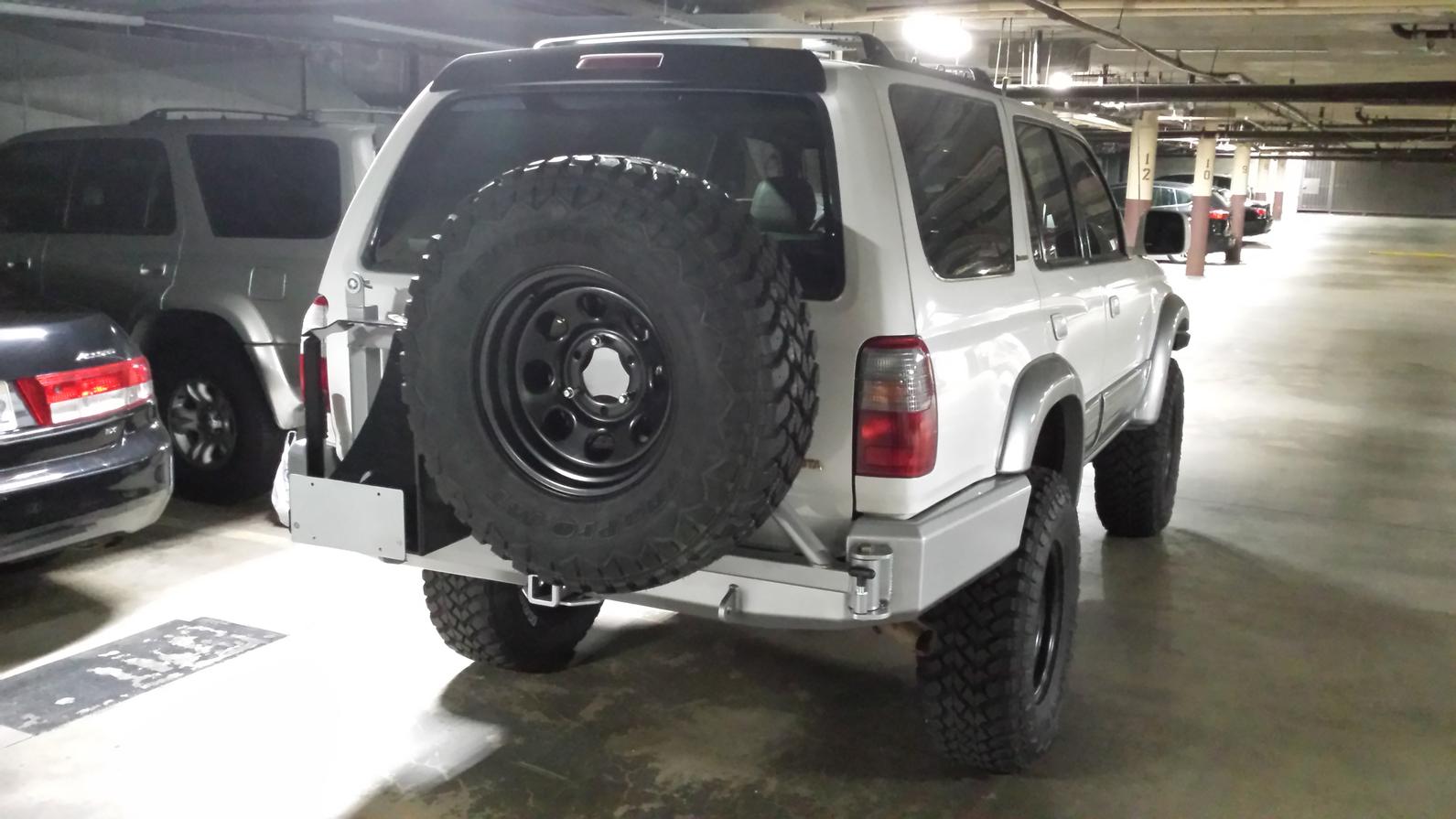

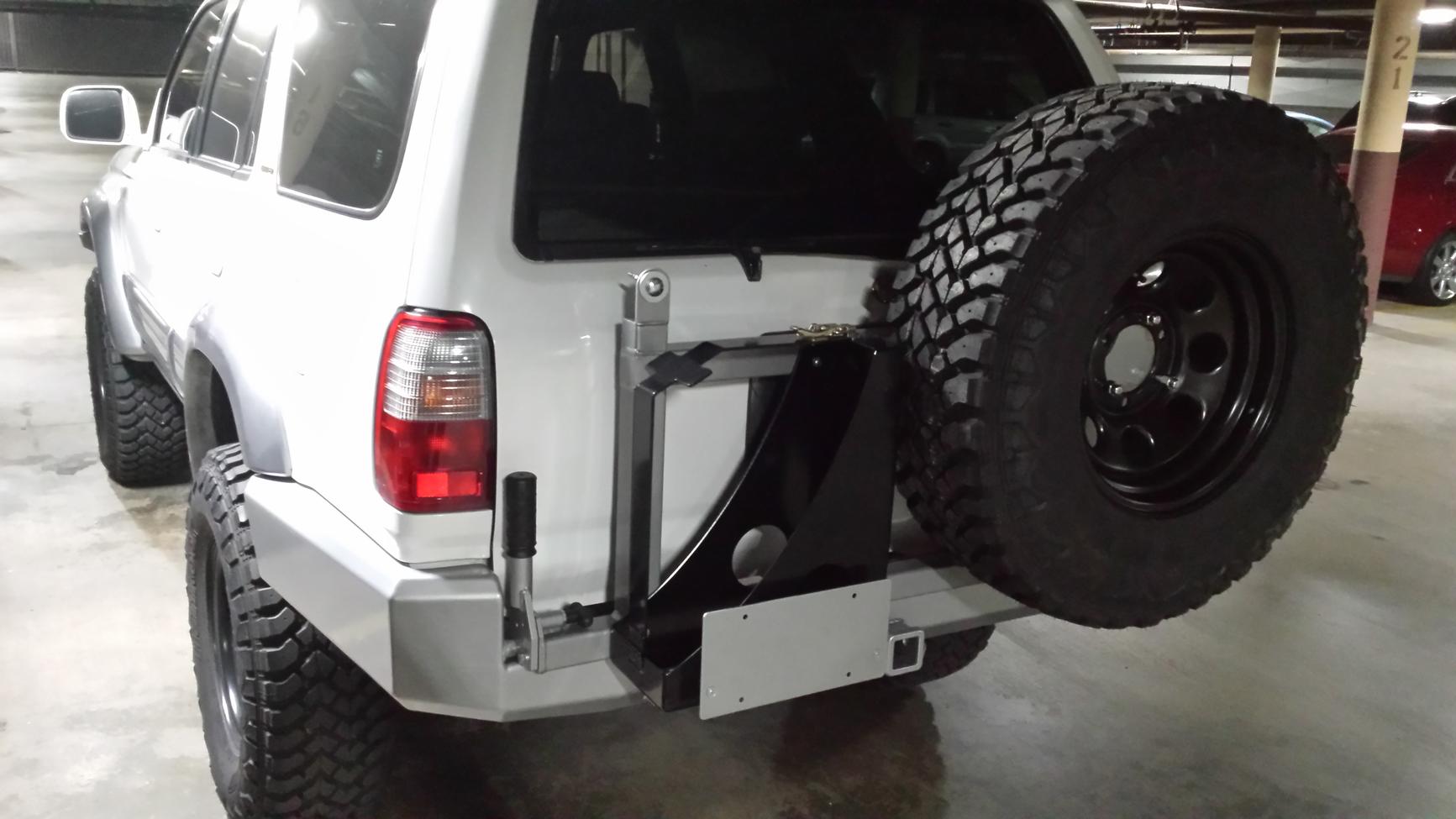

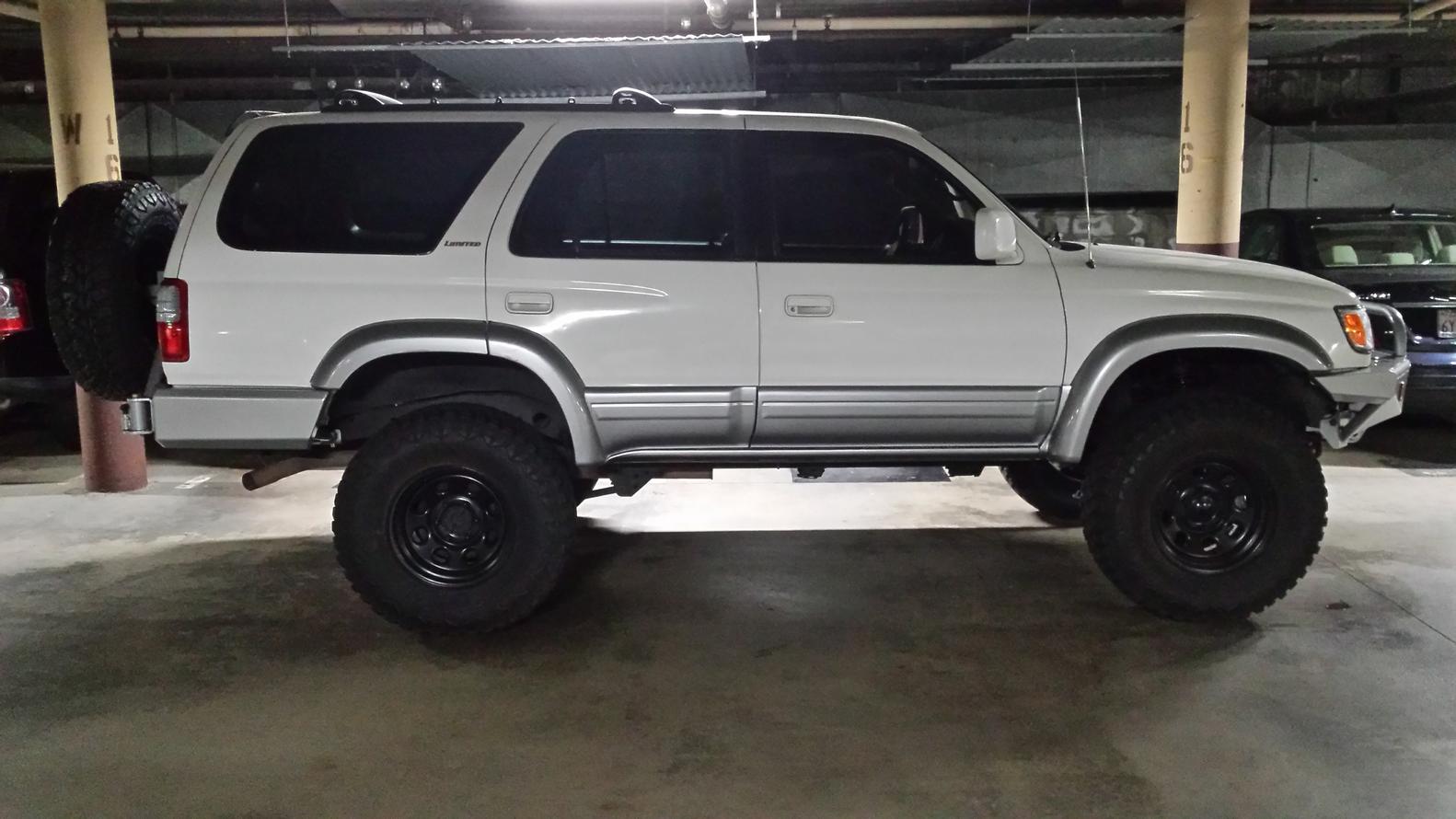

Ok guys, the time has come. My 4x Innovations rear bumper with swing out is finally on. This thing is awesome and well built. Customer service is top notch...thanks Adam! I'll also post a pic of my front CBI bumper, which is also top notch. FYI, I had them powder coated silver to match my cladding. Enjoy guys.
Attachments
Coopsdaddy
New member
Let's see it open and maybe with the jack and fuel tank.
Looks great!
Looks great!
white rocket
New member
Definitely my favorite bumper manufacturer, both front and back, for the 3rd Gen. Those pics look amazing with the bumpers all painted up. Man, I can't wait for this stage of my 3rd Gen!!
