Battery and Winch Amp Draw

C

Chilow

New member
About to replace my 5 year old factory Panasonic battery in anticipation of installing a Smittybilt X20 10000lb winch. If I'm reading the spec sheet on Smittybilt's website correctly, it shows the 10000lb winch draws 380 Amps. Smittybilt also recommends at least a 650 CCA battery to run the winch.

I'm pretty set on the X2 Power battery sold at Batteries Plus in the 24F size. It's rated at 840 CCA so I think it should be enough to support the winch. However, after tons of research, I'm getting mixed information stating the 24F size is enough, then feedback from others advise to get a bigger 31 size battery. Which one is true? The 24F appeals to me because it will fit without any modifications.

Register to hide this ad
The 24, 34, and 65 will all fit in the stock spot, just watch the post location or you might need extensions to get the cables to fit up correctly.

The 31 is BIG. Stock battery weighs around 45 lbs, the 31 around 75 lbs and is several inches longer.

If you are winching through King of Hammers, go big, dual batts, and alternator. If you're just winching occasionally, the 24 is fine as long as you're not pulling 150 feet of cable in one go for the whole length. Keep the engine slightly revved to keep the voltage up and alternator spinning, should be good. Or, get a better alternator and no worries at all.

Narat

I have that X2 battery, replaced a Sears diehard Platinum and has been much better with the fridge running constant. FWIW.

I know I was winching a guy out of some salt flats down here, and had to do like 4 or 5 full length pulls to get him out. Stock battery held up just fine until about the halfway mark on the 4th pull. Gave her a 10 minute break and was able to finish out.

....and that was pulling on a Chevy Suburban that was sunk to the axles, and the tires just wouldn't bring it back up top.

I purchased a X2 Power last year from Batteries+ in the stock 24 size, I suggest upgrading your alternator fuse or go with a booster diode as well to increase the voltage to maintain close to a 14v charge in order to extend the life of that AGM battery. It's recommended to run 30 seconds pulls at a time on the winch pause then go again also rev up a tad through out the recovery process. I also carry one of those new mini portable jump starters, I was able to locate one on Vipon.com; 50% amazon coupon code request deal page.

Last edited:
Just bought a 31m yesterday for a couple reasons:
1. About to install a Warn Zeon 10s
2. I run Blackvue cameras that stay on all night with auto shutoff at 12v.
3. Installing a new lightbar.
4. Upgrading my stereo and adding an amp/subwoofer.
5. I like the additional terminals on the marine battery.

My battery tray will be here tomorrow, someone in the Northstar GB already installed the 31 tray and it fit.

Akkording said:
I purchased a X2 Power last year from Batteries+ in the stock 24 size, I suggest upgrading your alternator fuse or go with a booster diode as well to increase the voltage to maintain close to a 14v charge in order to extend the life of that AGM battery. It's recommended to run 30 seconds pulls at a time on the winch pause then go again also rev up a tad through out the recovery process. I also carry one of those new mini portable jump starters, I was able to locate one on Vipon.com; 50% amazon coupon code request deal page.
Click to expand...

I need to research this booster diode you mention above. Does this stress the alternator?

Chilow said:
I'm pretty set on the X2 Power battery sold at Batteries Plus in the 24F size. It's rated at 840 CCA so I think it should be enough to support the winch. However, after tons of research, I'm getting mixed information stating the 24F size is enough, then feedback from others advise to get a bigger 31 size battery. Which one is true? The 24F appeals to me because it will fit without any modifications.
Click to expand...

Chilow, I hope my response on the battery group buy page didn't cause confusion. The 24F would do the job just in shorter timed pulls. Here's an article that helped me do a power assessment for mine:Design Guide for 12V Systems

Just keep in mind that the alternator on the 4Runner runs at max 130A (Cant remember what RPM thats achieved at) and to subtract that from your power draw then you can calculate the run time before discharging the battery more than 25-30% and let it recharge via the alternator.

halflife78 said:
Just bought a 31m yesterday for a couple reasons:
1. About to install a Warn Zeon 10s
2. I run Blackvue cameras that stay on all night with auto shutoff at 12v.
3. Installing a new lightbar.
4. Upgrading my stereo and adding an amp/subwoofer.
5. I like the additional terminals on the marine battery.

My battery tray will be here tomorrow, someone in the Northstar GB already installed the 31 tray and it fit.
Click to expand...

When I install my new battery this afternoon I will get some pics for you, need to anyways for when I do my build thread

update: didnt get a chance to do it yesterday cause of rain, should be able to get it done today.

Last edited:
None whatsoever and maintenance free just make sure you understand your options out there. It isn't terribly expensive but it does what it says it does. I ended up giving my friend my GM diode and his rig uses a 24 X2 power battery with a Warn Zion winch, oem plus audio upgrade, and two sets of lights; he is perfectly fine with that setup as well.

Last edited:
I have the X20.

I have dual Group 31's. I actually have one for sale that is perfect condition (Odyssey PC2150ST $150).

The 4Runner has the space for a Group 31 so its an easy upgrade, I think with a winch, its a smart choice if you need to upgrade your battery anyways. Yes, a Group 31 is about 80lbs +/-.

WildBill1990 said:
Chilow, I hope my response on the battery group buy page didn't cause confusion. The 24F would do the job just in shorter timed pulls. Here's an article that helped me do a power assessment for mine:Design Guide for 12V Systems

Just keep in mind that the alternator on the 4Runner runs at max 130A (Cant remember what RPM thats achieved at) and to subtract that from your power draw then you can calculate the run time before discharging the battery more than 25-30% and let it recharge via the alternator.
Click to expand...

Thanks for your help. I purchased the Northstar 24F from the group buy. I also purchased the voltage booster from ARCLedLights just to be safe. I bought a voltage reader off Amazon that plugs into the cigarette lighter to monitor voltage as well.

Chilow said:
Thanks for your help. I purchased the Northstar 24F from the group buy. I also purchased the voltage booster from ARCLedLights just to be safe. I bought a voltage reader off Amazon that plugs into the cigarette lighter to monitor voltage as well.
Click to expand...

Cool! Good call on the voltage booster! after that was posted I looked into it as well and will probably get one too. Voltage reader is a good idea, I would check periodically still with a meter at the battery just to see what the avg difference is cause I've heard of people getting different readings at the battery than what was being shown on the cigarette lighter, again, purely from what I've read on the forum, never actually tested it myself.

WildBill1990 said:
Cool! Good call on the voltage booster! after that was posted I looked into it as well and will probably get one too. Voltage reader is a good idea, I would check periodically still with a meter at the battery just to see what the avg difference is cause I've heard of people getting different readings at the battery than what was being shown on the cigarette lighter, again, purely from what I've read on the forum, never actually tested it myself.
Click to expand...

Yea, I plan on doing a baseline test with an actual multi meter and comparing it to the cigarette lighter.

halflife78 said:
Ok, appreciate it.
Click to expand...

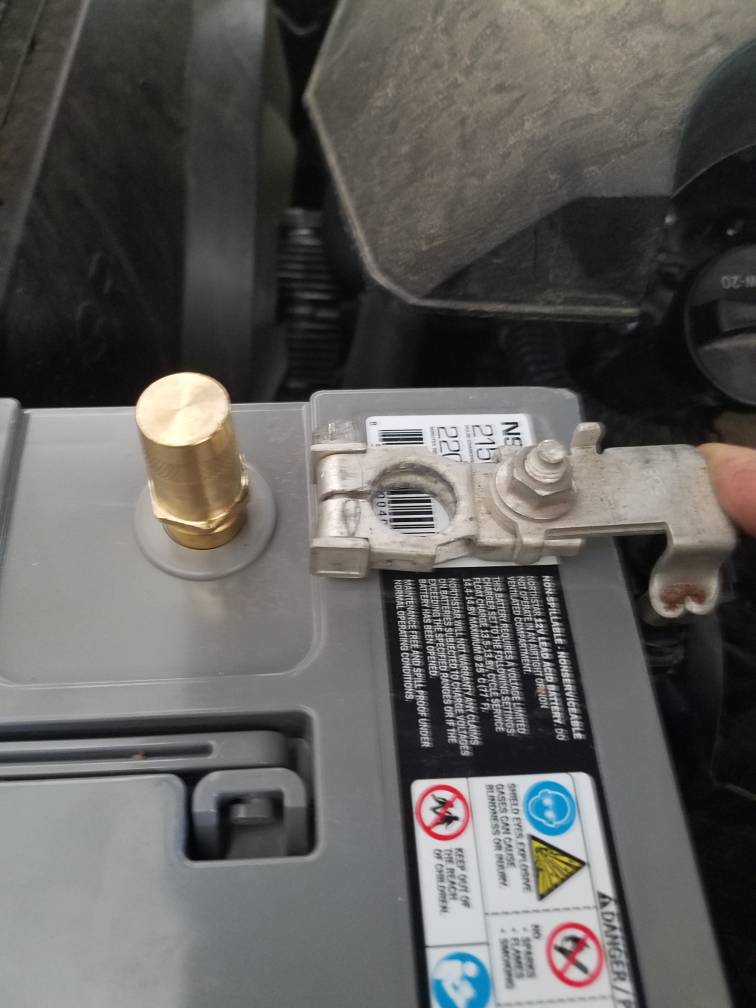

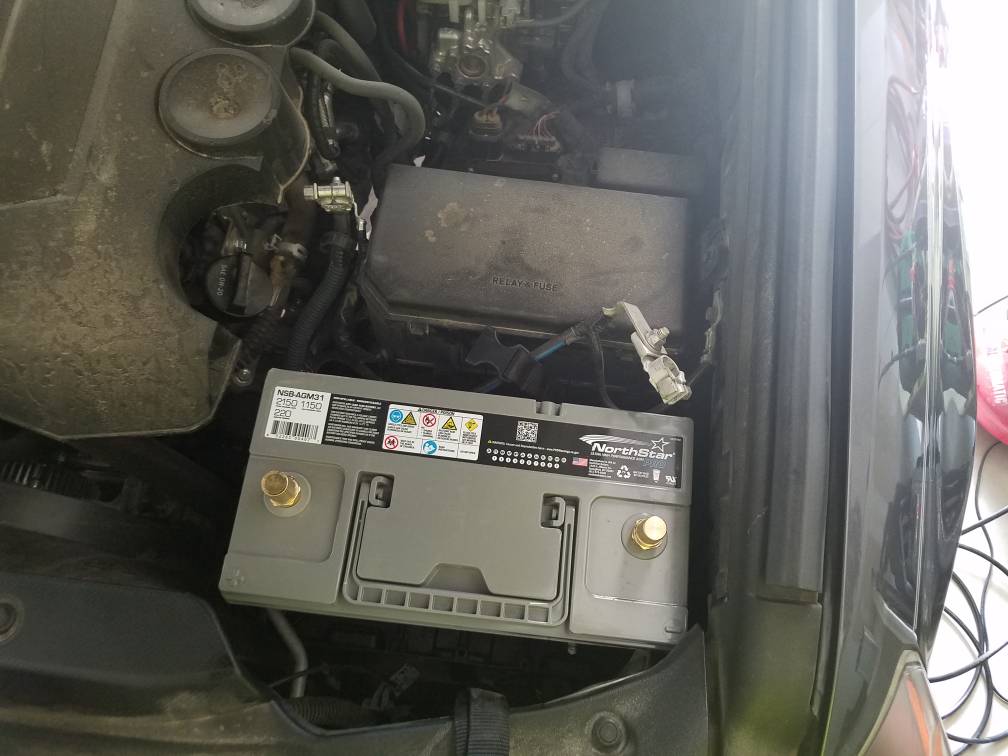

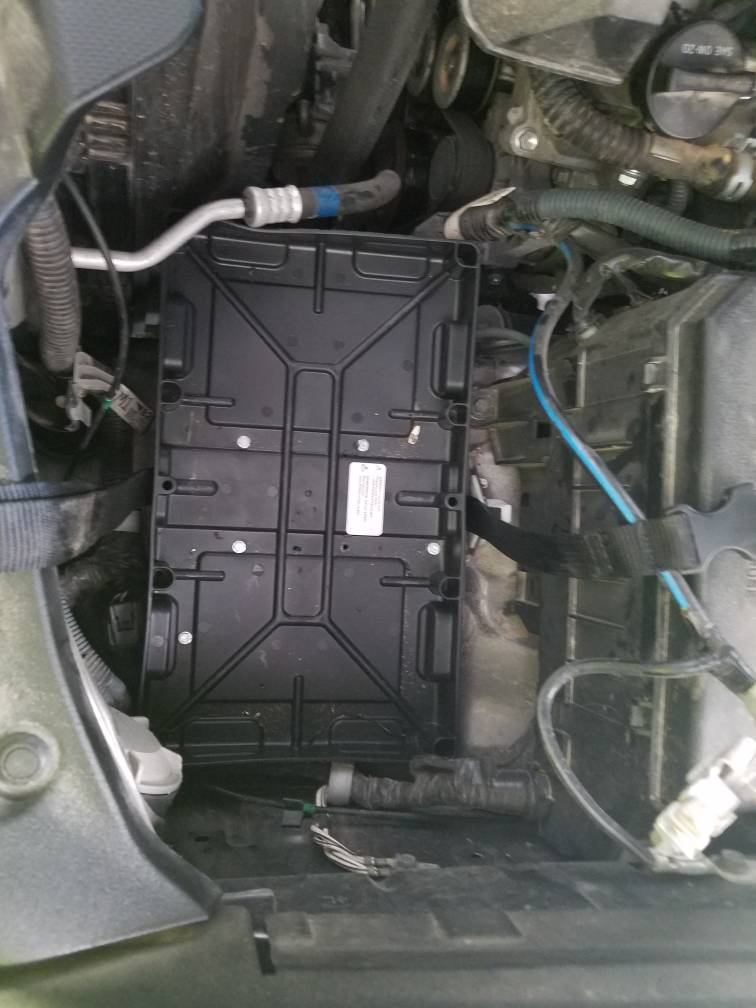

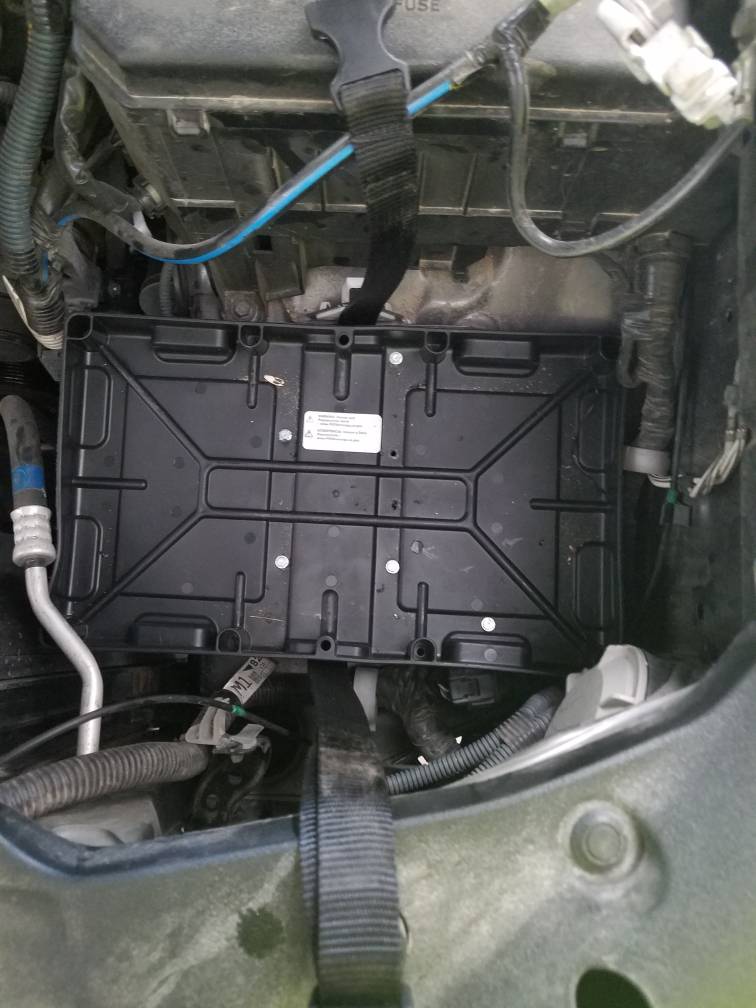

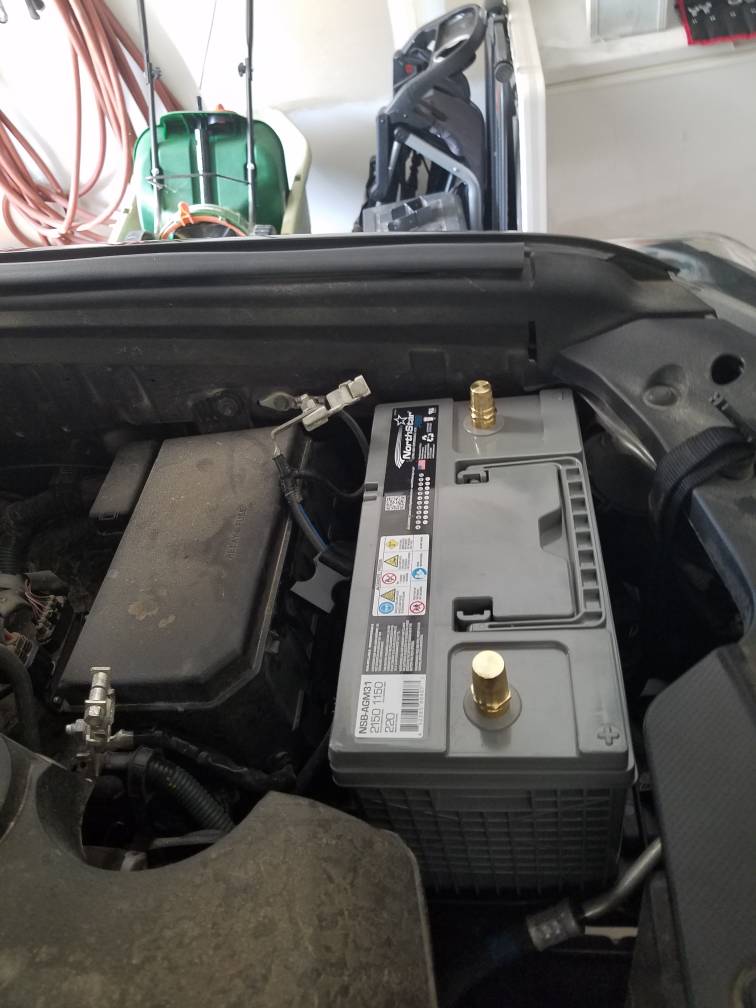

Here's the pics I promised. You will definitely want to go ahead and order some extended leads for your battery cable (see last pic)


Sent from my SAMSUNG-SM-G891A using Tapatalk
