how to keep the fog lights on with high beams

[24runners]

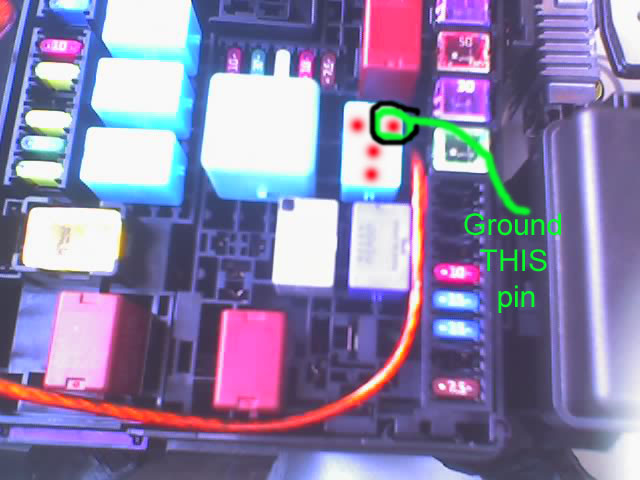

If anyone is interested in keeping their fog lights on with the high beams...all you have to do is ground the pin shown in the pic below.

Grounding this wire will make your fogs stay on with high beam...but makes the switch on the stalk non-functional I dont care, if my lights are on...i want my fogs to be on...and stay on with high beams...I never have a reason to turn them off.

They will still turn OFF when you turn your lights off. But if your lights are on, then so are the fogs

However, you can wire this to a factory style switch (i will do this) if you want to be able to turn this feature off (thanks to iForce for the part number)
Switch Part #: 84160-04010 (~$64 US or $80.38CDN)
Connector Part #: 90980-11090 (~$3.38 US or $4.25CDN) -- from this thread
that way, when the switch is off, everything works as it does from the factory....then you can hit the switch if you want the fogs on with your high beams

this is a very SIMPLE mod, VERY EASILY reversable (just take off the wire), and is NOT a complicated major electrical modification....no splicing or anything, just ground one pin of the fog light relay...there is no danger at all...what would happen? the wire might GROUND OUT?! uhhh...since thats what you are doing in the first place there is no danger!



[Hitman]

That is an interesting mod, but there is a better way to do it.

If you supply the factory switch with power from the parking light circuit, you will be able to control the fog lights from the factory fog light switch as usual, but they will remain on with the hibeams on as well. Or you can turn the fog lights on without using the headlights, as long as your parking lights are on.

It's as simply as supplying the fog light switch with power from the parking lamp circuit.

If you leave your headlights on (and foglights), everything will still turn off with the auto-off headlight feature.



[24runners]

thats another good way without the extra switch...nice to know

where do you tap into the factory switch?
is the wiring easy to get to?

I think i might just leave it grounded all the time....

If my lights are on, I want all of them to be on...I cant think of a time I'd want to have my lights on without the fogs on.



[Hitman]

thats another good way without the extra switch...nice to know

where do you tap into the factory switch?
is the wiring easy to get to?

I think i might just leave it grounded all the time....

If my lights are on, I want all of them to be on...I cant think of a time I'd want to have my lights on without the fogs on.

I haven't done this to my 4Runner yet, but I have done it with several of my past vehicles.

I'm planning on doing it soon, so I'll post a write-up for anyone else who would like to do it too. It should be as easy as locating the wire under the dash (near the steering column) and tapping 12V from the parking lamp circuit to the control side of the circuit.

Piece of cake!



[iFORCE]

Hitman - i see... and that's why you need the wiring diagram....

24runners - your welcome.



[24runners]

posting a better pic is really the only thing I can do (the other one was with my cell phone)

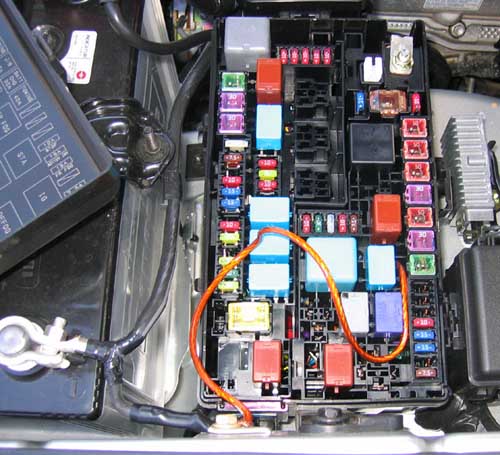

standing at the driver's side wheel well, ground the top right pin of the fog light relay (the pins make a "T")

You can ground it to the battery terminal or to the ground screw right there next to the fuse box.

You dont have to use a wire that long *haha* thats just what I was using to make sure it worked properly.

All this does is prevent the fogs from getting the "turn off" signal when the high beams are turned on...very simple...try it...if you dont like it (i have no idea why you wouldnt) you can always just pull the wire out



[kdx2000]

Will this work on a 99' Limited? Just curious.

Thanks.










99' Limited Desert Dune



[24runners]

Will this work on a 99' Limited? Just curious.

Thanks.

99' Limited Desert Dune

This will work on most any car. Just find the pin that gets ground on low and nothing on high...after you rule out any pins that get voltage at any time.

By grounding that pin, it no longer loses the ground when the high beams come on, therefore, keeping the fogs on



[KMX3060]

I'm curious as to why Toyota did not want the fog lights on with the high beams. Is it possible that together the combination would draw too many amps from the alternator?

Some people who put in HID lights must install relays to avoid burning up the wiring harness and a higher output alternator so they don't drain the battery while they are on.

Anyone know what the output is of the standard alternator?
What is the wattage of the high beams and the fog lights?

Brian



[jlb]

I'm curious as to why Toyota did not want the fog lights on with the high beams.

It has more to do with the fact that many states have provisions in their motor vehicle code that require the fog lights to switch off when the high beams are selected.

In addition if you think about it "fog lights" are supposed to to increase visibility through rain, fog and snow. They do this by producing a short, wide & low beam pattern which reduces light reflected back at the driver. As far as the manufacturer is concerned why would you need this with the high beams?



[24runners]

yes...the factory doesnt see a need for 'fog lights' on with your high beams...if you need the fog lights for fog, then you wouldnt have your high beams on anyway

plus, some places might have a low stating how MANY lights you can have on the front legally....but if I have my high beams on, NO ONE should be in front of me...so no one will see if my fogs on or not

the whole purpose of this is to give me THE MOST light when my highbeams are on (like to help see deer on dark 2-lane roads in the middle of the night)



[Case_TR4]

I tried doing this mod, but it did not work? I pulled the relay and wrapped one end of the wire around the flat pin you indicated then ran it out to the same spot you had yours to ground it, but it did not come on when I tested using my high beams. Any ideas why?



[24runners]

I tried doing this mod, but it did not work? I pulled the relay and wrapped one end of the wire around the flat pin you indicated then ran it out to the same spot you had yours to ground it, but it did not come on when I tested using my high beams. Any ideas why?

must not be making the connection...cuz that's the correct pin just ground it

you did put the relay back in didnt you?

I didnt wrap the wire around the pin...i just put the wire in the 'hole' of that pin, then put the relay back in



[Case_TR4]

Oh i need to put it in the whole instead of around the pin. Thanks, I'll try it this afternoon.



[BULECZKA]

FOG LIGHT

Hitman, I am interested in doing the mod on thr fogs so they work with my parking lights.....did you do your and did it work, can you send some information



[Hitman]

Re: FOG LIGHT

Hitman, I am interested in doing the mod on thr fogs so they work with my parking lights.....did you do your and did it work, can you send some information

No, I didn't do it on my 4Runner yet.... If I had access to the wiring schematics, I could tell you exactly how to do it.

I'll definitely post a short write-up when I finally get a chance to work on it...



[Colemanfu]

2nd that! I would love to be able to run my fogs with just my parking lights. Just for the cool factor. Now I can run my Lightforce's with my parking light but can only do that in traffice if I have on the yellow covers. And I still get flashed some mornings.

If anyone gets it sorted let us know.



[Mel Shingleton]

Does anyone know if there is a yellow bulb available for the so-called fog lights. Yellow cuts the fog unlike the white bulbs?



[Cleric]

Yes, there are a few. Do a search for "yellow fog light" or something similar. There are multiple threads on this subject.



[RXvedub]

I have HID and yellow fog lights. I love it espacialy since i used to be a Lexus tech.

I can get you guys the bulbs Nokya brand... best color... for $40 shipped. I work at a performance shop that sells this stuff.

If you want HIDs let me know.
