Part numbers for backlight bulbs for Climate Control and LCD

[benjamin247]

Just bought a 2006 Sport Edition V8 and found that the backlight for the climate control and LCD above (displaying info like MPG and avg speed) is out. The right side of the LCD is out, and for climate control "knobs", the left and center knob lights are out. I found these part numbers in another thread, but I'm not sure which part I need:
90010-09019 long green
90010-09015 long yellowish
90010-09017 short white

Which ones do I need? These are all available on amazon.

Thanks!



[RL Lemke]

Keep searching this forum because there is a thread with photos and all details. I found the bulb replacement easy.



[mikewhiskey]

This thread here is very helpful



[TenTwelve]

I'm going to break down and get the right lights. I put LEDs in a few spots that were out, but the brightness isn't there.



[benjamin247]

This thread here is very helpful

Perfect. Thanks!



[benjamin247]

I found the individual bulbs I need and also this set that contains all bulbs needed to replace all:
https://www.amazon.com/dp/B01HIAZRJS/ref=cm_sw_em_r_mt_dp_U_k70uCbMTWKSFZ

Buying the bulbs I only need versus buying the complete set will save me $30. Since I'm already replacing some of the bulbs, should I go ahead and just replace all? Will the newer bulbs be brighter than the older, 13 year old, bulbs?



[mikewhiskey]

Since you're already buying the whole set might as well just replace them all and keep your working old ones as spares. The new ones might be slightly brighter than the old if the little colored condoms on the bulbs are cooked



[AuSeeker]

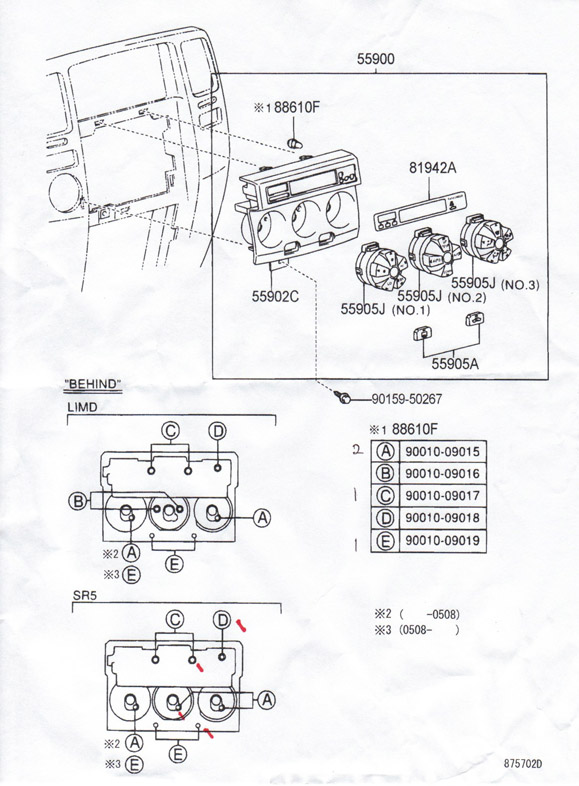

Keep in mind that the Limiteds with the dual climate controls have a little different bulb layout than the single climate control.

Look at the diagram below, the bottom is the bulb layout for both the Limited (Dual) and the SR5 (Single).



[DRVOVRU]

The diagram is awesome and is exactly what I was looking for. These lights appear to be a continous issue and I would think this would be a great sticky. Along with the URL for removal step by step that is here. Center Console Lights



[Christomy95]

Number of bulbs to purchase

I haven't taken apart the console yet but I'm wondering if anyone can tell me how many bulbs I need to buy to replace the lights for the climate control section.



[AuSeeker]

I haven't taken apart the console yet but I'm wondering if anyone can tell me how many bulbs I need to buy to replace the lights for the climate control section.

Keep in mind that the Limiteds with the dual climate controls have a little different bulb layout than the single climate control.

Look at the diagram below, the bottom is the bulb layout for both the Limited (Dual) and the SR5 (Single).

If you read my post above you should know that it varies depending on what model you have, the diagram I posted show the bulb layout and part numbers for the different bulbs needed for the Limited model and the SR5 which will be the same for a Sport Edition as well.

That being said you should be able to determine which bulbs and how many you need from the diagram, no one here can give you that answer because we don't know which model you have!

Also note that no matter which model you have you will need several different bulbs to replace them all.



[royal T4R]

I'm going to break down and get the right lights. I put LEDs in a few spots that were out, but the brightness isn't there.

Sounds like you need less resistant resistors or better LED's



[CV4RNR]

Keep in mind that the Limiteds with the dual climate controls have a little different bulb layout than the single climate control.

Look at the diagram below, the bottom is the bulb layout for both the Limited (Dual) and the SR5 (Single).

Thanks for the diagram- Exactly what I needed!



[IRONLUNG]

What would be the LED equilvalent (superbrightled) for bulbs A, C, and D? Do you use 3mm T-1 for all?



[Fishead]

This...bulb 900100915 is very difficult to find an LED equivalent with respect to it’s shape (post height) and twist lock size on Amazon etc.

Any recommendations?

I’ve read through almost all 110 pages of HVAC swap thread. Lots of info on LED but much of discussion seems to have started almost 10 years ago with ppl soldering raw leds and making things work. Now there is a mind-numbing multitude of these led’s available on Amazon etc. but neo wedge 3-4 are now being called T3 T4.2 / T5 T10 and so on...with basically zero reference to the replacement oem part numbers. Even the superbrightleds.com do not have the tall post.

Can anyone clarify how they complete led swaps for this particular bulb?

Thanks in advance!

><(((*<



[Fishead]

Looks like my image is blocked for some reason...Imgur has an 18+ prompt on it ...guest it may look like something nsfw :juggle:

This...bulb 900100915 is very difficult to find an LED equivalent with respect to it’s shape (post height) and twist lock size on Amazon etc.

Any recommendations?

I’ve read through almost all 110 pages of HVAC swap thread. Lots of info on LED but much of discussion seems to have started almost 10 years ago with ppl soldering raw leds and making things work. Now there is a mind-numbing multitude of these led’s available on Amazon etc. but neo wedge 3-4 are now being called T3 T4.2 / T5 T10 and so on...with basically zero reference to the replacement oem part numbers. Even the superbrightleds.com do not have the tall post.

Can anyone clarify how they complete led swaps for this particular bulb?

Thanks in advance!

><(((*<



[81runner]

Neowedge Instrument Panel Gauge Colored Led Bulbs Lights Lamps | Autolumination

Been going nuts on this site, they have EVERYTHING. The console and climate control lights are 5630 style, t4 for the display, t3 for everything else. They work great, only thing you may need to do is take a small file to the fiberglass board the led is mounted to so it will fit in the hole provided. But beyond that, I've replaced all in the console display, and I'm currently waiting on my next order to update the buttons as well. Those are 5628 t3. Multiple colors, no issue with voltage, I have everything I've installed so far working. Nice to finally SEE the backlights in my buttons, even in daylight.



[sidho11]

How many lumens?

Neowedge Instrument Panel Gauge Colored Led Bulbs Lights Lamps | Autolumination

Been going nuts on this site, they have EVERYTHING. The console and climate control lights are 5630 style, t4 for the display, t3 for everything else. They work great, only thing you may need to do is take a small file to the fiberglass board the led is mounted to so it will fit in the hole provided. But beyond that, I've replaced all in the console display, and I'm currently waiting on my next order to update the buttons as well. Those are 5628 t3. Multiple colors, no issue with voltage, I have everything I've installed so far working. Nice to finally SEE the backlights in my buttons, even in daylight.

-------------------------------------
Just bought an 07 4runner and looking at the link in your post, it shows 2 options for 5630 style, 1 at 150 lumens and 1 @ 50. which one did you end up getting as i dont want an overkill of brightness on the panel.

Cheers



[81runner]

I went with the max brightness. I'm happy with it. I went blue, so it's not hard on the eyes.



[dsanford]

Neowedge Instrument Panel Gauge Colored Led Bulbs Lights Lamps | Autolumination

Been going nuts on this site, they have EVERYTHING. The console and climate control lights are 5630 style, t4 for the display, t3 for everything else. They work great, only thing you may need to do is take a small file to the fiberglass board the led is mounted to so it will fit in the hole provided. But beyond that, I've replaced all in the console display, and I'm currently waiting on my next order to update the buttons as well. Those are 5628 t3. Multiple colors, no issue with voltage, I have everything I've installed so far working. Nice to finally SEE the backlights in my buttons, even in daylight.

Which bulbs did you choose for the HVAC display on Autolumination? Everything else I’ve read is these are 6V T4 and 12V will not work. Every bulb I looked at (all T4, including the tall) show as 12V. Just curious what you used. Pics would be great.
