Quick favor. Center console removal.

[adio3x]

Ok so I've searched, talked to nashman, but I'm having trouble downloading the pdf's. Saw harpers google doc's but I'm having trouble opening that too. Only one I've gotten to open was the collision repair manual, but can't seem to find the center console part.

Can someone send me the pdf or even just a screen shot of the center console removal. I'm having trouble figuring it out, need to pull my carpet since it smells like poop lol.

Thanks!

~Andrew



[kmiller8821]

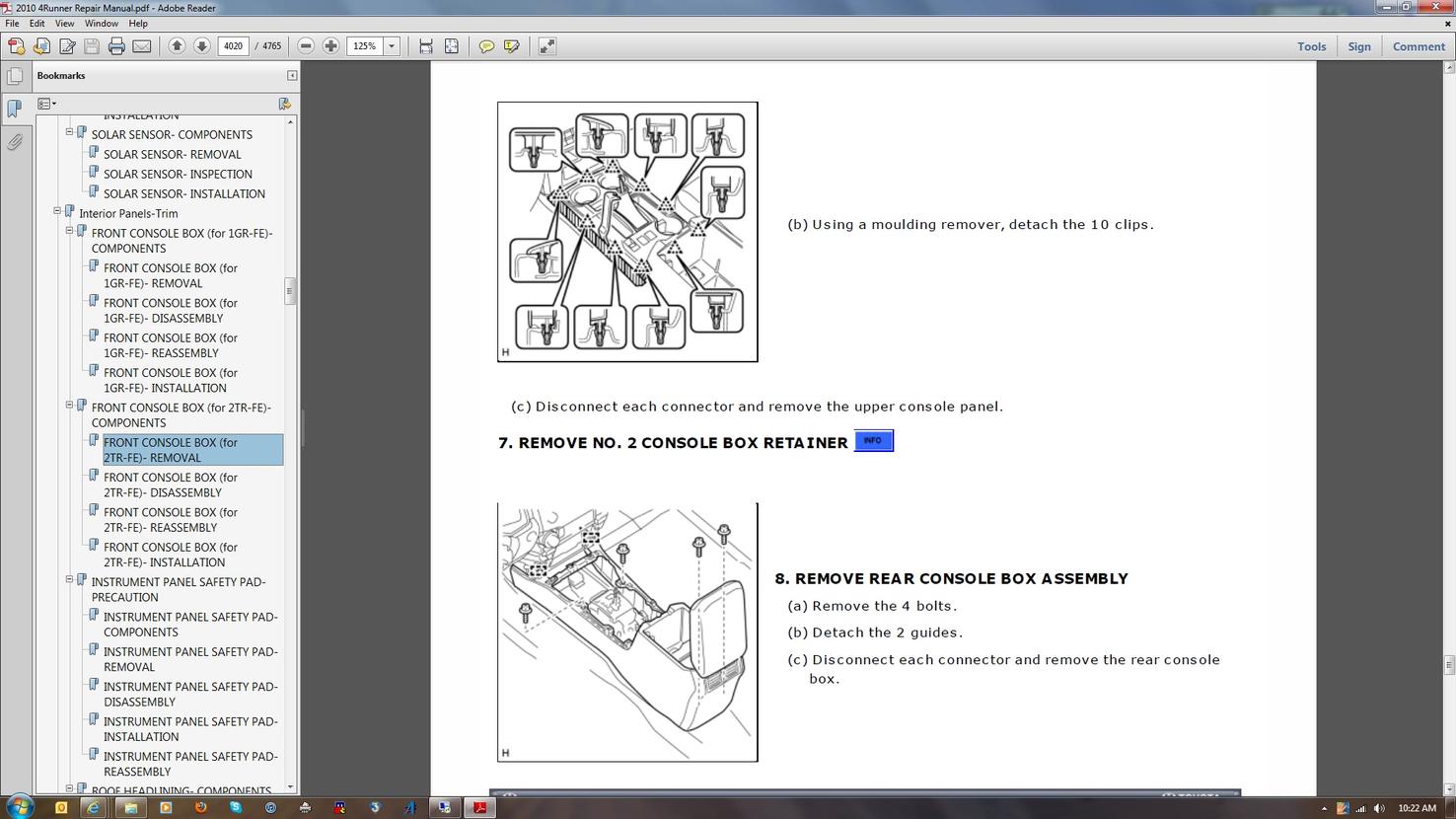

Is this what you need? I can provide more if you need it, this shows you the clips and bolt locations. If you need more, I can post whatever you need.



[adio3x]

thank you!!!! Are there anymore pictures? I need all the information I can get if its no problem.



[Okki]

thank you!!!! Are there anymore pictures? I need all the information I can get if its no problem.

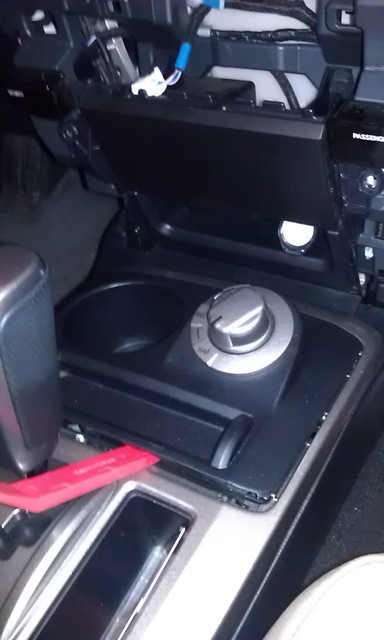

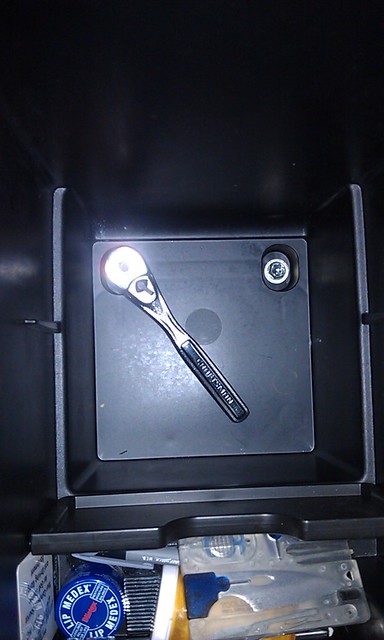

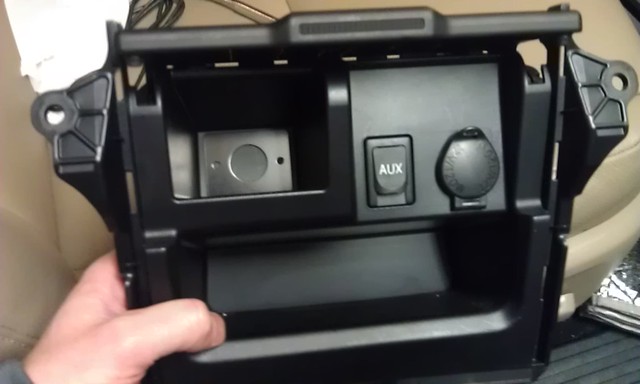

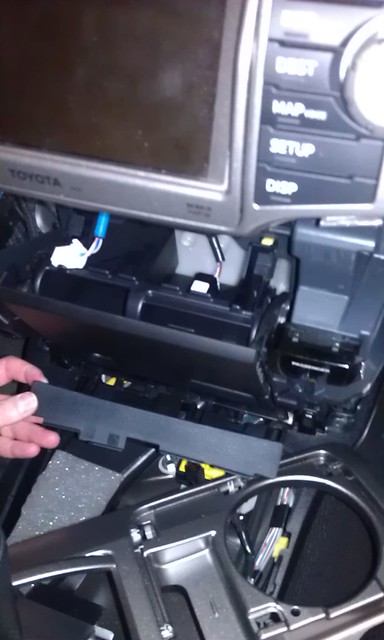

10mm socket for bolts holding center tunnel, hex head for the screws holding the cubby hole.

You're only missing the two bolts half way between the center stack and the storage bin.

Hopefully this covers it for you.

Okki

Edit -- you don't need to remove the cubby to remove the tunnel... but I was on a roll



[adio3x]

10mm socket for bolts holding center tunnel, hex head for the screws holding the cubby hole.

You're only missing the two bolts half way between the center stack and the storage bin.

Hopefully this covers it for you.

Okki

Edit -- you don't need to remove the cubby to remove the tunnel... but I was on a roll

Lol thank you sir.



[phillyd2]

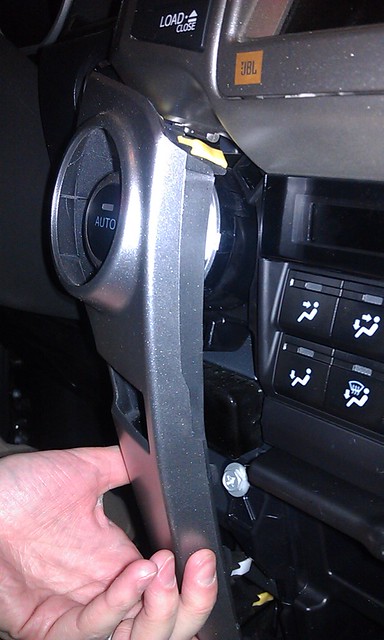

This piece you want to pull at from a angle. In this case towards the drivers door.

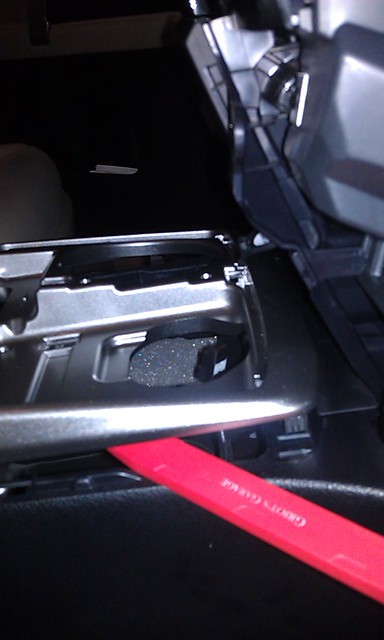

Way easier if you pull up from the back (near the box).



[LawnDart]

Is this what you need? I can provide more if you need it, this shows you the clips and bolt locations. If you need more, I can post whatever you need.

I'm having to swap center consoles as my dog basically destroyed the tunnel when I left him for 10 minutes in the car. So basically I just need to remove 4 bolts and the 2 guide screws and it should pull out?

It looks like the Toyota parts stores sell the entire console with arm rest, so I'm just swapping one for the next, correct?



[SKP-4R]

Here's a link to my write up for some additional reference:
http://www.toyota-4runner.org/5th-gen-t4rs/203095-how-center-console-shifter-trim-removal-cean.html



[LawnDart]

Here's a link to my write up for some additional reference:
http://www.toyota-4runner.org/5th-gen-t4rs/203095-how-center-console-shifter-trim-removal-cean.html

Yeah I totally get how to remove the actual upper console, I have to remove the entire console tunnel, that includes the arm-rest box as well. To that point I think the document posted earlier showing the main bolts that have to come out is key.



[4RunnerINprogress]

10mm socket for bolts holding center tunnel, hex head for the screws holding the cubby hole.

You're only missing the two bolts half way between the center stack and the storage bin.

Hopefully this covers it for you.

Okki

Edit -- you don't need to remove the cubby to remove the tunnel... but I was on a roll

How do you remove the 4WD selector?



[Auntie Soshul]

How do you remove the 4WD selector?

If you're just removing the console to get to something under it, there is no need to remove the 4WD selector OR the gear shift knob. The console lifts off over both of them.
