Thermometer Reading Off - 2015 Trail

[Greedy]

I have noticed that my in-dash thermometer is reading about 10 degrees colder. This morning, it was around 30 degrees outside, and my dash was reading at 21 degrees. This is while I was stopped and driving. Anyone else experiencing this problem?



[flatspin]

Mine only had 37 degrees this morning but I knew for a fact that it was F&#%#$@ing cold....

Seriously though, wonder if it's not factoring in wind chill...



[Greedy]

Haha - arctic blast right?

Mine was doing it sitting still though - no wind. Does anybody know where the probe is located?



[3wbdriver]

Don't know where the probe is but is it possible it was iced up? I've had the same issue after spending a couple days off road. A quick wash down cleaned my probe up wherever it is.



[Greedy]

I was actually parked in my garage overnight where it was about 50 degrees (according to the garage door opener control). When I started up the truck, it read 42 degrees. It always seems to be about 10 degrees colder than any other readings...



[Mistaken]

Mine seems fairly accurate. It read 37* on the way to work this morning.



[adam2562]

mine is pretty accurate except for when its covered in mud



[NoDak]

you sure it wasn't set to "C" instead of "F"?

mine read 16 this morning, but that's a heat wave this week. yesterday was a high of 9.



[Greedy]

Yeah- there was a big F right next to the readout. I will try toggling back and forth between the two and see if it makes a difference.

THanks.



[Masaro]

Yeah- there was a big F right next to the readout. I will try toggling back and forth between the two and see if it makes a difference.

THanks.

Unless you live in the Southern Hemisphere, if it read 42° this morning it was surely °F. 42°C would be 108°F and that would mean your truck was WAY off!



[BlackWorksInc]

It's located on the radiator post behind the grill.



[Greedy]

It's located on the radiator post behind the grill.

Thanks. Ill take a look for anything obvious..



[BlackWorksInc]

88625P in the picture is the Ambient Temperature Sensor P/N 88790-22150
If you pop the hood, it should be on that center post in front of the radiator.



[Greedy]

Thanks again. Ill check it out. Any procedure on checking if the probe itself is good? Maybe a resistance reading at xx temp or something?

88625P in the picture is the Ambient Temperature Sensor P/N 88790-22150
If you pop the hood, it should be on that center post in front of the radiator.



[BlackWorksInc]

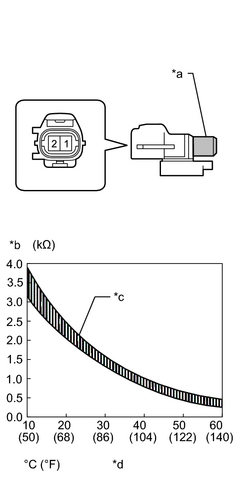

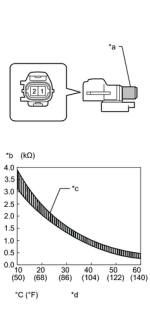

Min: -23.3°C (-9.94°F) (Also the Temperature that shows when the circuit is Open)
Max: 65.95°C (150.71°F) (Also the Temperature that shows when the circuit is Shorted)



10°C (50°F) - 3.00 to 3.73 kΩ
15°C (59°F) - 2.45 to 2.88 kΩ
20°C (68°F) - 1.95 to 2.30 kΩ
25°C (77°F) - 1.60 to 1.80 kΩ
30°C (86°F) - 1.28 to 1.47 kΩ
35°C (95°F) - 1.00 to 1.22 kΩ
40°C (104°F) - 0.80 to 1.00 kΩ
45°C (113°F) - 0.65 to 0.85 kΩ
50°C (122°F) - 0.50 to 0.70 kΩ
55°C (131°F) - 0.44 to 0.60 kΩ
60°C (140°F) - 0.36 to 0.50 kΩ



[FrontRange4Runner]

Min: -23.3°C (-9.94°F) (Also the Temperature that shows when the circuit is Open)
Max: 65.95°C (150.71°F) (Also the Temperature that shows when the circuit is Shorted)

It's funny that it will only go to -10F considering that many people will experience colder temps every winter. Our low last night was right around that. On the other hand, it will go to +150F, at which point I will be dying a very uncomfortable death. anyways, thanks for showing where the sensor is, the last time I went through the car wash mine went crazy. After about an hour, it was all dried out and went back to normal.



[Bilbo]

Min: -23.3°C (-9.94°F) (Also the Temperature that shows when the circuit is Open)
Max: 65.95°C (150.71°F) (Also the Temperature that shows when the circuit is Shorted)

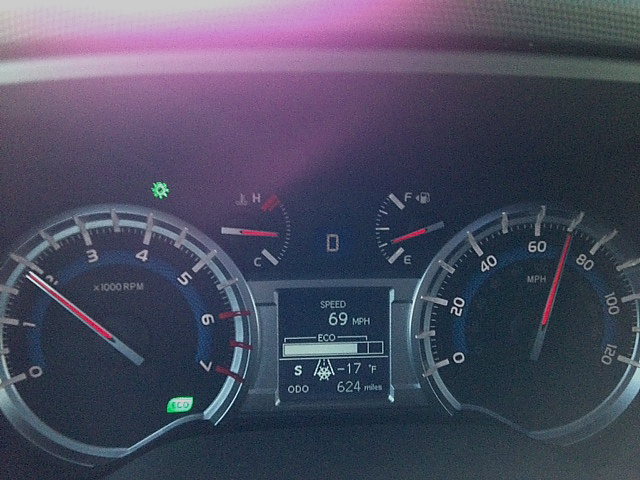

That's odd. Here is -17F. I saw it go down to -28F, but no photos.



[BlackWorksInc]

That's odd. Here is -17F. I saw it go down to -28F, but no photos.

View attachment 136437

:shrug:

That's what the FSM says... I never bothered to actually check the ranges on it to be honest?

Edit-
Went outside and blasted my 4th Gen's unit with canned air to flash freeze it, went to -22F ... unfortunately it does not seem to want to go back up, even after running it under warm water... so I'm gonna say it doesn't like much more than -22F? lol :doh:



[Bilbo]

:shrug:
...
Went outside and blasted my 4th Gen's unit with canned air to flash freeze it, went to -22F ... unfortunately it does not seem to want to go back up, even after running it under warm water... so I'm gonna say it doesn't like much more than -22F? lol :doh:

Sir, I commend your commitment to empirical research! May your sensor survive the trial.



[NoDak]

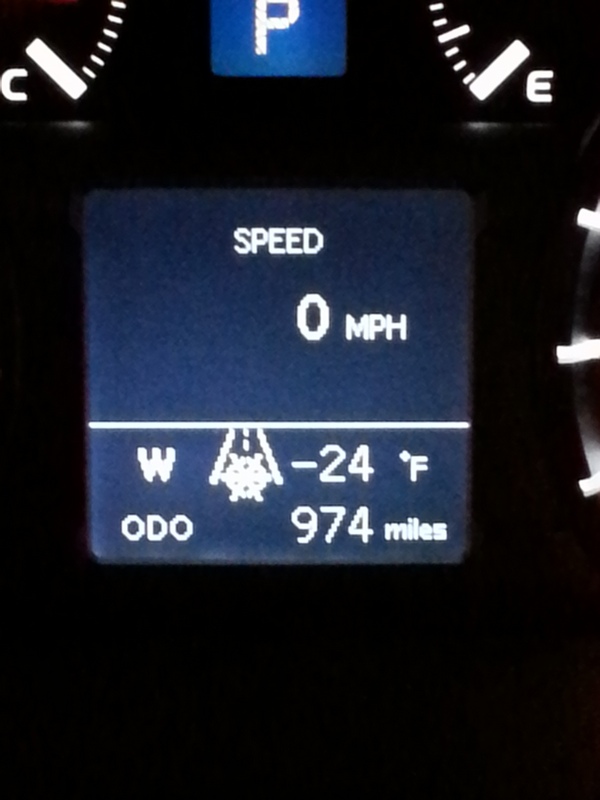

its rated to go much lower, I think -39F. this is the lowest I've recorded on mine.

and as you can tell based on Bilbo's screen, I removed my eco bar via techstream

.
