Ultragauge 1.3 MX Question - Trans Temp??

[bsdoig]

I hate to start another thread about the Ultragauge, but I have searched and can find no definite answer about successfully adding transmission temperature with the newer Ultragauge 1.3 MX. I know that the 4th Gen 4Runners / 3rd Gen Tacomas have the PID's figured out.

Has anyone successfully added the transmission temp monitor to a 3rd Gen 4runner 99+ auto? If so, can someone explain how?



[19963.4lsr5]

I thought that the trans temp was a standard parameter on 99+. I hear people with the ScanGauge saying its a available parameter without and programming of the PID.


Sent from my iPhone using Tapatalk



[bsdoig]

Yes, the sensor is available on 99+ auto's. Scangauge2 does have the ability to program using PID data available on the forum.

I'm curious about adding trans temp, specifically to the newer ultragauge.



[thenightman]

My Scanguage 2 did not come with the ability to monitor trans temps. I programmed it in while the wife was driving, using info found here. It was quite easy. Maybe mine did not have it since I bought it back in 2015.



[19963.4lsr5]

My Scanguage 2 did not come with the ability to monitor trans temps. I programmed it in while the wife was driving, using info found here. It was quite easy. Maybe mine did not have it since I bought it back in 2015.

Post up the PID data you used.


Sent from my iPhone using Tapatalk



[bsdoig]

My Scanguage 2 did not come with the ability to monitor trans temps. I programmed it in while the wife was driving, using info found here. It was quite easy. Maybe mine did not have it since I bought it back in 2015.

You are correct, I fixed my previous reply.



[John7M7]

Btw, what's your regular trans fluid temp and coolant temp?



[thenightman]

Since it is winter, my regular around town and highway transmission temps are in the 150s. Winter where I live, at a time of day when I am likely to drive it, is high 40s to mid-60s. When wheeling small hills and small obstacle courses last week it never went above 170. On the fun curvy road with 1000' elevation increase to the wheeling spot, it got up to 200. This is with a B&M 70268, bypassing the radiator. I did not flush out the old fluid when I put on the cooler, I should have though.

As for the coolant temps, I don’t know. Since the needle has never gotten above halfway on the gauge, I am not concerned about it enough to have it displayed on the Scanguage2. I have always on the display; trans temp, current mpg, and average mpg. The fourth spot changes, it is system voltage now, since I am concerned at how low it reads sometimes.

I think this is the thread with the info I used to program the trans temp function.
http://www.toyota-4runner.org/3rd-gen-t4rs/57520-3rd-gen-scangauge-ii-owners.html



[bsdoig]

Bump. No one has any insight?



[ltsr]

I have an ultragauge v1.2 from 2013. I emailed ultragauge July 2017 about upgrading my unit to 1.3 MX. I gave them my year and model (I have a 2001) and told them that I was after trans temp monitoring. They told me that the upgrade would not work and they wouldn't promise anything. But I can still upgrade my unit by sending it in and paying the $17 (found here: https://ultra-gauge.com/ZC/index.php?main_page=product_info&cPath=3&products_id=83)

I was just going to tell them to pre-program it for a tacoma. I read that 1st gen tacomas, which are similar to ours has trans temp working. I was willing to roll the dice and send in my unit but haven't gotten around to doing it. I use my ultragauge everyday but I do have an ELM327 bluetooth + Android phone to look at my trans. temp if I really need to.

It's not what you're looking for but this weekend i'll pack up my ultragauge and just send it in for the upgrade to 1.3 MX and report back in a few weeks time.



[bsdoig]

I have an ultragauge v1.2 from 2013. I emailed ultragauge July 2017 about upgrading my unit to 1.3 MX. I gave them my year and model (I have a 2001) and told them that I was after trans temp monitoring. They told me that the upgrade would not work and they wouldn't promise anything. But I can still upgrade my unit by sending it in and paying the $17 (found here: https://ultra-gauge.com/ZC/index.php?main_page=product_info&cPath=3&products_id=83)

I was just going to tell them to pre-program it for a tacoma. I read that 1st gen tacomas, which are similar to ours has trans temp working. I was willing to roll the dice and send in my unit but haven't gotten around to doing it. I use my ultragauge everyday but I do have an ELM327 bluetooth + Android phone to look at my trans. temp if I really need to.

It's not what you're looking for but this weekend i'll pack up my ultragauge and just send it in for the upgrade to 1.3 MX and report back in a few weeks time.

Thanks for the info! Keep us updated!



[ltsr]

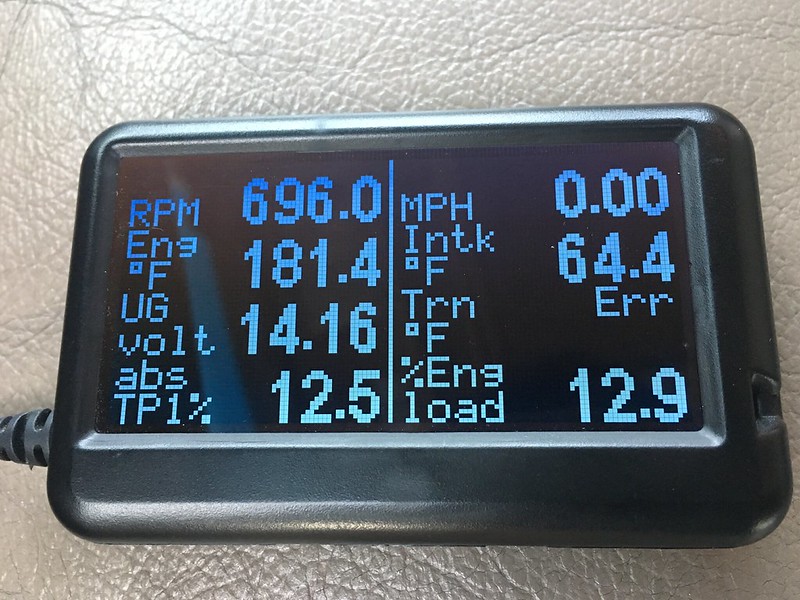

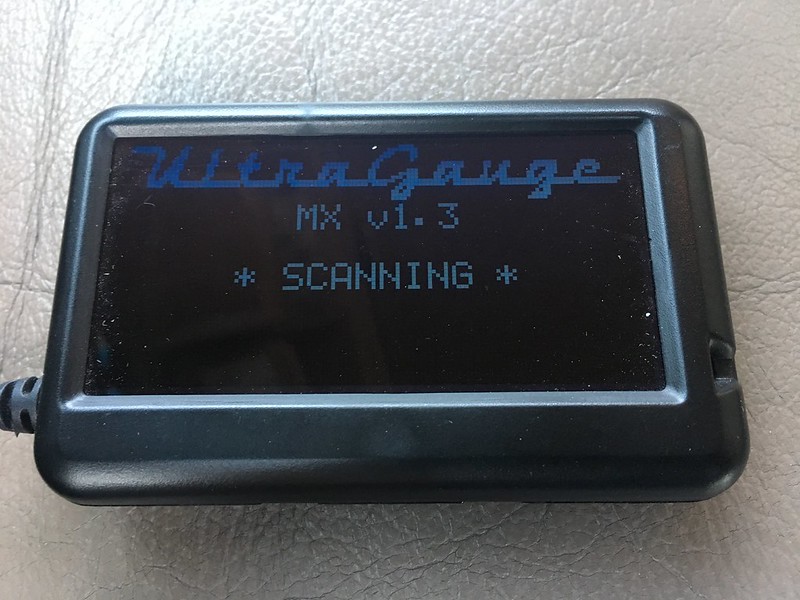

I got my unit back from ultragauge. Bad news is that it doesn't work out of the box. Since the 1.3MX allows you to change "M Gauge" data you could get it to work if you know what to enter for programming it.

For the smart people, here's a link to the 1.3 MX programming guide: http://ultra-gauge.com/ultragauge/support/UG_MX_Supplement.pdf



[ltsr]

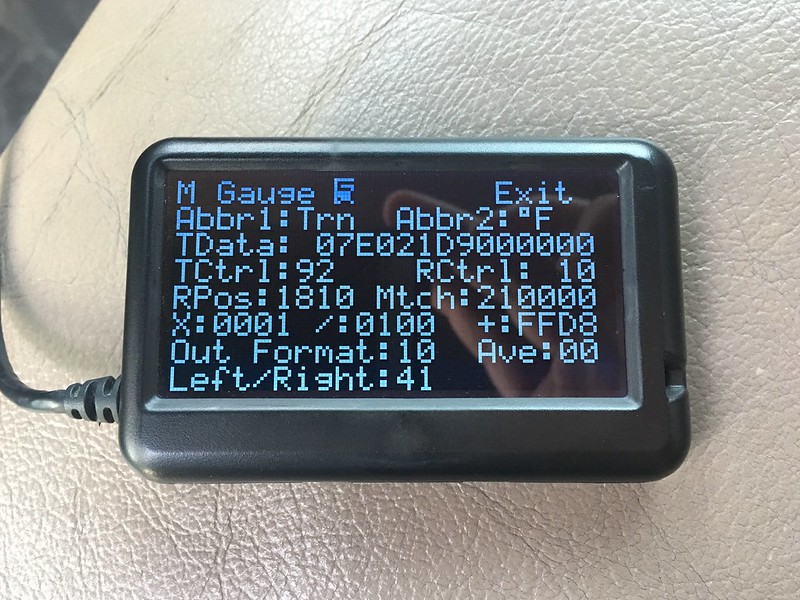

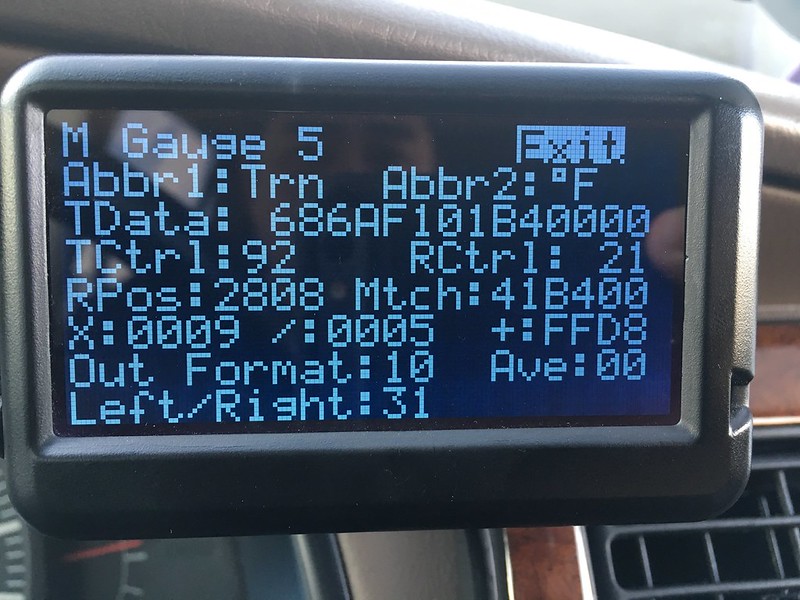

I followed ultragauge's directions to the tee about converting scangauge codes and still get an error.

I followed the trans temp code from scangauge owners here:
http://www.toyota-4runner.org/3rd-gen-t4rs/95258-scan-gauge-ii-codes-new-stuff.html



[nevarola]

I'm in the market to get one too for a few months been doing research to get the ultra gauge to read trans temp. A guy on one of my groups said you might be able to get it to read the same way scan gauge does. Any one have any luck?
The codes he gave me was:

Transmission Temperature F
TXD: 686AF101B4
RXF: 044105B40000
RXD: 2808
MTH: 00090005FFD8
NAM: TFT



[ltsr]

I'm in the market to get one too for a few months been doing research to get the ultra gauge to read trans temp. A guy on one of my groups said you might be able to get it to read the same way scan gauge does. Any one have any luck?
The codes he gave me was:

Transmission Temperature F
TXD: 686AF101B4
RXF: 044105B40000
RXD: 2808
MTH: 00090005FFD8
NAM: TFT

Thanks for sharing that info. But it is the same data I have used with no success.



[Team_Jake]

Any luck with this?

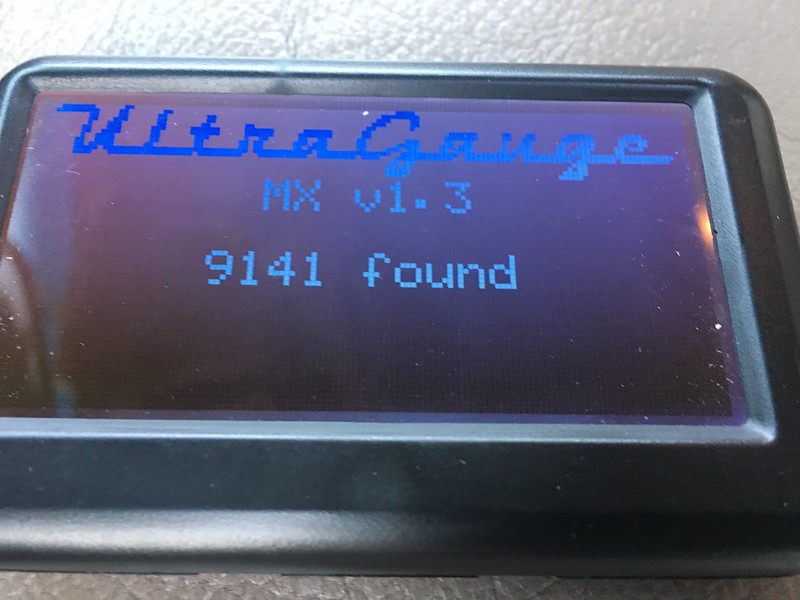

I’ve been doing a lot of research, the difficulty is that the protocols of our ECUs are 9141 and not CAN, this can make it difficult but it shouldn’t be impossible to get this to work.

From my research, I believe this is the data you want to enter:

TData: 686AF101B40000
TCtrl: 85
RCtrl: 31 (or if Mtch is 2 bytes, then 21)
RPos: It’s either 2808 or 1808 (could be both)
Mtch: 41B400 (or 41B4)
X: 0009
/: 0005
+: FFD8
Out format: 00 (or it could be 10)
Ave: 00
Left/Right: 31


I’m pretty confident on everything except TCtrl, and RCtrl.

The TCtrl is used to determine what inputs in TData are sent to the ECU to retrieve a response. UltraGauge says TCtrl is usually 93, but that represents everything non-GM CAN protocols. Because our protocols are 9141, I do not know if this number is correct and may require some trial and error. Just about every TCtrl I see, the first nibble is 9, but that is for CAN. Every non-CAN number I've seen starts with 8. The second nibble (the "5" in 85) represents the numbers of bytes to read in TData (unless there is an address). The first 2 bytes are typically the address in the Toyota CAN protocol, so if there is an address it should be 3, but because our vehicles use the 9141 protocol I believe it should be 5.

The RCtrl is used to control which byte positions within the Mtch packet (assuming a correct response) are the correct ones to compare. Since there are 3 bytes in Mtch (or 2), the first nibble in RCtrl should be 3 (or 2). All Toyota CAN codes I've seen use RCtrl to examine the 2nd byte so the second nibble in RCtl should be 1 (1 being the second byte and 0 being the first byte), but it could also be 0 or 2.

Because ScanGauge can read the manufacturer code and return the transmission temperature, and since (theoretically, according to UltraGauge) any code that ScanGauge II can read UltraGauge MX can also read with "minor" modifications, then there does exist a code that works.

So the inputs I think that should be tried first for TCtrl = 85 and RCtrl = 31. If this doesn't work, I would try TCtrl = 93, 94, 95, 83, 84, or RCtrl = 30, 32, 20, 21 or any combination of the previous inputs.

I do not have the UG MX, I have the EM plus, so I can’t test these now. I'm sending in my EM plus today to UG to trade it in for the MX, so I should be able to test these out next weekend. Hopefully someone else can try some of these. There can be quite a bit of trial and error involved but I do know it is possible so something has to work.



[borfoo3]

Bumping for updates as I just bought the Ultra Gauge 1.3 MX with Pre-programming Option Toyota Tacoma/Tundra CAN



[zero4]

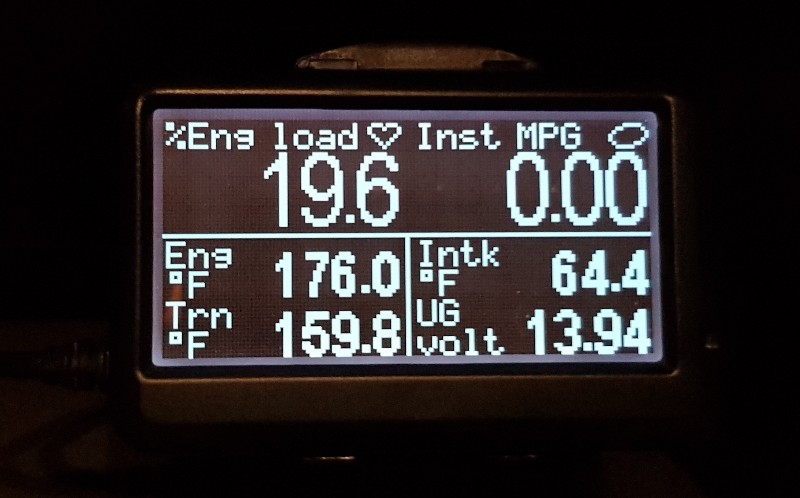

It works! Thanks to GLR on Tacoma World for figuring it out!

The key value to get it working was RCtrl. I never thought to try 00.

TData: 686AF101B40000
TCtrl: 85
RCtrl: 00
RPos: 2808
Mtch: 41B400
X: 0009
/: 0005
+: FFD8
Out Format: 00
Ave: 00
Left/Right: 31



[nevarola]

What year is your vehicle?!!! I think my mind as just been blown if this works out
[/B]QUOTE=zero4;3190721]It works! Thanks to GLR on Tacoma World for figuring out!

The key value to get it working was RCtl. I never thought to try 00.

TData: 686AF101B40000
TCtl: 85
RCtl: 00
RPos: 2808
Mtch: 41B400
X: 0009
/: 0005
+: FFD8
Out Format: 00
Ave: 00
Left/Right: 31[/QUOTE]



[zero4]

What year is your vehicle?!!! I think my mind as just been blown if this works out

I tried every value Team_Jake posted above with no luck & gave up. Figured I'd just try another day. I was so happy to see it posted that I went out right away to try it.

I have a 1st gen Tacoma which is basically the same as 3rd gen T4Rs. My Tacoma is a 2001, 5VZ, A340E trans, no ETCS-i. The person who figured it out has a 2004 Tacoma with ETCS-i.

So should work fine for T4Rs!
