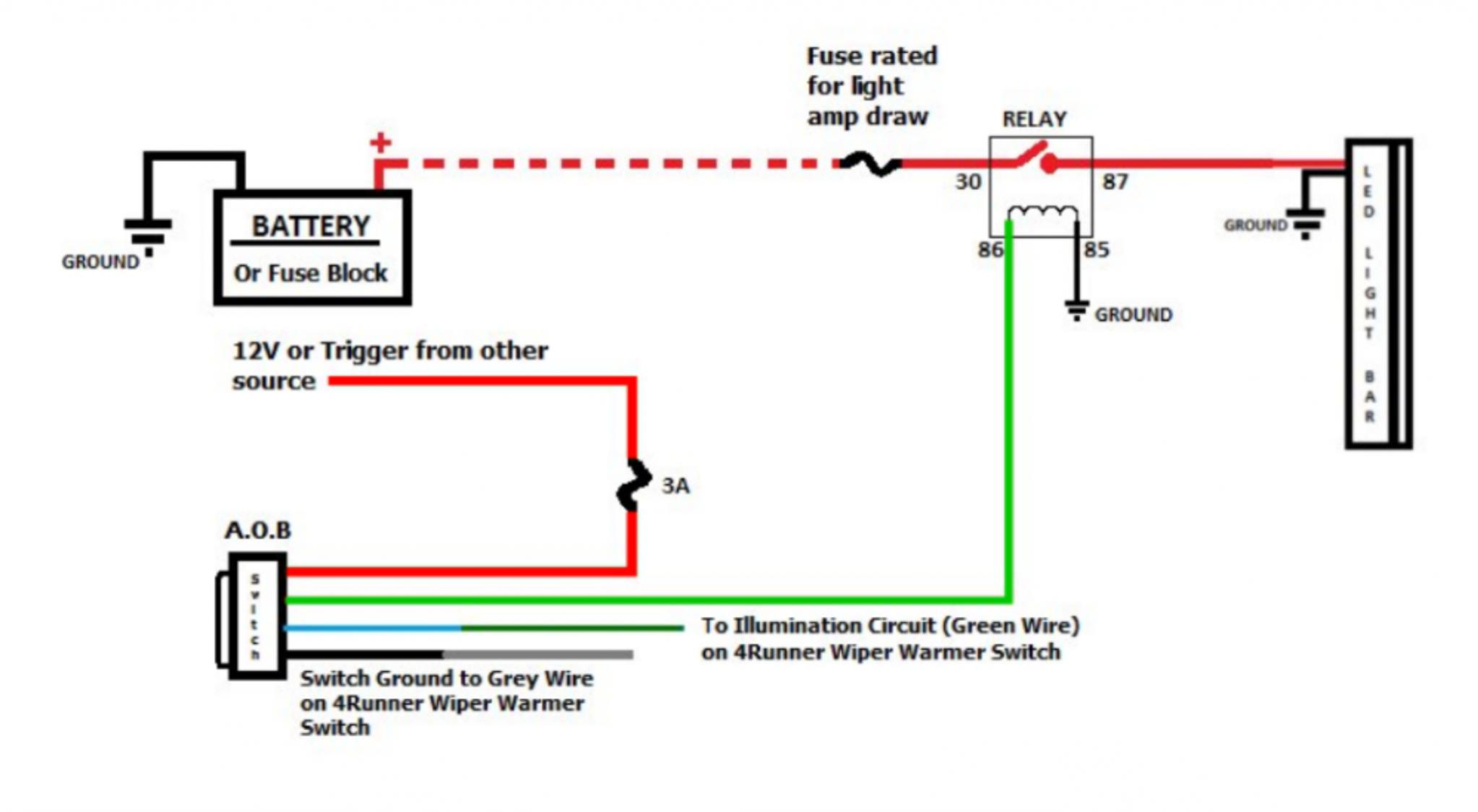

I've been wiring up some switches lately and found lots of good info on these forums. I don't remember who, but someone posted a really easy to read, clear diagram to show the basic schematic for the AOB switches to work with illumination and dimming. This helped me understand what was going on tremendously. AOB has since changed their harness slightly and I updated the schematic to show the switch of red and green wires coming from the switch. I just thought this diagram was easy to read so putting it back out there for others. Thanks to whoever originally created it.
