Can you identify this unplugged part?

C

c2one

New member
I have a '13 T4R and was installing an AFE CAI and noticed that something was unplugged.

Can you tell me if this is supposed to be like this or am I missing something. What is supposed to be plugged in here? Just bought the vehicle 3 days ago.

Any information would be appreciated. Thanks!!

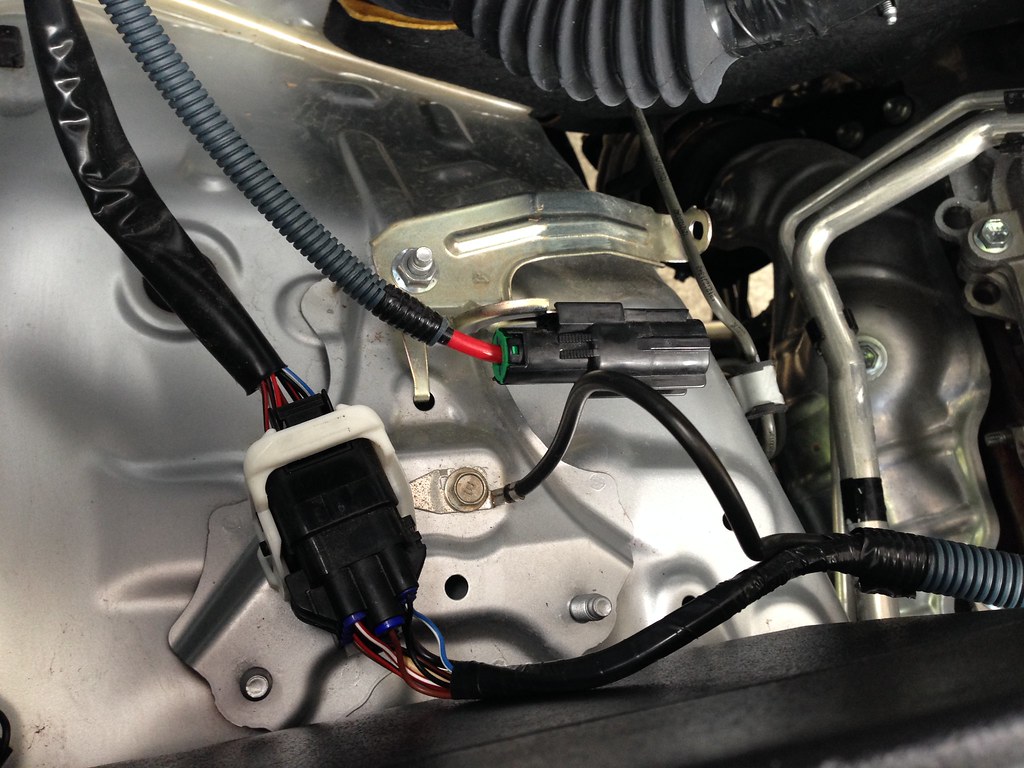

This is the area right behind the air intake. (back left corner if you are standing in front of the vehicle)

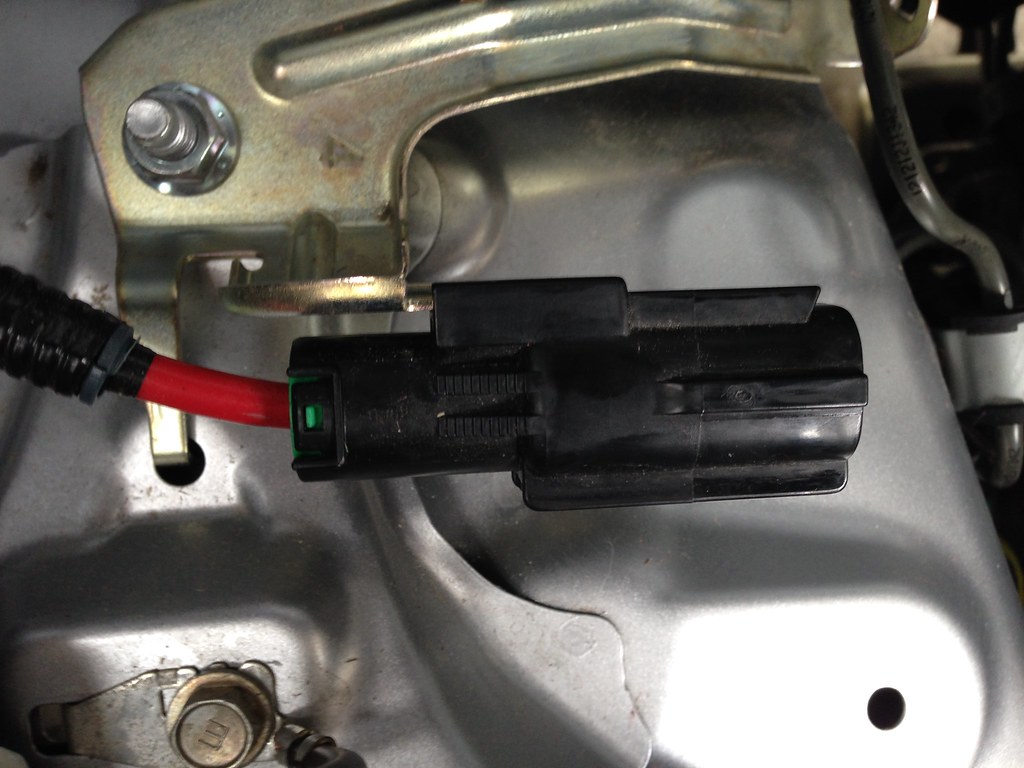

close-up (I know I never unplugged anything from here)


Note: I tried searching for this but I am not sure if I am using the right words in my search.

Register to hide this ad
phx said:
This looks like the connection to the MAF sensor. If you look at your old stock intake, in the middle of the pipe, there should be a connection for this. You will need to remove it and attach it to your new AFE intake.

On page 14 and 15 - http://www.vividracing.com/catalog/productdocs/AFE_54-81932.pdf
Click to expand...

This can't be correct, only 1 red wire...

c2one said:
I have a '13 T4R and was installing an AFE CAI and noticed that something was unplugged.

Can you tell me if this is supposed to be like this or am I missing something. What is supposed to be plugged in here? Just bought the vehicle 3 days ago.

Any information would be appreciated. Thanks!!

This is the area right behind the air intake. (back left corner if you are standing in front of the vehicle)


close-up (I know I never unplugged anything from here)
Click to expand...

I'm 99% sure this is plug RA1 which is the power source for the factory 400W Inverter. Best i can figure using the diagrams available- BUT the plug color, wire color, and general location are a very good match.

[MENTION=98089]c2one[/MENTION] I assume you don't have a factory inverter, correct?

[MENTION=84192]phx[/MENTION] My MAF sensor on the AFE is all connected. Already got that up and running, sounds good too. I appreciate the feedback.
[MENTION=65614]Antman[/MENTION] I am still getting to know my 4R, if the factory inverter is located in the center arm rest... then no, I do not have it.


Thanks [MENTION=88447]kenski[/MENTION] and [MENTION=65614]Antman[/MENTION] for clueing me in as to what this is!! Don't have a use for an inverter currently but good to know I have options.

TOY2G said:
It is the power wire for the inverter. I have the same wire, and no inverter on my 13.
Click to expand...

Indeed it is. When I was dynamatting, I found the other end comes up through the floor behind the passenger side rear tire - it feeds the DC>AC inverter mounted on the passenger side rear wheel-well...

:cool:

That was my thread and as [MENTION=65614]Antman[/MENTION] stated it is for the inverter.


kenski said:
I think that plug is the 2nd picture in this post:
http://www.toyota-4runner.org/5th-g...ed-but-couldnt-find-answer-identify-item.html
Looks like someone was able to identify it in post #9, #10. Can't blame you for not being able to find that in a search. I knew exactly what I was looking for and had a hard time pulling it up.


These snozzberries taste like snozzberries.
Click to expand...

Antman said:
This can't be correct, only 1 red wire...



I'm 99% sure this is plug RA1 which is the power source for the factory 400W Inverter. Best i can figure using the diagrams available- BUT the plug color, wire color, and general location are a very good match.

[MENTION=98089]c2one[/MENTION] I assume you don't have a factory inverter, correct?
Click to expand...
