Elocker Actuator Adapter Plate

[96TrailSurfer]

*grumble* *grumble* the aluminum adapter plate by which the actuator mounts on the differential has disintegrated. As far as I can see, there should be nothing preventing me from having a machine shop make a new adapter plate from aluminum or other material - all I need is CAD drawing.

Before I start measuring the remnants of my adapter plate and the mounting surface with a compass, does anyone have a detailed drawing with dimensions, or even better a DWG file, of the plate?

I've seen references to a DWG file in threads, but haven't found an actual file or a detailed drawing



[JohnMc]

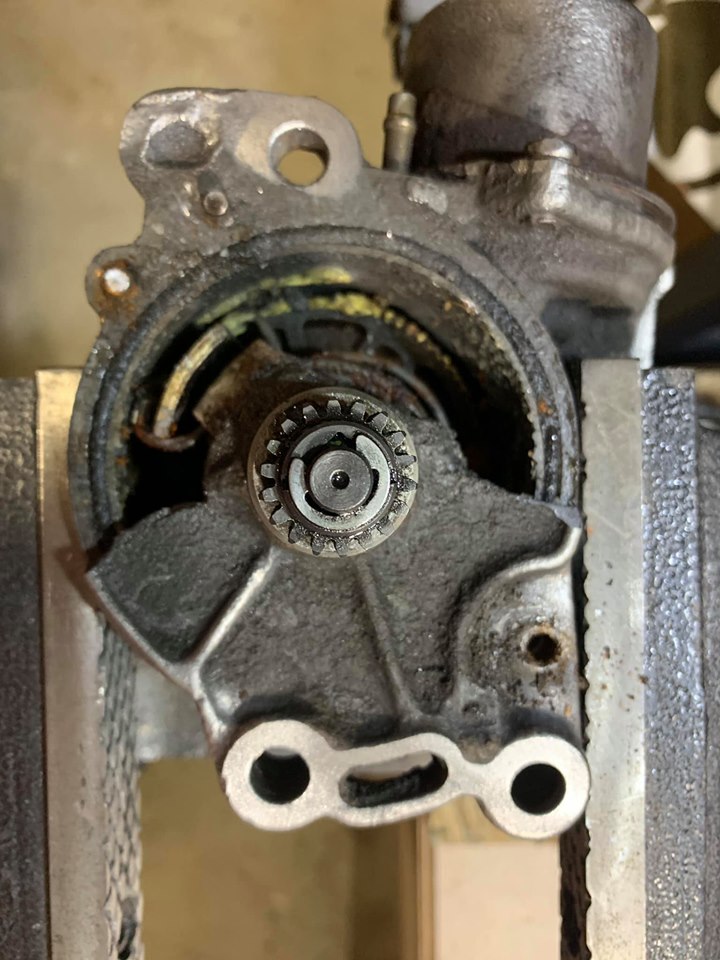

Mine's partially cracked, epoxied, and carefully bolted back onto the axle. I thought I was being extra careful removing it too.
