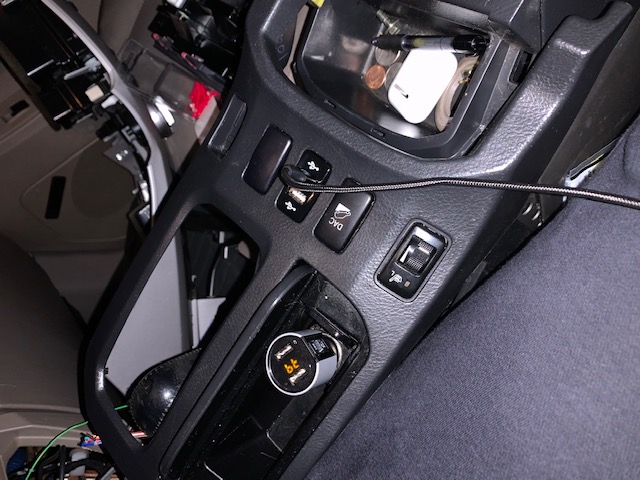

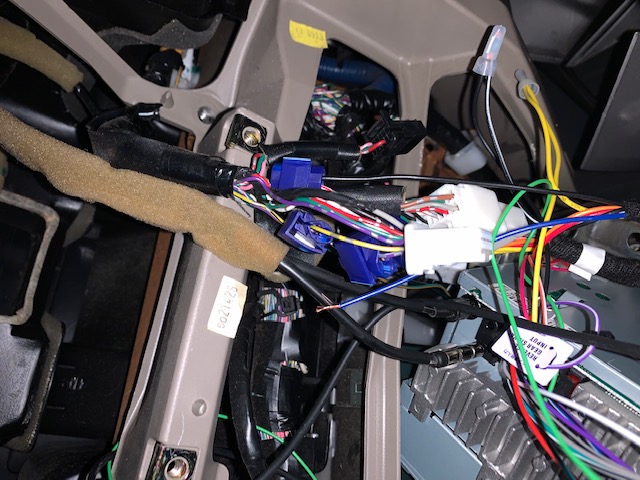

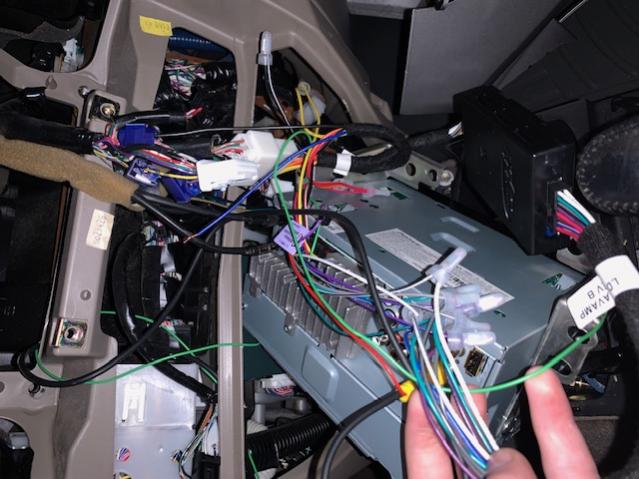

So I’ve followed all the guides on not only YOUTUBE and on here but I’m still struggling with this radio. I’ve included the pictures of the wires and connections but I’ve got no power or really anything. Does anyone have any ideas? Am I splicing wrong or something? Because this usb connector isn’t not working as well and it’s only a ground and power connections so any help would be great
Pioneer radio install help
- Thread starter BigMike18
- Start date
Register to hide this ad
I have no power the radio isnt turning on or the usb plug which suspect im using the scotchlok splicers wrong but I could be wrong. Im using Tyto-01 from Axxess and then ASWC 1 for steering wheel controls and the pioneer harness. Im using this guy's guide and it worked for him and I do indeed have the JBL Audio in my Limited 05
Parts for Head Unit Installation
Bumbo
New member
I don’t have anything to add other than I do a ton of electrical and I can’t stand those scotchlok splicers… they are often time times the root cause for poor/intermittent electrical connections.
If you are going to use them, make sure there is continuity though the insulator using a DMM.
If you are going to use them, make sure there is continuity though the insulator using a DMM.
evan1242
New member
simple
Senior Member

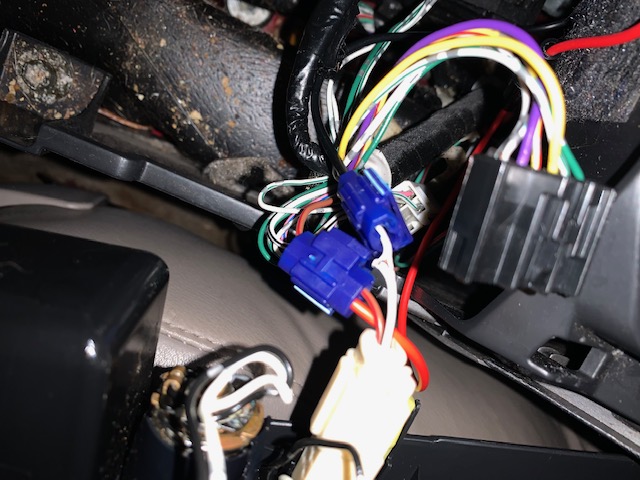

Those connector things do look like you may have a problem. In the bottom pic, that yellow wire connector doesn’t look like the blade is seated all the way down. Personally I use posi-lock and posi-taps, but they’re admittedly really expensive. But I’ve used those ‘scothlock’ connectors on other projects too with little issue. My recommendation is to start with all of those and confirm the blade is seated all the way. I’ve had to use pliers to secure them all the way down. Also, it’s been awhile since I’ve done my radio install, but I believe on the main connector, the red and/or yellow wire is the power wire. Obviously, black is ground. So I’d start by trouble shooting those. I remember I had illumination problems and reception problems and that was orange and blue wires respectively. So check all your red/yellow/black wire connections first.
I just installed an android unit in my 2007 4runner.
The wiring was a pain. I followed the directions from Crutchfield but it wouldn't power on. So I found a thread from J.A. (on here) and i cut the yellow wire and soldered it to the red wire. Now it powers up and no issues - other than i guess it won't hold a memory anymore as it's only powered by ignition.
The wiring was a pain. I followed the directions from Crutchfield but it wouldn't power on. So I found a thread from J.A. (on here) and i cut the yellow wire and soldered it to the red wire. Now it powers up and no issues - other than i guess it won't hold a memory anymore as it's only powered by ignition.
