WAMPA Jr. Build

JSparky

New member
I just presented my MPH Capstone and have some time off so figured I'd start a dedicated thread for my 2016 Limited. Been a member here since 2013, started off with a 13' Trail Edition which I ended up selling to my old man when he retired to Todos Santos, Baja Sur. It's serving him well down there. Owned a 2007 Rubicon before my first 4Runner and cycled through a 2016 Tacoma TRD Off Road before coming back to the 4Runner. In the interim I purchased a 97 FZJ80 (WAMPA Senior) to build up as a trail rig, which ended up serving me as a daily driver while finishing up my grad program at Cal due to all the crazy drivers and crime up here.

I've discussed my reasons for getting into/out-of the Taco before. Long story short the new Tacoma is a stout rig, I beat the heck out of mine in the Maze District of Canyonlands but realized after a week in the truck with my brother as navigator that the cabin was just too small for us. I also didn't have a specific need for the bed other than carrying camping gear which the 4Runner is more than capable of doing. Overall fit and finish on the 4Runner is significantly better.. they may seem similar enough at first (they did to me) but after some serious seat-time the little differences began to add-up.

Needless to say I'm thrilled to have been able to get back into a 5th gen, perfect combination of comfort and utilitarianism. I went with the Limited this time around for my personal preference for a full-time 4wd transfer case, factory leather, and no kdss. I belong to the camp that believes that kdss is fantastic for non or mildly lifted applications, but knowing what I was going to be using this truck for I wanted to maximize front differential ground clearance and maintain the potential for long-travel in the future.

I've got a list of thank-you's to specific forum members that I'll post later, I need to figure out how to link them in posts first. It's an ongoing joke with my family and friends that whenever I do mods "easily" or "within a day" that I did it in a few hours plus a few years (of trial and error/learning experiences). It's my hope that others can learn from some of the experiences I've been through and perhaps find influence for their own rigs. I've got a series of postdated photos that I'll throw up shortly.


for all those Star Wars fans... WAMPA!!!


Attachments

  • Wampa-in-Empire-Strikes-Back.jpg
    65.1 KB · Views: 3,216
Last edited:
Register to hide this ad

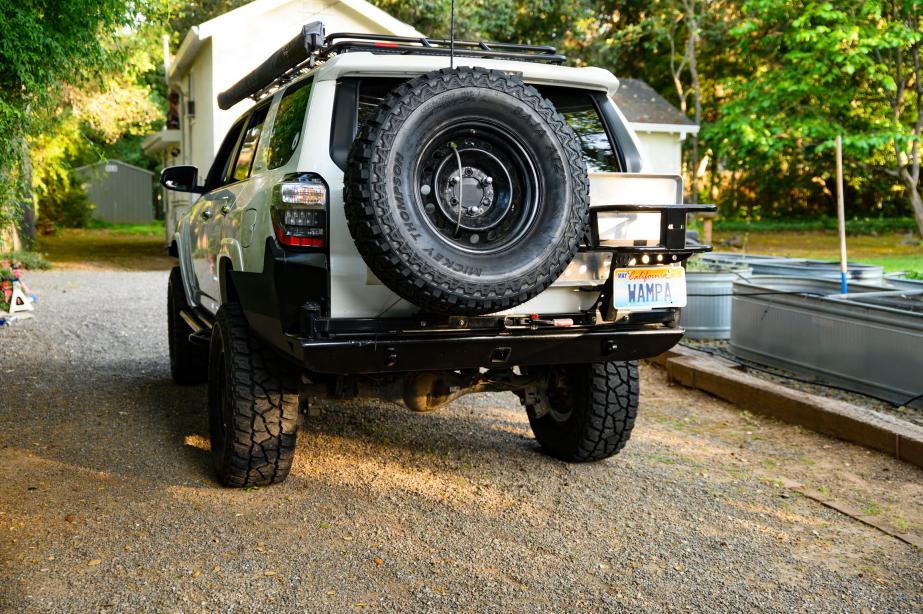

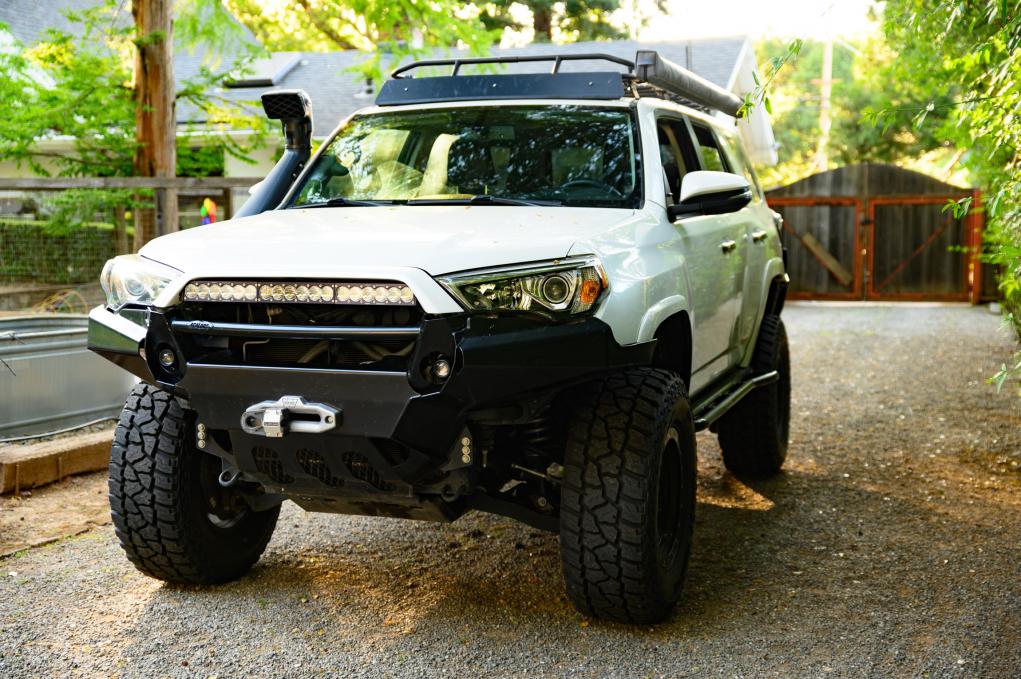

Suspension:

Radflo 2.5 Front, 700lb springs
ADS Rear, extended travel
Dobinsons C59-749V Rear Coils
Total Chaos UCA
Sonoran Steel Track Bar
Eimkeith PCK
CaliFab Offset Rear Links
All Pro Extended Brake Hoses
Toytec 2" rear bump stop extension

Armor:

4x4Labs Front Bumper
4x4Labs Rear Bumper
4x4Labs Sliders
RCI Full Skids, aluminum
FJ Toyman Rear Shock Skids

Other Installed Electronics / Hardware:

South Bay Driveline Double Cardan Rear Driveshaft
SCS Ray 10 Wheels
Bora 1.25" Wheel Spacers
315/70/R17 Mickey Thompson ATX P3
Shrockworks Dual Battery, Secondary Air Pump and Washer Reservoir Relocation
Blue Sea ACR Battery Relay
Batteries Plus X2 Power AGM Battery
ComeUp Seal 2.0 9.5k Winch
ARB Safari Snorkel
Baja Designs OnX6 30"
TRS Morimoto HID Headlight bulbs
Hella Micro DE Fog lights with TRS Morimoto Retrofit
Gobi Stealth Rack
Rear diff breather extension

Accessories:

ARB 2500 Awning
ARB Refrigerator
ARB Refrigerator Extended Slider
6 Button Switch Panel
Tepui Kukenam Sky


Attachments

  • 20200501-DSC_3113.jpg
    143.8 KB · Views: 1,214
  • 20200501-DSC_3114.jpg
    146.6 KB · Views: 1,193
  • 20191026-_DSC7443-2.jpg
    138.4 KB · Views: 1,222
  • 20191026-_DSC7429.jpg
    136.4 KB · Views: 1,178
Last edited:
August 2018:


Attachments

  • Screen Shot 2018-08-20 at 5.20.03 PM.jpg
    Screen Shot 2018-08-20 at 5.20.03 PM.jpg
    137.1 KB · Views: 2,586
  • Screen Shot 2018-08-20 at 1.20.48 AM.jpg
    Screen Shot 2018-08-20 at 1.20.48 AM.jpg
    135.8 KB · Views: 2,618
  • Screen Shot 2018-08-20 at 1.22.16 AM.jpg
    Screen Shot 2018-08-20 at 1.22.16 AM.jpg
    113.3 KB · Views: 2,574
Last edited:

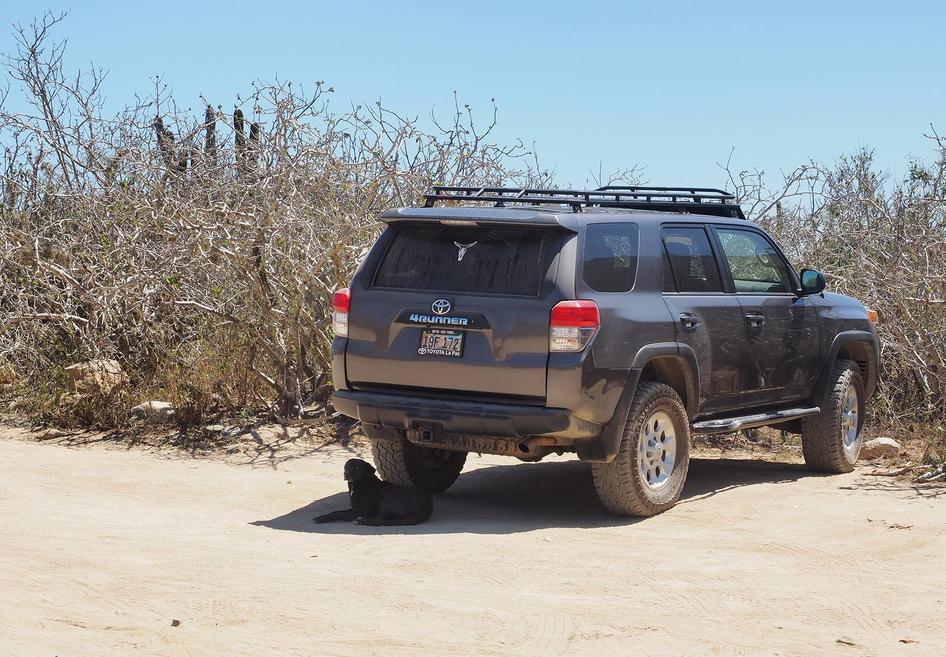

Here's my old 4Runner, keeping dogs cool in Todos Santos apparently.


Attachments

  • 17493032_10212551554368575_3107452320069446725_o.jpg
    136.4 KB · Views: 4,056

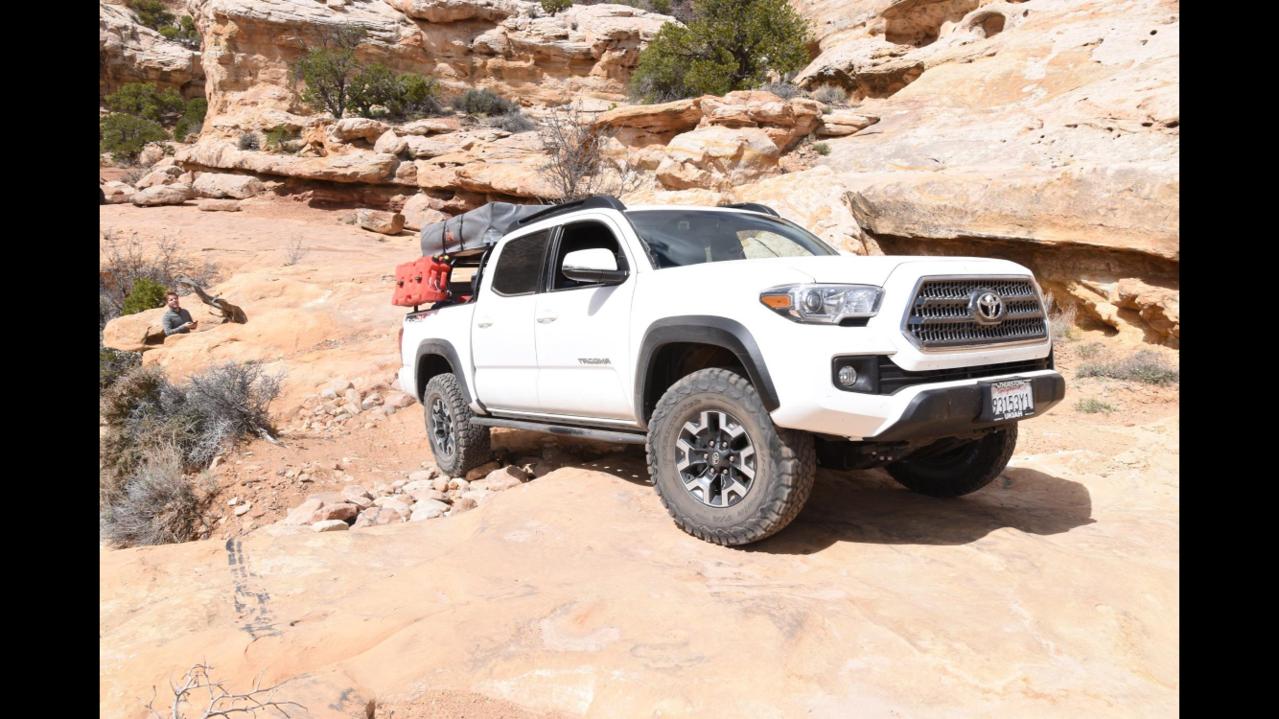

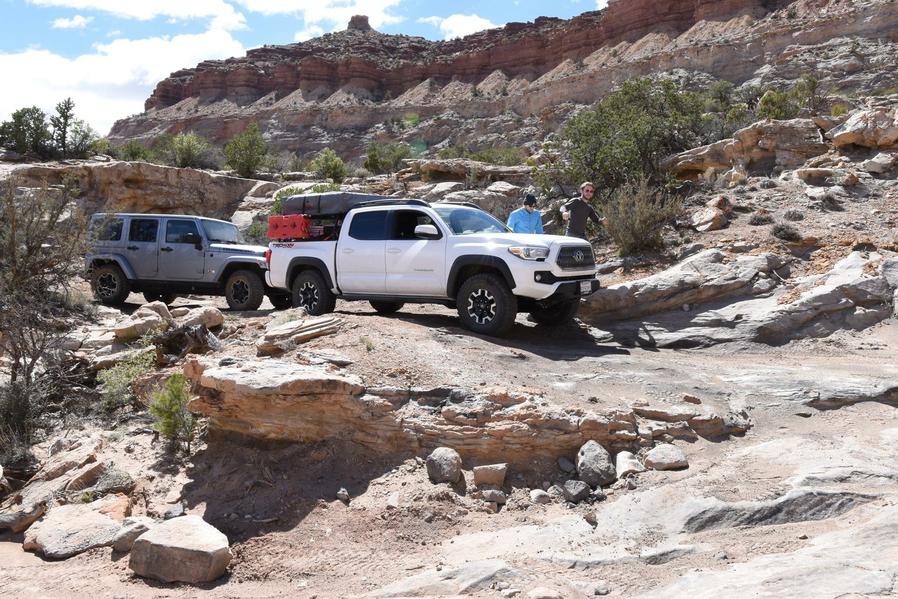

3rd gen Tacoma I owned for a few months, sold it back to the dealer for less than 1k than I paid for it. Great truck but didn't fit my needs. Some dudes on the Tacomaworld forum and craigslist got a great deal on the AllPro sliders, bedrack, and KO2 tires I had bought for it already.


Attachments

  • IMG_5914.jpg
    142.5 KB · Views: 4,120
  • IMG_0937.jpg
    138.5 KB · Views: 4,064
  • TAS_7102.jpg
    131.5 KB · Views: 4,245

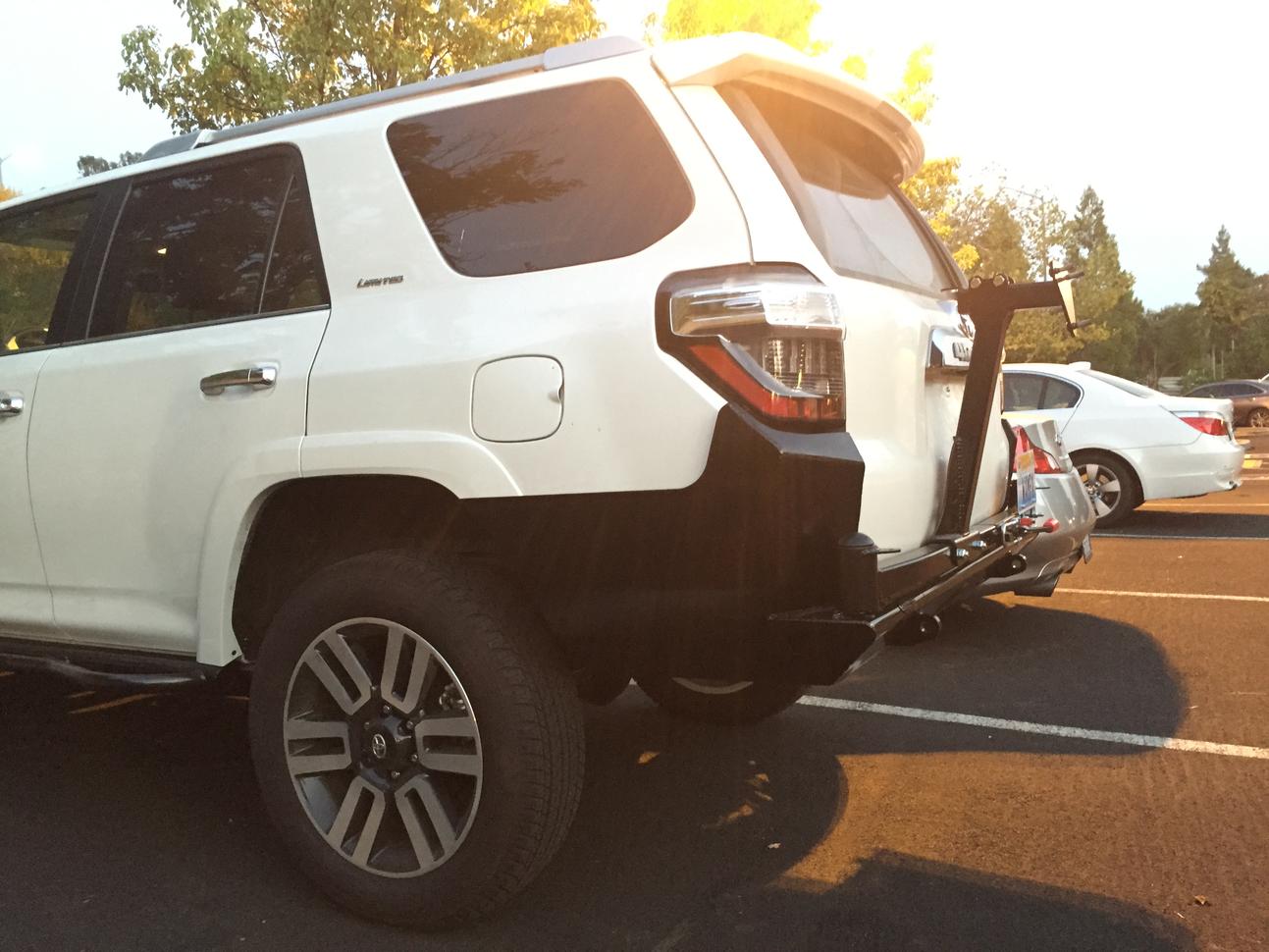

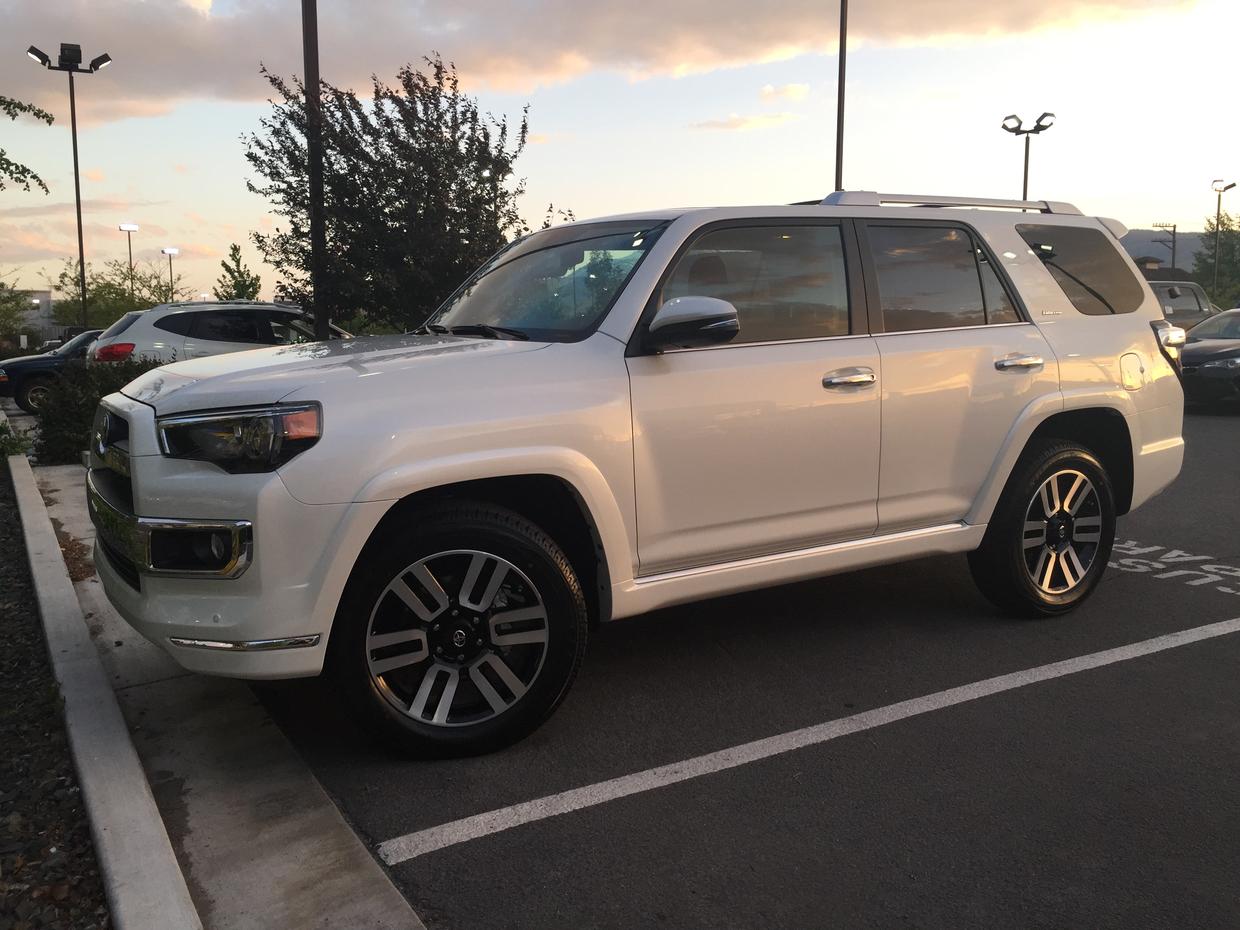

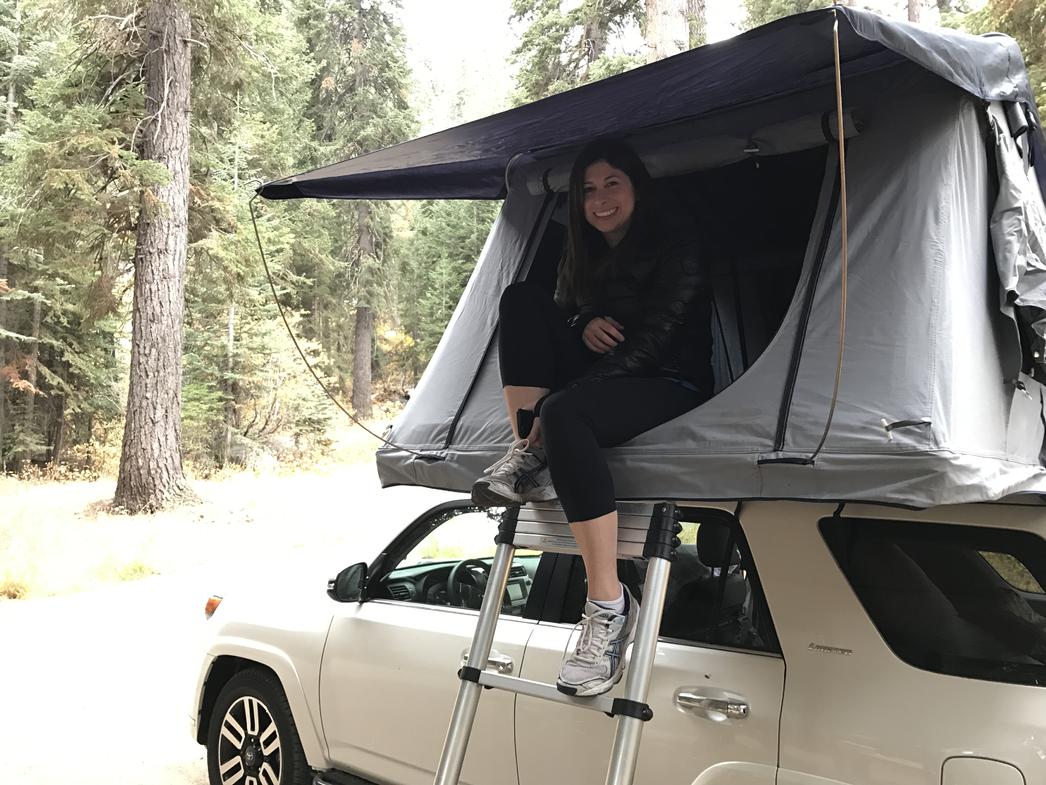

Current 4Runner when I took it home, plus a few shots after getting back from 4x4Labs for a rear bumper and sliders, maiden voyage out to Sequoia National Park, and my pup Jasper keeping guard while I do some work around the yard.


Attachments

  • IMG_4941.jpg
    131.9 KB · Views: 4,067
  • IMG_6346.jpg
    129 KB · Views: 4,118
  • IMG_0531.jpg
    139.9 KB · Views: 4,081
  • IMG_0580.jpg
    137.2 KB · Views: 4,063
  • IMG_2033.jpg
    128.8 KB · Views: 4,086

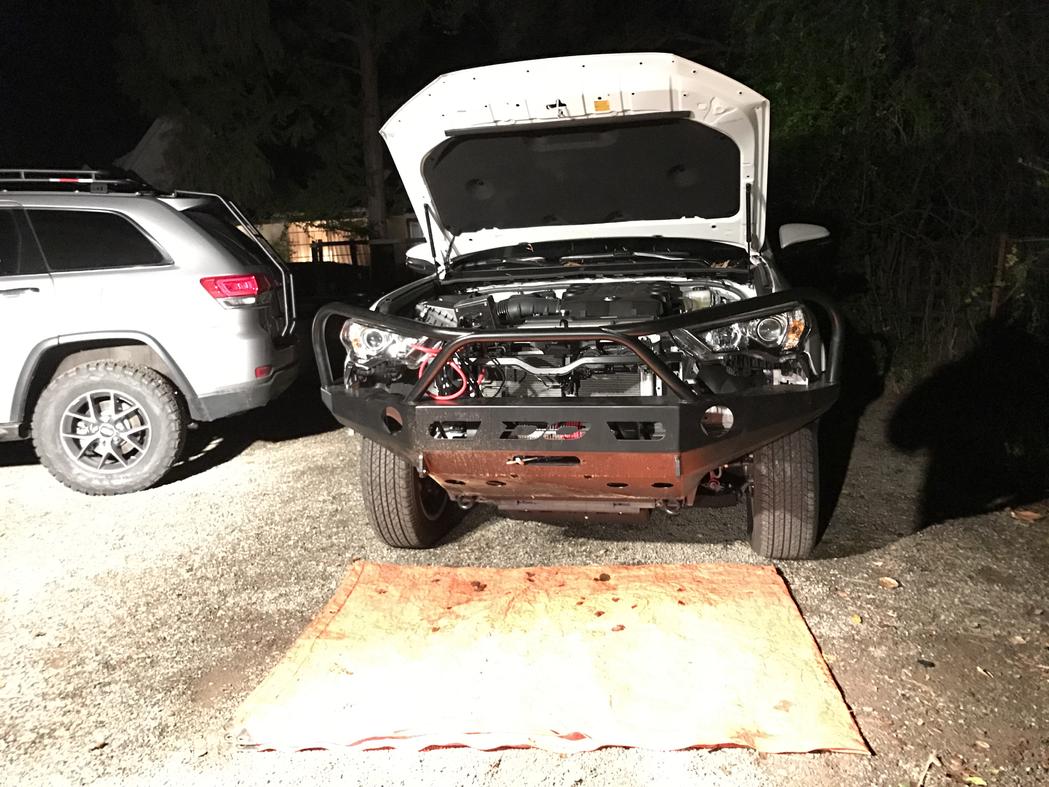

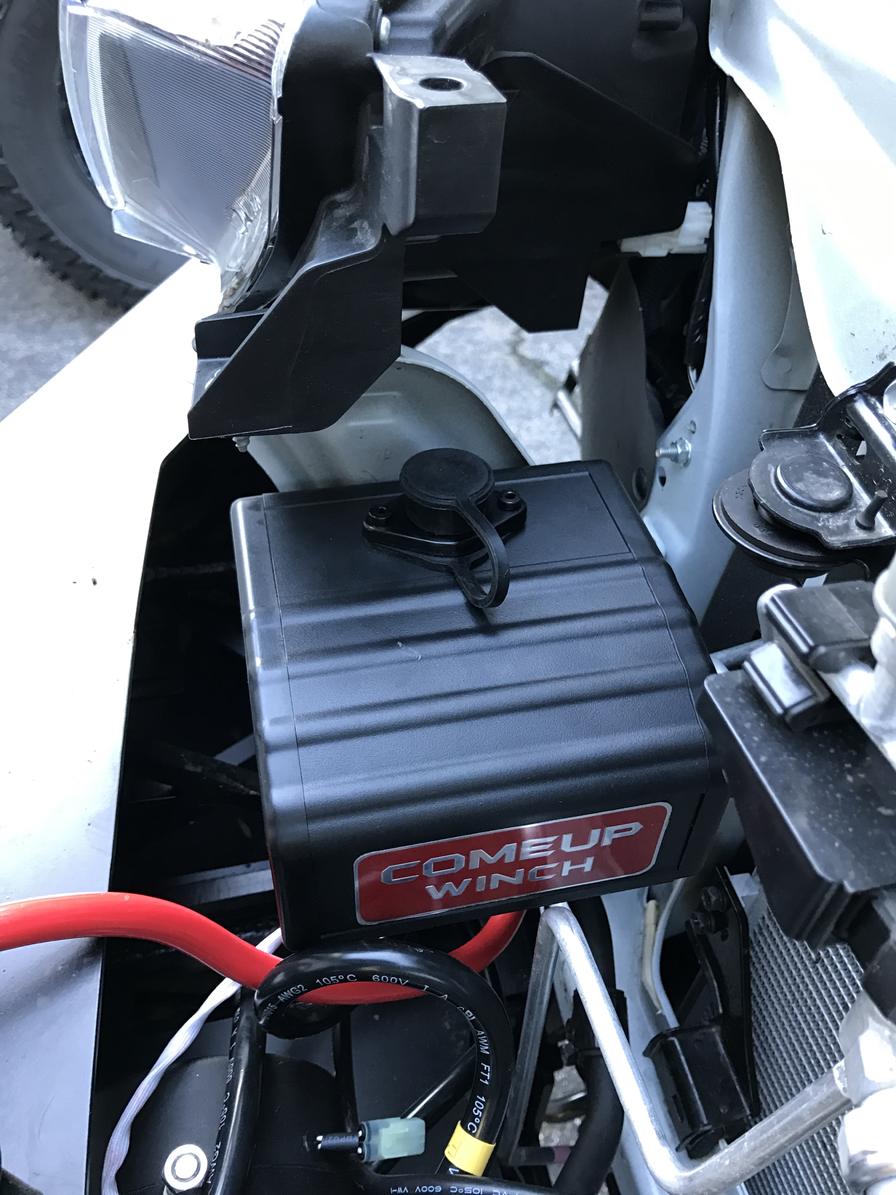

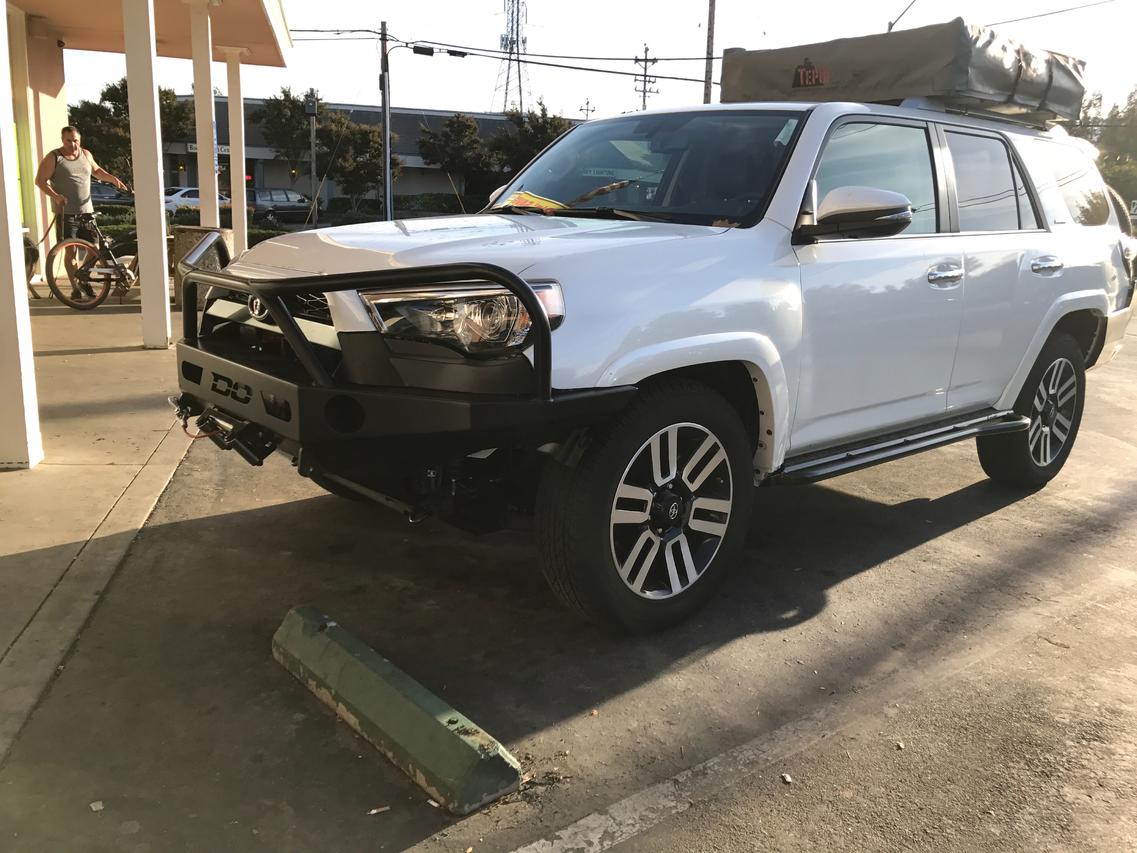

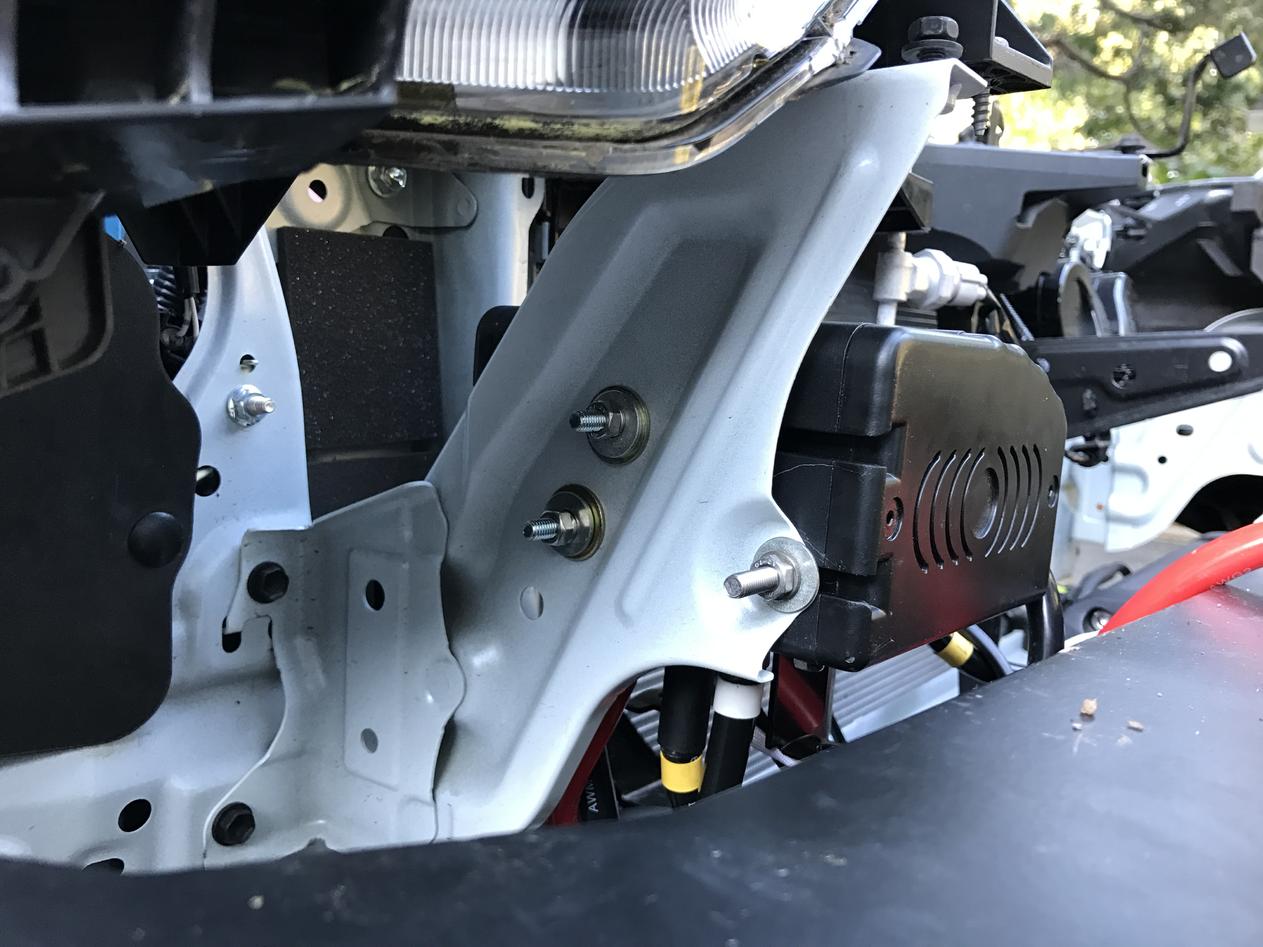

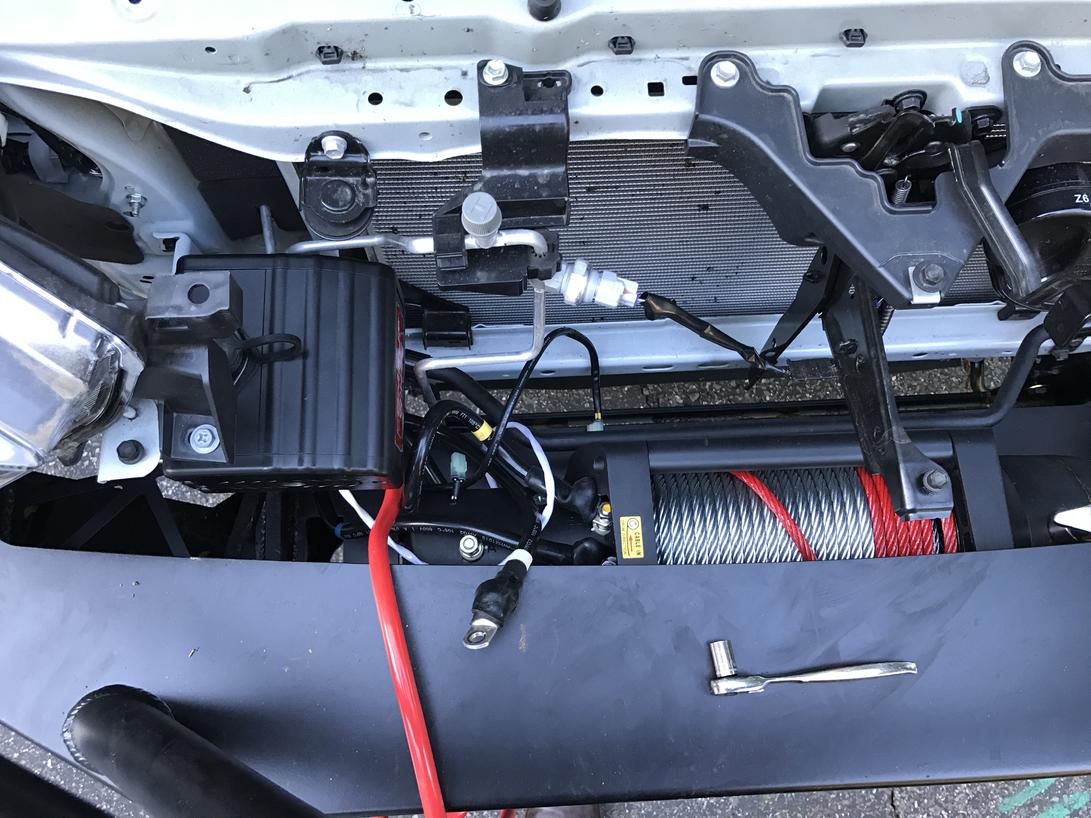

Demello front bumper and winch install. The control pack for the ComeUp Seal Gen2 9.5 winch has dovetails that line up really well with a factory inner-bumper support/upright as seen in the photos. No drilling required, just a trip to the hardware store to get the proper bits.


Attachments

  • IMG_0769.jpg
    137.5 KB · Views: 4,019
  • IMG_0777.jpg
    125.5 KB · Views: 4,064
  • IMG_0778.jpg
    136.1 KB · Views: 4,025
  • IMG_0779.jpg
    128.9 KB · Views: 4,032
  • IMG_0866.jpg
    133.9 KB · Views: 3,975
Last edited:

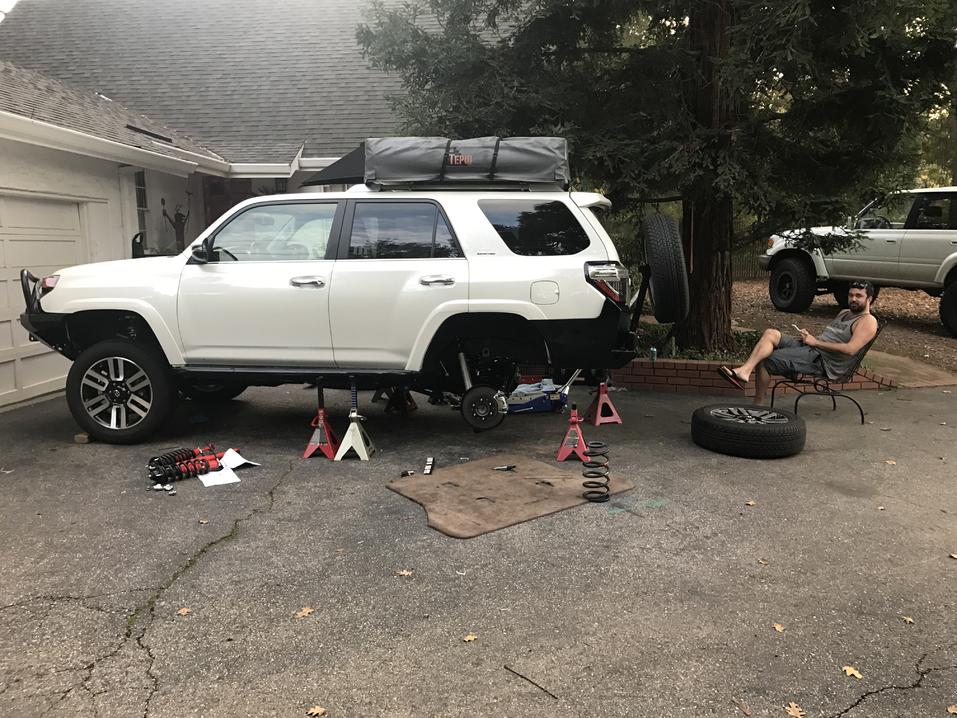

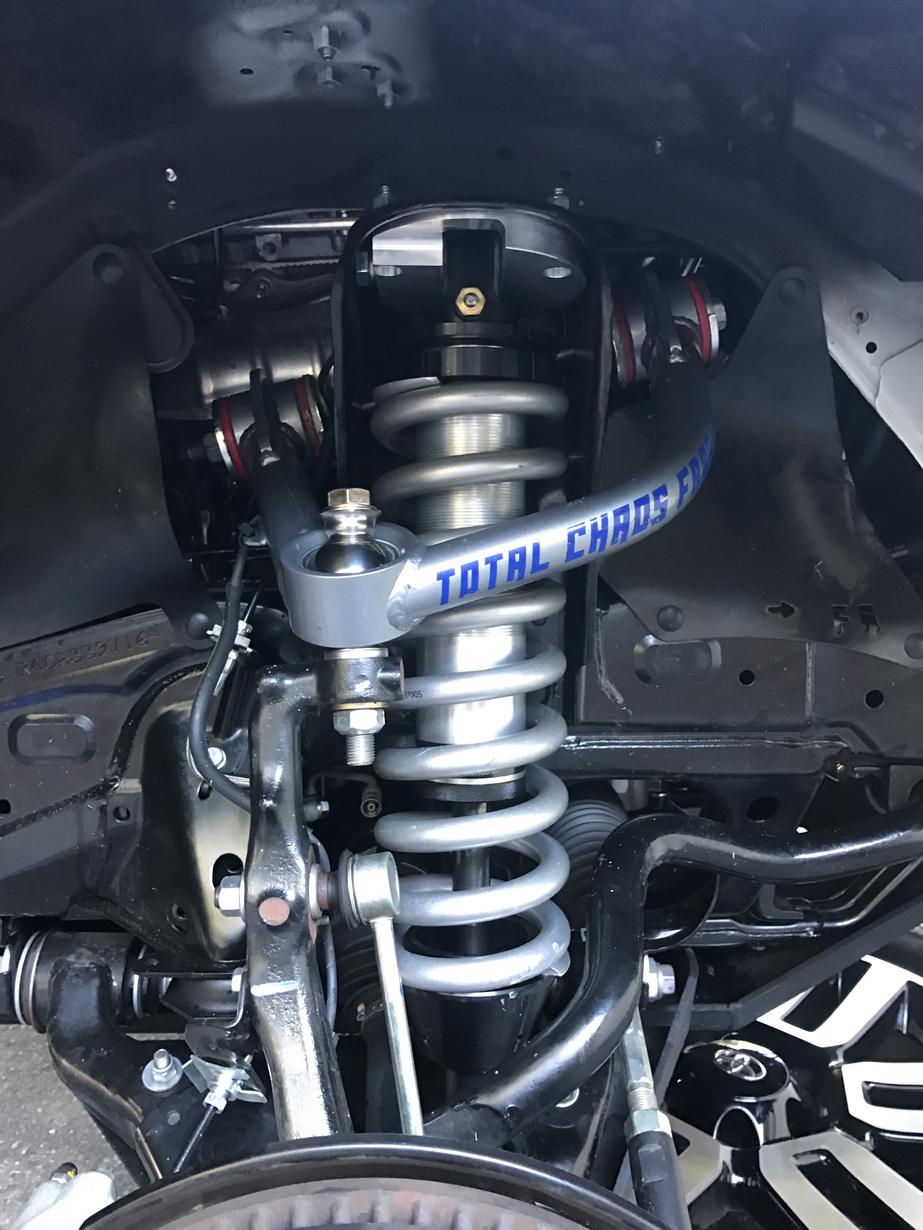

Suspension install. Radflo 2.5" coilovers with 700lbs springs, AllPro 3.5" rear coils which will be swapped out later for increased load capacity. Running Radflo 2.5" rear shocks as well. Also installed AllPro stainless steel braided extended hoses front and rear. Needed them in the rear for this lift height, front was optional but figured do it once and cry once and it sets me up for long travel later on.


Attachments

  • IMG_1024.jpg
    138.7 KB · Views: 4,029
  • IMG_1265.jpg
    126.6 KB · Views: 4,041
  • IMG_1020.jpg
    135.2 KB · Views: 3,936

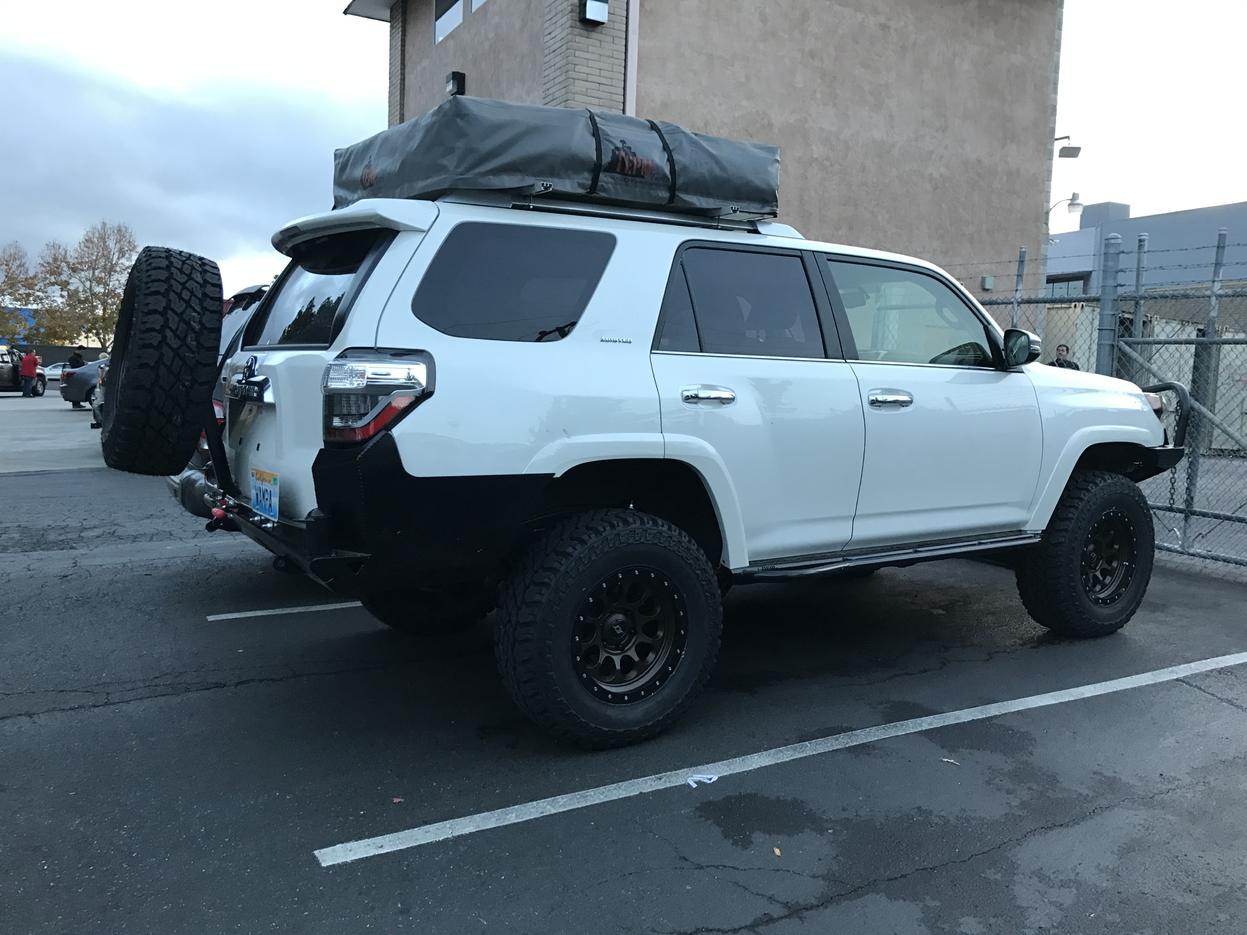

Mounted SCS Ray10 wheels and Cooper StMaxx 285/70R17 tires. Spare wheel is an FJ Cruiser take-off.


Attachments

  • IMG_1829.jpg
    130.4 KB · Views: 4,048
With all the added weight the AllPro 3.5" rear coils were having trouble keeping up. I knew this going into it but it was the best option at the time. My buddy with a GX470 runs OME medium rear coils and I was unsatisfied with the harshness of his ride when unloaded.. granted he doesn't sag when loaded down for trips. I'm currently on a quest for a goldilocks coil.

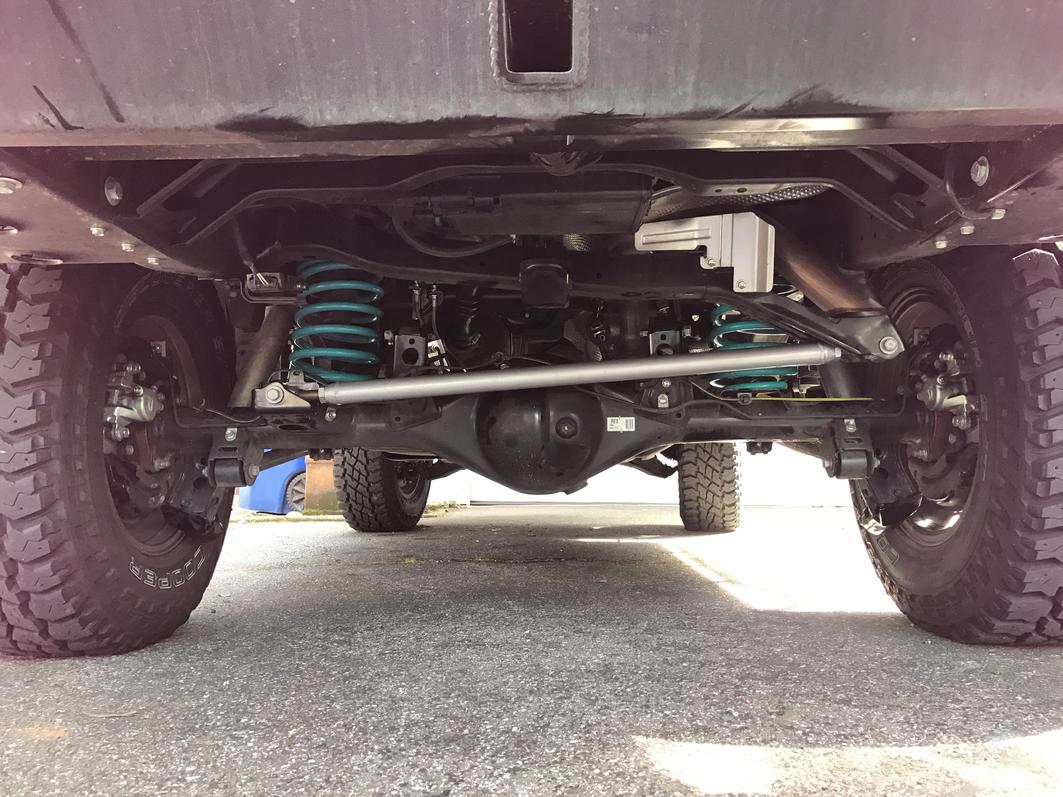

Installed Dobinsons progressive 400+lb rear coils to give them a shot, plus a Sonoran Steel track bar while I was at it.


Attachments

  • IMG_3987.jpg
    136.8 KB · Views: 3,972

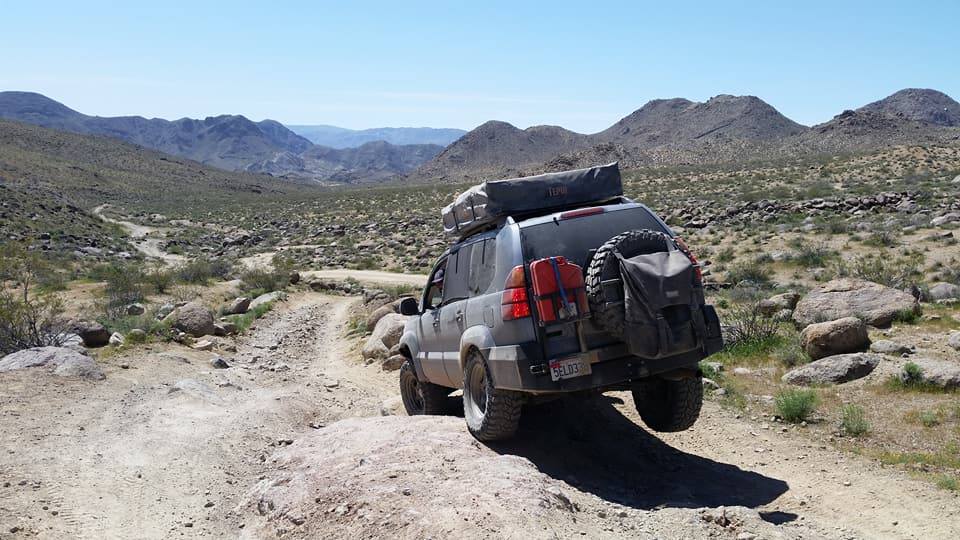

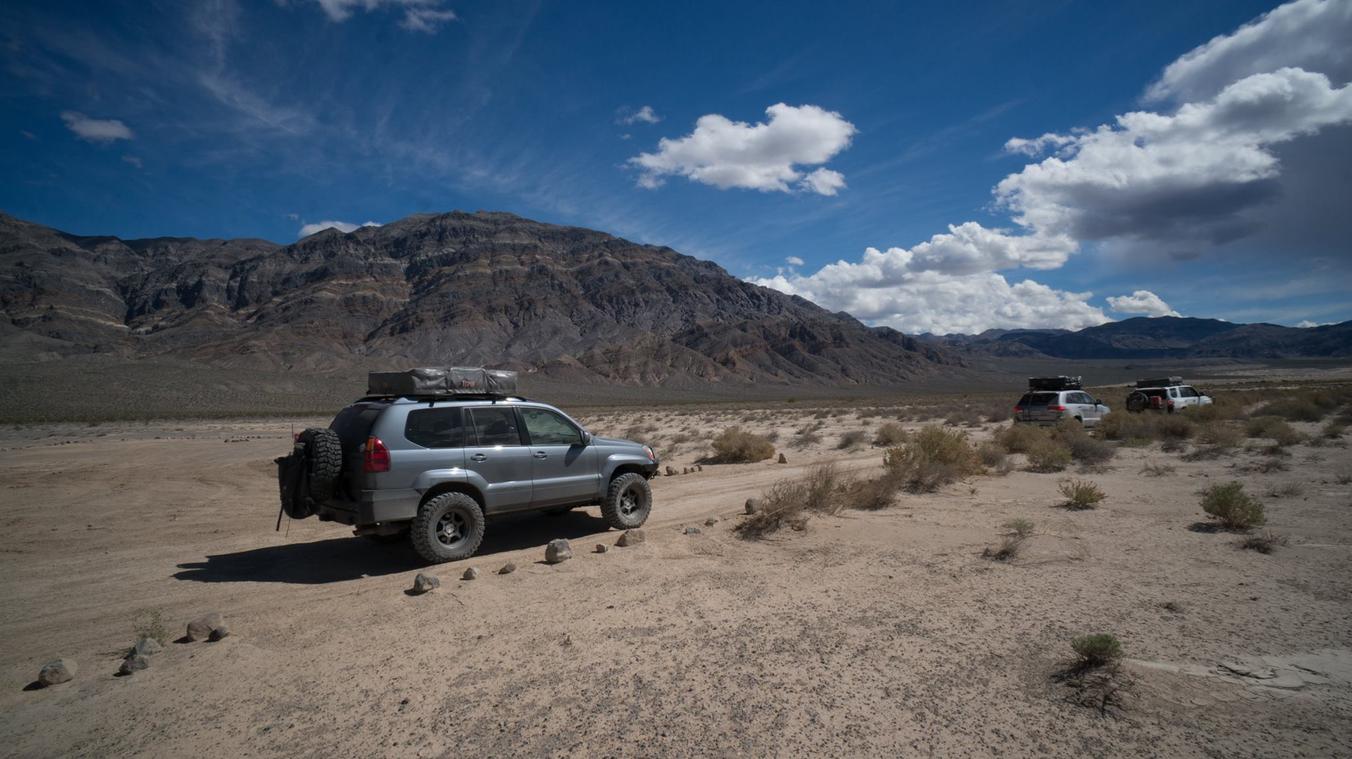

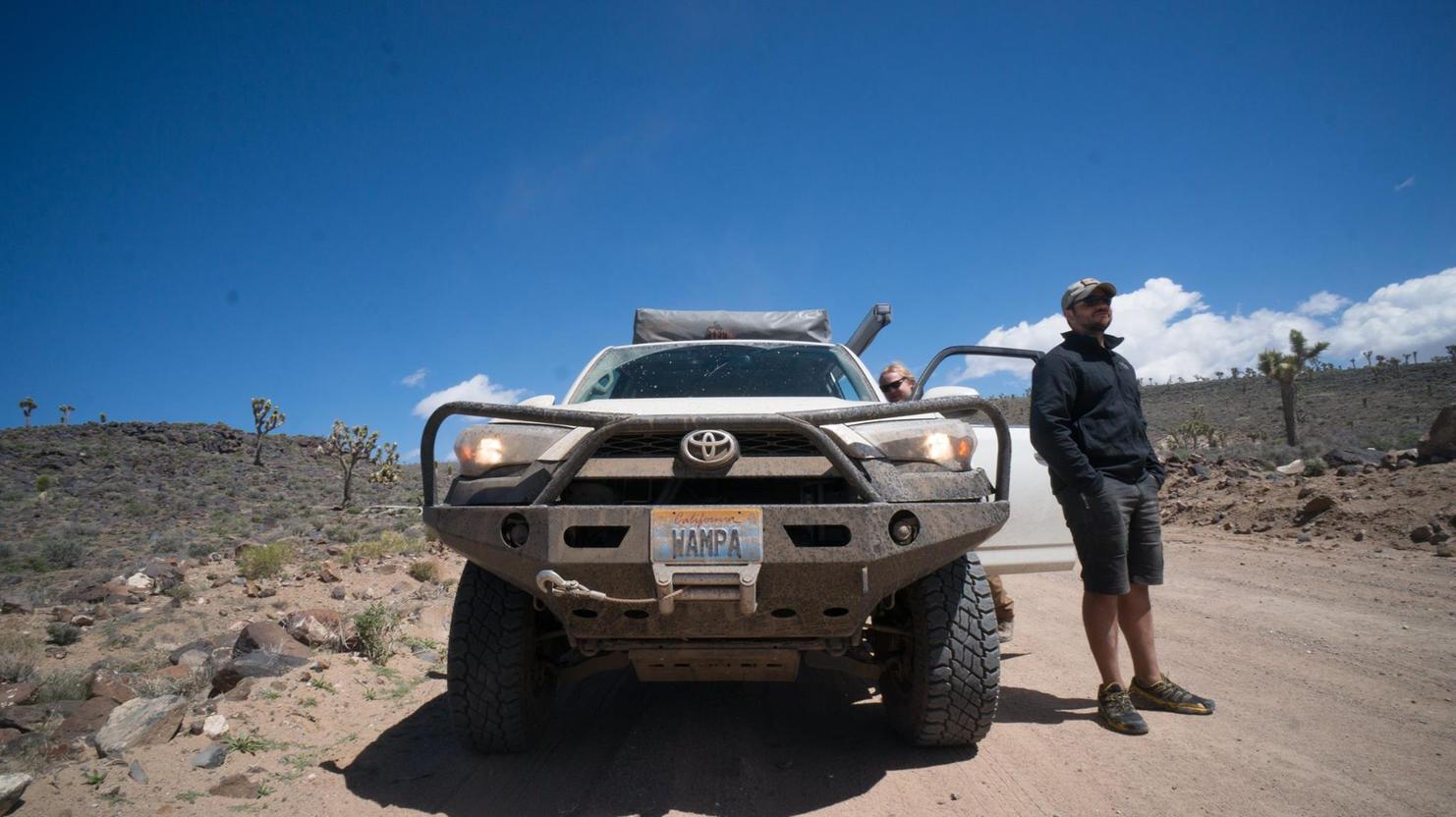

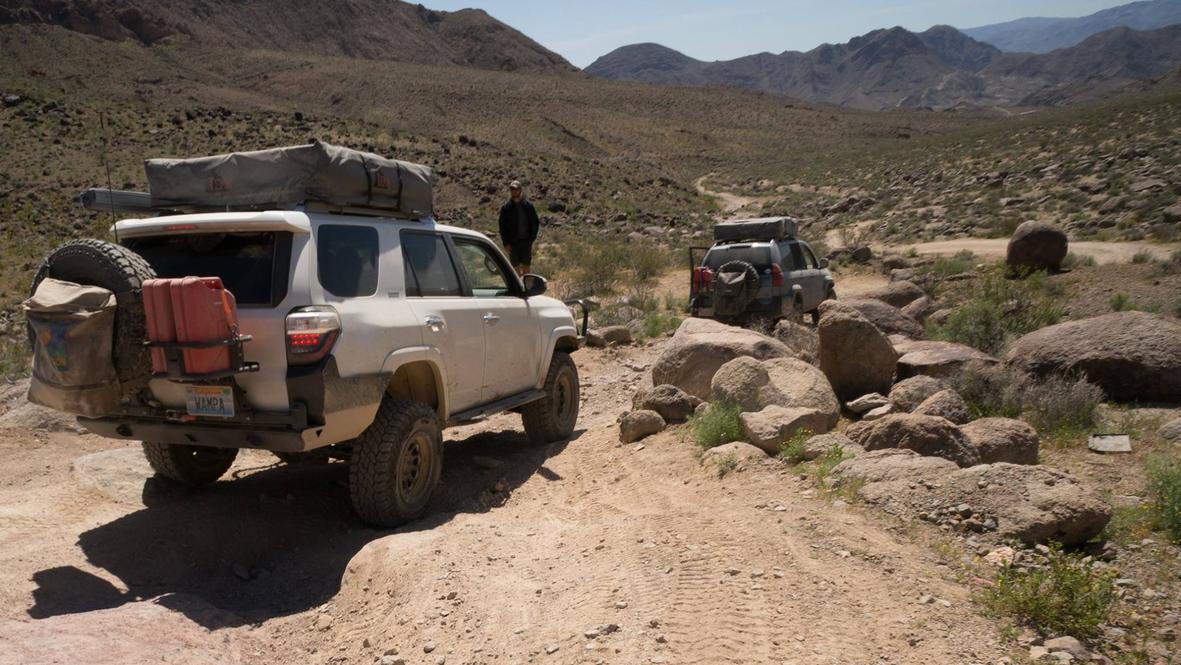

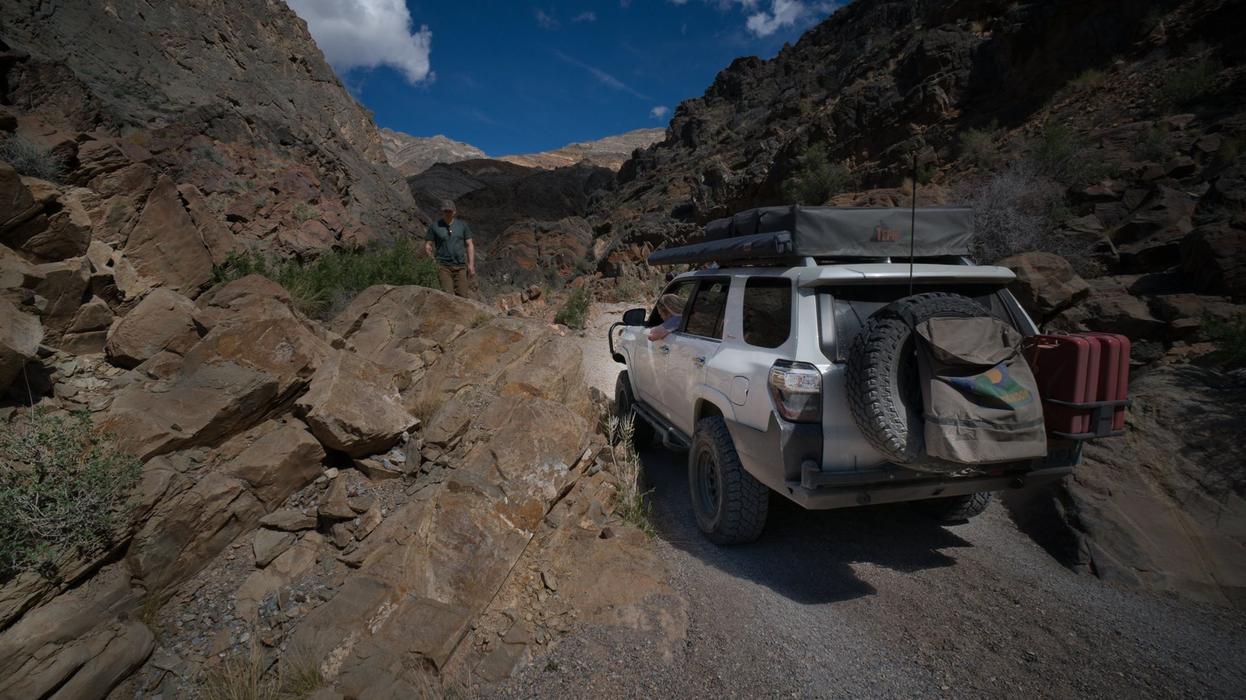

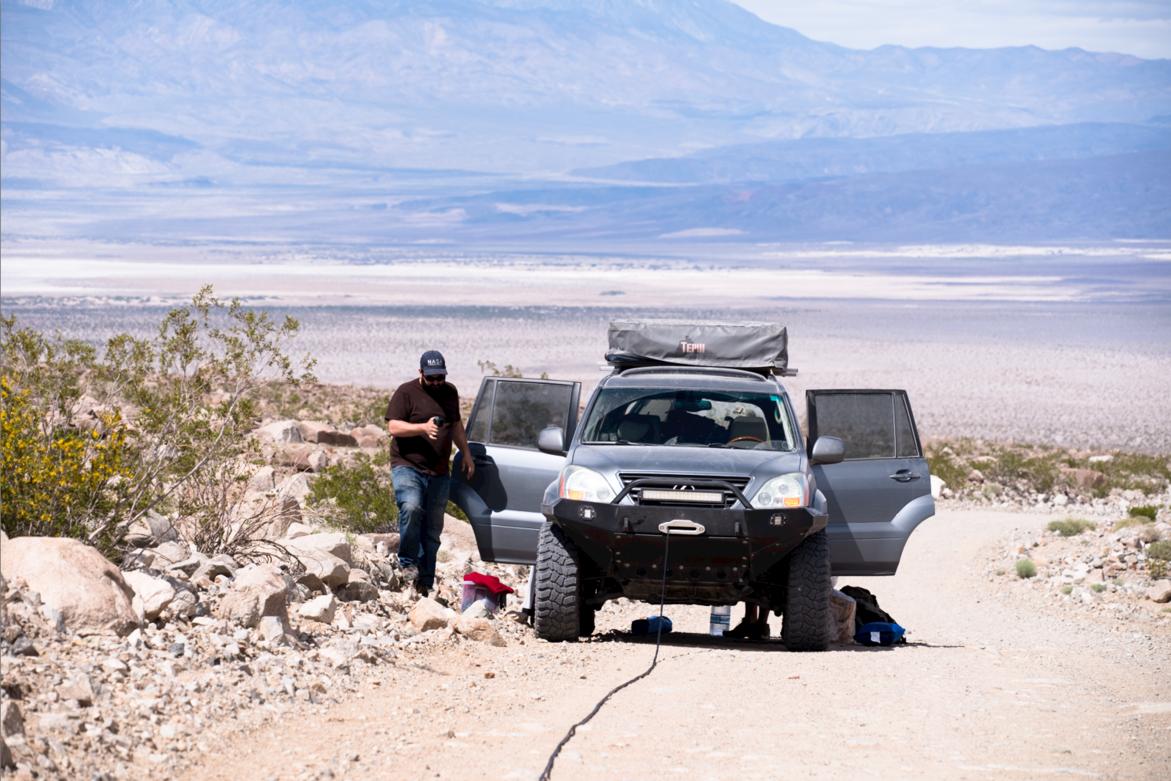

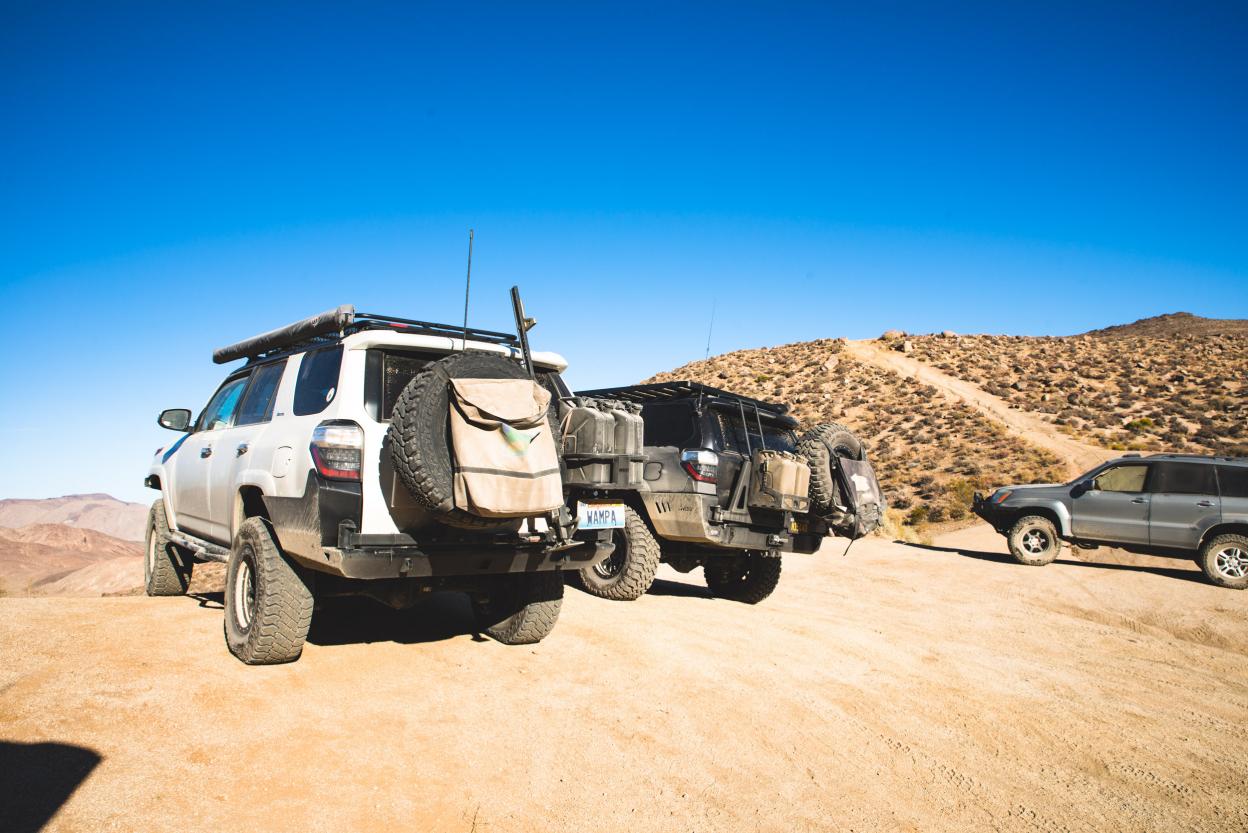

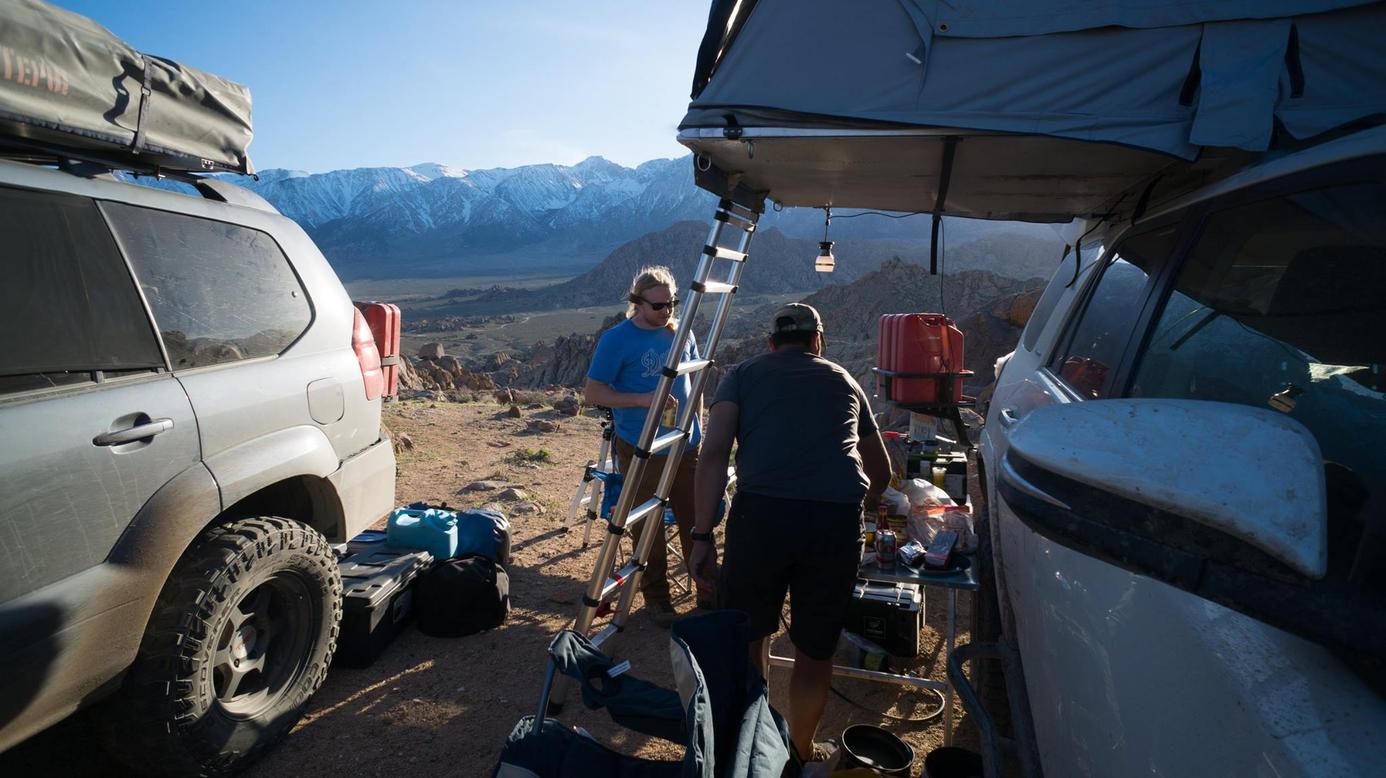

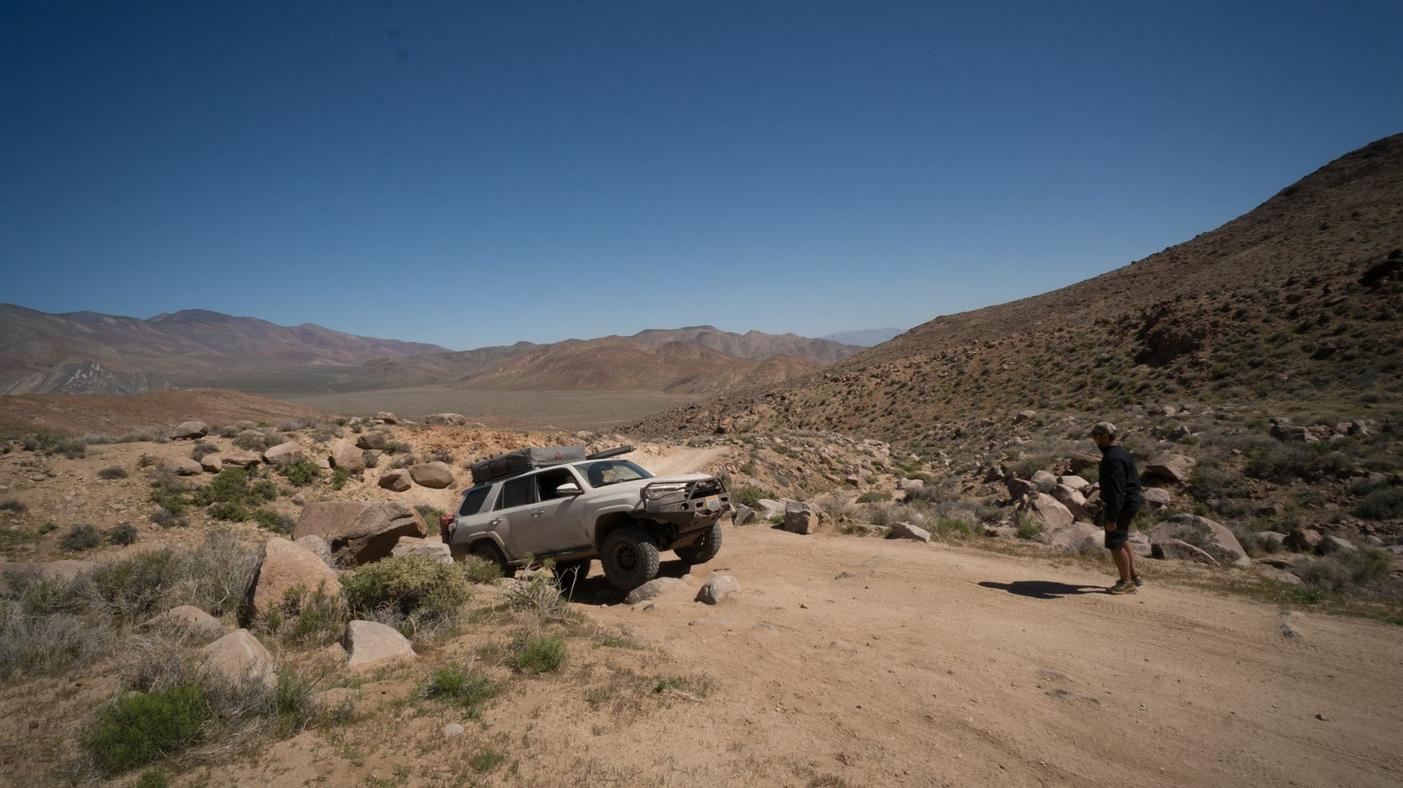

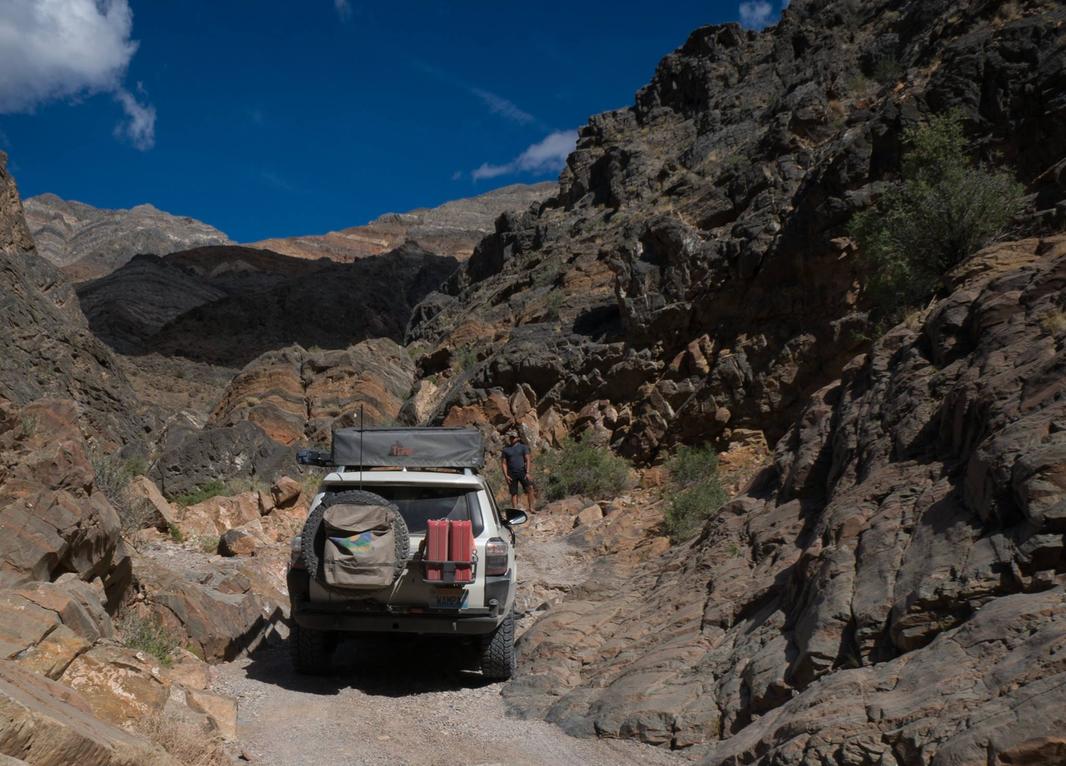

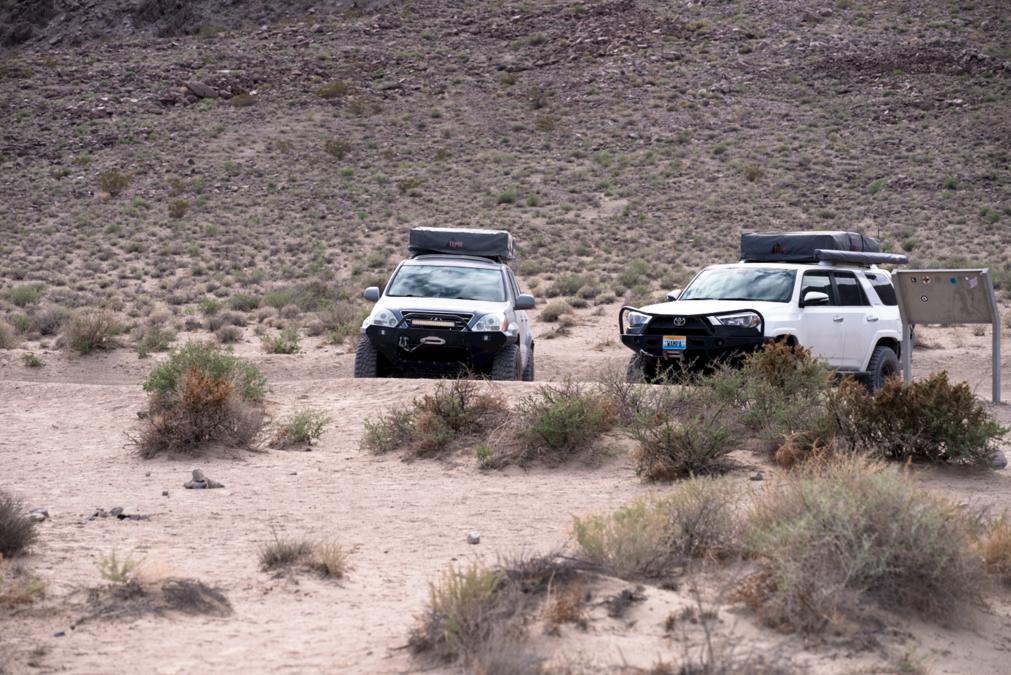

Some shots from our most recent trip, Death Valley for a few nights. Started at Eureka Dunes, southeast through Dedeckera Canyon/Steel Pass out through Saline Valley for the night. We weren't too excited with what we saw at the warm springs so camped up on the eastern escarpment of the Inyo Mountains. Traveled up Lippencott Pass the next day to the Racetrack and east over to Hidden Valley for the night. Next day went up South Pass then down through Death Valley Proper to Goeler Canyon for the night. Sended Mengel pass the next day and punched out via Ballarat the next day. Topped it off with a night at Alabama hills. Buddy in the Lexus had a funky winch issue which we had to sort out before heading up Lippencott. My brother's Grand Cherokee also suffered a swaybar link failure, nothing major and in fact we were all super impressed with how well it did. He left halfway through though, getting him up Mengel pass would have been another story.


Attachments

  • 17632001_10155671221715931_5627882448851480639_o.jpg
    123.5 KB · Views: 3,981
  • 17635117_10155671224910931_2795947626033891352_o.jpg
    138.2 KB · Views: 3,954
  • 17435975_10155671225820931_971001183839739611_o.jpg
    141.1 KB · Views: 3,918
  • 17545225_10155671220980931_2783658418346714826_o.jpg
    138.1 KB · Views: 3,932
  • 17622114_10155671221220931_315590593216395891_o.jpg
    141.4 KB · Views: 3,937
  • 17758445_10155671221820931_3379431340749823380_o.jpg
    131.9 KB · Views: 4,021
  • 17636920_10155671223050931_3864931635938319461_o.jpg
    130.1 KB · Views: 3,924
  • Screen Shot 2017-04-05 at 12.16.00 AM.jpg
    Screen Shot 2017-04-05 at 12.16.00 AM.jpg
    137.5 KB · Views: 3,862
Last edited:
The Racetrack


Attachments

  • 17634539_10106032681624562_8880769562329599859_n.jpg
    37.3 KB · Views: 3,911
  • Screen Shot 2017-04-05 at 12.16.52 AM.jpg
    Screen Shot 2017-04-05 at 12.16.52 AM.jpg
    143.1 KB · Views: 3,907
  • Screen Shot 2017-04-05 at 12.17.52 AM.jpg
    Screen Shot 2017-04-05 at 12.17.52 AM.jpg
    126.6 KB · Views: 3,897

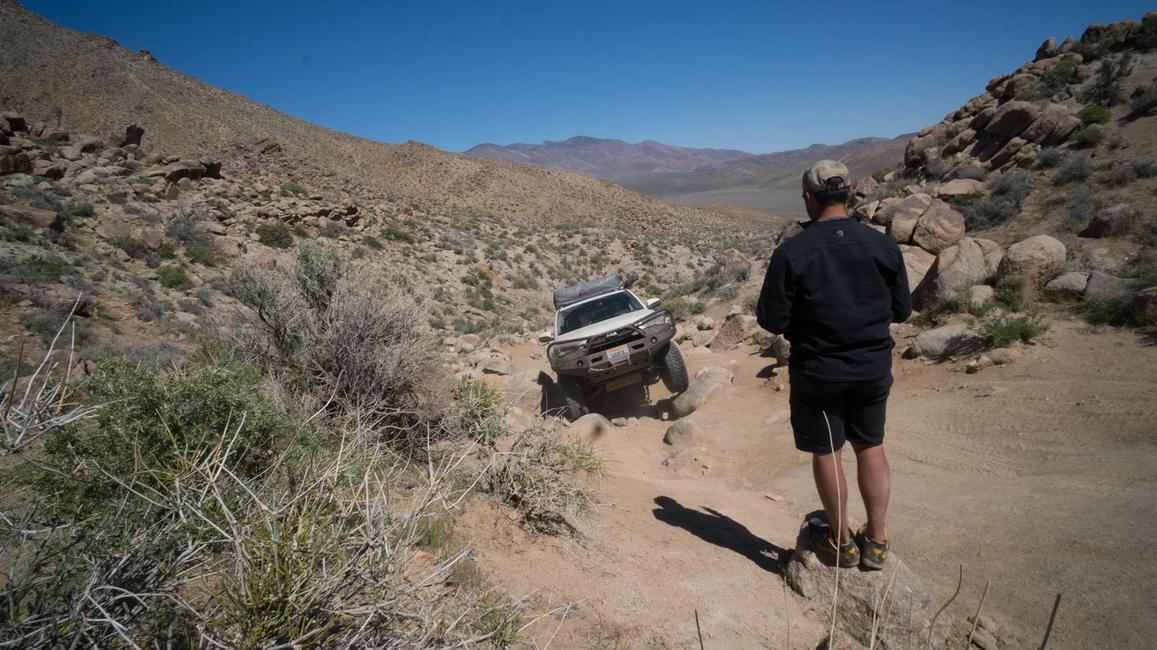

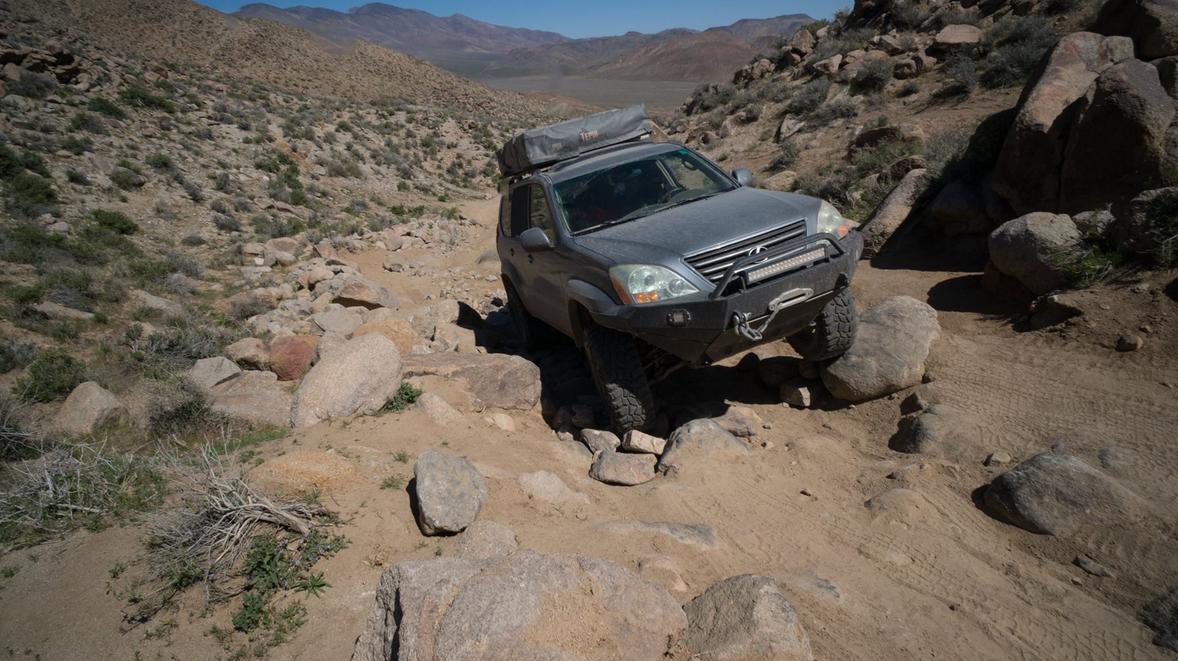

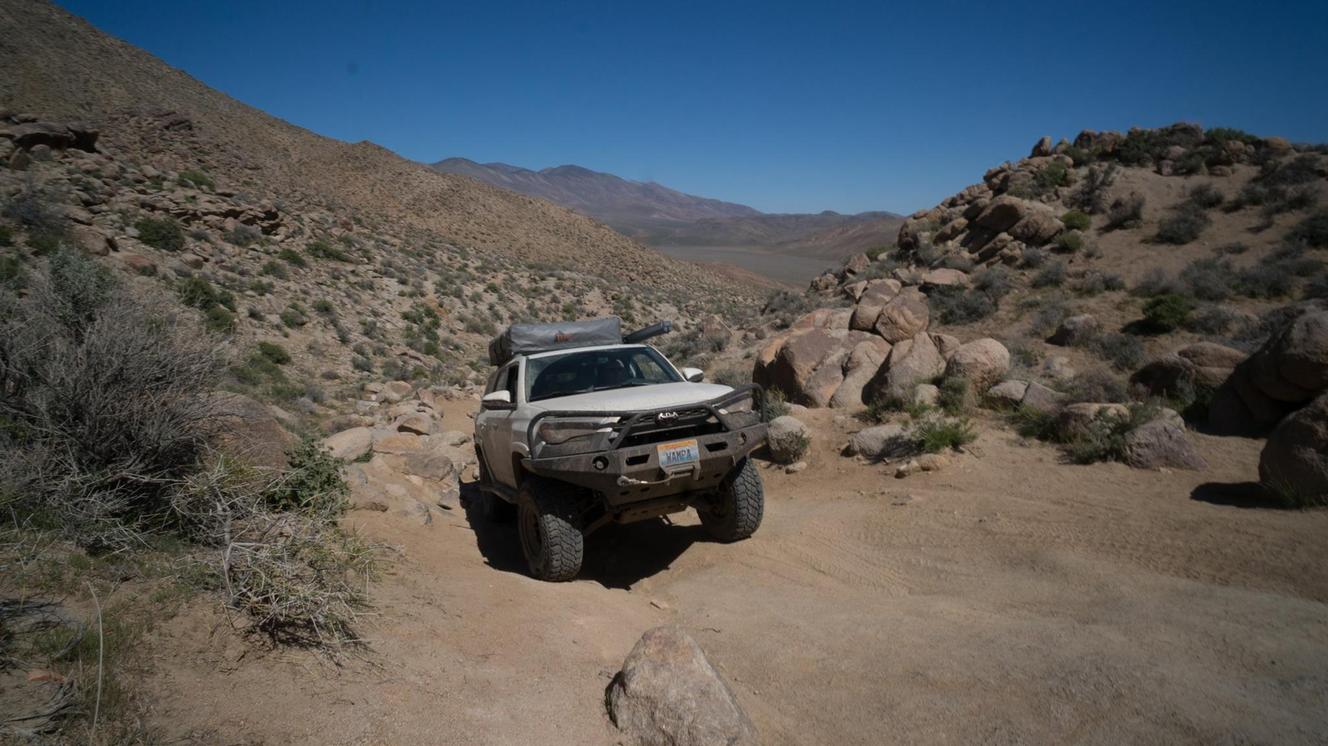

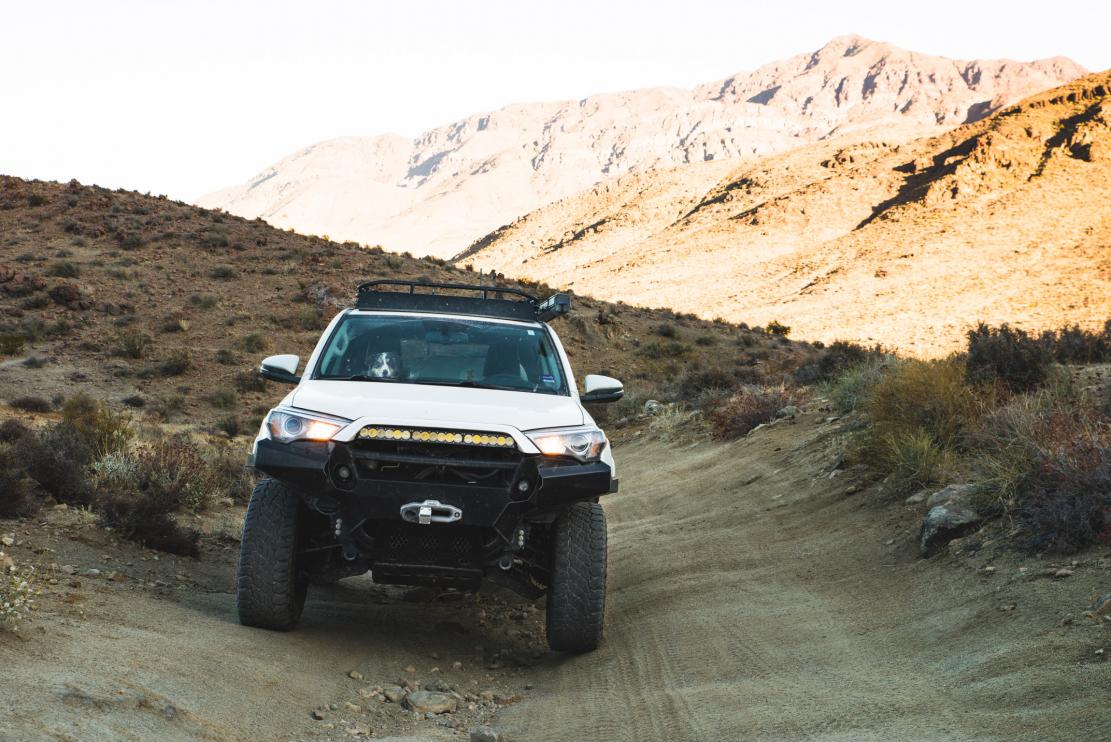

Mengel Pass.


Attachments

  • 17632346_10155671223625931_1508941491981524468_o.jpg
    133.6 KB · Views: 3,940
  • 17632406_10155671226745931_947133691309254098_o.jpg
    127.7 KB · Views: 3,888
  • 17758230_10155671223430931_8110225591120593598_o.jpg
    138.5 KB · Views: 3,871
  • 17635144_10155671223490931_8360332737389119946_o.jpg
    139.4 KB · Views: 3,827
  • 17758436_10155671225455931_6260327725237182145_o.jpg
    144.8 KB · Views: 3,811
  • 17621646_10155671224870931_4249420127728950902_o.jpg
    143.3 KB · Views: 3,851
  • 17621666_10155671222550931_1121384370747322774_o.jpg
    139.9 KB · Views: 3,903
  • 17621777_10155671224015931_635120136823862467_o.jpg
    137.2 KB · Views: 3,868
Mengel Pass 2.


Attachments

  • Screen Shot 2017-04-05 at 12.19.49 AM.jpg
    Screen Shot 2017-04-05 at 12.19.49 AM.jpg
    135.7 KB · Views: 3,842
  • 17630085_10106032683141522_3322735318303922664_n.jpg
    94.1 KB · Views: 3,803
  • Screen Shot 2017-04-05 at 12.20.58 AM.jpg
    Screen Shot 2017-04-05 at 12.20.58 AM.jpg
    140.2 KB · Views: 3,894
  • 17758599_10155671227035931_6714833255388576705_o.jpg
    145.1 KB · Views: 3,763
  • 17758392_10155671233200931_8245410949457568455_o.jpg
    146.4 KB · Views: 3,783
  • 17632021_10155671233000931_7940996804891337_o.jpg
    141.1 KB · Views: 3,766

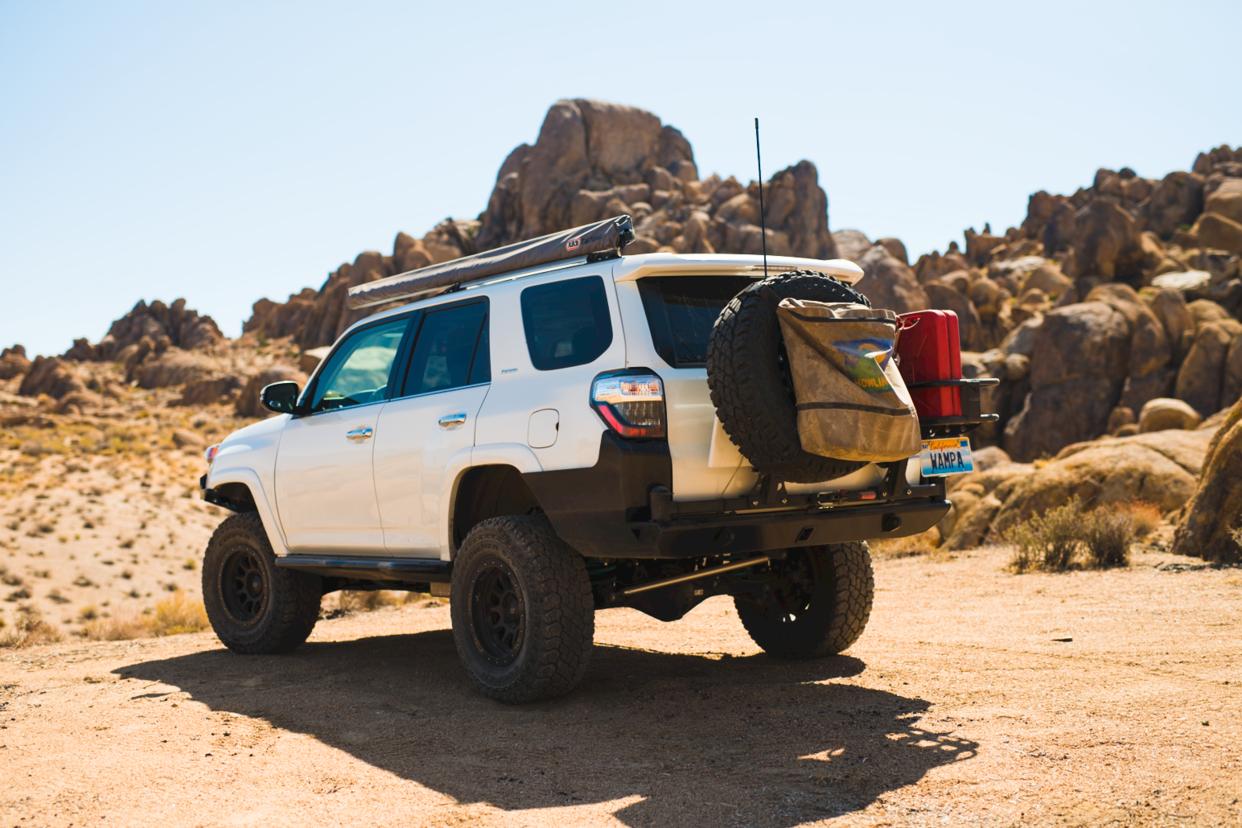

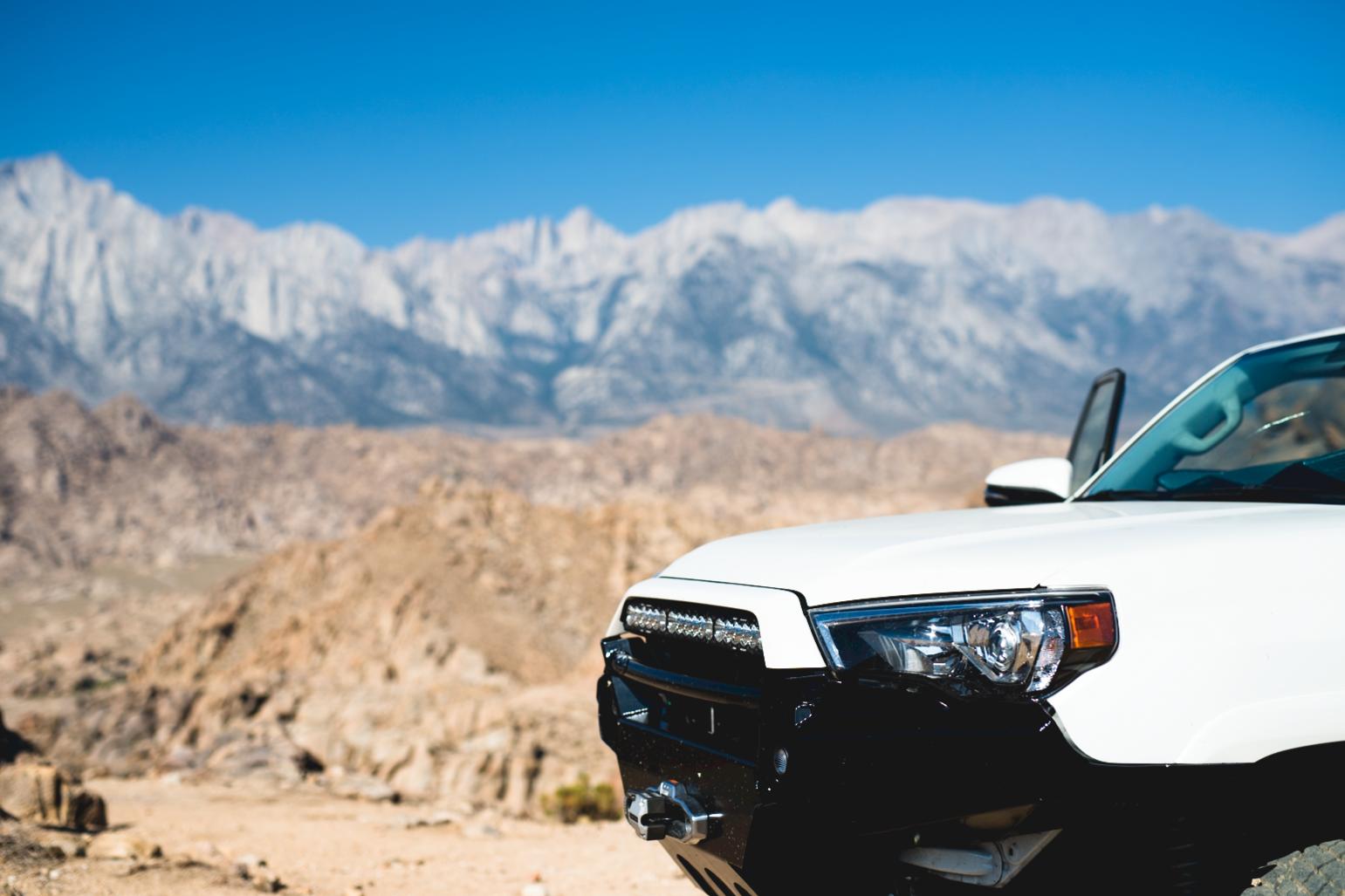

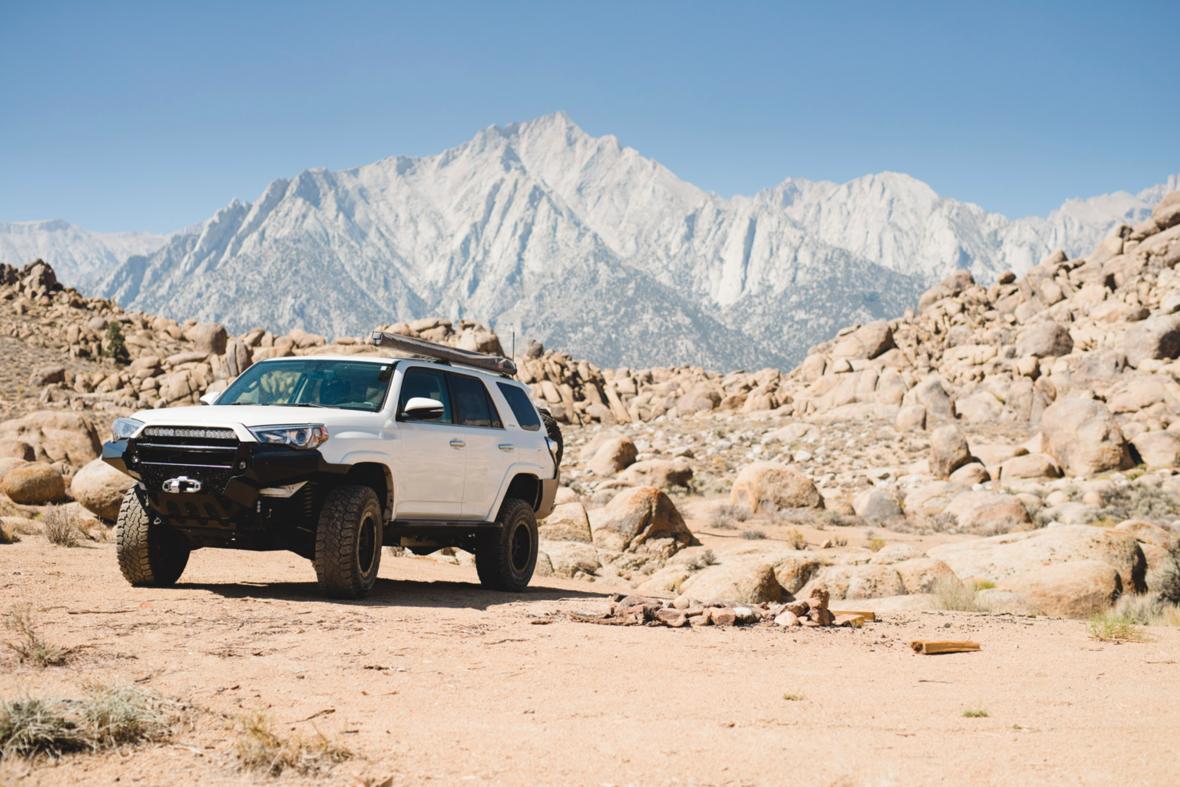

Alabama Hills.


Attachments

  • 17546798_10155671232510931_8942344434703438771_o.jpg
    137.4 KB · Views: 1,200
  • 17758339_10155671233715931_2940250318808646687_o.jpg
    138.1 KB · Views: 1,195
  • 17636877_10155671229645931_3556951516664656741_o.jpg
    120.5 KB · Views: 1,217
  • 17632465_10155671230320931_347915836134262071_o.jpg
    128.6 KB · Views: 1,208
  • 17621677_10155671233230931_2285065616317275011_o.jpg
    147.5 KB · Views: 1,191
Nice thread and good to see what you're doing with the new truck, you always have good input on the other threads. Congrats too on the MPH!

FYI: The Facebook link wasn't working for me, don't know if it has anything to do with me checking it on the ol smartphone.

Nice thread and good to see what you're doing with the new truck, you always have good input on the other threads. Congrats too on the MPH!

FYI: The Facebook link wasn't working for me, don't know if it has anything to do with me checking it on the ol smartphone.

Ah thanks man, ya it's been a long road deciding to go back to school and what not. I'll try and get the link straightened out, it's to some video we shot but maybe I'll just throw it on YouTube.

Nice build! How do you like your Dobinson's coils so far? I have their progressive rate coils sitting in my garage right now. Plan is to install them when my cargo system arrives.
