Rear Currie AntiRock Sway Bar
*Note: having trouble getting photos up, the site has been screwy for me every since it got hacked last week. I'll try to get back to this after dinner and see if I can straighten it out.
**Fixed. See additional pics in subsequent posts.
I apologize for getting this up so late, I had intended on doing more of a write-up style format but figured I should get the info out there cause a number folks have asked me about it.
I installed an an Antirock sway bar earlier this year due to my ride height and extended down travel. I was going to play around with extended links but didn't want to waste time so went ahead and put one of these in. Extended rear links can have clearance issues with the lower control arms, depending on how long you make them. I had one of these Antirock's on my Jeep and thought it was fantastic as well, so it made sense.
I pieced this kit together. All-Pro makes a "bolt on" kit the requires minimal welding, but at the time it was temporary unavailable, so it wasn't an option.
Key parts are:
50" x 1" Torsion Bar
18" Sway Bar Arms, straight
6.5" Link End Rods
My initial plan was to mount the torsion bar on top of the frame rails, but we ran into clearance issues with the fuel filler line, so ended up mounting the bar in the same position but underneath the frame rails. If I knew this beforehand, I would have ordered Currie's 48" tube, and just welded that directly to the frame.
Since we didn't have a tube, we decided to fab drop brackets to accept the torsion bar and bushings.
You want to use short rod link ends to drop the rod end below the sidewall of the tire, if you use taller rod link ends they will rub under articulation.
The axle tabs were mounted just forward of top dead center. This was done to optimize clearance for both the torsion bar over obstacles, as well as for the bump stop mounts and the track bar mount. The rod ends are really close to the bump stop brackets, but do clear and don't rub. I know there's variances from one truck to another, so you could reposition the bar, set the links at shorter settings, use longer arms, or use custom bump stops if the clearance is a problem.
Note I do not have my rear bump stops in right now, I'm stepping down to 2" extended bumps to try to eliminate some bottoming out issues. [MENTION=113049]rochmpr[/MENTION] what rear bumps are you using? I have to check but I think I'm going to have to have my rear shocks modified.

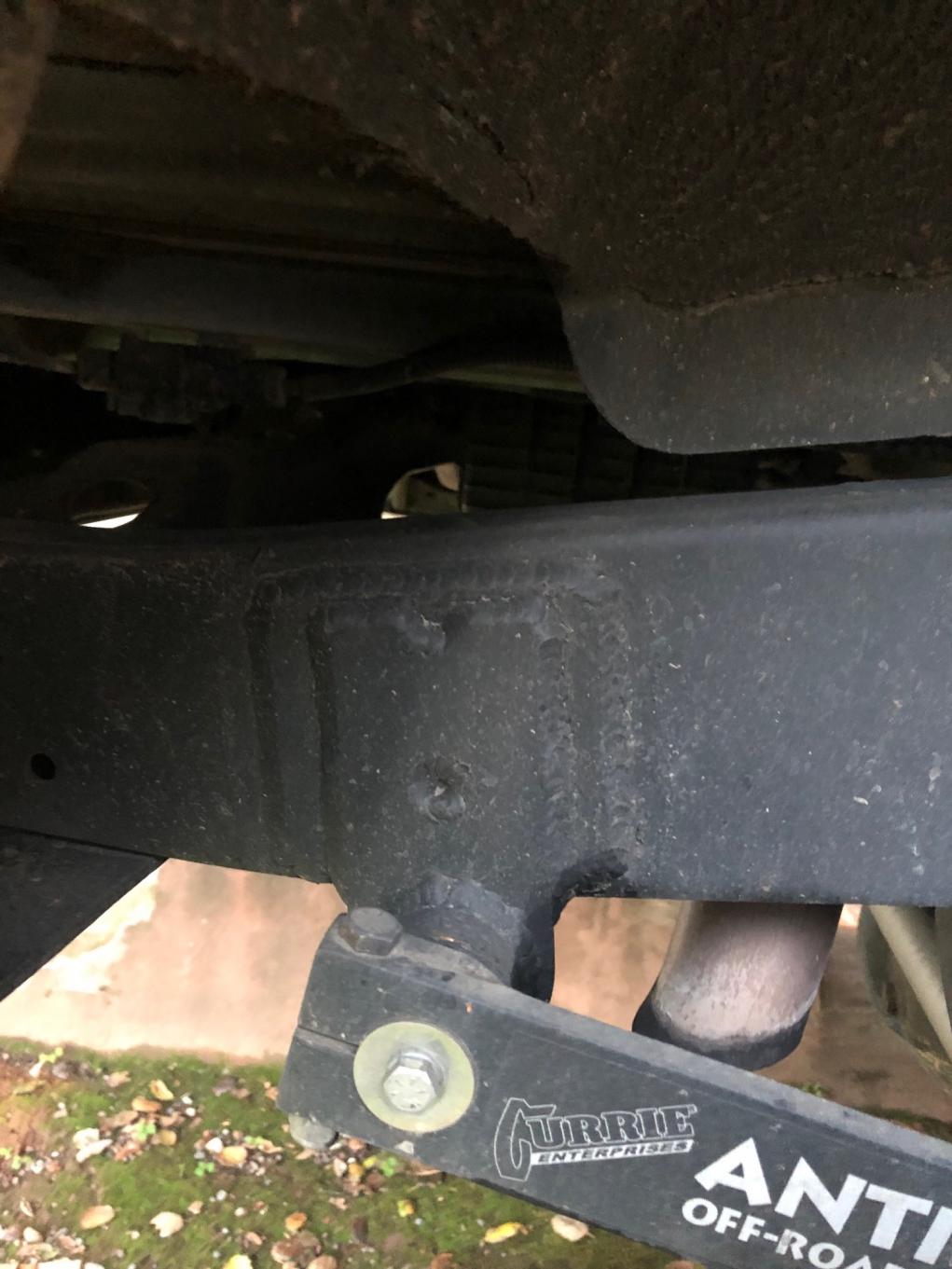

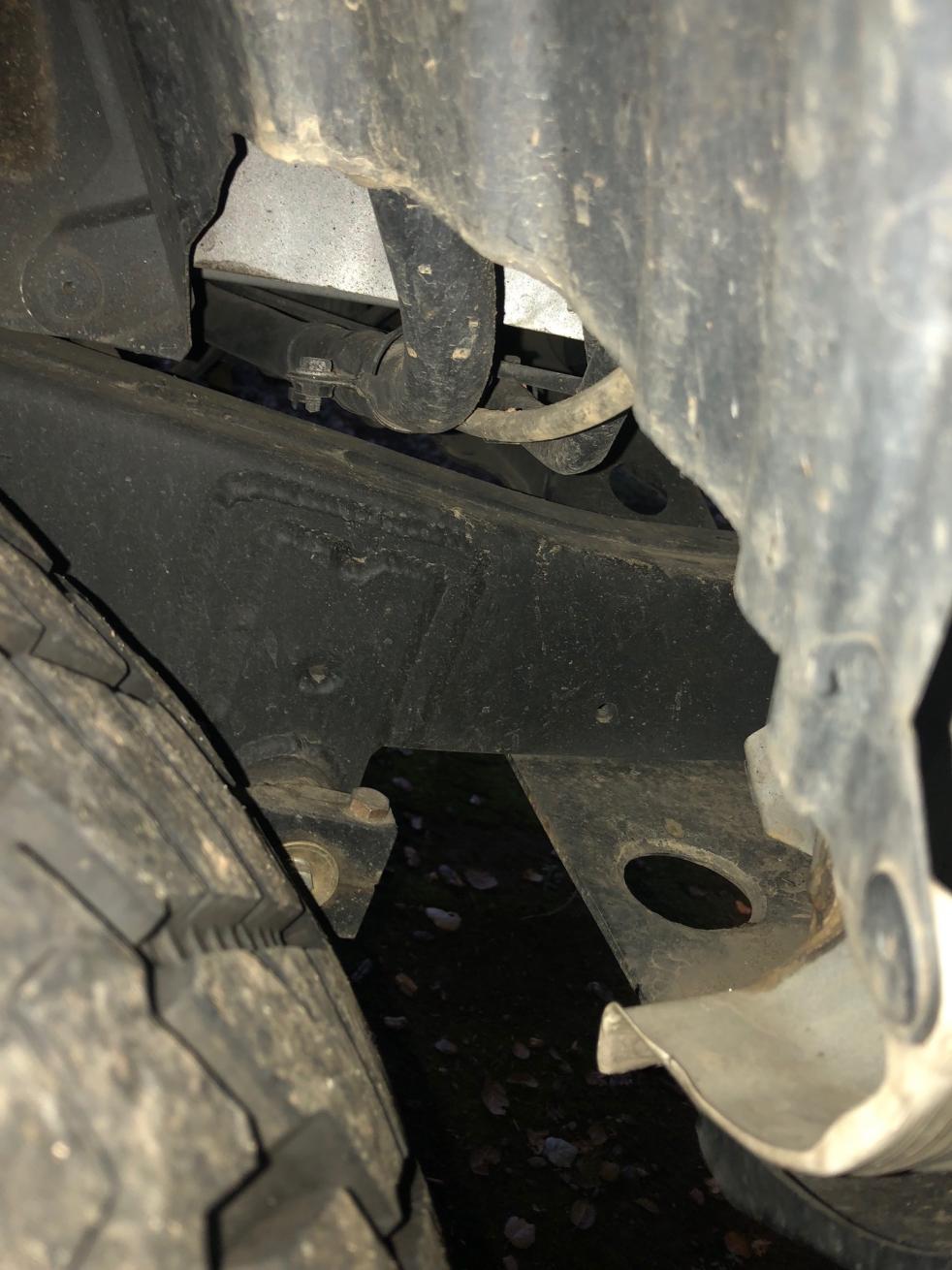

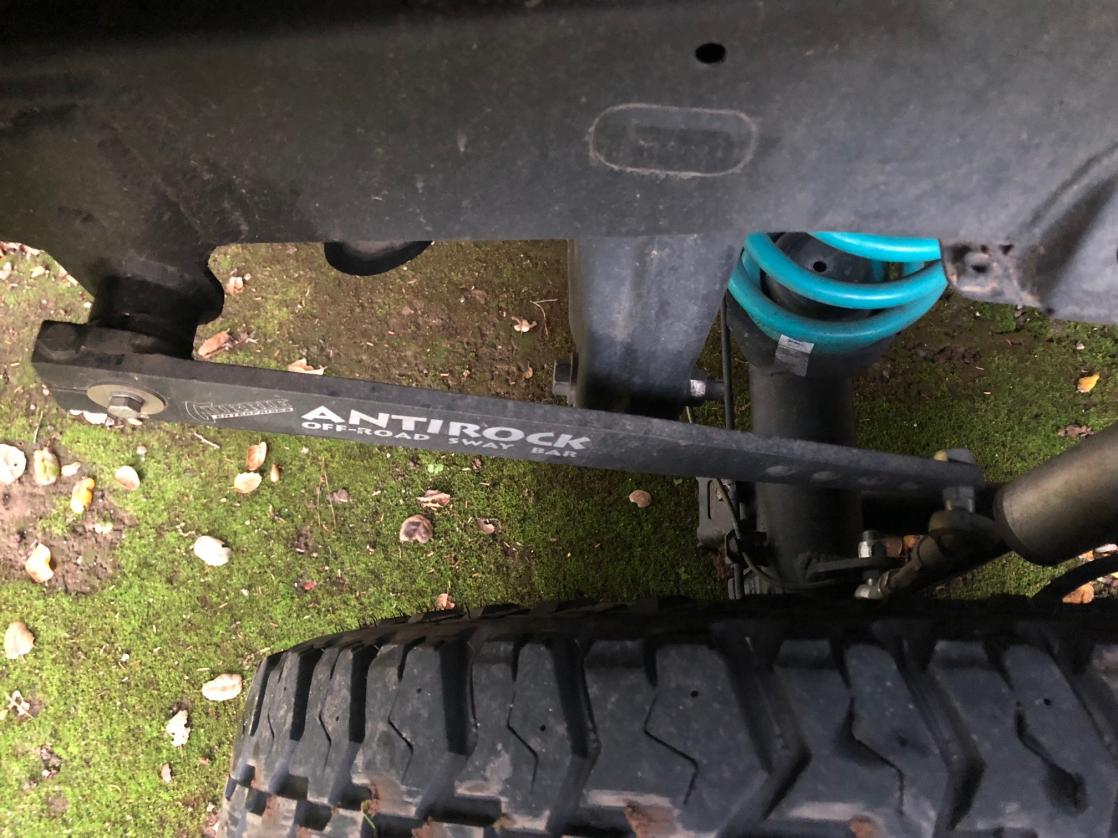

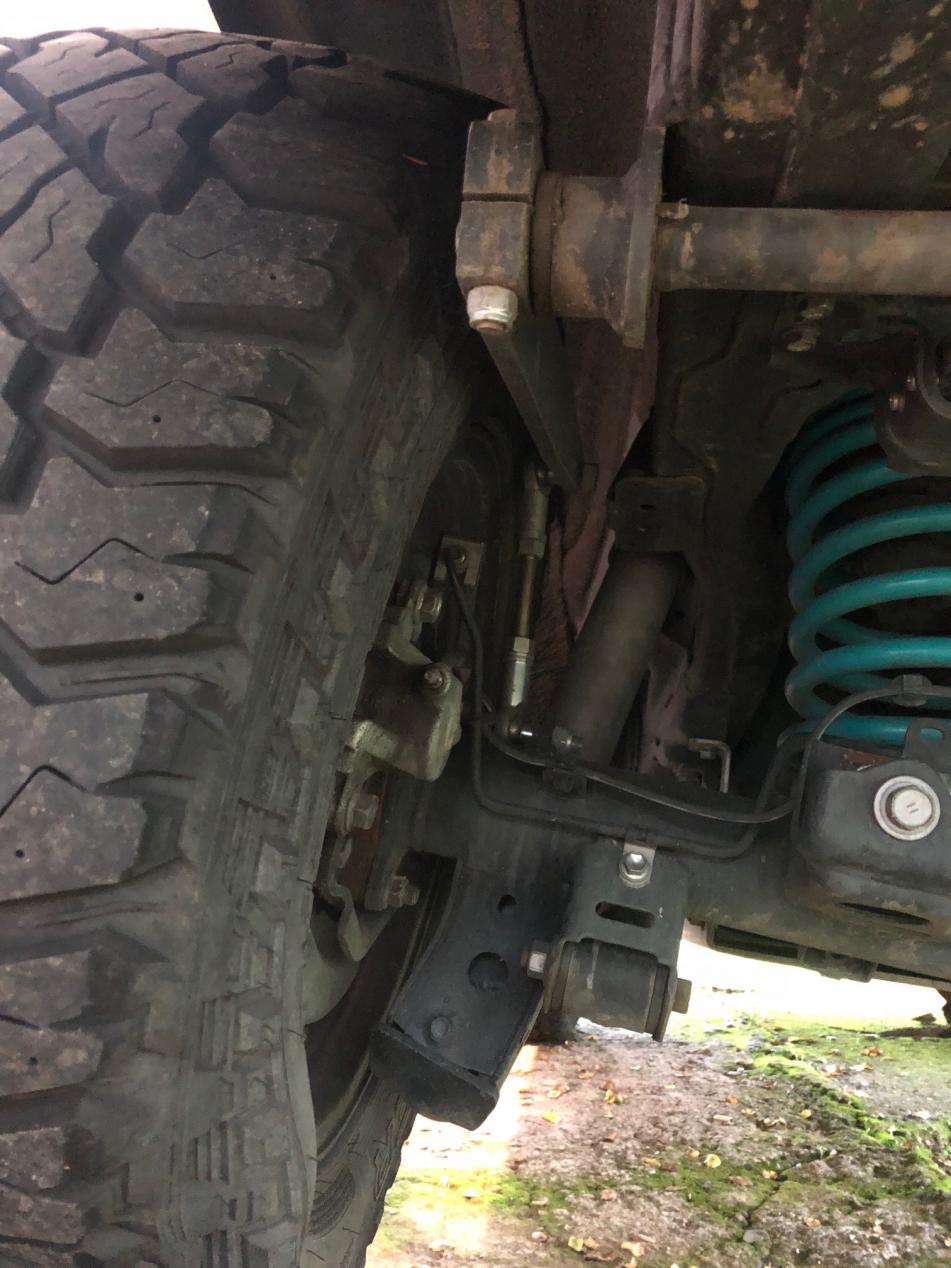

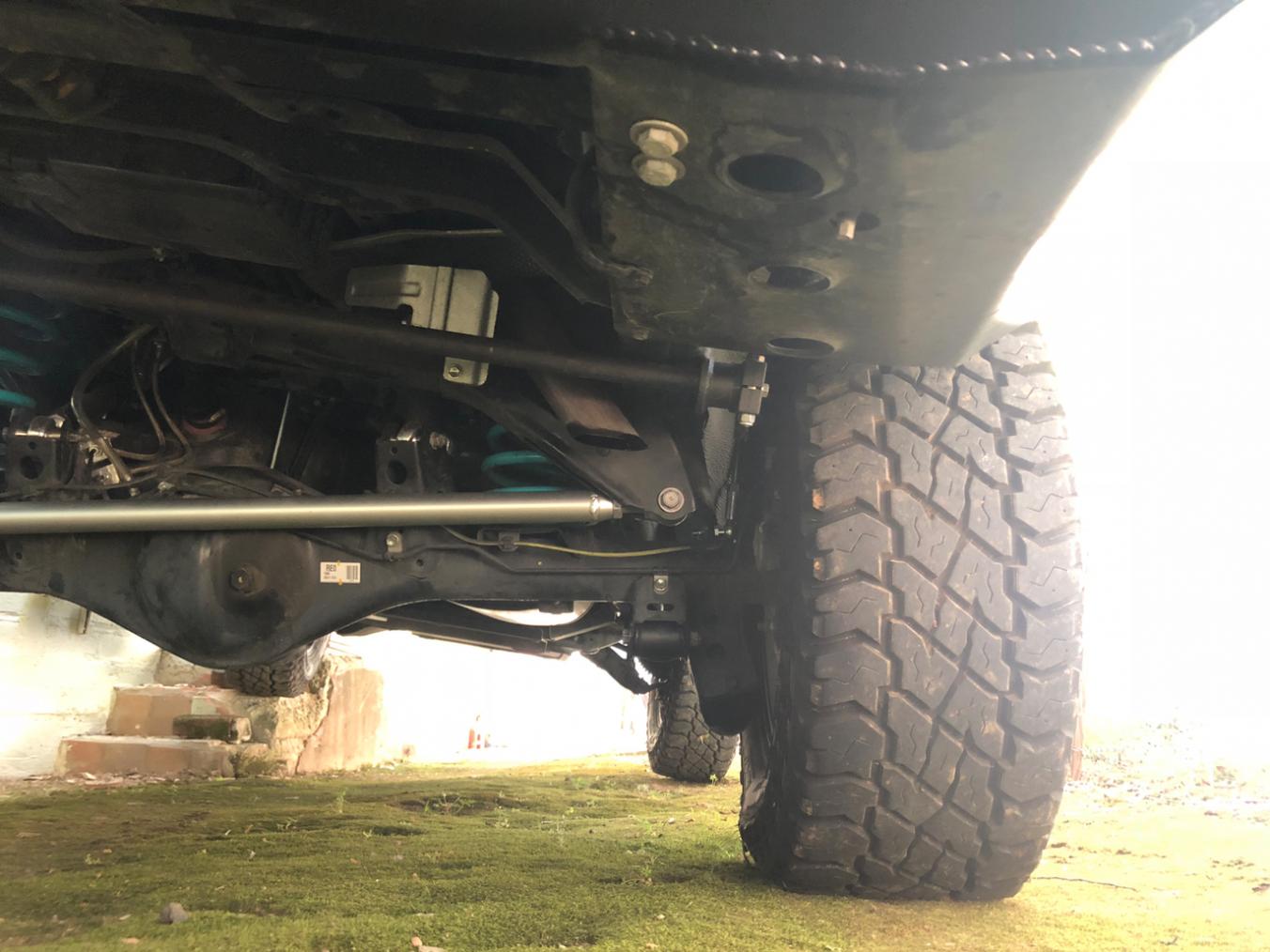

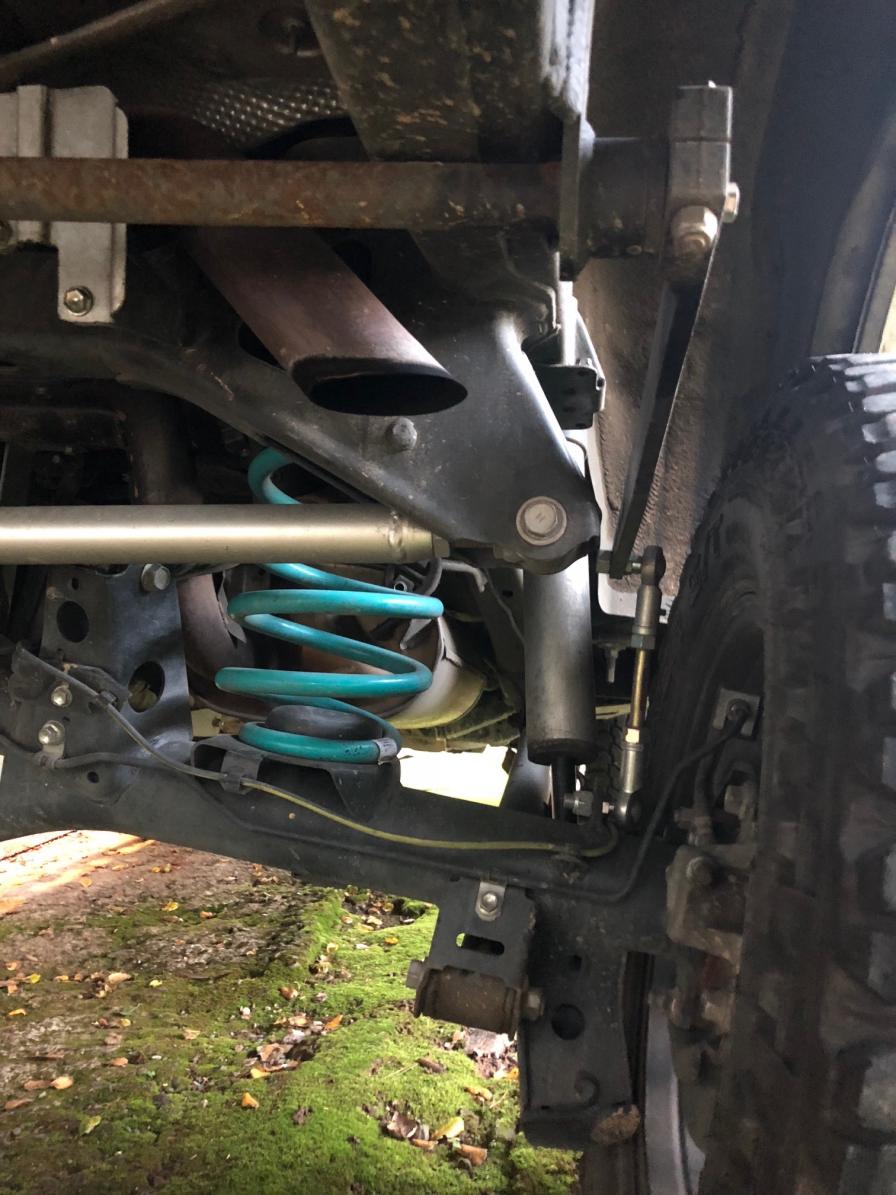

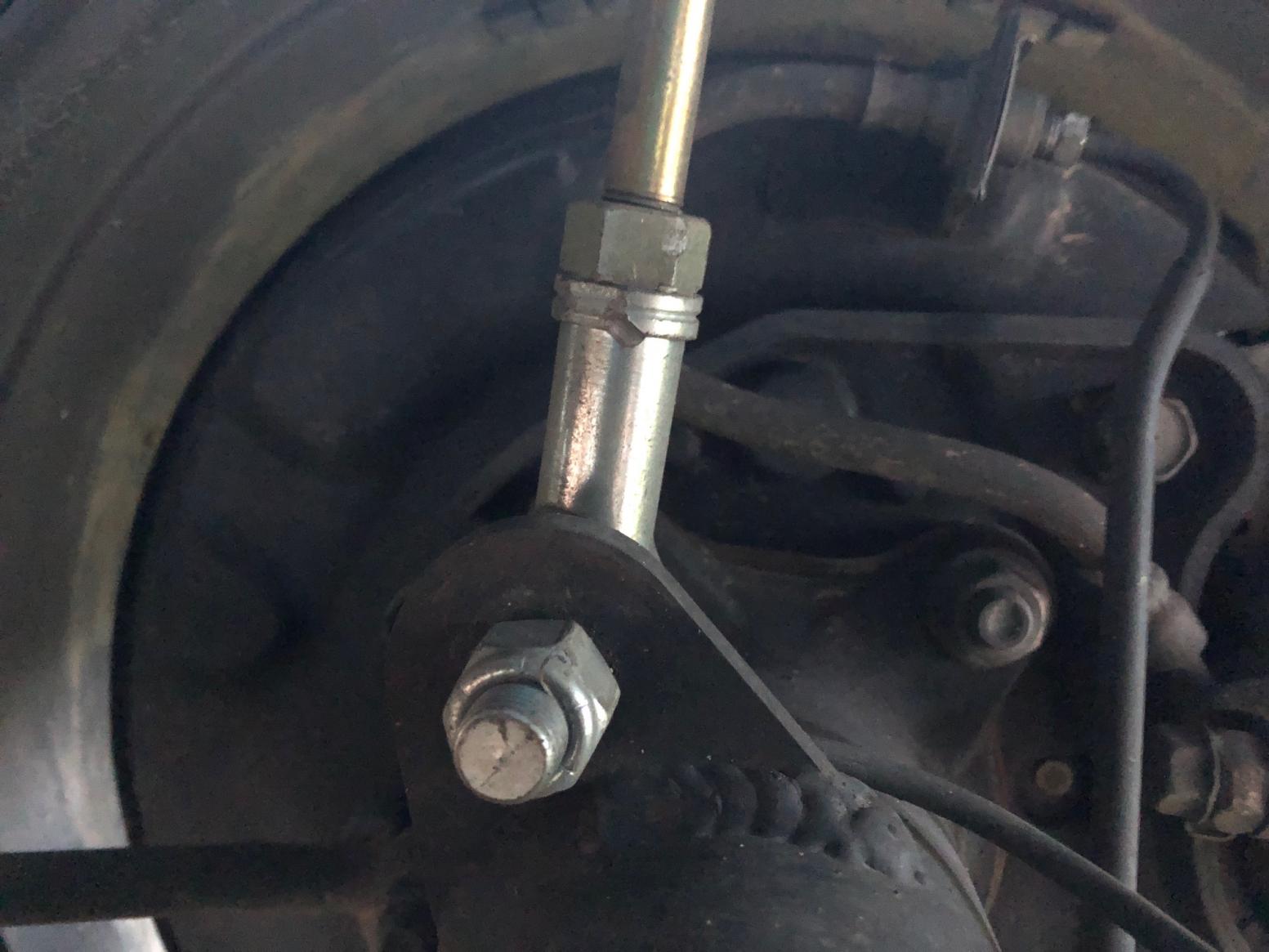

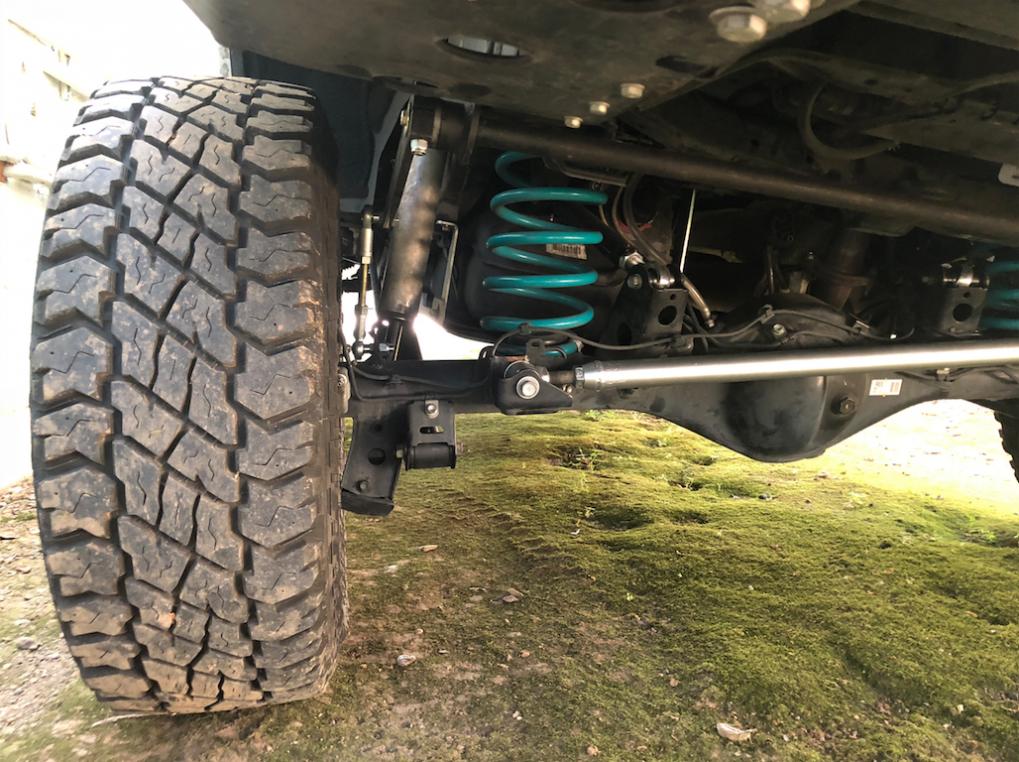

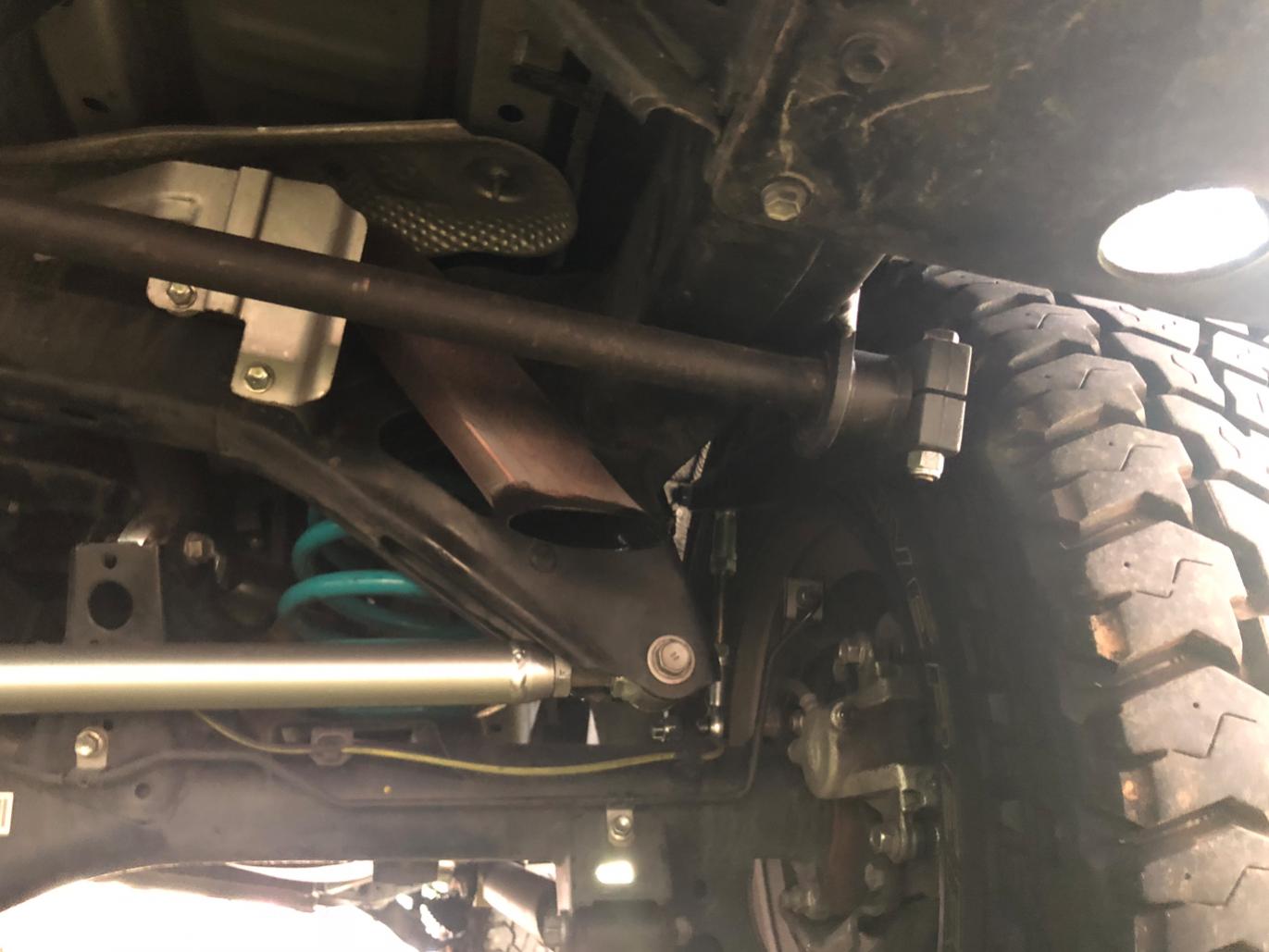

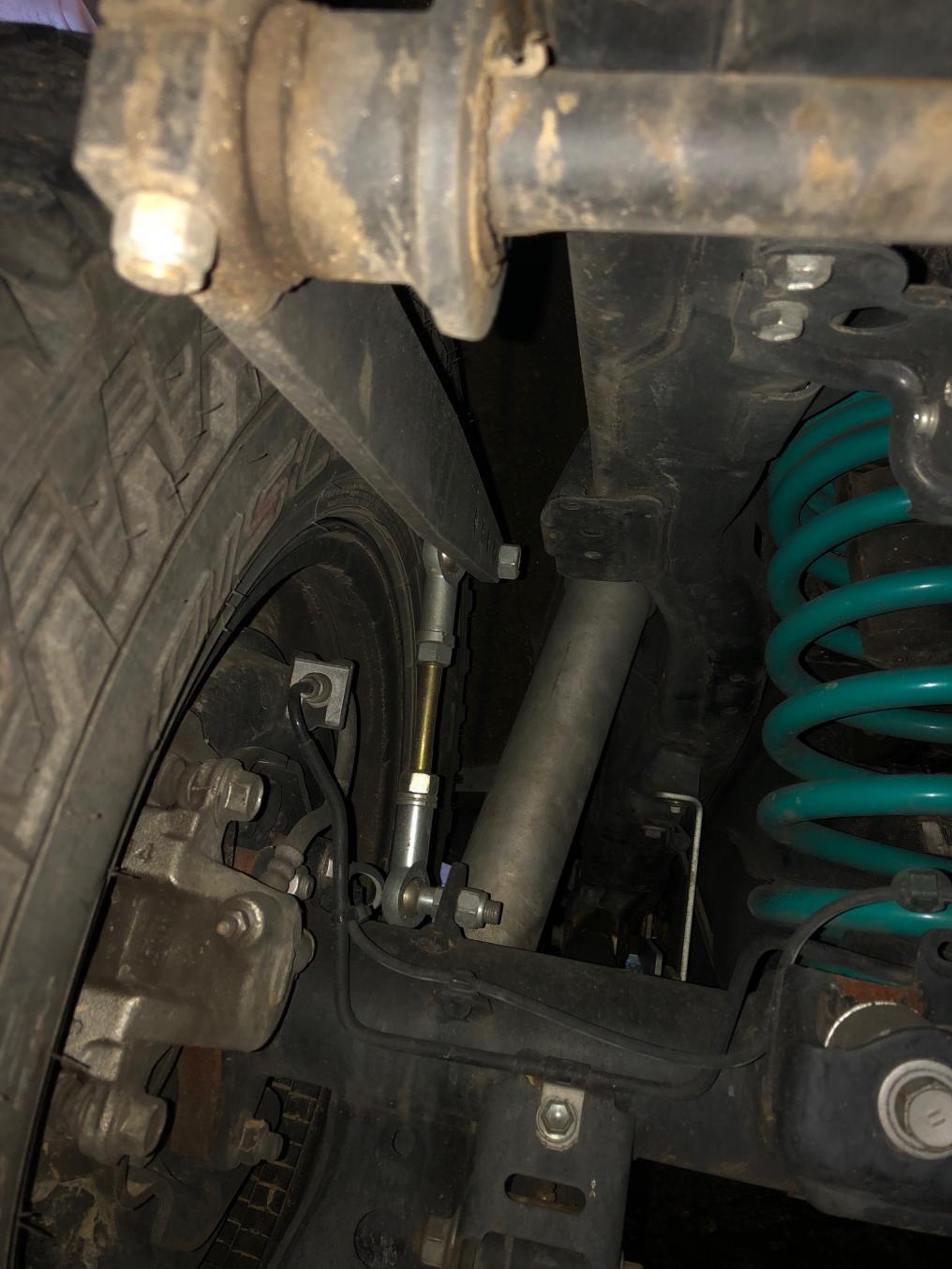

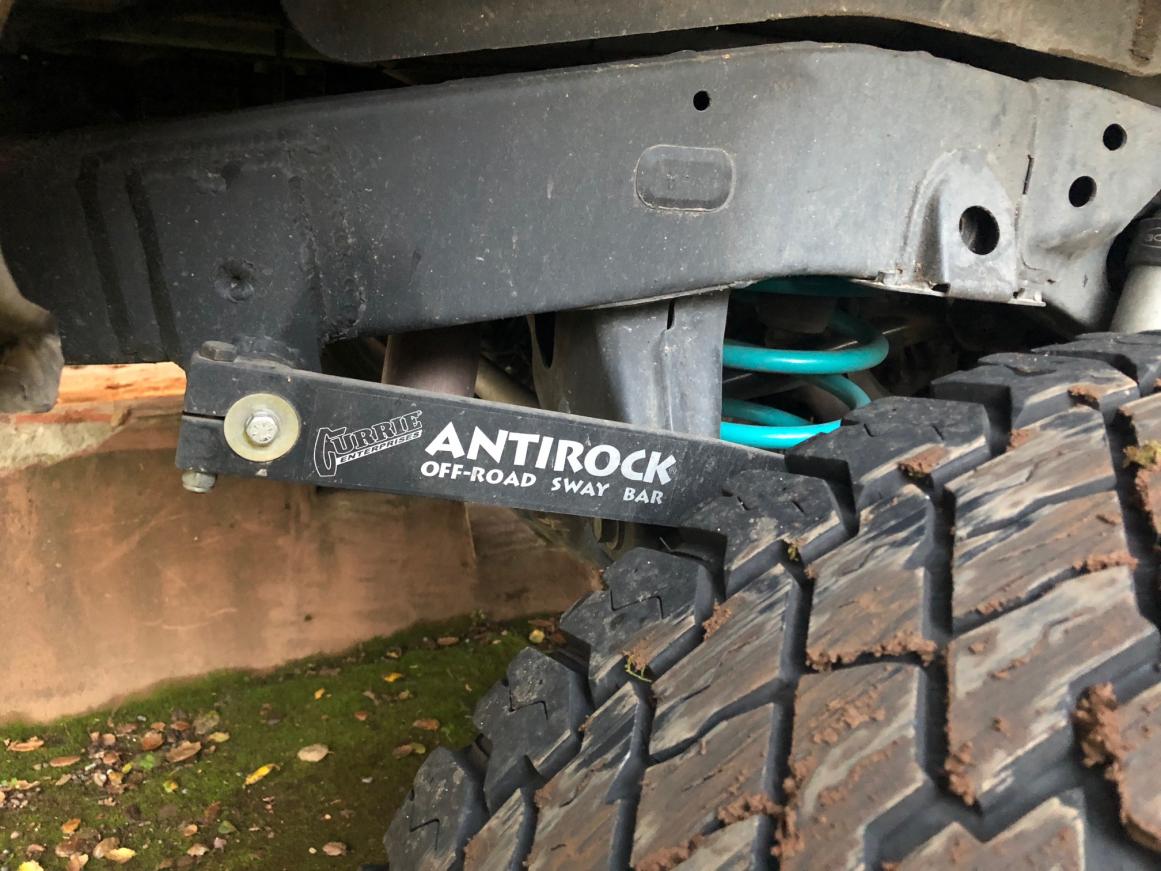

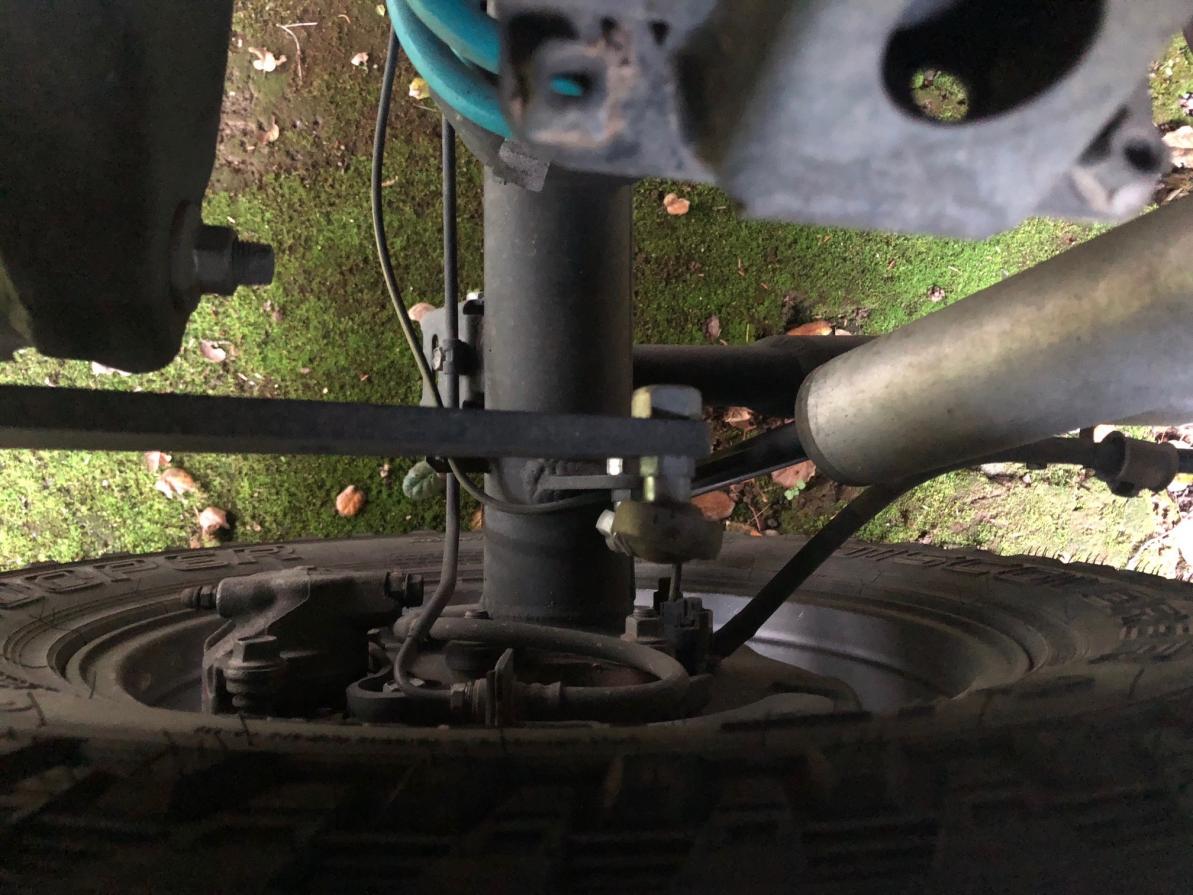

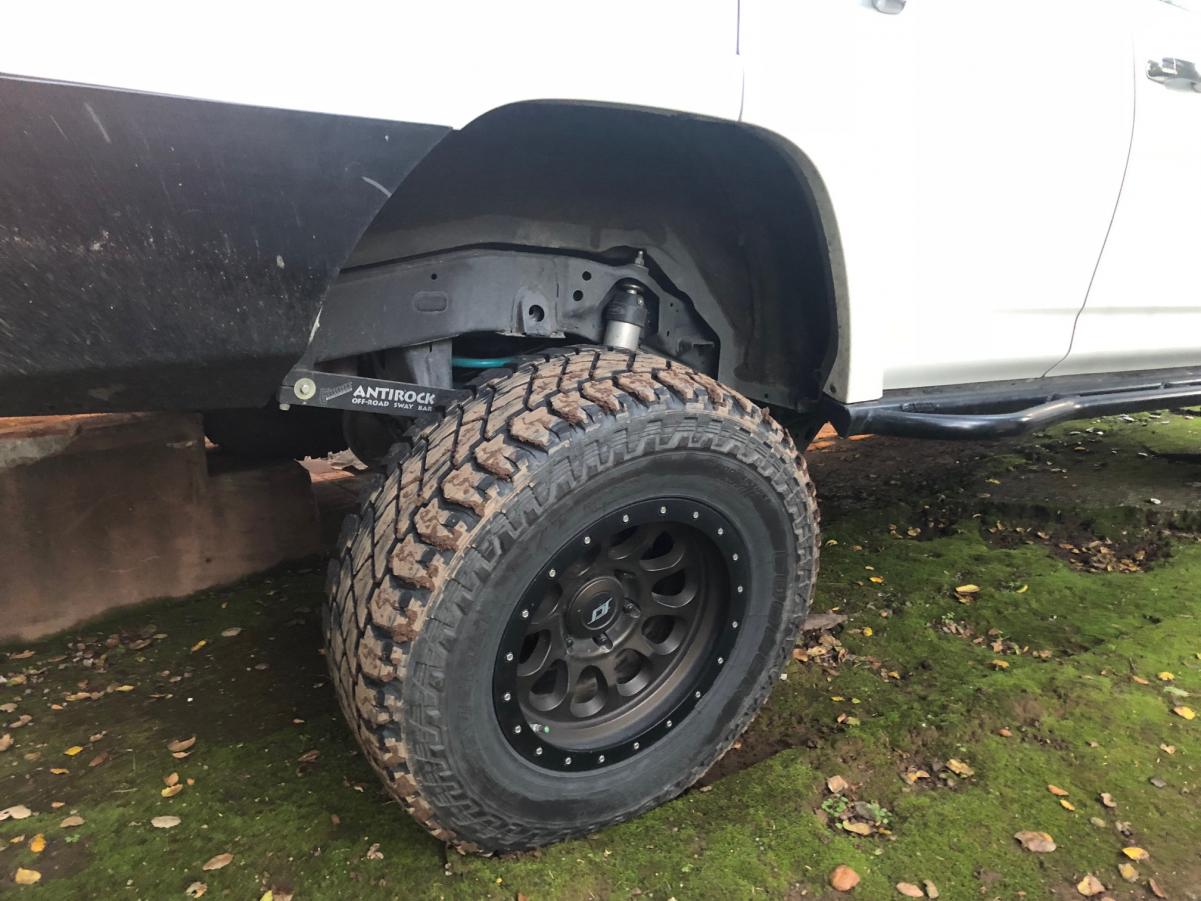

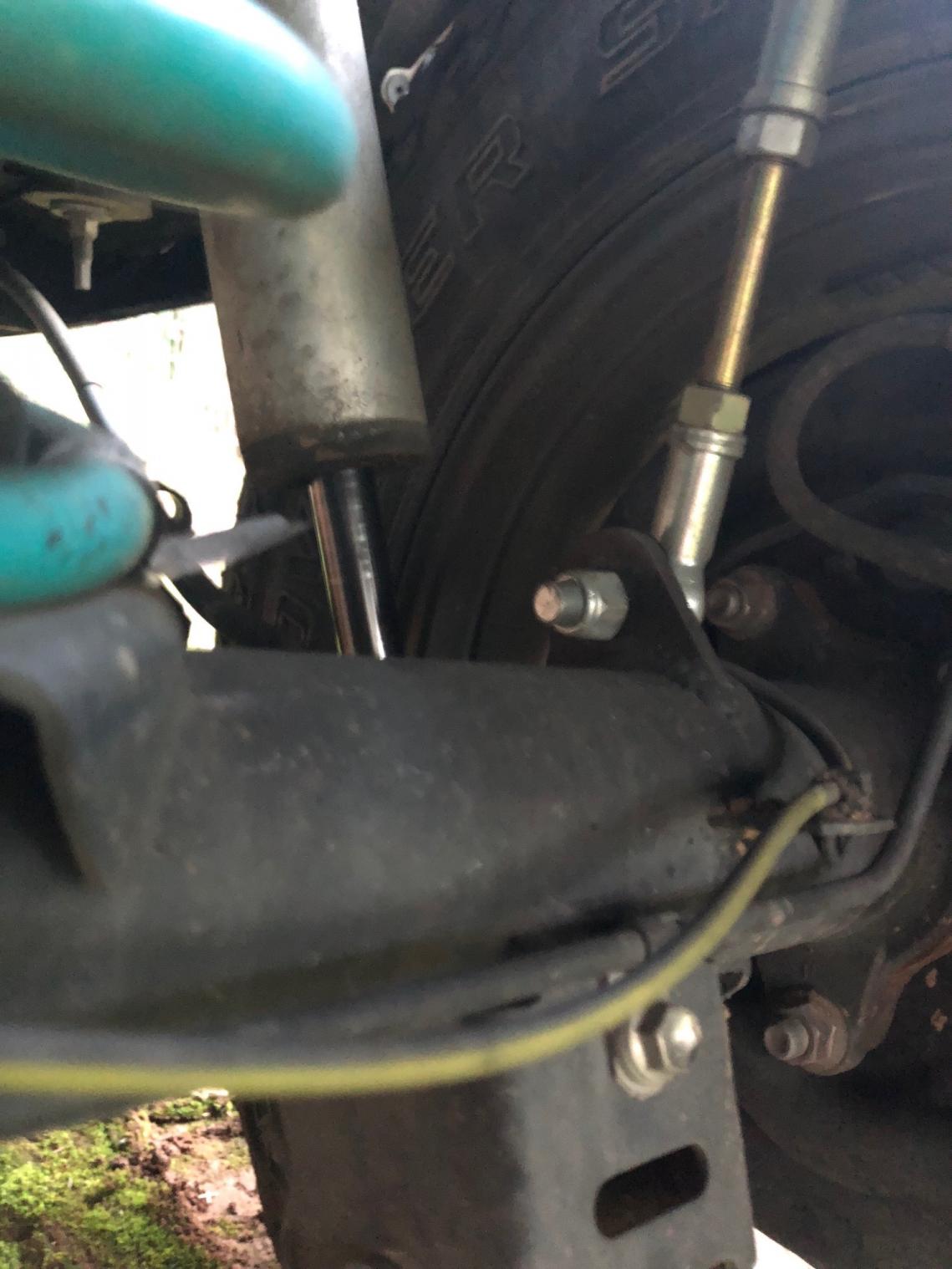

If you're looking at doing this, the above /should/ make sense, but feel free to ask more detailed questions. Here are some photos I snapped, if I missed an area you'd like to see in more detail let me know.
*Note: having trouble getting photos up, the site has been screwy for me every since it got hacked last week. I'll try to get back to this after dinner and see if I can straighten it out.
**Fixed. See additional pics in subsequent posts.
I apologize for getting this up so late, I had intended on doing more of a write-up style format but figured I should get the info out there cause a number folks have asked me about it.
I installed an an Antirock sway bar earlier this year due to my ride height and extended down travel. I was going to play around with extended links but didn't want to waste time so went ahead and put one of these in. Extended rear links can have clearance issues with the lower control arms, depending on how long you make them. I had one of these Antirock's on my Jeep and thought it was fantastic as well, so it made sense.
I pieced this kit together. All-Pro makes a "bolt on" kit the requires minimal welding, but at the time it was temporary unavailable, so it wasn't an option.
Key parts are:
50" x 1" Torsion Bar
18" Sway Bar Arms, straight
6.5" Link End Rods
My initial plan was to mount the torsion bar on top of the frame rails, but we ran into clearance issues with the fuel filler line, so ended up mounting the bar in the same position but underneath the frame rails. If I knew this beforehand, I would have ordered Currie's 48" tube, and just welded that directly to the frame.
Since we didn't have a tube, we decided to fab drop brackets to accept the torsion bar and bushings.
You want to use short rod link ends to drop the rod end below the sidewall of the tire, if you use taller rod link ends they will rub under articulation.
The axle tabs were mounted just forward of top dead center. This was done to optimize clearance for both the torsion bar over obstacles, as well as for the bump stop mounts and the track bar mount. The rod ends are really close to the bump stop brackets, but do clear and don't rub. I know there's variances from one truck to another, so you could reposition the bar, set the links at shorter settings, use longer arms, or use custom bump stops if the clearance is a problem.
Note I do not have my rear bump stops in right now, I'm stepping down to 2" extended bumps to try to eliminate some bottoming out issues. [MENTION=113049]rochmpr[/MENTION] what rear bumps are you using? I have to check but I think I'm going to have to have my rear shocks modified.
If you're looking at doing this, the above /should/ make sense, but feel free to ask more detailed questions. Here are some photos I snapped, if I missed an area you'd like to see in more detail let me know.
