Need Wiper De-Icer Schematic

[NWEE]

I need a schematic or wiring diagram that shows what signals connect to each of the 3 leads on the wiper de-icer switch. I will be using a 5th gen TR4 wiper de-icer switch in my Tacoma to add heated mirrors. Anyone know how to connect this switch up without taking your dash apart and probing?

A link to the mod is list below for those interested:
OEM Heated Mirrors DIY mod - Tacoma World Forums

I can't use the factory Highlander switch the mod calls out because all my slots are full (Off-Road edition populates every dash switch location). I do have an extra blank down near the shifter that the TR4 wiper de-icer switch fits in. It's the right size, has a built in 15-min timer, and light so it will work perfect once I figure out how to wire it up. I spent $50 for the switch so I'm not interested in blowing it up via experimentation. Thanks in advance for your help.



[GrantK]

The TIS FSM link in the mods sticky will take you to the schematic.



[eddiebx]

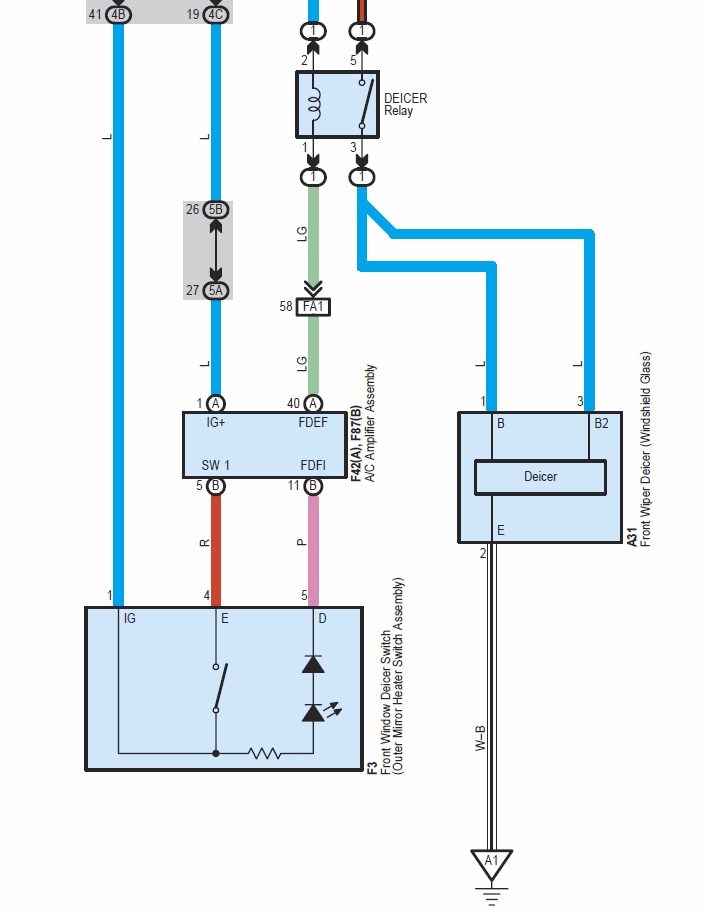

Here you go...I am not sure what you meant by the switch has a built-in 15 min timer, but I think the de-icer timing circuit on the 5th gen 4runner is actually in the "A/C Amplifier Assembly".

I can't recall off the top of my head but I believe when I measured the terminals in the switch it was just a momentary ON switched +12v signal.



[NWEE]

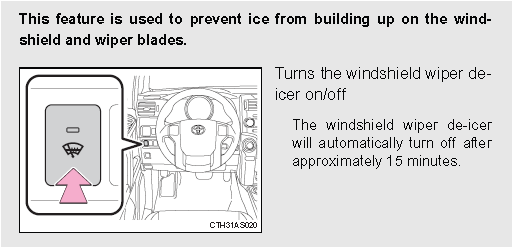

Thank you eddiebx. I was thinking the timer was built in based on feedback from others at TacomaWorld and the description of the switch on some sites.

Am I mis-labeling this switch to call it 5th gen? This is the switch I ordered (don't have it in my hands yet):
Part # 84871-35010
http://www.villagetoyotaparts.com/products/TOYOTA/4Runner/SWITCH--FR-WIPER-DEICER/2373744/8487135010.html

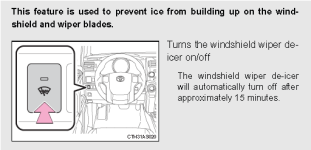

See attached images.

Based on the schematic you provided, it doesn't look like the switch has a timer feature, but we can't be certain until I have it in hand and test it. Knowing how to connect it is valuable, so thank you for that.
