Rear Window switch help.

[Globetrotter78]

Could anyone please help me identify which wires to tap into in order to install an "always on" rear window switch? I already have all the hardware but need some help.

I already installed the rear hatch release button with the help from Antman and/or Atomik posts, which is fantastic, but I cant find I cant find instructions/photos on which wires should be tapped for the rear window motor functionality. :lookout:

Thanks in advance!!
Chaz



[Globetrotter78]

Sooooo Mods, why was the schematic reply by Electro and my raving appreciation for the help deleted? Please explain.



[llDemonll]

They probably wanted someone who helped you out to have vendor status. Seems to be they require that, but people who are actually vending and selling stuff don't need it.



[Globetrotter78]

It's absolutely absurd that they would remove the information to help someone DIY (which is a HUGE part of these forums!). If I'm lazy, too busy, or feel unable to assemble the parts myself I will buy that guy's $50 kit but to actively block the spread of knowledge when I HAVE ALL THE PARTS ALREADY is against the majority of the reasons people use these forums.

Get your sh*t together Mods!:rant:



[ElectroBoy]

On W10:
Pin 24 - Gray - Hatch POP (Open)
Pin 15 - Red - Window Down (Unlock)
Pin 16 - Pink - Window Up (Lock)



[ElectroBoy]

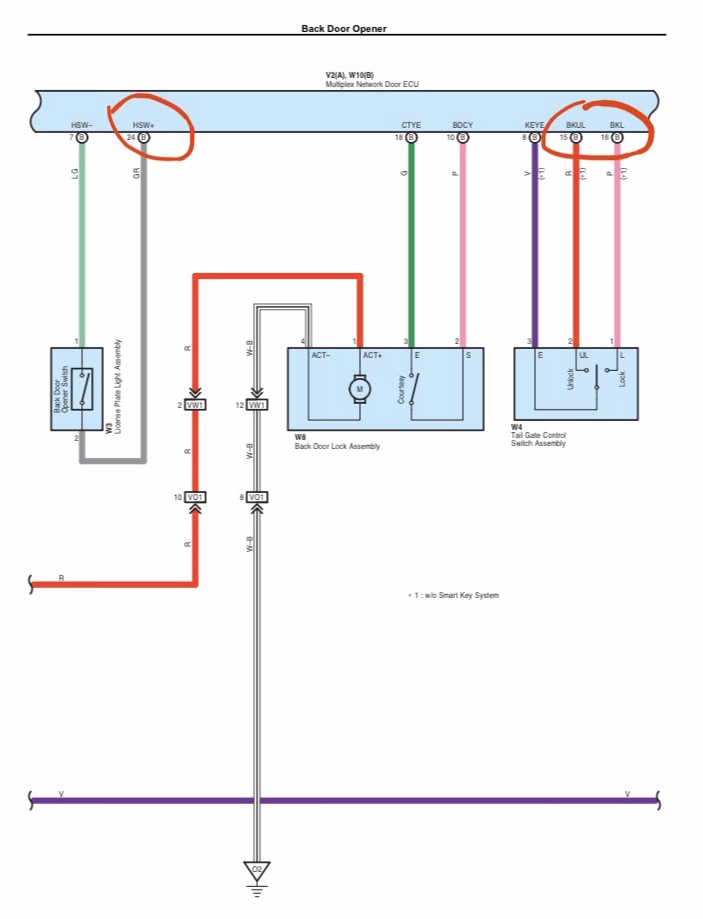

Schematic connections:



[ElectroBoy]

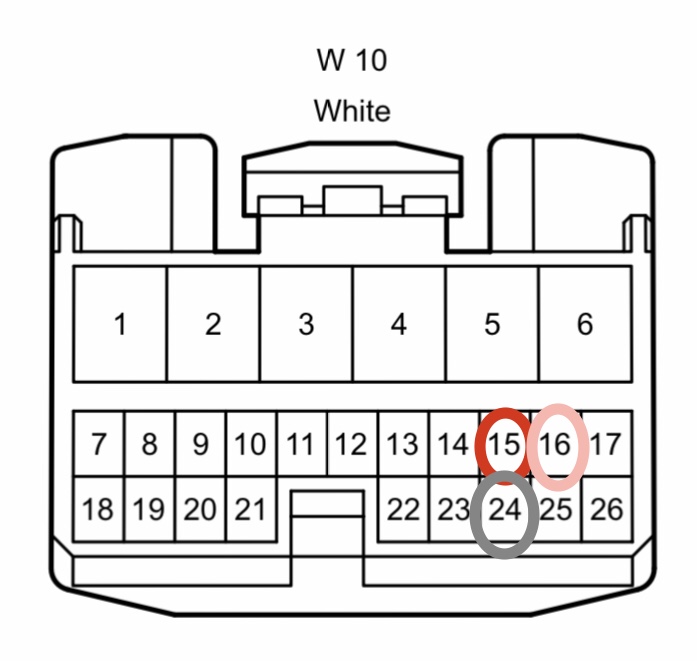

Connector face:



[Globetrotter78]

I found this too! It doesn't/didnt pull with a search for some reason but here for those interested in DIY....


https://www.toyota-4runner.org/3239038-post43.html



[Globetrotter78]

On W10:
…….QUOTE]

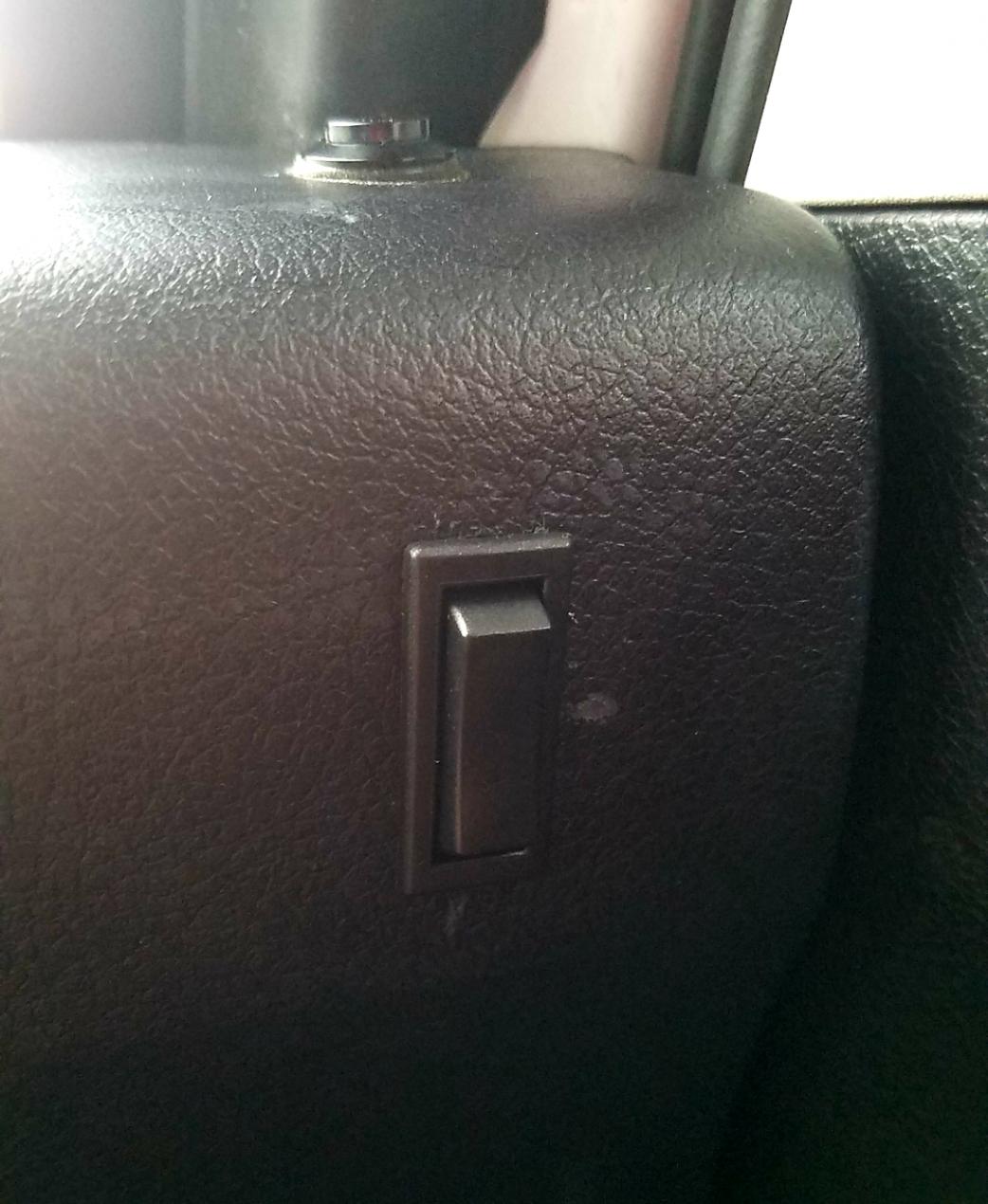

So I got it all wired up and it works like a champ! Took about 20 min and $5-$8 worth of stuff, most I already had on hand. I have it all mounted on the far right (from the inside facing out). This will be great for camping!!!

Thanks again brother!


Ps. ignore the slight knick to the right of the switch, the Dremel got away from me for a nanosecond. Ill repair that this weekend.



[warriv]

Does anyone have the W10 pinout for later 4runners (2022)? My W10 is a 26 pin connector. I pad for the access to toyota docs but I guess my access is expired and I never could figure out how to use that subscription to lookup pinout info. Thanks.
