Thanks guys! Here's today's progress.
Started off by swapping the original R150F 5VZ-FE bell housing with that of a 2TR-FE bell housing for the R155 transmission that Toyota uses in the 2005+ 2.7l Tacoma.

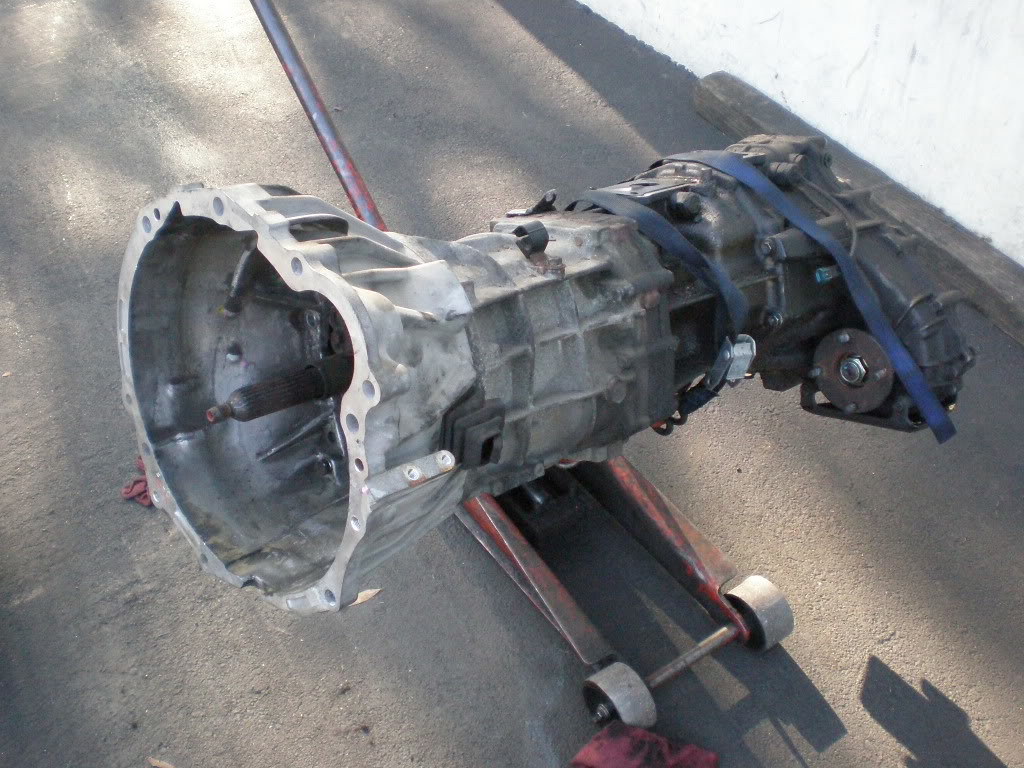

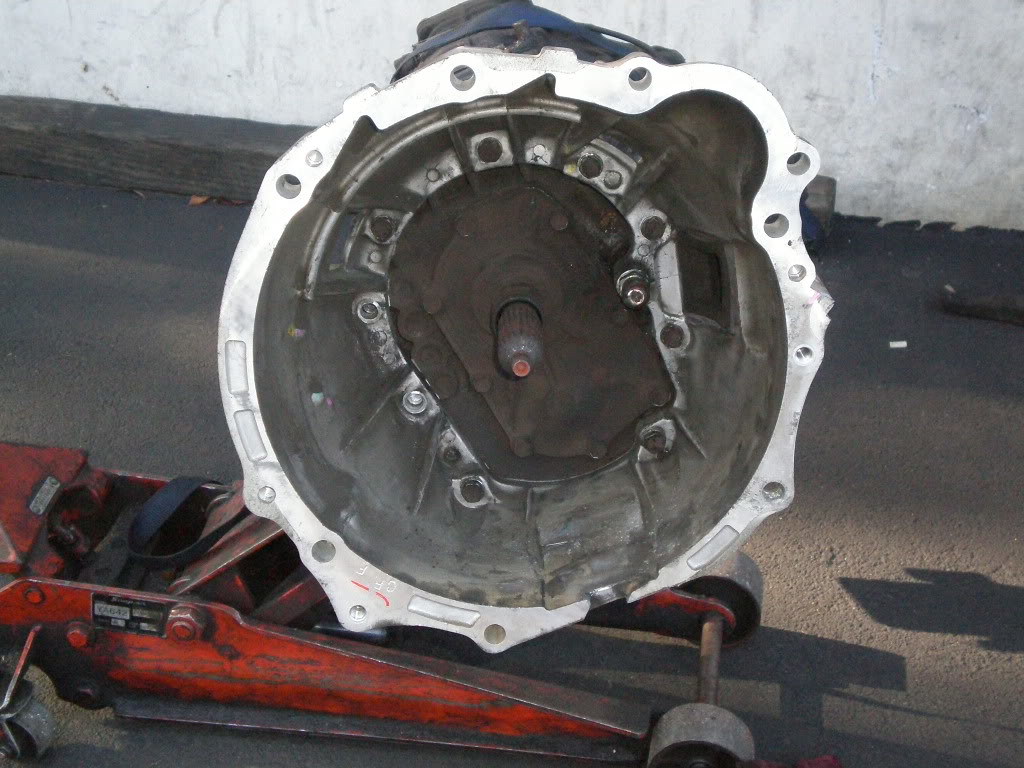

The transmission with the 5VZ bell housing.

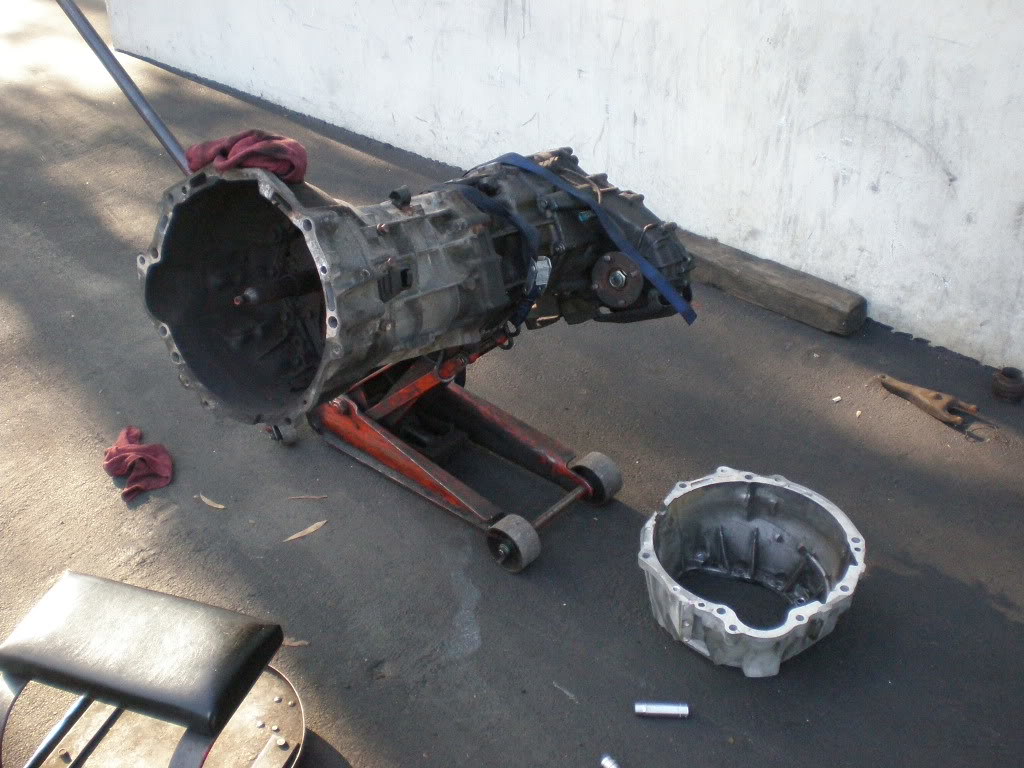

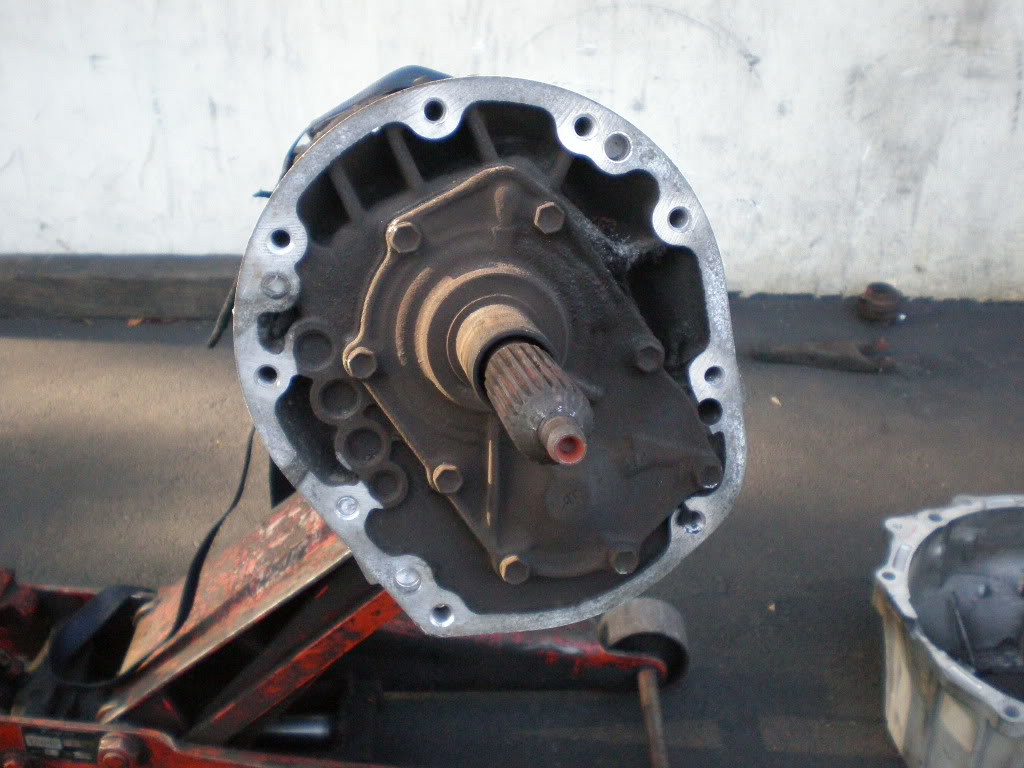

No bell housing.

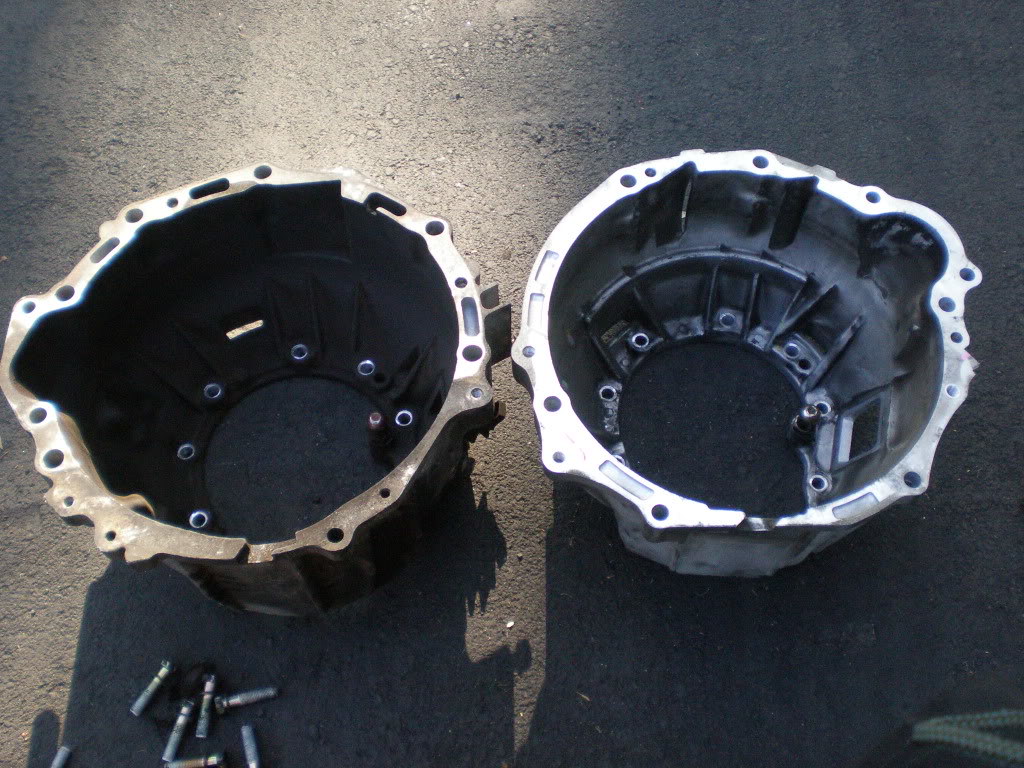

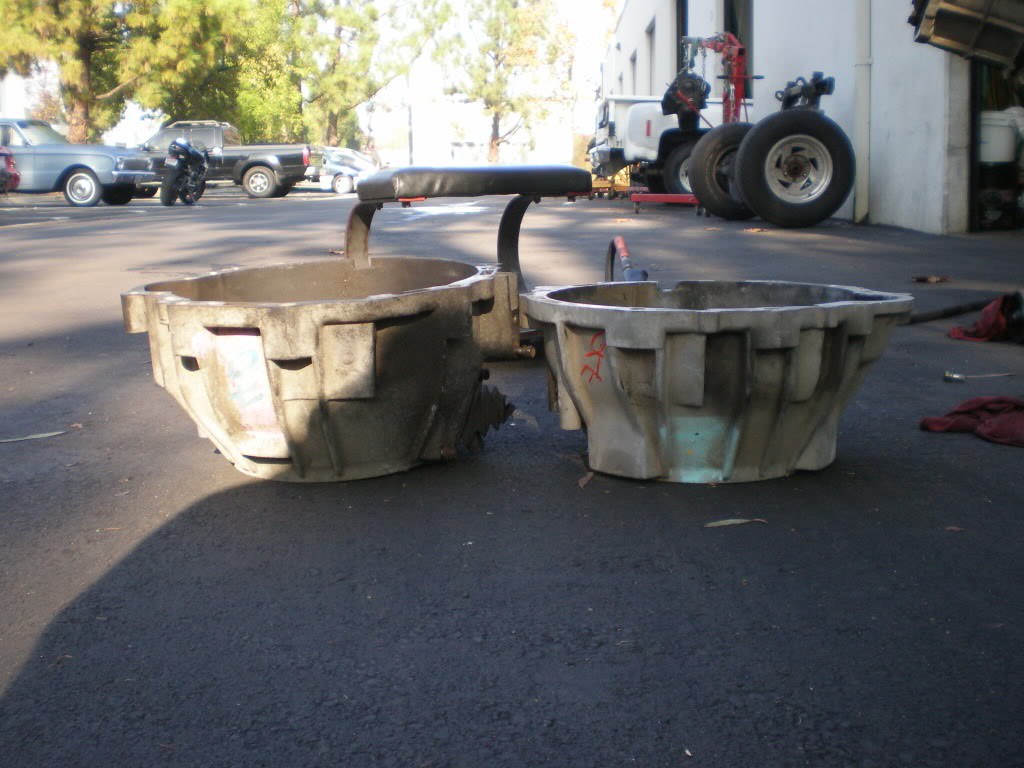

5VZ-FE R150 Bell housing on the left, about 7 1/2" tall.
2TR-FE R155 Bell housing on the right, about 6 1/2" tall.
R155/2TR Bell mounted:

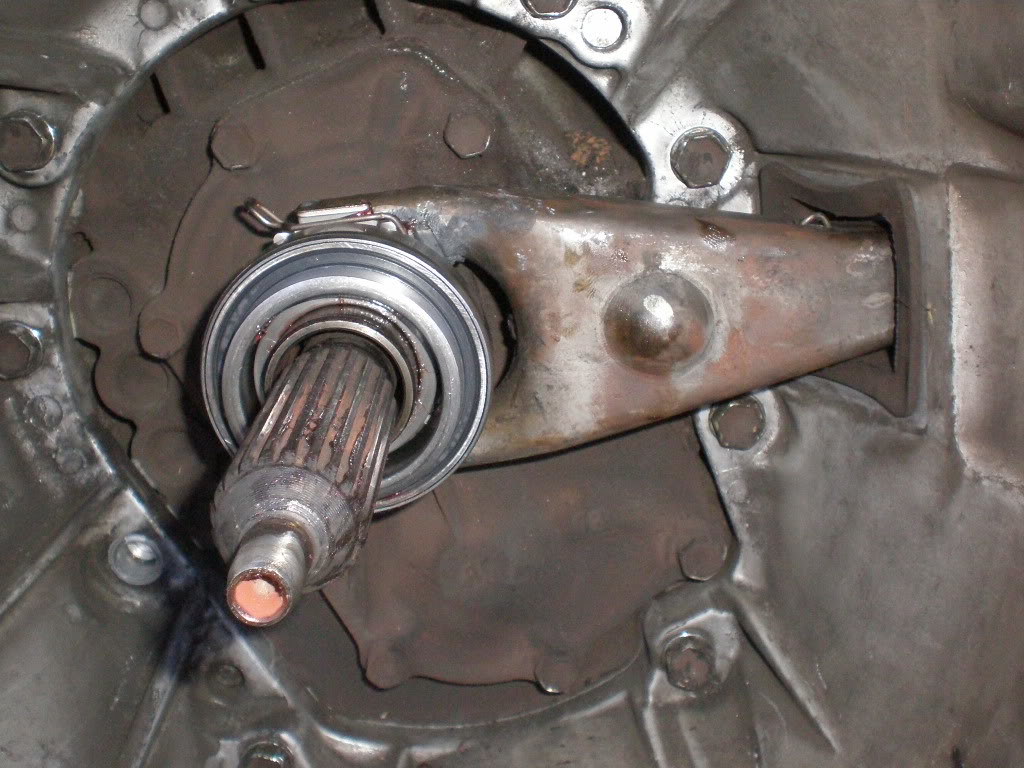

R155 clutch fork matched the R150 clutch fork exactly. New Koyo throwout bearing.

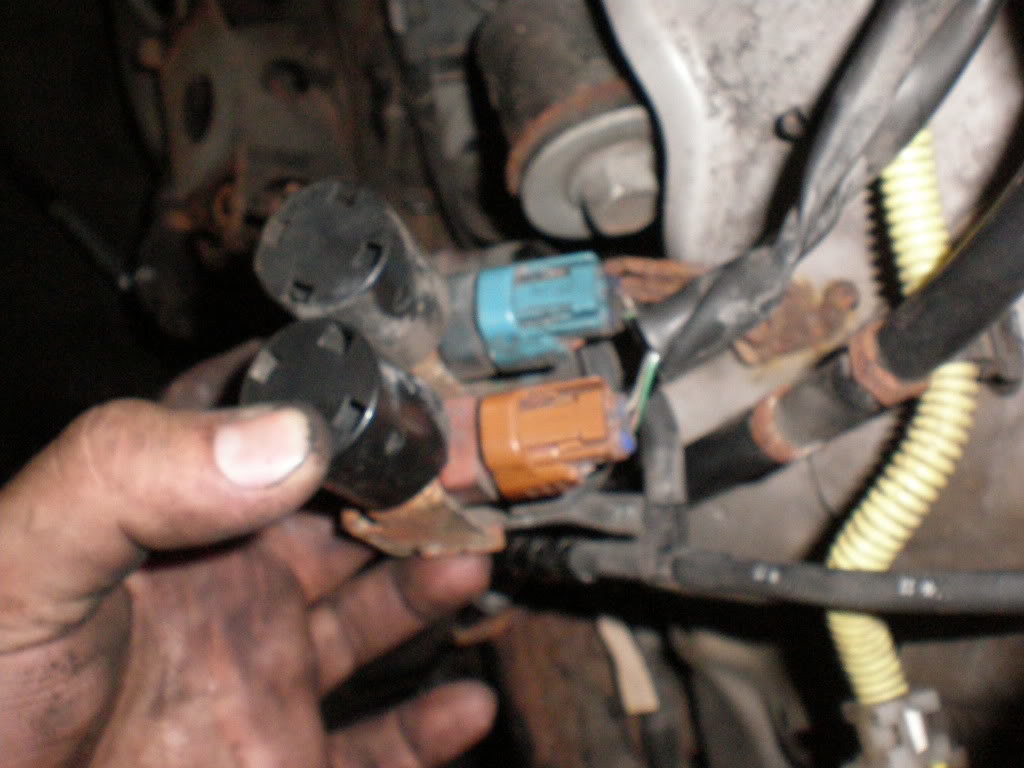

Removed the vacuum solenoids for the ADD front diff.

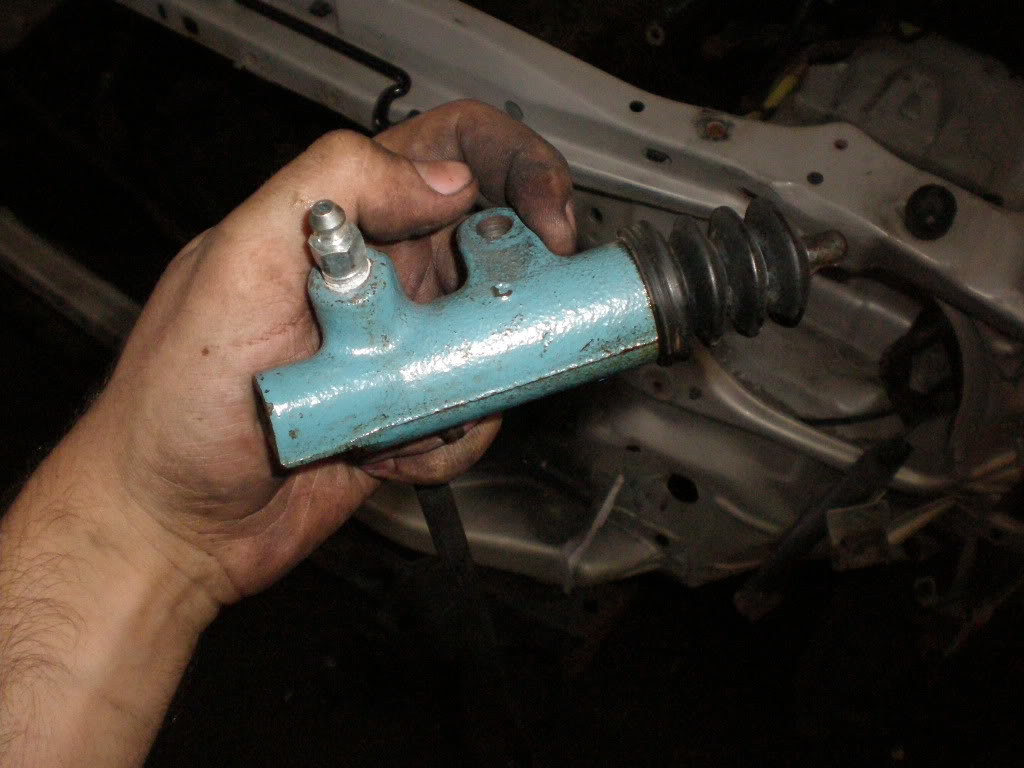

Removed slave cylinder

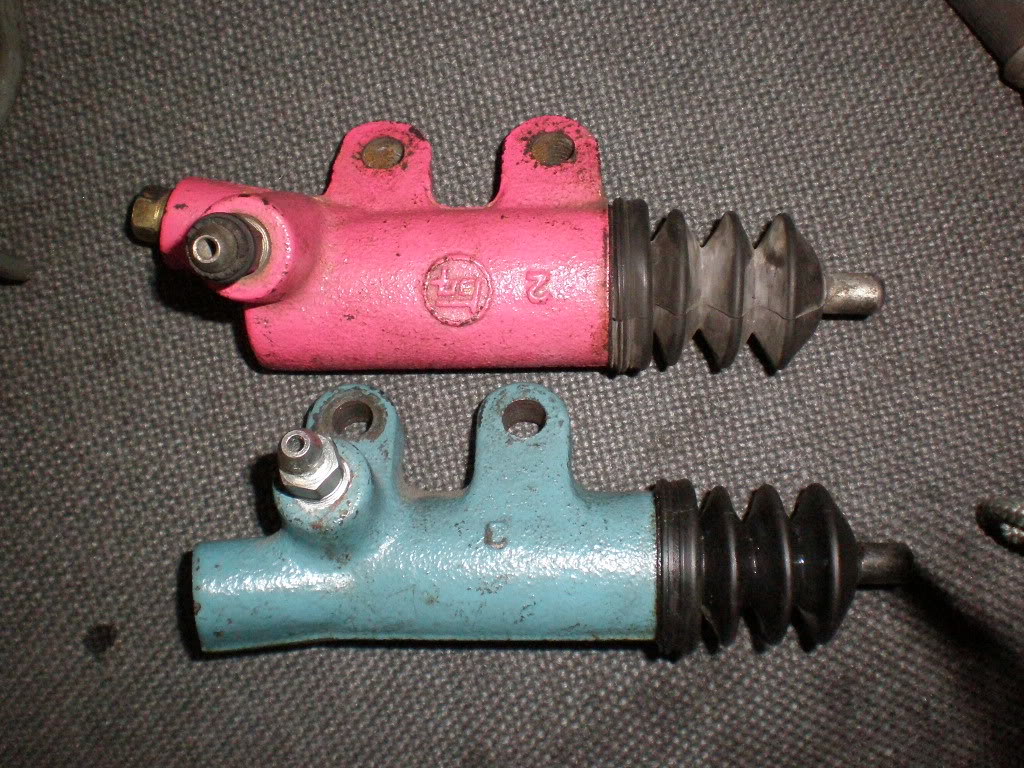

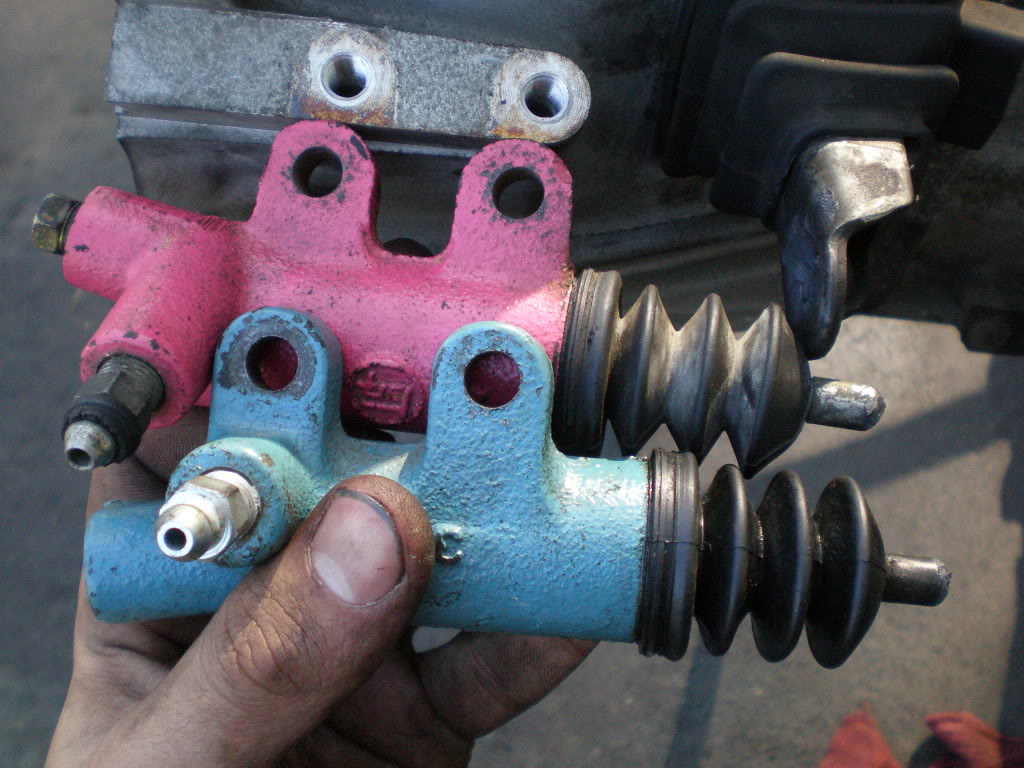

Red is a W59 (3RZ) slave, blue is an R150 (5VZ) slave cylinder.
Other than the clear mounting location/angle difference, they're essentially the same.

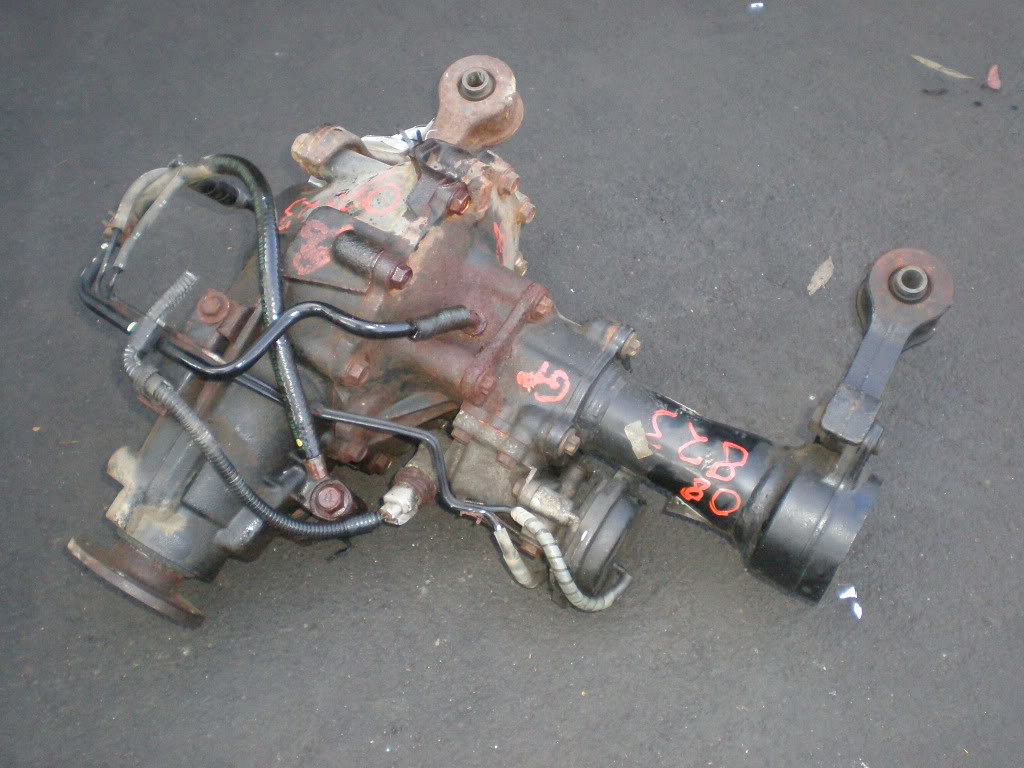

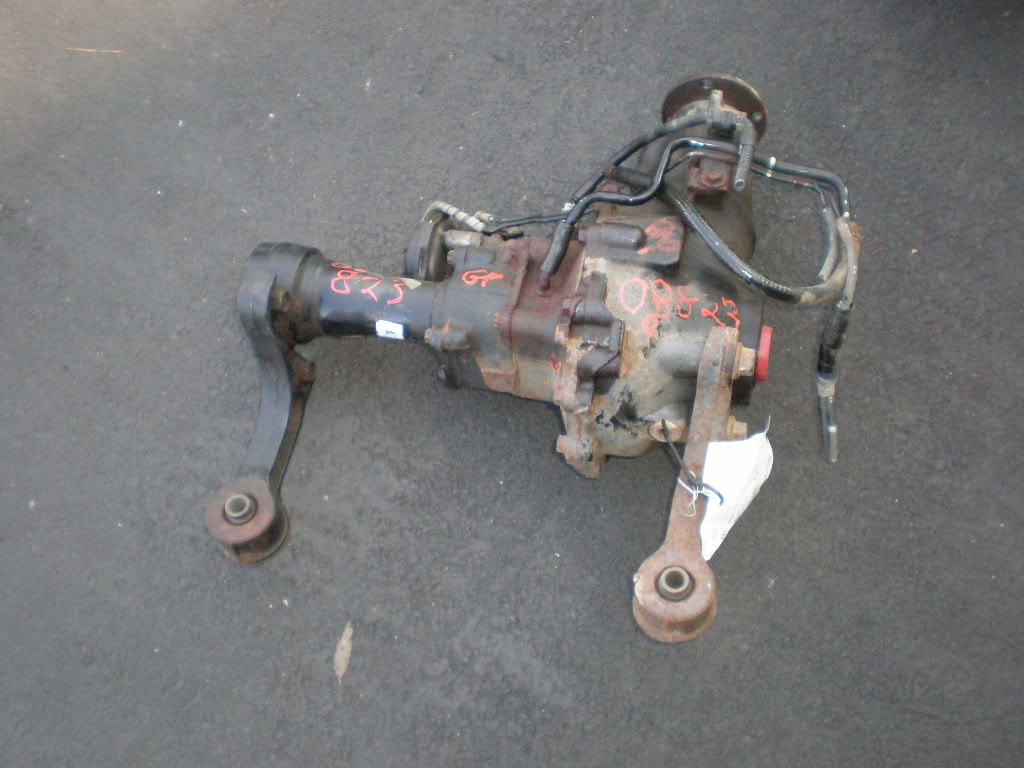

OEM 4.56 front differential, shipped from a wrecking yard in Maine:
Started off by swapping the original R150F 5VZ-FE bell housing with that of a 2TR-FE bell housing for the R155 transmission that Toyota uses in the 2005+ 2.7l Tacoma.
The transmission with the 5VZ bell housing.
No bell housing.
5VZ-FE R150 Bell housing on the left, about 7 1/2" tall.
2TR-FE R155 Bell housing on the right, about 6 1/2" tall.
R155/2TR Bell mounted:
R155 clutch fork matched the R150 clutch fork exactly. New Koyo throwout bearing.
Removed the vacuum solenoids for the ADD front diff.
Removed slave cylinder
Red is a W59 (3RZ) slave, blue is an R150 (5VZ) slave cylinder.
Other than the clear mounting location/angle difference, they're essentially the same.
OEM 4.56 front differential, shipped from a wrecking yard in Maine:
Last edited:
ChildrenOfBodom
Moderator

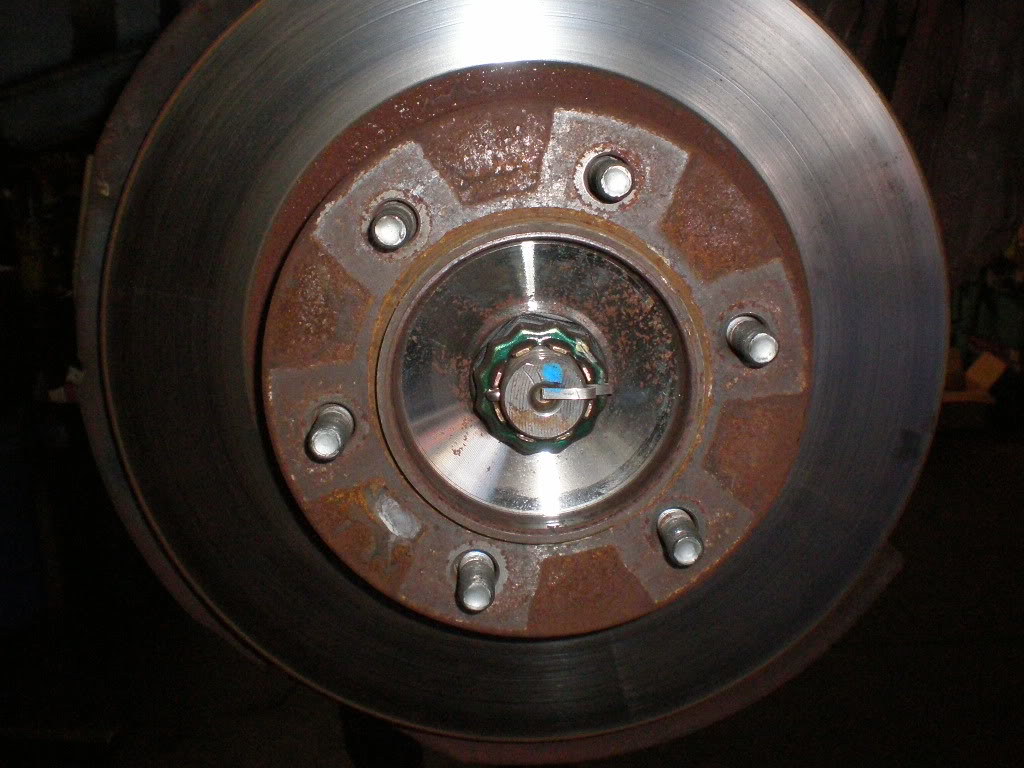

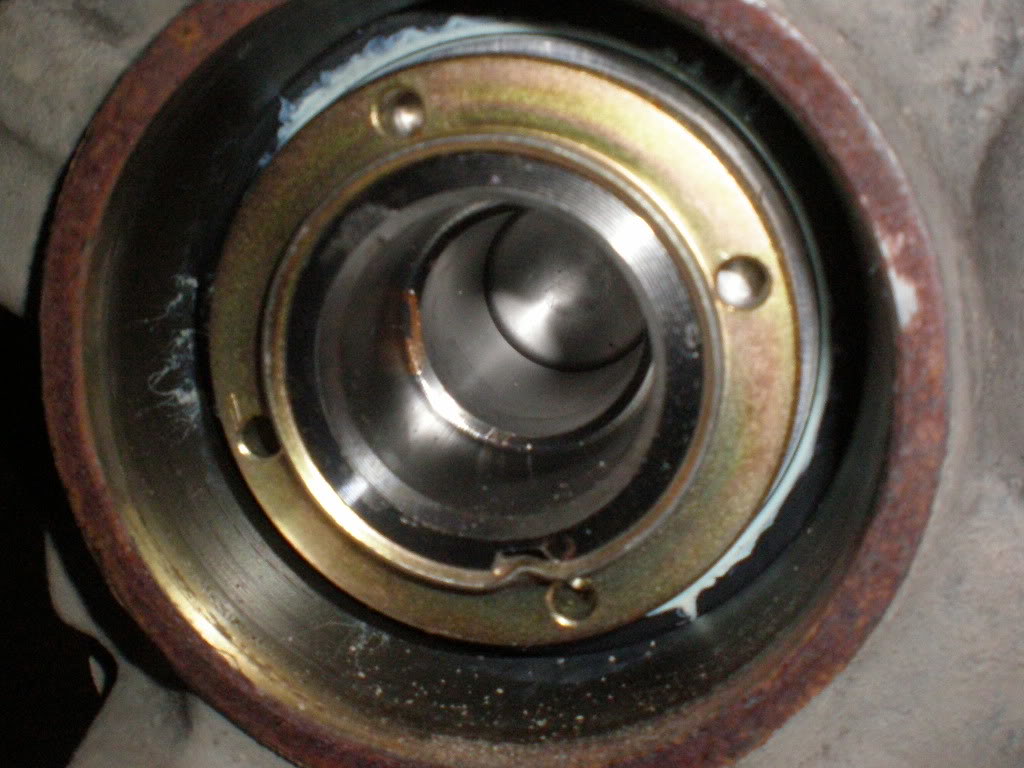

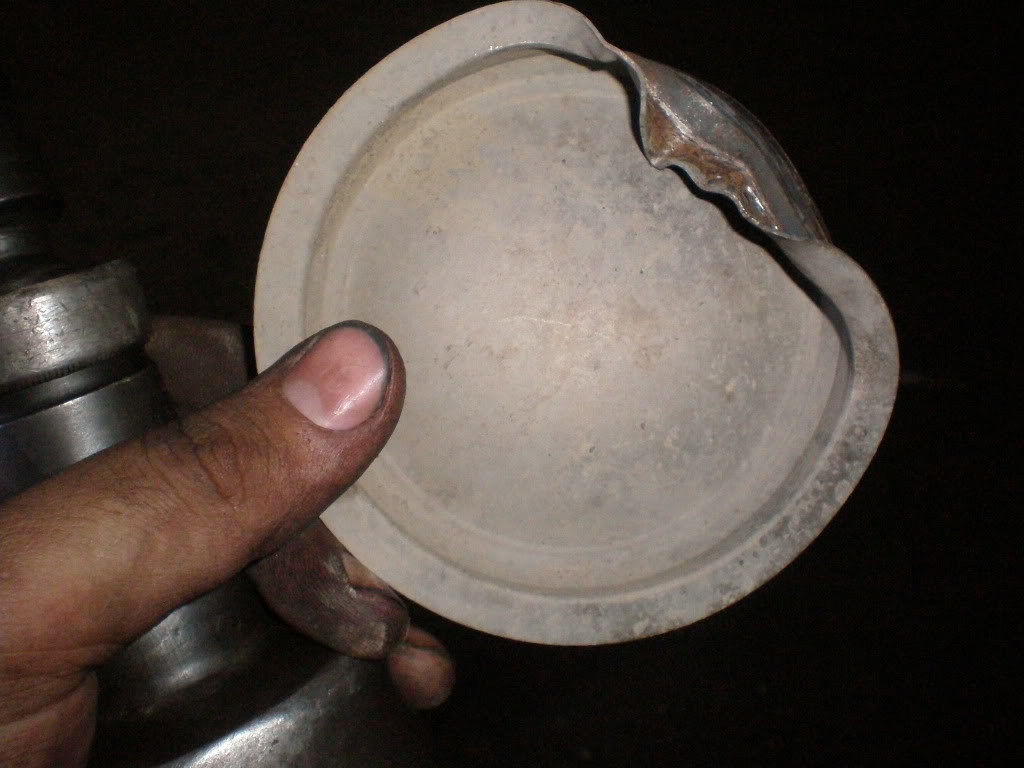

4WD hub without the hub cover, still on the donor truck.
The cover was so stuck on with rust that removal meant destruction via air hammer.

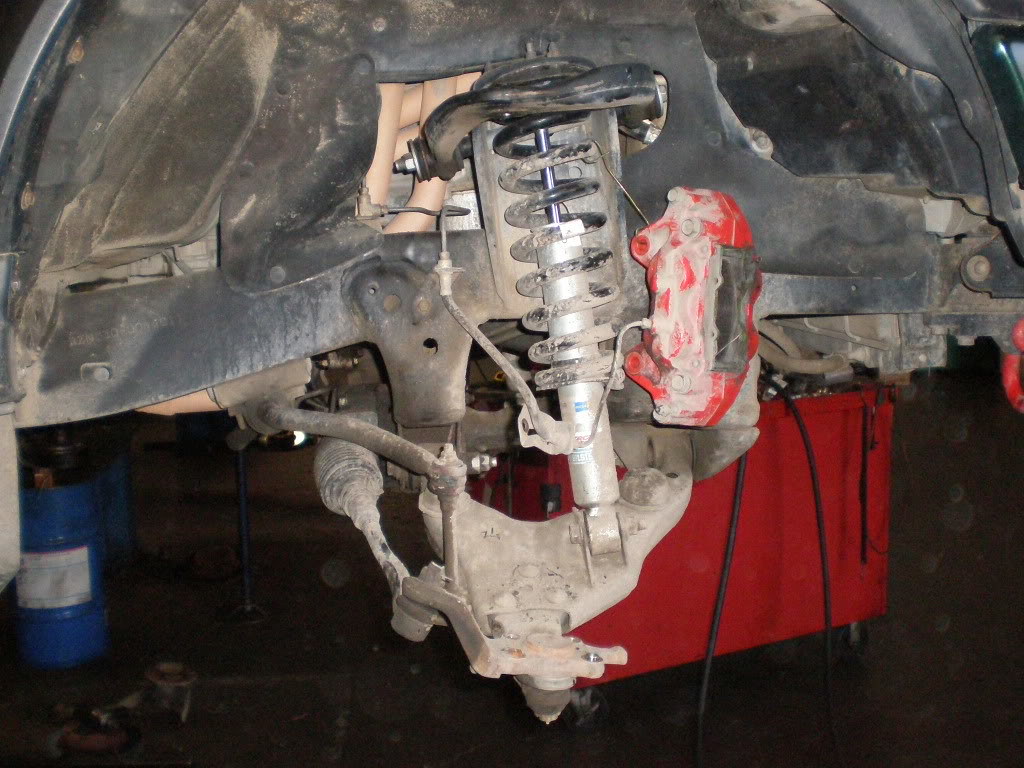

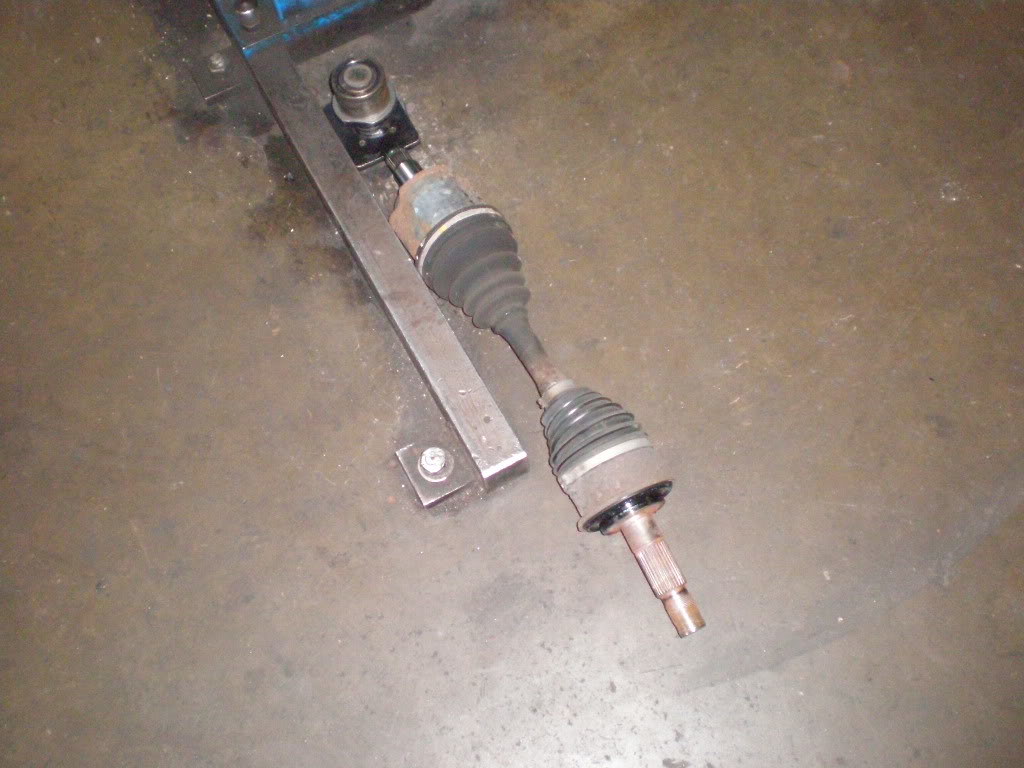

Lower Ball joints unbolted, CVs out.
Performed a spin test on the Maine front diff to double check the gear ratio. 4.56 is correct. The ADD vacuum controls work as well.

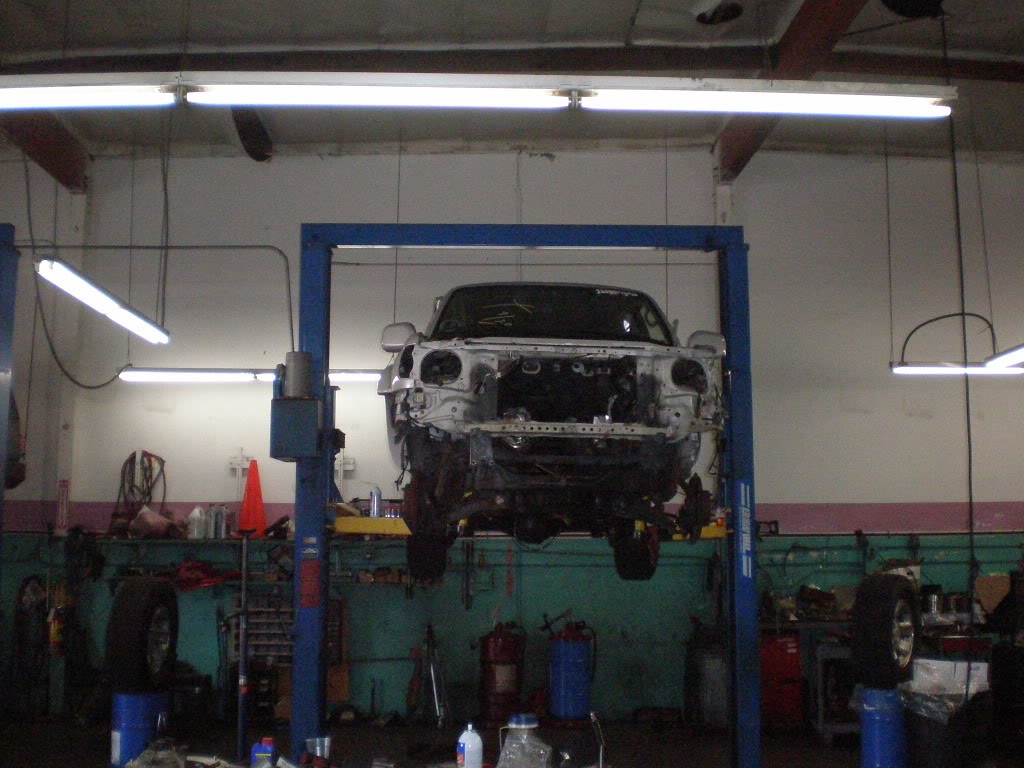

By this point, the donor truck is looking pretty sad. This thing will never be driven ever again. It's sad to have to take a Toyota off the road, but in turn, my Toyota will also be going off the road
Over and over again.
Time to get this show on the road...

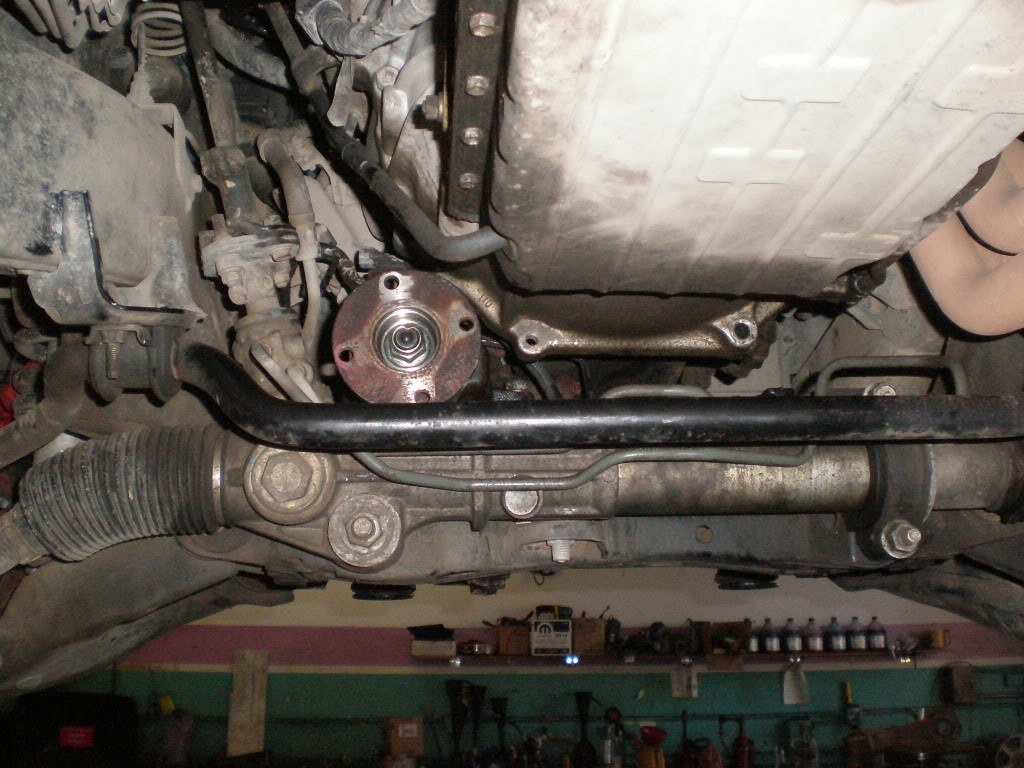

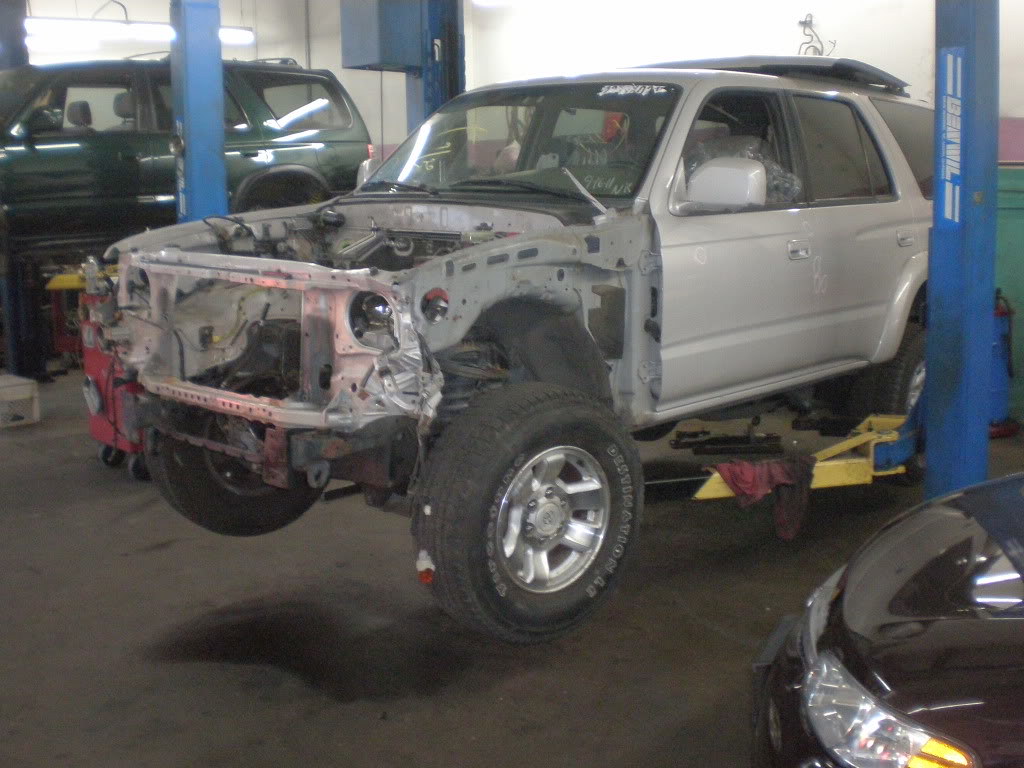

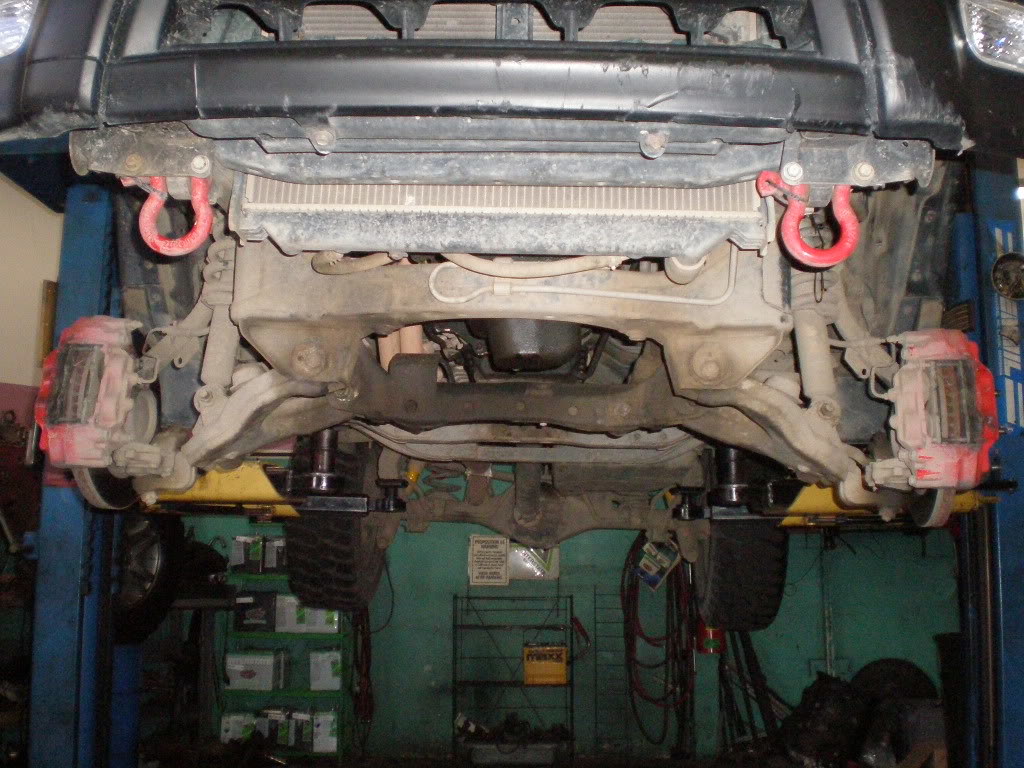

Skid off, wheels off. Notice the void where a front diff should be.
The 2WD hubs are not splined for the CV axle, which required swapping to the 4WD spindles.

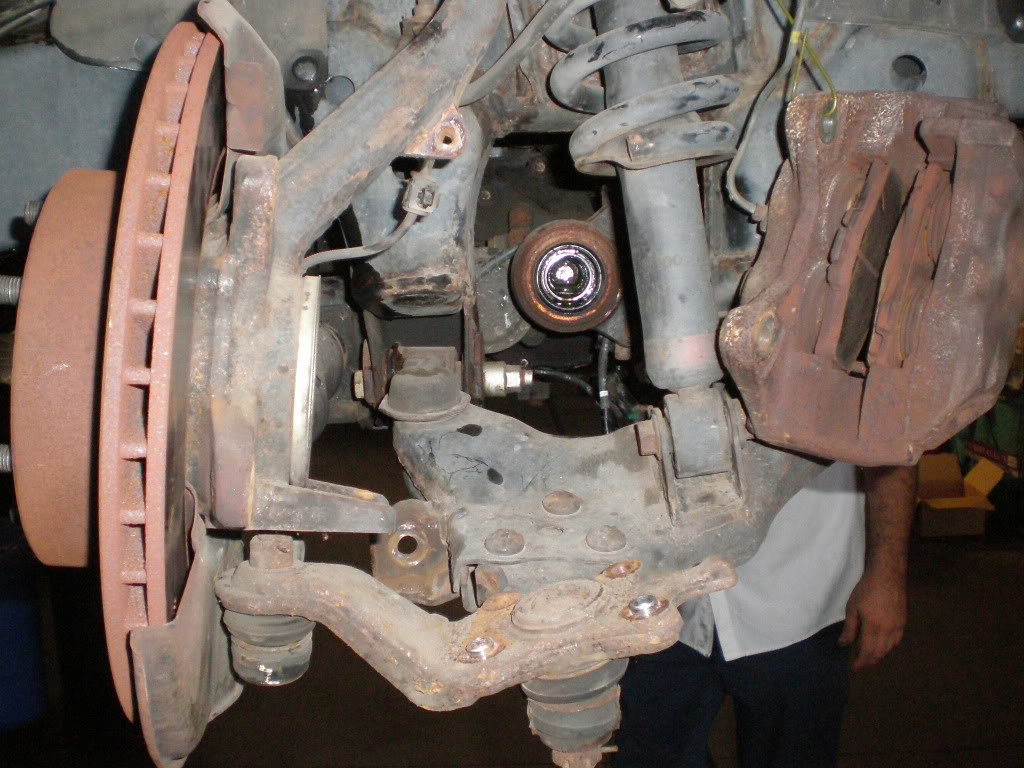

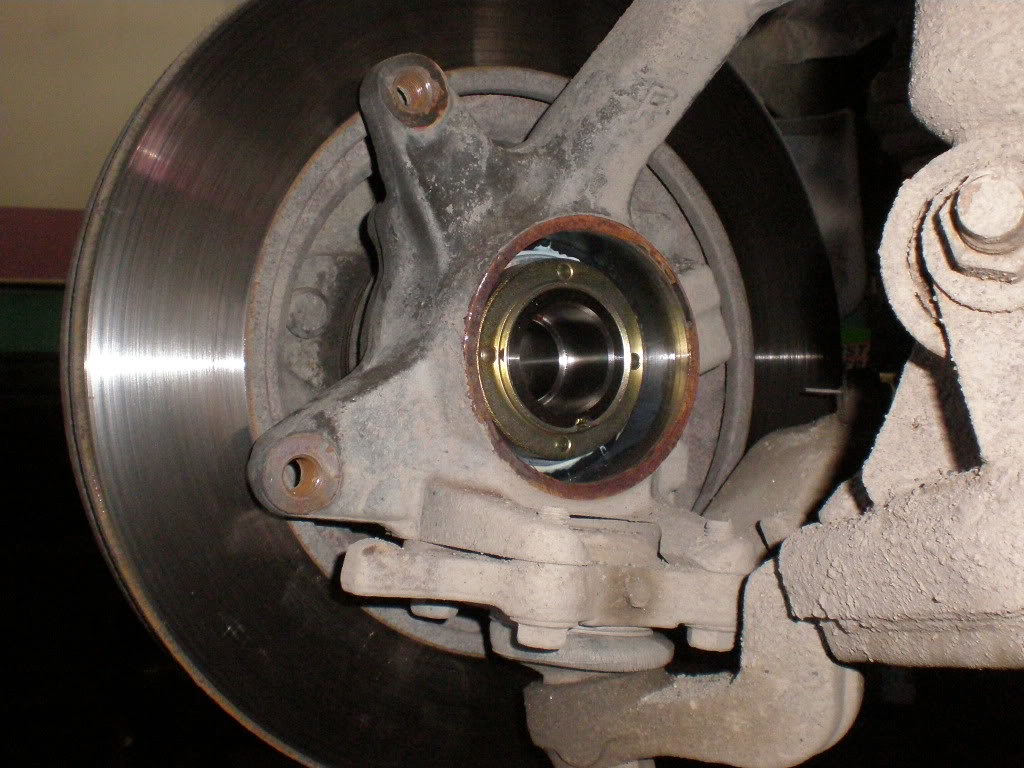

2WD Spindles removed:

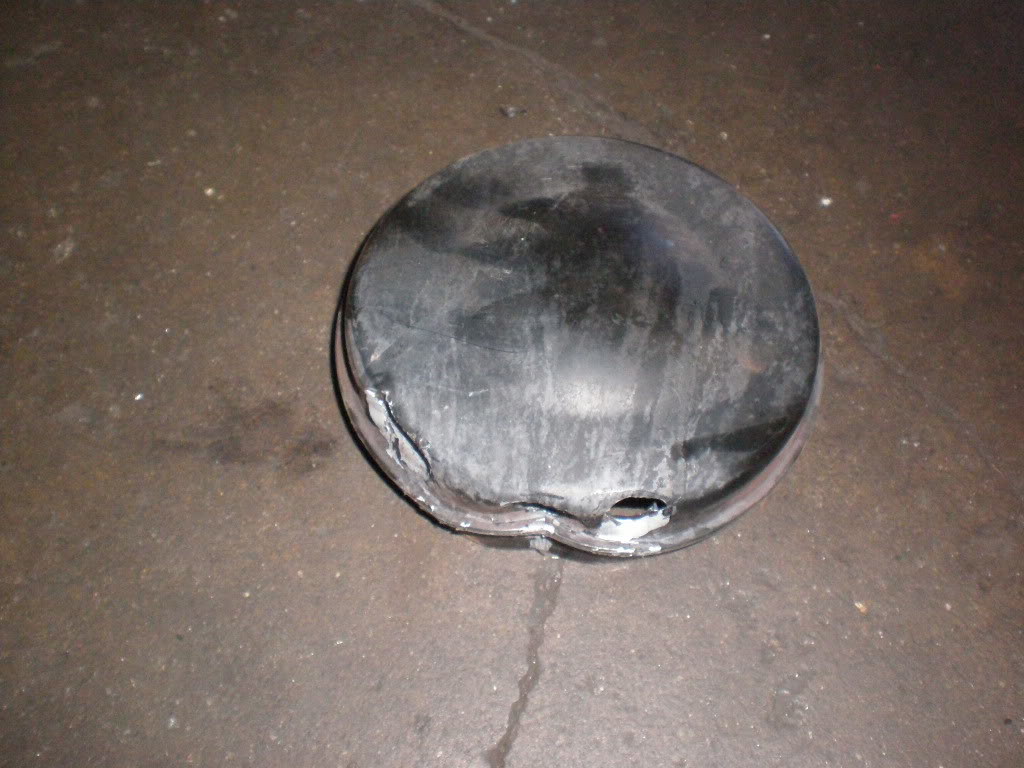

The cover was so stuck on with rust that removal meant destruction via air hammer.
Lower Ball joints unbolted, CVs out.
Performed a spin test on the Maine front diff to double check the gear ratio. 4.56 is correct. The ADD vacuum controls work as well.
By this point, the donor truck is looking pretty sad. This thing will never be driven ever again. It's sad to have to take a Toyota off the road, but in turn, my Toyota will also be going off the road
Over and over again.
Time to get this show on the road...
Skid off, wheels off. Notice the void where a front diff should be.
The 2WD hubs are not splined for the CV axle, which required swapping to the 4WD spindles.
2WD Spindles removed:
Last edited:
ChildrenOfBodom
Moderator

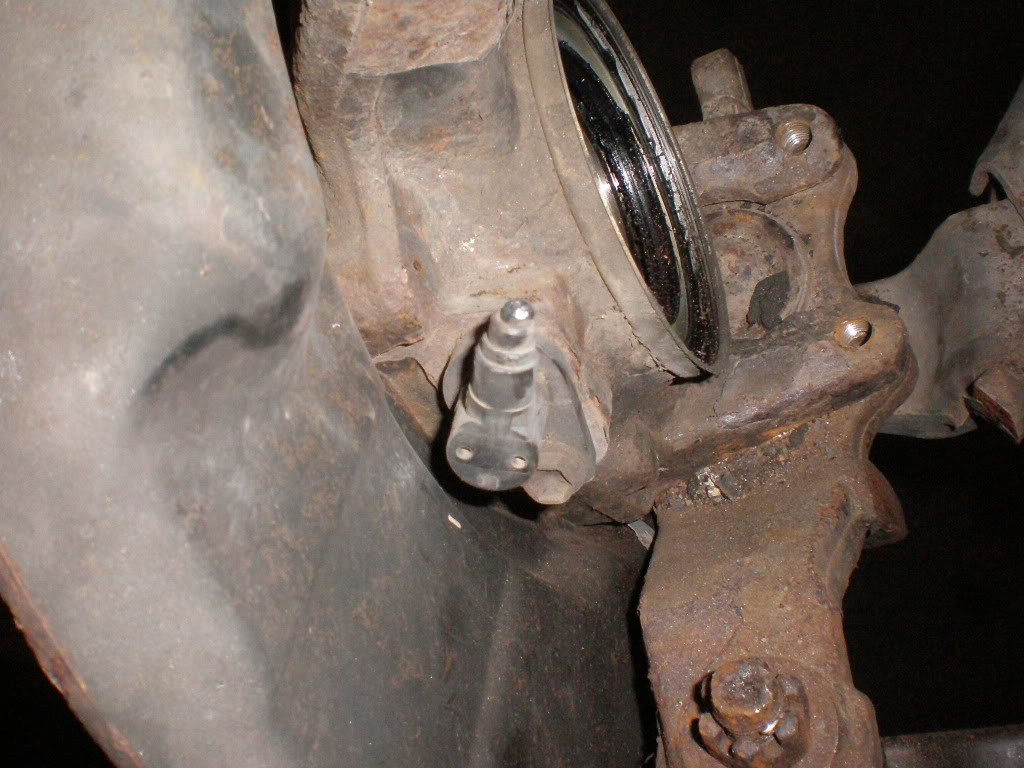

My 4Runner doesn't have ABS, thus the 2WD spindles don't have ABS sensors. The 4WD spindles have sensors, so removing them simply wasn't an option unless there was something to fill the hole. The best route was to cut the wire for the ABS speed sensor and leave it in.
4WD spindles:

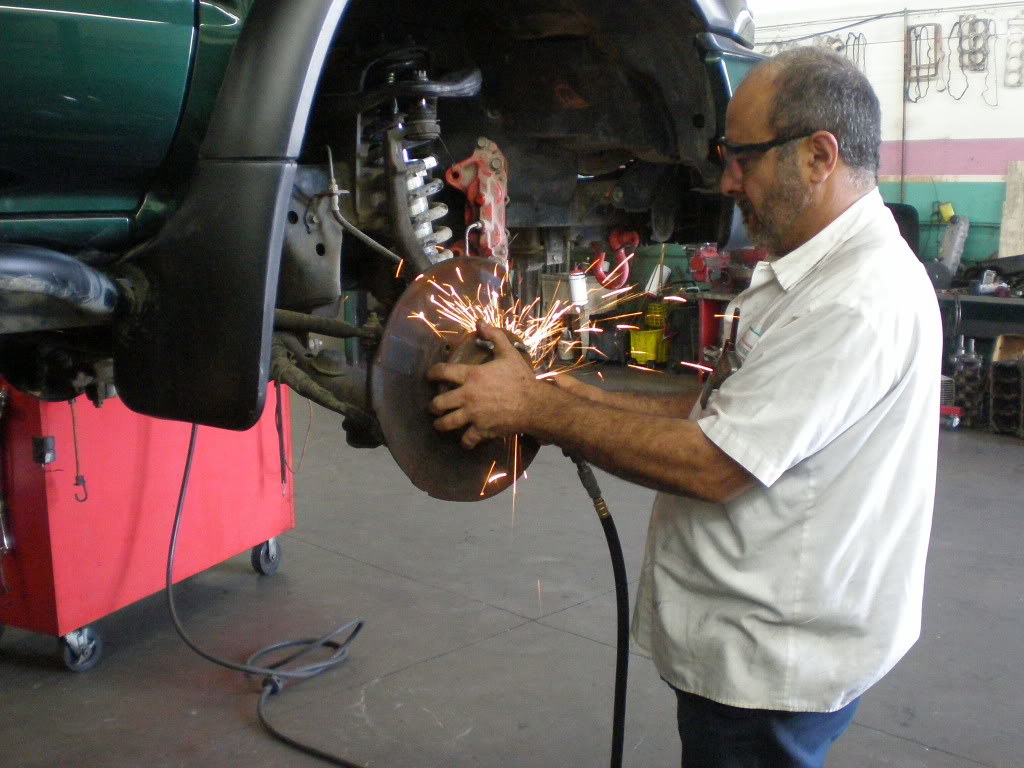

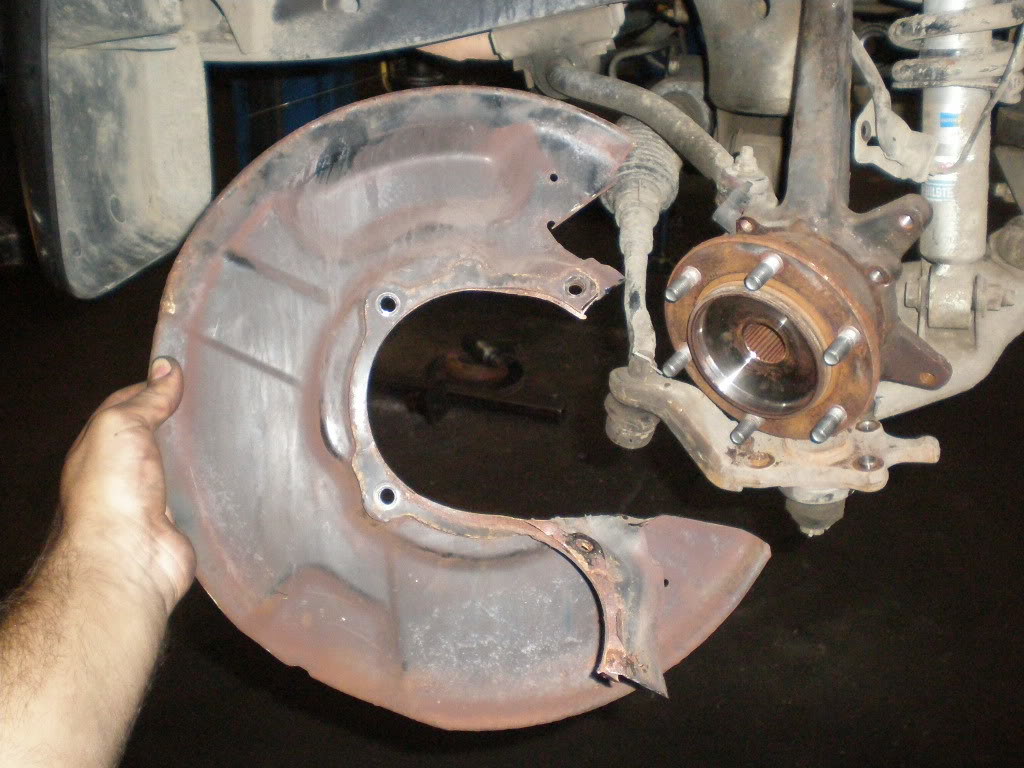

This is John, the owner of the shop, cutting the shields off of the 4WD spindles.

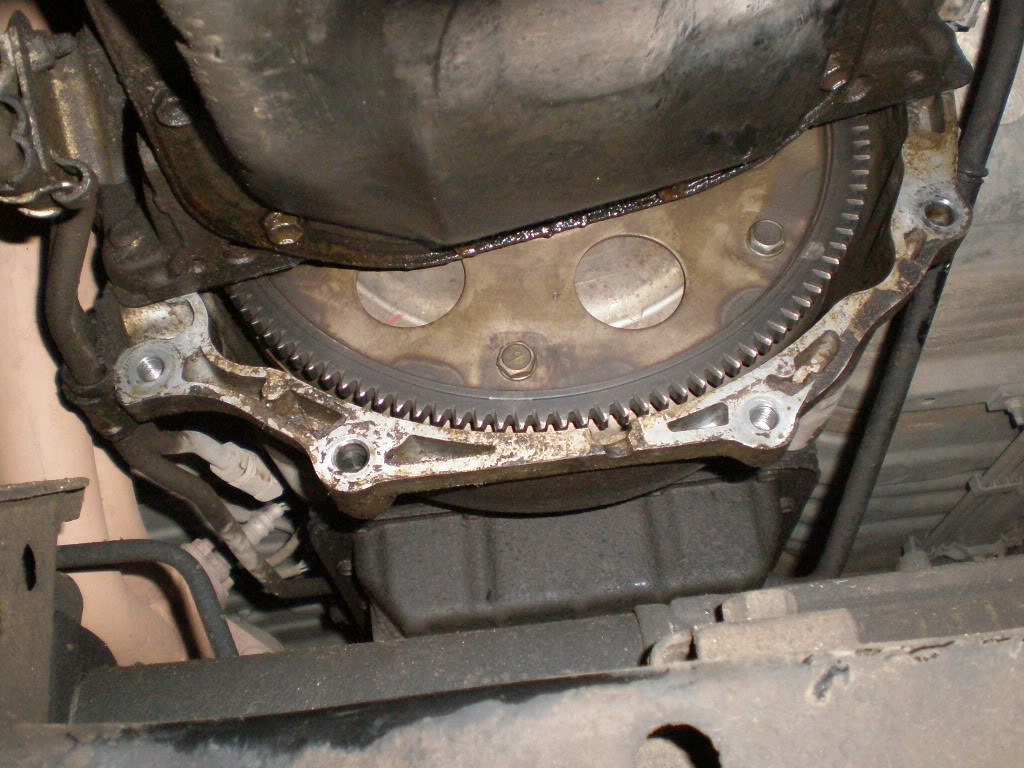

After removal of the transmission/flexplate inspection cover, some leakage was evident from the oil pan gasket. A while back, before meeting John, another shop had installed a cork gasket that shouldn't be there. The seeping is slow, so I only sinched the bolts a touch tighter and left it be.

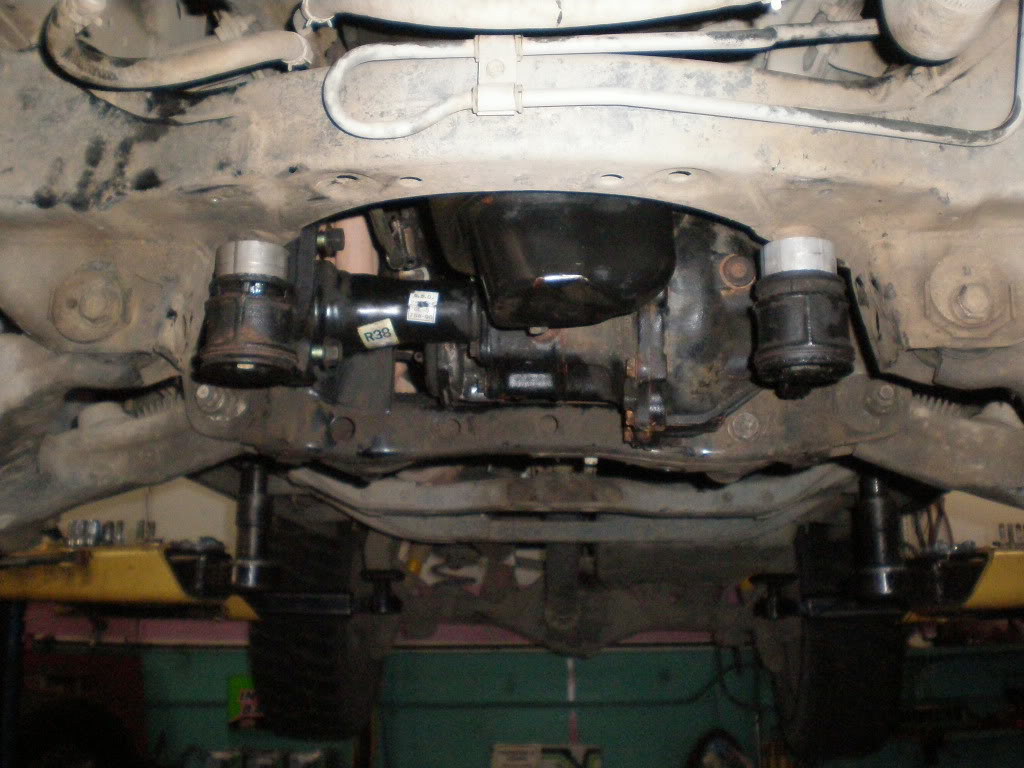

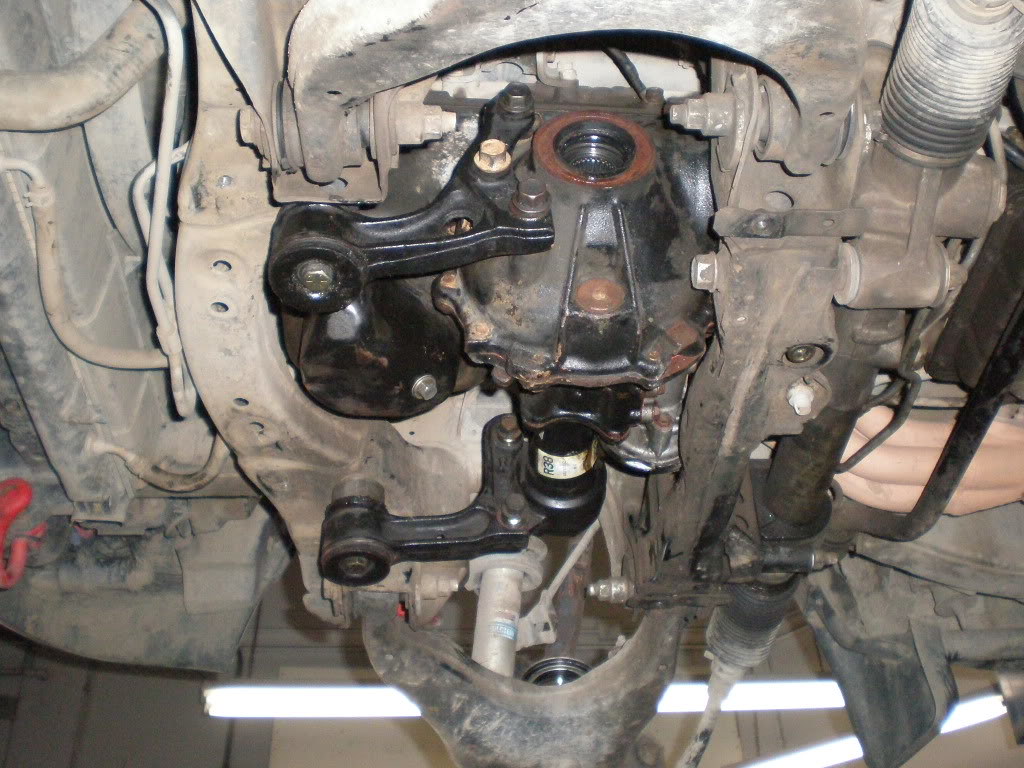

4.56 Front diff installed in the 99 with Toytec 1" Diff drop:
This was a real pain to get in, it's a very tight squeeze. One of the tricks that John learned over his course of experience - grinding off a few threads from the bottom stud makes that a way easier job.
Reinstalled spindles, rotors, calipers, and wheels with 2WD spindles on the donor truck, so it'll roll.
The old CV's have bad seals against the hub, so to avoid risking water damage to the front wheel bearings, new ones are on order.

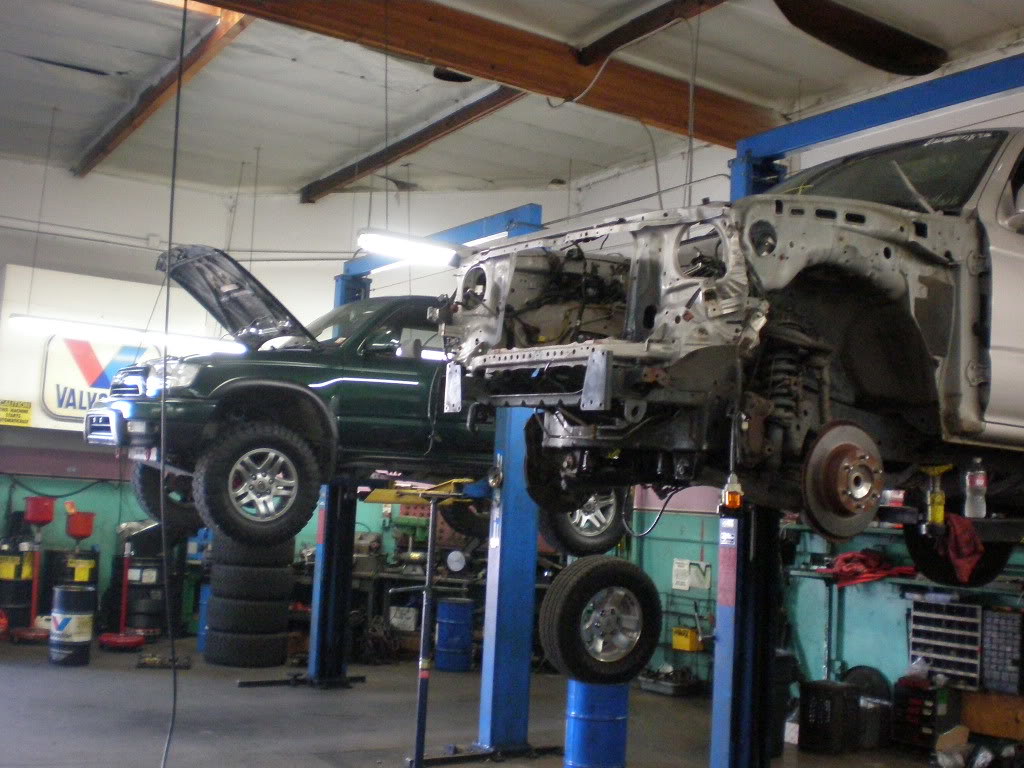

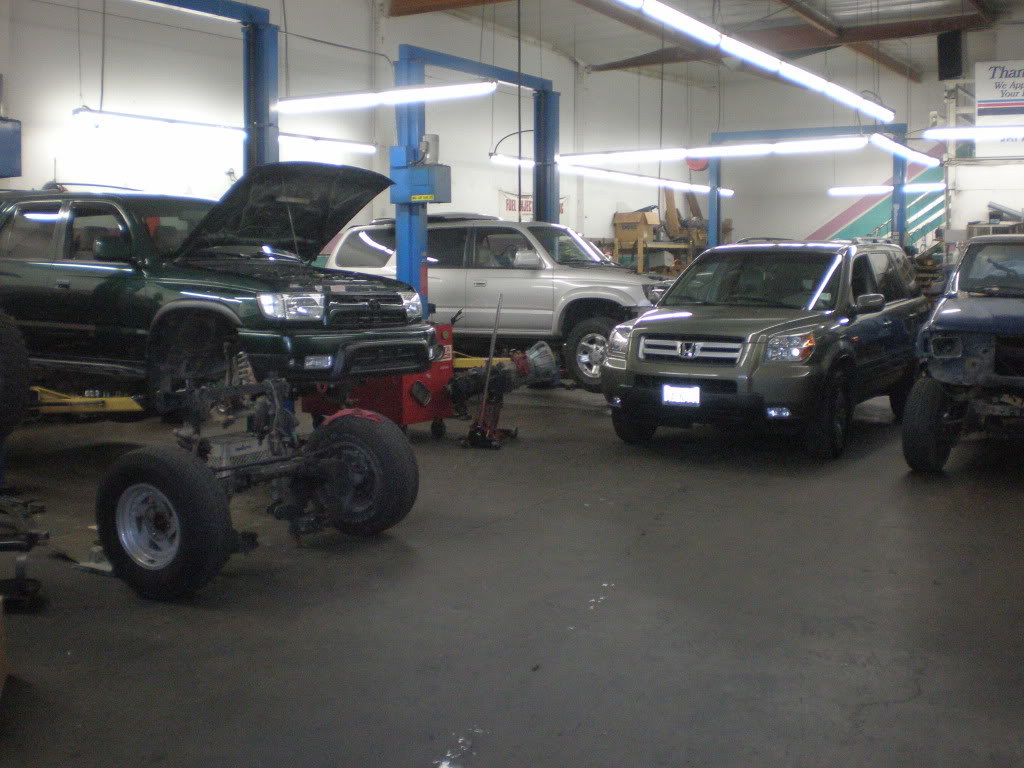

Shop is packed up for night and we'll be back tomorrow!

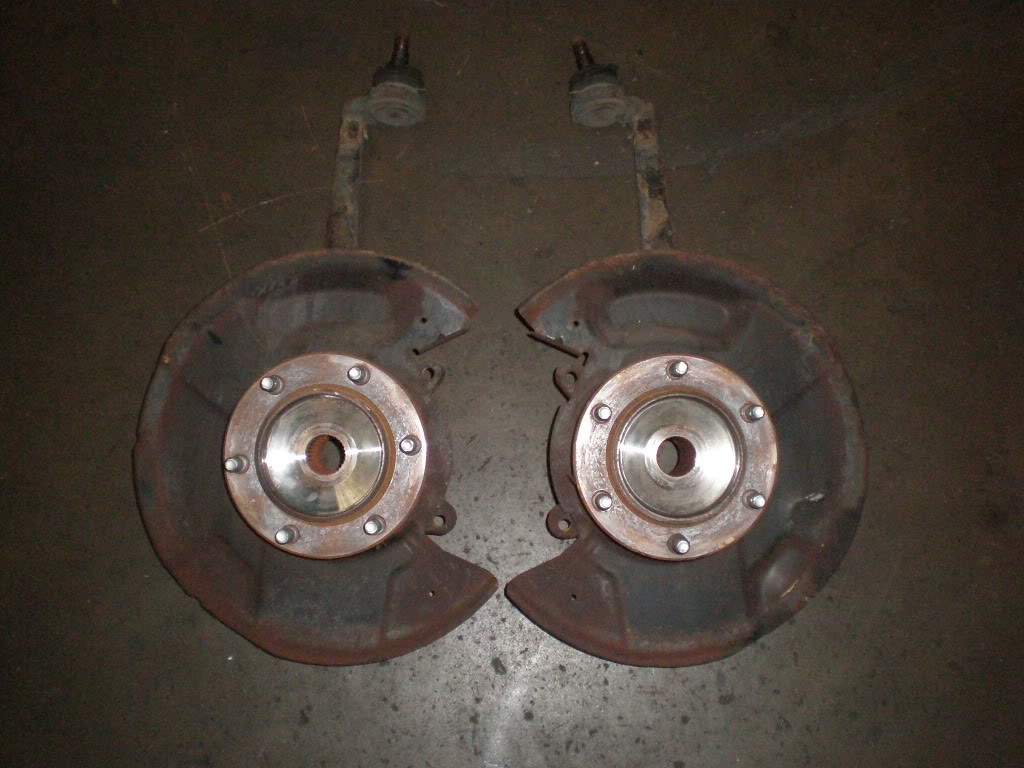

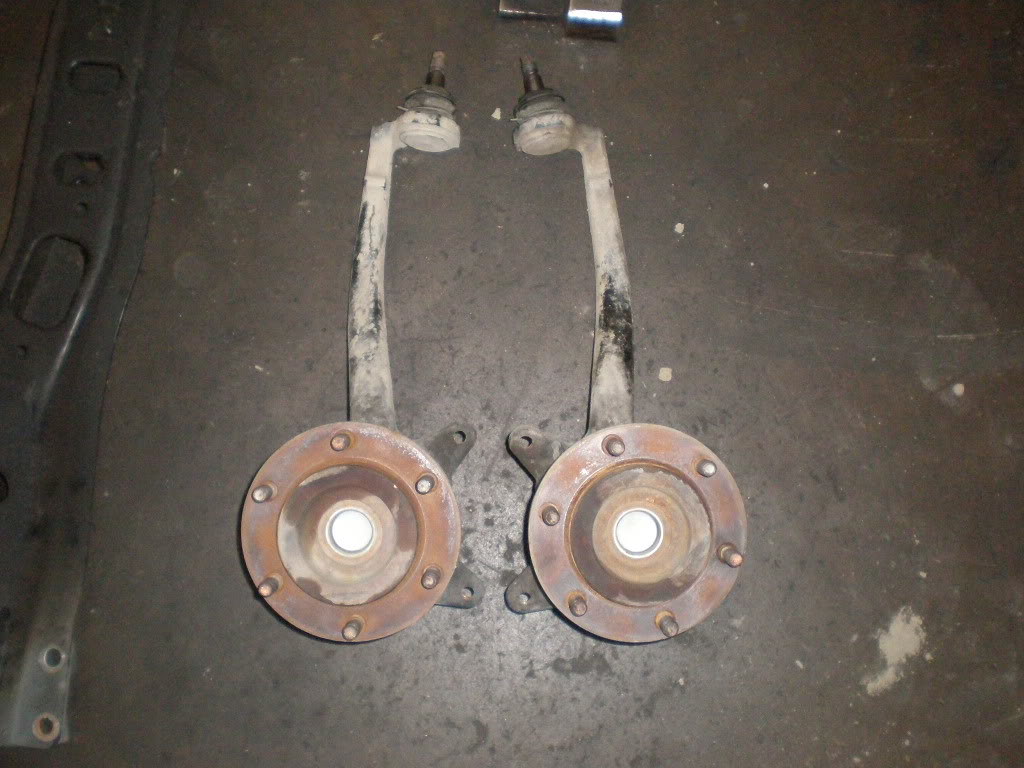

4WD spindles:
This is John, the owner of the shop, cutting the shields off of the 4WD spindles.
After removal of the transmission/flexplate inspection cover, some leakage was evident from the oil pan gasket. A while back, before meeting John, another shop had installed a cork gasket that shouldn't be there. The seeping is slow, so I only sinched the bolts a touch tighter and left it be.

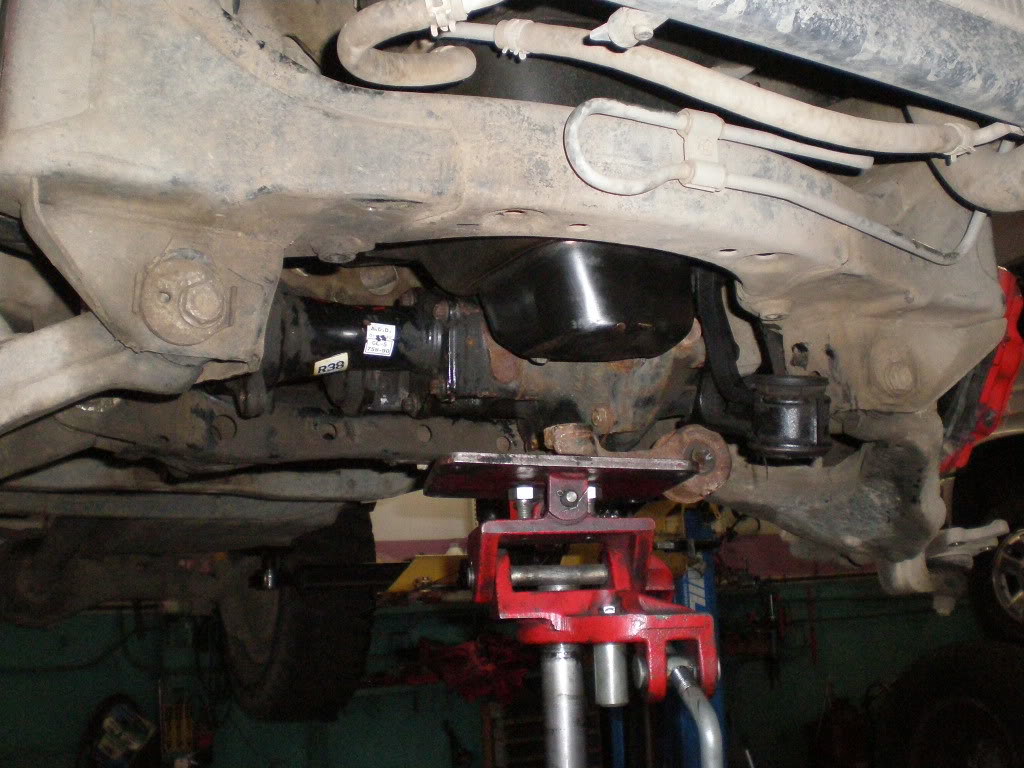

4.56 Front diff installed in the 99 with Toytec 1" Diff drop:
This was a real pain to get in, it's a very tight squeeze. One of the tricks that John learned over his course of experience - grinding off a few threads from the bottom stud makes that a way easier job.

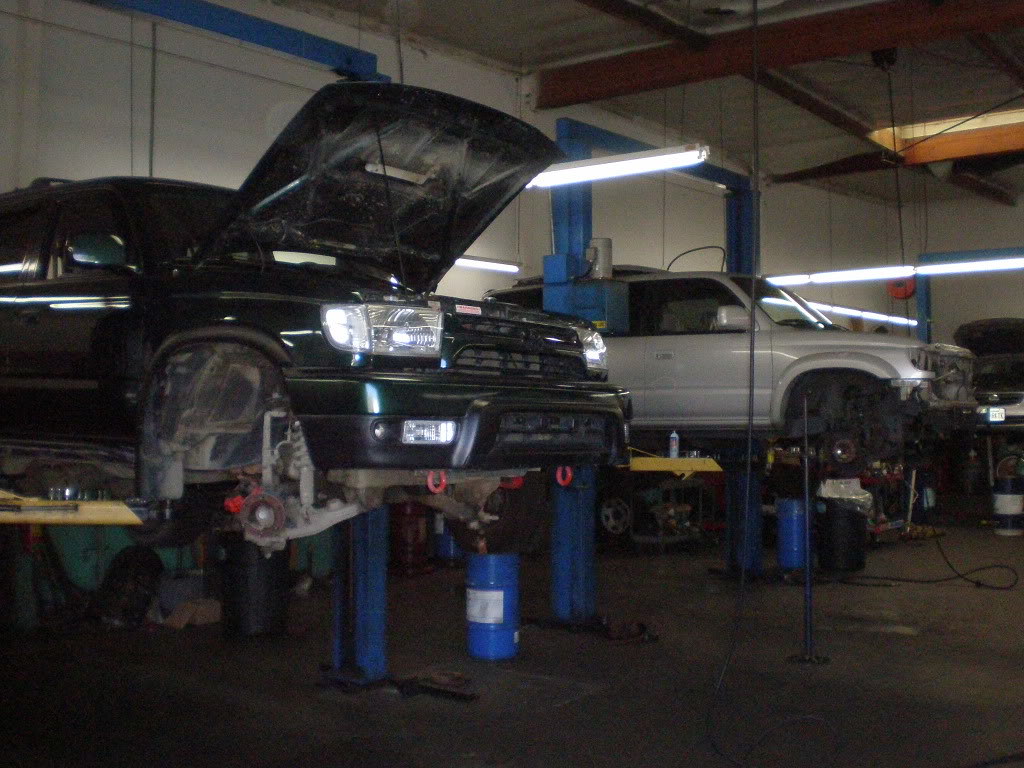

Reinstalled spindles, rotors, calipers, and wheels with 2WD spindles on the donor truck, so it'll roll.
The old CV's have bad seals against the hub, so to avoid risking water damage to the front wheel bearings, new ones are on order.
Shop is packed up for night and we'll be back tomorrow!
Last edited:
