I wonder if you can put a blue led underneath the needles and white LEDs under the numerals......... ?
DIY: Interior LED swap (cluster, HVAC, switches, window, *steering wheel)
- Thread starter darkie3495
- Start date
I wonder if you can put a blue led underneath the needles and white LEDs under the numerals......... ?
emelianenkov
New member
darkie3495
Moderator
In my 08 sport, the 3 LEDs under the needle illuminates the entire speedometer through a lens. I know limited clusters have separate LEDs for the numbers and the needle. You can achieve what you're looking for by using all white LEDs and paint the needle blue.
However, if you're looking for more of a fade (blue center transition to white outer) then Alex will need to crack open the cluster to figure out your options. Blue cellophane might be your friend if you want the fade.
Looks like Alex is tackling the needle color change tonight (pressure applied :hungry
so hopefully he can post his results tomorrow.
emelianenkov
New member
In my 08 sport, the 3 LEDs under the needle illuminates the entire speedometer through a lens. I know limited clusters have separate LEDs for the numbers and the needle. You can achieve what you're looking for by using all white LEDs and paint the needle blue.
However, if you're looking for more of a fade (blue center transition to white outer) then Alex will need to crack open the cluster to figure out your options. Blue cellophane might be your friend if you want the fade.
Looks like Alex is tackling the needle color change tonight (pressure applied :hungry
Alex feels guilty for choosing to watch the patriots game instead of doing the dash. Lol. Going to grab the cluster now :/ sigh.
emelianenkov
New member

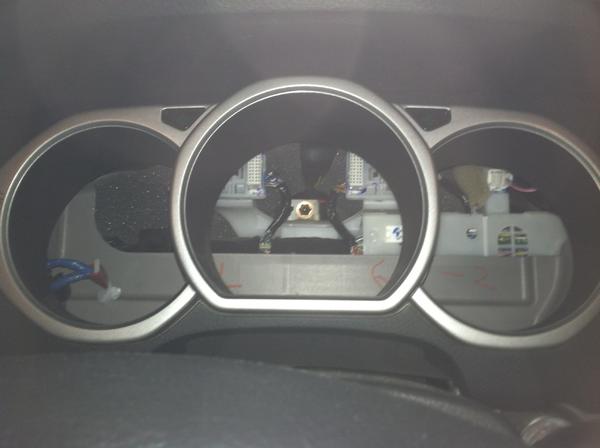

Here is the final product for tonight!
Looks pretty awesome!
Just kidding. Workin on this now whilst jamming out to Pandora. Fun starts NOW!
Looks pretty awesome!
Just kidding. Workin on this now whilst jamming out to Pandora. Fun starts NOW!
Clemsonfan15
New member
You should be watching the Giants vs 49'ers while working on that.
emelianenkov
New member
You should be watching the Giants vs 49'ers while working on that.
I want to, but I don't have a tv in my room. Oh well! I'm ALMOST about to run outside and check my handy-work before I close everything on the cluster up. Here goes nothing!
emelianenkov
New member
Update: Solders done, going to check em now.
Also, I grabbed my soldering iron the wrong way... that hurt like a mother! God damn it
Also, I grabbed my soldering iron the wrong way... that hurt like a mother! God damn it
emelianenkov
New member

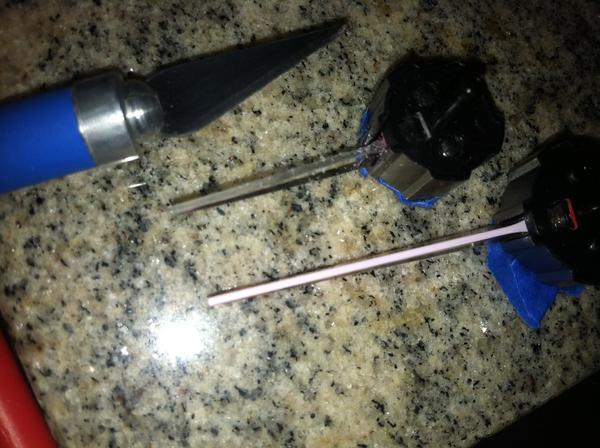

Updated update: Currently using a razor blade to scrape the paint off the back of my needles. Lets hope this works (specifically directed to Darkie, if I screw these needles up, I know where you live buddy )
)
emelianenkov
New member
GENTLEMEN! (and maybe a lady here and there)
I give you the FIRST 4th Gen with white gauge needles!
I give you the FIRST 4th Gen with white gauge needles!
That looks fantastic Alex!!! :thumb3: :thumb3:GENTLEMEN! (and maybe a lady here and there)
I give you the FIRST 4th Gen with white gauge needles!
I wonder how that would look in blue.....
emelianenkov
New member
That looks fantastic Alex!!! :thumb3: :thumb3:
I wonder how that would look in blue.....
Thank you!
The only way to tell is to do it up man! I'm down to solder up some blue for ya
April 1 can't come soon enough my friend!
emelianenkov
New member
April 1 can't come soon enough my friend!
Can't agree more, my birthday is on April 15th
This is too much coincidence my friend. Mine is April 14th. The truck was an advance present for my 50th BDay. LOL small world indeed!
Edit: I was looking at your gauges again and I really love the transition from white numerals in the middle to blue on the edges of the gauges. :thumb3:
The only detail I would love to change as I mentioned already would be to have the needles in blue. Other than that, I think the color combo you inadvertently ended up with is perfect!
Last edited:
emelianenkov
New member
This is too much coincidence my friend. Mine is April 14th. The truck was an advance present for my 50th BDay. LOL small world indeed!
Edit: I was looking at your gauges again and I really love the transition from white numerals in the middle to blue on the edges of the gauges. :thumb3:
The only detail I would love to change as I mentioned already would be to have the needles in blue. Other than that, I think the color combo you inadvertently ended up with is perfect!
Very small world!
I'm interested in seeing how the white to blue fade would look with blue needles! Can't wait to find out!
Just so you know, the fade I have on the tach is white from 1-3 rpm and then it fades to blue from 3,000 rpm onward. It doesn't fade outwards from the needles, it just fades as the RPMs increase. You'll love what I'm going to do for ya (if you want me to do the mod, of course). You won't be disappointed!
Like I said, I can't wait till spring rolls around and I can start modding the truck with your help! :thumb3: :thumb3:Very small world!
I'm interested in seeing how the white to blue fade would look with blue needles! Can't wait to find out!
Just so you know, the fade I have on the tach is white from 1-3 rpm and then it fades to blue from 3,000 rpm onward. It doesn't fade outwards from the needles, it just fades as the RPMs increase. You'll love what I'm going to do for ya (if you want me to do the mod, of course). You won't be disappointed!
emelianenkov
New member
Right! Sorry not too cohesive today. Stayed up Late last night working on the new needles and tending to some bad burn wounds Hahahahah
Component part #'s recommendation refresh please
Emelianenkov/Darkie –
Been lurking this thread for months and am really appreciative of the work you posted. They look great and I'm going to pull the trigger on this. Given that you two seem to have the most experience and pay attention to this thread a lot can you please help me with a parts list/current links?
Want to do all in white LED (2004 SR5 std) and am only interested in primary gauges and HVAC control area (not doors, cup holders, no wheel controls, etc.).
I’m hoping you guys can make sure I have the correct list for brightest possible white led lighting - esp. in the LCD area. I have seen a lot of different bulbs discussed. I’m sure I could dig and be 95% right but lots of links are broken/unclear (older ebay etc.) Plus maybe a newer part you’ve heard of or used recently is better than what's currently on this thread discussion.
If one of you guys could put together a suggested parts list or quantities/links assuming 20% overage given my scope with most recent component suggestions I would really appreciate it.
Thanks in advance for any time.
P.S. Darkie, noticed you’re a boarder. Me too (well, I have a 6 month old now so not lately) but I can probably hook you up with lodging if you ever get out here to Vail. … not that we have much snow this year yet.
Emelianenkov/Darkie –
Been lurking this thread for months and am really appreciative of the work you posted. They look great and I'm going to pull the trigger on this. Given that you two seem to have the most experience and pay attention to this thread a lot can you please help me with a parts list/current links?
Want to do all in white LED (2004 SR5 std) and am only interested in primary gauges and HVAC control area (not doors, cup holders, no wheel controls, etc.).
I’m hoping you guys can make sure I have the correct list for brightest possible white led lighting - esp. in the LCD area. I have seen a lot of different bulbs discussed. I’m sure I could dig and be 95% right but lots of links are broken/unclear (older ebay etc.) Plus maybe a newer part you’ve heard of or used recently is better than what's currently on this thread discussion.
If one of you guys could put together a suggested parts list or quantities/links assuming 20% overage given my scope with most recent component suggestions I would really appreciate it.
Thanks in advance for any time.
P.S. Darkie, noticed you’re a boarder. Me too (well, I have a 6 month old now so not lately) but I can probably hook you up with lodging if you ever get out here to Vail. … not that we have much snow this year yet.
emelianenkov
New member
Dingulus, Here is a list of what lights/LEDs you'll need, along with links.
9 of the NEO-3 bulbs (3mm): NeoWedge series LED Lamp Specifications
3 of the NEO-5 bulbs (5mm): NeoWedge series LED Lamp Specifications
About 25-30 of the PLCC-2 LEDs (depending on how many LEDs on your gauges you want to switch): Surface Mount PLCC-2 SMT LEDs
If there is anything else I/we can help you with, don't be afraid to ask!
Alex
